A Comprehensive Guide to Adding Horizontal Error Bars in Excel for Data Visualization

In the sophisticated world of data analysis and data visualization, it is critically important to communicate not only the central tendencies of a dataset but also the inherent uncertainty and dispersion of the measurements. A standard chart typically displays an average or total, which, while useful, often fails to convey the precision or spread of the underlying data points. This gap in visual communication is expertly bridged by the integration of error bars, which provide a powerful graphical summary of data variability and statistical reliability.

When constructing charts where categories or items are listed along the vertical axis—a common layout for comparing performance over time or across different groups—the addition of horizontal error bars becomes essential. These visual elements significantly enhance the chart’s interpretability within Microsoft Excel, allowing viewers to quickly grasp the degree of confidence associated with each data point’s magnitude. This comprehensive guide provides a detailed, step-by-step methodology for successfully integrating and customizing horizontal error bars into your Excel visualizations, ensuring your reports are both accurate and statistically robust.

By following this tutorial, you will gain proficiency in calculating the necessary statistical measures and executing the precise customization required to produce a sophisticated chart. The resulting visualization will clearly represent both the primary average values and their associated variability, transforming a simple chart into a robust analytical tool capable of supporting critical decisions.

We begin this technical journey by focusing on the foundational element of any successful analysis: meticulous data preparation and structuring.

Step 1: Laying the Foundation with Meticulous Data Preparation

The initial and most critical phase in generating accurate visualizations involves rigorously structuring your source data. A well-organized dataset serves as the indispensable foundation for all subsequent calculations and graphical representations. For the purpose of this tutorial, we will utilize a hypothetical yet illustrative scenario: compiling and analyzing the rankings assigned by several sports analysts to a specific basketball player over the course of their first five professional years. This scenario is ideal for demonstrating how variance in expert opinion can be effectively quantified and visually displayed.

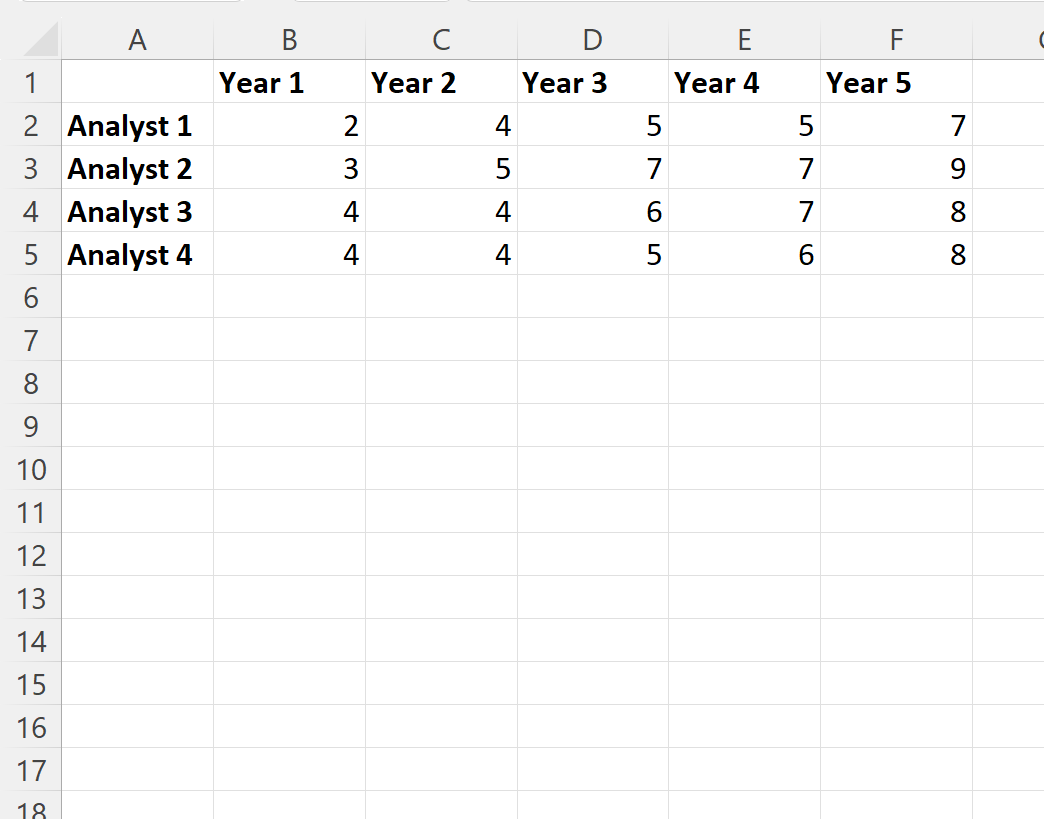

To begin, open a new Excel worksheet and systematically enter the data. Structure the data such that each row represents a distinct sports analyst (or rater), and the columns, starting from the second column, correspond to the sequential years of the player’s career (Year 1, Year 2, etc.). The values contained within the cells represent the numerical ranking assigned by that specific analyst for that particular year. It is paramount to ensure absolute accuracy during this data entry phase, as any discrepancy introduced here will propagate through the entire analysis, potentially skewing statistical results and misrepresenting the final visualization.

After the data input is complete, take a moment to carefully review the entire table for correctness and consistency. This preliminary quality assurance check is a vital step that saves considerable time by preventing the need to troubleshoot inaccurate charts later on. This validated dataset is now perfectly prepared to move into the calculation phase, where we will derive the necessary measures for constructing our chart and its associated error bars.

Step 2: Calculating Essential Statistical Measures

With the raw data meticulously organized, the next logical step is to calculate the two fundamental statistical measures that will define our visualization: the average (or mean) and the standard deviation. The average is crucial as it establishes the measure of central tendency, identifying the typical ranking received by the player in any given year. Conversely, the standard deviation is the measure of dispersion, quantifying the extent of variation or scatter of the analyst ratings around that calculated average. This metric provides essential insight into the level of agreement or disagreement among the analysts.

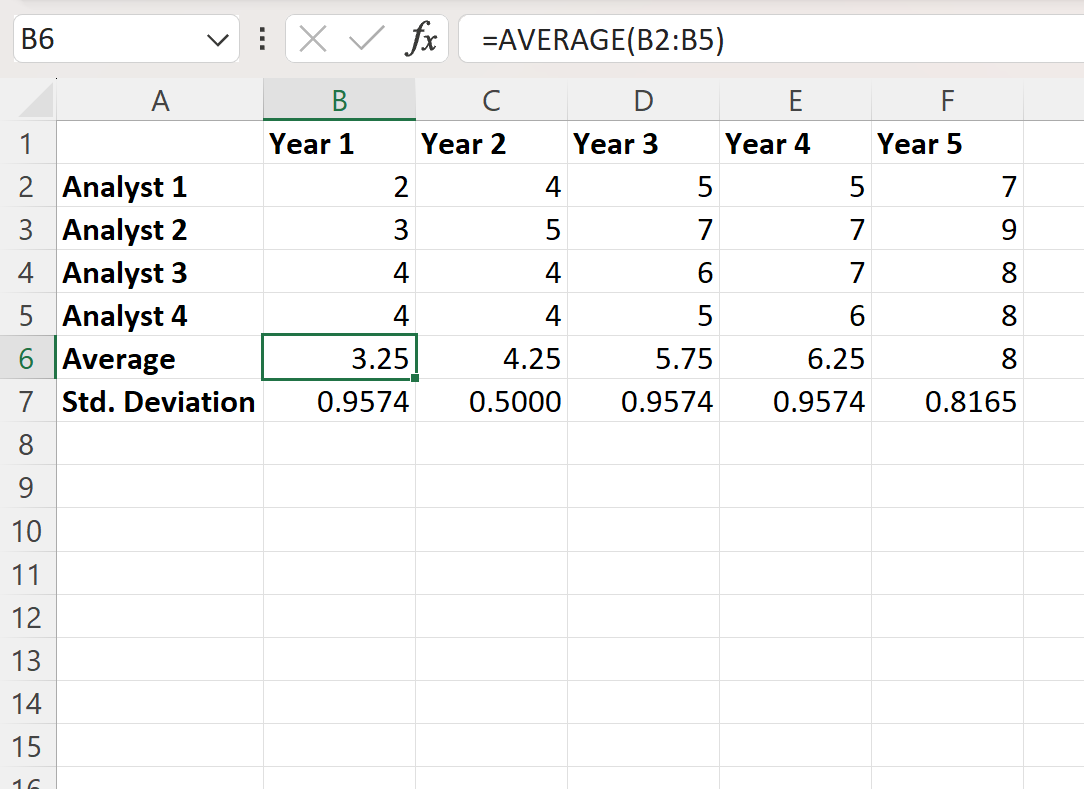

To perform these calculations efficiently, select cell B6 and input the formula for the average ranking for Year 1: =AVERAGE(B2:B5). This powerful Excel function computes the mean value derived from the analyst ratings in the cell range B2 through B5. Immediately following this, in cell B7, enter the formula for the standard deviation: =STDEV(B2:B5). This calculation will reveal the spread of the ratings for the initial year.

The formulas entered for Year 1 should be structured as follows in your sheet:

• B6: =AVERAGE(B2:B5)

• B7: =STDEV(B2:B5)

To expedite the process and apply these formulas across all subsequent years (Years 2 through 5), utilize Excel’s robust autofill capability. First, select both cells B6 and B7 simultaneously. Then, click and drag the small fill handle (the square at the bottom-right corner of the selection) horizontally across to column F. This action intelligently applies the standard deviation function and the average function to the corresponding data columns for Years 2, 3, 4, and 5. This systematic approach ensures that you have a complete and accurate set of average rankings alongside their respective standard deviations, creating a statistically sound basis for the subsequent visualization steps.

Step 3: Initiating Your Horizontal Bar Chart Visualization

Once the average rankings and their corresponding standard deviations are calculated and verified, the next crucial phase is translating this numerical data into a clear visual format. The selection of a horizontal bar chart is particularly effective for this type of categorical data, especially when the categories (in this case, the years) are displayed along the vertical axis. This orientation allows the length of each bar to represent the average ranking, making magnitude comparisons intuitive and highly effective.

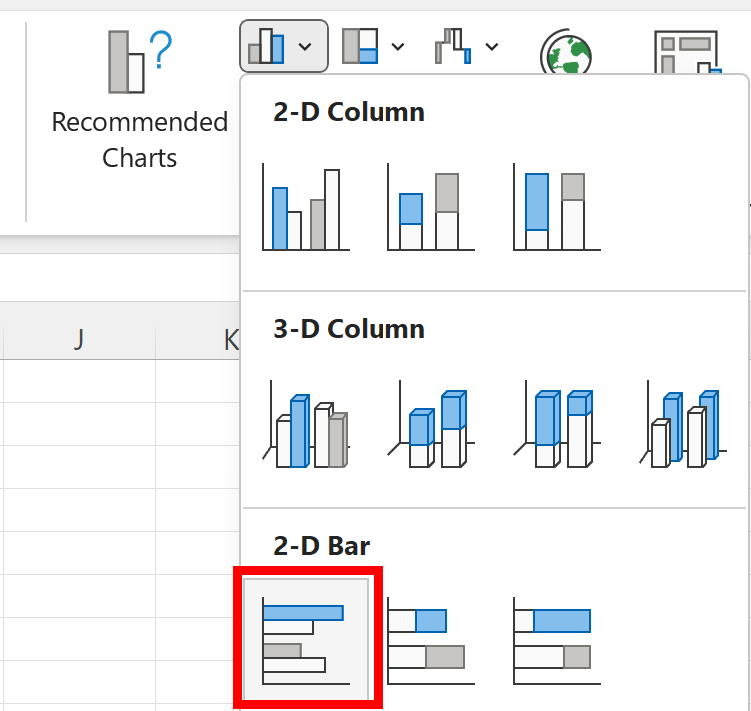

To begin the chart creation process, first select the cell range that contains the calculated averages: B6:F6. This selection encompasses the mean ranking for each of the five years of the player’s career. With the data highlighted, navigate to the Insert tab located on the main Excel ribbon. Within the Charts group, locate and click the icon specifically designated for 2-D Bar charts. Excel will instantly generate a preliminary horizontal bar chart based on the selected average values.

The initial chart provides a solid visual representation of the central tendencies, showing how the average ranking changed from year to year. Each bar’s length directly correlates with its respective average value. However, this foundational visualization is incomplete because it currently lacks the vital information concerning the variability of these rankings. The subsequent steps in this Excel charting interface tutorial will focus entirely on introducing and customizing the horizontal error bars to incorporate this crucial statistical detail.

Step 4: Implementing Default Horizontal Error Bars

Once the basic horizontal bar chart is successfully generated, the next vital step is the introduction of error bars. These graphical markers are fundamental for visually conveying the uncertainty or dispersion associated with each data point plotted on the chart. While these first error bars will utilize Excel’s default settings, they serve as a necessary placeholder that we will immediately modify to reflect our meticulously calculated standard deviations.

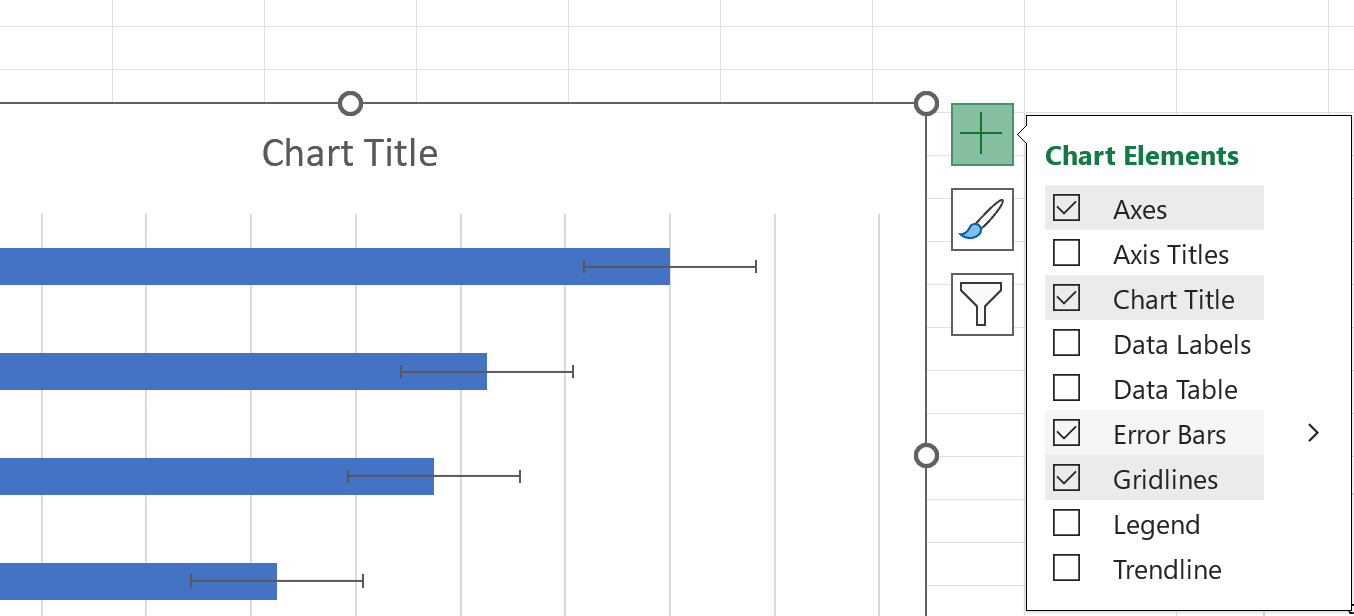

To initiate this process, ensure that your chart object is actively selected by clicking anywhere within its border. This action will activate the contextual chart tools on the ribbon and, more importantly, make the quick-access controls available around the chart area. Look for the small green plus icon, which is officially known as the Chart Elements button, situated in the upper-right corner of the chart area. Clicking this button reveals a comprehensive menu that allows for dynamic customization of various chart components.

From the list presented in the Chart Elements menu, locate and select the checkbox labeled Error Bars. Upon confirming this selection, Excel will automatically append horizontal error bars to the end of each bar in your chart series. It is crucial to understand that these initial error bars are calculated using a generic default method, such as a standard error or a fixed percentage, which is highly unlikely to align with the specific standard deviation values we computed in Step 2. Therefore, the immediate subsequent step must be dedicated to customizing these default elements to accurately reflect our specific statistical findings, ensuring the visualization is scientifically and statistically sound.

Step 5: Customizing Error Bar Values with Standard Deviation

The most critical phase of creating a statistically meaningful visualization is customizing the default error bars to precisely match the standard deviation we calculated for each year’s rankings. This transformation ensures that the error bars in Excel are an accurate graphical representation of the data dispersion, thereby enhancing the overall robustness of the chart.

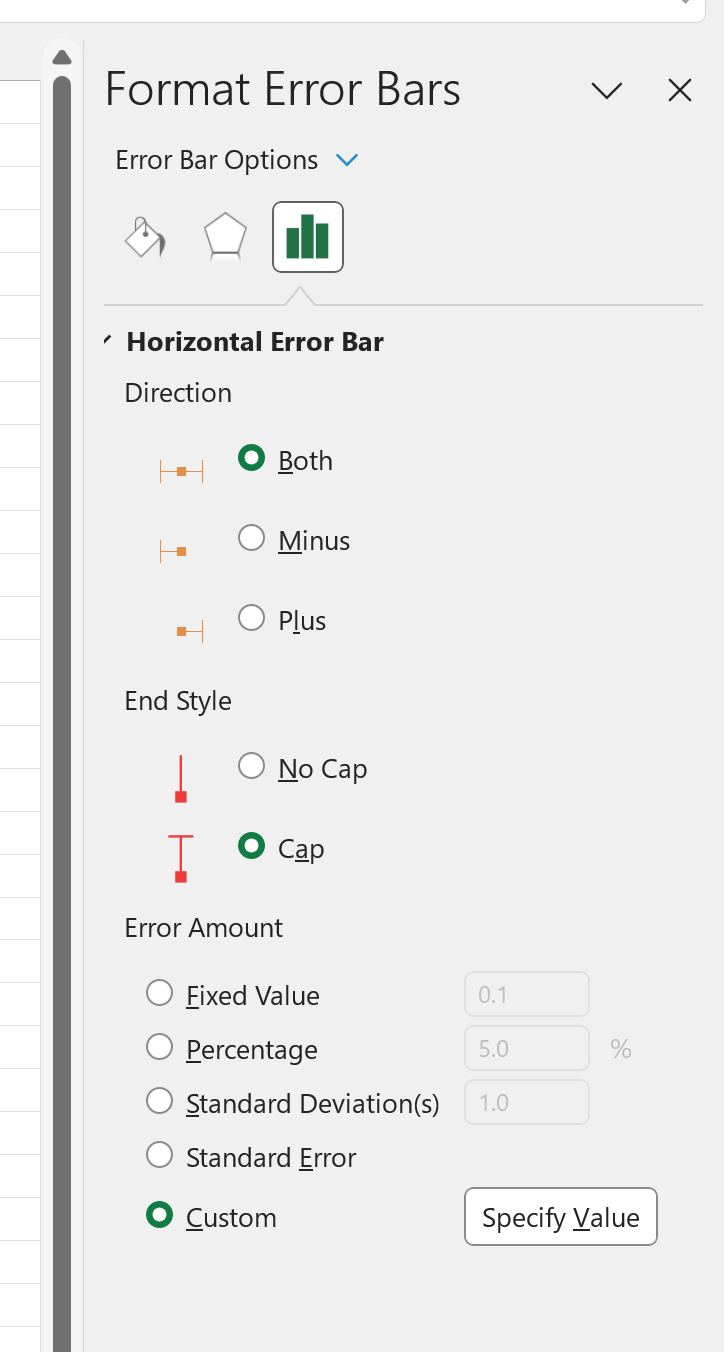

Begin by clicking directly on any of the newly added horizontal error bars within your chart. This action is crucial as it triggers the appearance of the Format Error Bars panel, which typically docks on the right side of your Excel window. Within this panel, navigate to the Error Bar Options section (often symbolized by a bar graph icon). Under the Error Amount category, you will find several options; select the Custom radio button. Immediately after selection, click the button labeled Specify Value to define your specific error ranges.

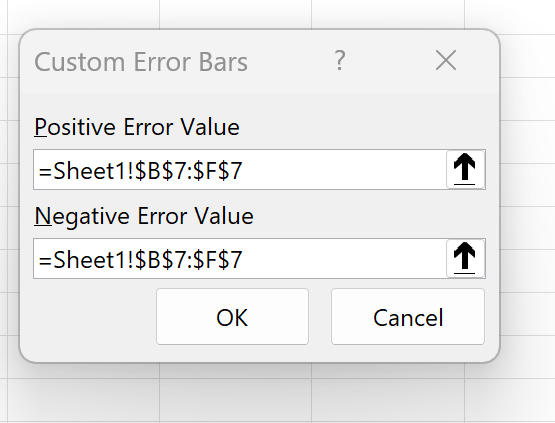

A new input box, titled Custom Error Bars, will prompt you to define the ranges for both the Positive Error Value and the Negative Error Value. It is essential that both these fields reference the row containing our pre-calculated standard deviations (row 7). For both the positive and negative value fields, input the following range: =Sheet1!$B$7:$F$7. The strategic incorporation of absolute cell references (denoted by the dollar signs $) is vital here. This ensures that as Excel processes the error bars for each data point across the different years, it consistently refers back to the fixed row (row 7) containing the appropriate standard deviation for that specific year, preventing formula shifting.

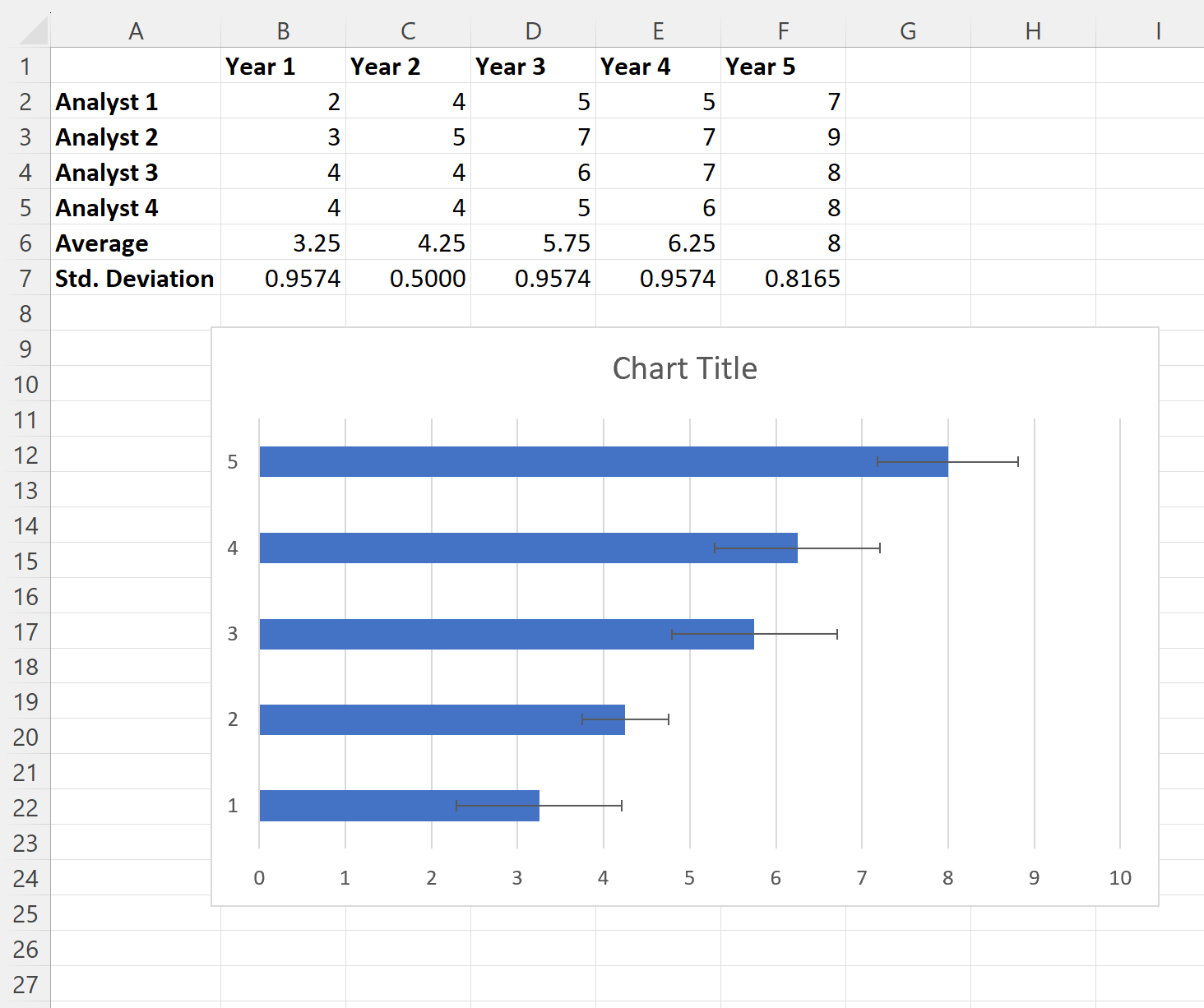

Upon clicking OK, the chart will instantaneously update. The horizontal error bars will now accurately stretch and contract, reflecting the specific standard_deviation of ratings for each respective year. By observing these customized lengths, you gain immediate visual confirmation of the varying consistency of the analyst ratings over the player’s career. This visual differentiation is paramount for drawing valid conclusions from your data.

Step 6: Enhancing Chart Readability and Aesthetics

While the chart now accurately displays the core data and its associated statistical variability, a professional-grade visualization requires more than just accuracy; it demands clarity, aesthetic appeal, and ease of interpretation. This final, optional but highly recommended step focuses on refining the chart’s appearance to maximize its overall impact and readability, transforming the analytical output into effective data visualization.

Begin by introducing a descriptive and unambiguous title, such as “Average Player Rankings with Standard Deviation by Year,” which immediately informs the viewer of the chart’s content. Furthermore, ensure that all axes are appropriately labeled; for a horizontal bar chart, the horizontal axis should detail “Average Ranking,” and the vertical axis should be labeled “Year” or “Player Year.” Thoughtful design choices, such as customizing the color palette of the bars and error bars, can significantly improve visual appeal and help differentiate chart elements.

To reduce visual noise and allow the data to dominate the focus, consider removing unnecessary elements like background gridlines. Additionally, adjustments to the thickness or width of the error bars can often improve visual balance without sacrificing statistical integrity. The overarching goal of these enhancements is to elevate a functional statistical plot into a compelling visual narrative that guides the viewer toward quick and accurate interpretation of the underlying data trends and uncertainties.

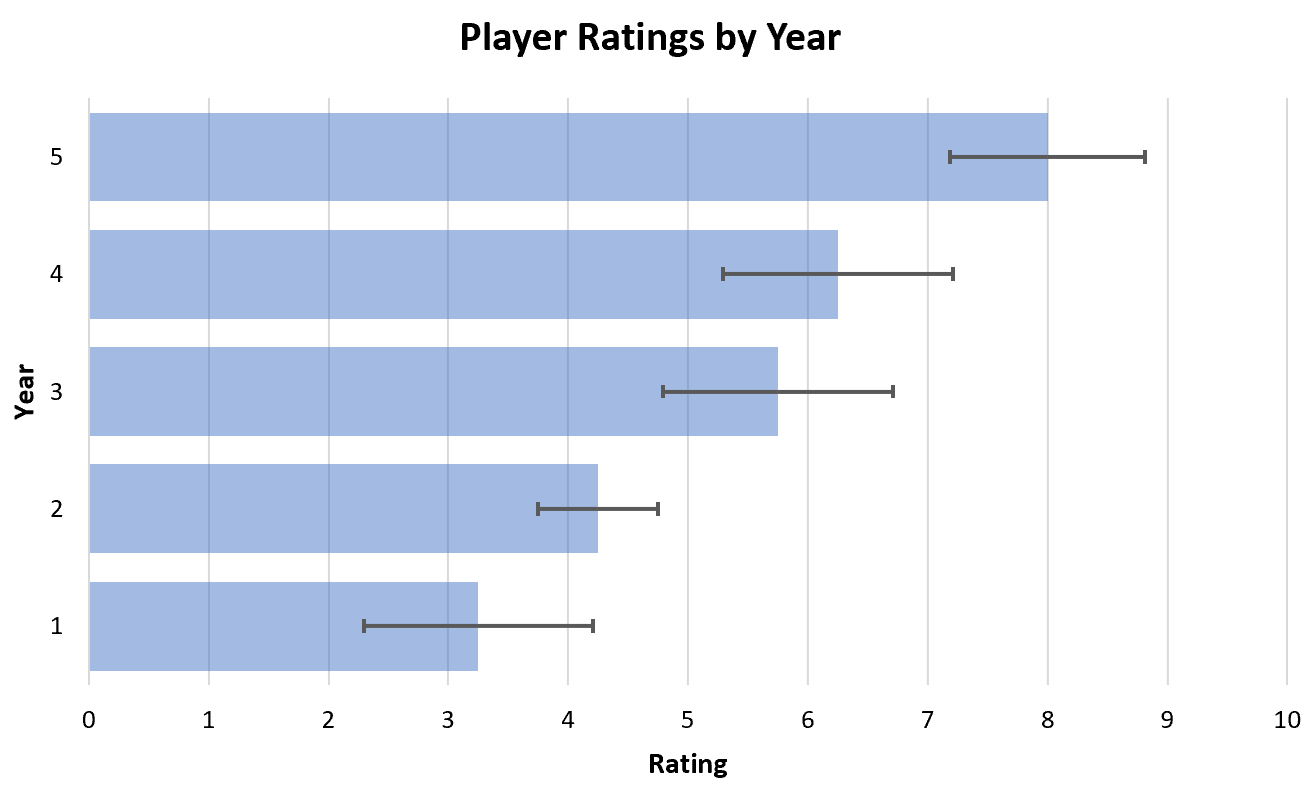

After incorporating these aesthetic and readability improvements, your final chart will be a polished and professional document, ready for presentation, resembling the sophisticated example provided below.

Conclusion: Interpreting and Applying Your Visualized Data

The successful creation of a chart incorporating horizontal error bars moves beyond a simple technical achievement; it represents the acquisition of a powerful tool for nuanced data interpretation. The length and presence of these error bars offer immediate visual insight into the consistency and statistical reliability of your measured averages.

Specifically, a fundamental rule of interpretation applies: the wider the error bar, the greater the standard deviation, which in turn indicates a higher degree of inherent variability or a larger spread among the original data points for that particular category. Conversely, narrow error bars are a strong visual indicator of more consistent data and a tighter consensus around the mean. This allows for a critical assessment of the data’s precision.

To contextualize this with our example of basketball player rankings: imagine if the calculation for Year 1 yielded a standard deviation of 0.9574, while Year 2 had a significantly smaller standard deviation of 0.5. In the final chart, the error bars corresponding to Year 1 would be visually wider than those for Year 2. This immediate visual contrast communicates that the analyst ratings for Year 1 were notably more dispersed and less consistent than those for Year 2. Such detailed insights are indispensable for robust decision-making and comprehensive reporting, enabling observers to understand not just the ‘what’ (the average) but the ‘how confident’ (the variability) of the data.

By meticulously applying the detailed steps outlined in this tutorial, you have mastered the skills necessary to generate accurate horizontal error bars in Excel and, more importantly, to interpret their statistical significance effectively. This capability is absolutely fundamental for professionals seeking to produce clear, informative, and statistically robust data visualizations that move well beyond the limitations of simple averages.
