Adding Custom Error Bars to Excel Charts: A Step-by-Step Guide

In the advanced practice of data visualization and rigorous statistical analysis, the accurate representation of underlying variability and uncertainty is not merely supplementary—it is absolutely paramount for establishing credible and sound conclusions. Within the environment of Microsoft Excel, the primary instrument for achieving this statistical precision is the incorporation of error bars. While Excel offers several convenient, automatic default options for these visualizations, the requirements of expert analysts frequently demand highly customized configurations. These tailored settings are vital for ensuring that the graphical representation precisely reflects specific statistical measures, such as the standard deviation or the standard error, which must be meticulously calculated directly from the raw underlying dataset. This comprehensive, expert-level guide is meticulously structured to walk you through the precise, multi-step process required for integrating custom error bars into your charts, thereby guaranteeing that your visual data presentations are not only accurate but also statistically robust and profoundly informative.

It is critically important to communicate the full extent of data variability, as this knowledge fundamentally determines the overall validity and reliability of any conclusions subsequently drawn from the chart. By leveraging the power of custom error bars, data professionals gain the ability to effectively communicate this statistical nuance, transitioning their reports from generalized graphical representations into highly precise, statistically validated illustrations. This tutorial offers a meticulous, step-by-step example using a relatable, real-world scenario—tracking variable performance rankings—to demonstrate exactly how to construct and calibrate a chart featuring these tailored visualizations in Microsoft Excel. Ultimately, our objective is to transform disparate raw data points into a compelling, statistically sound visual narrative, laying a strong foundation for advanced data interpretation, as successfully depicted in the advanced demonstration chart provided below:

Mastering the integration of custom error bars in Excel significantly enhances the analytical depth and clarity of professional data presentations across all industries. By precisely controlling the visualization of statistical uncertainty, you inherently elevate your reporting standards and ensure that your audience grasps not just the trend, but also the confidence level associated with that trend. To begin this process, we must first focus on meticulously structuring the necessary source data which will serve as the foundation for all subsequent calculations and visualizations.

Preparing Your Data for Analysis

The success of any robust and reliable data visualization is entirely dependent upon having a meticulously organized foundational structure. Before you can fully utilize the powerful charting capabilities inherent in Excel, it is an essential precursor to structure your raw information in a format that is precise, unambiguous, and easily accessible for computational functions. For the comprehensive purposes of this demonstration, we will construct a sample dataset specifically designed to track the performance rankings assigned to a professional basketball player by a panel of four distinct sports analysts over the course of the player’s initial five years in the league. This practical scenario offers an ideal context for applying custom error bars, as it necessitates a precise examination of the consistency and inherent variability of these rankings across five discrete annual periods.

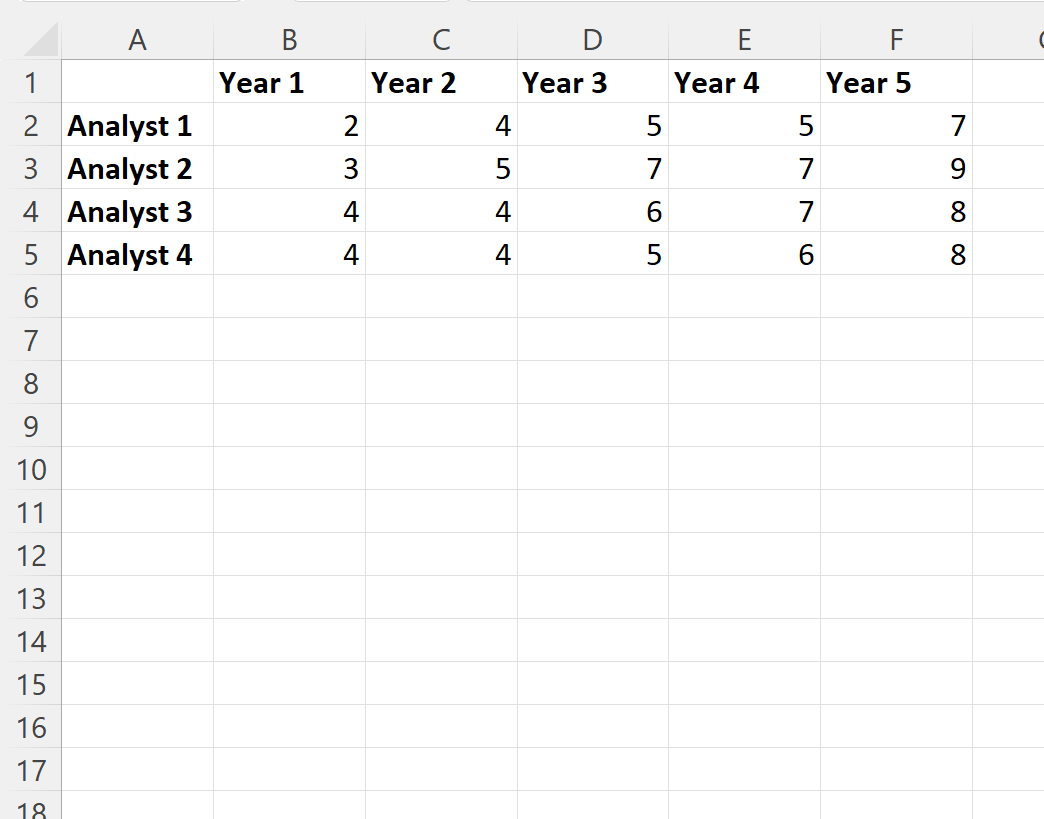

To commence the preparation phase, open a fresh worksheet within Microsoft Excel. The organizational structure of the spreadsheet must be precise: dedicate the first column (Column A) to listing the names or unique identifiers of the various sports analysts involved in the ranking process. The subsequent columns (Columns B through F) will correspond sequentially to each year of the player’s professional career (Year 1 through Year 5, respectively). It is absolutely vital to ensure that every individual data point—which represents a specific analyst’s ranking for a given year—is entered accurately into its respective cell. Maintaining this highly organized structure is crucial not only for facilitating accurate statistical calculations but also for ensuring a seamless and error-free chart creation process later on. The required data layout must precisely mirror the example provided below, guaranteeing correct alignment between the contributing analysts and their specific yearly rankings.

This initial phase demands the utmost careful data entry, which directly serves to minimize potential calculation errors and significantly streamlines all subsequent analytical steps. Before proceeding to the calculation phase, you must meticulously double-check all rankings to confirm their accuracy and placement. It must be strongly noted that even minor discrepancies in the source data can critically impact the statistical measures derived later on, such as the mean and standard deviation. This impact, in turn, directly compromises the intended precision and ultimate validity of the custom error bars, which are intended to visually represent the true data spread.

Calculating Key Statistical Measures: Average and Standard Deviation

Having successfully entered and verified the raw data, the next critical phase involves calculating the essential measures of central tendency and variability for each annual period independently. These statistical metrics are truly indispensable, as they form the precise mathematical backbone required to accurately define and calibrate our custom error bars. Specifically, the average, commonly understood as the arithmetic mean, will serve as the central ranking for each year, providing a singular, representative value upon which the chart marker will sit. Simultaneously, the standard deviation will precisely quantify the spread, or dispersion, of the individual analyst rankings relative to that central average, thereby furnishing a clear, quantitative indicator of the level of consensus—or, conversely, disagreement—among the panel of analysts.

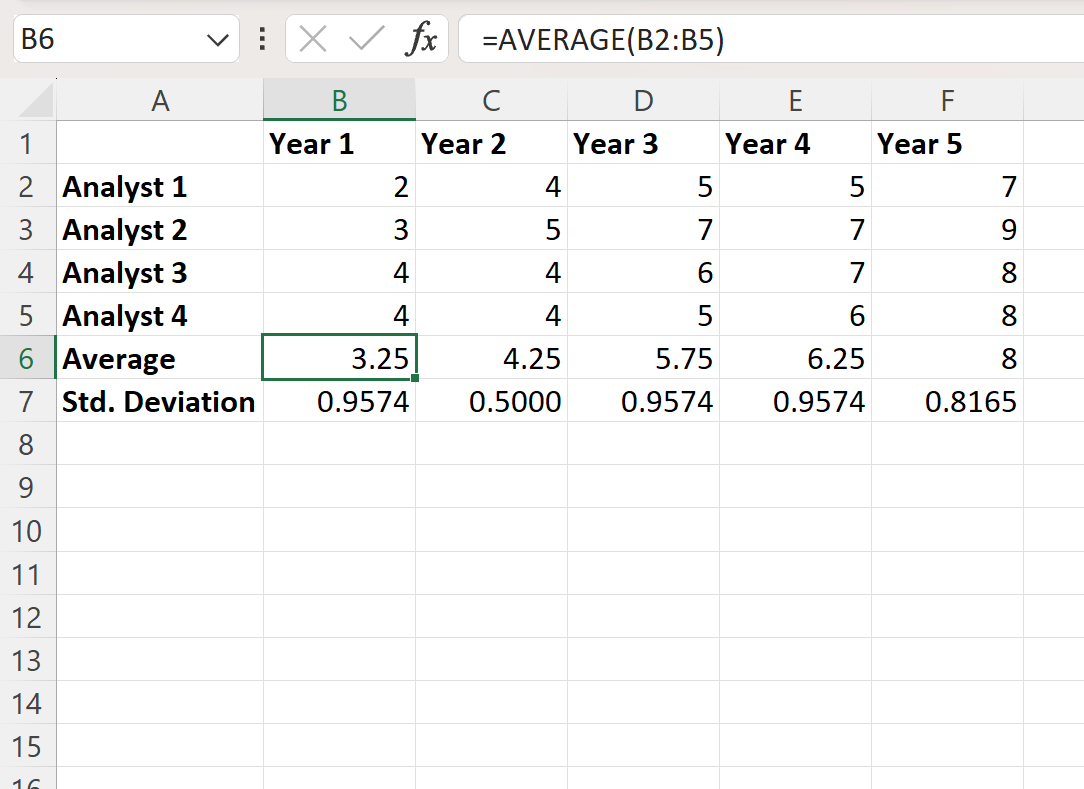

To efficiently execute these necessary calculations, we will rely upon Excel’s robust, built-in statistical functions. Begin by navigating to cell B6, which is located immediately beneath the rankings for Year 1. In this cell, input the function =AVERAGE(B2:B5). This formula instantly calculates the arithmetic mean of the values spanning cells B2 through B5, which represent the collective analyst rankings for the first year. Following this, move directly to cell B7 and enter the corresponding formula for variability: =STDEV(B2:B5). The `STDEV` function specifically computes the standard deviation for the exact same set of rankings, furnishing us with the precise measure of their dispersion around the mean.

• Cell B6 (Average Ranking): =AVERAGE(B2:B5)
• Cell B7 (Standard Deviation): =STDEV(B2:B5)

After successfully inputting these formulas for Year 1, we can leverage an exceptionally efficient feature in Excel—the fill handle—to rapidly extend these calculations across all remaining annual periods. To execute this technique, select both calculated cells, B6 and B7, simultaneously. Position your cursor precisely over the small green square, known as the fill handle, located at the bottom-right corner of this two-cell selection. Click and drag this handle horizontally across the sheet, extending the calculation range to encompass the data for Year 2 through Year 5 (Columns C through F). Excel’s integrated relative referencing capability automatically adjusts the cell ranges for each new column, enabling the swift and accurate computation of the average and standard deviation for every corresponding year in your dataset. This time-saving technique is essential for ensuring computational consistency and high accuracy across all statistical measures before proceeding to the visualization stage.

Visualizing Averages with a Scatter Plot

Once the average rankings for each year have been successfully calculated and verified, the logical next step in our analytical process is to visually represent this trend over time. A scatter plot is undeniably the most appropriate chart type for this specific data structure, as it excels at illustrating the progression of the average player ranking across a sequenced variable like time (Year 1 to Year 5). This initial visualization step is absolutely critical; it effectively establishes the primary data points that will form the canvas. Upon this canvas, we will subsequently impose our custom error bars, thereby providing an immediate and clear visual representation of both the player’s overall performance trajectory and the associated central tendency, as judged by the panel of analysts.

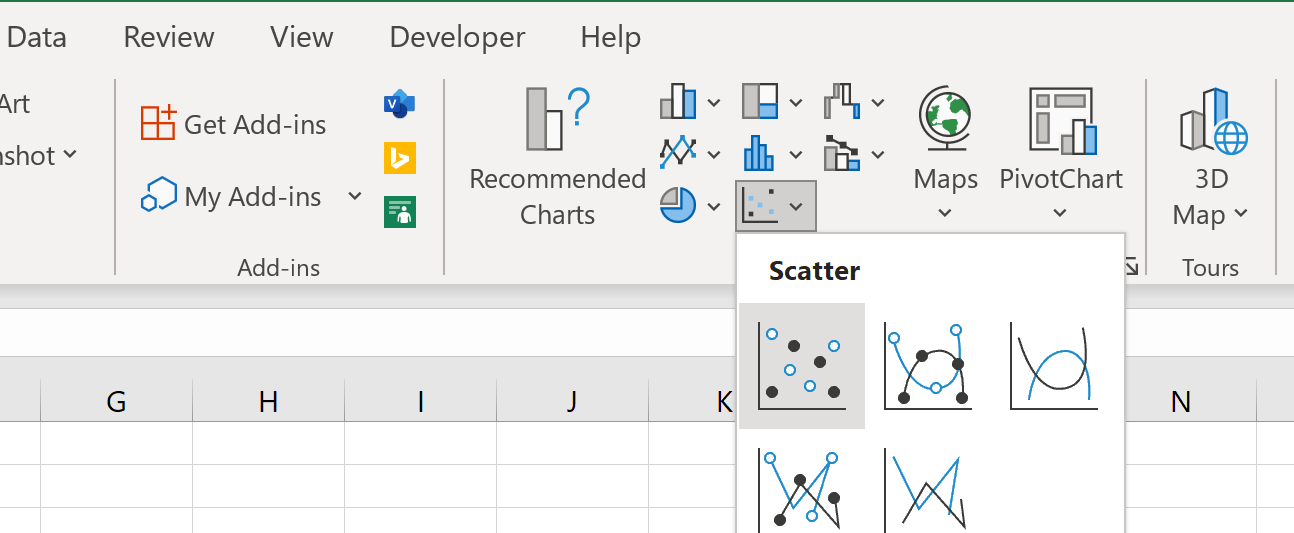

To initiate the creation of the scatter plot, you must first highlight the continuous range of cells that contains only the calculated average rankings—specifically, the range B6:F6 in our current example. This selection explicitly defines the primary data series that Excel will use for plotting the markers. With the data precisely selected, direct your attention to the top ribbon in Excel and click the Insert tab. Proceed to the Charts group, where numerous chart type icons are displayed. Locate and select the icon designated Scatter (often represented by several dots). From the resulting dropdown menu, it is highly recommended to choose the basic “Scatter” chart type, which visually represents each data point using only distinct markers. This choice ensures maximum clarity and avoids visual distraction before the critical error bars are added.

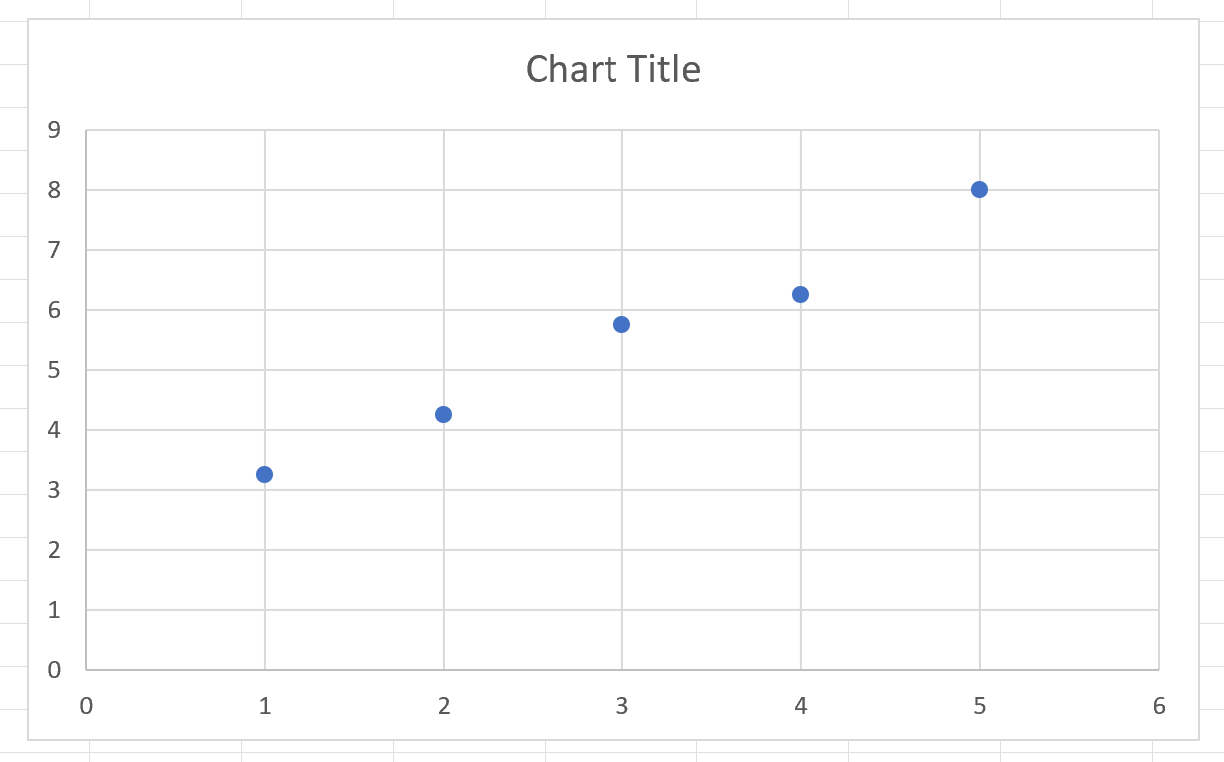

Immediately upon selection, Excel will automatically generate the foundational scatter plot. This chart graphically illustrates the average player ranking trajectory across the five years, with every marker correlating precisely to the calculated average ranking for that specific year. This initial plot serves to provide a clear, concise overview of the central tendency of the rankings over the duration of the player’s career. Crucially, this visualization sets the immediate stage for the subsequent addition of our custom error bars, which will then dramatically reveal the underlying statistical variability and disagreement among the analyst opinions.

Initializing Error Bars on Your Chart

With the basic scatter plot successfully established, the next critical step in transforming this visualization into a statistically rigorous tool is the introduction of error bars. These visual indicators are absolutely essential for communicating the statistical uncertainty or the degree of spread associated with each individual plotted data point. Excel facilitates the addition of these components through a remarkably straightforward method, initially applying default vertical and horizontal error bars to every data point on the chart. This crucial initialization serves merely as a temporary starting point; following this step, we will proceed to customize these bars rigorously to reflect the precise standard deviation values we calculated and stored in Row 7 of our data table.

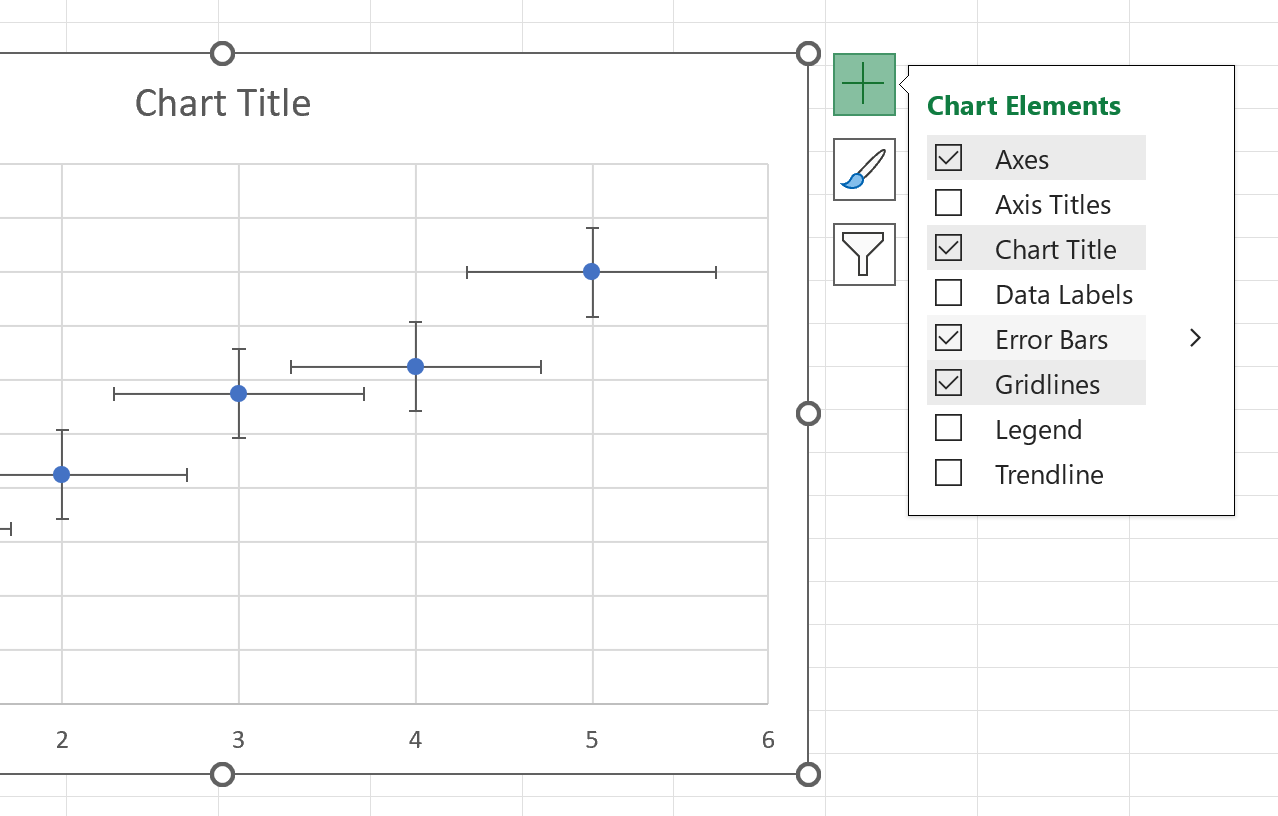

To begin the process, click once anywhere on the perimeter of the newly generated chart to ensure it is selected. This action immediately reveals the Chart Elements button, which is easily recognizable as a small green plus sign icon positioned in the upper-right corner of the chart area. Clicking this button expands a comprehensive menu dedicated to various chart customization options. Within this expanded menu, you must locate the option labeled Error Bars and place a checkmark in the corresponding box. Upon executing this command, Excel will instantaneously incorporate both vertical and horizontal error bars onto every data point in your scatter plot, providing an initial, though generic, visual indication of variability.

For our specific application, where the x-axis denotes distinct, sequential years (which is treated as a categorical variable) rather than a continuous measurement subject to variability, the default horizontal error bars lack any statistical meaning and unnecessarily introduce visual clutter. Therefore, to optimize clarity and maintain a sharp focus solely on the variability of the analyst rankings (the y-axis measure), these horizontal elements must be removed. To accomplish this, simply click once on any single horizontal error bar displayed on the chart. This action selects all horizontal error bars simultaneously. Once selected, press the Delete key on your keyboard. This results in the complete removal of the horizontal indicators, leaving only the vertical error bars, which are the elements we will now meticulously customize using our calculated statistical values.

Customizing Vertical Error Bars with Standard Deviation Values

This phase represents the core methodological step of our entire tutorial. Here, we transition the generic vertical error bars into statistically precise representations derived directly from the standard deviation values calculated and stored in Row 7. This fundamental customization is absolutely necessary to ensure that our chart accurately and reliably reflects the true statistical spread of the analyst rankings corresponding to each specific year. By linking the visualization directly to the calculated variability, we gain a significantly more informed and trustworthy understanding of the overall reliability and consistency of the source data being presented.

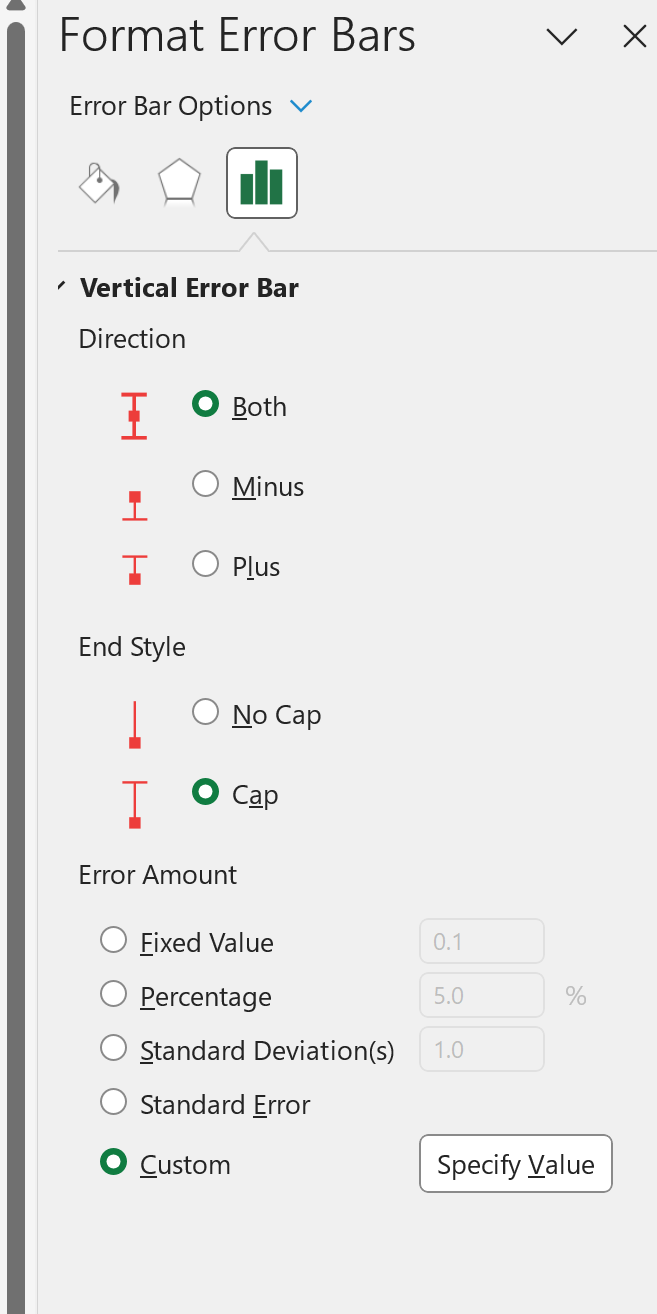

To commence the customization process, click precisely on any one of the remaining vertical error bars displayed on your chart. This selection automatically triggers the opening of the Format Error Bars task pane, which appears docked on the right side of the Excel window. This pane offers comprehensive controls for both modifying the aesthetic appearance and setting the statistical behavior of the error bars. Navigate specifically to the Error Bar Options section (typically indicated by a bar chart icon). Among the various presets for defining error amounts, select the Custom option located near the bottom of the pane. Once Custom is chosen, a critical new button labeled Specify Value will become active. Click this button to launch the dedicated “Custom Error Bars” dialog box, where we will input our specific data ranges.

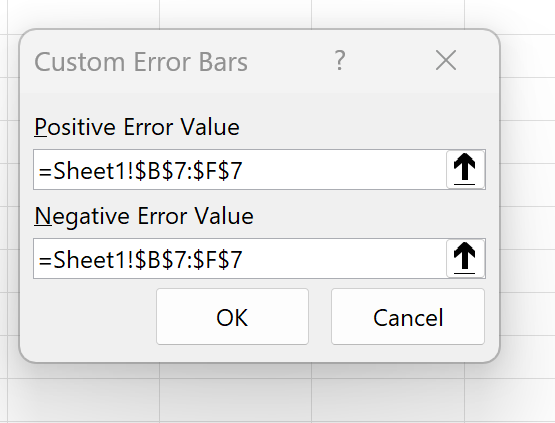

Within the “Custom Error Bars” dialog box, the system requires two distinct inputs: the Positive Error Value (defining the upward reach from the mean) and the Negative Error Value (defining the downward reach from the mean). Critically, for both of these input fields, we must specify the exact range of cells containing our calculated standard deviation values. Specifically, you should manually enter the reference =Sheet1!$B$7:$F$7 into both the Positive Error Value box and the Negative Error Value box. The use of the `Sheet1!` prefix explicitly designates the worksheet where the underlying data resides, while the absolute reference range `$B$7:$F$7` ensures that Excel correctly references the standard deviation values for every single year across all data points. Utilizing absolute references (denoted by the dollar signs) is paramount, as it prevents Excel from incorrectly shifting the reference range when applying the bars to multiple data points. This precise setup directs Excel to accurately calibrate the upper and lower extent of each error bar based directly on the corresponding statistical measure from your calculation table.

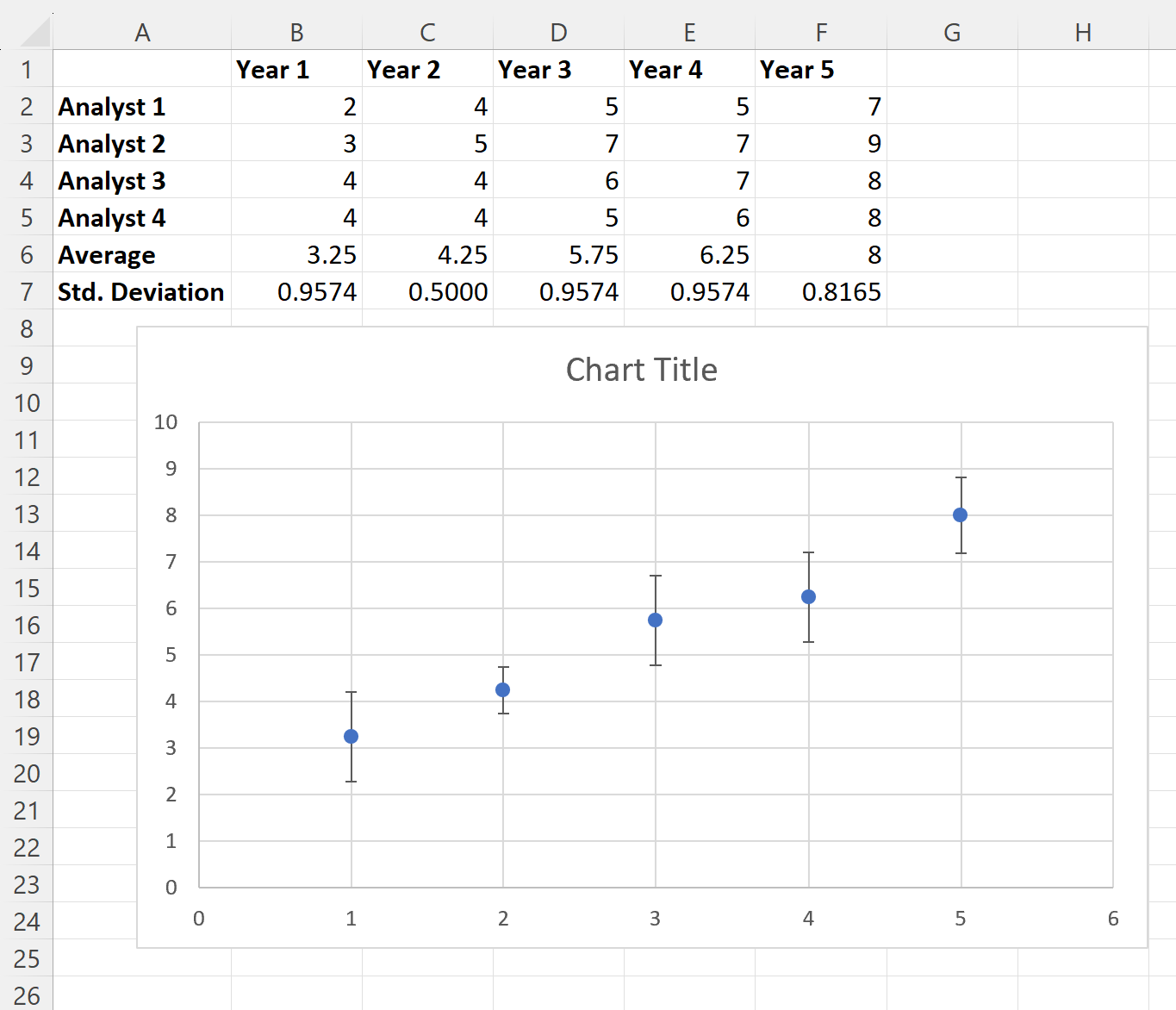

Once you have entered the range for both positive and negative error values, click OK. You will immediately observe that the vertical error bars on your chart have dynamically updated to reflect the variability of the rating dataset for each respective year. The resultant length of each error bar is now directly proportional to the calculated standard deviation metric for that year’s data point. A longer error bar visually communicates significantly greater variability or dispersion within the analyst ratings, strongly suggesting a lack of consensus or higher uncertainty. Conversely, a shorter error bar denotes highly consistent ratings and stronger agreement among the analyst panel. For a tangible example, if the standard deviation of ratings in Year 1 is 0.9574, but only 0.5 in Year 2, the vertical error bars for Year 1 will be nearly twice as long as those for Year 2, thereby providing a powerful and immediate visual representation of this statistical difference in variability. This precise and customized representation is invaluable for correctly interpreting the significance, reliability, and consistency of the summarized data points.

Enhancing Chart Readability and Presentation (Optional)

Although the core statistical functionality provided by custom error bars is now fully implemented and accurate, the final, crucial step involves refining the chart’s aesthetics. This process can dramatically improve its readability, overall impact, and professional polish, ensuring that the statistical rigor is matched by clear visual communication. This phase, while technically optional, is highly recommended and involves a series of thoughtful customizations that elevate a merely functional chart into a compelling and immediately understandable data visualization. These crucial enhancements are designed to ensure that your audience can swiftly and accurately grasp the fundamental insights presented by the data without encountering distractions caused by unnecessary visual clutter or poor design choices.

Several key aesthetic adjustments should be carefully considered. Start by implementing a clear, descriptive title that accurately summarizes the chart’s content, such as “Average Player Rankings with Standard Deviation Error Bars.” Furthermore, customizing the colors and size of both the data points and the error bars themselves can ensure the chart aligns seamlessly with your overarching presentation theme or significantly improve contrast for superior visibility, especially for printed reports. A common best practice in professional data reporting is the removal of default gridlines; this action typically results in a much cleaner, less cluttered background, which allows the central data points and the crucial error bars to stand out more prominently against the white space. Additionally, fine-tuning the line thickness and cap style of the error bars can enhance their visual impact and interpretive value without allowing them to visually overpower the primary data series.

Most crucially for interpretability, ensure the addition of appropriate axis labels. For our example, this means labeling the x-axis as “Year” and the y-axis as “Analyst Ranking.” These labels provide essential, unambiguous context, guaranteeing that any viewer can immediately ascertain the meaning and scale of each axis and understand the true meaning of the plotted average values. By meticulously applying these optional, yet high-impact, customizations, you effectively elevate your output from a raw collection of calculated data points into a sophisticated and highly effective communication tool. The final, polished plot, having incorporated these thoughtful design elements focused on clarity and analytical depth, should resemble the professional standard illustrated in the following example:
