Creating Horizontal Box Plots in Excel: A Step-by-Step Tutorial

This comprehensive tutorial is meticulously designed to guide you through the process of constructing a visually precise horizontal box plot within Excel. While contemporary versions of Excel offer a dedicated box and whisker chart feature, the manual method detailed here provides a versatile and powerful workaround. This technique is indispensable for users operating with legacy software or for analysts who demand granular, exacting control over the chart’s aesthetic presentation and underlying statistical representation. By diligently following these detailed, step-by-step instructions, you will gain the expertise required to construct a plot that effectively visualizes the distribution of a complex dataset, resulting in a visualization similar to the professional example presented below.

Let us now commence this insightful journey into advanced data visualization, leveraging foundational Excel techniques to produce sophisticated statistical graphics.

Preparing and Structuring Your Dataset

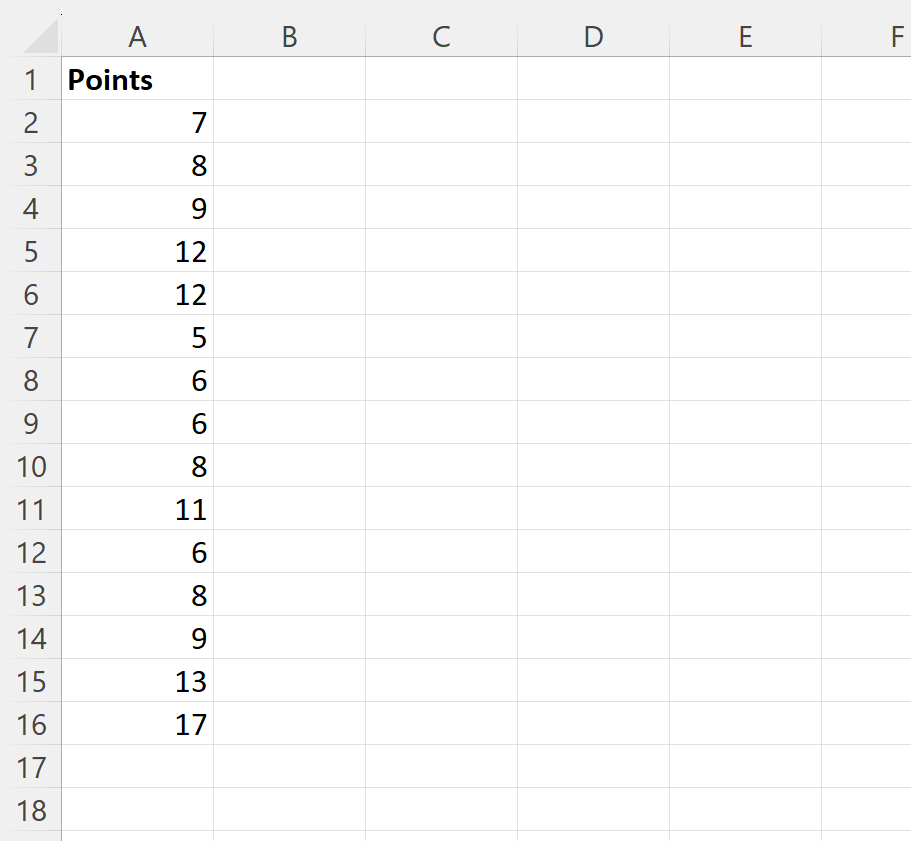

The first and most critical step in generating any accurate statistical visualization is the proper acquisition and organization of your raw data. For the purposes of clarity and demonstration in this tutorial, we will utilize a straightforward, illustrative example: the points scored by 15 distinct basketball players during a single competitive game. It is paramount to emphasize that accurate data entry forms the bedrock of reliable analysis, as the validity of your subsequent calculations and the fidelity of the chart representation are entirely dependent upon the quality of the initial input.

To simplify the complex statistical calculations that follow, ensure that your raw dataset is entered into a single, contiguous column. Organizing the data in this streamlined vertical fashion significantly simplifies the application of critical statistical functions, such as QUARTILE.INC and MIN, during the subsequent calculation process. Careful preparation not only helps mitigate the risk of calculation errors but also establishes a solid analytical foundation. It is highly recommended that you take a moment at this preliminary stage to thoroughly review your data for any inconsistencies, entry errors, or missing values before proceeding to the analytical phase.

Understanding the Five-Number Summary for Box Plots

Before proceeding to the technical steps of chart manipulation, it is essential to establish a robust theoretical understanding of the box plot itself. A box plot, frequently referred to as a box-and-whisker plot, is a standardized graphical method designed to display the five-number summary of a numerical dataset. This powerful summary provides a highly effective statistical overview, concisely illustrating the central tendency, overall variability, and potential skewness inherent in your data.

The five critical statistical values that dictate the dimensions and positional orientation of a box plot are defined as follows:

• Minimum: This value represents the smallest observation within the dataset, typically excluding any identified statistical outliers.
• First Quartile (Q1): Also known as the 25th percentile, Q1 is calculated as the median of the lower half of the dataset. It fundamentally signifies the point below which 25% of all data observations fall.
• Median: This central measure represents the 50th percentile. When the data is arranged sequentially, the median is the single point that divides the entire dataset into two perfectly equal halves, thereby offering a robust and stable measure of central tendency.
• Third Quartile (Q3): Designated as the 75th percentile, Q3 is the median of the upper half of the dataset. This value indicates that 75% of all recorded data points fall below this specific score.
• Maximum: This represents the largest recorded value in the dataset, generally excluding any data points that have been formally identified as outliers.

A thorough grasp of these components is vital because they directly inform the specific calculations required to accurately construct the chart structure. Visually, the central box spans the interquartile range (IQR, extending from Q1 to Q3), with the dividing line inside marking the median. The whiskers then extend outwardly from the box to the minimum and maximum values, effectively illustrating the data’s overall spread and range.

Calculating Key Segment Lengths for Chart Construction

To successfully construct our horizontal box plot utilizing the foundational structure of a stacked bar chart, we must meticulously calculate specific values derived from the five-number summary. Crucially, these calculations must not merely represent the summary statistics themselves, but rather the lengths of the individual segments that will compose the box and whiskers. This ingenious approach is what permits us to repurpose a standard bar chart type into the required statistical visualization format.

The accompanying screenshot illustrates the ideal organization and execution of these essential calculations within your Excel worksheet. You should first employ functions such as MIN, QUARTILE.INC (or QUARTILE, depending on your Excel version), and MAX to precisely determine the foundational five-number summary values. Following this, the critical step is calculating the differences between these values to accurately represent the segment lengths required for the chart. For example, the length of the lower whisker (which will later be hidden) is calculated as the difference between Q1 and the Minimum, the length of the first segment of the visible box is calculated as Median - Q1, and the length of the upper whisker is calculated as Maximum - Q3.

It is absolutely imperative that these calculated segment lengths—which represent the Lower Box, Upper Box, and Upper Whisker—are placed in a contiguous range. In our specific example, this precise data range will be selected for the initial chart creation. Pay meticulous attention to the formulas used for each segment, as the precision of these calculated lengths directly dictates the accuracy and fidelity of your final visual representation of the data’s distribution.

Initiating the Chart: Building a Stacked Bar Foundation

With the required segment lengths now calculated with precision, the next critical step involves implementing the clever Excel workaround: constructing a stacked bar chart to serve as the preliminary, horizontal structure for our box plot. This foundational step leverages Excel’s native charting capabilities to generate the horizontal segments that will subsequently be formatted and transformed into the recognizable box and whiskers structure.

To commence, highlight the cell range containing the calculated segment values that represent the visible components of your plot. In this specific tutorial, we select the range D7:D9, which corresponds to the lower box segment (Q1 to Median), the upper box segment (Median to Q3), and the length segment between Q3 and the Maximum. Next, navigate to the Insert tab located on the Excel ribbon interface. Within the Charts group, locate and click the icon designated for Stacked Bar charts. This action will instantaneously initiate the creation of a basic horizontal stacked bar chart.

This initial visualization will manifest as a series of colored bars. It is crucial to understand that this serves only as a starting point; the chart is not yet recognizable as a box plot. The following steps are entirely dedicated to performing significant modifications—specifically adjusting the fill properties and applying custom Error Bars—to refine its appearance into the required, statistically accurate visualization.

Upon selecting the Stacked Bar option, Excel generates a preliminary chart that visibly shows the multiple calculated segments stacked horizontally. This visual confirmation is essential, as it verifies that your calculated data has been correctly interpreted as a series of sequential components, thereby preparing the structure for the next, transformative phase.

After confirming your data selections and ensuring the correct series are plotted, the chart will clearly reflect the stacked bar format. It is vital to confirm that the horizontal bars correspond precisely to the segment data you intended to plot, as this foundational structure forms the core skeletal framework of our finalized box plot visualization.

Transforming Bars into the Box and Whiskers Structure

This phase involves a critical sequence of precise formatting steps required to convert the existing stacked bar chart into the standard, recognizable form of a horizontal box plot. We will manipulate the visual properties of the chart elements, primarily by adjusting fill and outline settings, and most importantly, we will introduce custom Error Bars to accurately represent the whiskers.

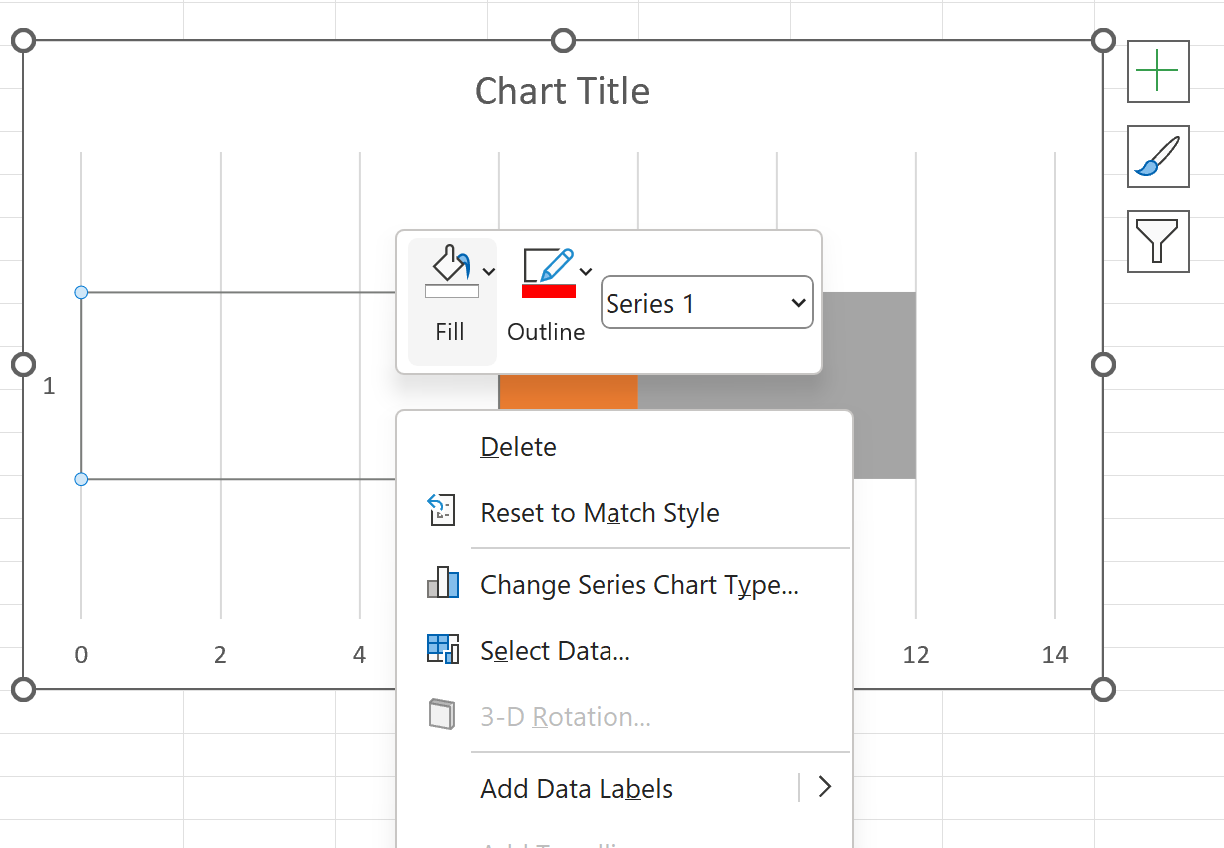

First, right-click directly on the initial blue bar segment in your chart. This segment currently corresponds to the hidden space extending from the Minimum value up to the First Quartile (Q1). From the context menu that appears, navigate to the Fill icon and select No Fill. Subsequently, access the Outline option and also select No Outline. Making this initial segment entirely transparent is essential, as it effectively hides the base of the bar chart, allowing the subsequent visible segments (the box) to appear correctly positioned relative to the axis zero point.

After successfully hiding the initial segment, select this now invisible bar again. Click the small green plus sign (Chart Elements) situated in the top right corner of your chart boundary. Hover over Error Bars, click the adjacent dropdown arrow, and then select More Options. This action will immediately launch the specialized Format Error Bars panel, which provides the necessary customization features to define our whisker lengths statistically.

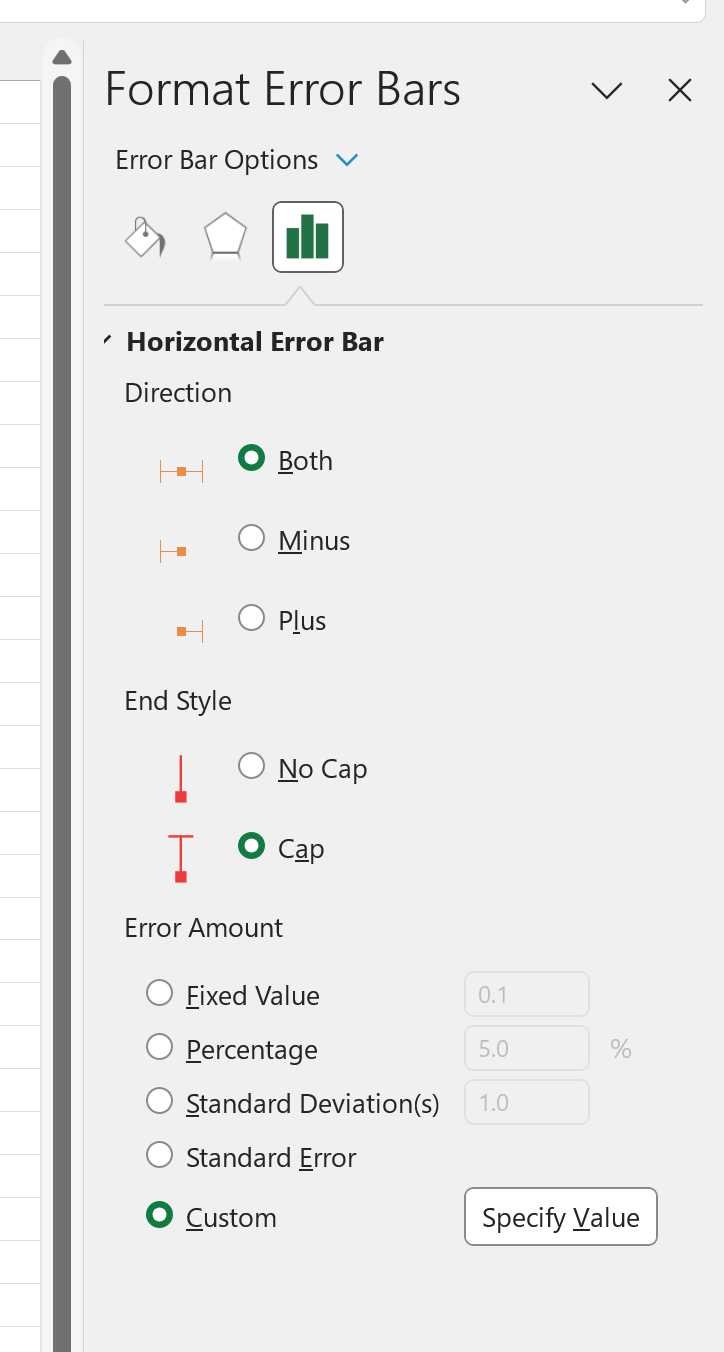

Within the Format Error Bars panel, navigate to the Error Amount section, select the Custom option, and then click the Specify Value button. This feature is crucial because it allows us to precisely define the statistical length of our whiskers using our previously calculated segment lengths.

In the subsequent dialog box, you must accurately define the lengths for the lower whisker. For the Positive Error Value field, ensure you enter 0. This setting prevents any error bar from extending to the right from this specific segment. For the Negative Error Value box, select the cell containing your calculated value for the lower whisker (e.g., D10, which represents Q1 minus the Minimum). Click OK to finalize these settings. This step successfully creates the left-hand whisker, correctly extending from Q1 back to the minimum data point.

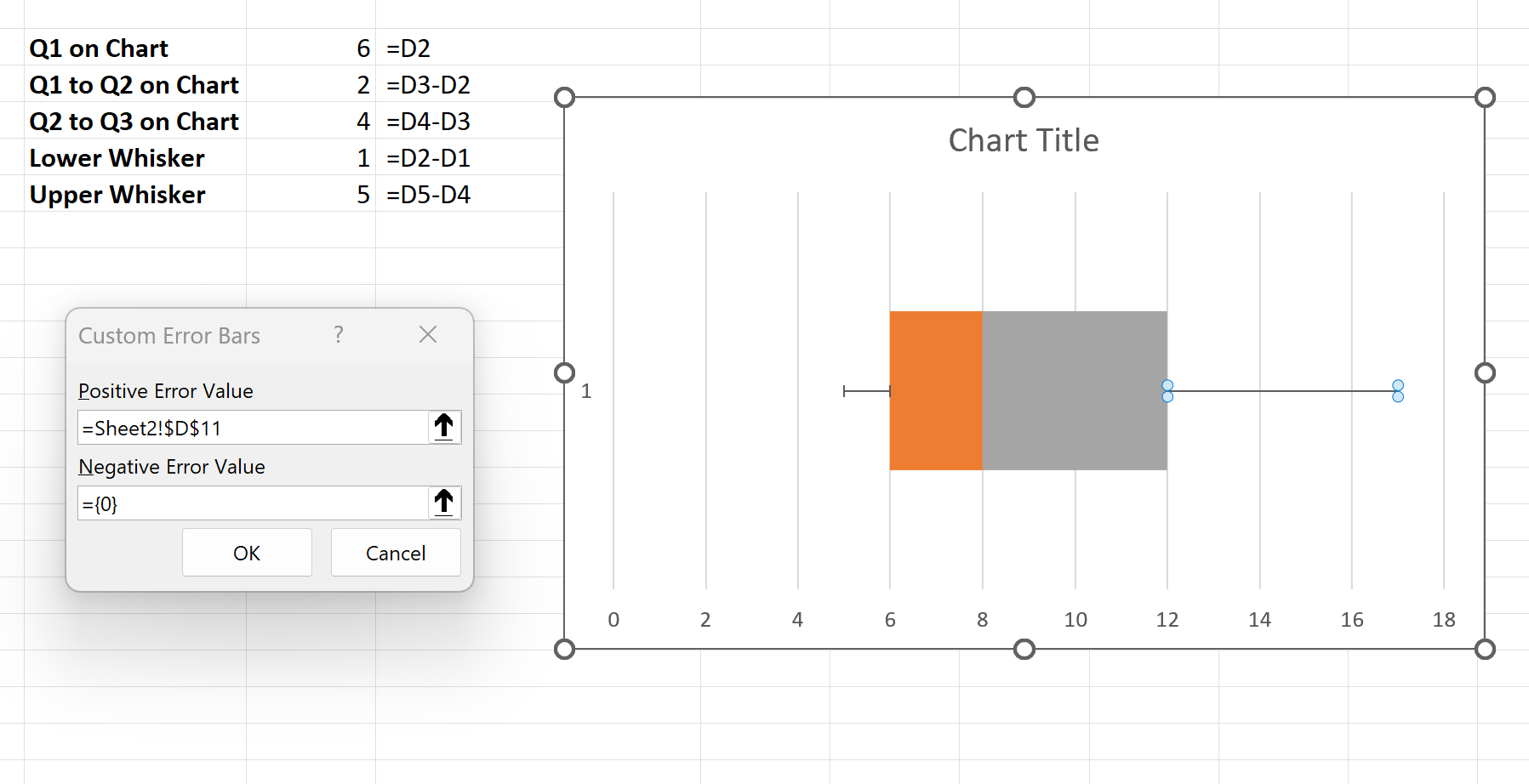

Next, repeat the entire custom error bar process, this time selecting the gray bar segment, which represents the upper half of your box (from the Median to Q3). For this segment, enter 0 for the Negative Error Value. For the Positive Error Value, select the cell corresponding to your calculated upper whisker length (e.g., D11, representing the Maximum minus Q3). This crucial step finalizes the creation of the right-hand whisker.

Finally, to achieve the complete visual transformation, right-click on the orange bar segment (the lower half of the box) and choose No Fill for its interior, but select a distinct color, such as Black, for its Outline. Repeat this exact formatting process for the gray bar segment (the upper half of the box). These steps ensure that only the clear outlines of the central box and the whiskers are visible, effectively achieving the classic box plot aesthetic and making the central dividing line (the median boundary) highly visible for interpretation.

Upon applying all these detailed formatting changes, your chart will now distinctly and accurately resemble a horizontal box plot, complete with its characteristic box, median marker, and two extending whiskers. This finished visual provides an immediate, powerful, and statistically accurate snapshot of your data’s key properties.

Interpreting Your Completed Horizontal Box Plot

Once your horizontal box plot is finalized, it becomes an invaluable analytical tool for rapidly understanding the distribution of your dataset. Each structural element of the plot directly correlates to a specific component of the five-number summary, offering immediate insights into the data’s spread, central tendency, and any potential tendencies toward skewness or symmetry.

From the completed box plot visualization, we can readily discern the following key statistical measures for our basketball points dataset:

• The termination point of the left whisker indicates the minimum value in the set, which in this case is 5.
• The left edge of the central box marks the First Quartile (Q1), positioned at 6. This boundary confirms that 25% of the observed data points fall below this score.
• The vertical line segment drawn inside the box represents the median value, found at 8. This central measure of tendency is notably robust, as it remains unaffected by extreme outliers.
• The right edge of the box signifies the Third Quartile (Q3), located at 12. The length of the box itself represents the Interquartile Range (IQR), which is a key measure of statistical dispersion.
• The right whisker extends horizontally to the maximum value, which is observed at 17.

By swiftly analyzing the relative lengths of the whiskers and the segments within the box, an analyst can quickly infer the symmetry or asymmetry (skewness) of the data distribution. This rapid visual assessment capability makes box plots an indispensable tool, particularly when conducting exploratory data analysis or when the task involves comparing the distributions of several different groups simultaneously.

Optional Customization and Further Refinements

While the core statistical structure of your horizontal box plot is now finalized and fully accurate, Excel offers extensive customization capabilities that can be utilized to significantly enhance its visual clarity, aesthetic appeal, and overall communicative effectiveness. Investing time in refining the plot’s presentation can dramatically improve its readability and increase its impact when presenting data insights to a professional audience.

Consider implementing several refinements to professionally polish your visualization. This includes adding a descriptive, meaningful chart title that clearly communicates the nature of the data being presented. You may also choose to customize the colors of the box and whiskers to align with corporate branding guidelines or to strategically highlight specific aspects of the data being analyzed. Adjusting the line weight or thickness of the whiskers and the box outlines can sometimes improve visual interpretation, especially when dealing with complex or dense multi-series datasets. Furthermore, for maximum clarity and precision, consider adding data labels for the five-number summary values directly onto the plot, or adjust the axis labels and gridlines to provide enhanced quantitative context.

The final, refined plot—incorporating appropriate titles, clear labels, and aesthetic adjustments—should present a highly professional and immediate summary of your dataset, closely resembling the authoritative example displayed below:
