Ranking Values with Ties in Microsoft Excel: A Tutorial on Three Effective Methods

Understanding Ranking Ties in Excel

When performing ranking operations in Microsoft Excel, assigning a definitive numerical position to values is fundamental to data analysis, especially in fields like competitive scoring, performance metrics, or financial modeling. However, a significant complication arises when two or more data points possess identical values. This phenomenon, known as a “tie,” must be handled correctly to ensure the integrity of subsequent statistical analysis and accurate interpretation of the results. Fortunately, Excel offers powerful, built-in functionality to manage these ties, providing analysts with three distinct methodologies tailored to different analytical requirements.

These three approaches provide necessary flexibility, allowing users to choose between assigning the highest possible rank to all tied entries, distributing the rank evenly through an average calculation, or implementing deterministic logic to break the tie based on the data’s physical sequence. Mastery of these methods—which involve the standard RANK function (or RANK.EQ), the statistical RANK.AVG function, and a custom combination using COUNTIF—is essential for producing reliable, actionable data insights.

Method 1: Assigning the Highest Rank (The RANK.EQ Default)

The first and most traditional method for ranking values uses the standard RANK function, which has been superseded by RANK.EQ in modern Excel versions, though the original name remains backward compatible. This approach is characterized by its behavior of assigning the **highest potential rank** that the tied values could possibly achieve. If two scores are tied for the first position, both entries receive rank 1. Crucially, this method then skips the subsequent rank (rank 2), ensuring the next non-tied value begins ranking at position 3. This interpretation is widely used in competitive settings where shared top recognition is preferred.

The syntax required for this formula is straightforward, demanding only the specific numerical value targeted for ranking (represented here by cell B2) and the absolute reference range that contains all values for comparison ($B$2:$B$11). The use of absolute referencing is vital, as it ensures the comparison range remains fixed when the formula is copied down adjacent cells. This mechanism guarantees that all equal values within the referenced range are treated identically, resulting in the same rank output for each tied entry.

=RANK(B2,$B$2:$B$11)

To illustrate, if we are evaluating a list of examination results and two students share the highest score, both students are assigned rank 1. Because two ranking slots (1 and 2) have been occupied by the tie, the next unique score in the dataset will be assigned rank 3. This default functionality reflects the fact that two individuals achieved the top tier, even if it results in non-sequential ranking integers.

Method 2: Calculating the Average Rank (The RANK.AVG Function)

For users requiring a statistically balanced approach, the RANK.AVG function provides a highly rigorous alternative. Instead of assigning the highest rank, this function calculates the **arithmetic mean** of the ranks that the tied values would have received sequentially. This method is especially important in advanced statistical modeling because it maintains the integrity of the overall sum of ranks, ensuring that the ranking distribution remains normalized and statistically sound, even when ties occur.

Structurally, the formula syntax for RANK.AVG is identical to that of the basic RANK function, requiring the value to be ranked (B2) and the comparison range ($B$2:$B$11). The distinction lies solely in the function name itself, signaling to Excel that any tied values encountered within the specified range must be resolved using an averaged calculation. This simplicity in syntax belies the statistical precision offered by the function.

=RANK.AVG(B2,$B$2:$B$11)

Consider a scenario where three values are tied for the highest position. Their theoretical individual ranks would be 1, 2, and 3. The RANK.AVG function automatically computes the average of these potential ranks: (1 + 2 + 3) / 3 = 2. All three tied values are thus assigned the fractional rank of 2. This fractional ranking is highly advantageous in quantitative data analysis where statistical normalization is prioritized over strict, integer-based sequential order.

Method 3: Implementing Deterministic Tie-Breaking (RANK combined with COUNTIF)

There are specific analytical contexts—such as resource allocation, defining a definitive order of merit, or any situation where two results absolutely cannot share the same rank—where a continuous, sequential ranking is mandatory. In these cases, neither RANK.EQ nor RANK.AVG function suffices. The solution requires an advanced, custom formula that combines the RANK function with the powerful COUNTIF function, leveraging the physical order of data entry to serve as the decisive tie-breaker.

This complex, yet highly effective, formula works by adding an offset to the base rank of subsequent tied values. The core mechanism relies on the COUNTIF component, which uses a clever **expanding range** (B$2:B2). As the formula is dragged down the column, this expanding range counts how many times the current value (B2) has already appeared up to that specific row. Subtracting one from this count ensures the first occurrence of the tied value retains its original rank (offset of 0), while the second instance receives an offset of 1, the third instance an offset of 2, and so forth. This incrementally applies a “penalty” that forces each sequential tied value into the next available integer rank.

=RANK(B2,$B$2:$B$11)+COUNTIF(B$2:B2,B2)-1

When this formula is applied, the outcome is a completely continuous sequence of ranks. If two values are tied for the highest position, the value encountered first in the dataset range (B2:B11) will be definitively assigned rank 1. The second identical value will be assigned rank 2, regardless of the core RANK function’s initial output. This technique successfully converts shared ranks into a fully sorted, strictly sequential list based on the physical order of the data.

Practical Application: Step-by-Step Excel Example

To fully grasp the functional differences between these three tie-handling methods, it is beneficial to observe their application in a live environment using a sample dataset. Let us analyze a compilation of student exam scores, where our primary objective is to assign a rank to each score simultaneously using all three methodologies for direct comparison.

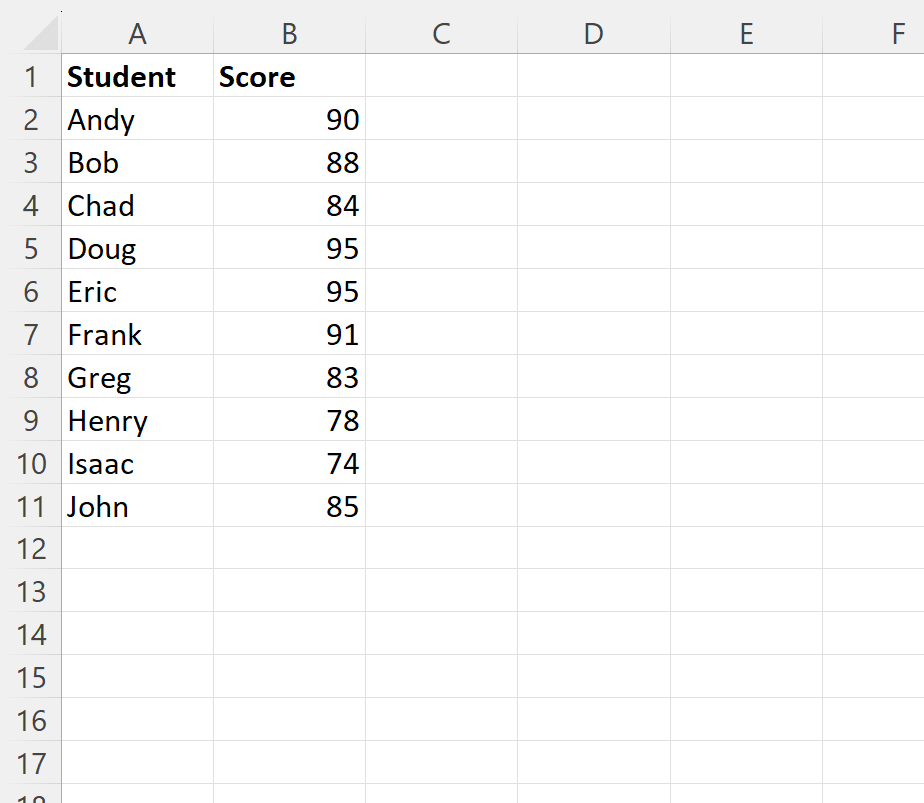

The image below illustrates the initial dataset, which contains student names in Column A and their corresponding scores in Column B. It is important to note the presence of identical scores—specifically the two scores of 95—which serve as the critical test case that triggers the distinct tie-handling mechanisms we have discussed.

We proceed by implementing the three ranking formulas into new, adjacent columns. The Method 1 formula (standard RANK) will be entered into cell C2, Method 2 (RANK.AVG) into D2, and the complex Method 3 (RANK + COUNTIF) into E2. Each formula must reference the score in B2 and the universally fixed range of scores ($B$2:$B$11) to ensure accurate comparison across the entire dataset:

• C2: =RANK(B2,$B$2:$B$11)

• D2: =RANK.AVG(B2, $B$2:$B$11)

• E2: =RANK(B2,$B$2:$B$11)+COUNTIF(B$2:B2,B2)-1

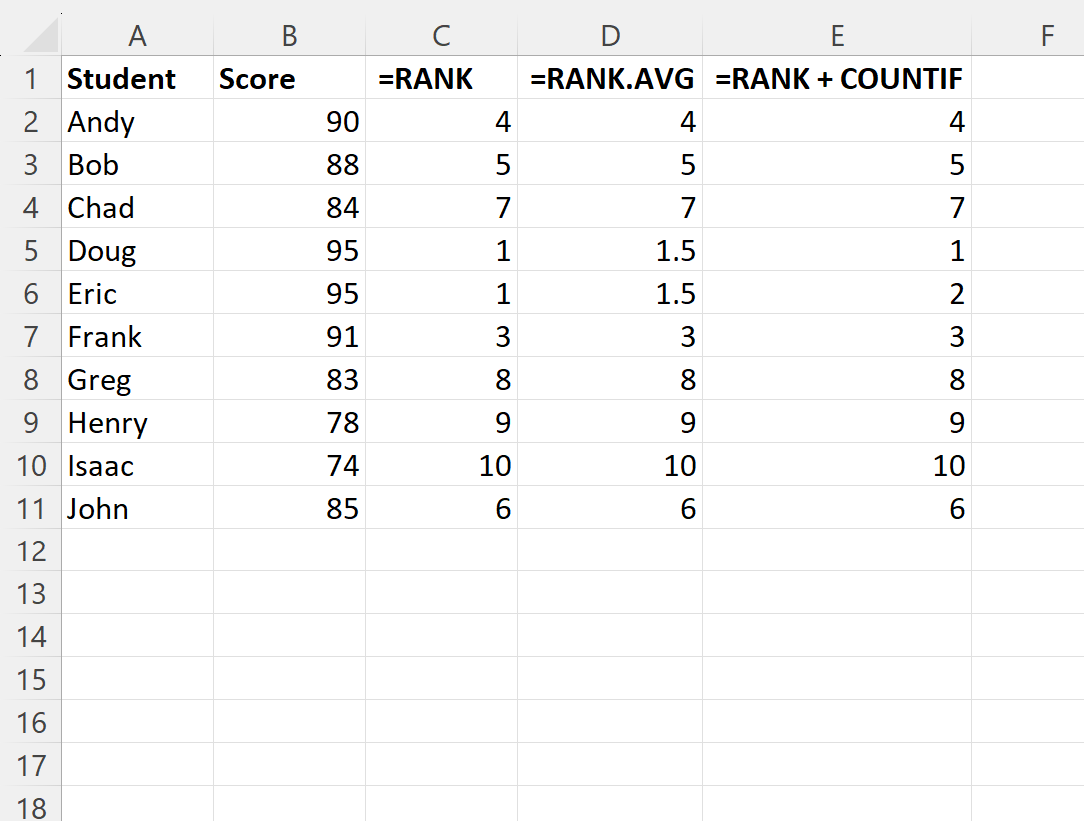

Once these formulas are correctly entered into the respective top cells, the **fill handle** is used to quickly propagate the calculations down to the remaining rows (B3 through B11). This efficient action calculates the rank for every student according to all three methodologies, simultaneously generating the comparative table necessary for analysis, as shown in the final output below.

Analyzing the Comparative Results

A careful review of the resulting table immediately highlights the differing ways each function addresses the critical tie between Doug and Eric, both of whom achieved the highest possible score of 95. Understanding these differences dictates which method is suitable for a given analytical context.

Method 1: The RANK Function (Column C)

By deploying the standard RANK function, both Doug and Eric were assigned the rank of 1. This outcome confirms the function’s default behavior of assigning the highest rank to tied values. Consequently, because ranks 1 and 2 were occupied, the next available score (88) correctly received rank 3, demonstrating that positions are consumed by tied values.

Method 2: The RANK.AVG Function (Column D)

The RANK.AVG function resolved the tie by assigning a rank of 1.5 to both Doug and Eric. This fractional rank is derived from calculating the average of the theoretical ranks (1 and 2). This statistical approach ensures a balanced, normalized distribution, making it an ideal choice for scientific or quantitative analysis where fractional ranks are acceptable and desirable.

Method 3: RANK + COUNTIF (Column E)

The custom tie-breaking formula achieved a continuous sequence by assigning rank 1 to Doug and rank 2 to Eric. This strict sequential determination was based entirely on the physical location of the data: Doug’s score appeared first (row 2) compared to Eric’s (row 3). This method is invaluable when strict, non-tied sequences are mandatory for downstream processing or absolute hierarchical determination.

Conclusion and Resources for Advanced Ranking

The ability to effectively rank values with ties is a cornerstone of advanced data analysis in Excel. The determination of which function to employ—whether the competitive highest rank assignment of RANK.EQ, the statistical normalization provided by RANK.AVG, or the strict sequential ordering of the RANK and COUNTIF function combination—depends entirely upon the specific analytical objective and the required output format. Users are strongly encouraged to select the methodology that aligns precisely with the goals of their dataset evaluation and interpretation to ensure the most meaningful results.
