Adding Tooltips to Excel Cells: A Tutorial for Data Entry Guidance

In the realm of complex spreadsheet management, ensuring users enter data correctly is paramount for maintaining data integrity and operational efficiency. A powerful tool for achieving this is the Tooltip, often known as a ScreenTip, which is a small, contextual informational box that appears instantly when a user interacts with a specific cell. Embedding these helpful hints directly within an Microsoft Excel workbook prevents common errors, streamlines the input process, and significantly enhances the overall user experience. Crucially, this functionality is not achieved through standard cell formatting or complex formulas; instead, it relies on Excel’s robust, built-in feature designed specifically for controlling and guiding input: the Data Validation tool.

While many professionals primarily associate Data Validation with defining acceptable entry criteria—such as limiting input to numerical ranges or enforcing selection from a predefined list—it also incorporates sophisticated messaging capabilities. Within the Data Validation settings, there are two distinct components vital for user guidance: the Input Message and the Error Alert. The Input Message serves the exact function of a proactive Tooltip; it instantly displays instructions or context the moment the target cell is selected, offering necessary guidance before data entry commences. This proactive approach is fundamentally superior to the Error Alert, which only triggers after an invalid entry has been attempted and rejected.

Mastering the configuration of the Input Message within Microsoft Excel allows developers and analysts to construct highly intuitive and self-documenting workbooks. By dynamically tying the guidance directly to the relevant cell, you eliminate the need for external documentation or scattered notes in separate sheets. We will detail precisely how to configure this essential feature, which is readily accessible from the Data tab located within the Excel Ribbon interface. This implementation ensures that critical context is provided to every individual interacting with the spreadsheet, dramatically reducing confusion and maximizing accuracy in data collection processes.

Crafting Effective Tooltips: Best Practices and Strategic Use Cases

The effectiveness of a cell Tooltip hinges entirely on the clarity and conciseness of the message delivered. When defining the Title and Input Message fields within the Data Validation configuration, adopting best practices for technical communication is mandatory. The Title should function as a short, punchy descriptor that grabs attention—for example, “Required Format,” “Entry Rule,” or “Important Note.” The accompanying Input Message must then supply the necessary operational detail, explicitly stating what is expected, such as format requirements or necessary input precautions. Messages that are ambiguous, too long, or poorly worded undermine the goal of a quick, helpful hint, often distracting the user rather than providing assistance.

The practical applications where cell tooltips prove invaluable are numerous and diverse. Consider a highly regulated financial model where input values must be entered strictly as percentages, not decimal equivalents, or perhaps a complex quality control log where technicians must specify the exact unit of measurement (e.g., metric tons versus short tons). In such scenarios, applying a proactive Input Message to the target cell ensures the user receives immediate clarification upon selection, proactively preventing errors that might otherwise only surface much later during arduous data analysis or auditing. Furthermore, tooltips are outstanding for communicating essential business rules, such as specific data exclusions (“Do not include projected sales figures”) or required time constraints (“Enter data for the current fiscal quarter only”).

These immediate informational messages are crucial components in developing robust and user-friendly Microsoft Excel dashboards and standardized data entry forms. By leveraging the proactive guidance inherent in the tooltip feature, workbook developers can significantly decrease reliance on external training documentation or verbal instructions. This self-service approach minimizes support requirements and greatly increases the independence and accuracy of the end-user. Ensuring the tooltip’s scope is correctly defined—whether applied to a single critical input cell, a dynamic range, or an entire column requiring standardized formatting—is the foundational step toward successful implementation.

Step-by-Step Guide: Accessing the Data Validation Interface

Implementing a functional tooltip in Excel requires navigating directly to the dedicated Data Validation settings panel. The initial phase involves precisely identifying the cell or range of cells that require the informative hint. For this demonstration, we will focus on configuring a single input cell, but it is important to remember that this feature scales efficiently across extensive selections. Regardless of the scope, the fundamental steps for accessing the configuration menu remain consistent.

1. Identify and Select the Target: Click directly on the cell where you intend the tooltip to appear. For example, if the primary sales figure should be logged in cell B1, ensure B1 is the active selection.

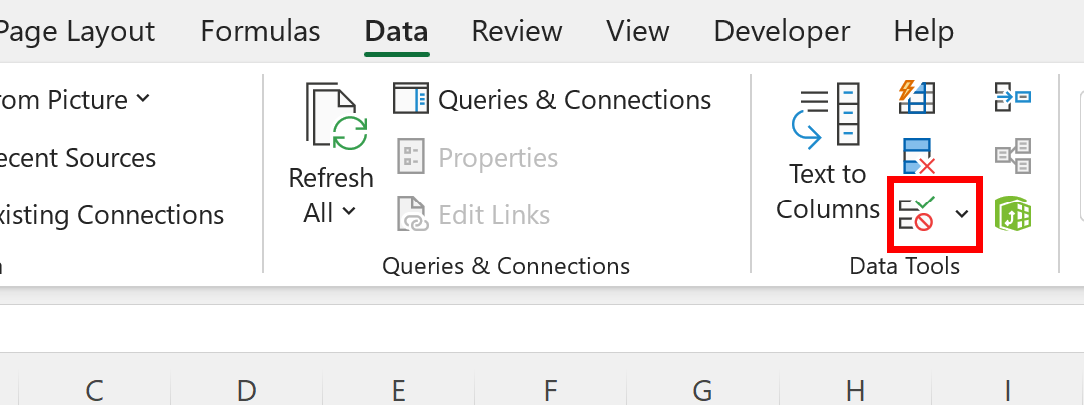

2. Locate the Data Tab: Find and click the Data tab, which is prominently located within the top Excel Ribbon interface. This tab serves as the central hub for tools related to data management, analysis, sorting, and validation.

3. Launch Data Validation: Once in the Data tab, navigate to the Data Tools group. Within this group, click the distinct Data Validation icon. This action immediately launches the Data Validation dialog box, which is logically separated into three major configuration tabs: Settings, Input Message, and Error Alert.

Once the Data Validation dialog box is successfully opened, the next critical task is selecting the appropriate tab for defining the tooltip content. While the dialog box defaults to the Settings tab—which is used to enforce validation rules like numeric limits—we must deliberately switch to the Input Message tab. This specific section is meticulously designed for generating the proactive message that serves as the cell tooltip, appearing upon selection. It is within this dedicated space that we will configure both the brief, attention-grabbing title and the detailed instructional text.

Practical Implementation: Configuring Guidance for Sales Data

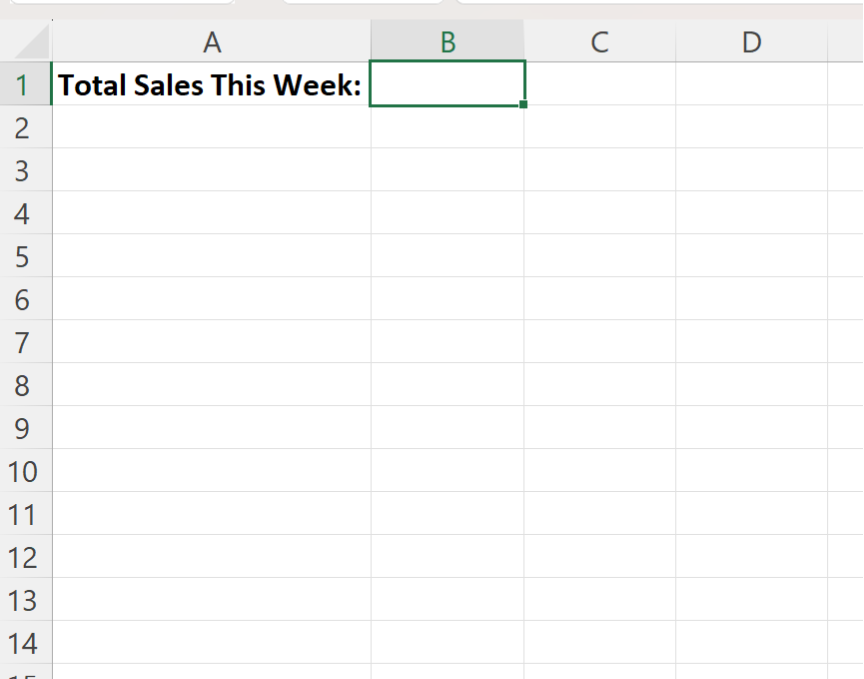

We will now execute a concrete scenario to fully illustrate the efficacy of the Input Message feature. Consider a common operational requirement: a retail employee needs to accurately input the total weekly sales figure into a spreadsheet. We have designated cell B1 as the required input location, as displayed in the initial spreadsheet setup below:

The central requirement for this entry involves a specific, non-negotiable business rule: sales derived specifically from the deli department must be systematically excluded from the overall total figure entered in B1. If this critical instruction is overlooked, it could result in substantial accounting errors and mandatory reconciliation later. To ensure the employee is immediately aware of this exclusion rule the instant they interact with the cell, we must configure a clear, unavoidable Tooltip using the Data Validation tool.

To achieve this precise guidance, after selecting cell B1 and launching the Data Validation dialog box, we navigate directly to the Input Message tab. This tab presents two mandatory fields: the Title and the Input Message body. We will populate these fields with instructional text tailored to communicate the necessary rules clearly:

• Title: Enter Total Sales

• Input Message: IMPORTANT: Do not include sales figures generated by the deli department.

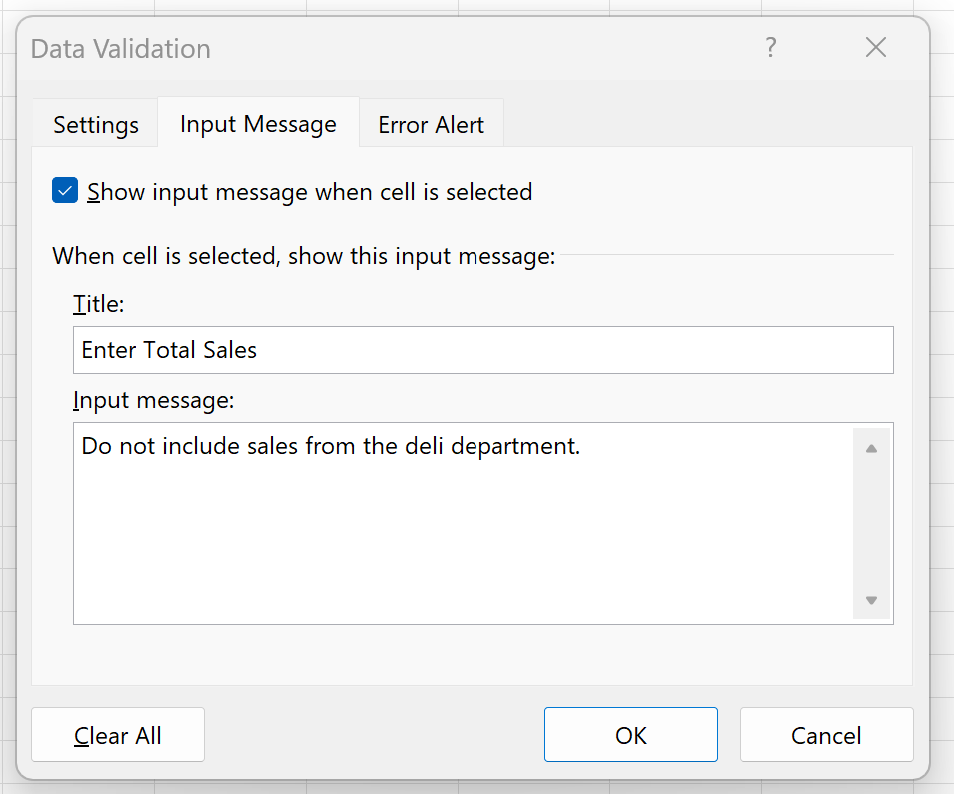

The configured content is shown within the dialog box below. It is essential to confirm that the “Show input message when cell is selected” checkbox remains active (this is typically the default setting). This ensures that the tooltip appears instantaneously upon cell selection, acting as a proactive guidance system rather than a reactive error flag. Once the text is verified and the setting is confirmed, click OK to apply the changes to cell B1.

Upon returning to the primary spreadsheet view, the moment the employee clicks into cell B1, the configured Input Message automatically materializes adjacent to the cell. This visual cue clearly displays both the title (“Enter Total Sales”) and the critical instruction. This dynamic guidance enforces compliance with the rule before any data is input, thereby drastically minimizing the likelihood of incorrect entries and subsequent data remediation efforts.

Scaling Tooltips for Large Datasets and Distinguishing from Comments

While the preceding example focused on applying a Tooltip to a single input cell (B1), the utility and efficiency of the Data Validation feature are fully scalable. It is crucial to understand that the exact same Input Message configuration can be applied simultaneously to an entire contiguous range of cells. If, for instance, the “Do not include sales from the deli department” rule needed to govern entries across cells B1 through B50, the developer would simply select the entire range (B1:B50) prior to initiating the Data Validation setup process. This powerful scalability makes tooltips an exceptionally efficient mechanism for standardizing input instructions across expansive datasets or complex, recurring monthly reports.

A common point of confusion among users is mistaking standard cell comments (or notes) for validation tooltips, yet they serve fundamentally different functions. A cell comment is a passive form of documentation; it requires the user to manually hover the mouse pointer over a small icon to display the underlying information. In sharp contrast, the Data Validation Input Message is active and immediate. It appears automatically the moment the cell is clicked or selected, making it vastly superior for guiding required input in real-time rather than merely providing historical or structural documentation. The automated display of the Input Message guarantees that the necessary guidance is seen precisely when the user’s attention is focused on data entry.

Finally, when deploying a workbook equipped with numerous validation tooltips, developers should always conduct comprehensive testing. This ensures that all messages are displayed correctly, are easily readable, and do not inadvertently conflict with other spreadsheet functions, such as dynamic conditional formatting rules or essential protective locking mechanisms. A strategically placed and clearly worded tooltip significantly reduces the cognitive burden on the user, transforming a potentially confusing data entry requirement into a streamlined, guided, and highly accurate process.

Advanced Excel Operations and Resources for Integrity

Gaining proficiency in proactive user guidance through cell tooltips is a major stride toward advanced Microsoft Excel functionality. To further enhance your capabilities in spreadsheet development and ensure maximum data integrity, consider exploring tutorials and documentation related to these other crucial operations:

• Implementing conditional formatting based on specific cell values or formula outcomes to visually highlight critical or outlier data points.

• Creating dynamic drop-down lists using advanced Data Validation rules to constrain input options and standardize selection terminology.

• Utilizing named ranges to significantly simplify complex formula construction, improve readability, and streamline workbook navigation.

• Employing sheet and workbook protection features to strictly control user access and prevent unauthorized or accidental modification of core formulas or structural elements.

These sophisticated techniques, when combined with the effective and strategic use of immediate tooltips, ensure that your resulting spreadsheets are not only robust and highly intuitive but also minimize potential data errors across all input points, leading to reliable analysis.
