Learning 3D Formulas in Excel: Summing Data Across Multiple Worksheets

One of the most powerful and time-saving techniques available in Excel is the strategic deployment of 3D reference formulas. This advanced method enables users to efficiently aggregate data located in identical positions—whether a single cell or a defined range—across a continuous sequence of worksheets within a single workbook. This capability is absolutely essential for streamlined processes such as monthly financial reporting, large-scale project tracking, or any operational scenario where consistent data layouts are repeated across different time periods or categories. To quickly calculate the sum of values found in the exact same cell reference across several sheets simultaneously, you leverage the following concise syntax:

=SUM(week1:week3!B2)

This formula utilizes the robust SUM function in combination with a powerful 3D reference. The sheet range structure, specified as week1:week3, instructs Excel to include every sheet starting from week1 and concluding at week3 in the calculation. Importantly, this inclusion occurs regardless of how many intermediate sheets (e.g., week2, Q2_data, interim report) are physically located between these two endpoints. The final component, !B2, precisely specifies the cell reference from which the numerical data should be extracted on each of the referenced worksheets. Ultimately, this singular formula aggregates the value contained in B2 across the entirety of the designated worksheet range, transforming complex data consolidation into a dynamic and easily maintainable process.

To demonstrate the profound utility and operational efficiency of this feature, the subsequent sections will walk through a detailed, practical example, illustrating exactly how to apply this 3D syntax effectively for reliable data aggregation within a typical business reporting environment.

Understanding the Mechanics of 3D Reference Formulas

A 3D reference distinguishes itself from conventional cell references because it extends its scope across the entire depth of the workbook, rather than being confined to the two dimensions (rows and columns) of a single worksheet. This capability is indispensable for analysts managing substantial datasets that are logically compartmentalized across numerous identically structured tabs within a single spreadsheet file.

The primary advantage is simplification. Instead of constructing a verbose and error-prone formula that manually lists every sheet—a method that would look something like =SUM(week1!B2, week2!B2, week3!B2)—the 3D reference significantly streamlines the process. This simplification drastically enhances the formula’s clarity, readability, and minimizes the potential for human error associated with typing dozens of sheet names.

The critical structural element of the 3D reference is the colon (:) placed between the names of the starting sheet and the ending sheet. This colon acts as a range operator, defining a continuous, inclusive set of worksheets. A key benefit of this structure is its dynamic nature: if you insert a new sheet (e.g., named week1.5) anywhere between the defined endpoints, week1 and week3, the value from its corresponding cell (B2) will automatically be incorporated into the total sum. Similarly, if sheets are moved or renamed, Excel generally maintains the integrity of the defined range, ensuring the formula remains flexible and accurate even as the workbook evolves.

Prerequisites for Effective 3D Summation

Although the 3D reference formula is undeniably powerful, its successful execution hinges entirely upon maintaining structural and data consistency across all referenced worksheets. Without this fundamental consistency, the formula risks aggregating disparate or incomparable data points, leading to a consolidated report that is either misleading or outright incorrect. The structure of the data must be uniform to ensure that the formula is truly summing comparable metrics.

We must meet several crucial prerequisites before implementing a 3D aggregation:

• Identical Layout: The specific metric you intend to sum (e.g., “Monthly Revenue,” “Units Sold,” or “Points Scored”) must consistently reside in the exact same cell reference (for instance, cell B2) on every single sheet included within the defined range.
• Suitable Data Type: The values being aggregated must be strictly numeric and appropriate for the chosen aggregation function. While the SUM function requires numerical input, functions like COUNT or COUNTA can handle different data types, but clarity and consistency remain key.
• Sequential Sheet Ordering: For the reference range (e.g., week1:week3) to function correctly, the worksheets you wish to include must be physically arranged in a continuous sequence within the workbook tabs. Any sheet placed between the starting sheet and the ending sheet will automatically be included in the calculation.

By meticulously ensuring that these structural prerequisites are satisfied, practitioners can guarantee the reliability and accuracy of their consolidated reports, effectively transforming a potentially cumbersome aggregation task into an elegant, scalable, and single-line formula.

Practical Example: Consolidating Weekly Performance Data

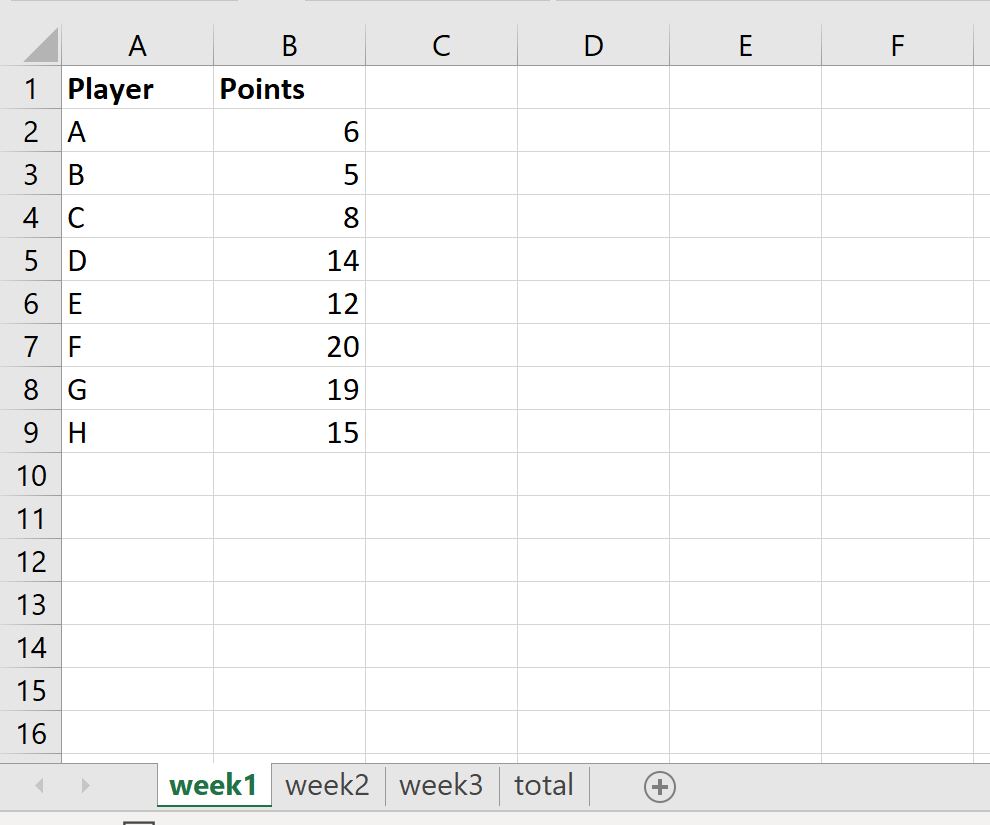

Let us consider a highly common reporting scenario: tracking key performance indicators (KPIs) on a weekly basis. For this demonstration, assume we have three separate sheets labeled week1, week2, and week3. Each of these sheets meticulously records detailed performance data for eight individual basketball players, specifically tracking their cumulative points scored during that respective week. Crucially, the data structure is perfectly uniform across all three worksheets, as shown below:

In this perfectly aligned setup, the consistency is evident: Column A is dedicated to the “Player” identifier, and Column B consistently records the “Points” scored. Because the data structure is identical across all weekly tabs, we are positioned to confidently and accurately reference the exact same cell for each player across the entire range of worksheets.

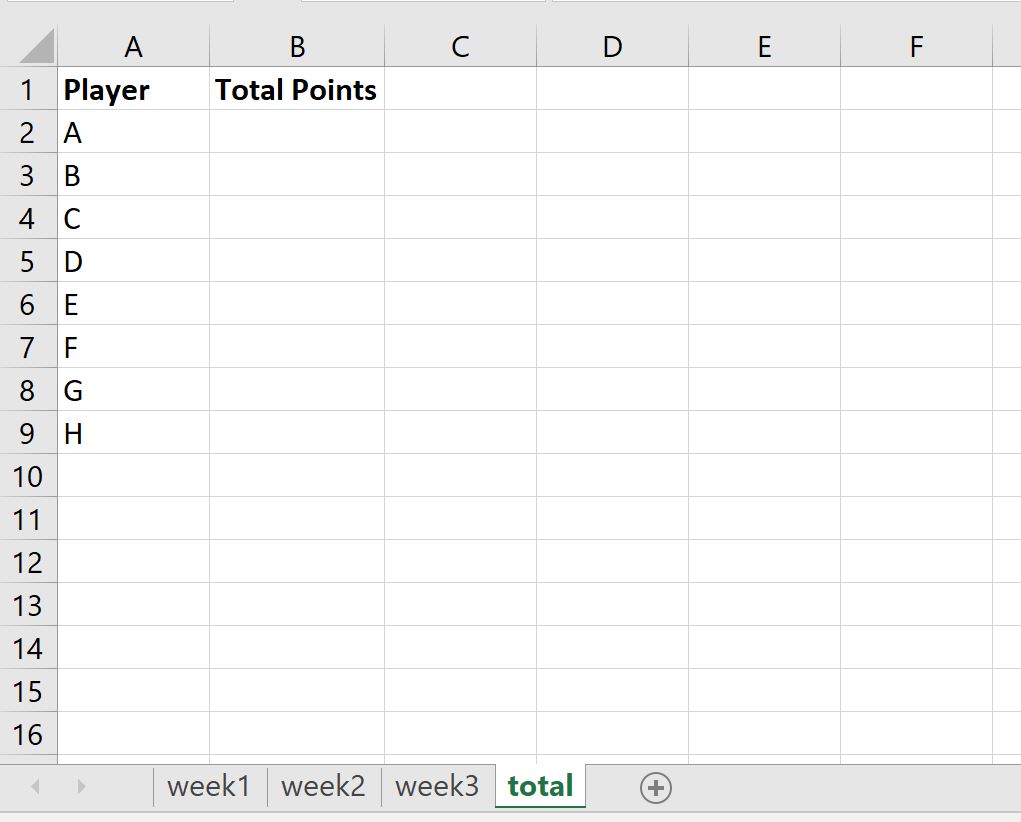

Our objective is to generate a comprehensive, consolidated report. We need to calculate the total points scored by each player across all three weeks and display this cumulative sum in a new summary sheet, which we have appropriately titled total. This new sheet will serve as the final, high-level aggregation view, providing immediate insight into overall performance:

Rather than resorting to the manual and tedious process of linking Player A’s score from week 1, week 2, and week 3 separately, we can now deploy the highly efficient 3D reference formula. This approach handles the aggregation automatically, saving significant time, drastically reducing calculation errors, and ensuring the report is scalable for future weeks.

Step-by-Step Implementation Guide

To initiate the summation process, we must first focus on the data for the first player, Player A, whose weekly scores consistently occupy row 2 across all data sheets. Given that Player A’s score resides in cell B2 on week1, B2 on week2, and B2 on week3, B2 will serve as our primary target cell reference. The formula required to achieve the cumulative total is as follows:

=SUM(week1:week3!B2)

We must accurately enter this formula directly into cell B2 of the total summary sheet. Upon entry, the formula immediately calculates the comprehensive total points scored by Player A. The true efficiency and scalability of this method are demonstrated in the application of the formula to the remaining players in the dataset.

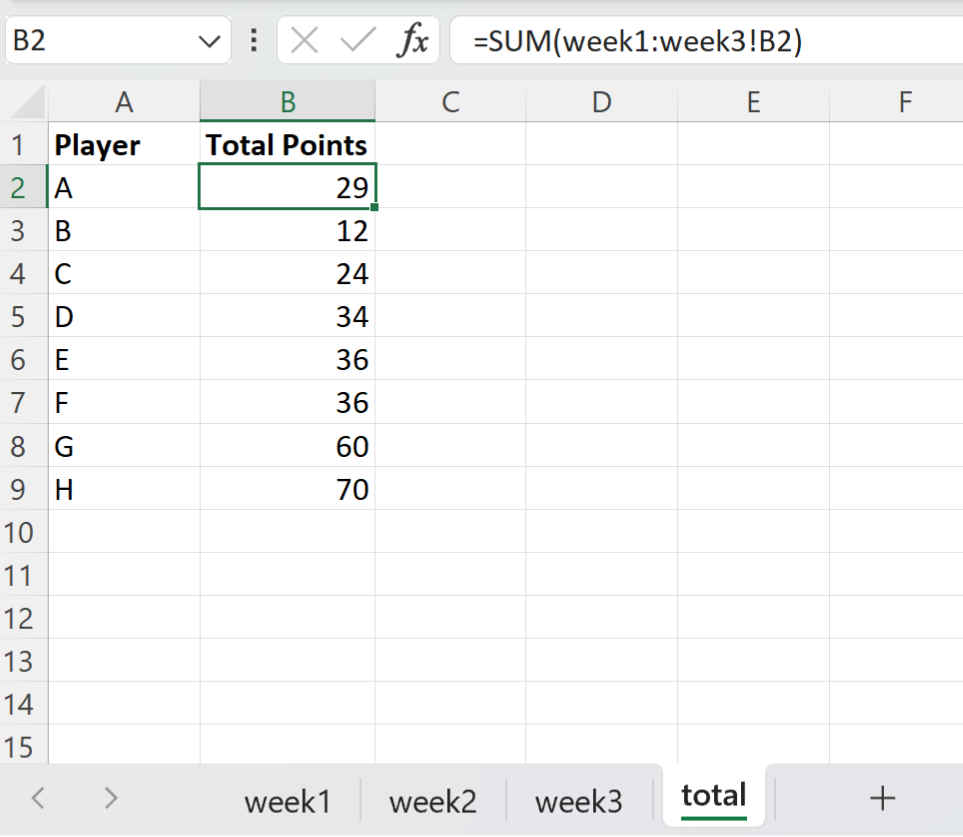

Because 3D references maintain the fundamental property of relative cell referencing—just like standard formulas—we can easily apply this calculation to the entire column. Simply select cell B2 of the total sheet, click the fill handle, and drag the formula down the column to cover all remaining rows. When the formula is dragged to cell B3, Excel automatically increments the row number within the reference, resulting in the adjusted formula: =SUM(week1:week3!B3). This dynamic adjustment calculates the total for Player B, and the process continues seamlessly down the column, instantly yielding the accurate aggregated results for every player:

As clearly illustrated in the image above, the “Total Points” column now contains the reliable sum of points scored for each individual player, sourced directly from the three underlying sheets: week1, week2, and week3. This successful aggregation powerfully validates the efficiency of using 3D referencing for rapid consolidated reporting.

The resulting sums provide immediate performance insights:

• Player A achieved a total score of 29 points across the three weeks, which is the consolidated sum of the value in B2 across the sheets.
• Player B achieved a total score of 12 points across the three weeks, representing the sum of the value in B3 across the sheets.
• Player C achieved a total score of 24 points across the three weeks, corresponding to the sum of the value in B4 across the sheets.

Advanced Considerations and Functional Limitations

While our discussion has primarily centered on the SUM function, it is crucial to recognize that the power of 3D references extends to several other fundamental aggregation functions. This compatibility significantly broadens the utility of the technique, allowing for comprehensive analysis beyond simple addition. Compatible functions include: AVERAGE, COUNT, COUNTA, MAX, MIN, and STDEV (Standard Deviation). This versatility allows 3D references to be used not only for summation but also for generating statistical summaries across multiple datasets with a unified structure.

However, users must be aware of specific functional limitations. Certain conditional functions, such as SUMIF, COUNTIF, and specialized array functions, are generally incompatible with the sheet range syntax (e.g., sheet1:sheetN!). Because these functions require criteria evaluation based on data within the sheet, they do not inherently support the dimension-spanning nature of the 3D reference structure.

For scenarios demanding conditional aggregation across multiple sheets, spreadsheet practitioners typically must employ alternative, more sophisticated methods. These may involve structuring data using helper columns, defining named ranges, or, in more modern versions of Excel, utilizing powerful data transformation tools like Power Query. Understanding these functional restrictions ensures that users select the most appropriate and high-performing method for their specific data consolidation requirements in complex reporting environments.
