Add Vertical Line at Specific Date in Matplotlib

In the specialized domain of data visualization, the capability to precisely highlight pivotal events or specific time markers is absolutely essential for effective communication of complex findings. When analysts are engaged with time-series datasets, adding clear visual markers at particular dates can dramatically boost a plot’s readability, clarify chronological relationships, and profoundly support deeper analytical efforts. This comprehensive guide details the precise methodology required for incorporating a vertical line at any specified date using Matplotlib, the leading plotting library within the Python ecosystem. We will focus on the crucial integration between the powerful axvline() function and Python’s native datetime() constructor, establishing a highly robust and straightforward approach for emphasizing key moments within your temporal data.

The fundamental technique hinges upon utilizing Matplotlib’s axvline() function. This utility is explicitly engineered to draw a vertical line that extends across the entire height of the current plot, placed at a user-defined position along the x-axis. Critically, when dealing with dates, the positional input must be a valid datetime object. This object is conveniently generated using Python’s built-in datetime module. This seamless synergy between Matplotlib’s sophisticated plotting machinery and Python’s reliable date handling capabilities offers an exceptionally flexible and precise method for annotating visualizations with necessary temporal markers.

import datetime
import matplotlib.pyplot as plt

plt.axvline(datetime.datetime(2023, 1, 5))

As clearly demonstrated in the initial, concise code snippet above, a vertical line is effortlessly integrated into the plot space, precisely marking the location corresponding to the date of January 5, 2023. The datetime.datetime(year, month, day) constructor is the mechanism employed here to specify the exact temporal coordinates on the x-axis. This essential yet powerful function acts as the foundational cornerstone for visually delineating important dates within any Matplotlib visualization, paving the way for more intricate and informative analytical displays.

To solidify this foundational concept and explore the practical application of the necessary syntax in a real-world setting, we will now proceed to a comprehensive, applied example. This case study involves analyzing a typical time-series dataset, allowing us to showcase not only the basic implementation but also the extensive customization options available for refining the vertical marker’s appearance.

Understanding Matplotlib’s Internal Handling of Dates

Before we proceed to execute a complete, full-scale plotting example, it is beneficial to understand how Matplotlib fundamentally processes and interprets date and time information internally. Matplotlib does not handle standard date objects in a purely graphical sense; instead, it performs a crucial conversion. It transforms datetime objects into a numerical format—specifically, a floating-point number representing the count of “days since 0001-01-01 UTC, plus one.” This key internal conversion enables the application of standard numerical operations and scaling techniques to the temporal axis, allowing sophisticated functions like axvline() to operate seamlessly and accurately with what the user perceives as date inputs.

Consequently, when a developer supplies a datetime object to plotting utilities such as axvline(), Matplotlib automatically manages this complex transformation behind the scenes. This robust handling ensures the line is placed with high precision relative to the underlying temporal data points. The core capability for handling time relies heavily on the datetime module, which is a foundational component of the Python standard library designed for manipulating dates and times. It provides essential classes necessary for handling both simple date specifications and complex temporal arithmetic required in data analysis.

For visualization purposes, the datetime.datetime class is particularly useful because it allows developers to specify an extremely precise moment in time, including the year, month, day, hour, and minute. Matplotlib can then reliably interpret this precision for accurate visualization layout and scaling. This sophisticated, automated integration significantly simplifies the workflow for the developer; there is generally no requirement to manually convert dates into numerical formats when leveraging Matplotlib’s date-aware plotting functions, such as plot_date(), or when adding annotation lines using axvline(). The library efficiently abstracts this complexity, allowing users to maintain focus purely on the structure of their data and the specific requirements of their data visualization task.

Practical Example: Marking an Event in Sales Data

Let us now examine a highly common analytical scenario: tracking daily sales data over a specific, short period for a hypothetical corporation. This type of time-series business data frequently necessitates visual indicators to denote major operational events, such as the initiation of a key marketing initiative, the launch of a new flagship product, or a significant policy implementation. For the purpose of this demonstration, we will begin by structuring our sales figures within a pandas DataFrame, which remains the undisputed industry standard for efficient tabular data manipulation in Python.

The pandas DataFrame provides an optimal data structure for this task, offering robust indexing and manipulation tools that integrate perfectly with visualization libraries such as Matplotlib. Our specific DataFrame will be constructed with two primary columns: the date column, designed to store precise datetime objects corresponding to each recorded day, and the sales column, holding the aggregated sales figures recorded on that respective date.

The following code block is responsible for generating the sample data necessary for our visualization. It efficiently imports the required libraries—namely datetime, numpy, and pandas—and then proceeds to create the DataFrame containing eight days of sequential data. The resulting data structure reflects an observable increasing sales trend over the measured observation period, simulating a realistic business metric.

import datetime
import numpy as np
import pandas as pd

# Create DataFrame spanning eight days
df = pd.DataFrame({'date': np.array([datetime.datetime(2023, 1, i+1)
                                     for i in range(8)]),
                   'sales': [3, 4, 4, 7, 8, 9, 14, 17]})

# Display the resulting DataFrame structure
print(df)

        date  sales
0 2023-01-01      3
1 2023-01-02      4
2 2023-01-03      4
3 2023-01-04      7
4 2023-01-05      8
5 2023-01-06      9
6 2023-01-07     14
7 2023-01-08     17

The resulting textual output successfully confirms the generation of our structured DataFrame. This dataset encompasses eight consecutive days, commencing January 1st, 2023, and concluding on January 8th, 2023, each mapped to its corresponding sales figure. This established dataset provides the ideal foundation for our visualization task, enabling us to simulate real-world data analysis where external factors influencing an observed trend need to be visually identified and marked.

Visualizing Temporal Data and Highlighting a Significant Date

With the sales data now efficiently organized within the pandas DataFrame, the logical next step involves rendering this information visually using Matplotlib. Our objective is to generate a clear time-series plot depicting sales performance over date, and then strategically overlay a distinct vertical line to highlight a critical date of interest, specifically January 5, 2023. This chosen date might represent a crucial business intervention, such as the commencement of a high-impact promotional campaign, making the resulting visualization essential for immediately assessing its effect on sales performance.

When plotting data ordered by time, Matplotlib recommends using the specialized function plt.plot_date(). This function is specifically optimized to handle datetime objects on the primary x-axis, automatically managing the numerical conversion and ensuring the date labels are formatted for maximum clarity and user comprehension. Additionally, we will employ plt.xticks() to rotate the x-axis tick labels by 45 degrees. This rotation is a vital step in maintaining optimal plot aesthetics, as it effectively prevents label overlap, which is a common issue when visualizing dense time periods.

The following comprehensive code block orchestrates the plotting of the sales data alongside the inclusion of our pivotal vertical date marker. It is paramount to ensure that the datetime object specified within plt.axvline() precisely matches the significant temporal marker we intend to emphasize within the plot.

import matplotlib.pyplot as plt

# Plot sales data over time
plt.plot_date(df.date, df.sales)

# Rotate x-axis ticks 45 degrees for readability and right-align
plt.xticks(rotation=45, ha='right')

# Add vertical line at the key date (1/5/2023)
plt.axvline(datetime.datetime(2023, 1, 5))

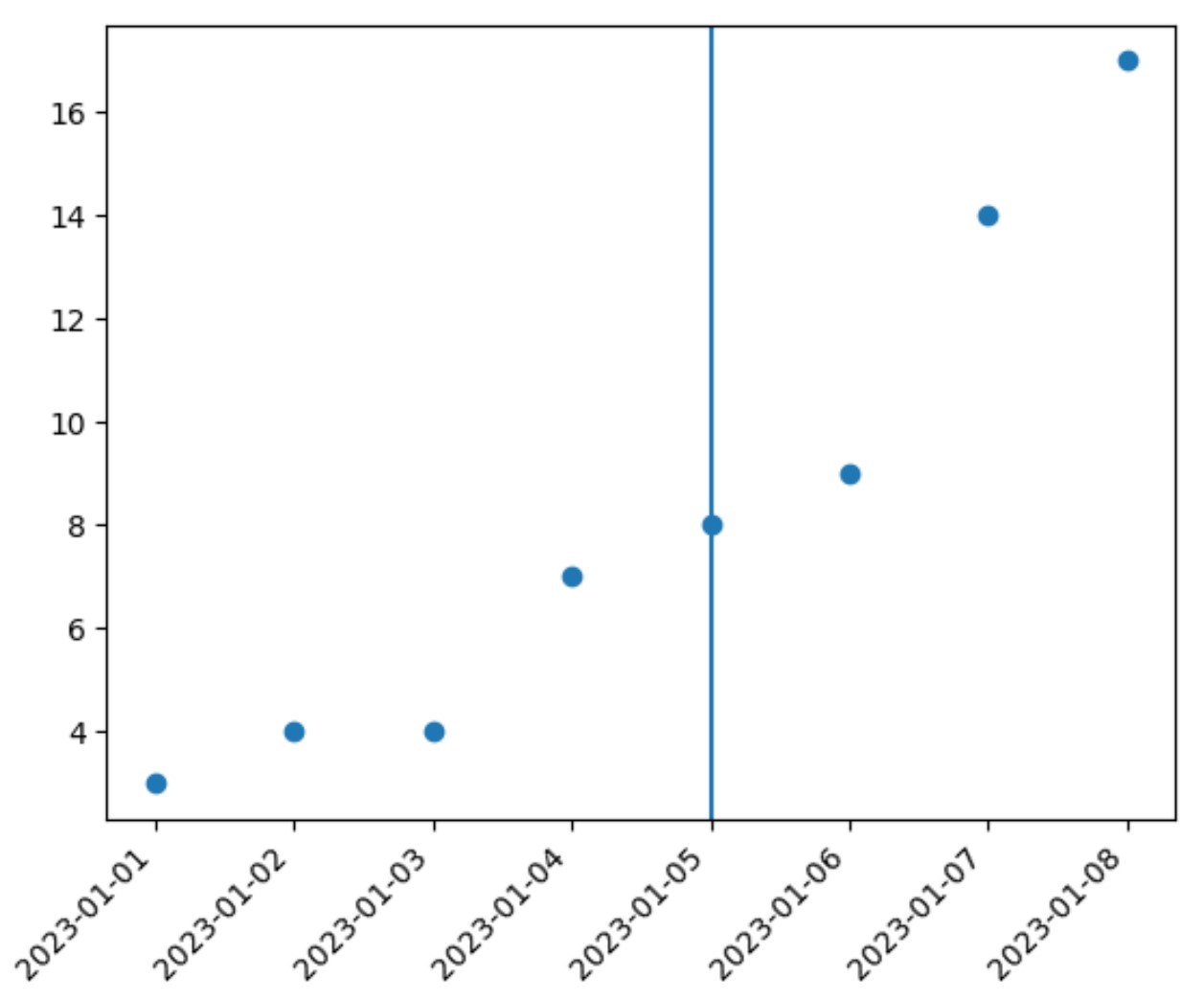

Upon successful execution, the resulting image clearly displays the chronological progression of daily sales figures, marked by a distinct vertical line positioned exactly at January 5, 2023 on the x-axis. This potent visual annotation immediately focuses the viewer’s attention onto the specific time point, thereby enabling rapid analysis of any potential sales trends, inflection points, or anomalies observed around that critical date. Furthermore, the strategic use of rotated labels significantly enhances the clarity of the timeline, a mandatory feature when analyzing closely spaced temporal data points.

Customizing the Appearance of the Vertical Line

While a simple, default vertical line effectively accomplishes the task of marking a date, optimizing its aesthetic appearance is fundamental for elevating both the clarity and the overall visual impact of your plot. Matplotlib provides a rich set of extensive customization parameters directly through the axvline() function, enabling users to finely tailor the line’s visual properties. These modifications are crucial for differentiating the marker from existing plot elements or aligning it seamlessly with a specific visualization theme required for professional reporting.

The most frequently utilized arguments for customizing vertical lines include color, linewidth, and linestyle. The color argument accepts conventional color names (e.g., ‘blue’, ‘green’) or standard hexadecimal codes, dictating the line’s hue. The linewidth parameter governs the line’s thickness, accepting any positive numerical value. Lastly, linestyle controls the visual pattern of the line, offering options such as ‘solid’ (the default setting), ‘dashed’, ‘dotted’, or ‘dashdot’. The combined use of these parameters grants the developer complete flexibility needed to ensure the temporal marker is either prominently highlighted or subtly integrated into the background, depending entirely on the narrative goal of the data visualization.

By meticulously adjusting these visual properties, you gain authoritative control over the visual hierarchy within your plot. For example, a thick, brightly colored dashed line might be used to signify a high-impact, critical event date, while a thin, muted gray, solid line could be reserved for less important, contextual markers. This ability to manipulate visual cues is paramount in guiding the viewer’s focus and significantly enhancing the interpretability of the dataset being presented.

import matplotlib.pyplot as plt

# Plot sales data over time
plt.plot_date(df.date, df.sales)

# Rotate x-axis ticks for better fit
plt.xticks(rotation=45, ha='right')

# Add customized vertical line with specific color, thickness, and style
plt.axvline(datetime.datetime(2023, 1, 5), color='red', linewidth=3, linestyle='--')

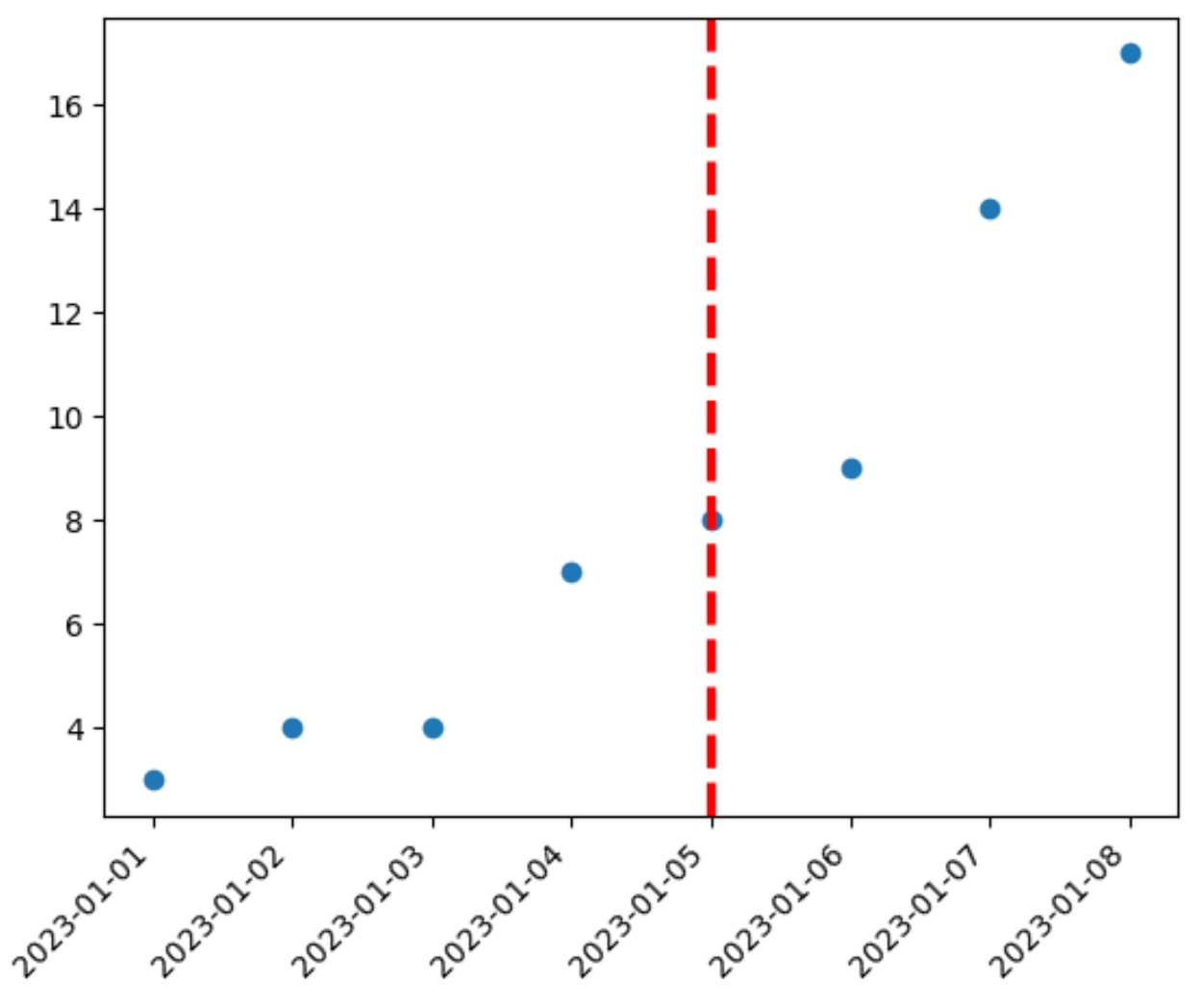

Observing the updated plot above, it is immediately evident that the vertical line now exhibits high visual contrast: it is rendered in a bright red hue, possesses significant thickness (specified by linewidth=3) compared to the default setting, and is drawn using a dashed pattern. These purposeful modifications successfully make the line considerably more prominent and aesthetically unique, efficiently directing the viewer’s eye directly to the specified date and its corresponding data point within the sales trend.

Developers are strongly encouraged to experiment thoughtfully with various combinations of color, linewidth, and linestyle parameters to achieve the most impactful visual outcome and optimize their data storytelling effectiveness. Beyond these core parameters, the axvline() function further supports arguments such as alpha for controlling the line’s transparency and zorder for managing the precise layering order of different plot elements, offering even greater granularity in advanced visualization design.

Summary and Final Thoughts

The straightforward technique of adding vertical lines at specific dates within Matplotlib plots constitutes an immensely powerful and fundamental tool for significantly enhancing data visualization quality, particularly in contexts involving the analysis of time-series data. By skillfully combining the axvline() function with the capabilities of Python’s datetime module, analysts gain the capacity to precisely and accurately mark crucial temporal events directly on their charts. This specific capability is indispensable for pinpointing abrupt trends, highlighting data anomalies, or visually demonstrating the immediate impact of specific external occurrences within complex datasets.

The practical, step-by-step examples provided throughout this guide demonstrate both the fundamental core implementation and the remarkable ease with which the vertical line’s appearance can be comprehensively customized. Utilizing key visual parameters such as color, linewidth, and linestyle ensures that insights are communicated with unparalleled clarity, significantly boosting the overall readability and professional polish of your generated plots.

Mastering this efficient technique will profoundly enhance your overall competence in creating highly informative and visually compelling analytical narratives. We strongly recommend integrating this robust and straightforward method into your standard Python data analysis workflow to bring superior focus, clarity, and impact to all your time-based observations and formal reports.

Additional Resources

For further exploration, in-depth technical specifications, and detailed information regarding the functions and libraries rigorously utilized in this guide, please consult the following official documentation and authoritative resources:

• Matplotlib.pyplot.axvline() Official Documentation: Comprehensive technical details regarding the axvline function and its full range of customization parameters.
• Python datetime Module Official Documentation: An exhaustive guide to effectively working with date and time objects in Python.
• Matplotlib.pyplot.plot_date() Official Documentation: Specific information on the best practices for plotting date and time data efficiently.
• Pandas Official Documentation: Primary documentation for utilizing DataFrames in data manipulation, cleaning, and preparation tasks.
• NumPy Official Documentation: Essential documentation for core numerical operations and array processing in Python.
