Get Axis Limits in Matplotlib (With Example)

For precise control and effective interpretation of graphical outputs, it is essential to programmatically ascertain the exact numerical bounds of a plot. When utilizing the Matplotlib library—the foundational tool for scientific plotting in Python—we can efficiently retrieve the current minimum and maximum values for both the x-axis and the y-axis. Accessing these limits is fundamental for ensuring accurate and reliable data visualization, as it allows developers to enforce precise control over scaling, cropping, and comparative analysis across disparate datasets. Understanding how to extract these boundary values forms the basis for performing more sophisticated plot customization and integration within complex data processing pipelines.

The central functionality required for this operation is encapsulated within the matplotlib.pyplot module. Specifically, the highly versatile function plt.axis() serves as the primary mechanism for boundary retrieval. When invoked without any input parameters, this function operates as a getter, providing the current limits established for the axes. The returned data is consistently structured as a single tuple containing four float values: (xmin, xmax, ymin, ymax). This powerful methodology grants data scientists and developers crucial programmatic access to the plot boundaries, regardless of whether those limits were automatically determined by Matplotlib to optimally fit the data or manually overridden by the user prior to the retrieval call.

The Core Mechanism: Using plt.axis() for Limit Retrieval

The primary and most efficient technique for obtaining the numerical boundaries of a Matplotlib plot relies on the simplicity and efficiency of the plt.axis() function. This mechanism is designed to streamline the extraction of the four critical values—the minimum and maximum extent for both the horizontal and vertical axes—into a single, easily destructured tuple. Utilizing this function is typically executed immediately after the plotting command (such as plt.plot() or plt.scatter()) has been processed. This ensures that the retrieved limits accurately reflect the currently rendered figure state, including any automatic scaling or padding applied by the library.

This concise approach is essential for developing robust Python scripts that must interact dynamically with visualizations. By capturing these boundaries, users gain the immediate ability to confirm the outcome of automatic scaling, perform subsequent calculations based on the plot’s visible area, or prepare for precise manual adjustments of the limits using other dedicated functions. The following code snippet demonstrates the fundamental syntax for importing the library, generating a plot (implicitly, if not explicitly shown here), and extracting the axis bounds.

import matplotlib.pyplot as plt

#get x-axis and y-axis limits
xmin, xmax, ymin, ymax = plt.axis()

#print axis limits
print(xmin, xmax, ymin, ymax)

Practical Application: Retrieving Limits from a Scatterplot

To fully illustrate the capability of obtaining axis limits, we will walk through a concrete example involving a common visualization type: the scatterplot. Scatterplots are invaluable for visually examining the correlation, clustering, and distribution between two numerical variables. In this demonstration, we first establish a small, simple dataset consisting of x and y coordinates, proceed to render a basic scatterplot using this data, and then immediately extract the precise axis boundaries that Matplotlib automatically calculated and applied to the figure.

The initial mandatory step involves defining and preparing the raw data, which is typically structured as standard Python lists or high-performance NumPy arrays for both the independent (x) and dependent (y) variables. Once these data structures are defined, the plt.scatter() function is called. This command instructs the library to draw the individual data points on the canvas. Critically, during this rendering process, Matplotlib’s internal algorithms calculate the optimal axis ranges necessary to fully encompass every single data point while often incorporating a small, visually comfortable margin, or padding, to prevent points from resting directly on the frame edges.

import matplotlib.pyplot as plt

#define x and y
x = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
y = [1, 5, 9, 15, 24, 39, 35, 35, 40, 41]

#create scatter plot of x vs. y
plt.scatter(x, y)

The resulting visualization effectively displays the distribution of our sample data across the Cartesian coordinate system. As soon as the plot is generated (and before the display function like plt.show() is executed, if applicable), we can utilize the retrieval function. By calling plt.axis() immediately following the plotting command, we successfully capture the exact, automatically calculated numerical boundaries that define the current viewing window of the scatterplot figure.

Analyzing the Retrieved Axis Limits and Automatic Padding

The next crucial step, following the plot creation, involves executing the limit retrieval and printing the results to the console. This process delivers a clear numerical representation of the plot’s true extent, which is indispensable for detailed data analysis and rigorous quality control. The resulting output precisely reflects the automatic scaling decisions made by Matplotlib, explicitly revealing how the library incorporates visual padding—a small margin—around the absolute maximum and minimum data points to improve visual clarity.

import matplotlib.pyplot as plt

#define x and y
x = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
y = [1, 5, 9, 15, 24, 39, 35, 35, 40, 41]

#create scatter plot of x vs. y
plt.scatter(x, y)

#get x-axis and y-axis limits
xmin, xmax, ymin, ymax = plt.axis()

#print axis limits
print(xmin, xmax, ymin, ymax)

0.55 10.45 -1.0 43.0

Upon execution, the code yields the specific limits listed above (0.55 10.45 -1.0 43.0), clearly illustrating Matplotlib’s automatic margin calculation:

• The retrieved x-axis minimum (0.55) is noticeably lower than the actual minimum data point (1), providing necessary left padding.
• The x-axis maximum (10.45) extends slightly beyond the maximum data point (10).
• The y-axis minimum (-1.0) dips below the lowest y data point (1) to create a generous visual buffer beneath the data.
• The y-axis maximum (43.0) accommodates the highest y data point (41) with a comfortable margin above.

This intentional padding is a core feature of Matplotlib‘s default configuration, specifically designed to optimize the readability and aesthetic quality of the visualization by ensuring that data points are distinct from the boundary lines. The numerical values retrieved by plt.axis() are the exact boundaries used for rendering the image displayed in the preceding section.

Enhancing Visualizations with Axis Limit Annotation

While programmatic retrieval of axis limits is highly beneficial for back-end scripting and analytical processes, directly displaying this information on the plot itself can significantly improve the self-sufficiency and clarity of the visualization. Matplotlib provides excellent facilities for this through the annotate() function. This function enables the placement of arbitrary text labels at precise coordinates within the plotting area, making it an ideal method for creating figures where all critical parameters, including the exact boundary definitions, are instantly visible to the observer.

To implement this visual enhancement, the four axis limit values retrieved via plt.axis() are first formatted into a clear, multi-line string. We utilize the round() function to ensure the numerical precision is tidy and highly readable before concatenating the string components. Subsequently, plt.annotate() is invoked, using a strategically chosen (x, y) coordinate, such as (1, 35) in this example. This placement ensures the descriptive text provides maximum informational value without obscuring the core data points or crowding the plot area.

import matplotlib.pyplot as plt

#define x and y
x = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
y = [1, 5, 9, 15, 24, 39, 35, 35, 40, 41]

#create scatter plot of x vs. y
plt.scatter(x, y)

#get x-axis and y-axis limits
xmin, xmax, ymin, ymax = plt.axis()

#print axis limits
lims = 'xmin: ' + str(round(xmin, 2)) + 'n' +
       'xmax: ' + str(round(xmax, 2)) + 'n' +
       'ymin: ' + str(round(ymin, 2)) + 'n' +
       'ymax: ' + str(round(ymax, 2))

#add axis limits to plot at (x,y) coordinate (1,35)
plt.annotate(lims, (1, 35))

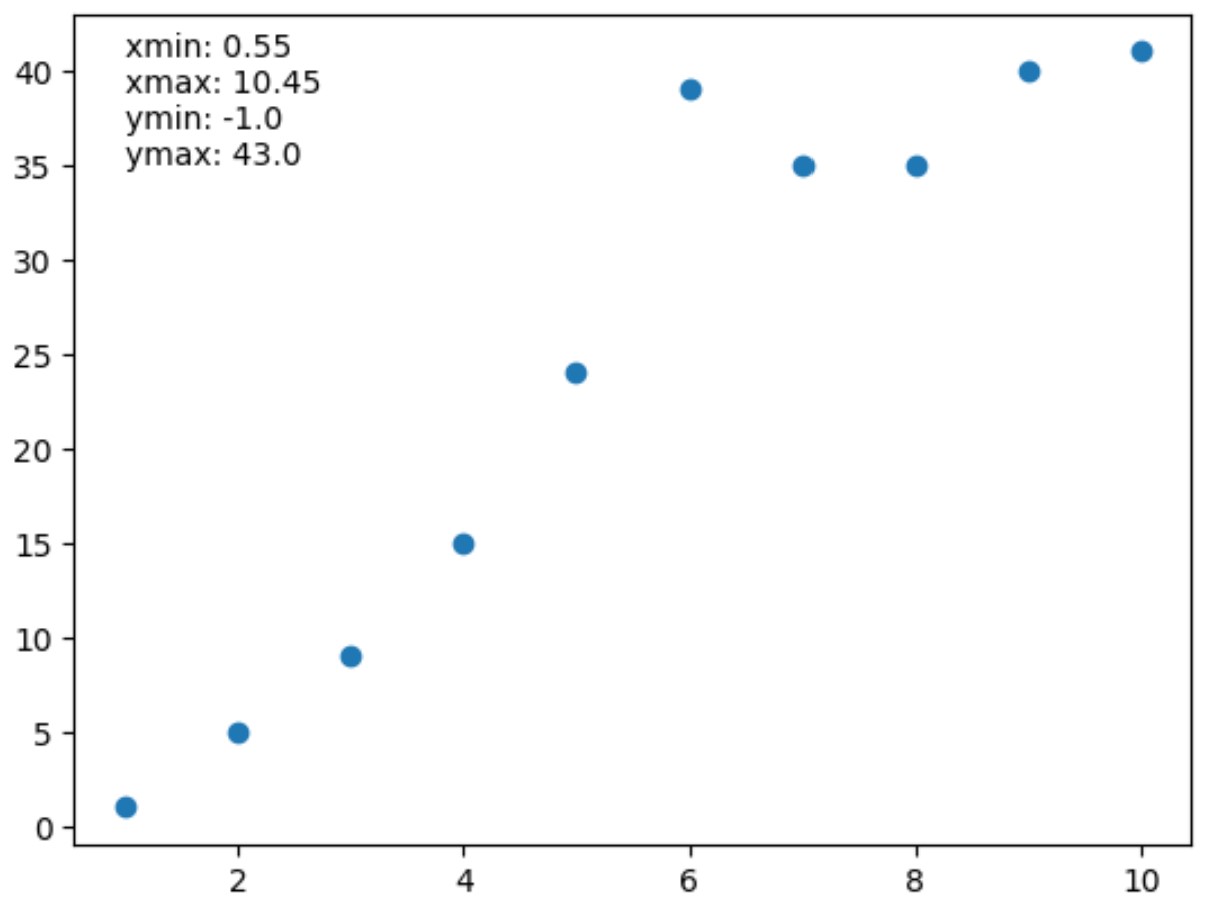

The resulting visualization, now explicitly annotated with the axis limits, is transformed into a highly valuable resource. This technique converts a standard plot into a comprehensive, self-contained report, making it considerably simpler for collaborators or readers to grasp the precise data range being displayed without requiring them to consult external code logs or output files.

Granular Control: Contrasting plt.axis() with xlim() and ylim()

While plt.axis() provides an efficient way to simultaneously retrieve all four boundary values in a single tuple, Matplotlib also offers dedicated functions designed for more granular control over the horizontal and vertical dimensions individually. These functions are plt.xlim() and plt.ylim(). They afford the flexibility to both retrieve and set limits specifically for their respective axes, which is often preferable when only one dimension requires inspection or modification.

When plt.xlim() is called without arguments, it returns a tuple containing only the minimum and maximum values of the x-axis (i.e., (xmin, xmax)). Correspondingly, plt.ylim() returns (ymin, ymax). This distinction is particularly useful in scripting environments where only the range of a single variable needs to be verified or adjusted, offering a much cleaner and more direct syntax than the mandatory unpacking of the four values provided by plt.axis(). For instance, tasks that involve comparing datasets that share an identical x-domain but exhibit widely divergent y-values usually only necessitate the inspection and manipulation of the y-limits.

Furthermore, in the object-oriented approach—a standard practice for advanced Matplotlib usage where figures are managed through explicit Axes objects (e.g., ax = fig.add_subplot(111))—equivalent methods are available. To retrieve limits directly from an Axes object, the appropriate methods are ax.get_xlim() and ax.get_ylim(). This object-oriented structure is generally the preferred methodology for constructing complex visualizations or multi-panel plots, as it offers the most robust and controlled means of managing all figure properties, including precise boundary settings.

Advanced Use Cases and Best Practices for Axis Consistency

The programmatic retrieval of axis limits extends far beyond simple inspection; it is a foundational capability for advanced data visualization techniques, especially those centered on plot consistency and comparative analysis. A paramount application is ensuring uniformity across multiple subplots generated using tools like plt.subplots(). When comparing several related datasets, maintaining identical axis ranges across all panels is crucial for a scientifically fair visual comparison, as varying scales can severely distort data perception and lead to misleading interpretations.

In these scenarios, the necessary limits are typically retrieved from a reference plot—often the subplot that spans the widest data range—using getter functions like plt.xlim() or plt.ylim(). These captured values are then systematically applied to all other plots within the figure using their corresponding setter methods, such as ax.set_xlim() and ax.set_ylim(). This meticulous technique guarantees that the visual impact of the data, including variance, trends, or clustering, is consistently and accurately represented across the entire figure, a defining characteristic of high-quality professional and scientific plotting.

For developers working with interactive or dynamic visualizations, programmatic limit retrieval takes on a critical functional role. As users interact with the plot—zooming in or panning across the data—the axis limits are continuously updated in real-time. Capturing these live limits allows the underlying application to save specific viewing states, calculate statistics exclusively on the visible data subset, or trigger automatic synchronization updates in linked dashboard panels. Adhering to best practices requires ensuring that any manual adjustments to the limits (via setting functions) rigorously maintain data integrity. The chosen ranges must honestly and accurately represent the underlying data without introducing artificial distortion or unnecessary clipping, thus guaranteeing the visualization remains interpretable and trustworthy.

Additional Resources for Matplotlib Proficiency

To continue developing expertise in generating compelling and informative data visualizations, mastering the nuances of axis control and the various customization options available within Matplotlib is absolutely essential. The functions discussed throughout this guide—retrieving and setting plot boundaries—are core foundational skills that unlock a wide spectrum of advanced plotting capabilities necessary for professional data work.

For any user seeking to further deepen their technical knowledge, consulting the official Matplotlib documentation is highly recommended. It remains the most authoritative and comprehensive resource, providing meticulously detailed explanations, practical code examples, and thorough reference material for every module and function. This documentation serves as the definitive guide for professionals looking to create sophisticated and highly informative graphs tailored to any complex data requirement.
