Adjust Line Thickness in Boxplots in ggplot2

ggplot2, a foundational and powerful data visualization package within the statistical programming environment R, enables analysts to construct intricate and highly informative graphics. One of its most frequently utilized tools is the generation of boxplots (or box-and-whisker plots), which are essential for quickly summarizing the distribution, spread, and central tendency of numerical data across various categorical groups. Although ggplot2 provides robust and visually appealing default settings, the ability to customize specific visual aesthetics—such as line thickness—is paramount for maximizing the plot’s impact and clarity, especially when preparing graphics for formal publications or presentations.

Modifying the line thickness in a boxplot is not merely an aesthetic flourish; it is a critical choice in data visualization. Adjusting thickness can help direct the viewer’s focus to key statistical elements, ensure legibility when plots are resized or printed, and align the visualization with specific design standards. This comprehensive guide details the two primary methods available in the ggplot2 package for precise control over the line weights in your boxplots, allowing you to fine-tune your visualizations for maximum effectiveness.

Distinguishing Between Overall and Median Line Thickness Controls

The core functionality for creating boxplots in ggplot2 resides within the geom_boxplot() function. This function offers distinct arguments that allow for granular control over different components of the plot’s line work. Understanding the difference between these arguments—specifically lwd and fatten—is essential for achieving your desired visual outcome, whether you aim to make the entire plot bolder or simply highlight the statistical center.

The choice between these parameters depends entirely on your communicative intent. If the goal is to enhance the overall presence of the plot on a busy canvas, you would employ one method. Conversely, if the purpose is to specifically draw immediate attention to the typical value of the dataset, represented by the median line, a different argument is required. This deliberate application of aesthetic parameters ensures that the visualization effectively supports the narrative of your data analysis.

Method 1: Adjusting Overall Line Thickness with lwd

The argument lwd, which stands for “line width,” is the global setting for line thickness within the geom_boxplot() function. When you modify lwd, you are uniformly controlling the thickness of all linear elements that constitute the boxplot graphic. This includes the four boundary lines of the central box (representing the interquartile range), the whiskers that extend to the non-outlier range, and the internal line denoting the median.

By increasing the numeric value associated with lwd, the entire boxplot gains visual prominence, making it appear substantially bolder and more robust. This technique is highly effective when boxplots need to stand out clearly, such as in reports where high contrast is necessary, or in presentations viewed on large screens or from a distance. The default value for line width in ggplot2 is typically around 0.5 mm, and experimentation with values like 1.5 or 2.0 allows analysts to fine-tune the balance between visual impact and clutter.

ggplot(df, aes(x=x, y=y)) +
  geom_boxplot(lwd=2)

Method 2: Emphasizing the Median Line with fatten

In contrast to the holistic control offered by lwd, the fatten argument provides a specialized mechanism to selectively emphasize the line representing the median. This argument takes a numeric multiplier that scales the thickness of the median line relative to the default line thickness of the surrounding box. If fatten is not specified, its default effect results in the median line having the same thickness as the box boundaries (equivalent to a value of 1). Setting the value higher than 1 dramatically increases the median line’s weight.

Employing fatten is the preferred technique when the goal is to draw particular attention to the central tendency of the data. Since the median is a robust summary statistic, less susceptible to distortion by outliers than the mean, highlighting it can significantly improve the speed and accuracy with which viewers compare the typical values across different groups. For statistical analysis and scientific communication, this targeted emphasis on the median is invaluable for interpreting group differences.

ggplot(df, aes(x=x, y=y)) +
  geom_boxplot(fatten=4)

Setting Up Reproducible Data for Boxplot Examples

To effectively illustrate the visual impact of the lwd and fatten parameters, a consistent and reproducible dataset is required. In statistical programming, the establishment of reproducible examples is considered a best practice, ensuring that the results obtained are verifiable by anyone running the same code. This is achieved in R by utilizing the set.seed() function, which initializes the pseudo-random number generator to a fixed state, guaranteeing identical “random” data generation upon every execution.

Our example uses a sample data frame named df, simulating performance scores (points) for three distinct teams, labeled ‘A’, ‘B’, and ‘C’. We generate the numerical scores using the rnorm() function, which creates values sampled from a normal distribution, allowing us to establish clear, differentiable distributions for each team. This structured approach provides an ideal scenario for visualizing and comparing group differences using the boxplot geometry.

Following the data generation, we inspect the structure of the data frame using head(df). This confirms that the data is correctly structured, consisting of a categorical grouping variable (team) and the continuous numerical variable (points), which is the necessary prerequisite format for generating group-based boxplots in ggplot2.

#make this example reproducible
set.seed(1)

#create data frame
df <- data.frame(team=rep(c('A', 'B', 'C'), each=100),
                 points=c(rnorm(100, mean=10),
                          rnorm(100, mean=15),
                          rnorm(100, mean=20)))

#view head of data frame
head(df)

  team    points
1    A  9.373546
2    A 10.183643
3    A  9.164371
4    A 11.595281
5    A 10.329508
6    A  9.179532

Practical Application: Creating a Boxplot with Default Settings

Before implementing any line thickness modifications, it is essential to establish a visual baseline using ggplot2‘s default settings. This reference point is crucial for accurately assessing the impact of subsequent customizations. The standard boxplot summarizes five key metrics: the minimum and maximum values (excluding outliers), the first and third quartiles (forming the box), and the median (the line inside the box).

The following R code generates this baseline visualization. After loading the necessary ggplot2 library, we map the categorical variable team to the x-axis and the numerical variable points to the y-axis. By adding the geom_boxplot() layer without specifying either lwd or fatten, we instruct ggplot2 to render the plot using its standard visual conventions.

library(ggplot2)

#create box plots to visualize distribution of points by team
ggplot(df, aes(x=team, y=points)) +
  geom_boxplot()

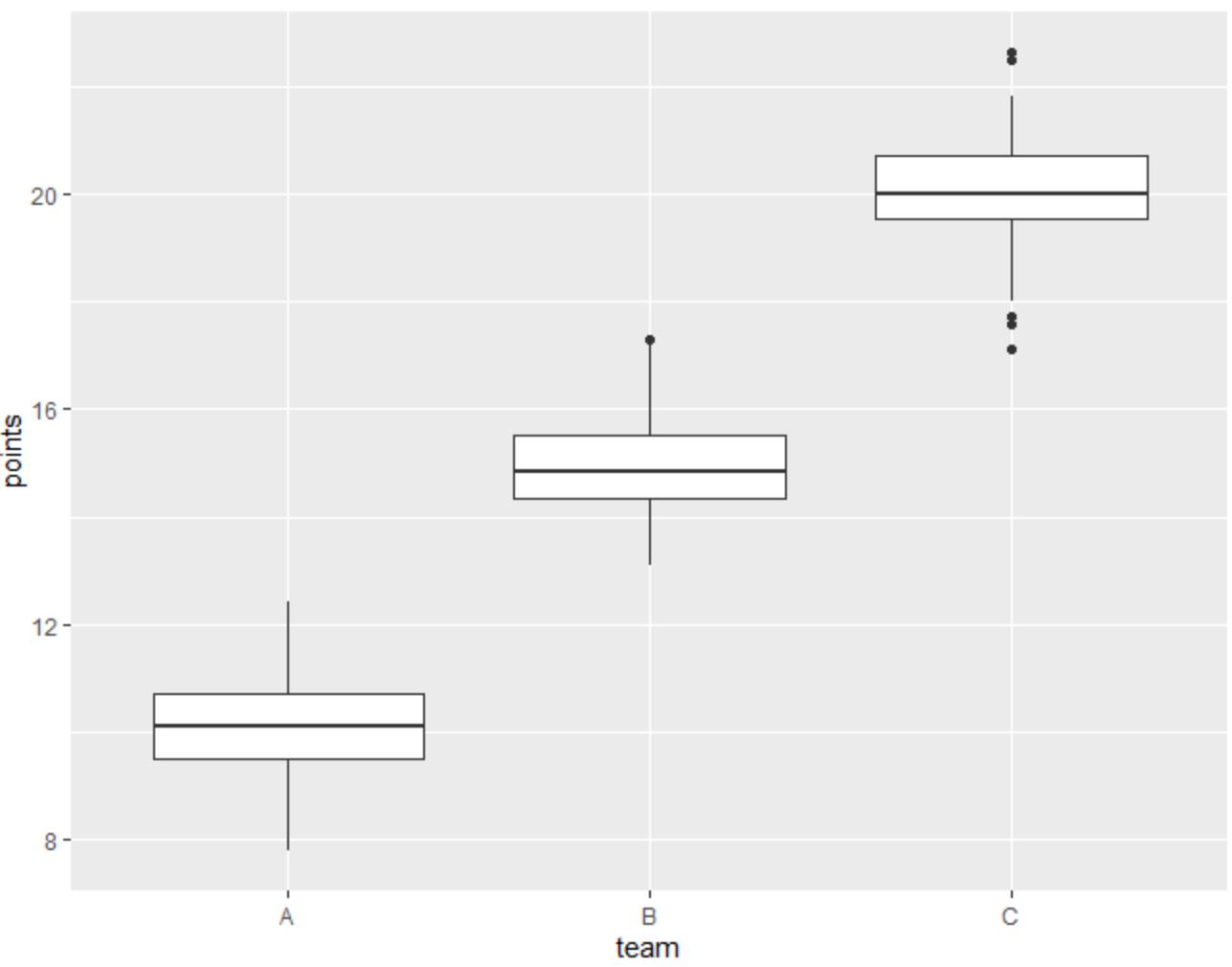

The plot displayed below serves as the default reference. Notice the inherent thinness of all lines—the box, whiskers, and median line. While these defaults are functionally sound, they may sometimes lack the necessary visual weight to stand out in a complex visualization environment, motivating the need for the thickness adjustments detailed in the subsequent sections.

Practical Application: Applying the lwd Argument for Overall Bolding

When the analytical context demands that the boxplots possess a stronger, more noticeable visual presence, the overall line thickness must be increased. This is achieved by utilizing the lwd argument. This modification is highly practical in scenarios where the plot needs to be quickly legible or when the visual emphasis of the entire statistical shape is crucial for interpretation.

In this specific example, we apply lwd and set its value to 2. This significantly amplifies the line thickness compared to the standard default, ensuring a bolder and more prominent graphic. The structure of the R code remains straightforward, integrating the lwd = 2 command directly within the geom_boxplot() function. This single adjustment results in a visually robust plot that is easy to discern.

library(ggplot2)

#create box plots with increased line thickness
ggplot(df, aes(x=team, y=points)) +
  geom_boxplot(lwd=2)

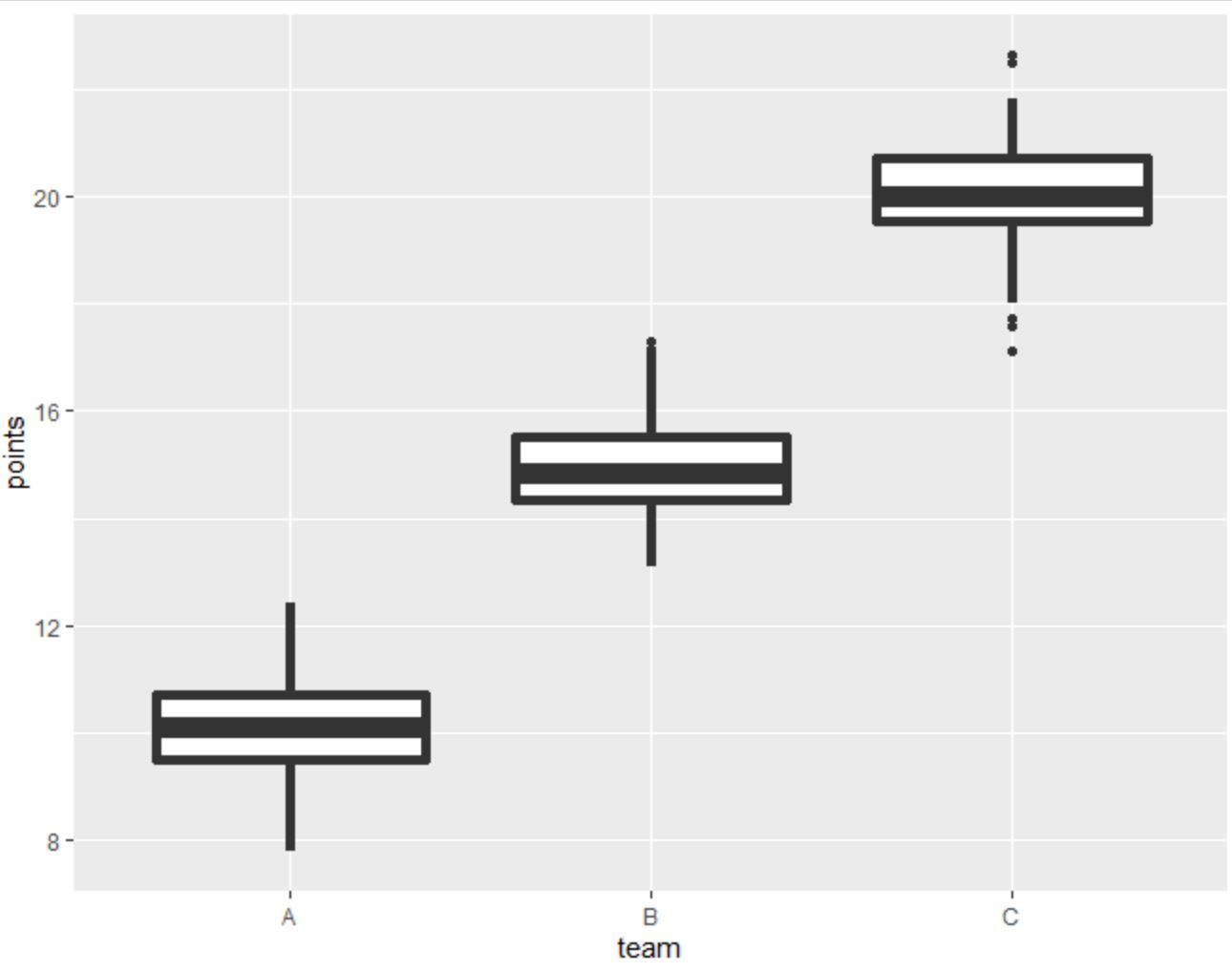

The resulting visualization, shown below, clearly demonstrates the effect of lwd = 2. Every line segment—the box boundaries, the whiskers, and the median line—has been uniformly thickened. This provides a consistent, heavy visual weight across all elements of the boxplot, making the comparison of distributions between teams A, B, and C much more immediate and impactful than the default visualization.

Practical Application: Using fatten to Highlight the Median

A different visual strategy is needed when the focus must be placed solely on the measure of central tendency, specifically the median. By selectively increasing the thickness of this line, viewers can quickly identify and compare the typical performance scores across different groups without the visual distraction of thickened box boundaries or whiskers. This targeted emphasis is achieved using the fatten argument within geom_boxplot().

In this demonstration, we set fatten = 4. This instruction tells ggplot2 to render the median line four times thicker than the default line width of the other boxplot components. This relative scaling ensures that the median is immediately salient, significantly aiding in the rapid interpretation of where the center of each distribution lies.

library(ggplot2)

#create box plots with increased median line thickness
ggplot(df, aes(x=team, y=points)) +
  geom_boxplot(fatten=4)

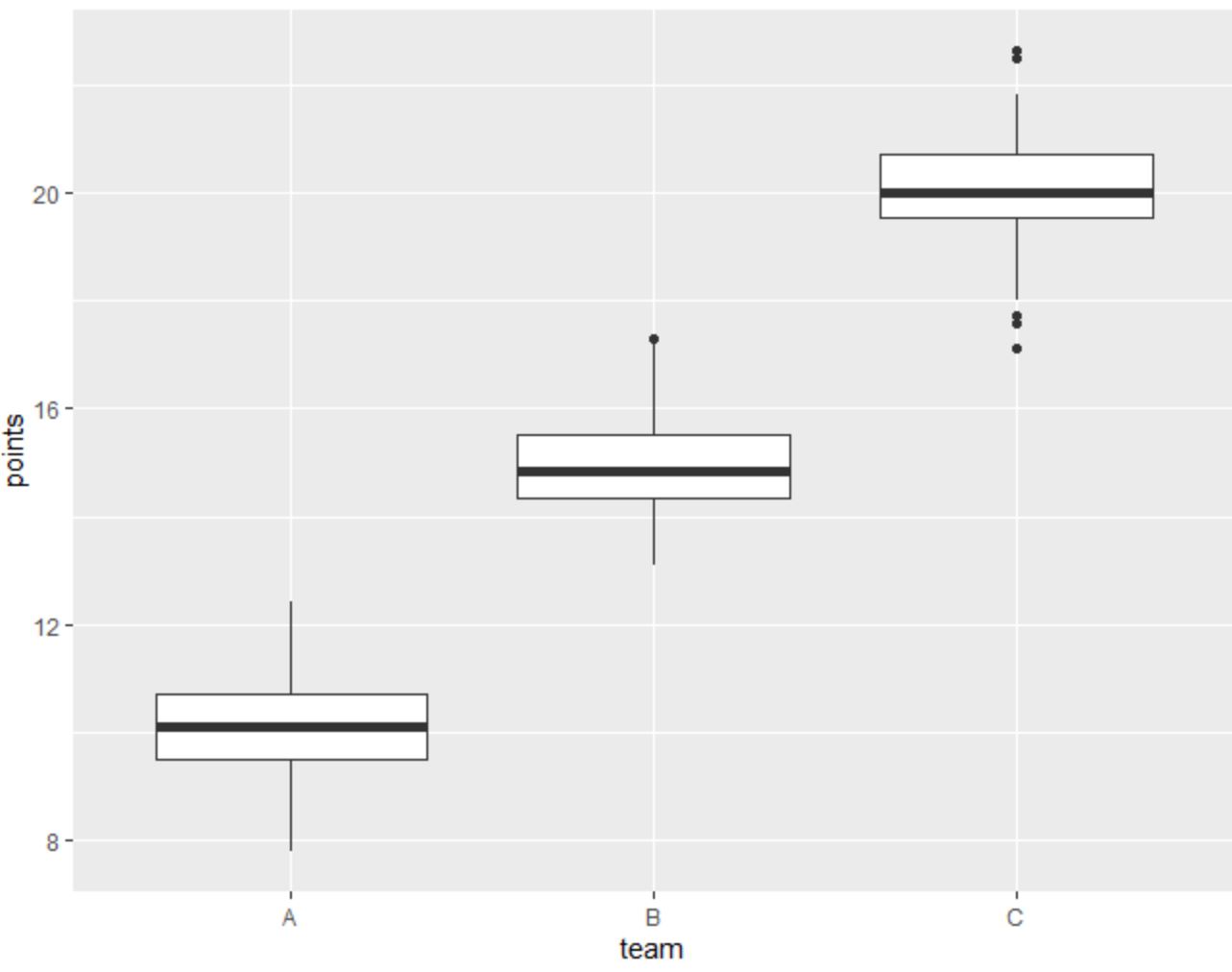

As evidenced by the plot below, the application of fatten = 4 results in only the horizontal median line being visibly thickened. The box boundaries and whiskers retain their original, thinner default appearance. This selective enhancement allows for a direct and unambiguous comparison of the central values for teams A, B, and C, effectively guiding the audience’s eye toward the most robust summary statistic of each distribution.

Conclusion: Optimizing Boxplot Aesthetics for Clear Communication

The strategic manipulation of visual properties, such as line thickness, in ggplot2 boxplots is a fundamental aspect of producing high-quality data visualization. By leveraging the power of arguments like lwd for overall prominence and fatten for specialized emphasis on the median, analysts gain precise control over the visual hierarchy of their plots. These controls ensure that the resulting graphics are not only accurate representations of the underlying data but are also optimized to communicate specific insights with maximum clarity and persuasive impact.

We highly recommend actively experimenting with varying values for both lwd and fatten. The optimal line thickness is often context-dependent: a thicker overall line might be ideal for a simple infographic, while a subtle median emphasis may be more suitable for detailed comparative analysis in a scientific paper. Always prioritize readability and accurate interpretation. Effective customization should facilitate understanding, not introduce visual clutter or ambiguity, ensuring your boxplots serve as compelling tools for data storytelling.
