Shade an Area in ggplot2 (With Examples)

Introduction to Shading Areas in ggplot2

Data visualization serves as a crucial mechanism for translating complex datasets into actionable insights. Within this domain, the strategic use of visual cues, such as highlighting specific regions within a plot, can dramatically improve the interpretability and analytical depth of the presentation. Utilizing R‘s highly regarded ggplot2 package, practitioners gain the ability to shade particular areas, effectively drawing the viewer’s focus to critical ranges, predefined thresholds, or specific zones of statistical interest. This technique is indispensable for emphasizing subtle data patterns, identifying potential outliers, or delineating significant statistical intervals directly onto your graphical representations, thereby enhancing the overall narrative of the data.

This comprehensive tutorial is designed to guide users through the process of effectively implementing shaded areas within their ggplot2 visualizations. We will meticulously dissect the fundamental syntax required for this operation, clarify the role of key arguments involved in defining the shaded regions, and provide robust, practical examples that showcase various customization possibilities. By the conclusion of this instructional guide, you will possess the requisite skills to proficiently employ the specialized functions, primarily the annotate() function, to generate clear, informative, and visually compelling shaded regions that elevate the quality of your data storytelling.

Understanding the annotate() Function for Shading

The principal method employed in ggplot2 for incorporating graphical components that are not directly mapped to the underlying dataset—such as lines, text labels, or, crucially, shaded rectangles—is achieved through the versatile annotate() function. When the objective is to shade a precisely defined rectangular area, we leverage the specific geometry type call: annotate(‘rect’, …). This function provides a powerful mechanism to define a rectangular region using explicit coordinate boundaries, ensuring the placement of the shade remains independent of the primary dataset’s aesthetic mappings.

The core syntax structure necessary for defining and shading a rectangular area necessitates the specification of minimum and maximum values for both the horizontal (x) and vertical (y) axes. These defining parameters are designated as follows:

• xmin: Specifies the exact x-coordinate corresponding to the left boundary or edge of the intended shaded rectangle.
• xmax: Specifies the exact x-coordinate corresponding to the right boundary or edge of the shaded rectangle.
• ymin: Specifies the exact y-coordinate corresponding to the bottom boundary or edge of the shaded rectangle.
• ymax: Specifies the exact y-coordinate corresponding to the top boundary or edge of the shaded rectangle.

Beyond merely establishing the spatial boundaries, sophisticated control over the visual presentation of the shaded area is managed using the fill and alpha arguments. The fill argument is responsible for determining the internal color of the shaded region, accepting standard R color designations or standard hexadecimal codes for precise color matching. Conversely, the alpha argument governs the transparency level of the chosen color, ranging parametrically from 0 (indicating complete transparency, or invisibility) up to 1 (representing complete opacity). This fine-grained control over transparency is critical for ensuring that underlying data points remain visible beneath the highlight.

Presented below is the fundamental structure and syntax utilized for adding a single, defined shaded rectangle to any existing ggplot2 visualization:

ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  annotate('rect', xmin=3, xmax=5, ymin=3, ymax=7, alpha=.2, fill='red')

In this specific code example, the function instructs ggplot2 to shade the area encompassing x-values from 3 to 5 and y-values from 3 to 7. The resulting rectangle will be filled with a red color and rendered with a transparency level (alpha) set at 0.2, ensuring the highlight is subtle and minimally intrusive on the underlying data representation.

Practical Implementation: Defining a Single Region of Interest

To demonstrate the practical utility and execution of area shading, let us apply this technique to a common analytical scenario. We will initiate the process by constructing a simple scatter plot derived from a simulated data frame. Consider a hypothetical dataset tracking basketball players’ performance metrics, specifically comparing their total points scored against the number of rebounds collected. Our primary analytical objective is to visually isolate and emphasize a specific cohort of players—those whose point totals fall within the range of 3 to 5 and whose rebound counts are between 3 and 7.

The initial step in R involves generating the necessary sample data frame, which will contain the two fundamental variables required for our plot: points and rebounds. This structured dataset will serve as the foundation upon which our visualization is built, ensuring the coordinates for the shading correspond accurately to the data space:

# Create data frame with simulated player statistics
df <- data.frame(points=c(3, 3, 5, 6, 7, 8, 9, 9, 8, 5),
                 rebounds=c(2, 6, 5, 5, 8, 5, 9, 9, 8, 6))

# Display the created data frame structure
df

   points rebounds
1       3        2
2       3        6
3       5        5
4       6        5
5       7        8
6       8        5
7       9        9
8       9        9
9       8        8
10      5        6

With the sample data frame now fully prepared, we proceed to construct the scatter plot using the robust capabilities of ggplot2. We map the points variable to the horizontal axis and rebounds to the vertical axis. Following the definition of the data points, we integrate the annotate() function. This function will be utilized to superimpose a light red rectangular shade, effectively highlighting the area where the points metrics range from 3 to 5 and the rebounds metrics fall between 3 and 7, thereby emphasizing the target performance zone.

library(ggplot2)

# Generate scatter plot with the defined single shaded area
ggplot(df, aes(x=points, y=rebounds)) +
  geom_point() +
  annotate('rect', xmin=3, xmax=5, ymin=3, ymax=7, alpha=.2, fill='red')

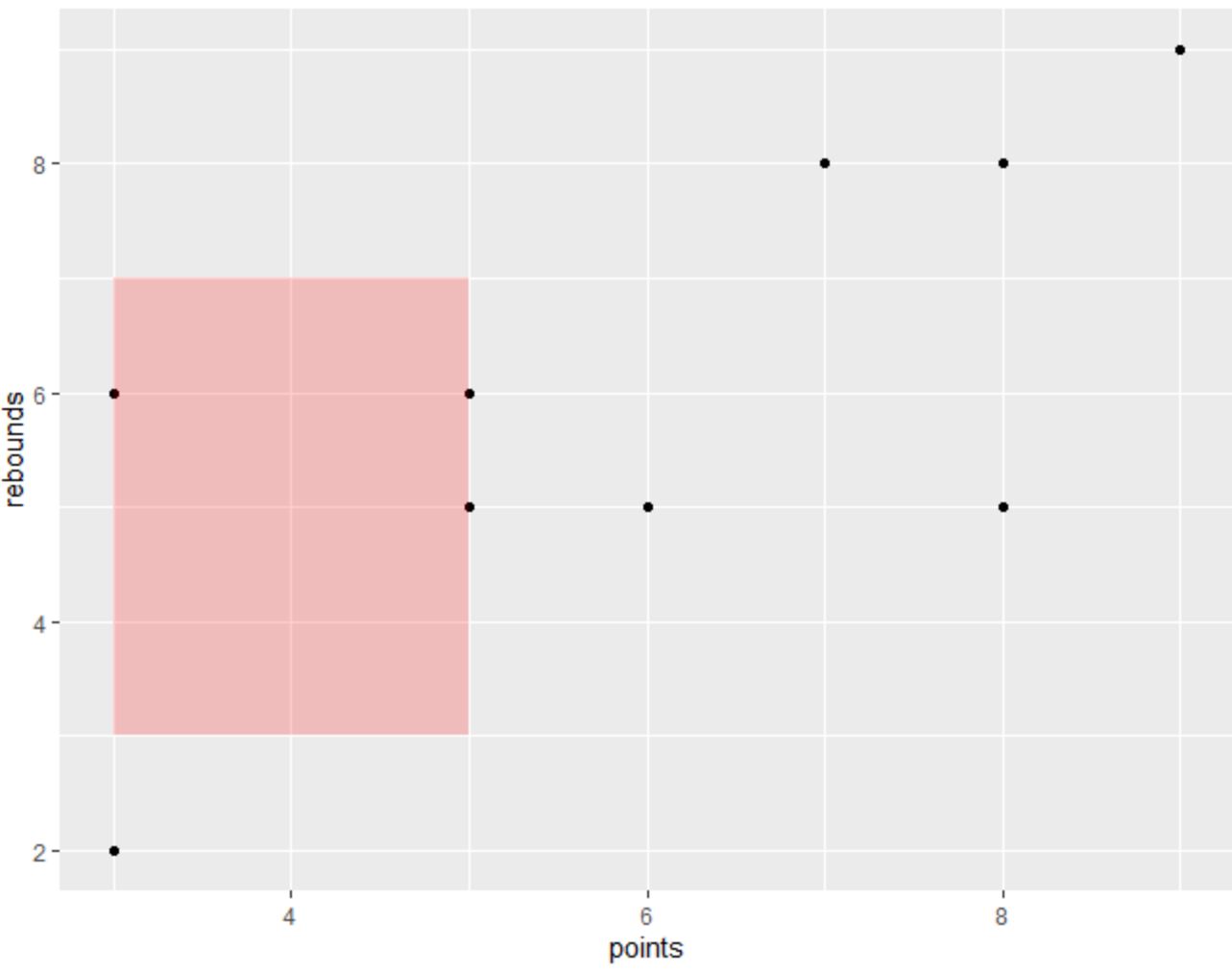

As clearly illustrated in the resulting visualization, the pre-specified region of interest is now visibly delineated by a light red, translucent rectangle. This powerful visual cue facilitates rapid interpretation, enabling viewers to immediately identify which data points—representing individual players—reside within the defined performance boundaries. This technique fundamentally aids in accelerating the analytical process by directing attention to key subsets of the data.

Controlling Visual Impact: Adjusting Transparency with the alpha Argument

The alpha argument is a critical aesthetic parameter that dictates the perceived visual presence of your shaded areas by controlling their level of transparency. This value operates on a continuous scale from 0 to 1. A value approaching 0 signifies high transparency, rendering the area nearly invisible, whereas a value of 1 results in complete opacity, making the shaded area solid. Utilizing intermediate values is the standard practice, as they allow the underlying plot elements, particularly the essential data points, to remain clearly visible through the colored overlay.

The selection of an optimal alpha value is paramount for maintaining the overall clarity and integrity of the visualization. If the alpha value is set too low (e.g., 0.1), the shading remains subtle and unobtrusive, effectively preventing the highlight from obscuring important data. Conversely, employing a higher alpha value (e.g., 0.5 or higher) results in a more pronounced and emphatic highlight. For instance, modifying the transparency level from the initial 0.2 to 0.5 will yield a substantially darker and more visually dominant shaded area, as demonstrated in the subsequent code block and corresponding plot result.

library(ggplot2)

# Create scatter plot with a darker, more prominent shaded area (alpha = 0.5)
ggplot(df, aes(x=points, y=rebounds)) +
  geom_point() +
  annotate('rect', xmin=3, xmax=5, ymin=3, ymax=7, alpha=.5, fill='red')

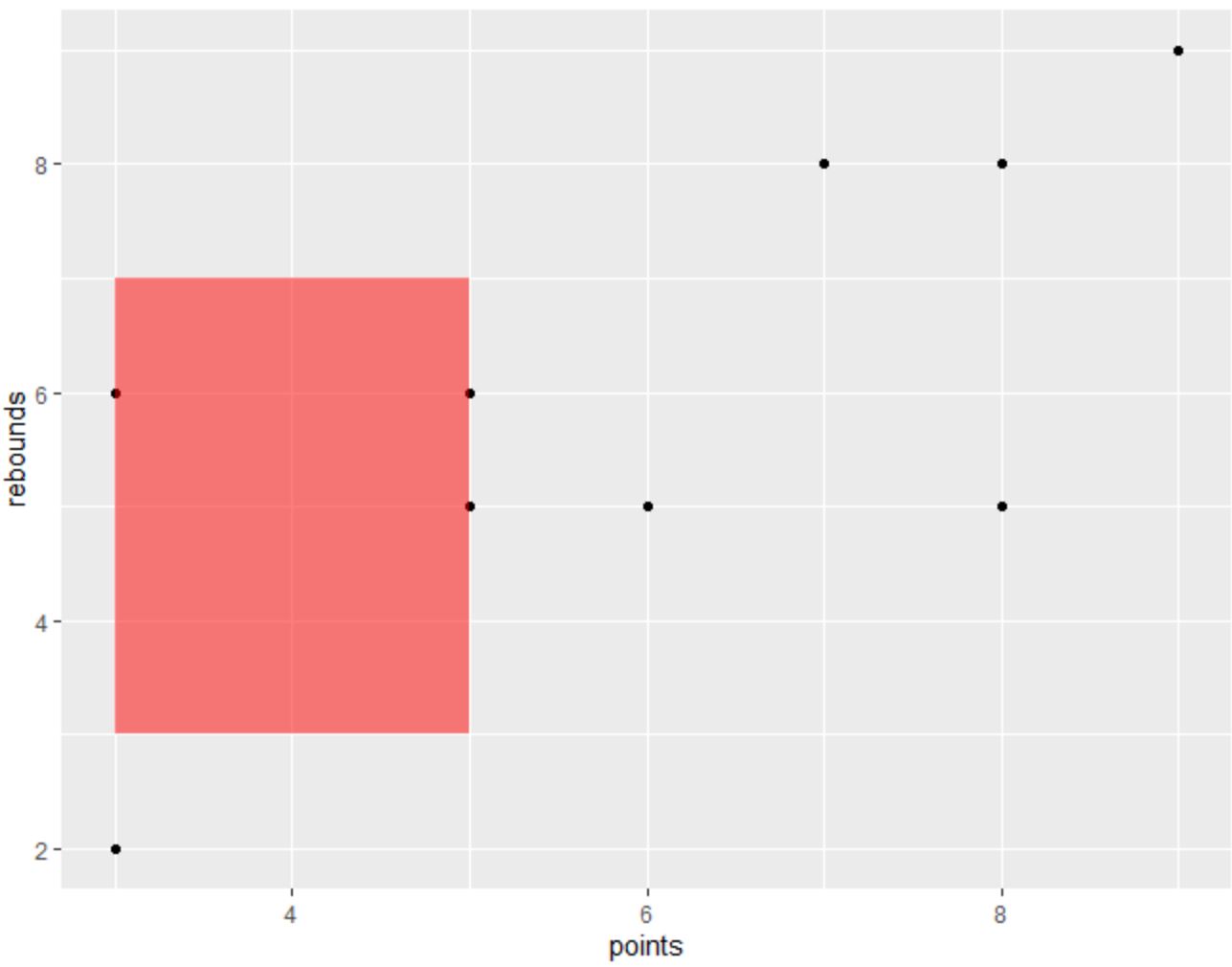

Careful observation of this updated plot reveals that the shaded region now possesses significantly greater visual weight compared to the previous example, yet the individual data points that fall within or near this zone remain easily discernible. This illustrates the delicate balance required in visualization design: effective highlighting must not come at the expense of data readability. Rigorous experimentation with varying alpha values is highly recommended to ascertain the perfect equilibrium for the specific analytical objectives and visual context of your project.

Implementing Multiple Shaded Areas for Comparative Analysis

A key strength of the annotate() function lies in its inherent flexibility, which readily accommodates the inclusion of multiple, independently defined shaded regions within a single visualization. This feature is exceptionally valuable when the goal is to simultaneously highlight several distinct zones of analytical interest, or when a graphical comparison between different categorical regions or performance tiers is required on the same plot. Because each invocation of annotate() adds a separate, non-data layer to the ggplot2 object, users retain the capacity to specify unique coordinates, distinct colors, and differing transparency levels for every single shaded area added.

To successfully implement multiple shaded areas, the procedure is straightforward: simply append additional annotate(‘rect’, …) calls to your existing ggplot2 code sequence. Each subsequent call will precisely define a new rectangular highlight. Building upon our existing basketball player performance dataset, we can now introduce a second shaded area, perhaps colored blue, specifically designed to highlight players categorized as high-achievers—those demonstrating both elevated points and high rebounds—in addition to the moderate performance region already defined.

library(ggplot2)

# Generate scatter plot featuring two distinct shaded areas
ggplot(df, aes(x=points, y=rebounds)) +
  geom_point() +
  annotate('rect', xmin=3, xmax=5, ymin=3, ymax=7, alpha=.5, fill='red') +
  annotate('rect', xmin=7, xmax=9, ymin=7, ymax=9, alpha=.3, fill='blue')

The resultant visualization effectively presents two distinctly shaded regions, each characterized by its own unique color and level of transparency. This configuration facilitates a more complex and nuanced visual analysis. The initial red area continues to draw attention to players exhibiting moderate performance levels, while the newly introduced blue area clearly isolates and highlights the superior performers. The ability to layer these annotations provides immense power for visual data comparison and categorical segmentation.

Advanced Customization and Best Practices

While defining coordinates, fill, and alpha are fundamental, the annotate() function extends its utility by offering several advanced customization parameters designed to fine-tune the aesthetic appearance of your shaded areas. Users can precisely control the visual border of the rectangle using the color argument to specify the outline color, modify the border style using linetype (options include “solid”, “dashed”, or “dotted”), and adjust the thickness of this border via the size argument. For example, applying the arguments color = "black" and size = 1 would introduce a crisp, one-unit-thick black border surrounding the shaded rectangle, further defining its boundaries.

When integrating shading into a visualization, it is imperative to carefully consider its primary analytical purpose. Shading must function as an enhancement tool, providing context without visually dominating or distracting the viewer from the core data distribution. Best practices suggest employing colors that offer sufficient contrast against the background and data points but are not visually overpowering. Crucially, always ensure that the alpha level is calibrated such that all relevant data points remain clearly discernible beneath the overlay. If multiple shaded regions overlap, careful planning regarding their respective transparencies is necessary to manage their visual interaction and preserve clarity.

Furthermore, maintaining visual consistency is a cornerstone of effective data visualization. If the shading technique is utilized to represent a specific statistical threshold, category, or analytical zone across a series of plots, the colors, boundary styles, and transparency levels must remain uniform. Additionally, always provide appropriate labels for your axes and titles for the plot. If the significance or meaning of the shaded areas is not intuitively clear from the immediate context, the inclusion of an explanatory legend is strongly recommended to ensure unambiguous viewer comprehension.

Conclusion and Further Exploration

The technique of shading areas within ggplot2 offers a highly effective and visually compelling strategy for embedding contextual information and highlighting regions of critical analytical importance within your data visualizations. By skillfully employing the annotate(‘rect’, …) function, along with its extensive suite of arguments—including xmin, xmax, ymin, ymax for positioning, fill for color, and alpha for transparency—users gain comprehensive, precise control over the appearance and placement of these visual highlights. Whether the objective involves emphasizing a single crucial range or systematically delineating several complex analytical zones, ggplot2 provides the necessary tools to achieve these goals with efficacy and elegance.

We strongly encourage readers to actively experiment with the parameters detailed throughout this guide. Adjusting colors, modifying transparency levels, and customizing coordinates are essential steps in creating bespoke shaded regions that perfectly align with your unique analytical requirements and visual design preferences. Proficiency in these techniques will undoubtedly contribute to the development of clearer, more impactful, and highly communicative data narratives, significantly enhancing your overall data storytelling capabilities.

For individuals dedicated to further advancing their expertise in R programming and the advanced features of ggplot2, exploring the official documentation is highly recommended to discover additional geometric functions (geoms) and other annotation types that can expand your visualization repertoire.
