Learning to Customize Axis Ticks in Seaborn Plots

Producing professional and informative data visualization requires meticulous attention to detail, especially when working with powerful Python libraries like Seaborn. While Seaborn excels at generating aesthetically pleasing statistical graphics automatically, achieving publication-quality results often necessitates fine-tuning specific visual components. Among the most critical elements for data interpretation are the axis ticks, which serve as essential markers providing scale and context. Learning how to customize the frequency, position, and labeling of these ticks is paramount to enhancing plot readability and ensuring accurate conveyance of data relationships.

The ability to manipulate these granular elements stems from the foundational architecture of Seaborn itself. Seaborn operates as a high-level wrapper built directly upon Matplotlib, Python’s primary plotting library. Consequently, when we need to exercise precise control over aspects like axis scaling or tick placement—details that Seaborn typically handles behind the scenes—we must utilize Matplotlib’s underlying functions. Specifically, we leverage the pyplot module, which exposes the necessary commands for detailed axis manipulation. The standard syntax below demonstrates how to define both the numerical positions and the corresponding descriptive labels for the primary axis ticks after a plot has been generated:

#specify x-axis tick positions and labels
plt.xticks([1, 2, 3], ['A', 'B', 'C'])

#specify y-axis tick positions and labels
plt.yticks([4, 5, 6], ['D', 'E', 'F'])

Throughout this tutorial, we will explore two distinct and practical examples demonstrating the power of plt.xticks() and plt.yticks(). These functions grant developers complete command over axis scaling, allowing them to transform automatically generated plots into custom visualizations tailored precisely for presentation or specific analytical requirements. We will cover both setting simple numerical positions and assigning complex descriptive labels.

Introduction to Customizing Axis Ticks in Seaborn

When generating plots using Seaborn, the library applies smart heuristics to automatically optimize the visual appearance. This includes calculating the optimal number, spacing, and placement of axis ticks based on the minimum, maximum, and overall distribution of the underlying data. This automated scaling feature is incredibly beneficial for rapid exploratory data analysis, where the goal is speed and general visual appeal rather than precise formatting.

However, moving beyond preliminary analysis, especially when producing figures for academic journals, professional reports, or high-stakes presentations, requires a shift toward manual control. In these scenarios, the automatic tick placement might not align with critical requirements, such as focusing on specific thresholds, maintaining standardized intervals across multiple charts, or linking axis positions to predefined categorical meanings. Achieving this level of presentation rigor necessitates overriding Seaborn’s defaults through explicit, programmatic instruction.

The value of manual tick customization extends across several critical areas, fundamentally improving how viewers interact with the visualization:

• Enhanced Visual Clarity: Overly crowded axes can obscure data patterns. Reducing the number of displayed ticks to only the essential reference points helps to declutter the plot, making the data points themselves more prominent.
• Providing Specific Context: By forcing ticks to align with significant milestones—such as zero, predefined benchmarks, or key statistical measures like the median or quartiles—we anchor the visualization to meaningful data points, providing immediate and relevant context for the viewer.
• Bridging Quantitative and Qualitative Data: Customization allows for the conversion of numerical axis positions into descriptive or categorical labels (e.g., replacing ‘1’, ‘2’, ‘3’ with ‘Low’, ‘Medium’, ‘High’). This effectively transforms purely quantitative scales into more intuitive qualitative indicators, improving interpretability for a general audience.

The Integration of Matplotlib and Seaborn for Fine Control

To master advanced customization techniques in the Python data visualization ecosystem, it is essential to grasp the synergistic relationship between the high-level library, Seaborn, and its low-level dependency, Matplotlib. Seaborn’s primary strength lies in simplifying the creation of complex statistical plotting with appealing default styles. However, every chart generated by Seaborn is, at its core, a Matplotlib figure and set of axes objects. Matplotlib is responsible for the actual drawing, rendering, and management of all graphical elements, including lines, markers, and, crucially, the axes components.

When analysts initiate a standard Python environment by importing Matplotlib’s pyplot module (conventionally as plt) alongside Seaborn (as sns), they gain access to Matplotlib’s global functionality. This structure operates through a state-machine interface: Matplotlib keeps track of the “current” active figure and axes. Consequently, any Seaborn function call (e.g., sns.scatterplot()) creates or modifies this current figure. To adjust the fine details of the resulting plot—such as axis limits, ticks frequency, or label text—the analyst must subsequently apply Matplotlib commands, ensuring they execute immediately after the Seaborn plotting command.

This workflow establishes a powerful division of labor: Seaborn handles the complex statistical calculations and visual mapping of data, while Matplotlib handles the aesthetic refinement. Commands like plt.xticks() and plt.yticks() are effectively instructions directed at the underlying Matplotlib axis object that Seaborn has just populated. This seamless integration ensures that you can utilize Seaborn for efficiency in plot generation while retaining the granular, pixel-level control that Matplotlib provides for professional polishing.

Example 1: Setting Specific Tick Positions

Our initial demonstration focuses on the most common adjustment technique: enforcing specific, numerical positions for the ticks along the axes. This approach is invaluable when a visualization must adhere to standardized numerical intervals, such as ensuring ticks fall precisely on multiples of five or ten, or when the goal is to highlight only certain numerical milestones relevant to the analysis. By explicitly defining these positions, we override the algorithm used by Seaborn, which typically attempts to find ‘nice’ numbers that span the data range.

We start by preparing a minimal dataset and generating a basic scatterplot. This plot serves as our baseline, illustrating the default tick placement chosen by Seaborn based on the range of the data variables stored in our Pandas DataFrame:

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

#create DataFrame
df = pd.DataFrame({'var1': [25, 12, 15, 14, 19, 23, 25, 29],
                   'var2': [5, 7, 7, 9, 12, 9, 9, 4]})

#create scatterplot
sns.scatterplot(data=df, x='var1', y='var2')

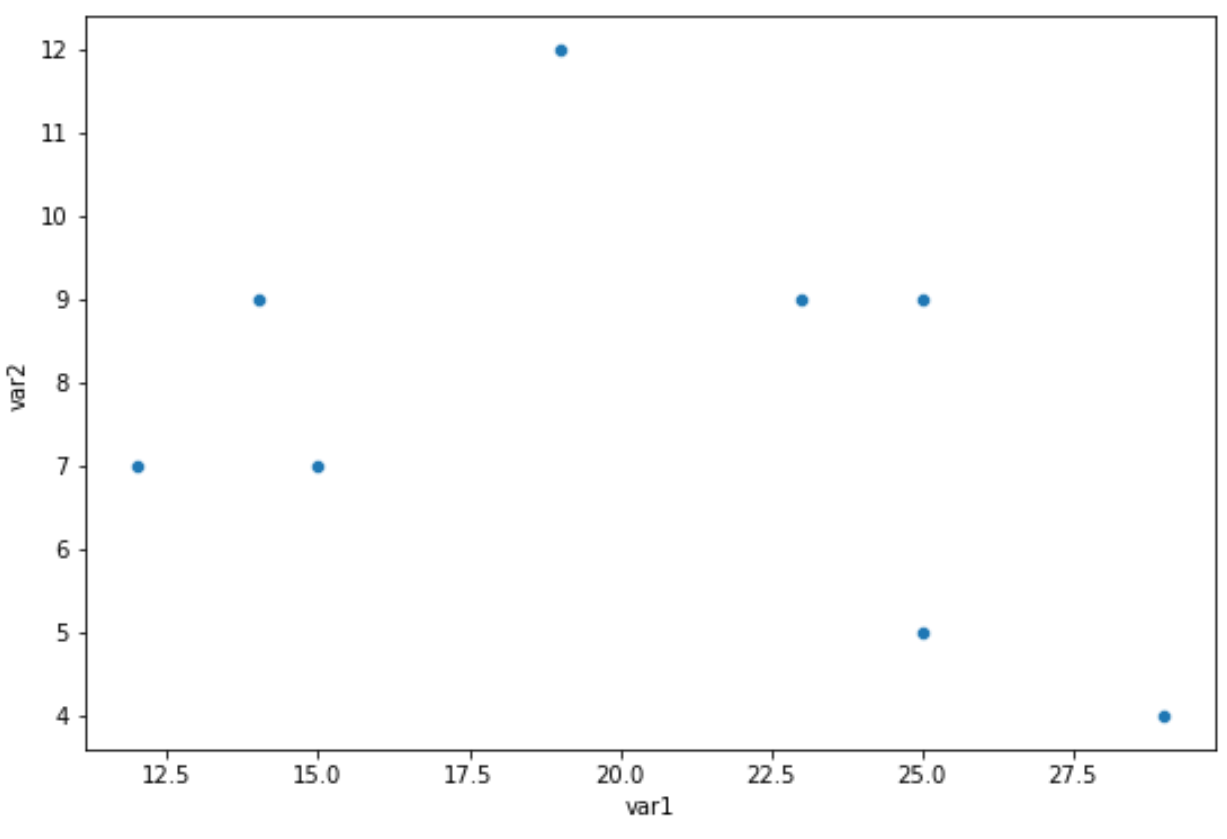

The output below illustrates the default visualization. Observe how the x-axis, spanning roughly 12 to 29, receives ticks automatically spaced to fill the range, while the y-axis, spanning 4 to 12, is also automatically managed. This default configuration is efficient but lacks the control needed for targeted presentation.

To assert precise control, we modify the code by invoking the Matplotlib functions, plt.xticks() and plt.yticks(). In their simplest form, these functions accept a single list of numerical values. This list defines the exact coordinate locations where the tick marks must be placed on the corresponding axis. A key behavior of Matplotlib is that if only the position list is supplied, the numerical values within that list are automatically used as the visible tick labels, ensuring that the visual representation matches the numerical positions.

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

#create DataFrame
df = pd.DataFrame({'var1': [25, 12, 15, 14, 19, 23, 25, 29],
                   'var2': [5, 7, 7, 9, 12, 9, 9, 4]})

#create scatterplot
sns.scatterplot(data=df, x='var1', y='var2')

#specify positions of ticks on x-axis and y-axis
plt.xticks([15, 20, 25])
plt.yticks([4, 8, 12])

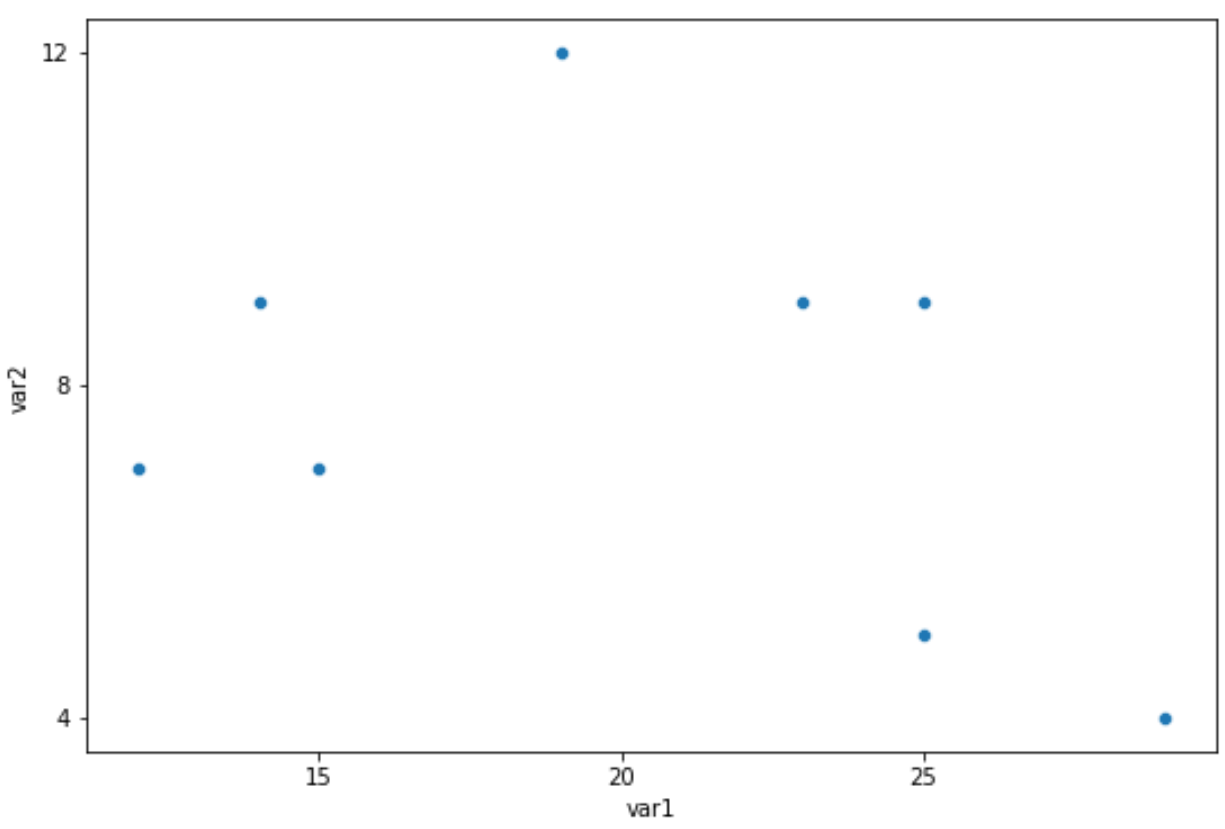

Upon re-rendering the visualization with the explicit tick commands, the change is immediate and precise. The x-axis is now strictly limited to ticks at coordinates 15, 20, and 25, ignoring all intermediate values that Seaborn might have previously included. Similarly, the y-axis is marked only at 4, 8, and 12. This successful demonstration confirms the ability to enforce a specific, manually controlled visual scale, overriding the automatic optimization mechanisms.

Example 2: Defining Both Positions and Descriptive Labels

While fixing numerical tick positions (as shown in Example 1) addresses visual spacing concerns, the true power of axis customization lies in mapping quantitative coordinates to qualitative, descriptive labels. This technique is indispensable for plots where numerical values correspond to distinct stages, quality levels, or predefined categories. By replacing abstract numbers with meaningful text, we drastically improve the plot’s accessibility and interpretive speed.

To implement this advanced customization using Matplotlib, we must provide the tick functions (plt.xticks() or plt.yticks()) with two arguments: the first argument remains the list of numerical coordinates where the ticks should appear, and the second argument is an equally sized list of string values that will be used as the actual labels displayed on the plot. It is crucial that these lists maintain a one-to-one positional correspondence.

We apply this method to the same base scatterplot, ensuring that the numerical axis scale remains intact for accurate data plotting, but the labels visible to the user convey categorical information:

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

#create DataFrame
df = pd.DataFrame({'var1': [25, 12, 15, 14, 19, 23, 25, 29],
                   'var2': [5, 7, 7, 9, 12, 9, 9, 4]})

#create scatterplot
sns.scatterplot(data=df, x='var1', y='var2')

#specify positions of ticks on x-axis and y-axis
plt.xticks([15, 20, 25], ['A', 'B', 'C'])
plt.yticks([4, 8, 12], ['Low', 'Medium', 'High'])

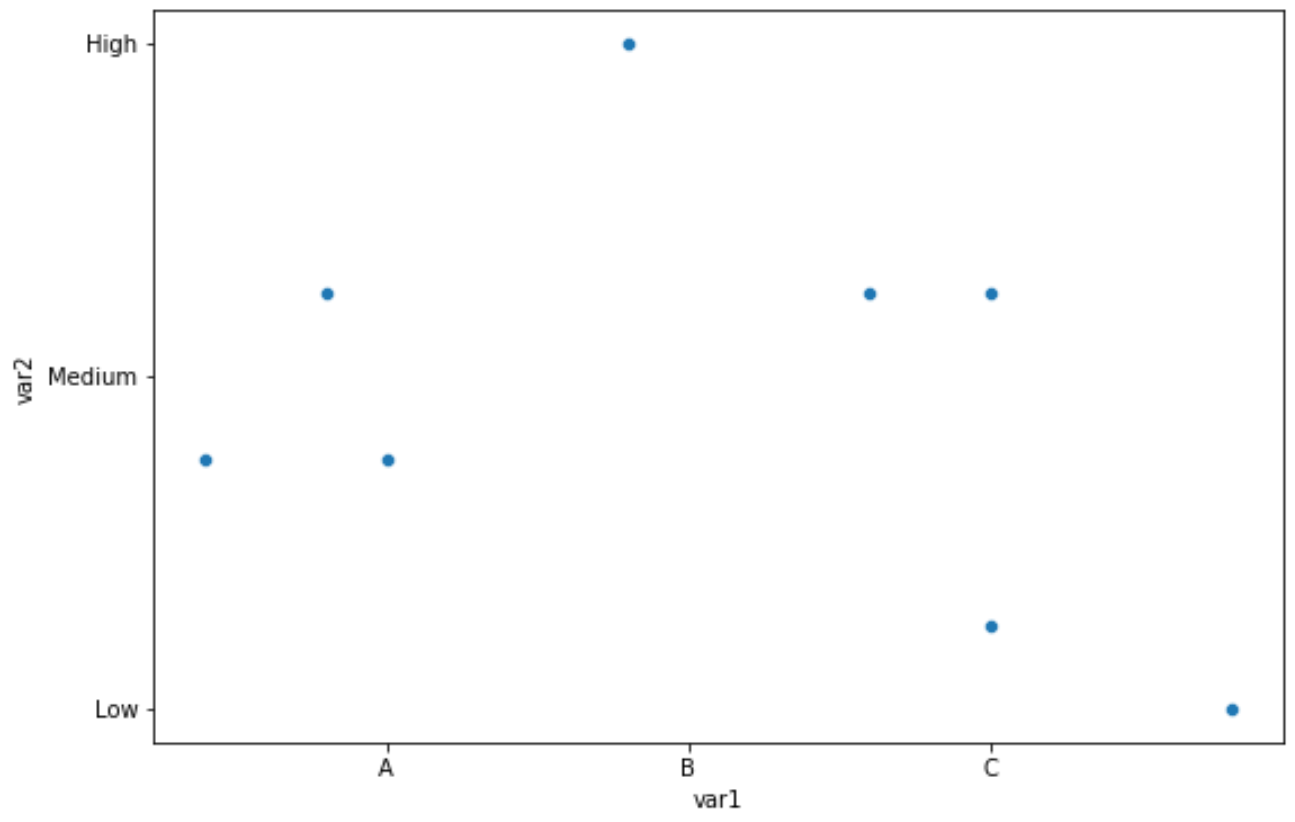

The code above explicitly defines the axis mapping: numerical positions 15, 20, and 25 on the x-axis are assigned the arbitrary labels ‘A’, ‘B’, and ‘C’. More functionally, the y-axis positions 4, 8, and 12 are mapped to the ordinal descriptive labels ‘Low’, ‘Medium’, and ‘High’. This powerful technique allows the visualization to communicate directly in terms of business or scientific categories while preserving the underlying numerical integrity required for precise data point placement.

The resulting plot successfully displays highly customized axes that significantly improve interpretability by conveying descriptive information. This method is particularly effective for aligning data visualization with domain-specific terminology. Having established the fundamental mechanics of hardcoded tick adjustment, we now turn our attention to advanced considerations and best practices necessary for managing ticks in more complex, real-world data scenarios.

Advanced Considerations for Tick Management

Although passing hardcoded lists to plt.xticks() and plt.yticks() provides immediate and powerful control, this manual approach may become cumbersome or unsustainable when dealing with dynamic datasets or highly complex axes, such as those involving temporal data or highly varied scales. Therefore, professional data scientists must adopt advanced strategies to ensure the ticks remain accurate, readable, and non-misleading across various visualization contexts.

Two primary concerns when manually setting ticks are maintaining visual integrity and preventing clutter. First, regarding visual integrity, it is crucial that the selected tick positions comprehensively cover the entire data domain being displayed. Failing to span the full relevant range, even if the tick labels are sparse, can inadvertently truncate the viewer’s perception of the data magnitude, leading to inaccurate conclusions. Second, clutter management is vital; custom string labels, particularly when long or numerous, frequently lead to visual overlap, making the axis unreadable. A practical solution for overcrowded x-axes is employing Matplotlib’s rotation parameter, for instance, plt.xticks(rotation=45), which angles the labels to maximize space utilization.

For scenarios demanding programmatic and adaptive control—especially for time series plots, logarithmic axes, or financial data—relying on simple lists is insufficient. Instead, analysts should leverage Matplotlib’s dedicated tick management architecture: the Locator and Formatter classes. The Locator class determines where the tick marks are placed (i.e., the positions), based on sophisticated rules (e.g., placing ticks only on the first day of the month). Conversely, the Formatter class dictates how the numerical position is converted into the final displayed string label (e.g., formatting a date object into a ‘YYYY-MM-DD’ string). Utilizing these objects offers a scalable solution, allowing for dynamic and intelligent tick generation far superior to static list assignment.

Summary of Tick Adjustment Parameters

The core mechanism for manipulating axis ticks within the Matplotlib/Seaborn environment relies fundamentally on the versatility of the plt.xticks() and plt.yticks() functions. These functions are overloaded, meaning their behavior changes depending on the number and type of arguments supplied. Understanding these two primary modes of operation is crucial for successful implementation.

The two main syntaxes define how the axis ticks are fundamentally rendered:

• plt.xticks(positions): When supplied with only a single list (positions), this function interprets the values as the exact numerical coordinates for placing the tick marks. Critically, the numerical values provided in this list are automatically reused as the visible labels for those ticks. This mode is ideal for enforcing specific numerical intervals or reducing tick clutter.
• plt.xticks(positions, labels): When supplied with two corresponding lists (positions and labels), this function allows for a complete separation of coordinate location and descriptive text. The positions list defines the numerical location on the plot, while the labels list provides the custom string text that overwrites the default numerical display. This mode is essential for mapping numerical quantitative scales to qualitative categories.

It is important to differentiate between adjusting the tick marks themselves and simply changing the axis title. If the objective is merely to change the overall descriptive title of the axis (e.g., renaming “X-Variable” to “Measured Velocity”) without altering the positions or labels of the tick marks, dedicated labeling functions should be used. These include plt.xlabel(), plt.ylabel(), or, in an object-oriented Matplotlib approach, methods like ax.set_xlabel(). These methods affect the axis title, not the individual tick markers or their associated text.

Conclusion and Further Resources

The ability to precisely control the placement and labeling of axis ticks represents a significant leap in proficiency, transforming simple charts into professional-grade data visualization assets. By understanding and exploiting the seamless integration between the high-level capabilities of Seaborn for generating statistical plotting and the low-level, detailed control offered by Matplotlib, practitioners can ensure their graphics are perfectly tuned for accuracy, clarity, and specific interpretative goals.

Whether the requirement is to strictly enforce numerical consistency or to map abstract coordinates to descriptive categories, the plt.xticks() and plt.yticks() functions provide the necessary mechanism. This granular control is essential for creating compelling narratives and ensuring that visualization elements actively support, rather than detract from, the data story being told.

For those seeking to delve deeper into the vast customization options available, especially regarding advanced formatters and locators for complex data types, the official documentation remains the definitive resource:

• Matplotlib Official Documentation on Ticks
• Seaborn Guides on Plot Customization
