Learning to Display Values on Seaborn Barplots: A Step-by-Step Guide

The Necessity of Data Annotation in Seaborn

While Seaborn is an exceptional high-level library built for producing insightful statistical visualizations in Python, raw barplots often lack the necessary precision required for detailed reporting. A visualization is significantly more effective when it includes the exact numerical label positioned directly above or next to each bar. This practice dramatically improves the clarity and interpretability of the graph, allowing viewers and stakeholders to immediately grasp the precise magnitude of the underlying data for every category displayed.

A key limitation, however, is that Seaborn itself does not provide a direct, built-in parameter to handle the annotation of bar heights. To overcome this, we must leverage Matplotlib, the foundational plotting library upon which Seaborn is built. By working with Matplotlib’s underlying structures, specifically the Axes object, we can integrate custom text elements. This approach necessitates creating a powerful, reusable Python function designed to iterate over the graphical elements (patches) of the plot and calculate the precise coordinates for placing the data labels.

Introducing the Core Annotation Utility: show_values

The solution presented here revolves around a custom function named show_values. This utility is engineered for versatility, capable of handling both vertical (‘v’) and horizontal (‘h’) bar charts by analyzing the orientation parameter passed during execution. The function achieves its goal by utilizing specific methods available on the graphical elements (patches) generated by Matplotlib, such as get_height() and get_width(), which are crucial for accurately calculating the position of the data label.

Within the function’s logic, conditional statements (if/elif) are used to determine the appropriate placement strategy. For standard vertical plots, the text is precisely centered above the corresponding bar. Conversely, for horizontal plots, the text is aligned to the left of the bar’s endpoint. We also incorporate an optional space parameter, which provides a controllable offset, preventing labels from directly touching the bar ends and enhancing visual separation.

def show_values(axs, orient="v", space=.01):
    def _single(ax):
        if orient == "v":
            for p in ax.patches:
                _x = p.get_x() + p.get_width() / 2
                _y = p.get_y() + p.get_height() + (p.get_height()*0.01)
                value = '{:.1f}'.format(p.get_height())
                ax.text(_x, _y, value, ha="center")
        elif orient == "h":
            for p in ax.patches:
                _x = p.get_x() + p.get_width() + float(space)
                _y = p.get_y() + p.get_height() - (p.get_height()*0.5)
                value = '{:.1f}'.format(p.get_width())
                ax.text(_x, _y, value, ha="left")

    if isinstance(axs, np.ndarray):
        for idx, ax in np.ndenumerate(axs):
            _single(ax)
    else:
        _single(axs)

It is important to note the comprehensive final section of the function, which includes checks for the plotting area (represented by the axs variable). This logic determines if axs is a NumPy array. By handling array inputs, the function guarantees compatibility with both simple, single plots and more elaborate figures containing multiple subplots, thereby significantly enhancing its robustness and utility across various data visualization tasks.

Initial Setup, Imports, and Data Loading

Before we can apply our sophisticated annotation function, we must first establish the environment by importing the required libraries and preparing the data. For all subsequent demonstrations, we will utilize the popular built-in Seaborn “tips” dataset. This dataset is perfectly suited for showcasing categorical plotting examples, as it contains clear variables such as day, tip, and sex, which allow for straightforward aggregation and visualization.

Our setup requires importing Seaborn for generating the statistical plots, Pandas for efficient data manipulation and structuring, and NumPy. Although NumPy might not be explicitly used in the plotting calls, it is implicitly necessary due to the array handling logic embedded within our robust show_values function, which ensures compatibility with multi-axis Matplotlib figures.

import seaborn as sns
import pandas as pd
import numpy as np

#load tips dataset
data = sns.load_dataset("tips")

#view first five rows
data.head()

	total_bill	tip	sex	smoker	day	time	size
0	16.99	        1.01	Female	No	Sun	Dinner	2
1	10.34	        1.66	Male	No	Sun	Dinner	3
2	21.01	        3.50	Male	No	Sun	Dinner	3
3	23.68	        3.31	Male	No	Sun	Dinner	2
4	24.59	        3.61	Female	No	Sun	Dinner	4

Example 1: Annotating a Standard Vertical Barplot

Our first implementation demonstrates annotating a classic vertical barplot. This plot visualizes the average tip amount received, aggregated across each day of the week. By default, Seaborn automatically calculates and displays 95% Confidence Intervals (CI), often represented by error bars. Since our primary focus here is to annotate the central mean values, we explicitly set the ci=None parameter to declutter the visualization and focus solely on the bar heights.

The output of the sns.barplot command is assigned to the variable p. It is crucial to understand that p holds the Matplotlib Axes object. This object serves as the container for all plot elements, including the patches that define the bars. Our show_values function requires access to this Axes object to extract the necessary coordinate information for label placement. Because the default orientation for the custom function is already ‘v’ (vertical), we can call show_values(p) without specifying the orient argument, relying on the function’s default behavior.

#create vertical barplot
p = sns.barplot(x="day", y="tip", data=data, ci=None)

#show values on barplot
show_values(p)

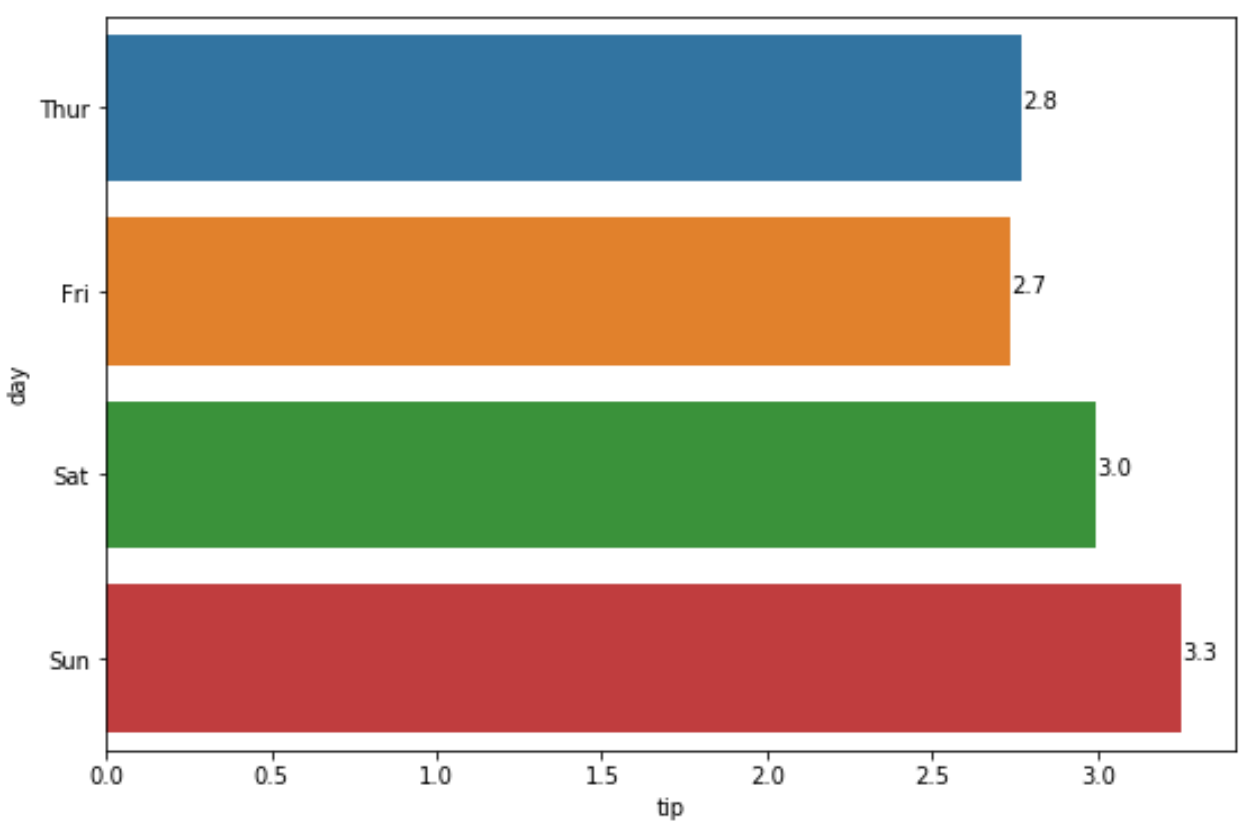

Example 2: Annotating a Horizontal Barplot

Horizontal barplots offer superior readability when dealing with lengthy category names or when the number of categories is high. To transform the plot orientation, we simply swap the assignments for the x and y parameters within the sns.barplot call, mapping the categorical variable (day) to the y-axis and the numerical variable (tip) to the x-axis.

When executing our custom function in this scenario, it is essential that we explicitly pass the value "h" to the orient parameter. This crucial step signals the show_values function to switch to its horizontal plotting logic. This ensures that the text labels are correctly positioned to the right of the bars, with positioning calculated based on the bars’ width rather than their height, guaranteeing accurate and legible annotation.

#create horizontal barplot
p = sns.barplot(x="tip", y="day", data=data, ci=None)

#show values on barplot
show_values(p, "h", space=0)

Fine-Tuning Annotations: Adjusting Label Spacing

Achieving a professional visualization often depends on carefully adjusting label placement. Our show_values function offers the space parameter specifically to control the horizontal offset for labels on horizontal barplots. This numerical value determines the precise distance the Matplotlib text object is placed from the end of the bar. It is important to remember that using a larger, positive value for space will push the labels further away from the bar edges. If labels appear to overlap the bars, ensure a positive value is used.

For instance, by increasing the space parameter from its current value of 0 to .05 in our horizontal plot, we introduce a subtle but effective visual buffer. This slight adjustment ensures that the data labels are separated from the bars, significantly improving clarity and reducing visual clutter, making the data easier to consume.

#create horizontal barplot
p = sns.barplot(x="tip", y="day", data=data, ci=None)

#show values on barplot
show_values(p, "h", space=0.05)

Fine-Tuning Annotations: Controlling Decimal Precision

Beyond spatial adjustments, controlling the numerical precision of the displayed values is critical for accuracy. By default, the show_values function outputs numerical values formatted to one decimal place. This behavior is governed by the standard Python format string '{:.1f}', which is embedded within the function’s core logic:

value = '{:.1f}'.format(p.get_height())

If your application demands greater precision—for instance, when handling monetary transactions or highly sensitive scientific measurements—you must modify this format string directly within the show_values definition. Changing the format from .1f to .2f will instruct the function to display two decimal places instead of one, ensuring the annotated data meets the highest standards of numerical detail.
