Learning to Create Area Charts with Seaborn: A Step-by-Step Guide

Understanding the Role of Area Charts in Modern Data Analysis

An Area Chart is an indispensable component of the modern data visualization toolkit. Fundamentally, these charts are extensions of line graphs, designed primarily to display quantitative information over a continuous scale, most commonly time. The defining characteristic of an area chart is the solid filling between the line and the axis baseline. This use of solid color or specific texture serves a vital purpose: it visually emphasizes the magnitude or volume of the data series, providing immediate insight into the progression of trends and the overall size of the measured quantity across the timeline.

When analysts need to track the performance of multiple variables simultaneously, area charts are typically rendered as stacked area charts. This specialized format is highly effective for decomposition analysis. Stacked area charts clearly illustrate how different categorical components contribute proportionally to a unified total over a specified duration. This approach yields dual insights: viewers can observe the overarching aggregate trend (the top boundary of the stack) while simultaneously assessing the relative significance and fluctuation of each individual category’s contribution, making them a powerful tool for analyzing compositional change.

To construct these sophisticated statistical visualizations within the Python environment, practitioners frequently leverage the Seaborn library. Although Seaborn excels at generating high-level statistical plots and applying aesthetic themes, the underlying heavy lifting—the actual geometrical rendering of the area chart—is managed by its foundational library, Matplotlib. Specifically, Matplotlib’s powerful stackplot() function is utilized. Seaborn is employed here primarily for its ability to seamlessly integrate modern, clean themes and visually appealing default color palettes, thereby significantly boosting the aesthetic quality and overall readability of the resulting graph.

Core Syntax and Setup for Seaborn-Themed Area Charts

Generating a professional area chart requires a precise setup involving the importation of necessary libraries. We must import the core plotting interface of Matplotlib (conventionally aliased as plt) and the Seaborn library (aliased as sns) for stylistic control. Because area charts inherently display sequential or time-series data, the input data structure must be ordered, typically sourced from columns within a Pandas DataFrame, which provides the robust structure required for statistical plotting.

The visualization is rendered using the primary function plt.stackplot(). This function is designed to accept one variable for the x-axis, followed by one or more variables for the y-axes. In a stacked configuration, each successive y-variable defines a new layer that is plotted cumulatively on top of the preceding layers. Before calling the plotting function, it is standard practice to apply a standardized Seaborn theme using sns.set_theme(). This simple yet crucial step ensures the plot benefits immediately from contemporary design choices, including optimized color schemes and clean grid lines, which elevate the final visualization’s professionalism.

The generalized structure below outlines the fundamental Python script required for importing dependencies, applying the visual style, and executing the core function call necessary to plot sequential or time-series data. This template forms the basis for all subsequent practical examples, demonstrating the efficient integration of both libraries to achieve a high-quality output.

import matplotlib.pyplot as plt
import seaborn as sns

#set seaborn style
sns.set_theme()

#create seaborn area chart
plt.stackplot(df.x, df.y1, df.y2, df.y3)

In the provided syntax, df.x represents the independent variable, which typically measures time or some ordinal sequence. The subsequent arguments, df.y1, df.y2, and df.y3, represent the specific dependent series that will be stacked. It is vital to remember that the order in which these dependent variables are passed directly determines the visual layering, where the first variable forms the bottom layer against the x-axis baseline.

In-Depth Functionality of Matplotlib’s stackplot()

While Seaborn establishes the overall visual environment, the plt.stackplot() function is the core computational engine within the Matplotlib API responsible for accurately drawing the area chart geometry. Its internal mechanism involves mathematically calculating the cumulative sum of the provided y-series. This calculation is essential, as it ensures that each successive layer is positioned precisely on top of the preceding one, maintaining accurate proportional representation relative to the baseline. A deep understanding of this mechanical operation is crucial for debugging complex visualization errors and predicting output behavior.

The function’s required input structure mandates a single array of x-coordinates (the independent variable), followed by a dynamic, variable number of y-coordinate arrays (the dependent series). When multiple y-sequences are provided, the function plots them sequentially, starting from the baseline (zero) and building upwards. This structure means the input order of the y-series is not merely cosmetic; it directly dictates the final visual stacking order observed in the resulting area chart. Analysts must therefore order their data series logically before plotting.

The stackplot() function supports several critical optional arguments that facilitate advanced customization and enhanced clarity. The labels argument is indispensable for assigning meaningful names to each distinct stacked layer, facilitating the creation of an accurate chart legend. Furthermore, specifying the colors argument allows users to define a custom list of colors, enabling them to override the default palette—a necessary step for adhering to corporate branding or specific analytical color schemes. Finally, the baseline parameter offers fine-grained control over the reference point for stacking. Although the default setting, which positions the stack starting at zero, is standard for most quantitative area charts, adjusting this parameter can be useful for specialized analyses.

Example 1: Constructing a Baseline Stacked Area Chart

To effectively illustrate the basic implementation of a stacked area chart, we first need to generate a structured dataset. We leverage the capabilities of the Pandas library to define a DataFrame. This DataFrame simulates performance scores for three distinct competitive entities (Team A, Team B, and Team C) measured across eight discrete time periods. This compositional data, where components sum to a total over time, is ideally suited for a stacked area visualization, allowing for immediate comparison of proportional contributions.

The code snippet presented below encapsulates the complete initial process. It includes defining the DataFrame using Pandas, setting the Seaborn theme to ensure a modern aesthetic style, and subsequently invoking the core plt.stackplot() function. For the chart generation, we use the period column to define the x-axis and supply the three team columns (team_A, team_B, team_C) sequentially as the stacked y-series arguments.

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

#set seaborn style
sns.set_theme()

#define DataFrame
df = pd.DataFrame({'period': [1, 2, 3, 4, 5, 6, 7, 8],
                   'team_A': [20, 12, 15, 14, 19, 23, 25, 29],
                   'team_B': [5, 7, 7, 9, 12, 9, 9, 4],
                   'team_C': [11, 8, 10, 6, 6, 5, 9, 12]})

#create area chart
plt.stackplot(df.period, df.team_A, df.team_B, df.team_C)

Executing this concise script successfully generates a visualization that applies default color assignments and plots the cumulative progression of scores. However, in its default state, the chart lacks descriptive elements that are critical for effective communication. Specifically, the absence of clear axis labels and a functional legend makes the interpretation of the different layers difficult, highlighting the necessity of adding further annotations for professional presentation.

Analysis and Interpretation of the Initial Plot Output

The visualization produced by the baseline code block effectively maps the data’s cumulative movement across the measured time frame. The x-axis correctly represents the independent variable, period, spanning from 1 through 8. Critically, the y-axis does not represent the score of any single team; rather, it displays the total cumulative score accumulated by all three teams combined at each respective time point. This cumulative nature is fundamental to understanding stacked area charts.

At any vertical position, the entire height of the stacked area quantifies the overall aggregate score across all categories for that specific period. Conversely, the vertical thickness of each distinct colored segment provides a clear visual measure of that team’s specific contribution to the total score. Since df.team_A was the first series passed to stackplot(), it establishes the base layer anchored to the x-axis, followed sequentially by df.team_B and df.team_C, which forms the uppermost layer.

This type of visualization enables simultaneous analysis of two critical data aspects: the overall trend (observed by tracing the top boundary of the entire stack) and the proportional shifts occurring within the individual components (analyzed by observing the varying widths of the colored bands). For instance, by focusing on the uppermost layer (Team C), an analyst can immediately pinpoint periods where its proportional score contribution rose or fell relative to the performance of Team A and Team B.

Example 2: Implementing Customization for Enhanced Clarity

While a basic chart confirms the data relationships, achieving high-quality data visualization requires meticulous annotation and aesthetic refinement to ensure maximum clarity and impact. This second, advanced example focuses specifically on transforming the rudimentary plot into a polished, interpretive graph by incorporating essential elements: defining custom colors, integrating a functional legend, and providing explicit, descriptive axis labels.

We utilize the identical structured Pandas DataFrame established in Example 1. The key technical modifications involve defining a custom color_map list and then passing this list, alongside the labels argument, directly into the plt.stackplot() function call. Furthermore, we employ standard, accessible Matplotlib functions—specifically plt.legend(), plt.xlabel(), and plt.ylabel()—to fully annotate the chart. These steps ensure that every data component is clearly identified and contextualized, moving the visualization beyond mere plotting towards effective data communication.

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

#set seaborn style
sns.set_theme()

#define DataFrame
df = pd.DataFrame({'period': [1, 2, 3, 4, 5, 6, 7, 8],
                   'team_A': [20, 12, 15, 14, 19, 23, 25, 29],
                   'team_B': [5, 7, 7, 9, 12, 9, 9, 4],
                   'team_C': [11, 8, 10, 6, 6, 5, 9, 12]})

#define colors to use in chart
color_map = ['red', 'steelblue', 'pink']

#create area chart
plt.stackplot(df.period, df.team_A, df.team_B, df.team_C,
              labels=['Team A', 'Team B', 'Team C'],
              colors=color_map)

#add legend
plt.legend(loc='upper left')

#add axis labels
plt.xlabel('Period')
plt.ylabel('Points Scored')

#display area chart
plt.show()

The colors argument provides substantial flexibility, accepting not only common color names (like ‘red’ or ‘steelblue’) but also precise hex color codes. This capability is essential for projects requiring strict adherence to corporate branding guidelines or specific color standards. By adding these annotations and customizations, the visualization is elevated dramatically—it transitions from being a basic plotting exercise into a comprehensive, fully descriptive analytical asset ready for professional reporting.

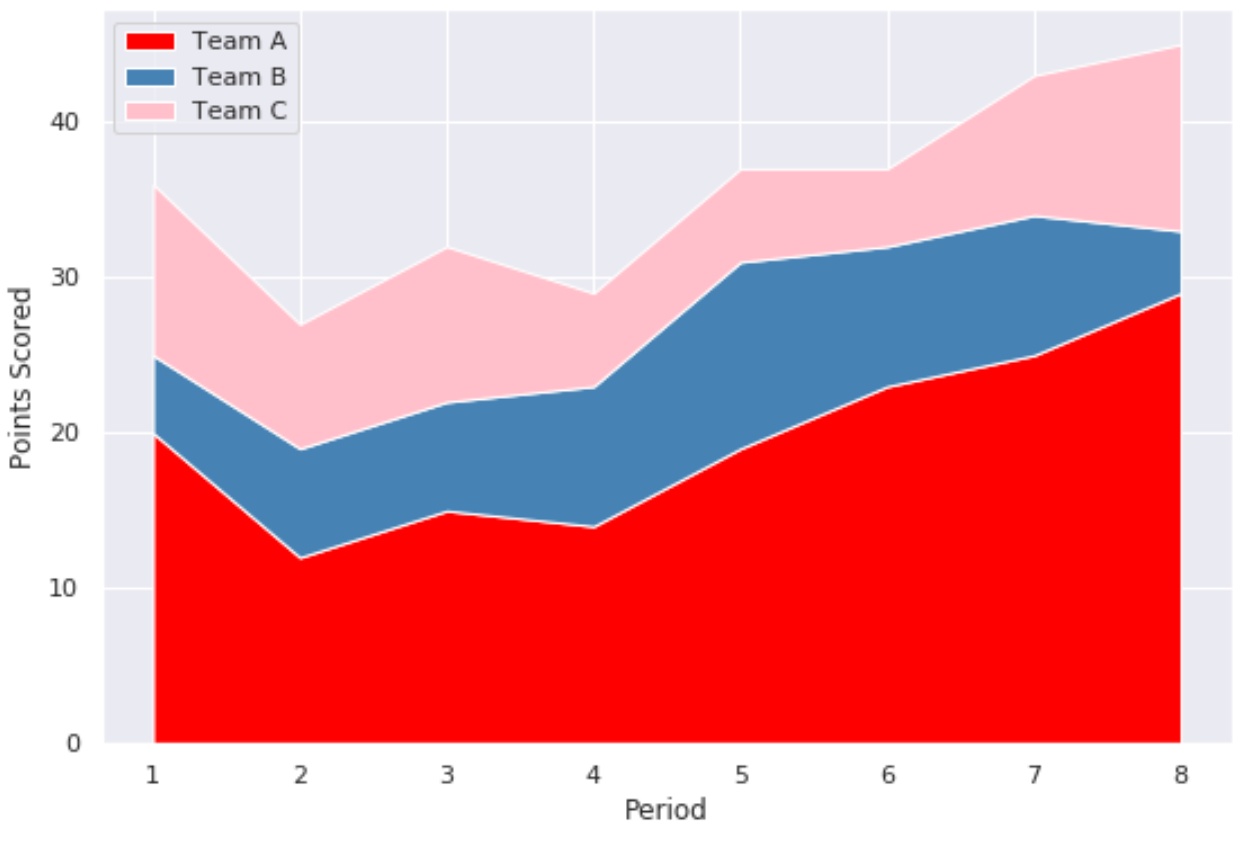

The resulting chart demonstrates a marked improvement in interpretive clarity. The legend, clearly positioned in the upper left corner, effectively maps the custom color scheme to the three respective teams. Furthermore, the descriptive axis labels—”Period” and “Points Scored”—provide necessary context, allowing the audience to immediately grasp the magnitude and chronological progression of the compositional data displayed within the stacked area chart.

Expanding Your Skills Beyond Area Charts

Mastery of stacked area charts represents an excellent foundational achievement in developing comprehensive skills for data visualization within the Python environment. The capabilities offered by key libraries such as Seaborn and Matplotlib are vast, allowing users to generate a diverse range of complex plots suitable for rigorous statistical analysis and high-stakes professional reporting.

To continue advancing your analytical prowess, it is highly recommended to explore additional plot types and advanced customization techniques. Learning how to seamlessly integrate various graphical elements—including sophisticated annotations, implementing secondary axes, or leveraging highly customized color palettes—will significantly enhance the analytical depth and overall visual impact of your reports. These skills are crucial for transitioning from a developer who plots data to a data scientist who communicates insights effectively.

The following resources detail how to create other common and specialized plots using the powerful Seaborn and Matplotlib libraries, which are essential for tackling various analytical challenges:

• Creating Histograms and Density Plots for detailed analysis of data distribution characteristics, crucial for hypothesis testing and exploratory data analysis.

• Generating Scatter Plots to effectively analyze relationships, correlations, and potential outliers between two or more continuous variables.

• Developing Heatmaps for visually representing large correlation matrices, complex frequency distributions, or categorical relationships in a compact format.

• Utilizing Box Plots and Violin Plots for statistically comparing the distribution, spread, and central tendency across multiple categories efficiently.

• Implementing specialized Time Series plots for in-depth chronological data analysis, trend identification, and forecasting applications.

These additional visualization resources will help you expand your analytical repertoire far beyond the capabilities of the basic area chart, ensuring you possess the ability to select and apply the most statistically appropriate and visually compelling tool for any specific analytical question encountered in your professional work.
