Adjust Width of Bars in Matplotlib

The Critical Role of Bar Width in Matplotlib Visualizations

When generating high-quality bar charts, the primary objective is to facilitate the clear and immediate visual interpretation of data magnitudes and relationships. Among the numerous configurable parameters that define a chart’s appearance, the width of the individual bars stands out as a fundamental element. It dictates both the clarity and the overall aesthetic impact of the resulting data visualization. Within Matplotlib, the cornerstone plotting library for the Python ecosystem, this essential attribute is precisely controlled using the dedicated width argument within the core plotting function, plt.bar.

By default, Matplotlib intelligently assigns a standardized bar width. This default setting is carefully chosen to ensure a visually balanced presentation, typically incorporating adequate white space to separate distinct categories. However, reliance solely on default settings is often insufficient when dealing with complex or high-density datasets. Customization of bar width becomes absolutely necessary when a visualization involves numerous categories, unique data distributions, or when strict corporate branding guidelines must be met. Mastering the manipulation of the width parameter provides the user with fine-grained control over the visual impact, guaranteeing that the plotted data is optimally configured for maximum audience comprehension and professional quality.

This comprehensive guide is dedicated to exploring the precise mechanics of adjusting the width of bars within Matplotlib. We will move beyond the library’s default configuration to illustrate how tailoring this simple, floating-point argument can profoundly alter the readability and interpretation of a bar chart. Through a series of practical, step-by-step coding examples, we will demonstrate the various visual effects achieved by assigning different numerical values to the width argument. This knowledge will equip you with the essential tools required to generate highly customized, informative, and visually compelling plots tailored specifically to your data narrative.

Understanding the Mechanics of the `width` Parameter

The entire mechanism for adjusting the horizontal size of bars in Matplotlib’s plt.bar function revolves entirely around the width argument. This parameter accepts a numerical value, which is typically a floating-point number ranging from 0 to 1. This value defines the proportion of the total available space allocated on the x-axis that each specific bar will occupy. It is crucial to understand that this value is relative: it specifies the bar’s size relative to the distance between consecutive x-axis tick marks, not an absolute pixel measurement. By default, the plt.bar function is set to a width of 0.8. This configuration means that each bar consumes 80% of its designated category slot, leaving a consistent 20% gap between adjacent bars, which establishes the library’s standard visual separation.

Directly altering the width argument has a significant impact on the visual density of the final bar chart. If you increase the value closer to 1.0, the bars become wider, significantly reducing the interstitial gaps. This results in the data appearing more tightly packed or visually continuous, similar to a histogram. Conversely, decreasing the value toward 0 yields substantially narrower bars, thereby increasing the white space between categories. This flexibility is vital for aesthetic optimization: narrower bars are excellent for preventing visual clutter when plotting a large number of categories, while wider bars can be used to emphasize the volume or scale represented by each data point.

To fully grasp this concept, consider the system of relative sizing. If your x-axis has tick marks placed at integer positions (e.g., 1, 2, 3, 4), each bar is inherently allocated an interval span of 1 unit. Consequently, a width value of 0.8 ensures the bar will be 0.8 units wide, perfectly centered at its corresponding tick position. If an analyst mistakenly sets the width to a value greater than 1.0 (for example, 1.5), the bars will inevitably overlap significantly. While overlap is generally avoided in standard categorical bar charts, it can be deliberately utilized for advanced overlay visualizations or complex comparisons.

To override the default 0.8 setting, the width argument must be explicitly passed and assigned a new value during the plotting call to the plt.bar function. The following code snippet demonstrates the standard syntax required to incorporate a custom width value, substituting the library’s default proportion with your chosen fractional number:

import matplotlib.pyplot as plt

plt.bar(x=df.category, height=df.amount, width=0.8)

Always remember the foundational principle governing bar width: a width of 0.8 signifies 80% occupancy of the category interval, which results in distinct separation; conversely, a width of 1.0 means 100% occupancy, causing the bars to be perfectly flush against one another.

Preparing Data Structures for Visualization Practice

To effectively demonstrate the substantial visual impact achieved by adjusting the bar width, we will utilize a realistic, structured dataset. Our scenario involves visualizing discrete monthly sales figures for several popular products within a typical retail environment. This type of categorical data—where the x-axis represents product categories and the bar height corresponds to total sales volume—is ideally suited for presentation in a bar chart.

For efficient and robust data handling and preparation within the Python data science ecosystem, the pandas library is the established industry standard. Before initiating the plotting process, it is essential to structure our product and sales information into a well-organized DataFrame. This structured approach guarantees that the data is easily accessible, correctly aligned, and accurately mapped to the intricate input requirements of the Matplotlib plotting functions. Leveraging pandas significantly streamlines the often-complex process of data cleaning, manipulation, and preparation, setting a solid foundation for the subsequent visualization phase.

The following code snippet meticulously details the creation of the demonstration DataFrame. It establishes two critical columns: ‘item’, containing the descriptive names of the grocery products, and ‘sales’, holding the corresponding numerical quantity sold for each item. This structured foundation is necessary for all subsequent plt.bar plotting examples presented throughout this tutorial, ensuring reproducibility and clarity.

import pandas as pd

#create DataFrame
df = pd.DataFrame({'item': ['Apples', 'Oranges', 'Kiwis', 'Bananas', 'Limes'],
                   'sales': [18, 22, 19, 14, 24]})

#view DataFrame
print(df)

      item  sales
0   Apples     18
1  Oranges     22
2    Kiwis     19
3  Bananas     14
4    Limes     24

Establishing the Visualization Baseline: Default Bar Widths

With our structured sales data now finalized and organized within the DataFrame, we are ready to construct the initial visualization. This first plot will serve as our essential standard reference point, providing an unambiguous demonstration of Matplotlib’s inherent default settings for bar width. By intentionally omitting the width argument in the plt.bar function call, we implicitly instruct the library to apply its predetermined standard value of 0.8. This crucial step establishes a clear visualization baseline against which all subsequent custom width adjustments can be accurately compared, evaluated, and understood.

The code provided immediately below generates a foundational bar chart, visually mapping the sales figures for each product category. The specific and proportional spacing observed between the resulting bars is a direct consequence of the default 0.8 setting. This standard gap is generally considered highly effective for standard datasets, as it ensures excellent visual separation between categories while simultaneously maximizing the visual presence and emphasis of the bars themselves.

import matplotlib.pyplot as plt

#create bar chart using Matplotlib defaults
plt.bar(x=df.item, height=df.sales)

A careful review of the resulting chart confirms that while the bars occupy the vast majority (80%) of the allocated horizontal space, a clear and distinct gap effectively separates each product category. This intentional gap, which results from the 20% unused interval space, is often the ideal configuration for standard categorical plotting, as it ensures superior visual separation and prevents the overall chart from appearing excessively cluttered or dense.

Implementing Narrower Bars for Enhanced Density Management

In specific analytical contexts, particularly when plotting datasets that feature a large volume of discrete categories, relying on the default bar width can frequently lead to visual overcrowding, ultimately rendering the chart confusing or difficult to interpret. To effectively mitigate this challenge and significantly enhance both the clarity and aesthetic appeal of the visualization, the strategic use of narrower bars is highly recommended. Reducing the bar width intrinsically increases the amount of white space on the plot, which powerfully emphasizes the discrete, separate nature of each category. This allows the viewer’s eye to focus more clearly and effortlessly on individual data points. This technique is recognized as a powerful tool in advanced data visualization aimed specifically at managing high-density or complex categorical data.

To generate bars that are notably narrower than the default setting of 0.8, the user must explicitly specify a value less than this threshold for the width argument. For example, selecting width=0.4 results in bars that are precisely half the width of the default setting, consequently doubling the proportional visual spacing between them. This adjustment allows for a more open, less visually aggressive presentation, which is highly advantageous when the primary objective is the effortless comparison of many distinct category values or when spatial constraints necessitate a minimalist visual presence.

We will now apply this concept to our grocery sales data example to observe the immediate visual transformation. The following code snippet demonstrates the creation of a bar chart where the bars are intentionally made significantly narrower by utilizing a fractional width value of 0.4:

import matplotlib.pyplot as plt

#create bar chart with narrow bars
plt.bar(x=df.item, height=df.sales, width=0.4)

The visual difference between this chart and the baseline is immediately striking. The bars are markedly thinner, and the resulting increased spacing clearly and effectively separates each category. This particular presentation style proves exceptionally effective for detailed visual analysis where highlighting the boundaries and precise differences between items is prioritized over maximizing the graphical area occupied by the bars themselves.

Modeling Continuity: Eliminating Gaps with `width=1`

A specific and often required visualization characteristic in certain types of charts, such as frequency histograms or time-series plots, is the visual representation of continuity or a seamless data distribution. This continuous effect is elegantly achieved within Matplotlib by setting the width argument to its maximum value of 1. When width=1 is applied, every bar occupies 100% of its allotted horizontal interval, resulting in a display where bars are directly adjacent to one another without any intervening gaps or white space.

Although adjacent bars successfully convey a sense of flow and uninterrupted distribution, they can sometimes merge visually, making it difficult to precisely distinguish where one category ends and the next begins, especially if the bars utilize a uniform color scheme. To expertly counteract this potential blending and restore individual bar distinction, it is highly recommended practice to utilize the edgecolor parameter. Incorporating a distinct outline, such as black or white, provides a subtle yet highly effective border that separates the bars even when they are physically touching. This maintains visual clarity while fully preserving the intended appearance of continuity across the series.

We will now modify our sales data example to demonstrate the powerful visual effect achieved by setting width=1. Crucially, we will simultaneously incorporate the edgecolor argument to showcase how this essential visual enhancement maintains readability even in the most dense plotting configuration:

import matplotlib.pyplot as plt

#create bar chart with width of 1
plt.bar(x=df.item, height=df.sales, width=1, edgecolor='black')

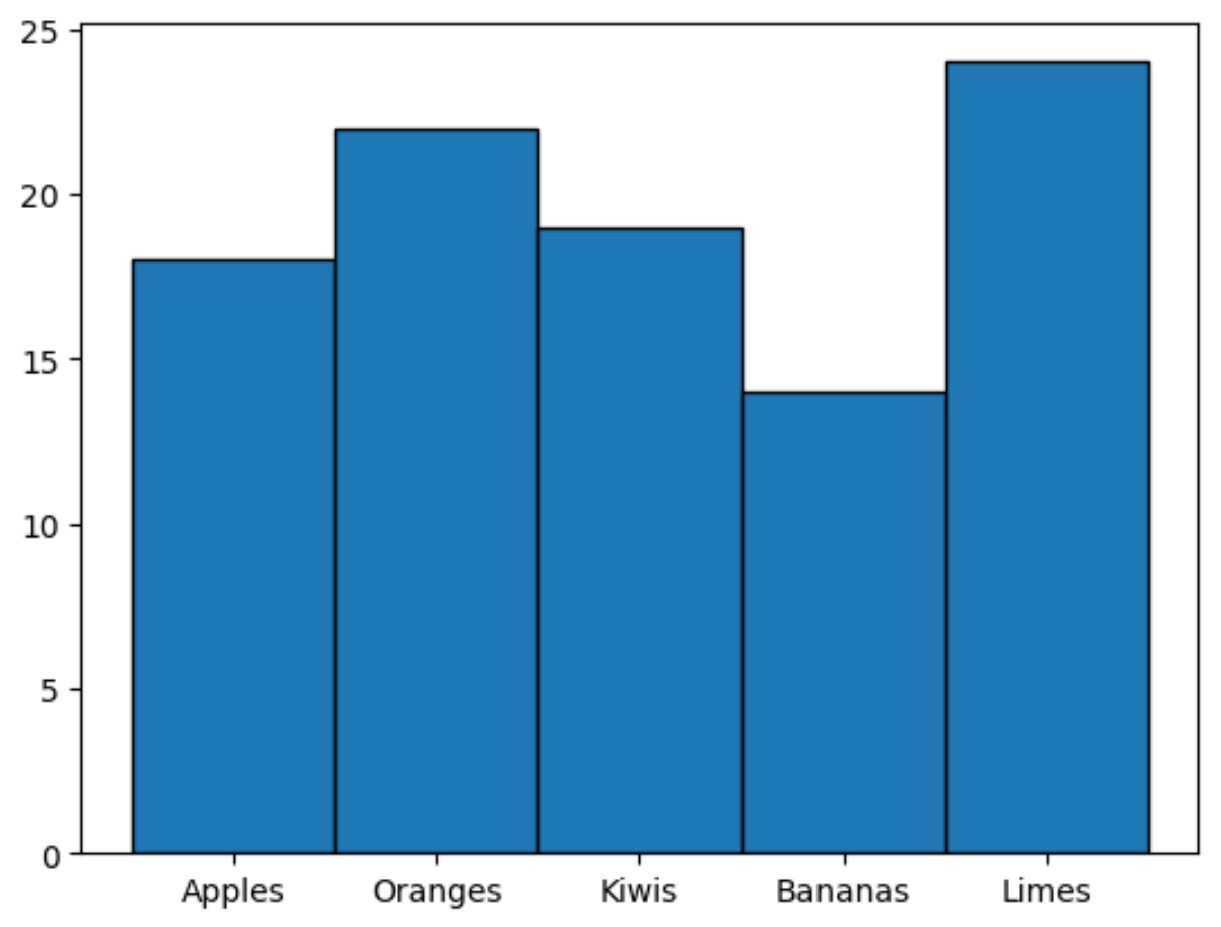

As clearly demonstrated by the resulting image, the bars are now perfectly flush, successfully maximizing the graphical area dedicated to the data representation. The strategic addition of the black edgecolor clearly delineates the boundaries of each product category, ensuring that despite their physical connectivity, they remain individually recognizable visual elements. This combined technique is paramount for professional visualizations where the density of information must be maximized without making any sacrifice to the viewer’s ability to distinguish individual segments.

Conclusion: Optimizing Visual Communication Through Bar Width

The capability to precisely control the width of bars using the dedicated argument within plt.bar function is unequivocally an indispensable skill for every serious Python data analyst. This seemingly minor plotting parameter grants profound and nuanced control over the visual dynamics, density, and ultimately, the interpretation of bar charts. Whether the analytical goal is to dramatically enhance category separation with narrower bars, adhere strictly to standard industry practice using the default setting, or emphasize data continuity by creating adjacent bars, the width argument provides the essential flexibility required to tailor the plot perfectly to the specific narrative and visual requirements of the underlying data.

We strongly advise all users to engage in thorough experimentation with various floating-point values for the width argument. It is important to recognize that the optimal bar width is rarely a universal constant; rather, it is heavily dependent on several contextual factors. These include the volume of data points being plotted, the total number of distinct categories involved, and the core message the data visualization is ultimately intended to convey. Developing an intuitive and practiced understanding of how different width settings impact visual density and category separation is the key to advancing your skills in professional data analysis and visualization.

By mastering this simple yet exceptionally powerful parameter, you can dramatically elevate the readability, the professional quality, and the overall communication effectiveness of your pandas and Python plots. Continuous practice and critical refinement of these fundamental visualization techniques are essential steps toward ensuring that complex data is always presented in the most engaging, informative, and visually accurate manner possible.

Further Resources for Matplotlib Mastery

To continue building your expertise in plt.bar and advanced Python visualization methods, consider exploring additional tutorials and official documentation that address common modifications and more sophisticated plotting challenges. These high-quality resources can help unlock the full, robust potential of your plotting capabilities:

• Reviewing the official plt.bar documentation for a comprehensive list of all available parameters.
• Learning advanced techniques for manipulating color, alpha, and styling to achieve better visual hierarchy.
• Exploring specialized methods for creating complex grouped or stacked bar charts using DataFrames.
