Plot Mean Line by Group in ggplot2

The Necessity of Grouped Visualizations in Data Analysis

Data visualization acts as the crucial interpreter, transforming complex, raw datasets into accessible and actionable insights. Within the renowned statistical programming environment of R, the ggplot2 package is universally recognized as the definitive tool for constructing aesthetically pleasing and highly informative graphics. While a basic scatter plot is often sufficient for initially mapping the relationship between two continuous variables, achieving genuine analytical depth requires moving beyond simple bivariate relationships. The most powerful analyses emerge when we examine how a core metric shifts or varies across distinct categories or subsets within the data. This level of detail necessitates the direct integration of summary statistics into the visual representation.

A highly effective technique for significantly enhancing data interpretability is the calculated overlay of group-wise statistics, particularly the mean. By simultaneously displaying individual data points and superimposing the average value for each defined group, we produce a visualization that powerfully captures both the underlying spread of the data and the central tendency of every category. This capability allows analysts to rapidly identify, compare, and contrast average performance, characteristic behaviors, or key trends across different groups. This approach is absolutely invaluable for effective exploratory data analysis (EDA) and the clear communication of results to stakeholders.

This comprehensive tutorial is specifically designed to guide you through the precise, step-by-step methodology for plotting a mean line tailored for specific groups directly within the ggplot2 framework. We will meticulously demonstrate how to combine the robust data manipulation capabilities of the dplyr package—a core component of the Tidyverse ecosystem—with the versatile aesthetic mapping functions of ggplot2. By the end of this guide, you will possess the expertise to generate compelling graphics that not only display the raw data but also clearly delineate the measured average performance of defined groups, transforming complex data relationships into easily digestible narratives.

Prerequisite Steps: Data Preparation and Group Mean Calculation

To successfully generate and plot mean lines specific to different groups, a crucial two-stage workflow must be executed before calling any plotting function. The process begins with calculating the required summary statistics from the raw dataset. Following this, these calculated summaries must be introduced as a distinct, secondary data layer within the visualization pipeline. Attempting to compute complex group statistics directly within the main ggplot2 call is typically inefficient or overly complicated. The professional and recommended approach is to leverage the powerful data handling and transformation capabilities offered by the dplyr package.

The calculation phase involves aggregating the raw data frame based on the categorical grouping variable. This aggregation is most efficiently performed by utilizing the pipe operator (%>%) to chain the group_by() and summarise() functions, both provided by dplyr. The group_by() function segments the entire dataset according to the specified category (e.g., ‘team’), and the subsequent summarise() function computes the desired statistic—in this scenario, the mean—for each segment independently. This sequence results in a significantly smaller, summary data frame that contains only the group identifier and the calculated average value.

The essential syntax below demonstrates this critical data manipulation and aggregation step. Here, we calculate the average value of a continuous variable (points) across the levels of a categorical variable (team). Once this summary data is prepared, it is then integrated into the visualization using the dedicated horizontal line geometry, geom_hline(). This two-part approach ensures both statistical accuracy in the calculation and maximum flexibility in graphical representation.

# Step 1: Calculate mean points value by team using dplyr
mean_team <- df %>% group_by(team) %>% summarise(mean_pts=mean(points))

# Step 2: Create scatterplot with raw data and overlay the calculated mean lines
ggplot(df, aes(x=assists, y=points)) +
  geom_point(aes(color=team)) +
  geom_hline(data=mean_team, aes(yintercept=mean_pts, col=team))

Practical Example: Visualizing Basketball Player Statistics

To provide a clear and concrete demonstration of this effective method, we will utilize a simulated dataset modeling basketball player performance metrics. Assume we are working with a data frame in R that tracks individual player statistics, specifically recording the number of points scored and assists made across three distinct professional teams: Team A, Team B, and Team C. This scenario perfectly encapsulates the analytical challenge: analyzing the relationship between two continuous variables (points and assists) while simultaneously controlling for or highlighting the average performance specific to each team.

The following R code snippet generates the necessary sample data frame, which we will name df. The structural integrity of this data is paramount, as it must contain both the critical numeric variables (assists and points) and the essential categorical variable (team) required for accurate grouping. A thorough understanding of the initial composition and values within this dataset provides the foundation for the subsequent data aggregation and advanced visualization steps, which we will execute using the powerful combination of dplyr and ggplot2.

# Create the sample data frame for basketball statistics
df <- data.frame(team=rep(c('A', 'B', 'C'), each=5),
                 assists=c(2, 4, 4, 5, 6, 6, 7, 7,
                           8, 9, 7, 8, 13, 14, 12),
                 points=c(8, 8, 9, 9, 10, 9, 12, 13,
                          14, 15, 14, 14, 16, 19, 22))

# Display the resulting data frame structure
df

   team assists points
1     A       2      8
2     A       4      8
3     A       4      9
4     A       5      9
5     A       6     10
6     B       6      9
7     B       7     12
8     B       7     13
9     B       8     14
10    B       9     15
11    C       7     14
12    C       8     14
13    C      13     16
14    C      14     19
15    C      12     22

The resulting structure consists of 15 observations, detailing individual player metrics across the three defined teams. Each row serves as a distinct data point representing a player’s contribution, which will be the primary data source for our final scatterplot. With the dataset successfully prepared and validated, we are now ready to perform the essential data aggregation step: calculating the average points for each team. This calculation is the indispensable prerequisite for generating the final, highly informative, and enhanced visualization.

Constructing the Grouped Mean Line Plot in ggplot2

The execution phase requires the integration of statistical logic with plotting functions. Before beginning the visualization process, it is critical to ensure that both the dplyr and ggplot2 libraries are correctly loaded into your R session. The initial coding step involves creating the summary data frame, mean_team, which specifically isolates the team identifier and the calculated average points score. This summary data frame is the fundamental element that enables ggplot2 to accurately position the horizontal mean lines.

Once the means are precisely calculated, the actual plotting sequence commences. We initialize the visualization using the ggplot() function, mapping the raw data (df) to the core aesthetics (x=assists, y=points). We then add the individual player data points using geom_point(), critically mapping the team variable to the color aesthetic. This color coding is essential, as it visually differentiates the raw data points by group, establishing a basis for comparison against the summary lines that follow.

The true power of this grouped plotting technique lies in the specialized use of geom_hline(). Unlike other geometries that default to using the primary data source (df), geom_hline() is explicitly instructed to reference the newly created summary data frame, mean_team, via the data argument. We map the calculated average, mean_pts, to the yintercept aesthetic, which controls the precise vertical placement of the horizontal line. By mapping the team variable to the col aesthetic within geom_hline(), we guarantee that the mean line for Team A, for example, perfectly matches the color used for Team A’s scatter points. This detailed mapping ensures impeccable visual consistency and clarity across the entire resultant plot.

library(dplyr)
library(ggplot2)

# Calculate mean points value by team, storing in mean_team
mean_team <- df %>% group_by(team) %>% summarise(mean_pts=mean(points))

# Generate the scatterplot, coloring points by team
ggplot(df, aes(x=assists, y=points)) +
  geom_point(aes(color=team)) +
  # Overlay the mean lines, using mean_team as the data source
  geom_hline(data=mean_team, aes(yintercept=mean_pts, col=team))

Interpreting and Validating the Visualization Results

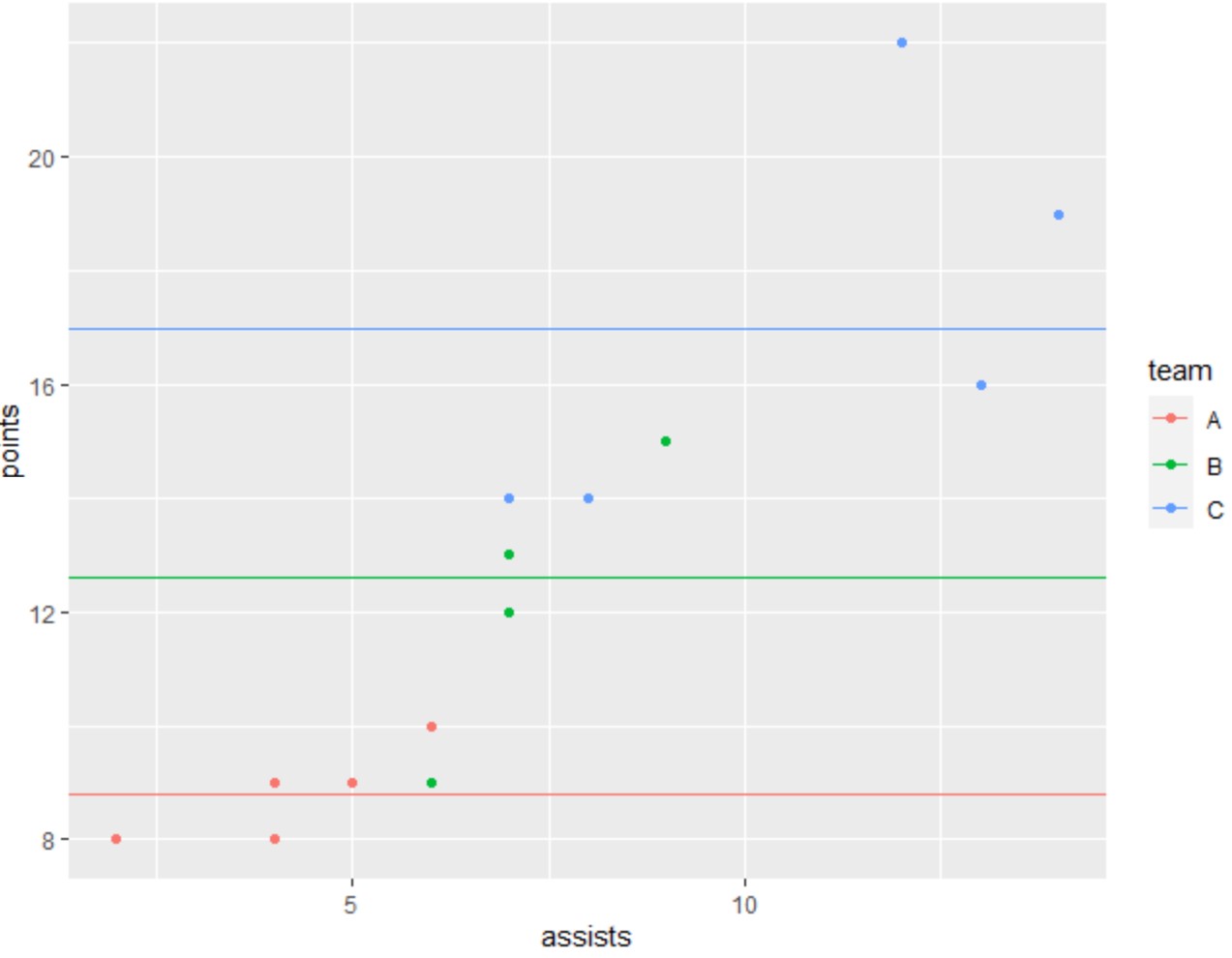

Upon successful execution of the complete code block, ggplot2 generates a dynamic and highly insightful visualization that efficiently communicates both the granular distribution of individual player data and the summary statistics for each team. The resulting plot successfully integrates the detail provided by the raw data points with the generalized observation of group averages, offering a comprehensive and balanced view of team performance differences.

The visual output prominently features three distinct, color-coded horizontal lines. Each line serves as a reliable visual benchmark, marking the calculated average points scored by the players belonging to that specific team. For example, if the average performance of Team C is substantially higher than that of Team A, the corresponding horizontal line for Team C will be visibly positioned higher on the y-axis (points scored). This immediate visual comparison significantly streamlines the process of evaluating relative performance and allows the observer to instantly determine whether any individual player is performing above, below, or exactly at their team’s calculated average.

To ensure absolute confidence in the results and to provide a numerical validation of the visual representation, it is good practice to directly inspect the contents of the mean_team data frame, which was generated during the aggregation step using dplyr. This numerical summary confirms the precise vertical placement of every mean line on the plot, thereby reinforcing the trustworthiness and accuracy of the final visualization.

# View the mean points value calculated for each team
mean_team

`summarise()` ungrouping output (override with `.groups` argument)
# A tibble: 3 x 2
  team  mean_pts

1 A          8.8
2 B         12.6
3 C         17

The numerical output derived from mean_team explicitly confirms the following calculated averages, which correspond exactly to the lines plotted by geom_hline():

• The mean points value for players on Team A is precisely 8.8.
• The mean points value for players on Team B is calculated at 12.6.
• The mean points value for players on Team C is the highest at 17.0.

These confirmed figures validate that the horizontal lines are accurately positioned at these exact y-axis coordinates, providing strong empirical evidence that Team C, on average, achieves a substantially higher score than both Teams A and B. This robust integration of precise numerical calculation and clear visual mapping is the hallmark of effective and trustworthy data storytelling using the Tidyverse.

Extending Your Grouped Visualizations

Mastering the workflow for plotting grouped mean lines is a foundational skill that serves as a gateway to conducting more complex and nuanced data explorations within the ggplot2 environment. While the simple mean line offers an excellent summary of central tendency, the ggplot ecosystem provides an extensive array of geometric functions designed to summarize and visualize group data dynamically. The underlying analytical principle remains consistent: first, calculate the necessary group statistics outside of the primary plot function using tools like dplyr, and subsequently, map those resultant statistics to the most suitable geometry layer within the plot.

For example, instead of limiting the visualization to a static average, you might be interested in plotting a conditional trend line that describes the linear relationship between variables for each group. This can be readily accomplished using geom_smooth(). To achieve grouping, you simply map the color aesthetic to the grouping variable (e.g., team) and specify a statistical modeling method, such as method="lm" for generating a linear model. This advanced technique allows the viewer to observe not just the average value, but precisely how the relationship between assists and points changes depending on the team context. Alternatively, to summarize the full distribution of points by team—including spread, quartiles, and outliers—one could effectively utilize geom_boxplot().

Ultimately, the selection of the appropriate geometry should be driven by the specific analytical question you are attempting to address and the message you wish to convey. Whether you employ a horizontal line to denote the average, a smoothing line to illustrate a trend, or a box plot to showcase data spread, the key to success lies in leveraging the collaborative power of dplyr for precise data transformation and the inherent flexibility of ggplot2 for aesthetic mapping and visualization. By continually expanding your repertoire of grouped visualization techniques, you ensure that your data communication is not only statistically accurate but also maximally engaging and insightful for any target audience.

Additional Resources and Further Learning

For data practitioners and analysts seeking to deepen their expertise in R programming, advanced data visualization, and effective statistical computing, we highly recommend consulting the official documentation for the primary Tidyverse packages used in this guide. These official resources provide comprehensive conceptual explanations, detailed function arguments, and numerous advanced examples to facilitate continuous learning:

• Official ggplot2 documentation for mastering the underlying graphical theory and implementation details of complex plots.
• The dplyr reference site for mastering robust data manipulation, filtering, and transformation workflows.
• The official R Project website for general programming concepts, package management, and statistical environment details.
