The binomial distribution stands as a cornerstone in the field of statistics, offering a robust method for analyzing scenarios where only two distinct outcomes are possible. This powerful probability distribution is specifically designed to model the number of successes observed in a fixed sequence of repeated, identical tests. Before we can leverage its mathematical power, however, we must first ensure that the process under examination qualifies as a binomial experiment.

Defining the Binomial Experiment

A statistical procedure must rigorously satisfy a precise set of four criteria to be classified as a binomial experiment. These prerequisites are crucial because they guarantee that the underlying assumptions required for the binomial formula—such as a constant rate of success and the non-influence of one trial’s outcome on the next—are met. Failing to meet even one of these conditions invalidates the use of the binomial distribution model, potentially leading to inaccurate statistical inferences.

The four required properties that must be satisfied for any process to be modeled successfully by this distribution are foundational to its application:

• Fixed Number of Trials: The experiment must consist of a set quantity of repeated trials, which is universally denoted by the variable n.
• Dichotomous Outcomes: Each individual trial must yield one of exactly two possible results, which are conventionally designated as “success” or “failure.”
• Constant Probability: The probability of success, represented by the parameter p, must remain identical across all trials conducted during the experiment.
• Trial Independence: Every trial must be statistically independent, meaning the result achieved in one trial has absolutely no bearing on the outcome of any subsequent trial.

The classic example used to illustrate these criteria is the repeated flipping of a fair coin. If we propose flipping a coin 10 times, we observe: 1) A fixed number of trials (n=10); 2) Only two outcomes (Heads/Tails); 3) A constant probability of success (if success = Heads, p=0.5 for all trials); and 4) Each flip is independent, as one toss does not change the physical properties of the next toss. This simple scenario perfectly encapsulates the conditions required for a valid binomial experiment.

The Binomial Probability Mass Function (PMF)

Once an experiment is verified as binomial, the binomial distribution provides the mathematical framework to determine the likelihood of observing a specific number of successes. This is achieved through the Probability Mass Function (PMF), which calculates the probability that the random variable X (the count of successes) equals exactly k.

The PMF is the core equation used in all binomial calculations. It combines the probability of achieving a specific sequence of successes and failures with the number of unique ways that sequence can occur. The formula is written as:

P(X=k) = _nC_k * p^k * (1-p)^n-k

To fully utilize this formula, it is necessary to understand the role of each variable:

• n: The total number of trials performed in the experiment.
• k: The precise number of successes for which the probability calculation is being carried out.
• p: The fixed probability of success on any single trial (often referred to as the success parameter).
• _nC_k: This is the combinatorial coefficient, often read as “n choose k.” It quantifies the total number of unique arrangements or combinations possible to obtain k successes within n trials.

Let’s revisit the coin flip example, setting n=3 and p=0.5. We can calculate the exact probability for every possible outcome (k=0, 1, 2, or 3 heads):

P(X=0) = ₃C₀ * .5⁰ * (1-.5)^3-0 = 1 * 1 * (.5)³ = 0.125

P(X=1) = ₃C₁ * .5¹ * (1-.5)^3-1 = 3 * .5 * (.5)² = 0.375

P(X=2) = ₃C₂ * .5² * (1-.5)^3-2 = 3 * .25 * (.5)¹ = 0.375

P(X=3) = ₃C₃ * .5³ * (1-.5)^3-3 = 1 * .125 * (.5)⁰ = 0.125

Note: While the initial calculation of _nC_k may be done manually for small numbers, determining the number of combinations becomes computationally intensive as n increases.

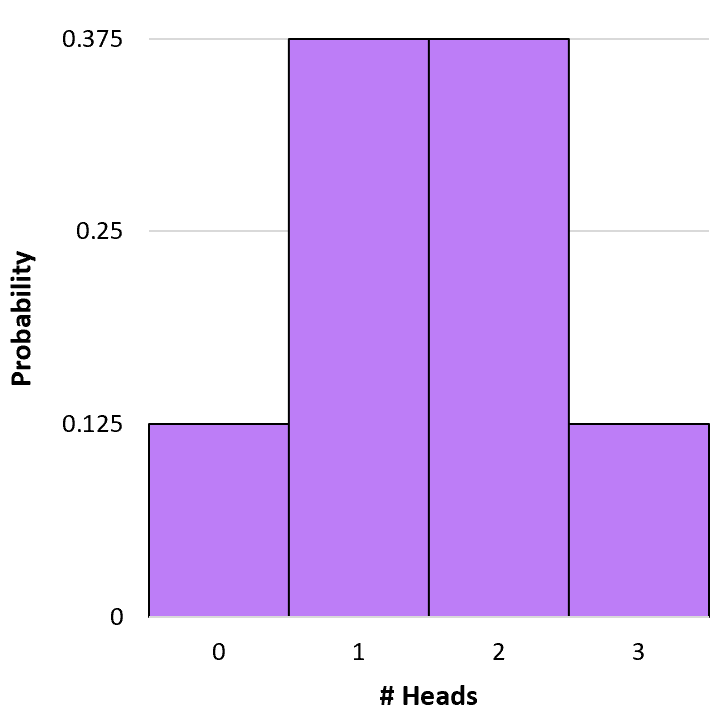

The resulting probability distribution for this simple experiment can be visualized as a histogram, clearly showing the mass function:

Calculating Cumulative Binomial Probabilities (CDF)

While the PMF addresses the likelihood of an exact outcome (P(X=k)), practitioners often require the probability of a range of outcomes. For instance, we might want to know the chance of achieving “at most k successes” or “more than k successes.” This concept is defined by the cumulative probability, calculated using the Cumulative Distribution Function (CDF).

To calculate a cumulative probability P(X≤k), one must sum the individual probabilities (PMF results) for all values of i starting from zero up to the target value k. This aggregation allows us to measure the total probability mass accumulated across a section of the sample space.

Returning to our 3-flip scenario (n=3, p=0.5), if we want the probability of obtaining 1 head or fewer (P(X≤1)), we simply combine the probabilities we calculated earlier:

P(X≤1) = P(X=0) + P(X=1) = 0.125 + 0.375 = 0.5.

The complete set of cumulative probabilities for our 3-flip experiment demonstrates how the total probability builds up across the outcomes:

P(X≤0) = P(X=0) = 0.125.

P(X≤1) = P(X=0) + P(X=1) = 0.125 + 0.375 = 0.5.

P(X≤2) = P(X=0) + P(X=1) + P(X=2) = 0.125 + 0.375 + 0.375 = 0.875.

P(X≤3) = P(X=0) + P(X=1) + P(X=2) + P(X=3) = 0.125 + 0.375 + 0.375 + 0.125 = 1.

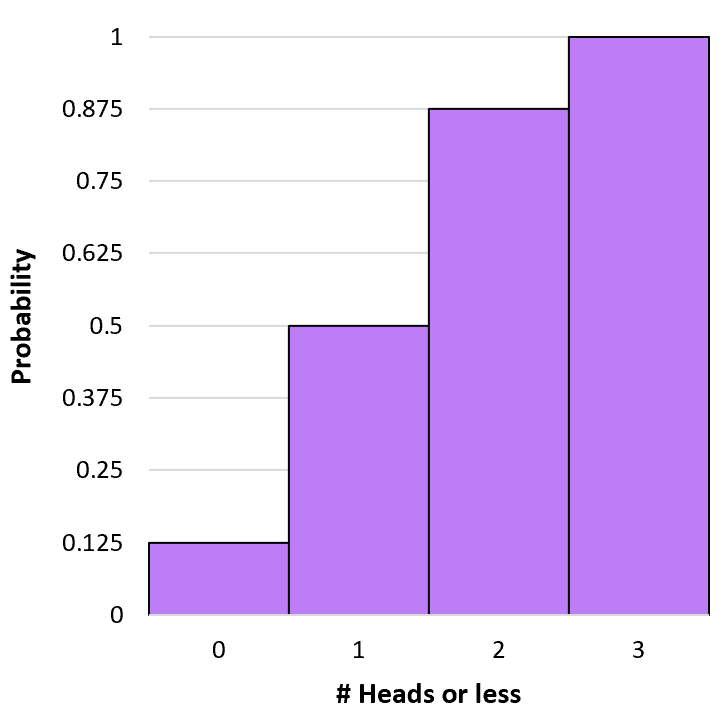

This distribution provides an alternative visualization, mapping the total accumulated probability against the number of successes:

Utilizing Statistical Software for Large Datasets

Manually calculating binomial probabilities, especially cumulative probabilities, quickly becomes impractical and error-prone when the number of trials n is large. For professional accuracy and efficiency, modern statistical software and dedicated binomial probability calculators are the standard tools. These tools handle the complex combinatorial calculations rapidly.

Consider a large-scale scenario: we have n = 100 trials, and the probability of success is p = 0.5. We are specifically interested in the probability that the number of successes, k, is 43 or less. The calculator structure below demonstrates how these complex inequalities (P(X=k), P(X<k), P(X≤k), etc.) are efficiently computed:

function pvalue() {

//get input values
var p = document.getElementById(‘p’).value*1;
var n = document.getElementById(‘n’).value*1;
var k = document.getElementById(‘k’).value*1;

//assign probabilities to variable names
var exactProb = jStat.binomial.pdf(k,n,p);
var lessProb = jStat.binomial.cdf(k-1,n,p);
var lessEProb = jStat.binomial.cdf(k,n,p);
var greaterProb = 1-jStat.binomial.cdf(k,n,p);
var greaterEProb = 1-jStat.binomial.cdf(k-1,n,p);

//output probabilities
document.getElementById(‘k1’).innerHTML = k;
document.getElementById(‘k2’).innerHTML = k;
document.getElementById(‘k3’).innerHTML = k;
document.getElementById(‘k4’).innerHTML = k;
document.getElementById(‘k5’).innerHTML = k;

document.getElementById(‘exactProb’).innerHTML = exactProb.toFixed(5);
document.getElementById(‘lessProb’).innerHTML = lessProb.toFixed(5);
document.getElementById(‘lessEProb’).innerHTML = lessEProb.toFixed(5);
document.getElementById(‘greaterProb’).innerHTML = greaterProb.toFixed(5);
document.getElementById(‘greaterEProb’).innerHTML = greaterEProb.toFixed(5);
}

The computational output provides a comprehensive summary of the probability for the random variable X (number of successes) relative to the target value k=43:

• The probability of achieving exactly 43 successes (P(X=43)) is 0.03007.
• The probability of achieving fewer than 43 successes (P(X<43)) is 0.06661.
• The probability of achieving 43 successes or less (P(X≤43)) is 0.09667.
• The probability of achieving more than 43 successes (P(X>43)) is 0.90333.
• The probability of achieving 43 successes or more (P(X≥43)) is 0.93339.

Key Statistical Properties: Mean, Variance, and Deviation

Beyond calculating specific probabilities, the binomial distribution is fully characterized by its descriptive statistics, which summarize its central tendency and dispersion. These measures—the mean, variance, and standard deviation—are derived directly and simply from the two defining parameters, n (number of trials) and p (probability of success).

These descriptive measures are essential for interpreting the expected behavior of the random variable X. For instance, the mean (or expected value) tells us the average number of successes we would expect if we repeated the experiment infinitely many times, while the variance and standard deviation quantify the typical spread or variability around that expected value.

The standard formulas used to calculate these properties are remarkably straightforward:

The mean (Expected Value), denoted as μ, is: μ = np

The variance of the distribution, denoted as σ², is: σ² = np(1-p)

The standard deviation of the distribution, denoted as σ, is: σ = √np(1-p)

To apply these formulas, consider our example of tossing a fair coin 3 times (n=3) with a success probability of p = 0.5:

The mean number of heads expected is calculated as μ = np = 3 * 0.5 = 1.5.

The variance, which quantifies the spread of the outcomes from the mean, is σ² = np(1-p) = 3 * 0.5 * (1 – 0.5) = 0.75.

Practice Problems for Binomial Distribution Mastery

The following scenario-based problems require applying both the probability mass function (PMF) and the descriptive statistical formulas, enabling you to solidify your understanding of the binomial distribution in practical contexts.

Problem 1: Exact Probability

Question: Bob is known to make 60% of his free-throw attempts (p=0.6). If he shoots 12 free throws (n=12), what is the probability that he makes exactly 10?

Answer: This calculation requires P(X=10). Using a binomial calculator with n=12 and p=0.6, we find P(X=10) = 0.06385.

Problem 2: Cumulative Probability (Lower Tail)

Question: Jessica flips a fair coin 5 times (n=5). What is the probability that the coin lands on heads 2 times or fewer?

Answer: This is the cumulative probability P(X≤2) with n=5 and p=0.5. Calculating the sum of P(X=0) + P(X=1) + P(X=2) yields P(X≤2) = 0.5.

Problem 3: Cumulative Probability (Upper Tail)

Question: The probability that a given student gets accepted to a certain competitive college is 0.2. If 10 students apply, what is the probability that more than 4 get accepted?

Answer: This requires calculating P(X>4) with n=10 and p=0.2. This is equivalent to 1 – P(X≤4). Using a calculator, we find P(X>4) = 0.03279.

Problem 4: Expected Value Calculation

Question: You flip a fair coin 12 times. What is the mean expected number of heads that will show up?

Answer: The mean (Expected Value) is calculated using the formula μ = np. Thus, μ = 12 * 0.5 = 6 heads.

Problem 5: Variance Calculation

Question: Mark hits a home run during 10% of his attempts (p=0.1). If he has 5 attempts in a given game (n=5), what is the variance of the number of home runs he’ll hit?

Answer: The variance is calculated using the formula σ² = np(1-p). Thus, σ² = 5 * 0.1 * (1 – 0.1) = 5 * 0.1 * 0.9 = 0.45.

Additional Resources for Implementation

Applying the binomial distribution often involves specific software or tools. The following resources offer specialized guidance on implementing and calculating binomial probabilities within various statistical environments:

• How to calculate binomial probabilities in Excel
• How to calculate binomial probabilities on a TI-84 calculator
• How to calculate binomial probabilities in R
• How to plot a binomial distribution in R
