Learn How to Calculate Class Width in Excel for Frequency Distributions

Understanding the Concept of Class Width

When preparing complex statistical information for visualization or summary, organizing the data into a frequency distribution is a critical first step. This organization transforms hundreds of individual data points into manageable, meaningful groups. Within this context, the concept of the class width—also known as the class interval—is absolutely paramount. The class width defines the precise numerical span covered by each category within the distribution, representing the difference between the upper and lower boundaries of any given class. This measure is fundamental because it dictates how raw data is aggregated, ensuring that the resulting summary, such as a histogram or frequency table, accurately reflects the underlying patterns and spread of the data. Choosing an inappropriate class width can lead to distortions, either masking critical variability or creating an overly erratic visual representation that hinders effective analysis.

The core purpose of calculating and implementing a consistent class width is to maintain statistical integrity across the entire data summary. By ensuring that every class interval covers the exact same numerical range, we prevent bias in the analysis of frequencies. If intervals varied in width, groups covering larger ranges would inherently accumulate more data points, skewing the interpretation of where the data truly clusters. Therefore, the class width acts as the structural foundation for constructing a statistically sound distribution.

To illustrate this definition using pre-grouped data, determining the class width is a straightforward subtraction. If a dataset has already been organized into a table, one simply subtracts the lower boundary of a class from its corresponding upper boundary. This difference must be meticulously maintained across all intervals within a valid frequency distribution. This consistency confirms that the grouping logic is sound and reliable for advanced analysis or reporting.

Consistency: The Fundamental Rule of Class Intervals

Examining existing frequency tables provides a clear visualization of the requirement for uniformity in class width. Consider the following tabular representation of grouped data. The visual structure immediately suggests a logical organization, but the analyst must confirm the numerical consistency of the intervals before proceeding with any frequency analysis or interpretation.

For instance, if we inspect the first class interval presented above, the calculation for the class width involves taking the upper boundary (5) and subtracting the lower boundary (1), which results in a width of 4. Moving to the second class, the width is calculated as 10 minus 6, again yielding 4. This uniformity is not accidental; it is an essential requirement for any well-formed frequency table. The consistent class width ensures that each group covers an equal numerical span, preventing the introduction of analytical bias and confirming that the grouping mechanism is statistically sound and reliable for interpretation.

Similarly, when datasets span a wider range of values, the resulting class width will naturally be larger, yet the absolute principle of consistency remains enforced. Analyzing the distribution below, we observe significantly different boundaries and magnitudes, but the inherent structure of equal intervals is maintained across all classes.

In this specific distribution, the class width for the initial group is calculated as 10 minus 1, resulting in a width of 9. Proceeding to the subsequent class, the width calculation is 20 minus 11, also equaling 9. These examples conclusively demonstrate that while the numerical magnitude of the class width is dependent on the overall range of the data, the necessity for a consistent width across the entire distribution is a foundational requirement for unbiased data organization and accurate statistical reporting.

Calculating Class Width from a Raw Dataset: The Formulaic Approach

When initiating a comprehensive data analysis project, information rarely arrives neatly pre-grouped; instead, it exists as a disorganized collection of individual measurements, typically referred to as a raw dataset. Before a meaningful frequency distribution can be constructed, the appropriate class width must be mathematically derived directly from this raw information. This calculation is vital as it determines the optimal structuring of the data, ensuring the resulting grouping optimally represents the data’s spread without losing critical details or generating misleading visual patterns. The analyst must carefully consider the choice of class width: an interval that is too narrow might result in an excessive number of classes, making the distribution appear overly erratic, whereas an interval that is too wide might mask important variations by aggressively aggregating disparate values into too few groups.

To calculate the necessary class width (W), we must first quantify the overall spread of the data, which is mathematically defined as the range. The range is simply the difference between the absolute highest and lowest observations in the dataset. This range is then divided by the desired number of classes, which is typically denoted by the variable n. The determination of n is a crucial analytical decision, often guided by established statistical heuristics such as Sturges’ Rule or the square root method, which help estimate the ideal number of groups based on the total sample size. The overarching goal is to strike a balance between providing sufficient detail and maintaining clarity, ensuring the final distribution is both informative for internal analysis and easily interpretable for external stakeholders.

The formula used to formalize this calculation is universally recognized in introductory statistics and provides a clear, objective methodology for transforming the raw data’s spread into actionable class intervals. This equation establishes the necessary mathematical link between the magnitude of the data’s variation and the structural constraints of the intended visualization or summary presentation.

The governing equation for calculating the preliminary class width is:

Class width = (max – min) / n

Where each component plays a precise, definitional role in the calculation:

• max is defined as the maximum value observed within the entire dataset, identifying the absolute upper bound of the data’s numerical spread.
• min is the minimum value present in the dataset, establishing the absolute lower limit of the data’s numerical scope.
• n represents the number of classes the analyst intends to use for organizing the frequency distribution, a value often determined by statistical judgment or practical display requirements.

It is critically important to understand that the result of this division often yields a decimal or fractional number. Since class boundaries must typically consist of easy-to-read, whole numbers that are capable of encompassing all data points, the calculated value must be subject to a specific rounding rule: it must be rounded up to the nearest convenient integer. This upward rounding is statistically mandatory; if the calculated width were rounded down, the resulting frequency distribution would inevitably fail to include the absolute maximum value of the dataset, rendering the analysis fundamentally incomplete and inaccurate.

Preparing Your Data in Microsoft Excel

Microsoft Excel provides an extremely efficient and accessible platform for managing, calculating, and visualizing statistical metrics, thanks to its robust suite of built-in functions. The following steps outline the practical application of the class width formula using Excel, starting with the necessary data extraction from a sample raw dataset. For this detailed example, we assume we have collected 20 data points representing a measurable quantity—such as student test scores, machine output, or delivery times—and these are sequentially placed within a single column in an Excel worksheet.

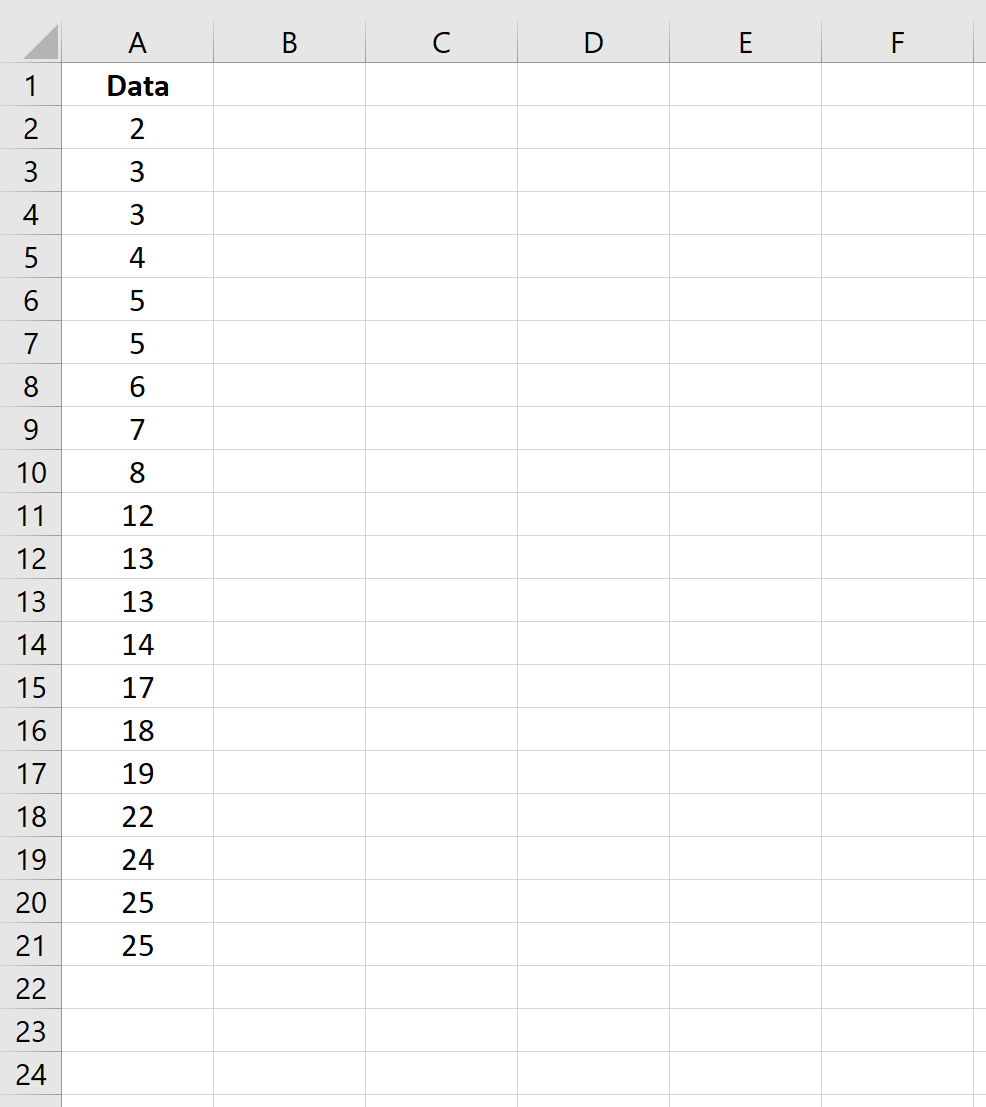

Suppose our analysis begins with the following raw data structure in Excel, organized sequentially in cells A1 through A20:

The initial requirement for calculating the optimal class width is the determination of the data’s range. This step necessitates quickly locating the maximum value and the minimum value within the entirety of the data column. Excel significantly simplifies this often tedious process through the use of its specialized aggregation functions: the

=MAX()

and

=MIN()

commands. By inputting

=MAX(A1:A20)

and

=MIN(A1:A20)

into separate, clearly designated cells, the analyst instantly retrieves the two critical boundary values required for calculating the range, thereby eliminating the manual effort of sorting and searching through potentially hundreds or thousands of individual data points.

Once the essential range components (max and min) are established, the final variable, n (the desired number of classes), must be analytically determined. This choice is usually based on the total number of observations and the desired granularity of the frequency distribution. For the purpose of this demonstration, we will proceed with a choice of n = 5, which effectively suggests that the data should be grouped into five distinct and equally sized intervals. While this selection should always be driven by specific data characteristics and statistical guidelines, setting n = 5 is a widely accepted and common starting point for medium-sized datasets, as it often provides a suitable balance between fine-grained detail and overall visual simplicity. With these three variables—the maximum value, the minimum value, and the chosen number of classes (n)—clearly identified, we are fully prepared to execute the class width formula directly within the Excel environment.

Executing the Class Width Calculation and Applying the Rounding Rule

With all necessary components extracted using Excel’s powerful functions, the next logical step is to perform the division central to the class width formula: Range divided by the number of classes (n). Using the data parameters extracted in the previous section, the analyst first calculates the difference between the maximum and minimum values to establish the range. Subsequently, this range is divided by our chosen number of classes (n=5). It is highly recommended to perform these calculations in separate, clearly labeled cells within the Excel sheet to ensure maximum transparency, ease of verification, and auditability of the statistical steps.

As depicted in the calculation summary below, the execution of the formula reveals an intermediate result for the class width. In this specific scenario, the maximum value was determined to be 24, and the minimum value was 1, yielding a range of 23. Dividing this range (23) by our selected number of classes (5) yields the preliminary result of 4.6. Since it is statistically impractical to utilize a fractional class width for setting discrete boundaries in a standard frequency distribution, we must rigorously apply the mandatory upward rounding principle.

The calculated width of 4.6 must be mathematically rounded up to the nearest convenient whole number, which, in this specific case, is 5. This final, rounded value of 5 is the definitive class width that must be used to structure the subsequent frequency distribution. The reasoning behind the upward rounding is statistically critical and must not be overlooked: if the analyst were to round down to a width of 4, the resulting total span covered by the five classes would only be 20 (4 classes multiplied by a width of 5), which is mathematically insufficient to include the absolute maximum value of 24, thereby omitting essential data points. A width of 5, however, ensures that the total range covered by the five classes is 25, safely encompassing all 20 observations from the original raw dataset.

Constructing the Final Frequency Distribution

With the definitive class width of 5 confirmed, the analyst is ready to proceed to the construction of the final frequency table. This process involves precisely defining the class boundaries, which are often referred to as ‘bins’ when using Excel’s Data Analysis Toolpak. The process begins by establishing the lower boundary of the first class, typically using the minimum value of the entire dataset (1). Subsequent boundaries are then determined by iteratively incrementing by the calculated class width (5) until the maximum value is comfortably surpassed.

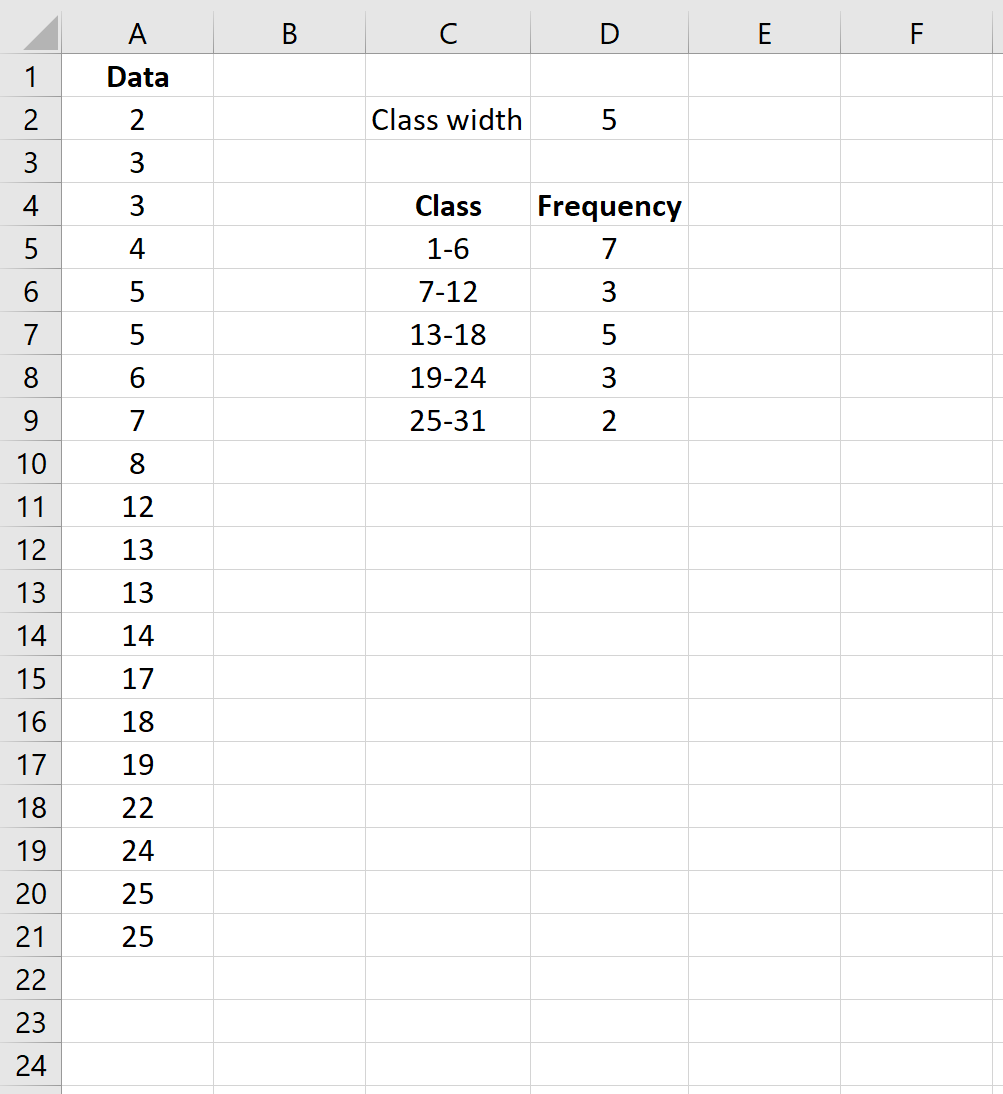

The resulting table effectively summarizes the entire dataset, transforming the raw collection of 20 individual observations into a clear visual representation that shows how those values are distributed across the five defined intervals. This final table is the ultimate output of the class width calculation process.

A careful observation and verification of the final table confirms several statistical necessities. First, the effective width for each class interval is precisely 5 (e.g., while the displayed numbers 1-5 might appear to be a width of 4, the continuous range covered is 5 units). Furthermore, the summation of the values in the “Frequency” column yields a total count of 20, which perfectly matches the total number of values in our original raw dataset. This critical verification step confirms that the calculated class width was correctly implemented and that no data points were inadvertently lost or misrepresented during the grouping process, resulting in a statistically valid and reliable frequency distribution ready for interpretation.
