Understanding Arcsine Transformation: A Practical Guide with Excel Examples

The arcsine transformation, frequently known as the angular transformation, is a cornerstone technique in applied statistics. Its primary purpose is to mathematically adjust data that represents proportions or percentages—values inherently restricted to the range between 0 and 1. This transformation is necessary because raw proportional data often exhibits a problematic relationship where the mean is correlated with the variance, violating core assumptions required by most powerful parametric tests.

In fields ranging from biology (e.g., survival rates, germination success) to social science (e.g., survey response rates), researchers frequently encounter data where outcomes are expressed as ratios or frequencies. When these data points cluster near the boundaries (0 or 1), their statistical distribution becomes severely skewed, undermining the validity of subsequent analyses, such as the Analysis of Variance (ANOVA). The arcsine method effectively “stretches” these boundary values, leading to a dataset where the variance is stabilized, a condition crucial for accurate statistical inference.

Understanding how to implement the arcsine transformation efficiently within common spreadsheet software like Microsoft Excel is a vital skill for data analysts. While the underlying mathematical theory involves trigonometric functions, the practical execution requires only a simple, three-step formula sequence utilizing Excel’s built-in functions.

The Mathematical Foundation and Excel Implementation

The standard mathematical definition for the arcsine transformation of a proportion (P) is expressed as $T = text{arcsin}(sqrt{P})$. This formula is specifically designed to linearize the relationship between the mean and the standard deviation inherent in data derived from a binomial distribution. By applying the square root first, we ensure that the input to the arcsine function is always valid (between 0 and 1), and then the arcsine operation remaps the values onto a new scale.

When translating this formula into an executable function within Excel, we utilize two primary built-in tools: SQRT() for the square root operation and ASIN() for the arcsine calculation. A crucial technical detail to remember is that Excel’s trigonometric functions, including ASIN, yield results in radians, not degrees. For statistical purposes, the output in radians is the correct and desired transformed value, ready for use in advanced tests like ANOVA.

The resulting concise formula encapsulates the entire transformation process. If your proportion is located in cell A1, the transformation is executed using the following syntax:

#perform arcsine transformation on value in cell A1
=ASIN(SQRT(A1))

This sequence first calculates the square root of the raw proportion and subsequently computes the arcsine of that result. Mastery of this simple syntax allows for rapid transformation of large datasets, preparing them for robust parametric tests.

Example 1: Applying Arcsine to Proportions (Values in Range 0 to 1)

The most direct application of the arcsine transformation occurs when the input data already consists of valid proportions, meaning every value is naturally scaled between 0.0 and 1.0. This scenario is typical when data has been pre-calculated outside of Excel (e.g., success rates divided by total trials).

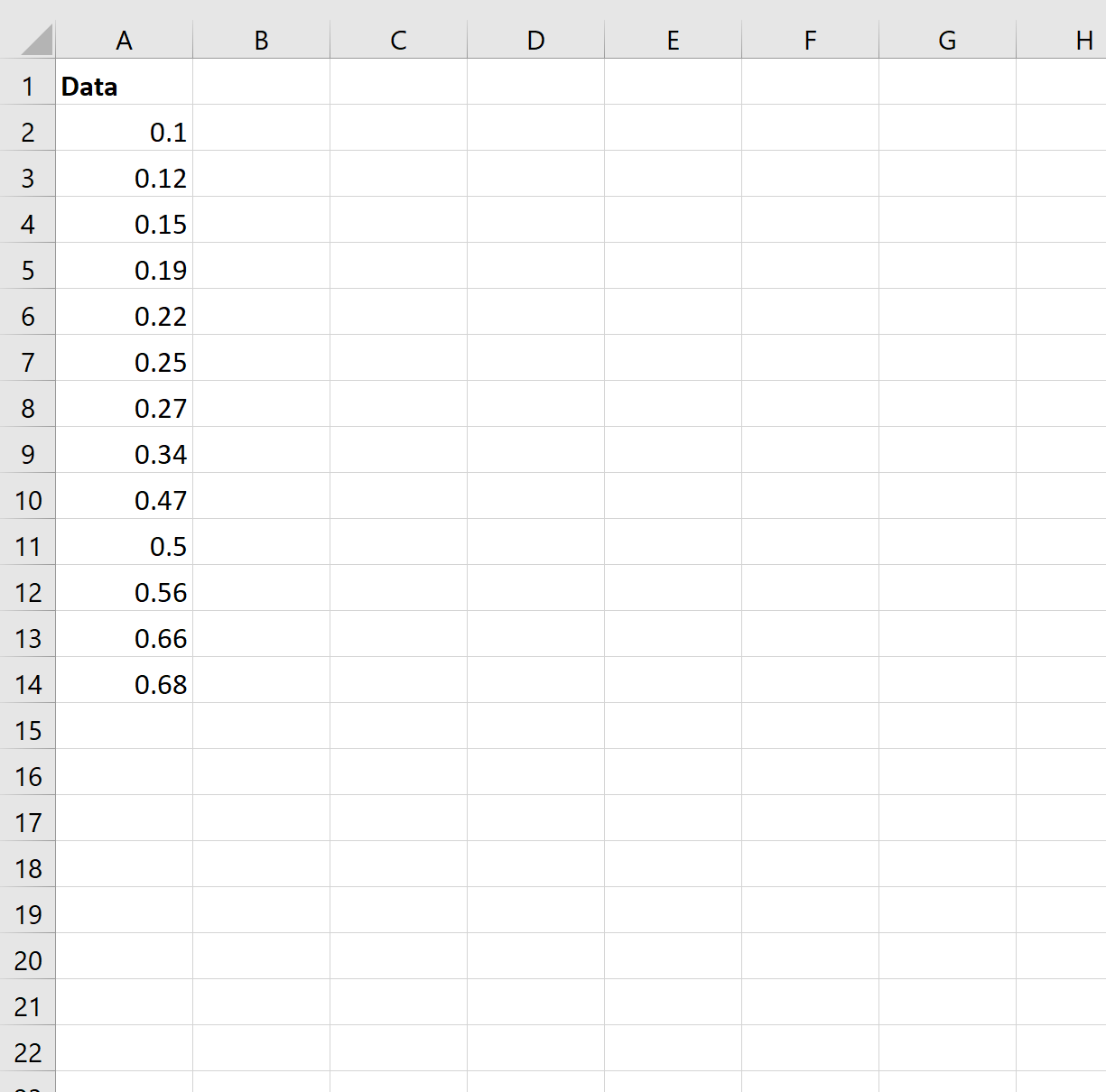

Consider a dataset where Column A contains pre-calculated proportions of successful outcomes from an experiment. Our objective is to generate the transformed values in Column B to facilitate variance stabilization and satisfy the assumptions of homoscedasticity.

To begin the transformation, select cell B2, which will correspond to the first data point in A2. We enter the standard arcsine formula: =ASIN(SQRT(A2)). This calculation immediately transforms the raw proportion (0.95 in this case) into its corresponding angular value, expressed in radians. Ensure the formula precisely targets the cell containing the raw proportion.

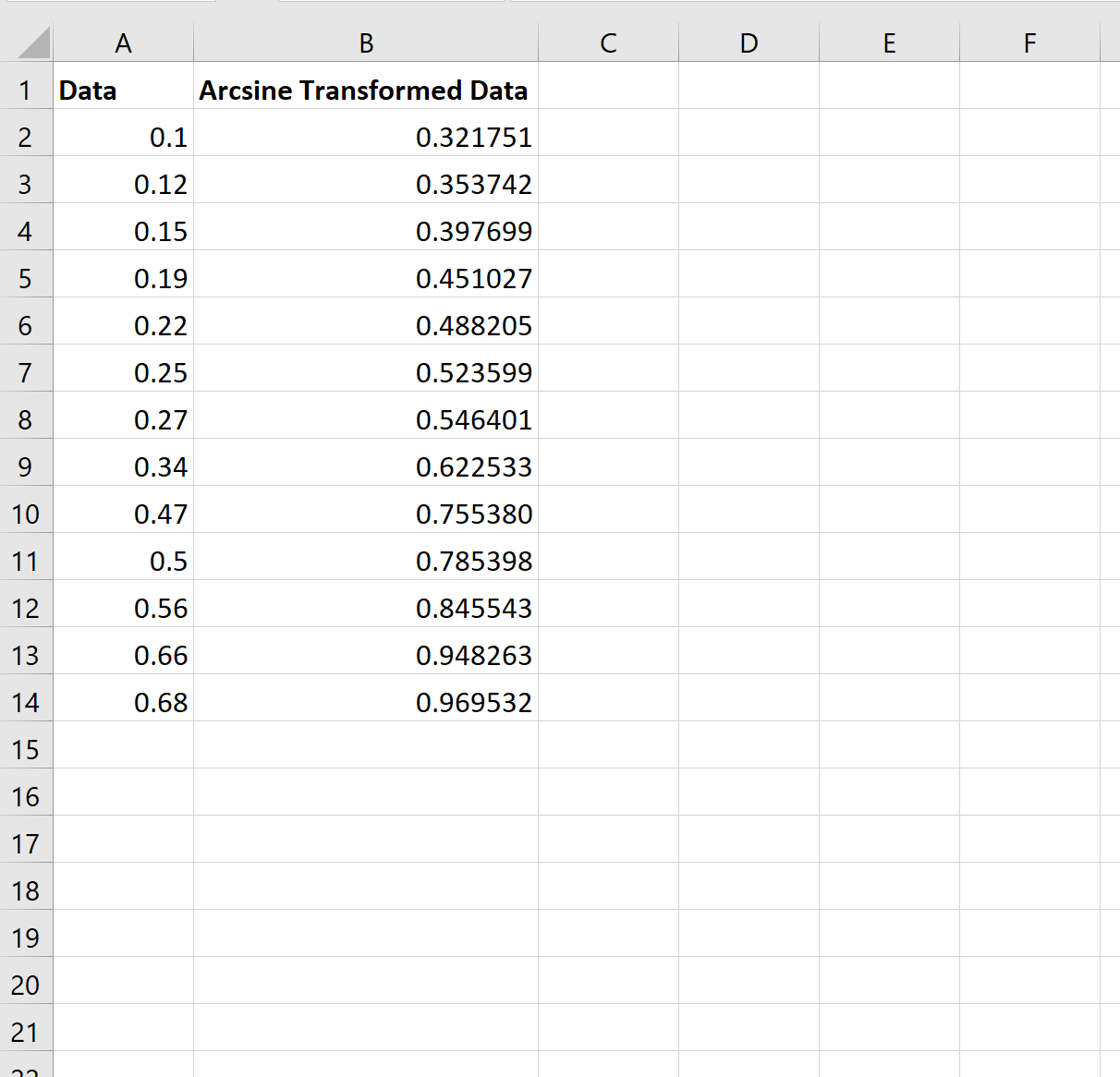

After successfully generating the value in cell B2, the transformation must be applied consistently across the entire dataset. Instead of manually retyping the formula, utilize Excel’s efficient Fill Handle feature. By double-clicking the small black plus sign that appears when hovering over the bottom-right corner of cell B2, the relative formula is instantaneously copied down Column B, ensuring that each raw proportion in Column A is correctly transformed.

Addressing Data Outside the 0 to 1 Range (The Normalization Prerequisite)

A fundamental mathematical requirement for the arcsine transformation is that the input value must be bounded between 0 and 1. If your data consists of raw counts, measurements, or percentages represented as whole numbers (e.g., 50, 100, or 450), attempting to apply the SQRT() or ASIN() function directly will result in mathematical errors (such as #NUM! in Excel) because the proportion exceeds the domain of the arcsine function.

Therefore, if the data is not already proportional, a critical preprocessing step known as data normalization must be performed. Normalization scales the raw counts into equivalent proportions, converting the observed frequencies into valid probabilities suitable for the arcsine method. Ignoring this step is the most common error when applying this transformation.

The standard and most robust method for converting raw count data into proportions for statistical analysis is to divide every observed value by the maximum possible count or the maximum observed value within that specific dataset. This procedure ensures that the highest count is converted to 1.0 (or 100%), and all other counts are proportionally scaled below it. This preprocessing ensures that the data accurately reflects probabilities before the variance stabilization process begins.

Example 2: Normalizing Raw Counts and Applying the Transformation

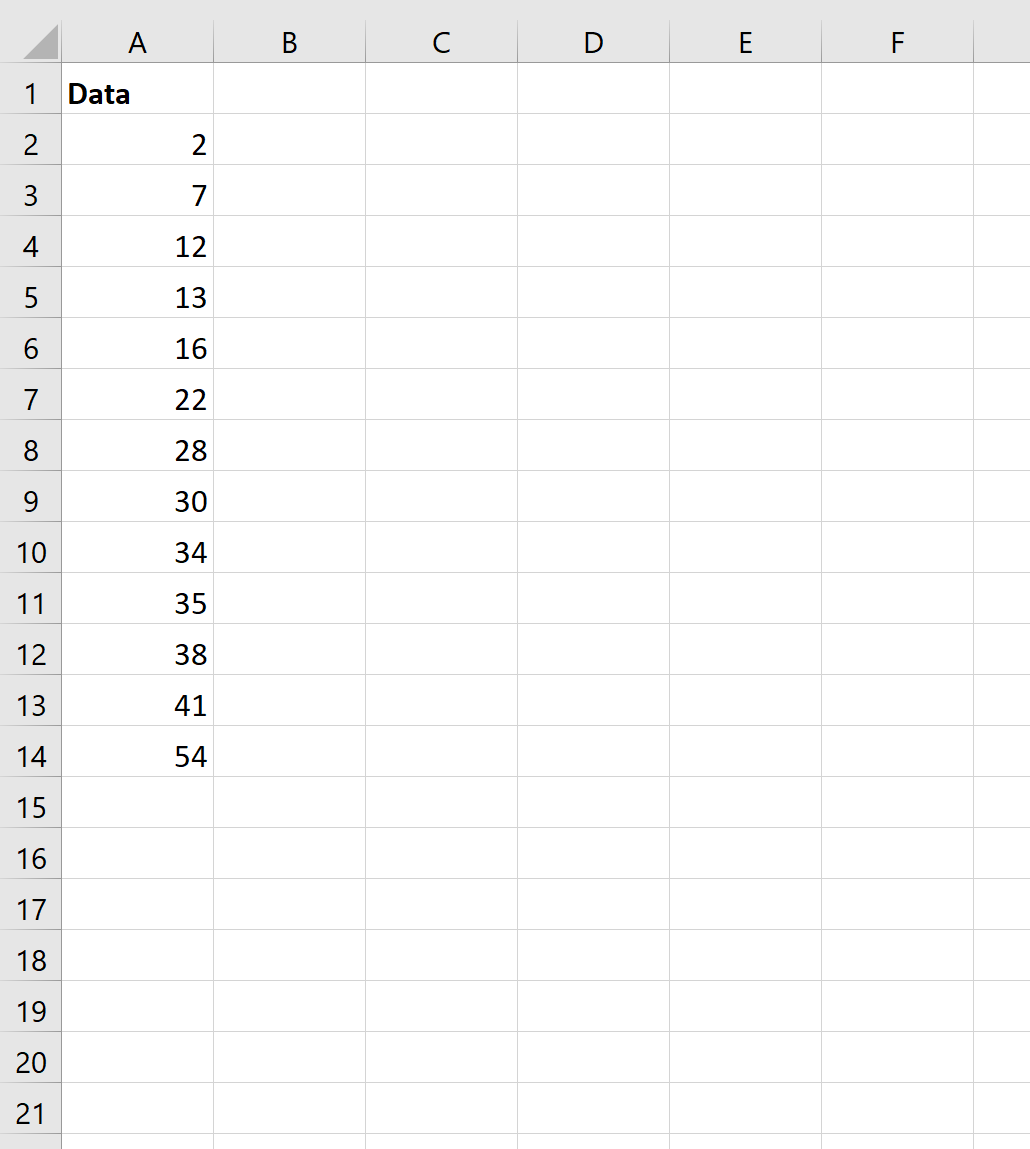

When working with raw frequency data, the process is extended to three distinct columns: Raw Data, Normalized Proportions, and Transformed Values. Suppose we are analyzing observations (raw counts) exceeding 1, as shown in the dataset below located in Column A:

Step 1 requires calculating the Normalized Proportion in Column B. We must first identify the maximum value in the range A2:A11 (which is 98) and use this as the denominator for all calculations. To ensure this maximum value remains constant when the formula is copied down, we must use absolute references (denoted by dollar signs, e.g., $A$2:$A$11). The formula entered into cell B2 is therefore: =A2/MAX($A$2:$A$11).

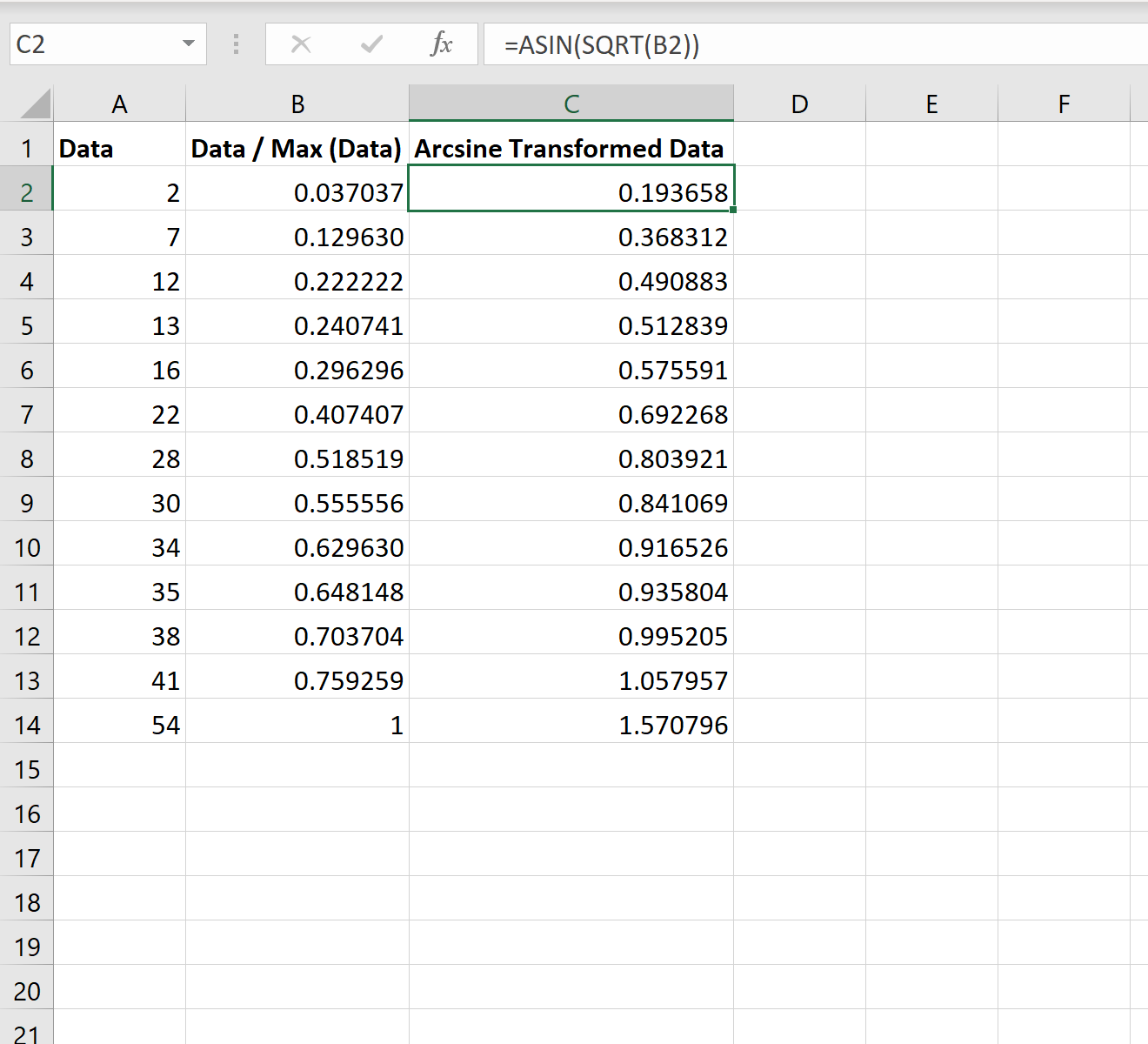

Once Column B is populated with the correctly normalized values (all between 0 and 1), Step 2—the actual arcsine transformation—can be executed in Column C. We reference the normalized proportion in B2 using the standard formula: =ASIN(SQRT(B2)). This two-stage approach guarantees that the data satisfies all mathematical constraints while providing a clear audit trail of the normalization process.

Applying the formula and copying it down Column C yields the final statistically robust dataset. This transformed data is now suitable for rigorous hypothesis testing, having successfully addressed both the scaling and variance stabilization challenges inherent in proportional data analysis.

Statistical Necessity: Why Arcsine is Crucial for Proportional Data

The necessity of the arcsine transformation is rooted in the intrinsic statistical properties of data derived from counts and frequencies. When outcomes follow a binomial distribution, the statistical reality is that the variability (or variance) changes systematically depending on the mean proportion. Specifically, variance is lowest when proportions are near 0 or 1, and highest when they are near 0.5. This non-constant variance is known as heteroscedasticity.

Standard powerful statistical tools, such as the General Linear Model (GLM) which encompasses regression and ANOVA, rely heavily on two core assumptions regarding the residual errors: that they are normally distributed, and critically, that the variance is constant across all groups and levels—the condition of homoscedasticity. When proportional data violates the homoscedasticity assumption, the p-values, standard errors, and confidence intervals generated by these tests become unreliable and potentially misleading.

The arcsine function serves as a crucial variance-stabilizing transformation. By mathematically adjusting the data points, it effectively decouples the mean and the variance, making the distribution of the transformed data more symmetrical and the variance more uniform. This compliance with the assumption of equal variance validates the use of highly efficient parametric tests, ensuring that statistical conclusions drawn are accurate and trustworthy.

Failing to perform this transformation when analyzing proportional data can significantly inflate the risk of making serious statistical errors, such as a Type I error (false positive) or a Type II error (false negative), especially if the proportions being compared are clustered at the extremes of the 0 to 1 range.

Best Practices for Implementation and Interpretation

To ensure accuracy and reproducibility when incorporating the arcsine transformation into any data analysis workflow, particularly within Excel, adherence to specific best practices is highly recommended. These steps mitigate common pitfalls and improve the integrity of the final results:

• Validate the Input Range: Before applying the transformation formula, rigorously verify that all input data points fall within the required 0 to 1 range. Use Excel functions like MIN() and MAX() to quickly check boundary values, preventing #NUM! errors caused by invalid inputs.

• Maintain Data Separation: Always utilize distinct, clearly labeled columns for the raw data, the normalized proportions (if applicable), and the final transformed data. This clear structure is essential for auditing, debugging, and ensuring transparency in your data manipulation steps.

• Document Methodology Thoroughly: Explicitly state in your research methodology or report that the data underwent an arcsine transformation for variance stabilization. Specify whether the transformation was applied to raw proportions or to normalized counts derived from raw frequency data.

• Exercise Caution in Interpretation: Remember that the statistical results (such as means and standard deviations) derived directly from the transformed data exist on the angular scale (in radians). While inferential statistics should use this transformed data, descriptive statistics intended for general readers should typically be reported using the original, untransformed means and standard deviations to maintain intuitive interpretability.

Additional Resources

For users seeking a deeper understanding of the theoretical underpinnings, alternative transformation methods (such as the Logit or Probit transformations), or advanced statistical modeling techniques, further academic resources are recommended.
