Learning to Create and Interpret Side-by-Side Boxplots in R

Boxplots, often referred to as box-and-whisker plots, stand as indispensable tools in modern Exploratory Data Analysis (EDA). Their primary utility lies in providing a concise, visual summary of a dataset’s distribution, instantly highlighting critical statistical metrics such as the median, the spread defined by the quartiles, the overall range, and identifying potential outliers. When the analytical goal shifts to comparison—such as assessing performance across distinct experimental groups or categories—the ability to generate side-by-side boxplots becomes absolutely vital for drawing meaningful contrasts.

The simultaneous plotting of multiple distributions allows data scientists and analysts to quickly discern subtle similarities, flag significant disparities, and understand the underlying distributional characteristics across disparate categories. This graphical technique is far more efficient than relying solely on summary statistics. This comprehensive guide is dedicated to demonstrating how to effectively generate these comparative visualizations within the powerful R programming environment, providing detailed instructions for utilizing both the efficiency of native Base R functionality and the advanced customization capabilities offered by the popular ggplot2 package.

Preparing the Data Structure for Comparative Visualization in R

Before any successful visualization can be created, the underlying data structure must be correctly configured. For generating side-by-side comparisons, the data is typically required to be in a “long” format. This structure mandates that one column explicitly defines the categorical grouping variable (e.g., Team, Location, or Treatment Type), while a separate column holds the corresponding numeric measurements or scores (e.g., Points, Revenue, or Response Time).

To illustrate these techniques, we will construct a sample data frame in R. This data frame tracks hypothetical points scored by three clearly defined groups: Team A, Team B, and Team C. It is important to note the function rep() used in the code snippet below. This function efficiently generates the necessary repeated categorical labels, ensuring that every individual point value is accurately mapped and associated with its respective team for subsequent statistical analysis and plotting. Understanding this foundational data structure is the critical first step before applying the visualization functions detailed in the following sections.

The following code snippet demonstrates the straightforward creation and initial inspection of our working data frame, confirming the structure required for our side-by-side boxplots.

#create data frame
df <- data.frame(team=rep(c('A', 'B', 'C'), each=8),
                 points=c(5, 5, 6, 6, 8, 9, 13, 15,
                          11, 11, 12, 14, 15, 19, 22, 24,
                          19, 23, 23, 23, 24, 26, 29, 33))

#view first 10 rows
head(df, 10)

   team points
1     A      5
2     A      5
3     A      6
4     A      6
5     A      8
6     A      9
7     A     13
8     A     15
9     B     11
10    B     11

Generating Side-by-Side Boxplots Using Base R Graphics

For quick, efficient visualizations without external package dependencies, the built-in boxplot() function, a core component of Base R graphics, is the preferred method. This function is highly optimized for rapid exploratory analysis and utilizes a concise formula syntax (y ~ x). In this syntax, y represents the continuous numeric variable to be visualized (our points data), and x denotes the discrete grouping variable (the team categories).

By specifying the formula df$points ~ df$team, Base R automatically interprets the instruction to partition the numeric data based on the levels found in the categorical variable, rendering separate boxplots for each group and aligning them horizontally for easy comparison. We leverage various optional arguments—such as col for color, main for the title, and xlab/ylab for axis labels—to ensure the resulting plot is clear, informative, and visually appealing for immediate interpretation.

The code below executes the generation of the standard vertical boxplot orientation. This vertical format is generally recommended when the number of comparative groups is relatively small, preventing overcrowding on the X-axis.

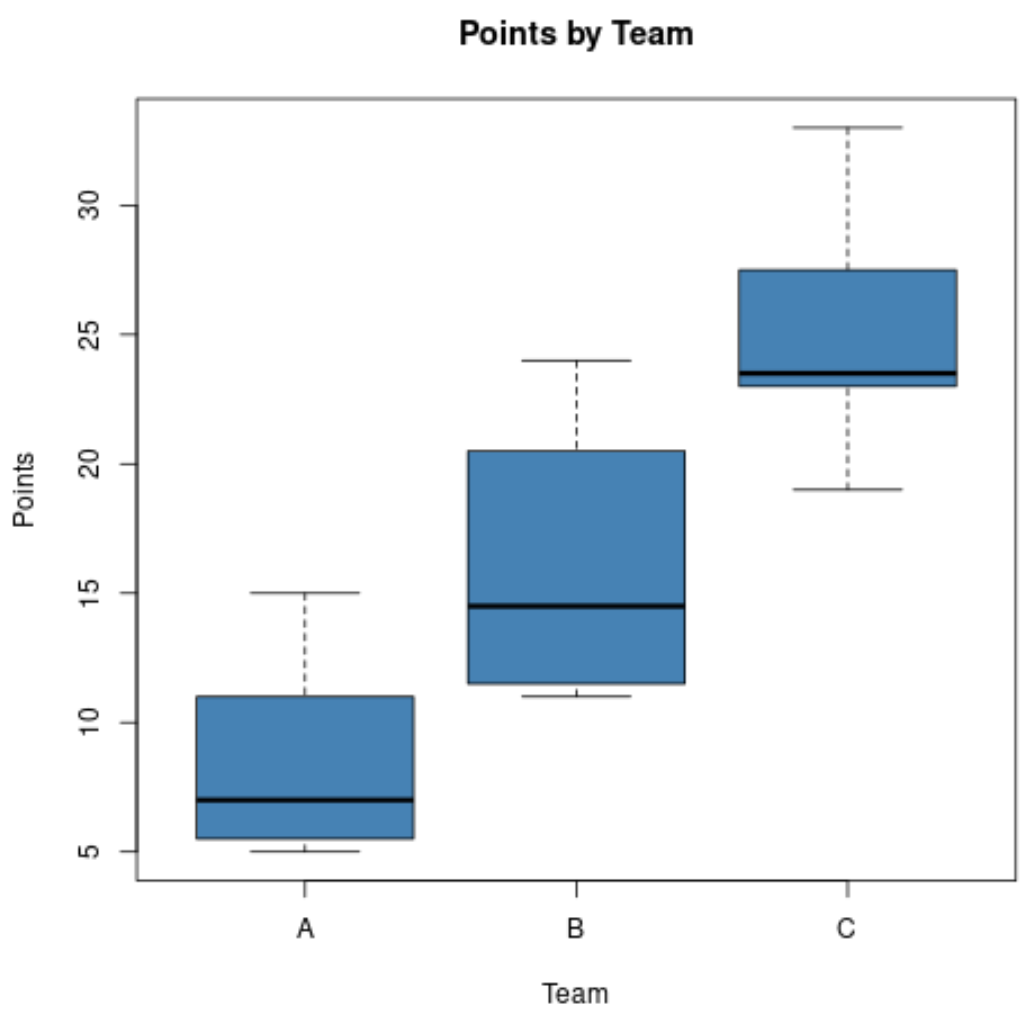

#create vertical side-by-side boxplots
boxplot(df$points ~ df$team,
        col='steelblue',
        main='Points by Team',
        xlab='Team',
        ylab='Points')

Adjusting Orientation for Enhanced Readability in Base R

While the vertical layout is standard, there are practical instances where a horizontal plot orientation significantly improves the visualization’s readability. A common example is when the labels for the categorical variables (which form the X-axis in a vertical plot) are excessively long, leading to label overlap or clutter. Switching to a horizontal format elegantly resolves this spatial issue by providing more room for the category names along the Y-axis.

Within the Base R framework, changing the plot’s orientation is achieved simply by including the logical argument horizontal=TRUE inside the boxplot() function call. This single addition instructs the plotting engine to rotate the output 90 degrees. A crucial step when applying this rotation is the subsequent adjustment of the axis labels: the X-axis must now represent the numeric variable (Points), and the Y-axis must represent the categorical variable (Team), ensuring logical consistency for the reader.

The resulting horizontal plot conveys the exact same statistical information regarding distribution, median, and spread. However, presenting this information horizontally often facilitates a more instinctive visual comparison of the central tendency (median lines) and the overall variability across the distinct groups.

#create horizontal side-by-side boxplots
boxplot(df$points ~ df$team,
        col='steelblue',
        main='Points by Team',
        xlab='Points',
        ylab='Team',
        horizontal=TRUE)

Creating Publication-Quality Boxplots Using ggplot2

When the project demands highly customized, publication-ready statistical graphics, the ggplot2 package is the definitive standard within the R programming environment. This framework is built upon the principles of the Grammar of Graphics, which mandates that plots are constructed through structured layering: starting with the data, mapping variables to visual aesthetics, and finally adding geometric objects (geoms) like boxplots or points.

To construct a vertical boxplot using ggplot2, the process involves chaining together several components. First, we initialize the plot, specifying the data frame (df). Next, we define the aesthetics using aes(), mapping the categorical variable team to the X-axis and the numeric variable points to the Y-axis. Crucially, we also map team to the fill aesthetic; this step automatically applies a distinct color to each box, significantly improving visual differentiation and clarity across the groups. Finally, the geom_boxplot() layer is added to render the actual boxplot visualization.

While this approach is admittedly more detailed and structured than the one utilized by Base R, it provides the analyst with unparalleled, granular control over virtually every visual component of the resulting graphic. This control makes ggplot2 the indispensable tool for producing professional reports, academic manuscripts, and high-impact data visualizations.

library(ggplot2)

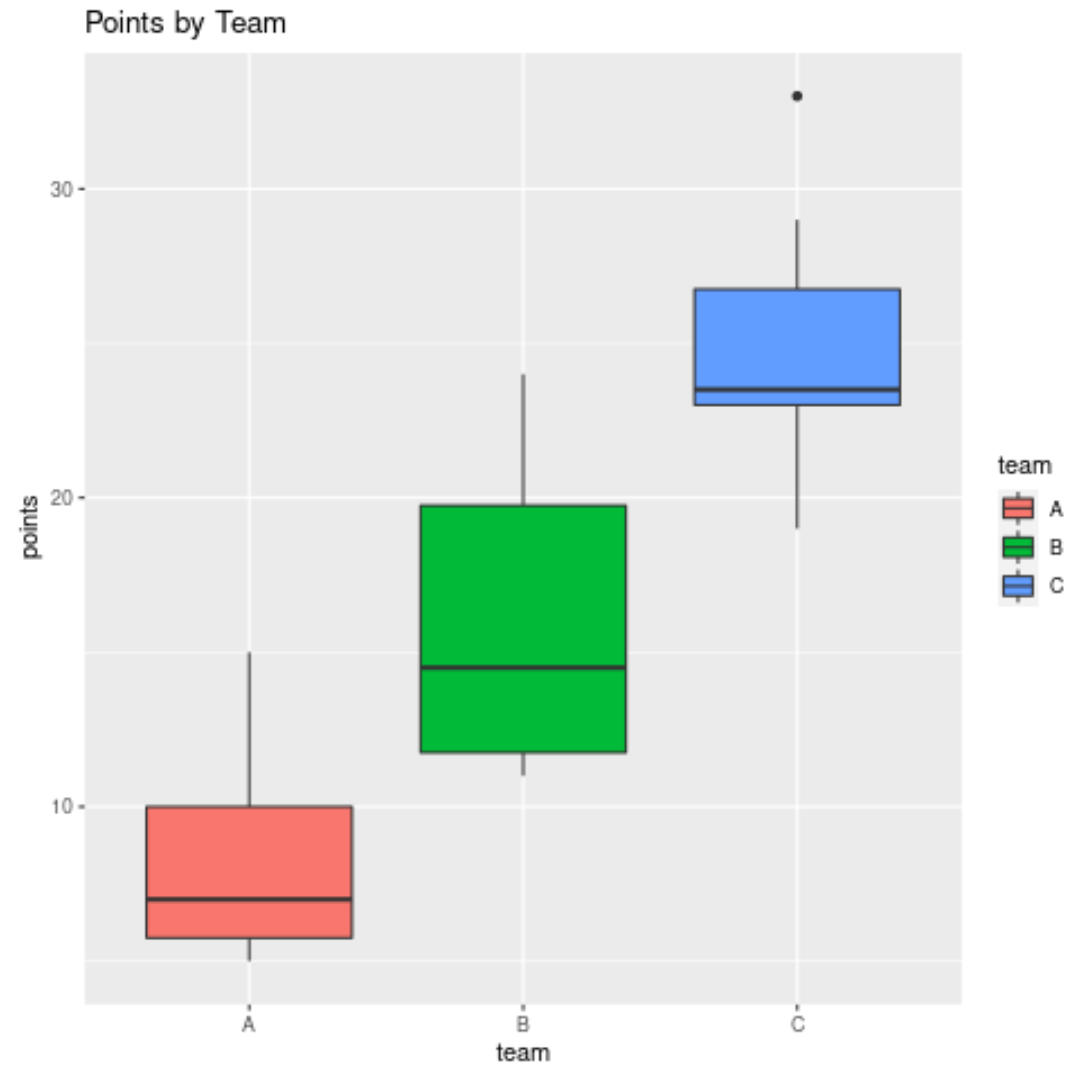

#create vertical side-by-side boxplots
ggplot(df, aes(x=team, y=points, fill=team)) +
  geom_boxplot() +
  ggtitle('Points by Team')

Implementing Advanced Customization: Horizontal Plots in ggplot2

Adjusting the orientation of a visualization generated by ggplot2 requires a conceptual shift compared to the simple parameter change used in Base R. Instead of manipulating the geometric object itself, we modify the entire coordinate system after the data has been statistically processed and mapped.

The specialized function coord_flip() is used for this exact purpose. When integrated into the plot chain, this layer effectively transposes the X and Y aesthetics, rotating the complete visualization by 90 degrees. This method is exceptionally powerful because the rotation is applied late in the rendering process, ensuring that all statistical calculations (like defining the box dimensions and median placement) remain accurate, regardless of the visual presentation.

By adding coord_flip(), we achieve the desired horizontal layout. This format is often superior when comparing the distribution’s spread (the length of the box) and the location parameters (the median) across a large number of distinct categories, facilitating a clearer and less cluttered side-by-side analysis.

library(ggplot2)

#create horizontal side-by-side boxplots
ggplot(df, aes(x=team, y=points, fill=team)) +
  geom_boxplot() +
  coord_flip() +
  ggtitle('Points by Team')

Summary of Visualization Techniques and Best Practices

The ability to generate clear, comparative side-by-side boxplots is a cornerstone skill for any analyst working in R, enabling rapid insights into group distributions. This guide successfully demonstrated two robust, yet distinct, methodologies for producing these visualizations:

• Base R Graphics: This method leverages the single, efficient boxplot() function and its formula syntax (y ~ x). It is ideal for rapid exploratory data analysis and provides straightforward orientation control via the horizontal=TRUE argument. It requires no external package installation and is excellent for quick checks.
• ggplot2 Package: This method requires a layered, explicit definition of the plot components (data, aesthetics, geom). While more verbose, it offers unparalleled flexibility for customization and produces superior, high-resolution graphics suitable for professional publication. Orientation is managed through the coord_flip() layer, adhering to the principles of the Grammar of Graphics.

Ultimately, proficiency in both methods allows analysts to choose the right tool based on the specific analytical context—whether speed is paramount (Base R) or aesthetic quality and complexity are required (ggplot2). Visualizing the median, the interquartile range (IQR), and potential outliers across multiple groups simultaneously drastically streamlines the data analysis workflow and supports the quick formulation of informed, data-driven conclusions.

Further Resources for Mastering R Visualization

To significantly advance your skills in data visualization within the R programming environment, it is highly recommended to explore the detailed documentation and extensive tutorials available for both visualization systems. Mastery involves not just knowing how to call the plotting functions, but also understanding the nuances of Base R plotting parameters and fully grasping the comprehensive ecosystem of ggplot2.

Analysts should also focus intensely on the preparatory steps, particularly the management and transformation of data structures. Ensuring data is in the correct “tidy” or “long” format—where each observation unit is a row—is frequently the most critical, and often the most challenging, prerequisite for generating accurate and complex statistical visualizations.
