Learning to Create Bubble Charts in Google Sheets: A Step-by-Step Guide

Harnessing the Capabilities of the Bubble Chart

A bubble chart stands as a highly sophisticated visualization instrument, enabling analysts and data scientists to simultaneously map the interplay between three distinct quantitative variables. This technique significantly expands upon the limitations of a standard two-dimensional plot, introducing a crucial third dimension that provides depth and insight into complex data relationships.

In this specialized graphical format, the first two variables are assigned to establish the precise location of the data point, functioning identically to a conventional scatterplot—defining the X-axis coordinate (horizontal position) and the Y-axis coordinate (vertical position). The critical differentiation lies in the third variable, which is compellingly represented by the physical area or size of the “bubble.” This visualization is particularly invaluable when assessing metrics related to market share, intricate demographic shifts, or performance statistics where volume, magnitude, or weighted influence is an essential factor alongside positional data.

This comprehensive, expert-level tutorial is designed to guide you through the precise methodology required to utilize Google Sheets for the construction of a robust and insightful bubble chart from initial raw data. We will systematically traverse every required phase, covering diligent data preparation, accurate chart insertion, and essential aesthetic and analytical modifications. The final result will be a professional visualization comparable to the compelling example provided below.

Prerequisites: Structuring Your Data for Google Sheets

The successful generation of a bubble chart hinges entirely on proper data organization. Before attempting to initiate the chart creation process, it is paramount to grasp the stringent data structure mandated by the visualization tool. Unlike simpler visualizations such as basic bar charts or line graphs, which typically require only two variables, the bubble chart demands the presence of five specific columns of data to function correctly within the Google Sheets environment. Failure to structure your dataset according to this exact five-column schema will inevitably lead to a chart that either fails to render or inaccurately displays or categorizes the bubbles.

The required structure is rigid and must be adhered to precisely. The initial row must contain descriptive and accurate headers, and all subsequent rows must hold the corresponding quantitative or categorical values. It is critical to recognize that the sequential order of these columns dictates their functional role within the visualization. Any deviation from this prescribed order will result in a fundamental misinterpretation, such as assigning the size variable to control position, or vice versa.

The five mandatory data variables correspond directly and unequivocally to the visual components of the final chart. These variables manage the categorical labeling, the positioning on the horizontal (X) and vertical (Y) planes, the categorization responsible for color differentiation, and, finally, the quantitative measure that dictates the magnitude or size of the resulting bubbles. Analysts must ensure that all source data is meticulously clean, accurate, and properly formatted before advancing to the subsequent steps of chart generation.

Step 1: Preparing and Inputting the Dataset

To provide a clear, practical demonstration of this process, we will employ a sample dataset that compiles various performance statistics for 10 professional basketball teams. This specific data structure includes metrics that are ideally suited for visualization where bubble size serves as a powerful representation of a key performance indicator (KPI), such as total wins or points scored.

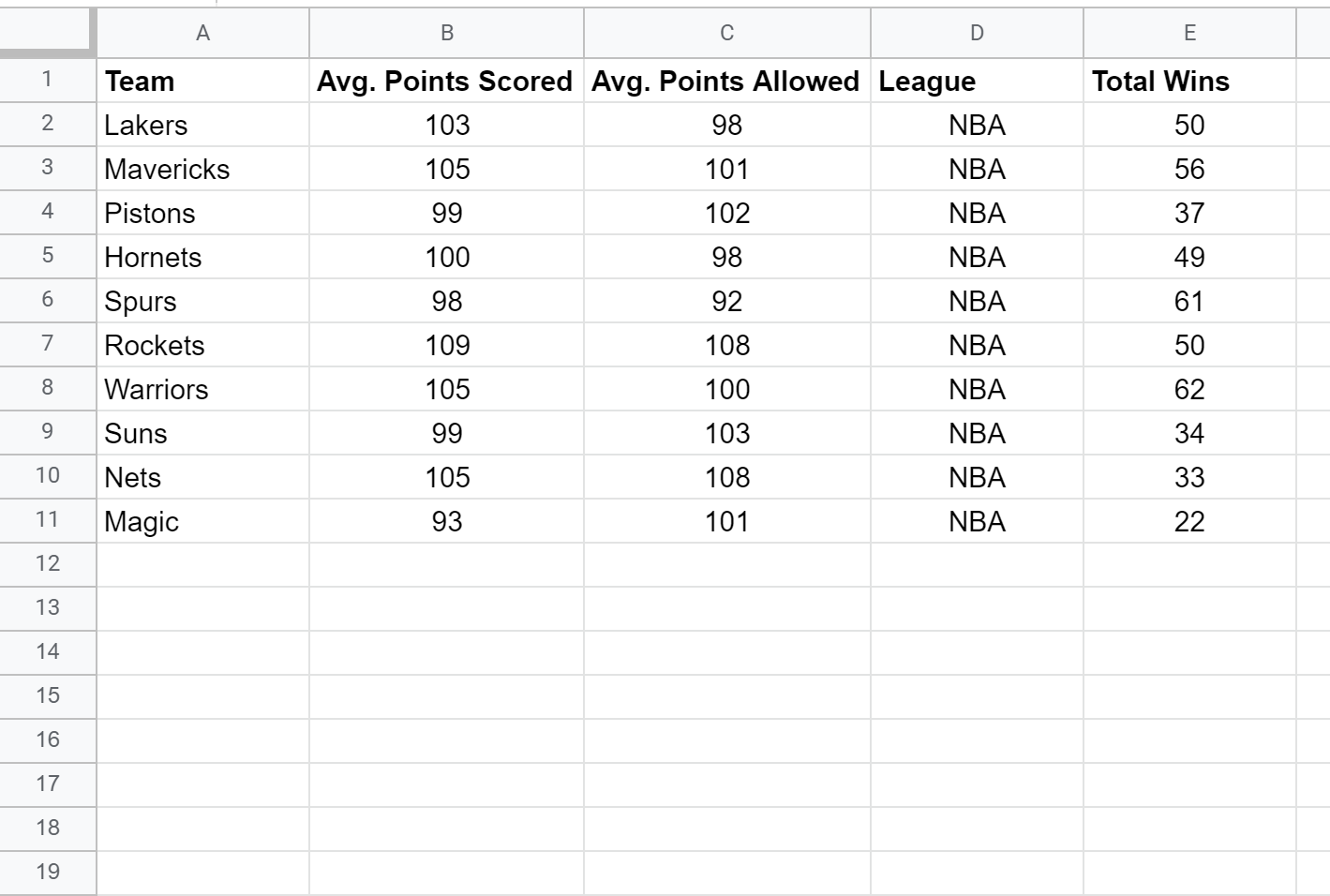

Input the following data structure accurately into your designated Google Sheets spreadsheet. It is vital to ensure that the column headers are clear and unambiguous, as the charting tool relies on these identifiers to correctly map the variables. Accuracy and attention to detail during this initial data entry stage are absolutely essential for producing a meaningful and valid final output.

As reinforced previously, the system relies on a specific organizational protocol to map data roles. For the bubble chart to render with analytical integrity, the columns must align exactly with these five functional requirements:

• Column A: Labels (Serves as the categorical identifier for each bubble, e.g., team names).
• Column B: X-axis value (The independent quantitative variable determining the horizontal position).
• Column C: Y-axis value (The dependent quantitative variable determining the vertical position).
• Column D: Color (A categorical variable used to group data points and assign distinct visual colors to the bubbles).
• Column E: Size (The primary quantitative variable that dictates the overall area or magnitude of the bubble).

Step 2: Initiating the Chart Creation Process

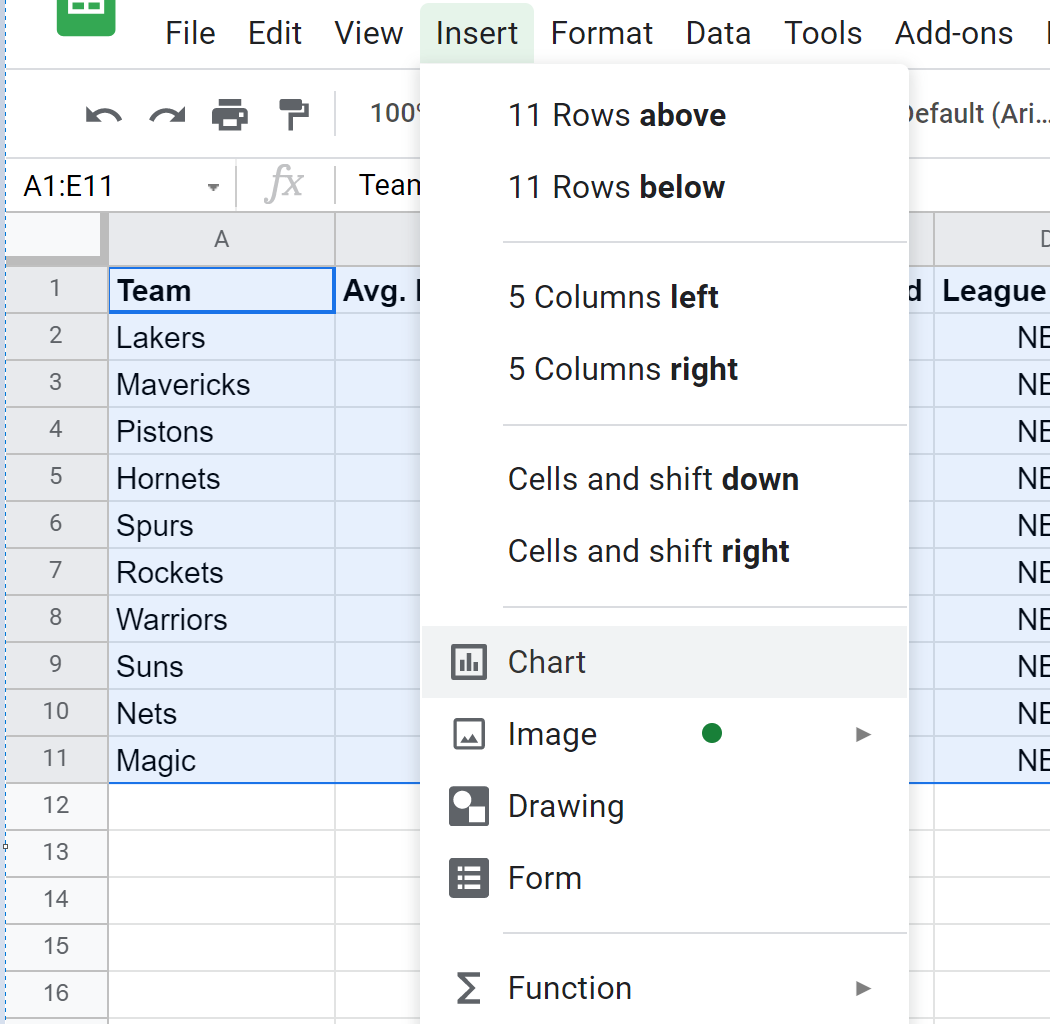

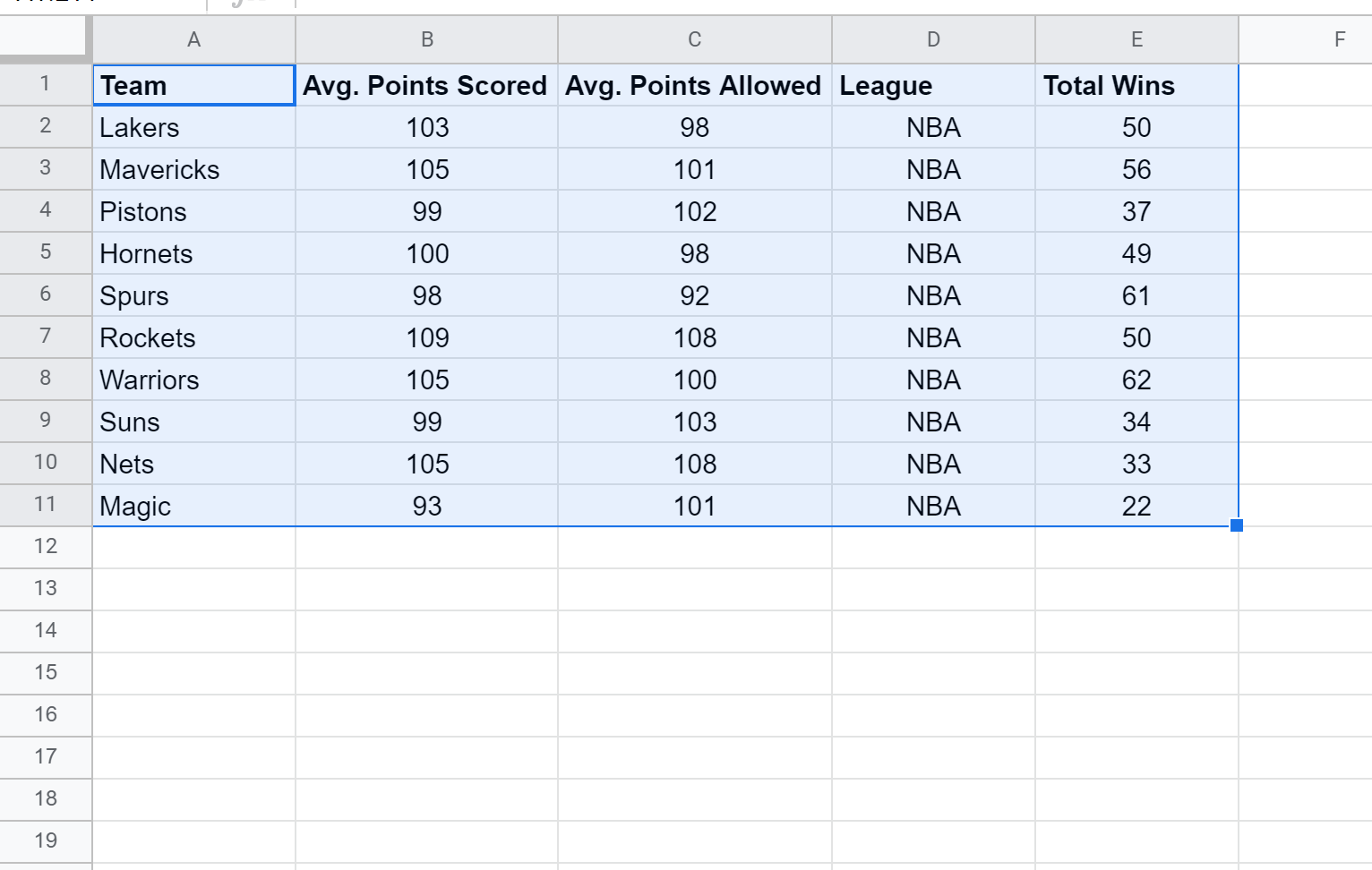

Once the source data has been meticulously entered and organized across the required five columns (A through E), the subsequent step involves activating the charting interface. To begin, carefully select and highlight the entire range of data, which must explicitly include the column headers. The inclusion of headers is non-negotiable, as it ensures that Google Sheets correctly identifies and assigns the proper labels and variable names during the chart generation phase, preventing confusion in the chart editor.

With the entire relevant data range actively selected, direct your attention to the main menu interface located at the top of the spreadsheet window. Locate and click on the Insert tab, typically found on the far left. This action will generate a dropdown menu populated with various options, from which you must select Chart. Executing this command triggers the automatic activation of the Chart Editor panel, which conventionally appears docked on the right side of your screen, presenting the initial chart configuration.

Step 3: Converting to a Dynamic Bubble Chart

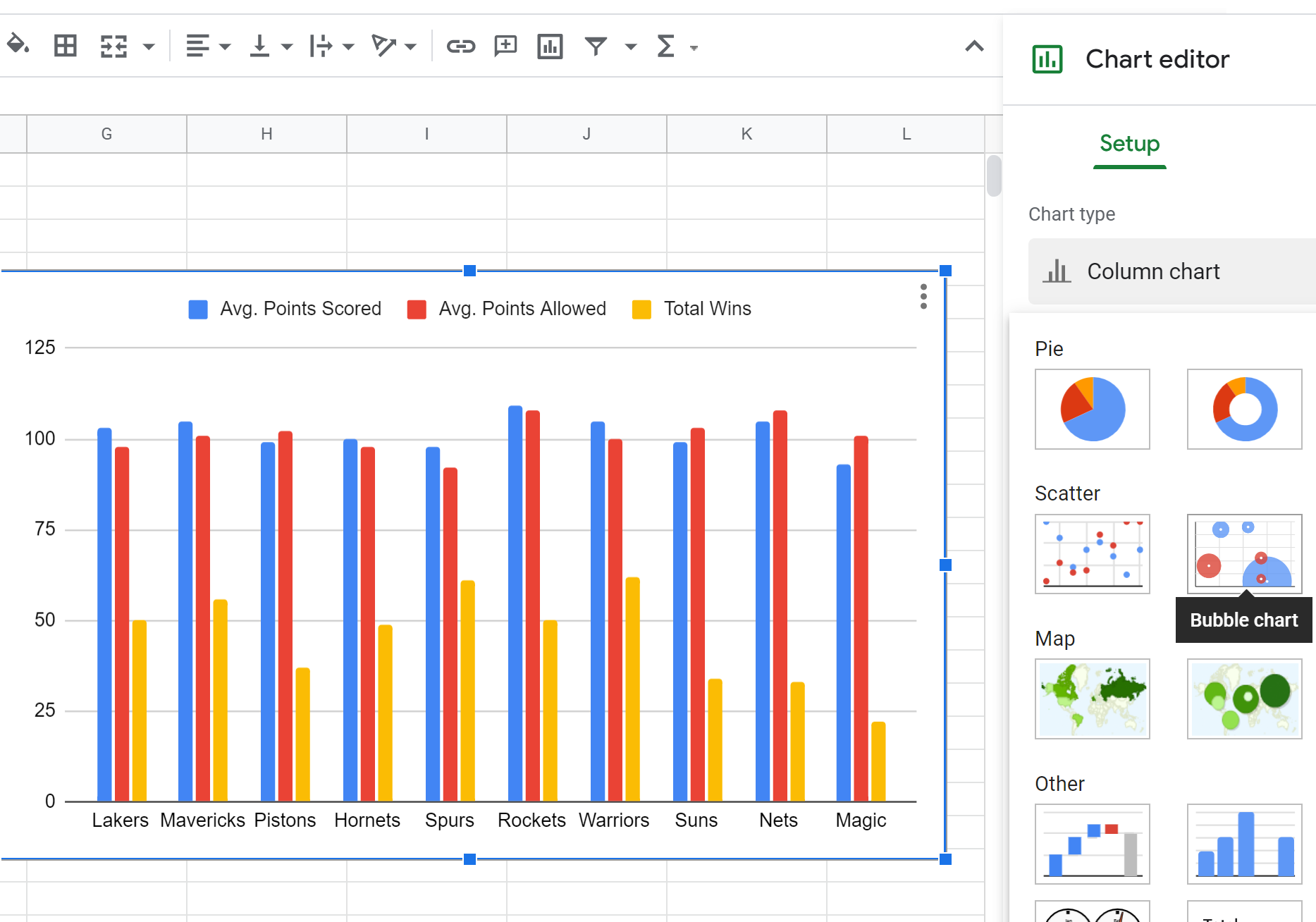

In many instances, Google Sheets attempts to employ a predictive algorithm to determine the most suitable visualization based on the input data structure, often resulting in the initial display of a rudimentary column chart or a simple histogram. Given that our analytical objective requires a dynamic bubble chart, we must manually and explicitly override this default setting within the configuration panel.

Within the active Chart Editor panel (which should be visible on the right), navigate directly to the section prominently labeled Chart type. Click on the currently displayed chart type and scroll through the comprehensive catalog of available visualizations. The specialized bubble chart option is typically categorized under the “Scatter” or “Other” visualization groupings. Select Bubble chart to immediately apply the necessary transformation to your data visualization.

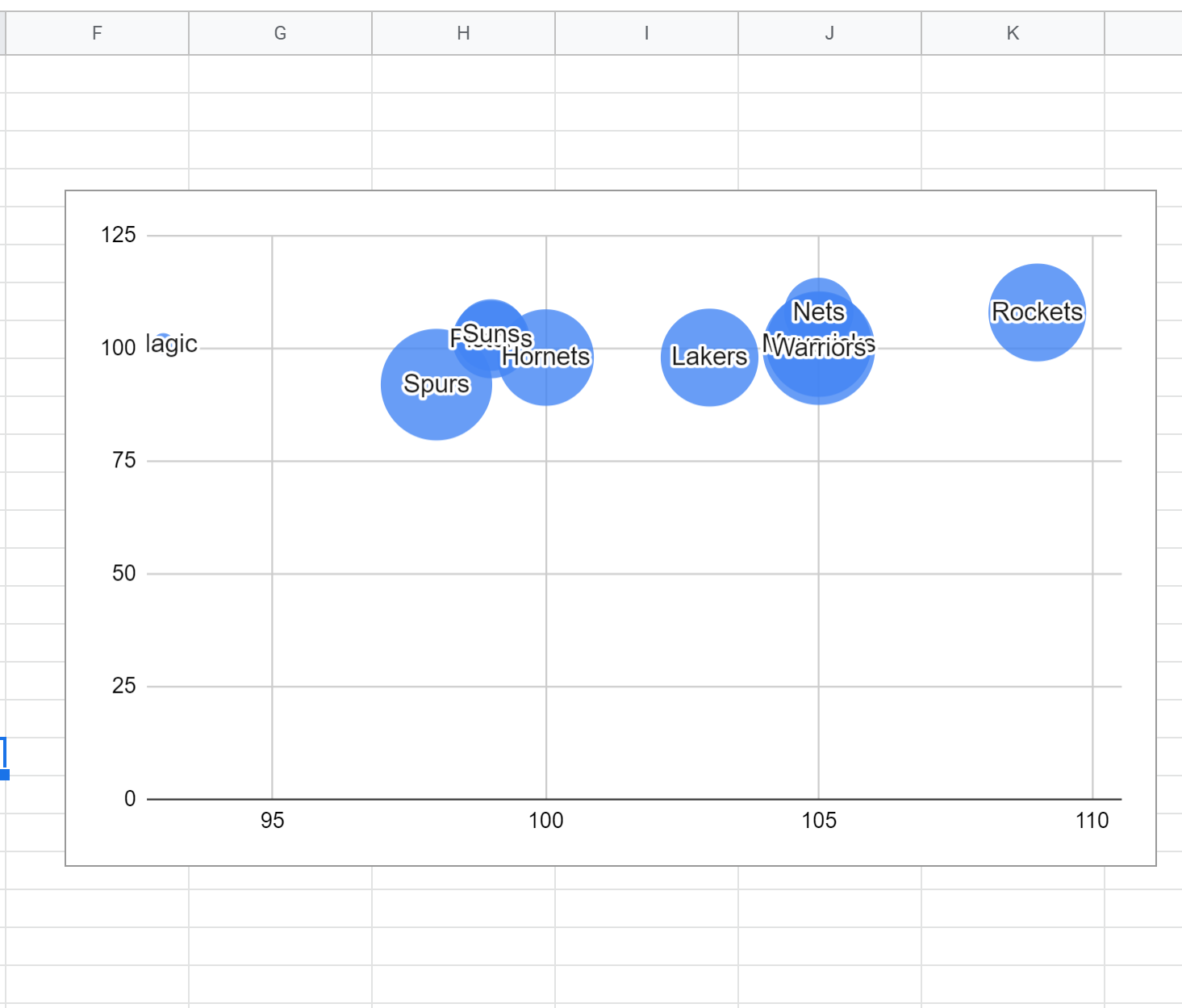

Upon correctly selecting the desired chart type, Google Sheets will intelligently interpret the roles of the five data columns based on the sequential order in which they were highlighted, rendering an initial version of the scatterplot featuring bubbles of varying sizes. While this initial rendering provides a functional foundation, it almost always requires substantial modification and aesthetic refinement to significantly improve its overall readability, analytical power, and visual impact for presentation purposes.

Step 4: Fine-Tuning Axis Scales for Clarity

The automatically generated chart often relies on generalized default minimum and maximum values for both axes. While functional, these defaults frequently obscure the true distribution of the data or minimize subtle but analytically significant differences. Manual modification of the axis scales is therefore a critical step, enabling you to effectively zoom in on relevant data clusters and drastically enhance the overall clarity and interpretability of the visualization.

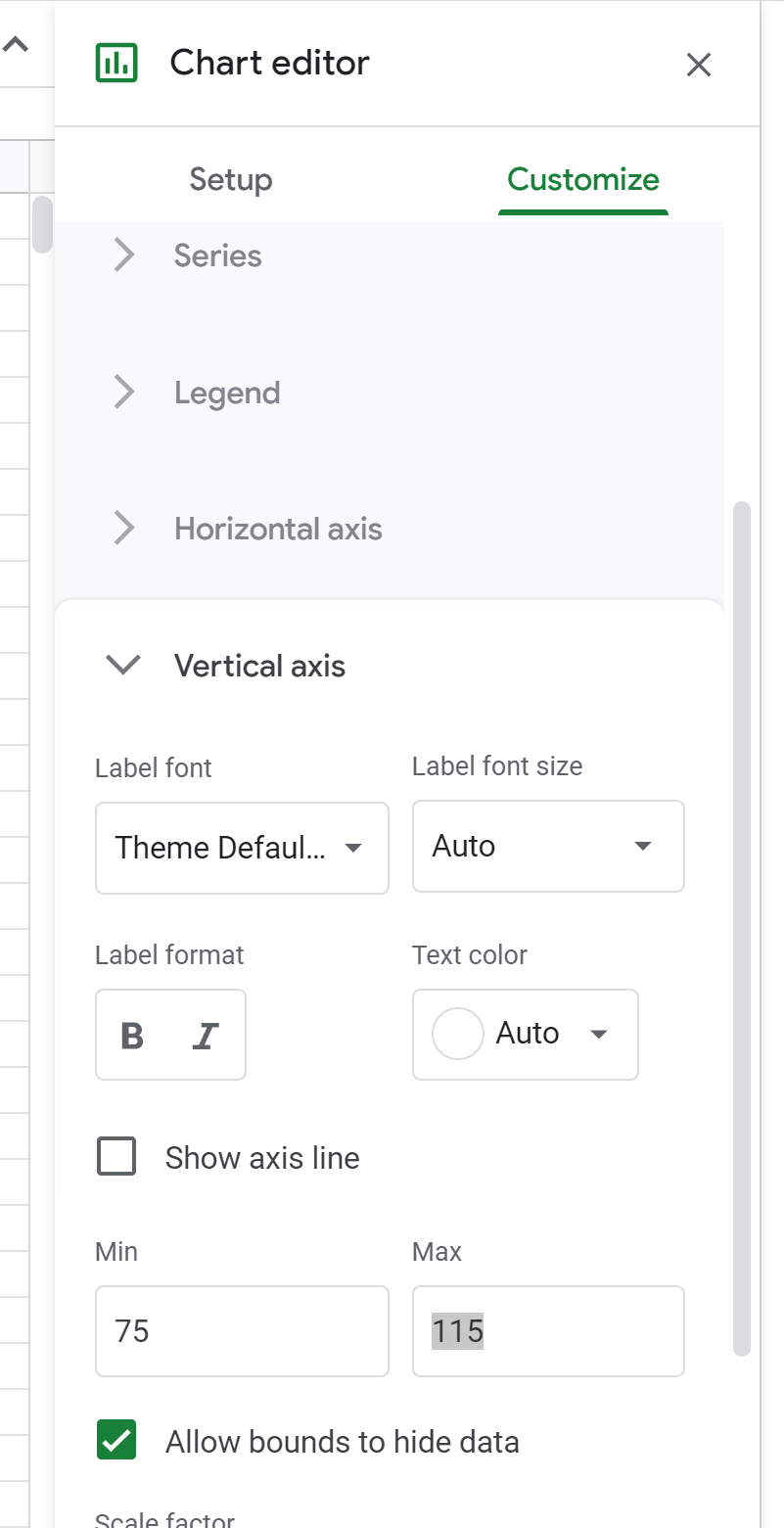

To commence the modification phase, execute a double-click directly upon the vertical axis (Y-axis) of the chart. The Chart Editor panel will automatically redirect and switch its focus to display the customization options specific to that axis. Under the “Axis” settings, manually override the default values by adjusting the Min (minimum) and Max (maximum) parameters. For the purposes of our demonstration, setting the minimum to 75 and the maximum to 115 will effectively narrow the focus and highlight the relevant range of our performance data.

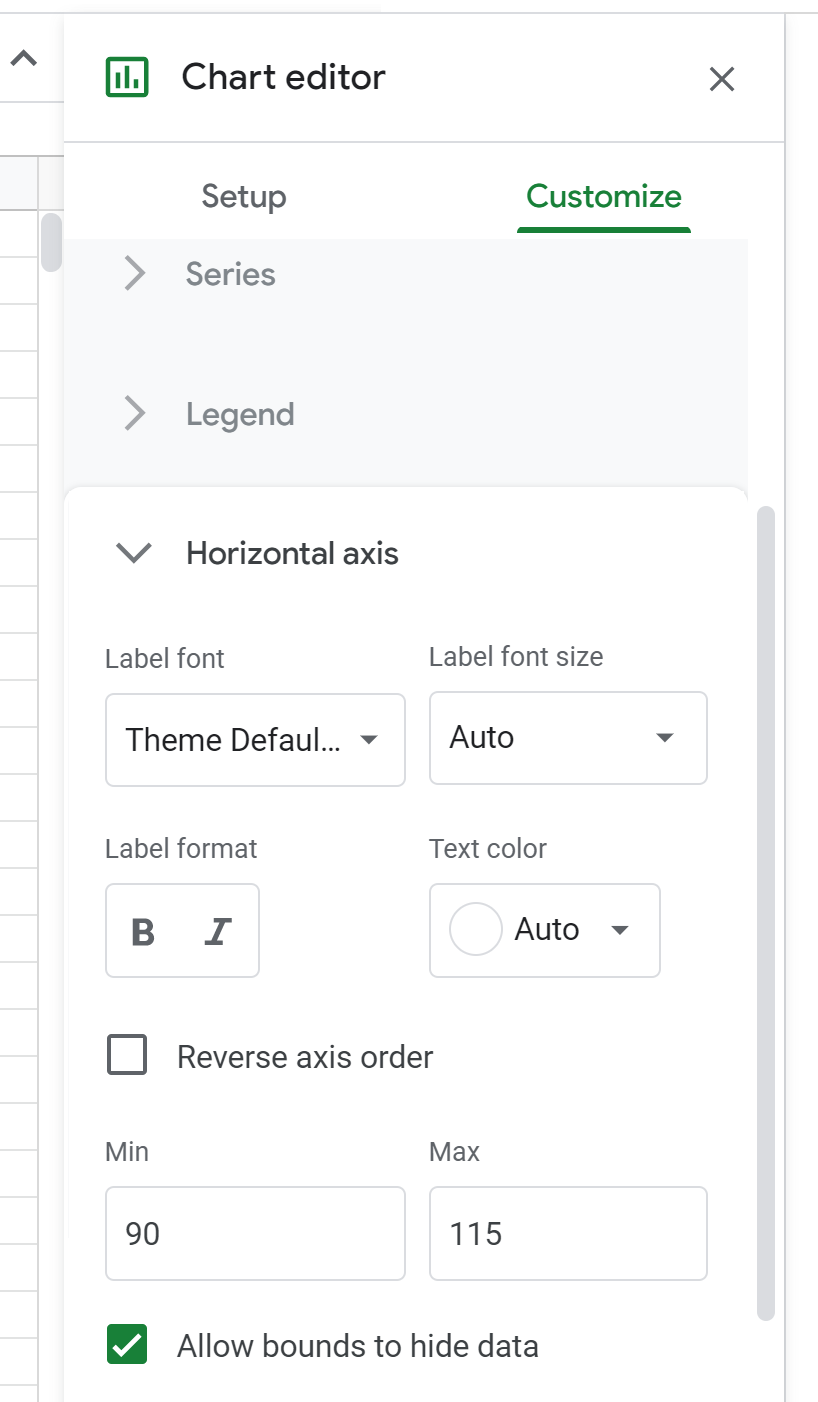

Next, repeat this meticulous process for the horizontal axis (X-axis). Double-click the horizontal axis to prompt the appearance of its dedicated customization panel. In this panel, set the minimum value to 90 and the maximum value to 115. These refined, customized boundaries are essential for ensuring that the data points are adequately distributed and spread widely across the entire plotting area, thereby maximizing the visual separation and distinction between the individual bubbles.

By precisely adjusting these scales, we successfully transition the visualization from a generic, default view to a highly focused and analytically compelling representation. This focused view expertly emphasizes the direct relationships between the X and Y coordinates specifically relevant to our basketball performance dataset. This fundamental technique is indispensable for generating professional, high-impact analytical charts.

Step 5: Enhancing Visual Aesthetics and Labeling

The creation of a truly expert-level chart demands more than just correctly positioned data; strategic aesthetic refinements are necessary as they can dramatically influence audience interpretation and engagement. In this final step, we will refine the visual appearance of the bubbles themselves and ensure that all integral chart components are unambiguously and clearly labeled.

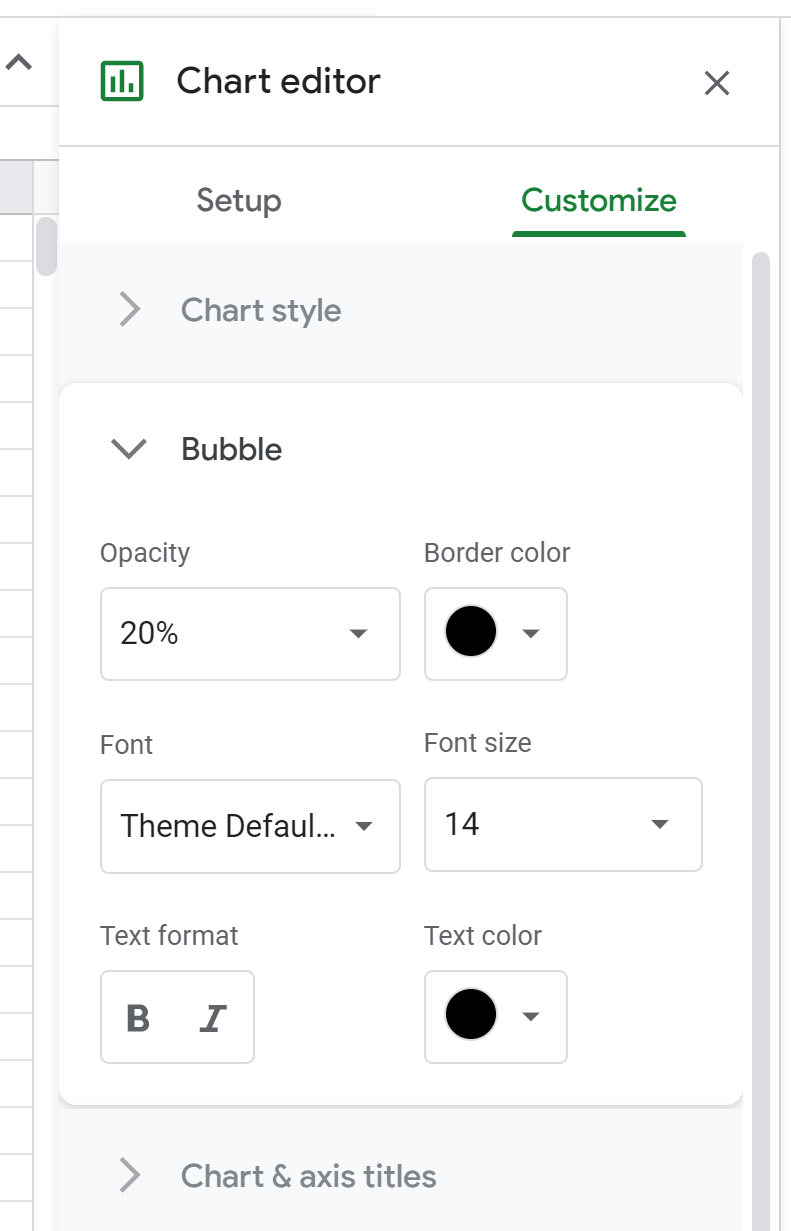

Double-click the main chart area once more to ensure the primary Chart Editor remains visible. Navigate to the Customize tab and select the dedicated Bubble option. To significantly improve visual differentiation, particularly in scenarios where bubbles may overlap, adjust the Opacity setting down to 20%. Concurrently, set the Border Color to black. This carefully chosen combination effectively softens the bubble’s fill color while simultaneously retaining crisp, clear boundaries for every single data point, aiding in precise identification.

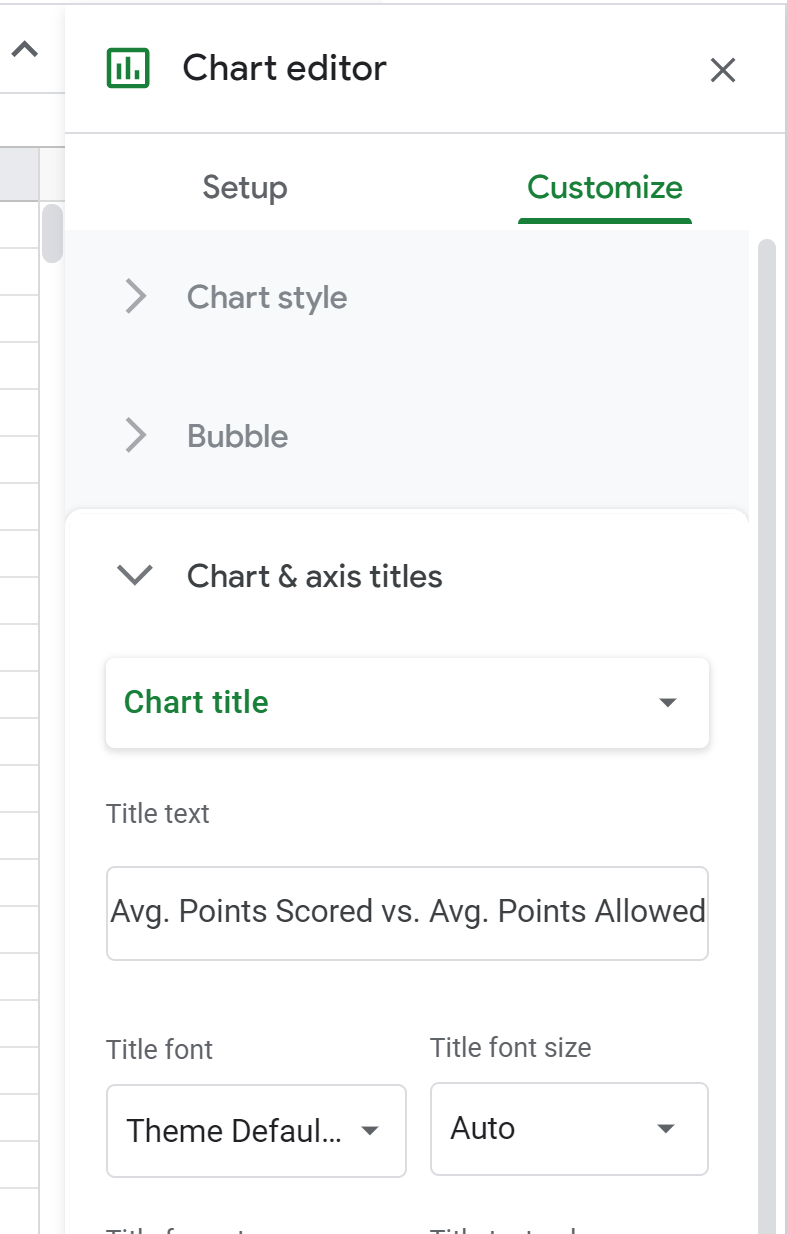

Finally, the inclusion of clear, descriptive labeling is absolutely non-negotiable for any professional visualization intended for analysis or presentation. Return to the Chart editor’s Customize section and locate the Chart & axis titles tab. Here, you must input meaningful and informative text for the main chart title, any necessary subtitle, the horizontal axis title, and the vertical axis title. Accurate and contextual titles provide immediate understanding and ensure that the audience instantly grasps the specific variables and relationships being compared and analyzed.

By diligently following all these prescribed steps, you will have successfully produced a highly customized and deeply informative bubble chart. This visualization effectively models three distinct metrics simultaneously, utilizing the dimensions of position, color, and size. The resulting final product delivers a clean, professional, and analytically powerful summary of the underlying data structure.

Here is the finished product, optimized and ready for sophisticated analysis and executive presentation:
