How to Sort Data by Multiple Columns in Microsoft Excel

In the arena of sophisticated data analysis, the simple act of arranging information by just one column is often inadequate. Data specialists frequently encounter requirements for establishing a precise, hierarchical structure within their spreadsheets. This demands the arrangement of records based on multiple, sequential criteria simultaneously. Fortunately, Microsoft Excel provides an exceptionally powerful mechanism for this need through the dedicated Custom Sort feature, which allows users to define primary, secondary, and even tertiary sorting levels with intuitive precision.

Mastering this multi-level approach is fundamental to transforming raw data into meaningful, organized information. A single sorting operation can resolve complex tie-breaking scenarios, ensuring that even when primary values are identical, the records are ordered logically based on subsequent criteria.

This comprehensive guide provides a detailed walkthrough of the exact steps required to implement a custom, multi-level sort. We will utilize a practical, step-by-step example using real-world data management contexts to demonstrate precisely how this indispensable feature operates and how it can drastically improve the efficiency and accuracy of your data preparation workflow.

The Strategic Importance of Hierarchical Data Sorting

When managing expansive data sets, the ability to prioritize and arrange records based on a sequence of distinct attributes is not merely convenient—it is paramount for effective analysis. Consider a scenario involving sales data: you might initially require organization by Region (designated as the Primary Key), but within each region, you need further refinement, perhaps sorting by Sales Volume or Date (the Secondary Key).

Attempting to achieve this intricate, nested structure without a built-in multi-level sorting tool would be highly inefficient. It would necessitate either complex nested formulas, which are difficult to maintain and debug, or tedious manual manipulation, which is notoriously error-prone. The structured approach offered by Excel’s sorting functionality eliminates these risks, guaranteeing consistency across the entire data range.

The Custom Sort dialogue box acts as a powerful configuration panel, explicitly mapping out this sorting hierarchy. It dictates the strict order in which Excel evaluates the criteria: the data is first structured according to the primary key. Only in instances where two or more rows share an identical value in that primary key column does Excel proceed to evaluate the subsequent secondary key, resolving the tie. This hierarchical dependency ensures that the overall data integrity is preserved and significantly enhances the reliability of subsequent reporting and analysis processes.

Step 1: Structuring and Preparing the Data Set

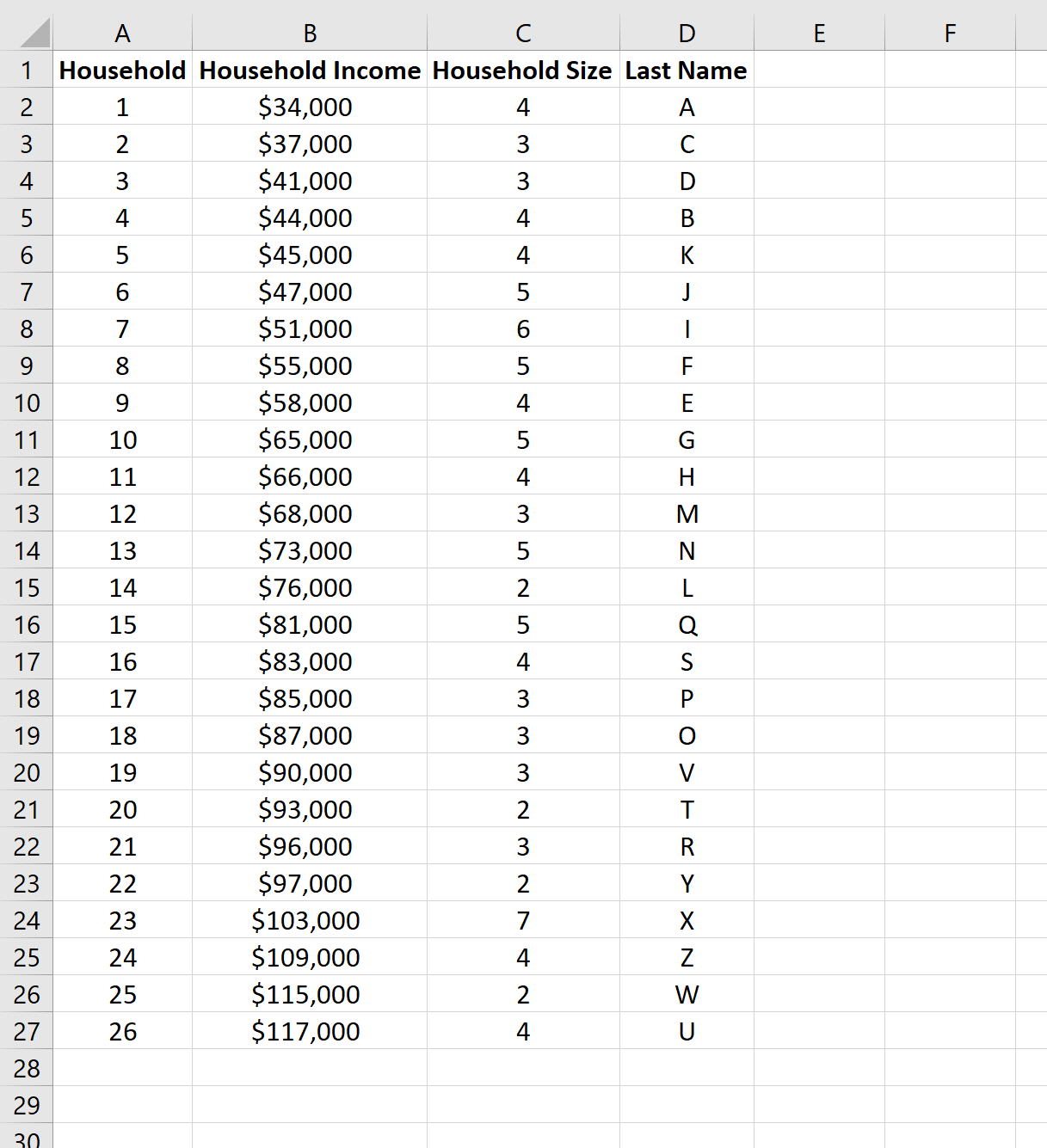

Before initiating any sorting operation, the foundational step is ensuring that your data is structured correctly and is “clean.” This prerequisite involves several key elements: validating that the first row contains clear, descriptive headers for each column, and confirming the absence of merged cells or hidden rows that could potentially interfere with Excel’s ability to automatically and accurately select the data range. For the purpose of this demonstration, we will utilize a small, fictional data set detailing information about various households:

Our sample data includes various demographic fields, but our immediate focus for the multi-level sort will be on two specific columns: Household Size (a quantitative, numerical value) and Last Name (a qualitative, text value). This pairing is ideal for demonstrating how Excel seamlessly manages both numerical and alphabetical sorting criteria within a single, unified operation, prioritizing one field over the other.

The objective of our exercise is to establish a clear sorting priority: we aim to first group the largest households together (the Primary Sort criterion). Subsequently, for any groups of households that happen to share the exact same size, we want to order them alphabetically by their last name (the Secondary Sort criterion). This dual-level requirement demands the use of the advanced Custom Sort feature.

Defining the Sorting Hierarchy (Primary and Secondary Keys)

To achieve the specified hierarchical arrangement, we must formally define both levels of our sorting criteria. These explicit definitions will entirely determine the final, organized arrangement of the rows within the spreadsheet.

• The Primary Sort Key is defined as Household Size. We will arrange this field in descending order (from Largest to Smallest). This guarantees that rows representing the highest household size values are positioned at the absolute top of the table, establishing the major grouping.
• The Secondary Sort Key is Last Name. This will be arranged in ascending order (from A to Z). Crucially, this secondary level only becomes active when and where the primary key values are identical, serving as the essential tie-breaking rule based on standard alphabetical order.

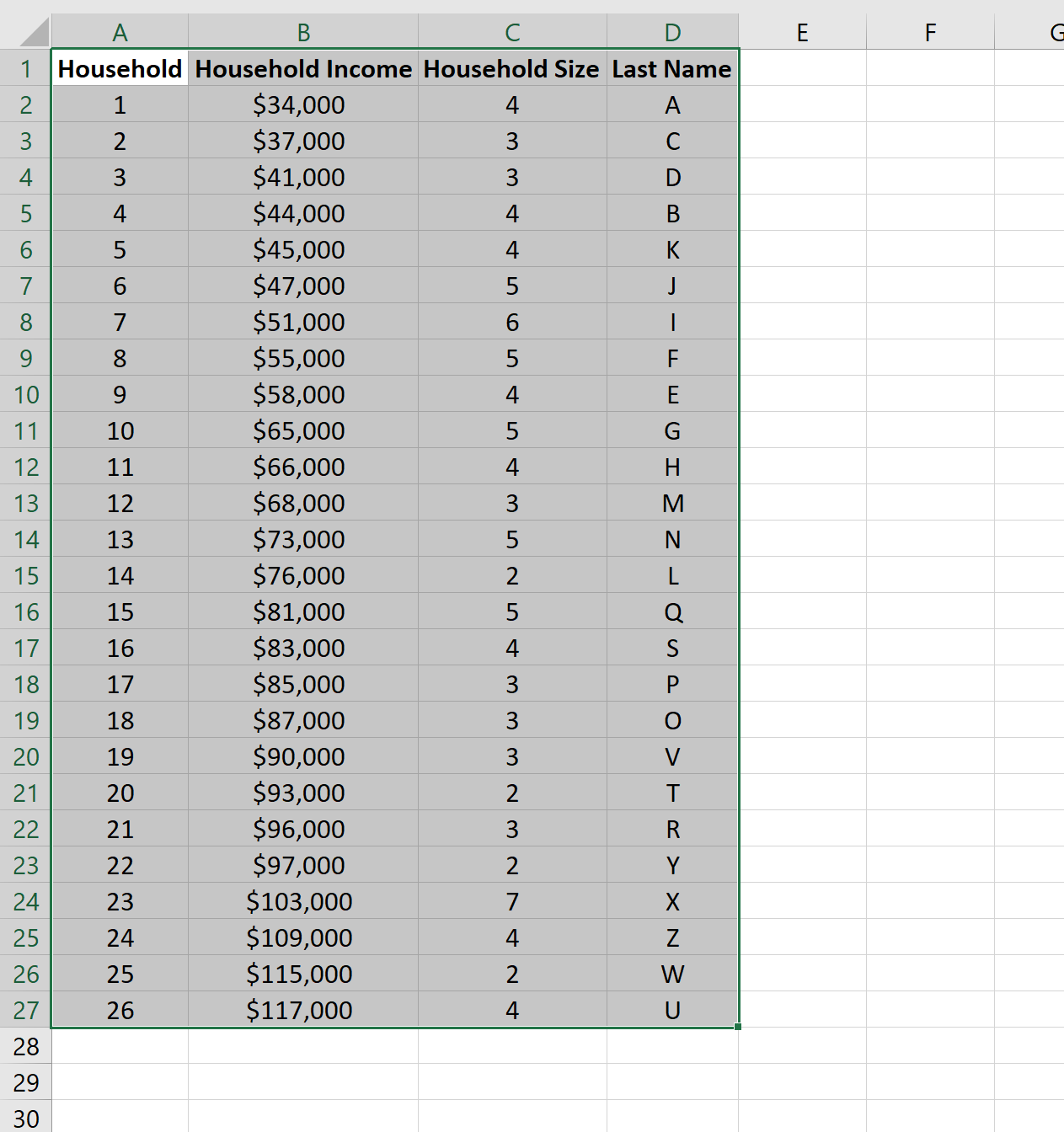

The initial mechanical step in executing this sort is the precise selection of the entire range of data you intend to reorganize, which must include the header row. Proper range selection is absolutely critical for data integrity; failing to select the entire range, or accidentally excluding just one column, will lead to data misalignment. This results in values in one column being separated from their corresponding records in other columns, rendering the entire data set corrupted.

Step 2: Accessing the Custom Sort Dialogue Box

Once the appropriate data range has been highlighted, navigating to the Custom Sort function is a straightforward process within the primary navigation interface of Microsoft Excel. This advanced tool is logically placed alongside the basic sorting options.

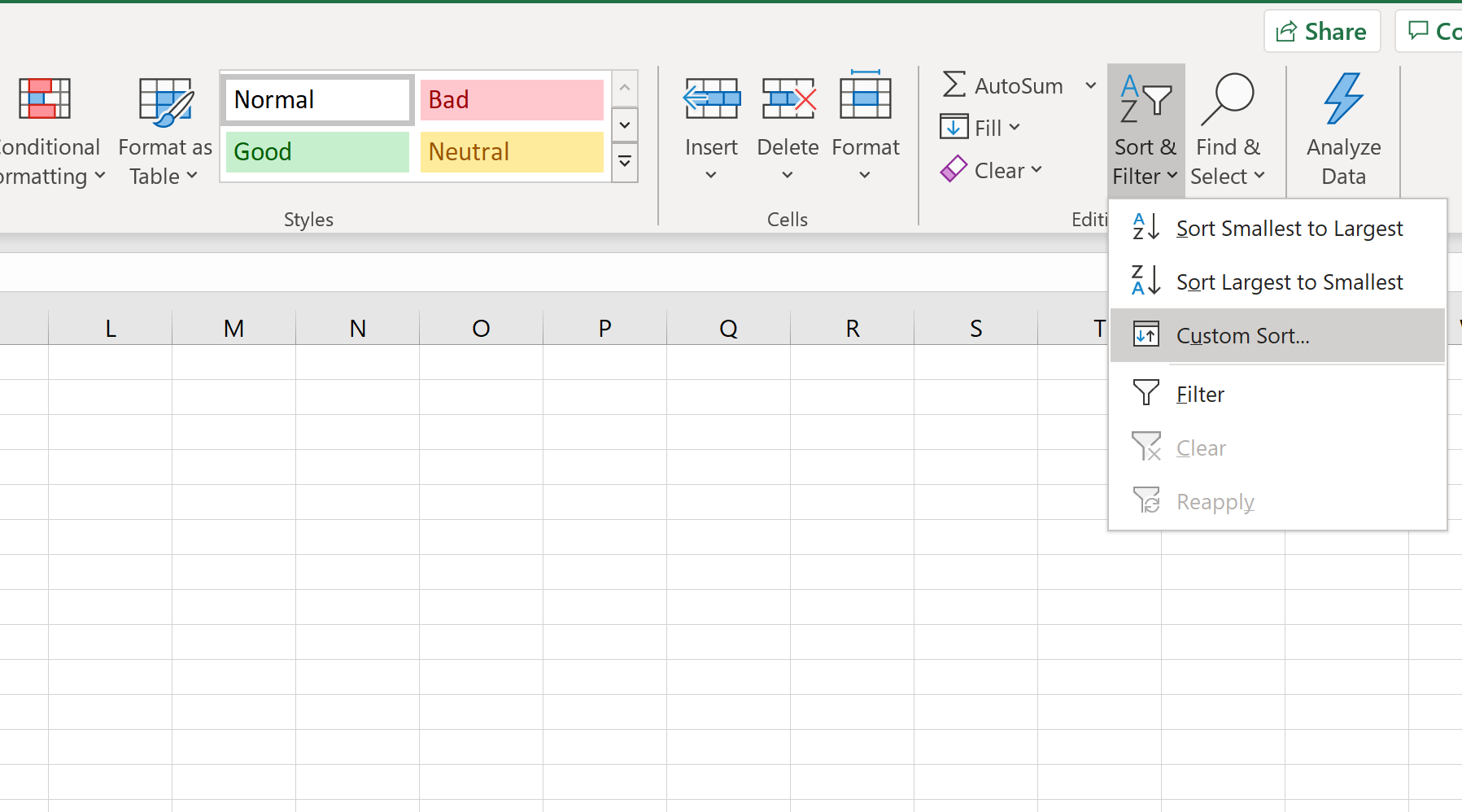

Begin by locating the Home tab on the Excel Ribbon, which houses the fundamental editing and formatting tools. Within the Editing group, typically situated on the far right end of the Ribbon interface, click the Sort & Filter option. This action reveals a dropdown menu that offers quick, single-column sorting options (such as A to Z, or Smallest to Largest), but also contains the link to the powerful, advanced functionality we require.

From this dropdown menu, select the option labeled Custom Sort. Executing this command immediately launches the dedicated dialogue box, a centralized control panel where you will meticulously configure all levels and rules of your multi-criteria sorting operation.

A key advantage of the Custom Sort dialogue box is its intelligence: it automatically recognizes and utilizes your column headers, provided your initial selection correctly included the header row. This crucial feature enables you to select columns by their descriptive name (e.g., “Household Size” or “Last Name”) rather than relying on potentially confusing column letters (e.g., “Column B” or “Column C”). Ensure that the option “My data has headers” remains checked within the dialogue box.

Configuring and Implementing the Multi-Level Rules

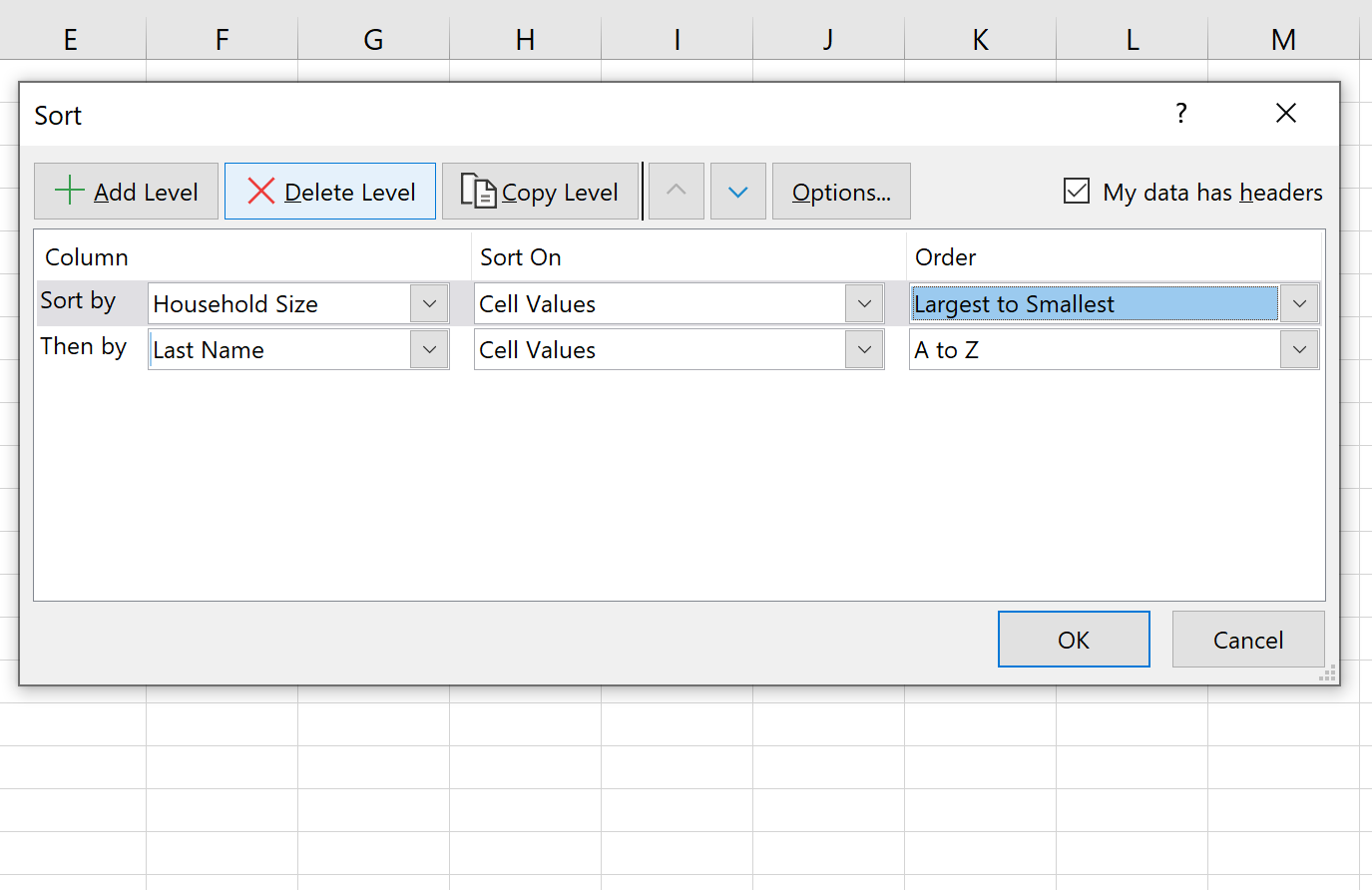

With the Custom Sort window active, the first task is to formalize the Primary Sort Key. Under the ‘Column’ dropdown menu, select Household Size. Next, in the corresponding ‘Order’ dropdown, choose the option Largest to Smallest. This action locks in the definition of the main sorting criterion, ensuring the largest households are always grouped first.

To introduce the secondary level—the tie-breaker—click the prominent Add Level button, which is usually located in the top left corner of the dialogue box. A new row will instantly appear, designated by the label ‘Then by.’ For this new criterion, select Last Name under the ‘Column’ menu, and ensure the ‘Order’ is set to A to Z (representing Ascending alphabetical order).

The flexibility of this tool means you are not limited to just two levels; you can continue to add subsequent levels (tertiary, quaternary, etc.) if your data demands increasingly granular tie-breaking rules. The sorting hierarchy is strictly enforced from the top defined level downward. Once the visual configuration within the dialogue box accurately reflects our specified criteria, you should perform a final verification of the settings before committing to the operation.

After reviewing all defined levels and confirming their order, click OK. Excel will instantly apply the defined sorting algorithm to the selected range, reorganizing all rows according to the strict multi-level hierarchy you have established.

Analyzing the Results of the Multi-Criteria Sort

Upon successful execution of the command, the data set is immediately restructured. The resulting arrangement serves as a clear, tangible demonstration of the power and utility inherent in a two-level sort operation.

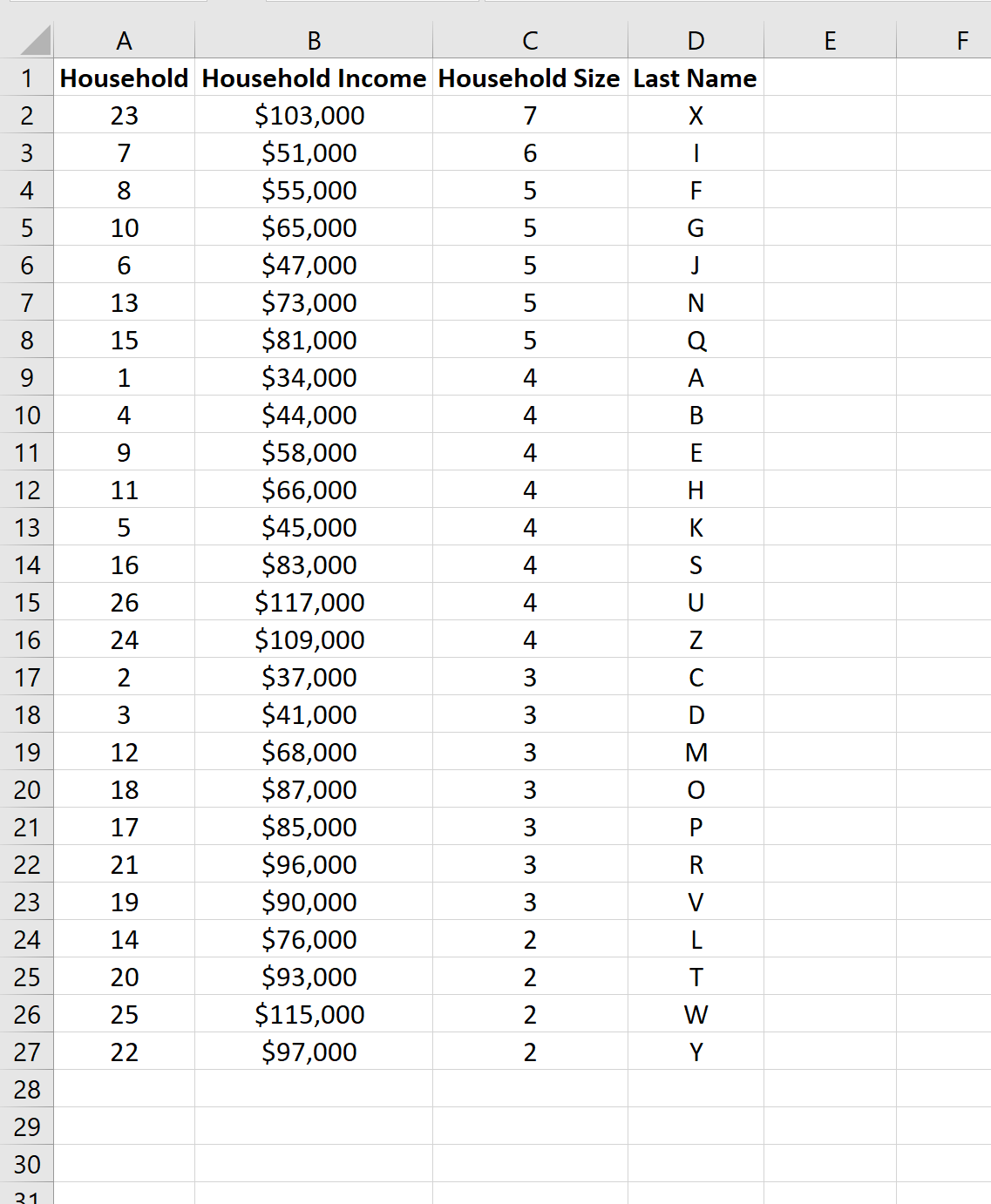

Observe the reorganized table: the entire data set is first and foremost ordered by Household Size, with the largest size (7) correctly positioned at the very top, followed sequentially by sizes 6, 5, and 4. This confirms the flawless application of the primary sort key (Largest to Smallest).

The true necessity and effectiveness of the secondary key become critically apparent when you focus on groups where the primary key values are identical—the tie cases. We established that for any households sharing the same size, the secondary sort (Last Name, A to Z) would determine their precise internal order.

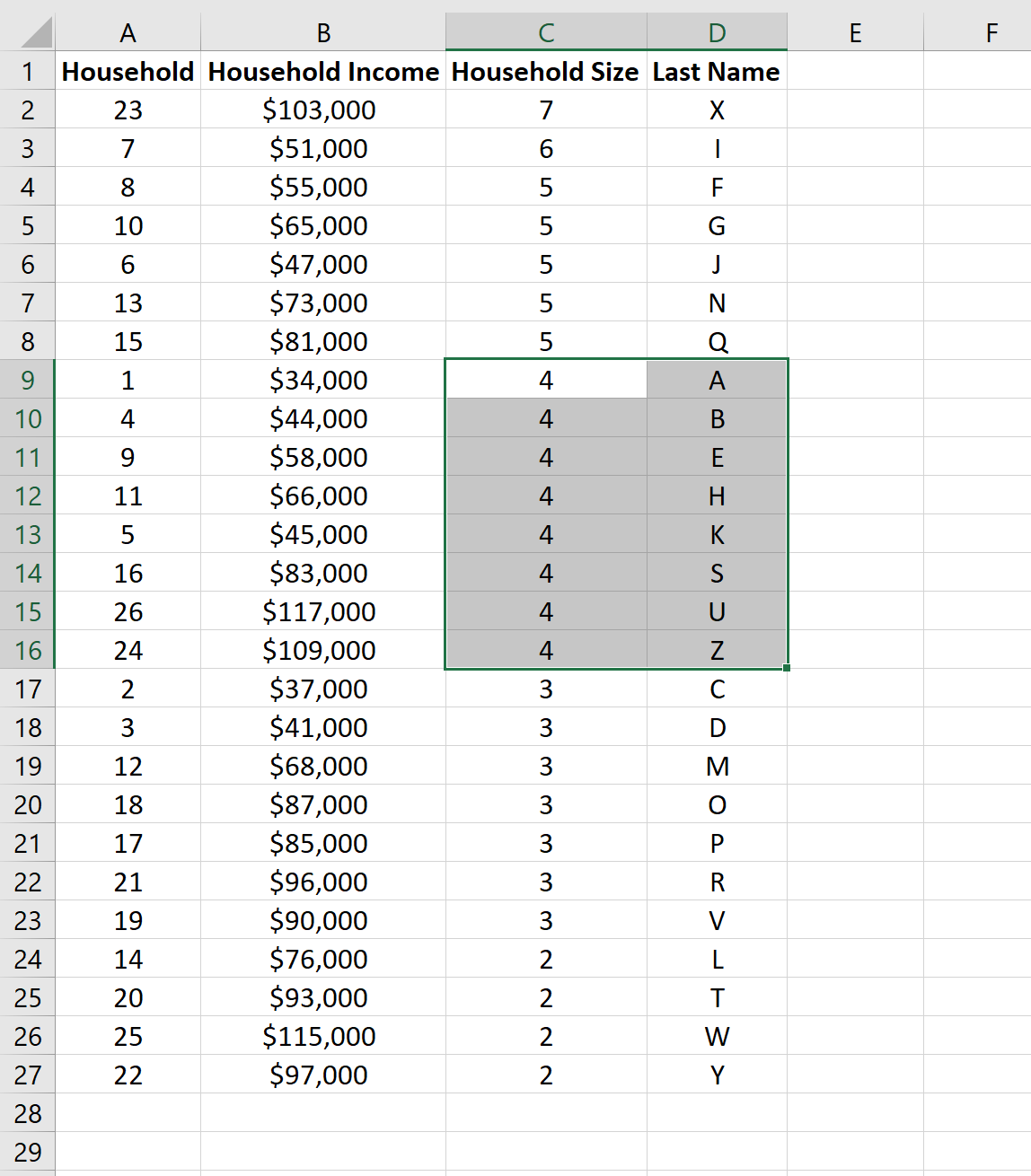

For instance, consider the four households that all share an identical size of 4. Prior to the secondary sort, their sequence within the size 4 group was arbitrary and based only on their original input order. Following the application of the Custom Sort, these four records are now internally rearranged alphabetically by Last Name, ensuring that “Clark” appears before “Jones,” “Smith,” and “Williams.” This meticulous tie-breaking mechanism is the fundamental benefit of utilizing multi-level sorting, creating a structure that is both organized and logically sound.

Expanding Beyond Two Levels: Advanced Sorting Options

While our illustrative example focused on the necessary arrangement by two columns, the Custom Sort option is highly scalable and is not structurally limited to a binary level definition. Users possess the capability to define as many sorting levels as are required to handle increasingly complex and granular data hierarchies. This immense flexibility renders it an indispensable tool for advanced data preparation and cleaning tasks.

Furthermore, beyond simple alphabetical or numerical arrangements, Excel’s Custom Sort feature supports specialized criteria that move beyond standard values. This includes the ability to sort by color (either the cell fill color or the font color), or by utilizing custom lists. Custom lists are particularly powerful, allowing users to define a specific, non-alphabetical sequence for text entries—for instance, sorting months in their correct calendar order (January, February, March) rather than a simple alphabetical order (April, August, December).

Mastering the methodology of multi-level sorting is widely considered a core skill for effective and robust data management within Excel. By strategically deploying primary, secondary, and subsequent keys, analysts can efficiently transform large, unstructured tables into logically organized, easily searchable, and highly informative data sets, thereby streamlining the entire process of data evaluation, validation, and professional reporting.
