Learning to Adjust Histogram Bin Widths in Excel: A Step-by-Step Guide

A histogram is an indispensable graphical tool used in data analysis to visually represent the underlying distribution of values within a numerical dataset. Unlike traditional bar charts, where bars represent distinct categories, the bars in a histogram denote contiguous intervals, and their height directly correlates to the frequency of data points observed within that defined range.

For statistical visualization to be accurate and meaningful, analysts must possess the capability to manipulate the visual parameters of the histogram. The most critical parameter governing the shape, resolution, and ultimately, the interpretability of the graph is the bin width. Inappropriate selection of this metric can lead to misleading conclusions; overly wide bins might conceal essential patterns, whereas excessively narrow bins can introduce visual noise, making the graph appear erratic and difficult to interpret.

This tutorial provides a comprehensive, expert walkthrough dedicated to leveraging Microsoft Excel for statistical charting. We will detail the process of creating a histogram and, more critically, demonstrate how to precisely modify the bin width. Mastering this customization ensures that your visual representation is statistically robust, highly informative, and perfectly tailored to your analytical objectives.

The Analytical Importance of Optimal Bin Selection

The decision regarding the appropriate bin size extends far beyond mere aesthetics; it fundamentally alters the human perception of core statistical measures, including the central tendency, skewness, and modality of the data. When generating a chart, Excel typically employs an automatic calculation for bin size, often relying on established statistical guidelines such as Sturges’ formula. However, this default setting is frequently suboptimal, failing to account for the unique characteristics of a specific dataset or the specialized goal of the analysis.

The primary objective of using a histogram to analyze quantitative data is the efficient and truthful communication of the frequency distribution. If the histogram utilizes too few bins, the representation becomes overly simplistic, potentially masking critical features such as multiple peaks (bimodality) or significant gaps. Conversely, if too many narrow bins are used, the resulting graph can become dominated by distracting noise, thereby obscuring the true, underlying pattern of the distribution.

Therefore, sophisticated statistical reporting demands the ability to manually adjust the bin width in Excel. This flexibility permits the analyst to conduct crucial sensitivity analysis, allowing them to experiment with various resolutions until the visualization achieved is the most accurate and informative portrayal of the data’s structure. This control is indispensable for professional data practitioners seeking actionable insights.

Step 1: Preparing the Source Data Structure

The initial and foundational step for creating any accurate statistical visualization in Excel is the preparation of a clean, structured dataset. For the purposes of this demonstration, we will be using a sample dataset detailing the annual income figures for a small group of 26 individuals. It is paramount that the data organization is correct—ideally, all numerical values should reside in a single, continuous column.

In our example illustration, the data column is clearly labeled. This meticulous labeling ensures that when the Excel charting engine processes the input, it correctly identifies the numerical range requiring frequency analysis and avoids misinterpreting header information as data points. This preparatory phase is a non-negotiable prerequisite before moving on to the actual chart creation process.

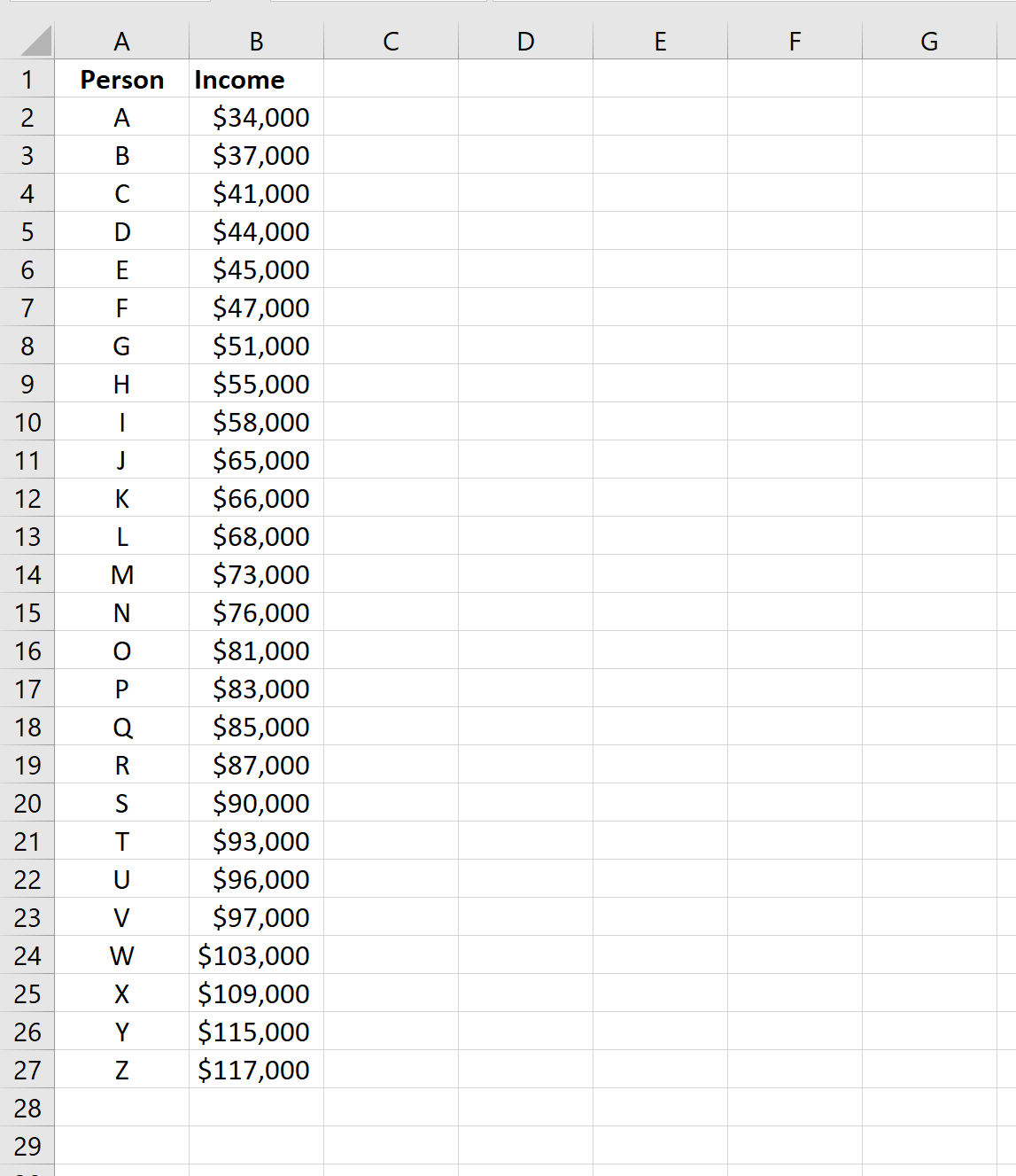

The following image provides a clear visual representation of the preparatory dataset that will be utilized throughout the subsequent steps of this guide:

Step 2: Generating the Default Histogram Chart

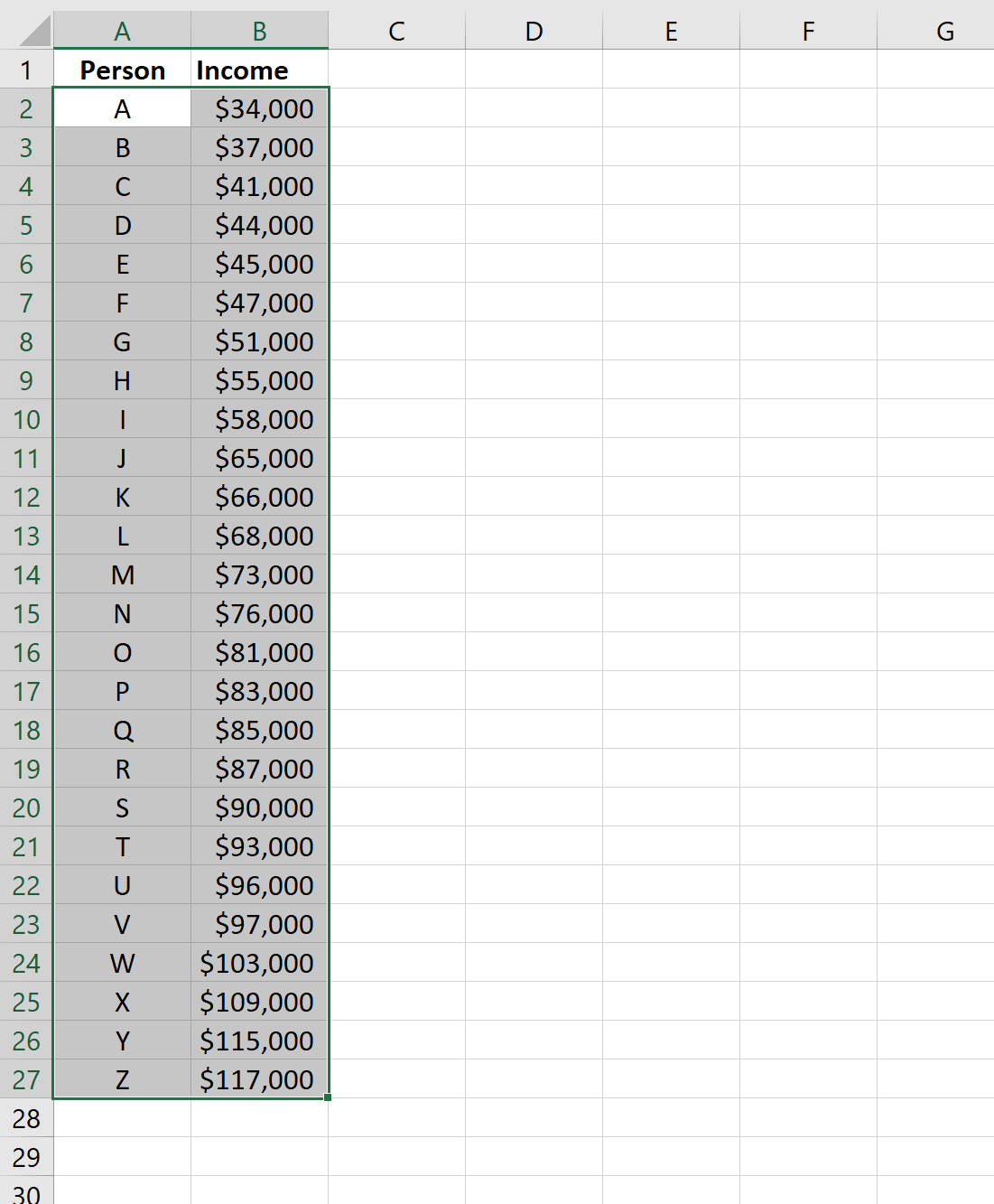

Once the source data is meticulously prepared, the next phase involves utilizing the robust built-in charting functionalities of Excel to generate the preliminary histogram. Start by selecting the entire range of numerical data—in this case, all the income figures located in the designated column. Confirmation that the full range intended for frequency analysis is highlighted is essential before proceeding.

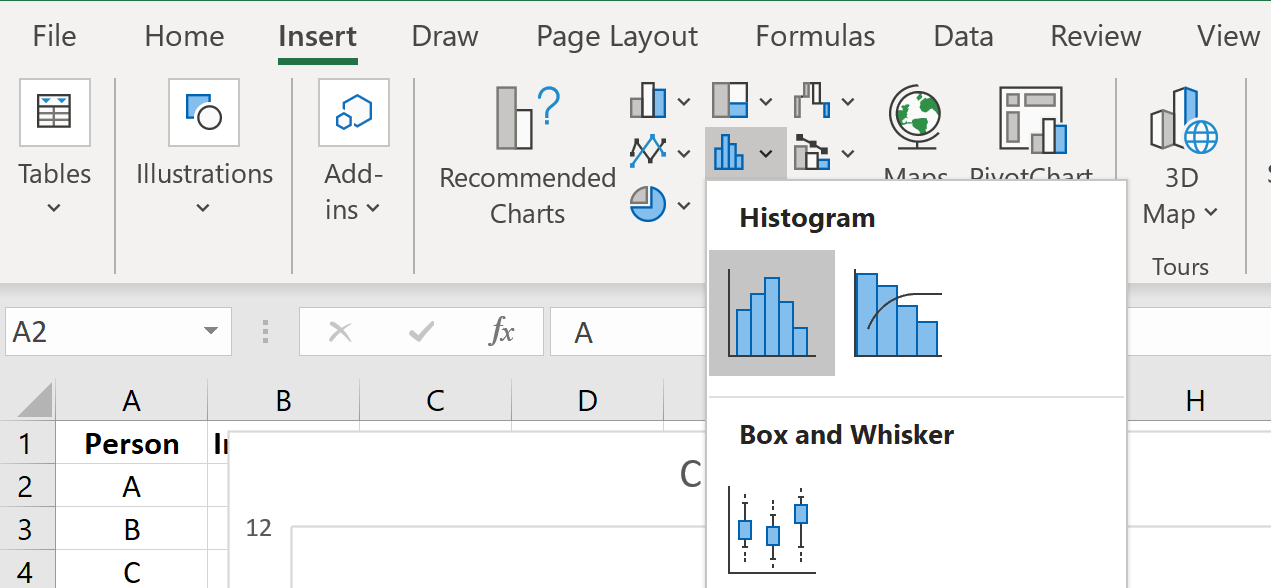

The visualization creation process begins by navigating to the top menu ribbon. Click the INSERT tab, which centrally organizes all the graphical, charting, and visualization tools available within the software. Locate the Charts section and click the dedicated Histogram icon. This action immediately instructs Excel to perform two automatic calculations: first, computing the frequencies of the data points, and second, plotting the bars based on its default calculation for the bin width.

Upon execution, Excel produces an initial chart. While this chart provides an immediate glimpse into the data’s shape, it is typically considered a preliminary draft, seldom optimized for professional presentation or detailed analysis. The following visuals illustrate both the necessary data selection process and the resulting default visualization generated by the software:

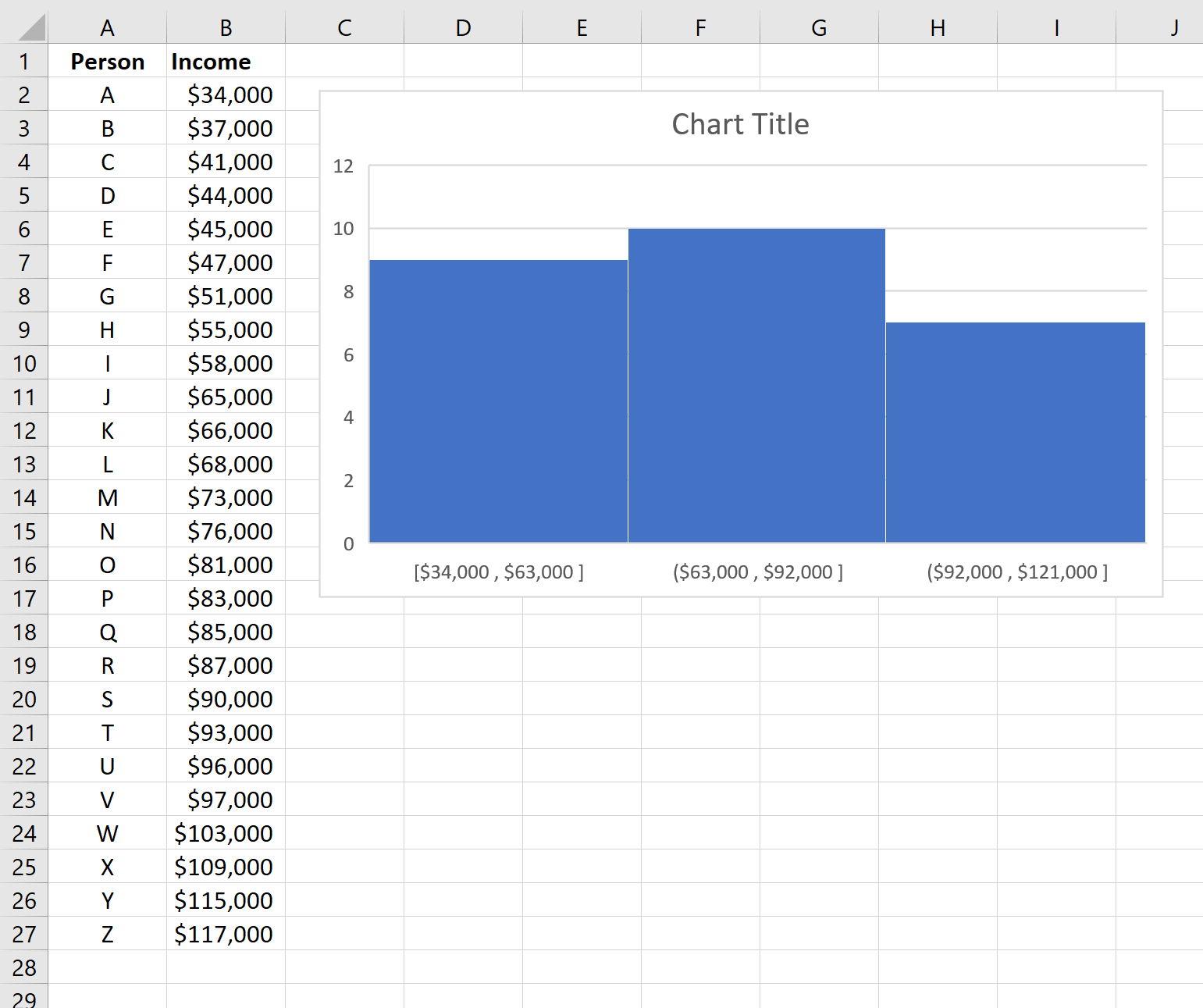

Analyzing the income data range, Excel automatically sets a uniform bin size across the horizontal axis, resulting in the following unedited initial histogram:

Step 3: Accessing Format Axis Options for Customization

Although the default chart offers a general overview of the data’s shape, achieving high-quality visualization requires deep customization. To gain granular control over the bin parameters, the analyst must navigate to the specific formatting options associated with the histogram’s horizontal axis (the axis representing the numerical values or categories).

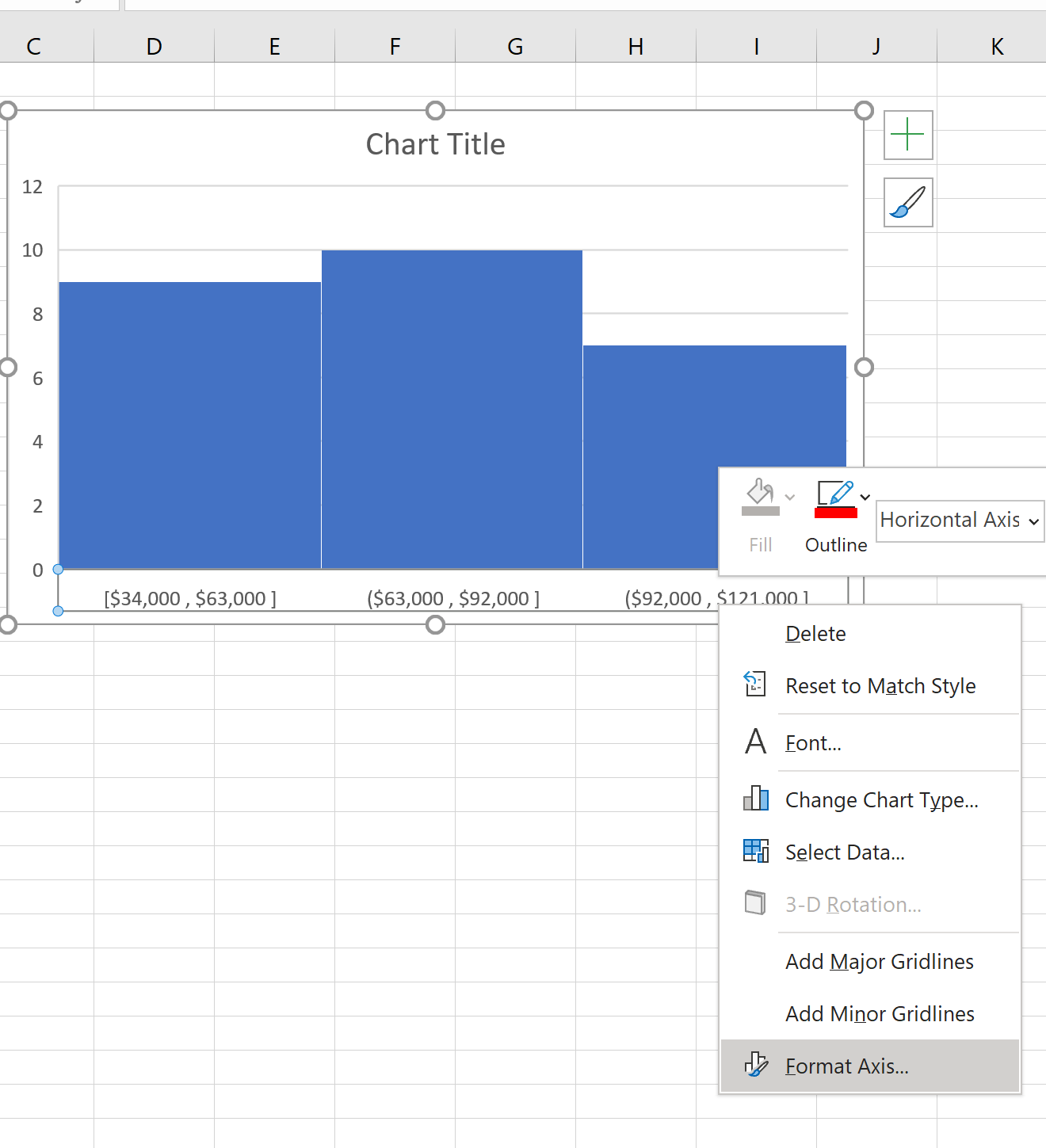

To initiate the adjustment sequence, perform a right-click directly on any of the numerical labels situated along the horizontal axis of the newly generated chart. This action will trigger the appearance of a context-sensitive menu. From the displayed options, locate and select Format Axis. Selecting this option opens a specialized task pane, typically docked to the right side of the Excel interface, which serves as the control center for axis properties.

This ‘Format Axis’ pane is where critical settings—such as scaling, tick marks, and crucially, the bin size configurations—are managed. It is essential to ensure that the ‘Axis Options’ tab (represented by a bar chart icon) is currently active within this pane before proceeding to modify the bin width settings.

Step 4: Adjusting Bin Width to Broaden Categories

Within the ‘Format Axis’ pane, Excel offers various methods for defining data groups, including utilizing automatic calculations, manually setting the total number of bins, or specifying a precise, fixed bin width. Upon initial inspection of the default chart settings, we see that Excel automatically selected a bin width of 29,000 for our annual income data. To override this setting, select the ‘Bin Width’ radio button and enter your preferred numerical value.

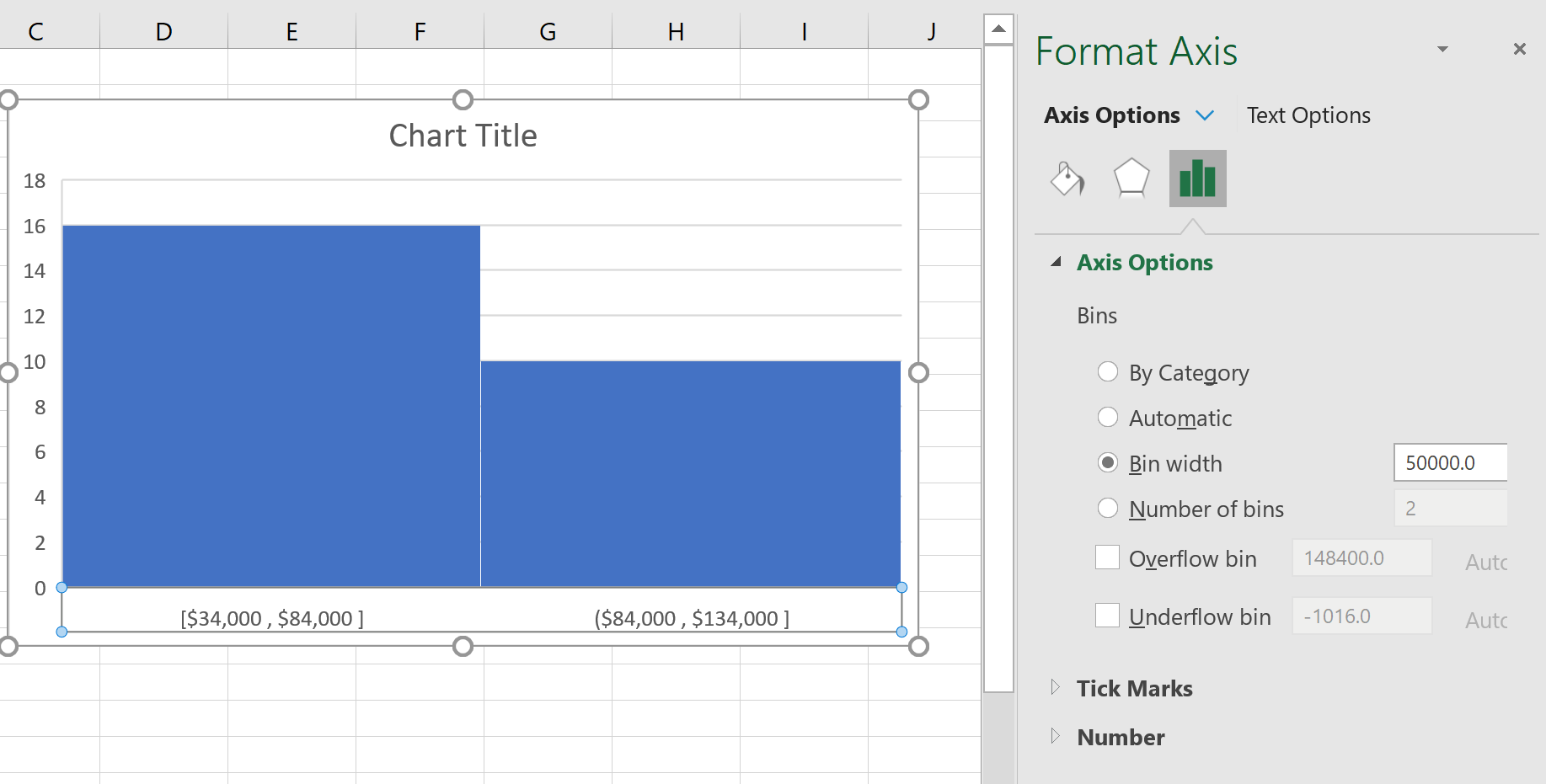

If the analytical goal is to produce a visualization with fewer, broader categories, thereby reducing the total count of bars, the bin width should be significantly increased. For example, by changing the width setting to 50,000, the data points are grouped into larger income brackets. This adjustment creates a smoother, more generalized view of the distribution, effectively emphasizing the overall macro-trend rather than minute, granular details.

Examine the subsequent histogram to observe the profound impact of increasing the width. The count of bins is visibly reduced, and each resultant bar now represents a much wider, more aggregated range of values along the horizontal axis:

Step 5: Decreasing Bin Width for High-Resolution Analysis

Conversely, for specialized analysis that requires a highly detailed, high-resolution perspective of the data, the bin width must be decreased. A reduction in width naturally results in a corresponding increase in the total number of bins. A smaller width setting facilitates a far more detailed examination of the frequency counts within tighter increments, which is invaluable for revealing specific, subtle clusters, gaps, or potential outliers within the data structure.

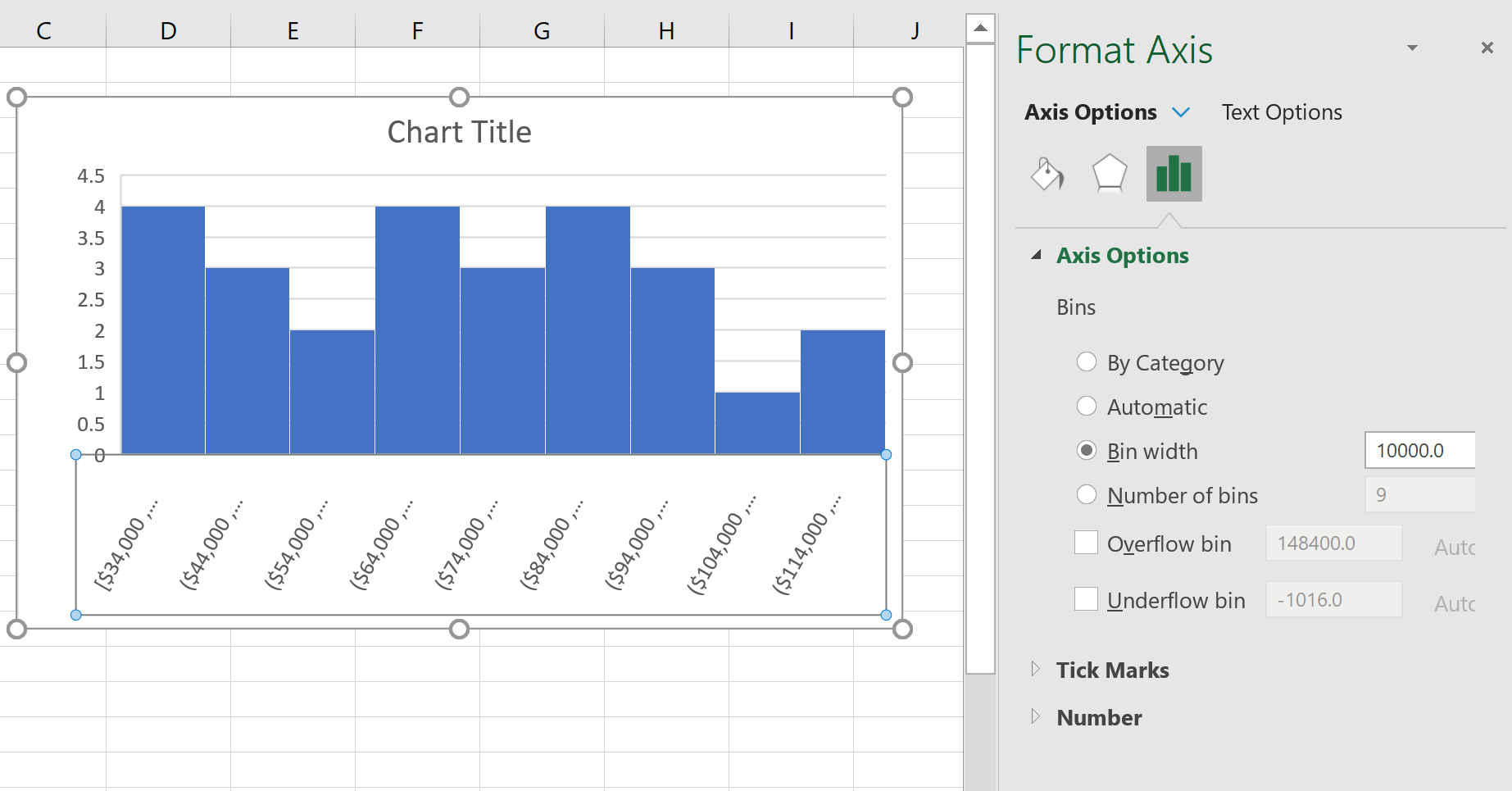

As an illustration, modifying the bin width to 10,000 causes the income categories to become substantially narrower. This refined adjustment maximizes the total number of bins across the horizontal axis, providing a significantly more granular and detailed representation of the data distribution.

When implementing a smaller bin width, analysts must exercise caution to ensure that the resulting bins still contain a statistically sufficient number of data points. If the bins are too small, the chart may become excessively “spiky” or misleading, failing to represent the true underlying pattern. The image below provides a visual comparison, highlighting the effect of this higher-resolution setting:

Guidelines for Selecting the Optimal Bin Parameters

The selection of the optimal bin width is rarely a one-time formulaic calculation; rather, it is an iterative process requiring statistical judgment informed by the specific context and characteristics of the dataset. While established statistical rules exist to suggest an ideal number of bins (such as the Freedman–Diaconis rule or Scott’s Rule), visual inspection remains the most practical and reliable method for determining which visualization most effectively communicates the true statistical narrative of the data.

A pragmatic approach is to continuously experiment with different settings until the histogram provides a clear and unbiased view of the underlying pattern, avoiding both excessive generalization and unnecessary detail. Analysts leveraging Excel’s charting capabilities should internalize the following critical principles when performing bin adjustments:

• Broadening the View: Increasing the bin width results in a smaller number of wider bins. This action effectively smooths the visual appearance of the distribution, clarifying the central tendency and overall shape. However, this approach carries the inherent risk of obscuring nuanced internal structures, such as subtle bimodality.
• Detailing the Structure: Decreasing the bin width results in a larger number of narrower bins. This yields a high-resolution visualization, capable of revealing fine details and identifying potential outliers. This method, however, risks introducing substantial visual noise and making the overall shape of the distribution difficult to interpret quickly.

By achieving mastery over the control and customization of the bin parameters, you transform the default statistical chart provided by Excel into a powerful, customized analytical instrument capable of generating highly targeted and actionable insights from virtually any numerical data source.
