Understanding Confidence Intervals for Regression Intercepts

Simple linear regression is the bedrock of statistical modeling, designed to analyze and quantify the linear relationship between a single predictor variable (often denoted X) and a response variable (Y). This technique is fundamental for generating predictive models and understanding how changes in one variable correspond to changes in another.

The objective of simple linear regression is to determine the line of best fit that minimizes the distances between the observed data points and the line itself. This line is algebraically represented by the following equation, which forms the basis for all subsequent analysis:

ŷ = b₀ + b₁x

Understanding the components of this equation is essential for accurate interpretation of the model results:

• ŷ: The estimated or predicted value of the response variable.
• b₀: The sample intercept, representing the baseline value of Y.
• b₁: The sample slope (or regression coefficient), quantifying the rate of change in Y for every one-unit increase in X.
• x: The observed value of the predictor variable.

While the slope (b₁) often captures the most attention as it describes the relationship’s strength and direction, the intercept (b₀) is equally vital. The intercept represents the expected mean value of the response variable when the predictor variable (x) is exactly zero. To assess the reliability of this baseline estimate, statisticians calculate a confidence interval for the true population intercept, denoted by the Greek parameter β₀.

Understanding the Regression Model and Its Parameters

Regression analysis, particularly in its simple linear form, provides a powerful framework for statistical inference. The model relies on the method of Ordinary Least Squares (OLS), which mathematically determines the optimal line by minimizing the sum of the squared residuals—the vertical distances between the observed data points and the fitted line. This optimization process yields the sample estimates, b₀ and b₁.

It is crucial for accurate statistical inference to distinguish clearly between the statistics calculated from our limited dataset (the sample statistics, b₀ and b₁) and the corresponding unknown values for the entire population (the population parameters, β₀ and β₁). Since researchers almost always work with samples rather than the entire population, our estimates are subject to sampling variability and will inevitably deviate from the true population parameters.

The primary reason for constructing a confidence interval is to quantify this uncertainty. By providing a range of plausible values for the true population intercept (β₀), the confidence interval reflects the precision of our estimate and helps determine the reliability of the baseline measure derived from the sample data.

The Interpretation and Context of the Intercept (b₀)

The intercept, b₀, serves as the mathematical starting point of the regression line. By definition, it is the estimated outcome for the response variable when the predictor variable X is set to zero. While the slope dictates the trajectory and steepness of the linear relationship, the intercept anchors the model by establishing this essential baseline level.

In many analytical contexts, the intercept holds direct, practical meaning. This is true when the value x=0 is a feasible, observable, and relevant point within the scope of the study. For example, if a model predicts the selling price of a product based on advertising expenditure, the intercept would represent the expected selling price when zero dollars are spent on advertising.

Conversely, in scenarios where the predictor variable X cannot logically or physically be zero—or where x=0 lies far outside the observed data range—the intercept loses its tangible interpretability. Even if the intercept is not practically meaningful, it remains a necessary mathematical component to ensure the regression line correctly passes through the mean of the data points. Therefore, researchers must always evaluate the context before assigning practical significance to the calculated confidence interval for b₀.

Deriving the Confidence Interval Formula for β₀

The calculation for any statistical confidence interval follows a common template: the point estimate plus or minus the margin of error. For the population regression intercept (β₀), the point estimate is the sample intercept (b₀). The margin of error is calculated using the critical value from the appropriate distribution and the estimate’s standard error.

The specific formula used to construct a confidence interval for the true population intercept (β₀) is given below:

Confidence Interval for β₀: b₀ ± t_{α/2, n-2} * se(b₀)

The key components within this formula are defined as follows:

• b₀: This is the estimated intercept value derived directly from the sample data.
• t_{α/2, n-2}: This represents the critical t-value. It is determined by the desired confidence level (α) and the degrees of freedom (df), calculated as the number of observations minus two (n-2).
• se(b₀): This is the standard error of the intercept estimate. This value quantifies the average amount the intercept estimate (b₀) is expected to vary across different samples.

We utilize the t-distribution because, in typical linear regression scenarios, the population standard deviation required to calculate the standard error precisely is unknown and must be estimated from the sample data. Furthermore, the degrees of freedom are set to n-2 because two parameters—the intercept (β₀) and the slope (β₁)—are estimated from the sample data to fit the model.

Practical Application: Calculating the CI in R

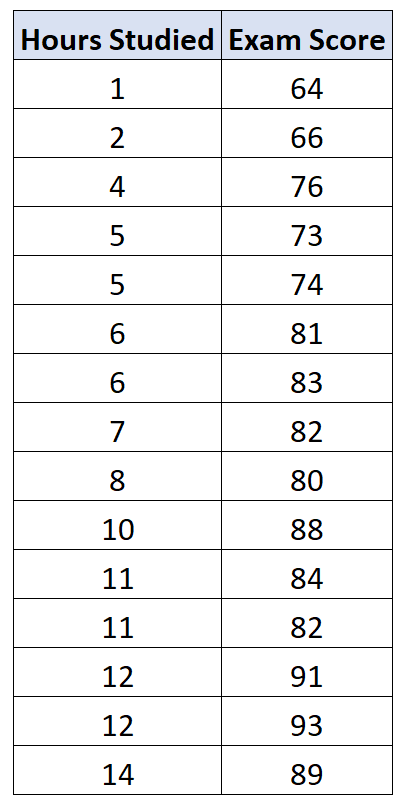

To demonstrate the calculation process, consider a research study investigating the relationship between the number of hours a student spends studying (the predictor variable, X) and their final exam score (the response variable, Y). We have collected data from 15 students (n=15) and fit a simple linear regression model to these observations.

The scatterplot below visually summarizes the data collected, showing the relationship between study hours and exam scores:

We utilize the R statistical programming environment to perform the linear modeling and obtain the necessary estimates. The following output shows the code used to generate the data frame, fit the linear model, and display the resulting summary:

#create data frame
df <- data.frame(hours=c(1, 2, 4, 5, 5, 6, 6, 7, 8, 10, 11, 11, 12, 12, 14),
                 score=c(64, 66, 76, 73, 74, 81, 83, 82, 80, 88, 84, 82, 91, 93, 89))

#fit simple linear regression model
fit <- lm(score ~ hours, data=df)

#view summary of model
summary(fit)

Call:
lm(formula = score ~ hours, data = df)

Residuals:
   Min     1Q Median     3Q    Max
-5.140 -3.219 -1.193  2.816  5.772

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)   65.334      2.106  31.023 1.41e-13 ***
hours          1.982      0.248   7.995 2.25e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 3.641 on 13 degrees of freedom
Multiple R-squared:  0.831,	Adjusted R-squared:  0.818
F-statistic: 63.91 on 1 and 13 DF,  p-value: 2.253e-06

By examining the “Coefficients” table in the R output, we can extract the specific values needed for our confidence interval calculation:

• Sample Intercept (b₀): 65.334
• Standard Error of the Intercept (se(b₀)): 2.106
• Degrees of Freedom (n-2): 15 – 2 = 13

The resulting fitted regression equation for this model is: Score = 65.334 + 1.982 * (Hours Studied). We now use these values to determine the 95% confidence interval for the population intercept (β₀).

Step-by-Step Calculation and Interpretation

To calculate the 95% confidence interval, the first step involves finding the appropriate critical t-value. Since we are seeking a 95% confidence level, the significance level (α) is 0.05, meaning we need the two-tailed critical value t_{α/2, n-2}, which translates to t_{0.025, 13}.

Consulting a t-distribution table or using statistical software reveals that for 13 degrees of freedom and a 95% confidence level, the critical t-value is 2.1604.

The complete calculation proceeds as follows:

1. Identify the Formula: 95% C.I. for β₀: b₀ ± t_{α/2, n-2} * se(b₀)
2. Substitute Values: 95% C.I. for β₀: 65.334 ± 2.1604 * 2.106
3. Calculate Margin of Error: 2.1604 * 2.106 ≈ 4.55
4. Determine Interval: 65.334 ± 4.55
5. Final Interval: [60.78, 69.88]

The resulting 95% confidence interval is [60.78, 69.88]. This interval is interpreted as follows: we are 95% confident that the true population mean exam score for students who study for zero hours falls within the range of 60.78 and 69.88 points. This range provides a statistically rigorous measure of the precision surrounding our single point estimate of the intercept (b₀ = 65.334).

Critical Caveats: The Risk of Extrapolation

While the mathematical procedure for generating the confidence interval is sound, the resulting interpretation of the regression intercept must be approached with considerable statistical caution. In many real-world applications of regression analysis, particularly those involving non-experimental data, interpreting the intercept is discouraged because the condition x=0 is not meaningful or observed.

The primary risk associated with interpreting the intercept is extrapolation. Interpreting b₀ requires assuming that the linear relationship observed across the tested data range extends backward unchanged all the way to the origin (x=0). If zero is far outside the observed range of the predictor variable, this assumption is often invalid and can lead to conclusions that are physically impossible or statistically non-sensical.

Consider a model predicting salary based on years of professional experience, where the observed data ranges from 5 to 30 years of experience. A literal interpretation of the intercept (x=0 years experience) would predict the salary of someone with no experience, even though the relationship might be highly nonlinear below 5 years.

Statisticians must confirm that x=0 is a valid and relevant data point within the context of the study before drawing any conclusions based on the intercept or its confidence interval. Scenarios where the predictor variable cannot logically be zero include:

• Temperature measurements: If observations are taken only between 50°F and 90°F, interpreting the intercept at 0°F is extrapolation.
• Income measures: Interpreting the intercept in a model where the minimum observed income is $20,000.
• Physical dimensions: Predicting weight based on height, where the observed heights are only for adults.

In these circumstances, the intercept serves only as a mathematical necessity to align the regression line correctly, and calculating its confidence interval provides formal precision without practical insight.
