Learning Piecewise Regression in R: A Step-by-Step Guide

Piecewise regression, often referred to as segmented regression, stands as a critical statistical methodology utilized when analyzing complex data where the relationship between the predictor (independent) and response (dependent) variables is not uniform across the entire observation range. This approach is specifically engineered to handle datasets that exhibit one or more clear structural shifts, commonly termed “breakpoints.” Identifying these shifts is essential for accurate modeling.

A standard linear regression model assumes that a single straight line can adequately describe the relationship across all data points. This assumption is often violated in real-world scenarios, particularly in fields like economics, epidemiology, or environmental monitoring, where external events (e.g., policy changes, biological saturation points) cause abrupt alterations in trends. Applying a standard linear model in such cases results in poor fit, biased parameter estimates, and ultimately, misleading predictions. Piecewise regression overcomes this limitation by dividing the predictor variable (X) into distinct segments and fitting a unique linear model to each segment. This provides a significantly more accurate and realistic representation of dynamic, shifting relationships.

The core challenge in this technique lies in accurately estimating the location of the optimal breakpoint—the point where the relationship’s slope significantly changes. While visual inspection can offer a preliminary guide, rigorous statistical methodologies are necessary to ensure the breakpoint is optimally located and the corresponding slopes for each segment are robustly estimated. This comprehensive tutorial will guide you through executing a precise piecewise regression analysis using the statistical programming language R, utilizing the powerful segmented package, from data preparation to interpreting the final model parameters.

Step 1: Preparing the Data and Establishing the Environment in R

The foundation of any robust statistical analysis is meticulously prepared data. To effectively demonstrate the functionality of piecewise regression, we will first construct a synthetic data frame in R. This artificial dataset is intentionally designed to exhibit a clear structural shift, mimicking the type of data encountered in real-world scenarios where a segmented model is required. The dataset consists of 16 observations, defining the predictor variable x and the response variable y.

The values of y are structured such that the initial observations show a moderate positive correlation with x, but at a specific point, the rate of increase (the slope) dramatically accelerates. This simulation allows us to clearly observe how the piecewise regression algorithm detects and quantifies this change. Working with this structured data ensures that the resulting model fit and parameter interpretations are easily verifiable and understandable.

The following R code block is used to initialize the data frame, named df, and to perform a preliminary check of the data structure using the head() function. Note how the creation of the data frame uses standard R functions and demonstrates the input required for the subsequent analysis steps:

#view DataFrame
df <- data.frame(x=c(1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16),
                 y=c(2, 4, 5, 6, 8, 10, 12, 13, 15, 19, 24, 28, 31, 34, 39, 44))

#view first six rows of data frame
head(df)

  x  y
1 1  2
2 2  4
3 3  5
4 4  6
5 5  8
6 6 10

The successful execution of this code confirms that our structured data, df, is correctly loaded into the R environment, possessing the necessary variables (x and y) to move forward with the essential exploratory data analysis phase.

Step 2: Exploratory Data Analysis and Visualizing Structural Shifts

Before committing to the computational complexity of model fitting, conducting exploratory data analysis (EDA) through visualization is paramount. A simple scatterplot serves as the most effective preliminary tool, providing immediate and strong visual evidence regarding the existence, number, and approximate location of any structural shifts or breakpoints within the data. This visual confirmation is not merely optional; it critically informs the initial parameters we provide to the segmented model fitting algorithm.

We use the base R plot() function to generate a visualization of y against x. This step forces us to confront the data’s inherent behavior. If the data points clustered tightly around a single imaginary straight line, a standard linear regression model would suffice. However, if the trajectory of the points clearly changes direction, it signals the necessity of a more sophisticated, segmented approach.

The following command executes the visualization:

#create scatterplot of x vs. y
plot(df$x, df$y, pch=16, col='steelblue')

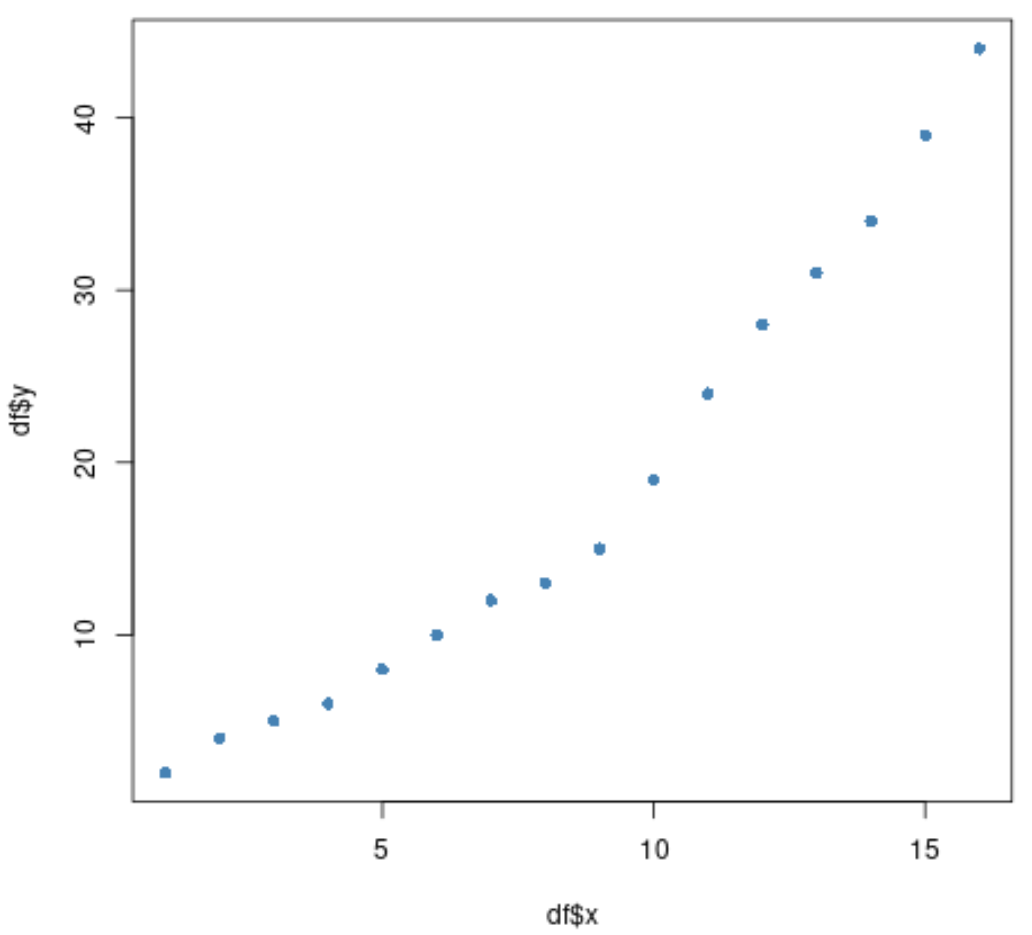

Upon observing the resulting scatterplot, two distinct phases become immediately apparent. The data initially follows a line with a relatively shallow, positive slope. Crucially, as the independent variable x approaches the value of 9, the slope abruptly steepens, indicating a dramatic increase in the rate of change of y relative to x. This distinct shift provides a powerful initial hypothesis: the structural change, or breakpoint (often denoted as psi), is likely located near x = 9. This visual estimate is critical, as it serves as the necessary starting parameter for the statistical optimization process in the next step.

Step 3: Implementing and Fitting the Segmented Model using R

To move beyond visual estimation and accurately calculate the statistically optimal breakpoint location and segment parameters, we must leverage the specialized functionality available in the R ecosystem. The segmented package is the industry standard for this task, providing the iterative optimization algorithm necessary for fitting piecewise regression models.

A crucial technical detail is that the segmented() function does not operate directly on the data; rather, it refines an existing standard linear model fit. Therefore, the process is two-fold: first, we must fit a simple, single-line linear regression model using the standard R function lm(). This initial fit serves as the mandatory starting point for the segmented algorithm, establishing baseline parameter estimates.

Once the initial lm model (named fit) is established, we call the segmented() function. We pass three essential arguments: the initial linear model (fit), the variable hypothesized to contain the breakpoint (seg.Z = ~x), and our initial visual estimate for the breakpoint location (psi=9). The algorithm then uses iterative least squares to move away from this initial guess and converge on the statistically best-fitting location, minimizing the residual sum of squares.

library(segmented)

#fit simple linear regression model
fit <- lm(y ~ x, data=df)

#fit piecewise regression model to original model, estimating a breakpoint at x=9
segmented.fit <- segmented(fit, seg.Z = ~x, psi=9)

#view summary of segmented model
summary(segmented.fit)

Call:
segmented.lm(obj = fit, seg.Z = ~x, psi = 9)

Estimated Break-Point(s):
         Est. St.Err
psi1.x 8.762   0.26

Meaningful coefficients of the linear terms:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  0.32143    0.48343   0.665    0.519
x            1.59524    0.09573  16.663 1.16e-09 ***
U1.x         2.40476    0.13539  17.762       NA
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.6204 on 12 degrees of freedom
Multiple R-Squared: 0.9983,  Adjusted R-squared: 0.9978

Convergence attained in 2 iter. (rel. change 0)

The summary output confirms the success of the optimization. Notice the line indicating “Convergence attained in 2 iter.” This means the algorithm quickly found the parameters that minimize the overall error. The next step focuses on extracting and interpreting the quantitative meaning of these complex coefficients.

Step 4: Detailed Interpretation of Segmented Model Coefficients

The statistical output generated by the summary() function is the core result of the piecewise regression analysis. Interpreting these coefficients correctly is vital to understanding the dynamics of the underlying relationship before and after the structural shift. We focus on two primary sections: the estimated breakpoint location and the meaningful coefficients of the linear terms.

First, the section labeled Estimated Break-Point(s) provides the refined estimate for the location of the change. Our initial visual guess was x=9. The model successfully optimized this guess, identifying the statistically optimal breakpoint (psi1.x) at a precise value of x = 8.762. The small associated standard error (0.26) indicates high confidence in this location estimate. This value confirms that the structural change occurs just before the independent variable reaches 9.

Second, the Meaningful coefficients of the linear terms section defines the geometry of the two regression lines. These coefficients are interpreted as follows:

• (Intercept) (0.32143): This is the y-intercept for the first segment (the line that applies when x ≤ 8.762).
• x (1.59524): This coefficient represents the slope of the first segment. For every one-unit increase in x up to the breakpoint, y increases by approximately 1.595 units.
• U1.x (2.40476): This term, often called the delta slope, is the most crucial element in segmented regression. It represents the difference in slope between the first segment and the second segment.

Using these parameters, we can formulate the two distinct linear regression equations that mathematically describe the fitted model:

Equation for Segment 1 (x ≤ 8.762): The equation is straightforward, using the intercept and the first slope (x).

If x ≤ 8.762: y = 0.32143 + 1.59524 * (x)

Equation for Segment 2 (x > 8.762): The slope of the second segment is the sum of the first segment’s slope (x) and the delta slope (U1.x). Thus, the slope of Segment 2 is $1.59524 + 2.40476 = 4.000$. The full equation for the second segment must account for the shift in both the intercept and the slope that occurs at the breakpoint.

If x > 8.762: y = Intercept + (Slope 1 * Breakpoint) + (Slope 1 + Delta Slope) * (x – Breakpoint)

Substituting the precise numerical values, the equation for the second segment becomes:

y = 0.32143 + 1.59524 * (8.762) + (1.59524 + 2.40476) * (x – 8.762)

These explicit equations allow for precise predictions. For example, predicting Y when x = 5 (Segment 1):

• y = 0.32143 + 1.59524 * (5)
• y = 0.32143 + 7.9762
• y = 8.297

Conversely, predicting Y when x = 12 (Segment 2), requires the full segmented formula:

• y = 0.32143 + 1.59524 * (8.762) + (1.59524 + 2.40476) * (12 – 8.762)
• y = 0.32143 + 13.985 + (4.000) * (3.238)
• y = 14.306 + 12.952
• y = 27.258 (This prediction closely matches the observed data point of (12, 28), validating the model’s accuracy.)

Step 5: Visual Validation of the Segmented Regression Fit

The final and perhaps most intuitive step in the piecewise regression process is validating the model visually. By overlaying the two fitted linear segments onto the original scatterplot, we gain immediate confirmation of whether the statistical optimization successfully captured the structural dynamics observed in Step 2. If the fitted segmented line tracks the data points closely, it confirms that the model is robust and appropriate for the dataset.

We begin by re-plotting the original data points using plot(). We then use the specialized plotting method provided by the segmented() function, ensuring we include the argument add=T to superimpose the fitted lines directly onto the existing graph, rather than drawing a new plot.

Executing this visualization step in R is simple, relying on the objects created in the preceding steps:

#plot original data
plot(df$x, df$y, pch=16, col='steelblue')

#add segmented regression model
plot(segmented.fit, add=T)

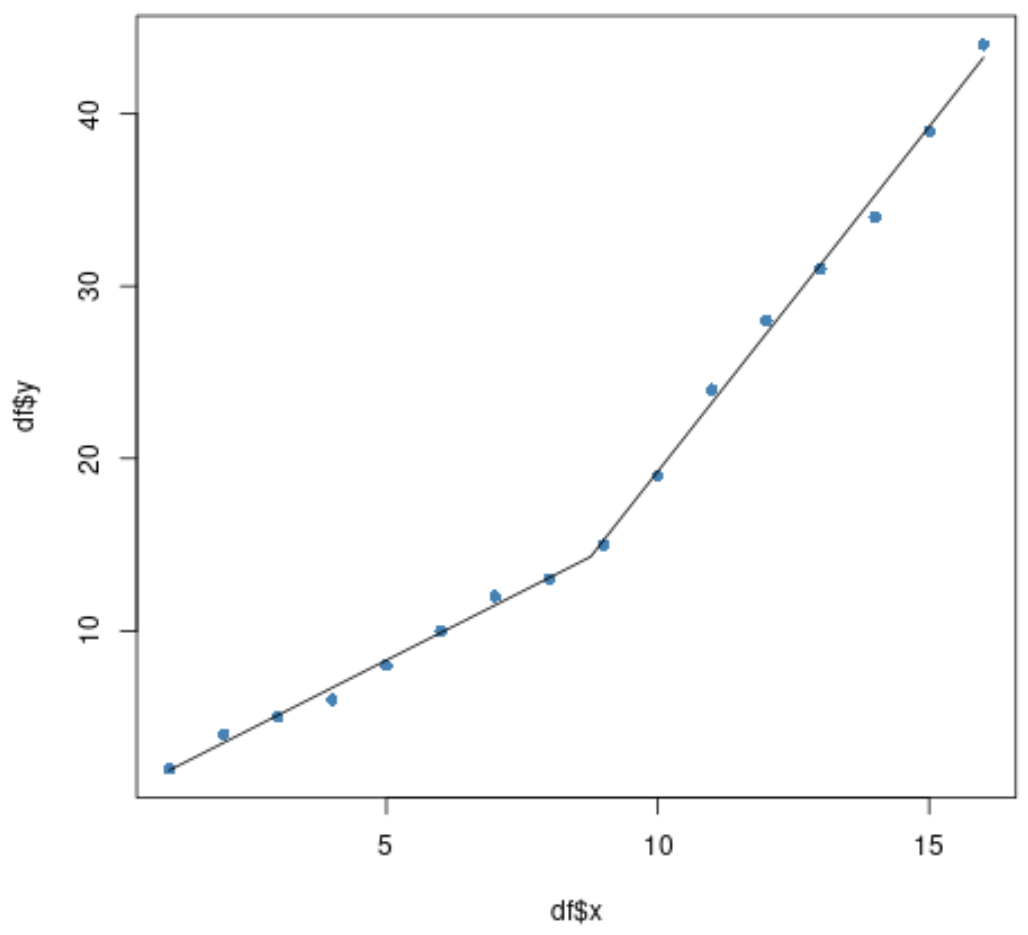

The resulting plot clearly demonstrates the effectiveness of the segmented approach. The fitted piecewise line accurately captures the initial moderate slope and the subsequent dramatic increase in slope at the estimated breakpoint of x = 8.762. If we had attempted to fit a single linear regression line to this data, it would have poorly represented both the initial and final sections, leading to large residuals. The segmented methodology provides a significantly superior fit, validating its use whenever data exhibits clear structural shifts.

Conclusion: Leveraging Segmented Regression for Complex Data

The ability to accurately model relationships defined by distinct phases or regimes makes piecewise regression an indispensable tool in the quantitative analyst’s toolkit. Standard linear regression is constrained by its assumption of linearity across the entire domain, but segmented regression allows the model structure to adapt to underlying physical, economic, or biological realities that dictate abrupt changes in trend.

By employing the iterative estimation process provided by the segmented() function in R, we reliably located the optimal breakpoint (psi = 8.762) and derived robust parameter estimates for both the initial segment and the subsequent, steeper segment. The high statistical measures of fit, such as the Multiple R-Squared value of 0.9983, along with the tight adherence of the fitted lines to the data points in the visualization, confirm that the piecewise model is highly predictive and descriptive.

When analyzing data where structural changes are either hypothesized or visually evident, employing this methodology ensures that the resulting statistical model is not only powerful in its predictive capability but also accurately reflective of the true, dynamic nature of the underlying data generation process. Mastering piecewise regression allows researchers to extract deeper insights from complex, non-uniform datasets.
