Learning Autocorrelation: A Practical Guide with Excel

While standard correlation measures the linear relationship between two distinct variables, Autocorrelation, often referred to as lagged correlation or serial correlation, measures the dependence of a data set upon a previous version of itself. Essentially, this statistical tool quantifies the degree of similarity between a time series and a shifted (or lagged) version of that exact same series across subsequent time intervals. This powerful measurement is fundamental in numerous analytical disciplines, including financial modeling, signal processing, and advanced econometrics, offering critical insights into the underlying dynamics of sequential data.

The presence of strong autocorrelation carries significant implications for predictive modeling. When a time series demonstrates high autocorrelation, particularly at short lags, it provides robust evidence that the current value is strongly influenced by its recent predecessors. This inherent dependency suggests that the series is not a purely random process, enabling the effective use of simple autoregressive models for forecasting. Understanding and quantifying this correlation is the critical initial step toward constructing reliable and accurate predictive frameworks for dynamic systems.

Conversely, if a time series exhibits minimal or non-significant autocorrelation, it typically indicates that the data approximates a random walk or a white noise process. In such scenarios, historical values offer little to no meaningful predictive information about future movements. Therefore, calculating and systematically analyzing the Autocorrelation Function (ACF) is an indispensable diagnostic procedure for any rigorous statistical analysis involving sequential or time-dependent data.

The Challenge of Calculating Autocorrelation in Excel

Analysts often encounter a significant operational hurdle when moving from specialized statistical software to general tools like Microsoft Excel: Excel lacks a single, dedicated native function for calculating the full Autocorrelation Function (ACF) across multiple lags. Although Excel is equipped with comprehensive functions for basic statistical calculations, determining the sample autocorrelation coefficient ($r_k$) necessitates constructing a complex, composite formula. This complexity arises because autocorrelation requires precise manipulation of lagged data arrays and strict adherence to the mathematical definition of the sample autocorrelation coefficient.

The rigorous mathematical formula utilized to calculate the sample autocorrelation ($r_k$) at a specific lag $k$ demands several steps: calculating the covariance between the series and its lagged self, normalizing this resultant covariance, and finally dividing by the total variance of the original series. The full standard mathematical representation for the sample autocorrelation coefficient $r_k$ is:

$$r_k = frac{sum_{t=k+1}^{N} (Y_t – bar{Y})(Y_{t-k} – bar{Y})}{sum_{t=1}^{N} (Y_t – bar{Y})^2}$$

In this formula, $N$ represents the total number of observations, $k$ is the specified lag, $Y_t$ is the observation at time $t$, and $bar{Y}$ denotes the overall mean of the entire time series. Successfully translating this sophisticated statistical calculation into a single, efficient Excel expression requires the meticulous application of array-processing functions, with the SUMPRODUCT function being the primary tool for handling the necessary element-wise multiplication and summation.

Setting Up the Time Series Data and Constants

To practically illustrate this calculation, we assume a simple, hypothetical time series spanning 15 distinct time periods, with the recorded values residing in cells B2 through B16 of an Excel sheet. The first crucial step in any sequential data analysis is ensuring that the data is correctly structured and readily accessible. For the purpose of this example, the range B2:B16 constitutes the complete data set ($N=15$).

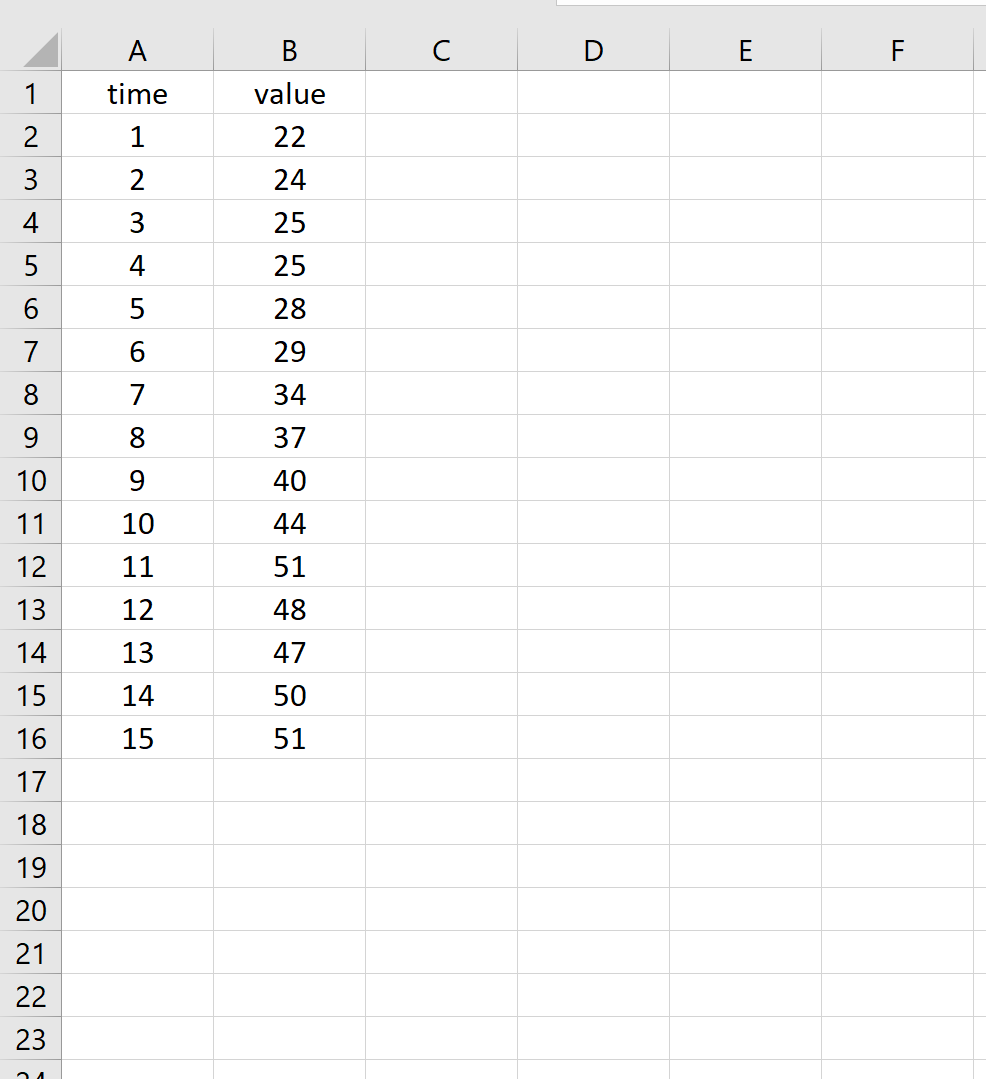

Prior to calculating any lagged covariance, it is essential for consistency and standardization to determine two constants derived from the entire data set: the overall mean ($bar{Y}$) and the overall population variance. By using the entire dataset (B2:B16) as the reference, we ensure that all subsequent lagged comparisons are standardized against the true central tendency and dispersion properties of the complete series. The following visual structure depicts the organization of the data we will be analyzing, clearly showing the 15 recorded values:

The key analytical insight for performing autocorrelation calculations in Excel lies in correctly managing the numerator of the formula—the covariance term. This term requires precisely pairing the original series with its shifted version. The complexity arises because the index alignment must be accurate, and the effective data range used for comparison must necessarily decrease as the lag $k$ increases, reflecting the loss of initial observations.

Deconstructing the Formula for Lag k = 2

We will begin the calculation by determining the autocorrelation for a lag $k=2$. This operation compares the value at time $t$ with the value that occurred two periods prior, $t-2$. Given our series contains 15 observations (B2 to B16), a lag of 2 means the first two observations cannot be paired with a preceding value, leaving us with 13 pairs for the calculation (from $t=3$ to $t=15$). Consequently, the array representing the current values will be B4:B16, and the array for the lagged values will be B2:B14.

The comprehensive Excel formula required to compute the autocorrelation coefficient at lag $k=2$ is structured below, combining the numerator (autocovariance) divided by the denominator (total variance):

=(SUMPRODUCT(B2:B14-AVERAGE(B2:B16), B4:B16-AVERAGE(B2:B16))/COUNT(B2:B16))/VAR.P(B2:B16)

To understand its functionality, we must examine the components. The denominator, VAR.P(B2:B16), calculates the population variance of the complete original series, providing the essential normalizing factor for the correlation. The numerator employs the powerful SUMPRODUCT function to compute the sum of the products of deviations from the mean for the two respective arrays: (B2:B14) and (B4:B16). Crucially, both arrays are centered by subtracting the overall mean, AVERAGE(B2:B16), from every element. The result of the SUMPRODUCT is then divided by COUNT(B2:B16), which standardizes the covariance calculation to yield the sample autocovariance, thereby finalizing the numerator.

Interpreting the Result for Lag k = 2

When this meticulously constructed formula is executed in an Excel cell, it performs the required array mathematics to determine the sample autocorrelation coefficient for a lag of 2. The resulting numerical output precisely measures the linear relationship existing between any given observation and the observation two periods antecedent. The outcome of this calculation in the spreadsheet environment is visualized below:

Executing this procedure yields a value of 0.656325. This figure represents the autocorrelation at lag $k=2$. Since the value is significantly positive (approaching +1), it conclusively demonstrates a strong positive correlation: high values in the series are highly likely to be followed by high values two periods later, and similarly, low values tend to follow low values. This strong dependence structure suggests that the time series possesses a pronounced memory extending across two intervals.

From a forecasting perspective, a strong positive autocorrelation at a specific lag provides invaluable guidance. If the value of the series from two periods ago is known, we gain a relatively high degree of confidence regarding the direction or magnitude of the current value. This behavior is characteristic of many natural, physical, and economic processes that exhibit inherent cyclicality or inertia, where system changes require time to fully materialize and propagate.

Extending the Calculation to Higher Lags (k=3 and Beyond)

To calculate the autocorrelation coefficient for any other lag, such as $k=3$, the analyst must systematically adjust the array ranges utilized within the SUMPRODUCT function to accurately reflect the three-period shift. For a lag of 3, the current series array must now commence at B5 and extend to B16 (losing the first three values: B2, B3, B4), while the lagged series array must start at B2 and run to B13. It is imperative to remember that the references to the overall mean and population variance (B2:B16) remain fixed, as they refer to the immutable characteristics of the entire sample population.

The revised formula for calculating the autocorrelation at lag $k=3$ incorporates the necessary three-period shift in the array ranges:

=(SUMPRODUCT(B2:B13-AVERAGE(B2:B16), B5:B16-AVERAGE(B2:B16))/COUNT(B2:B16))/VAR.P(B2:B16)

This careful adjustment guarantees that the covariance calculation accurately pairs the values that are separated by exactly three time periods. It is worth noting that the number of terms summed in the numerator slightly decreases (from 13 terms for $k=2$ to 12 terms for $k=3$), reflecting the exclusion of three initial observations required to accommodate the necessary lag.

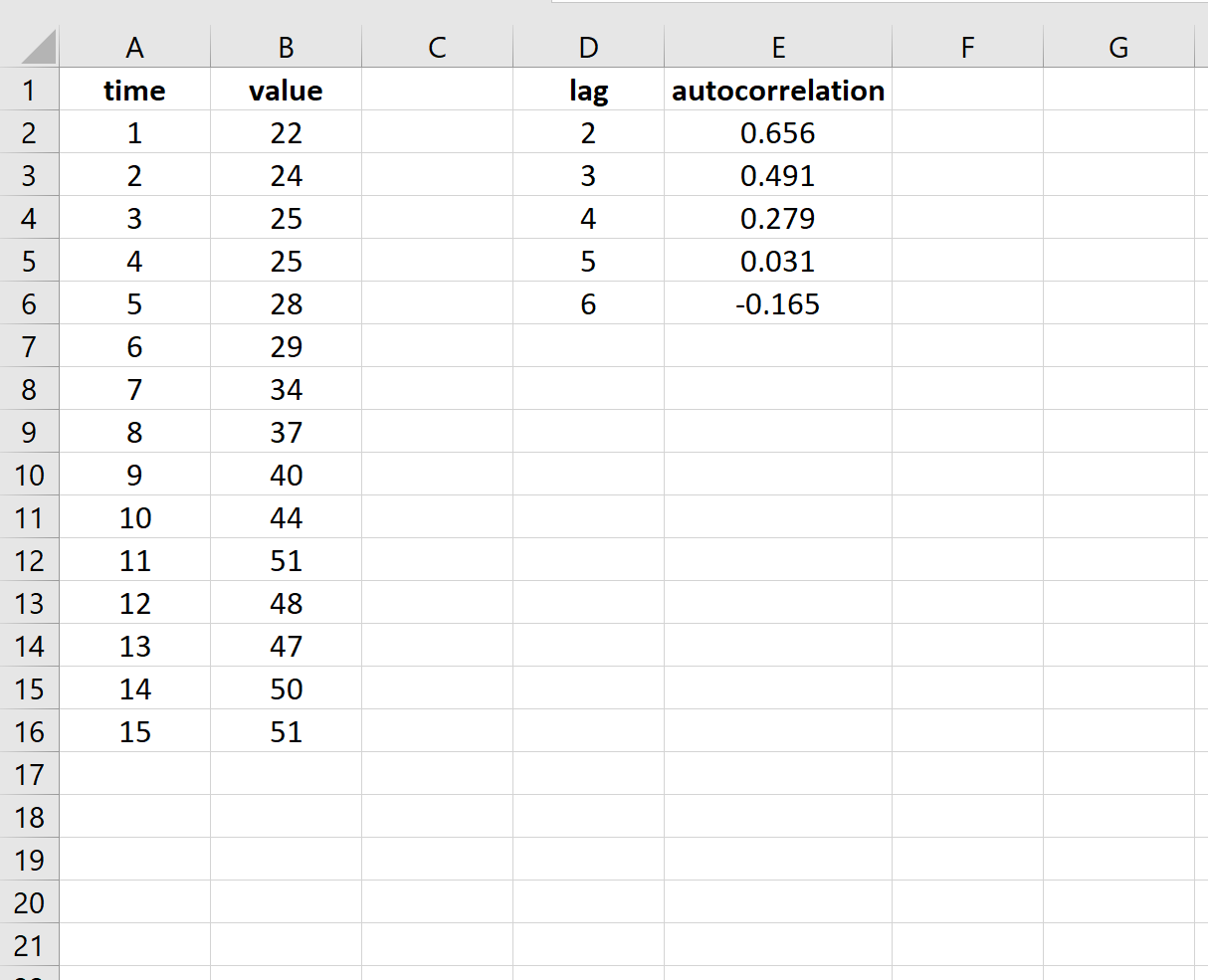

Upon execution, this calculation produces the subsequent result in Excel:

The resulting value for the autocorrelation at lag $k=3$ is 0.49105. When compared to the lag $k=2$ value (0.656325), we observe a clear decline in the correlation strength. This observed pattern—where dependency decays as the temporal lag increases—is highly characteristic and strongly indicative of a stable, stationary time series process. Such behavior is typically modeled by standard autoregressive (AR) models, where the influence of past events naturally diminishes over time.

Interpreting the Autocorrelation Function (ACF) Plot

By systematically repeating this dynamic calculation—incrementally adjusting the array ranges to reflect increasing lags—we can derive the autocorrelation coefficient for every significant lag. This complete collection of coefficients across various lags is formally known as the Autocorrelation Function (ACF). The ACF is customarily visualized using a plot, where the lag $k$ is mapped on the x-axis and the corresponding autocorrelation coefficient $r_k$ is placed on the y-axis.

The final visual representation of the calculated ACF for our illustrative series effectively displays the overall dependency structure of the time series data:

As clearly depicted in the plot, the autocorrelation decreases steadily and smoothly as the lag increases. This distinctive pattern, which resembles exponential decay, is the signature characteristic of an autoregressive process of order one (AR(1)). When analyzing a time series, if the ACF gradually tails off toward zero, it provides strong evidence that the series can be accurately modeled using its own lagged values. Conversely, if the ACF were to drop abruptly to zero after a specific lag, it would suggest a moving average (MA) process. By mastering the implementation of this complex Excel formula, analysts gain the ability to perform this essential diagnostic step even without access to specialized statistical software, unlocking deep insights into the underlying mechanisms driving the data dynamics.
