Understanding Autocorrelation in Time Series Analysis: A Python Tutorial

Autocorrelation, often referred to as serial correlation, stands as a cornerstone statistical measure within time series analysis. Essentially, it quantifies the degree of linear relationship or similarity between a sequence of observations and that same sequence shifted backward by a defined number of time steps, known as a lag. This powerful metric helps analysts understand how past values influence current values within the dataset, providing the foundational insight needed for predictive modeling.

Grasping the concept of autocorrelation is vital for any serious data scientist because it illuminates the fundamental patterns and internal dependencies hidden within the data. Since it explicitly assesses the statistical link between a variable’s present state and its historical values, a high autocorrelation coefficient suggests that the data possesses a strong “memory.” When this serial correlation is statistically significant, it dramatically simplifies the process of forecasting future values, as predictions can be reliably inferred simply by referencing preceding observations. This makes autocorrelation an indispensable tool for robust model building and time series decomposition.

Implementing Autocorrelation Calculations in Python

To commence our calculation of autocorrelation, the first step involves defining our sample dataset within the Python environment. We will utilize a standard list representing a typical time series. This series tracks the value of a certain variable across fifteen distinct time periods, providing a clear basis for our analysis:

#define data
x = [22, 24, 25, 25, 28, 29, 34, 37, 40, 44, 51, 48, 47, 50, 51]

The most streamlined and efficient method for computing the autocorrelation across every possible lag in a time series is by utilizing the specialized statsmodels library. This industry-standard library is specifically engineered for intricate statistical modeling tasks. It provides the specialized acf() function (Autocorrelation Function) located within its time series analysis module, which handles the complex calculations automatically and returns the coefficients for all available lags.

import statsmodels.api as sm

#calculate autocorrelations
sm.tsa.acf(x)

array([ 1.        ,  0.83174224,  0.65632458,  0.49105012,  0.27863962,
        0.03102625, -0.16527446, -0.30369928, -0.40095465, -0.45823389,
       -0.45047733])

Interpreting the Autocorrelation Coefficients

The output generated by the acf() function is a numerical array containing the autocorrelation coefficients, corresponding sequentially to various lags. Interpreting these resulting values is critical for understanding the time series structure, and the process is quite straightforward, starting from the zero lag:

• The autocorrelation at lag 0 is always, by mathematical definition, 1.0. This indicates that the time series is perfectly correlated with itself when shifted by zero periods.
• The coefficient at lag 1 is 0.8317. This high positive value indicates a very strong direct correlation between any given observation and the value that immediately preceded it.
• The correlation observed at lag 2 is 0.6563.
• At lag 3, the coefficient drops to 0.4910. This demonstrates the typical pattern where the strength of the correlation weakens as the temporal distance (the lag) between observations increases.

These coefficients continue for subsequent lags. As the lag increases, the correlation generally diminishes, eventually approaching zero. If the coefficient becomes negative, it signifies an inverse relationship, meaning an increase in a past observation corresponds to a decrease in the current observation. Analyzing this decay pattern is essential for determining suitable models like autoregressive models.

Focusing the Analysis using the nlags Argument

In many time series analysis applications, calculating autocorrelation for every mathematically possible lag is often unnecessary. This is especially true when dealing with short series or when the focus is strictly on identifying short-term dependencies. The acf() function provides precise control over the scope of the analysis using the nlags argument.

By setting nlags to a specific integer value, we instruct the function to limit the calculation to that exact number of periods. For instance, if our research hypothesis only requires the autocorrelation coefficients for the first five lags, we execute the command as demonstrated below:

sm.tsa.acf(x, nlags=5)

array([1.0, 0.83174224, 0.65632458, 0.49105012, 0.27863962, 0.03102625])

The resulting array confirms this focused approach. It now contains six elements: the required autocorrelation coefficient at lag 0 (which is always 1), followed by the coefficients for lags 1 through 5. This provides a clear, concentrated view of the critical short-term serial dependence without the distraction of potentially noisy or irrelevant information from higher-order lags.

Visualizing Serial Dependence: Plotting the Correlogram

While precise numerical results are vital, the graphical representation of the Autocorrelation Function (ACF), commonly known as a correlogram, is an indispensable diagnostic tool. A visual plot enables rapid diagnosis of a time series’ intrinsic properties, such as the presence of linear trends, periodic seasonality, or potential stationarity issues that are not immediately obvious from raw coefficients.

Plotting the ACF in Python is made simple using the tsaplots.plot_acf() function, which integrates seamlessly with the statsmodels library. Note that this function relies on the Matplotlib library for rendering the visualization. The following code snippet demonstrates how to generate the correlogram for our sample data, calculating and plotting the results up to 10 lags:

from statsmodels.graphics import tsaplots
import matplotlib.pyplot as plt

#plot autocorrelation function
fig = tsaplots.plot_acf(x, lags=10)
plt.show()

Refining ACF Plots for Specific Temporal Views

For enhanced clarity and to maintain the relevance of the visualization, it is often advantageous to limit the maximum number of lags displayed in the plot. By utilizing the lags argument within the tsaplots.plot_acf() function, analysts can effectively “zoom in” on the short-term dependencies, thereby excluding potentially noisy or statistically insignificant correlations that occur at much higher lags.

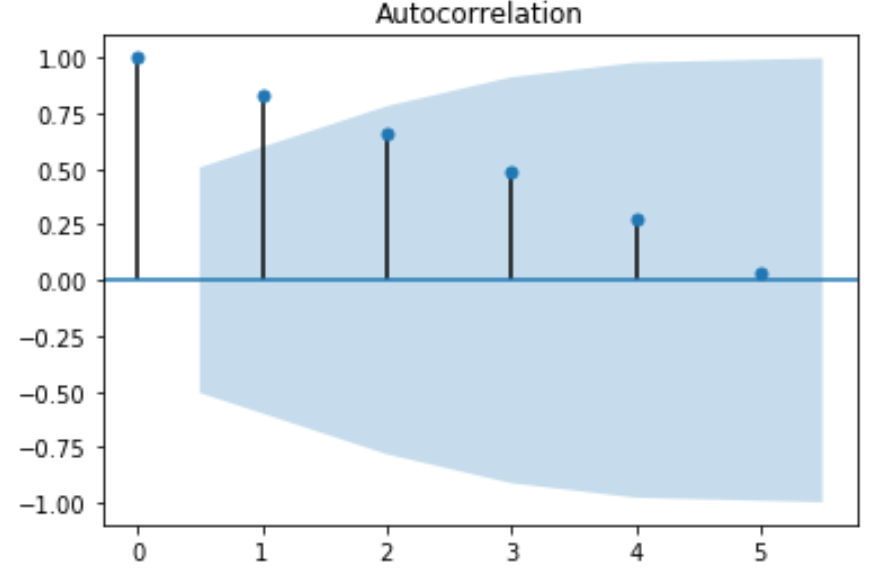

If the goal is to visualize the serial correlation only up to the fifth period, setting lags=5 produces a significantly more focused and interpretable chart, concentrating the viewer’s attention on the strongest dependencies in the recent past:

from statsmodels.graphics import tsaplots
import matplotlib.pyplot as plt

#plot autocorrelation function
fig = tsaplots.plot_acf(x, lags=5)
plt.show()

Customizing the Visual Appearance of the Correlogram

Beyond simply rendering the plot, the visual quality and readability of the ACF output can be significantly enhanced through additional arguments that control aesthetic elements. Customization allows the plot to integrate better into formal reports or academic publications.

Specifically, the title argument enables the specification of a custom heading for the visualization, ensuring it is clearly and descriptively labeled. Furthermore, the color argument modifies the color of the correlation markers (the vertical lines and circles), allowing for alignment with specific corporate branding or style guides. In the example provided below, we apply a clear custom title and explicitly set the marker color to green (‘g’).

from statsmodels.graphics import tsaplots
import matplotlib.pyplot as plt

#plot autocorrelation function
fig = tsaplots.plot_acf(x, lags=5, color='g', title='Autocorrelation function')
plt.show()
