Understanding and Calculating Class Width for Histograms and Frequency Distributions in Google Sheets

When professional analysts structure raw data into meaningful and interpretable groups, they rely fundamentally on a core statistical measure known as the class width. This measurement is absolutely indispensable for generating clear, insightful graphical representations, most notably frequency distributions and histograms.

The class width establishes the size or range of values encompassed within each category, ensuring that the entirety of the data’s spread is covered both logically and efficiently. Achieving an accurate calculation of this width is the crucial initial step in transforming a complex, disorganized list of numbers into a powerful visual tool for statistical analysis.

Fundamentally, the class width is defined as the numerical difference between the upper and lower boundaries of any specific class interval. If the data is improperly grouped, or if the width is selected arbitrarily without adhering to statistical guidelines, the resulting analysis can become highly misleading or exceptionally difficult for stakeholders to interpret.

The Role of Class Width in Statistical Analysis

To fully appreciate the concept of class width, one must first understand its application within a basic frequency distribution. This essential statistical structure organizes either continuous or discrete data points into predefined intervals, allowing researchers to observe how frequently values fall within designated numerical ranges. This structure provides immediate insight into the central tendency and variability of the dataset.

A well-constructed distribution relies on consistency. Every class interval must possess the exact same width. This uniformity guarantees equitable representation across the entire range of observed values, preventing biases that might arise from disproportionately large or small categories. Achieving this consistency requires a systematic approach to defining the boundaries.

Defining and Visualizing Class Intervals

Consider the following simple frequency distribution table. This example visually demonstrates the necessity for a consistent class width across all intervals, making the data instantly comparable:

In a scenario where the classes are already defined, calculating the class width is a straightforward process involving simple subtraction of the boundaries. Typically, the width is calculated by subtracting the lower boundary of the current class from the lower boundary of the next class. Alternatively, one might subtract the lower boundary from the upper boundary and adjust by one, depending on whether the boundaries are defined as inclusive or exclusive.

• The class width for the first interval is calculated as 5 – 1 = 4.
• The class width for the second interval is calculated as 10 – 6 = 4.
• The class width for the third interval is calculated as 15 – 11 = 4.

This calculated consistency, where the class width is uniformly 4, is the hallmark of a statistically valid frequency table. However, the true challenge arises when we start with raw data and must determine this width from scratch.

The Universal Formula for Preliminary Class Width

While calculating the width is simple once the classes are established, the primary difficulty for the analyst lies in determining the appropriate width when starting solely with raw, unstructured data. To guide this crucial initial determination for any given dataset, statisticians rely on a standardized and universally accepted formula.

This standard statistical formula is used to calculate the preliminary class width necessary to cover the entire spread of observations:

Class width = (Max – Min) / n

This formula effectively relates the total dispersion of the data—often referred to as the range (Max – Min)—to the desired number of groups, ensuring that the resulting class intervals are both comprehensive and manageable. The result of this calculation provides the minimum required width needed to guarantee that every single data point is accounted for in the distribution.

The variables within this fundamental formula represent critical components of your statistical analysis:

• Max: Represents the maximum value, which is the highest numerical observation within the entire dataset.
• Min: Represents the minimum value, which is the lowest numerical observation within the entire dataset.
• n: Represents the desired number of classes (or bins) that the user intends to employ in the final frequency distribution.

The selection of ‘n’ is typically guided by established statistical rules, such as Sturges’ Rule, or by practical considerations related to interpretability. For most routine or basic analyses, ‘n’ is a user-defined choice, generally kept within the manageable range of 5 to 15 classes.

Step-by-Step Calculation Using Google Sheets

In contemporary data environments, spreadsheet software is the primary engine for manipulating and analyzing large volumes of data. We will now demonstrate how to calculate the required class width efficiently using Google Sheets, leveraging its robust suite of built-in statistical functions.

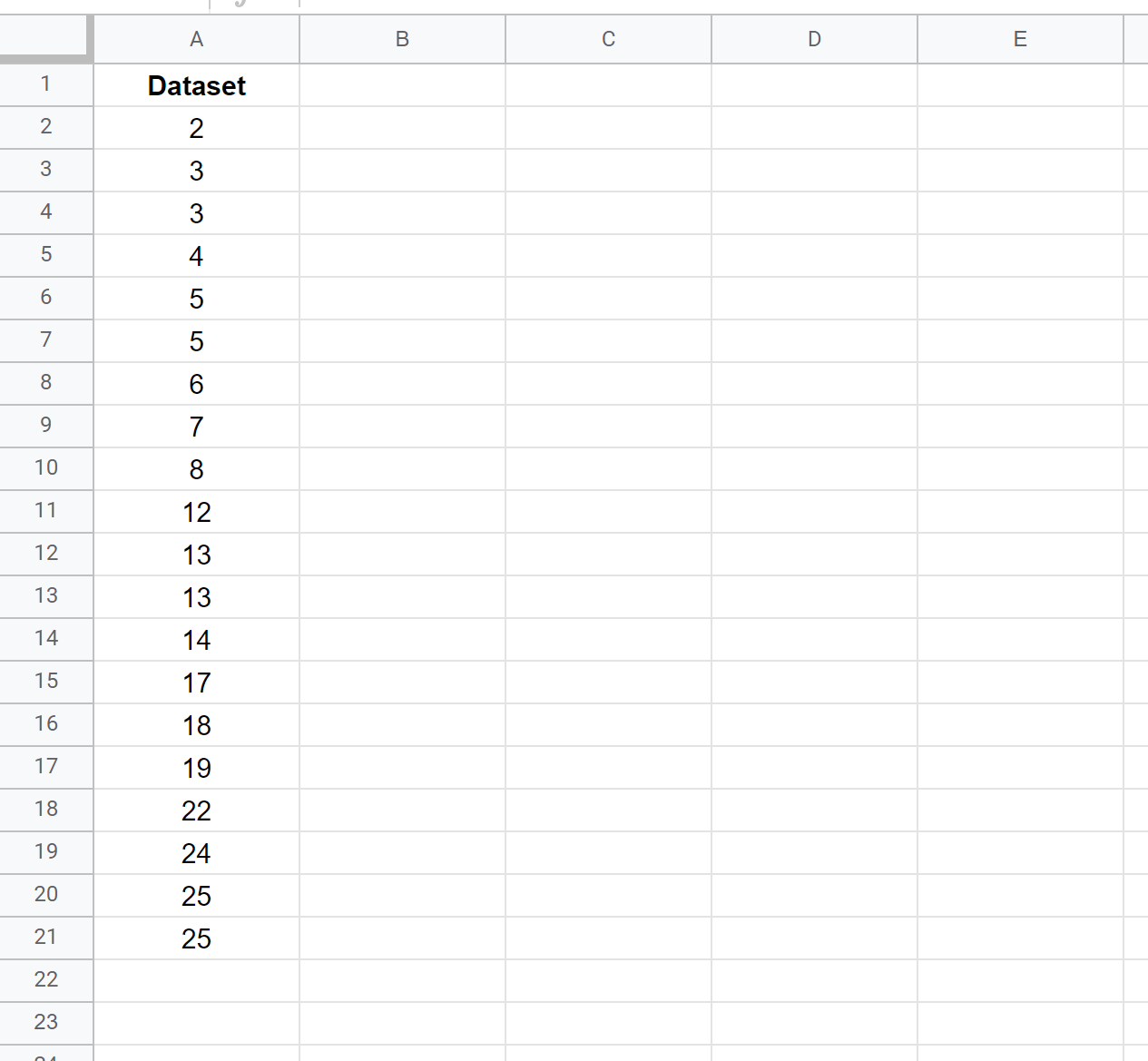

Imagine we have collected a sample dataset consisting of 20 numerical values. These values could represent test scores, experimental measurements, or any other form of quantitative data requiring organization:

Our objective is to construct a visually clear and statistically accurate frequency distribution for these 20 data points. For the purpose of this illustration, we have predetermined that 5 classes (n = 5) will offer the best visual balance between retaining necessary detail and ensuring straightforward simplicity for our final visualization.

The immediate task in Google Sheets is to determine the data’s range (Max – Min) and then accurately divide this range by our chosen number of classes (5). Fortunately, Google Sheets simplifies this process by providing the powerful aggregate functions, MAX() and MIN(), which automatically identify the highest and lowest values, respectively, within the specified data range (A2 through A21).

Executing the MAX/MIN Formula in Google Sheets

To calculate the preliminary class width, we must combine the functions for locating the maximum and minimum values, ensuring that the division by our desired class count (n=5) is performed last. This entire calculation is entered as a single formula directly into any empty cell within the spreadsheet environment.

The following formula structure is used in Google Sheets to efficiently determine the required class width for constructing this frequency distribution:

=(MAX(A2:21)-MIN(A2:A21))/5

The individual components of the formula operate as follows: MAX(A2:A21) locates the largest score or value in the data, while MIN(A2:A21) identifies the smallest. Subtracting the minimum from the maximum yields the total range of the data. Dividing this calculated range by 5 (our predefined number of classes) provides the mathematically precise, raw class width.

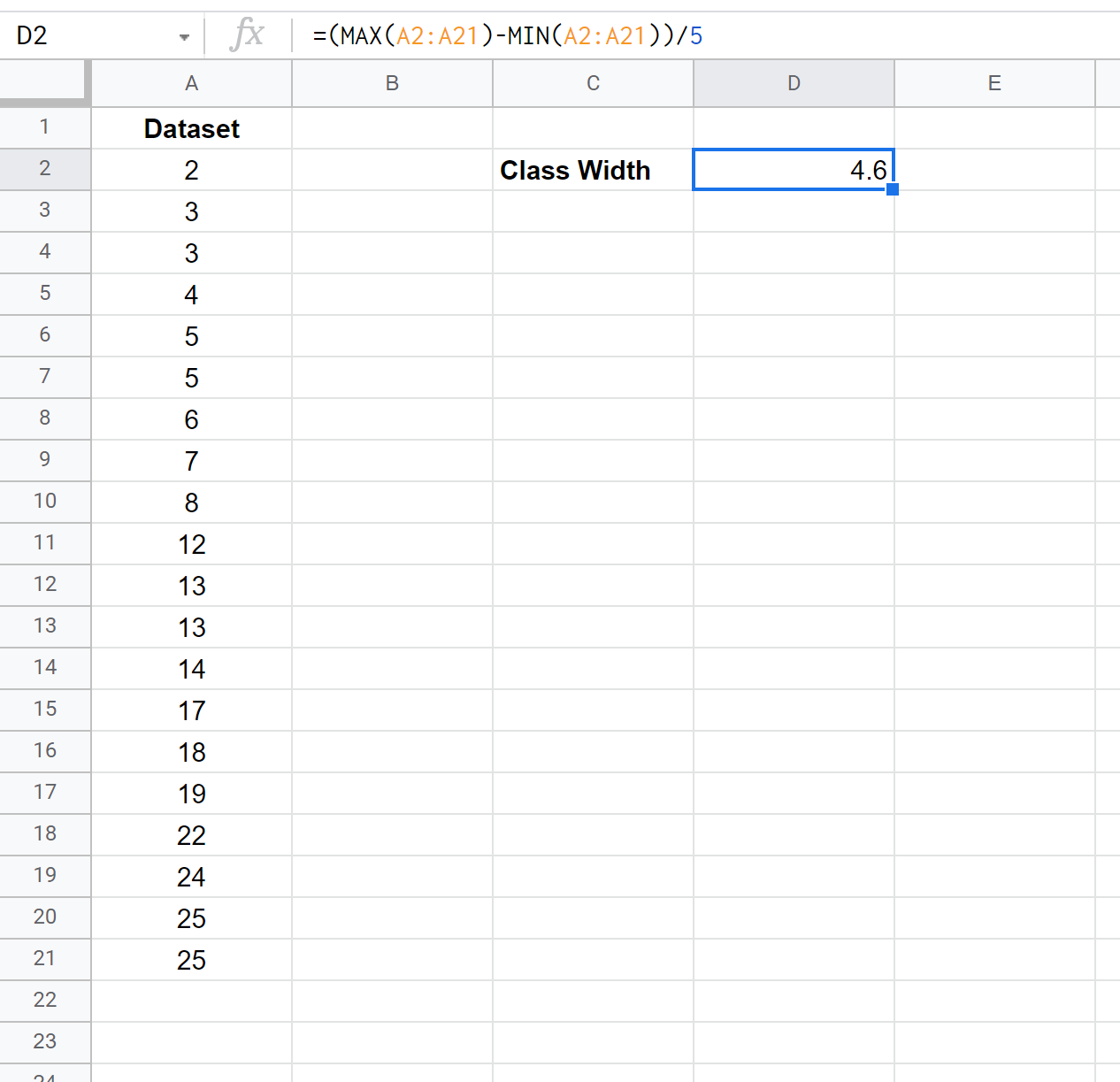

Upon execution, Google Sheets returns the precise numerical result for the required width:

The raw calculated class width is found to be 4.6. While mathematically exact, this non-integer value presents a practical challenge when we must define clean, non-overlapping, and easily countable class boundaries for an integer-based dataset.

The Critical Importance of Upward Rounding

It is common for a calculated class width to yield a decimal value, as we observed with 4.6. When establishing the definitive class boundaries for a frequency distribution, especially when the original data consists of whole numbers or integers, statisticians adhere to a strict rule of thumb: the calculated class width must always be rounded up to the next highest integer.

This mandatory upward rounding is essential because it guarantees that the resulting class structure possesses sufficient breadth to contain every single data point, critically including the absolute maximum value in the dataset. If, hypothetically, we were to round 4.6 down to 4, the total range covered by 5 classes of width 4 would be 20 units. Given that our data range is 23 units (27-4), this insufficient coverage would result in the highest data points being completely excluded from the distribution, rendering the analysis incomplete.

Therefore, irrespective of standard mathematical rounding rules, the statistical imperative is always to round up. In this specific calculation, 4.6 is rounded up to the nearest integer, resulting in a finalized, usable class width of 5. This finalized width is the value used to construct clear, non-overlapping, and tabulation-ready class intervals.

Finalizing the Data Structure: Building the Frequency Table

Armed with the determined and rounded class width of 5, we can now methodically construct the final frequency table. This process begins at the minimum value (or a statistically convenient starting point slightly below it) and involves sequentially adding the class width (5) to define the upper and lower limits for each of the five required classes.

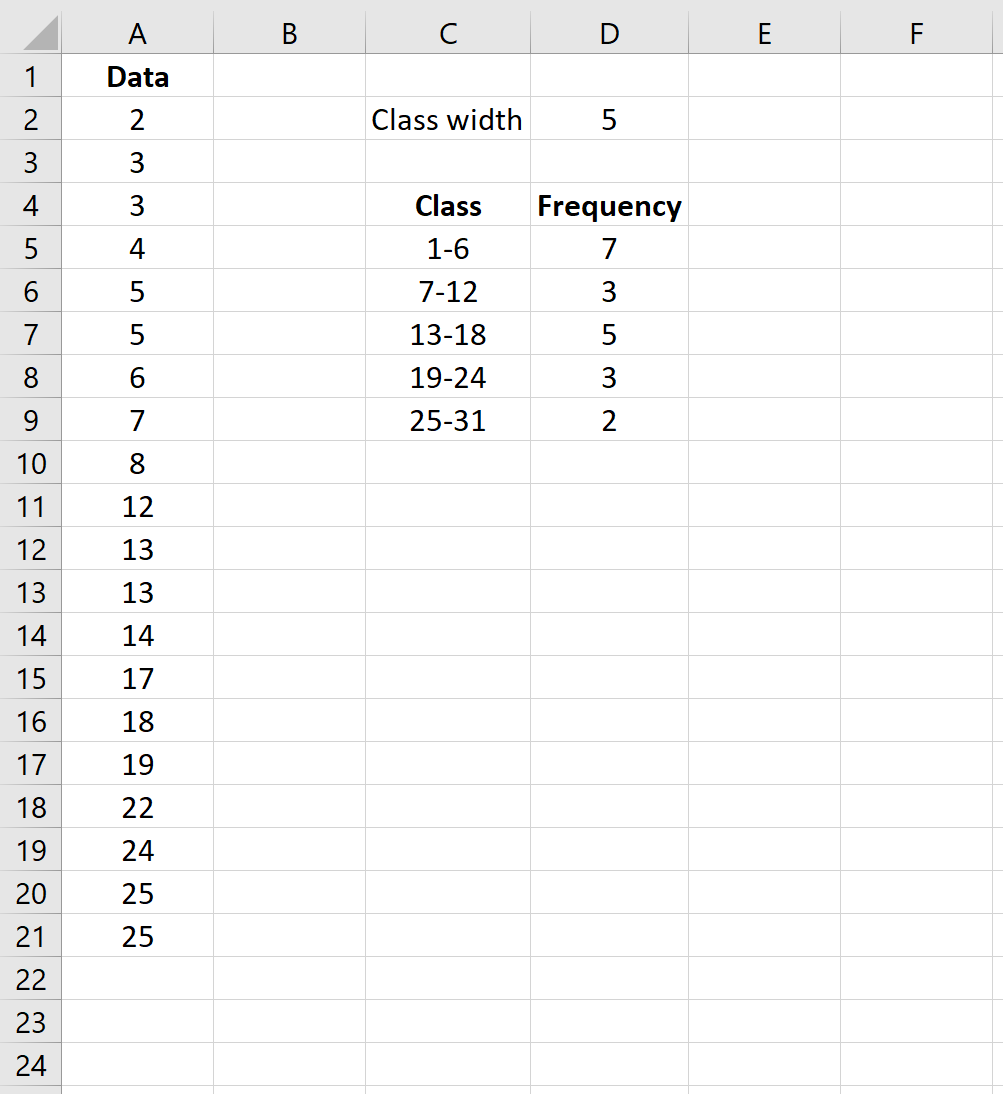

The resulting frequency table successfully organizes the 20 raw scores into five distinct, manageable categories, ready for further analysis and visualization:

A final review of this distribution confirms the successful application of both the range calculation and the statistical rounding principles. Several key structural observations validate the accuracy of the process:

• The width for every single class interval (e.g., 1-5, 6-10, 11-15, etc.) maintains absolute consistency at 5.
• The sum of the values listed in the “Frequency” column precisely equals 20. This total accurately matches the total number of values originally present in our raw dataset, confirming that all data points were captured without omission or duplication.

By diligently following this methodical approach—calculating the data range, dividing by the desired number of classes, and applying the necessary upward rounding—any analyst can accurately determine and apply the appropriate class width for organizing data using the powerful calculation capabilities inherent in Google Sheets.
