Comparing Lists in Excel: Using VLOOKUP to Find Differences

The Power of VLOOKUP in Data Comparison

Comparing large datasets in Excel is a fundamental task for data analysts and business professionals, often necessary to identify discrepancies, missing entries, or unique values between two lists. While several methods exist for this purpose, utilizing the VLOOKUP function in conjunction with error handling provides one of the most robust and elegant solutions. This approach allows users to quickly cross-reference a lookup value from one list against an entire range in a second list, returning a clear indication of whether a match is found.

When the VLOOKUP function cannot locate the specified lookup value within the designated table array, it returns the standard #N/A error value. This error signal is precisely what we leverage for comparison. By wrapping the VLOOKUP function within the ISNA function, we convert this error output into a simple Boolean result: TRUE if the item is missing (i.e., VLOOKUP resulted in #N/A), or FALSE if the item was successfully found.

The core structure required to compare two lists effectively using this method is demonstrated below. This specific formula checks if the value in cell A2 exists anywhere within the range $C$2:$C$9. The use of absolute references (the dollar signs) for the lookup range is critical when applying this formula across multiple cells, ensuring that the reference range does not shift as the formula is copied down the column.

=ISNA(VLOOKUP(A2,$C$2:$C$9,1,False))

By integrating this powerful Boolean logic with Conditional Formatting, we can automate the visualization of these comparison results. This allows Excel to instantly highlight every value in column A that lacks a corresponding match within the defined range in column C, providing immediate clarity on data inconsistencies.

Understanding the Core Comparison Formula

To master this comparison technique, a deep understanding of each component of the formula is necessary. The expression `=ISNA(VLOOKUP(A2,$C$2:$C$9,1,False))` is a composite function designed specifically for error trapping and validation. Let us break down the internal VLOOKUP call first. The function searches for the content of cell A2 (the lookup value) within the first column of the table array $C$2:$C$9. We specify the column index number as 1 because we are only interested in matching the value itself, not returning data from subsequent columns. Crucially, the range lookup argument is set to False, mandating an exact match; this is vital for accurate list comparisons.

If the lookup value from A2 is successfully located in the C column range, the VLOOKUP function will return the matched value. However, if the value is absent from the comparison list, VLOOKUP returns the error value #N/A. This is where the external function, ISNA, takes over. The ISNA function checks its argument—the result of the VLOOKUP—and returns TRUE only if that result is #N/A. Conversely, if VLOOKUP finds a match and returns a valid value, ISNA returns FALSE.

When this combined formula is used within the framework of Conditional Formatting, Excel interprets a TRUE result as the condition being met, triggering the defined formatting (e.g., highlighting). A FALSE result means the value was found in both lists, and no special formatting is applied. This powerful synergy allows the formula to function as a highly efficient filter, singling out only the unmatched entries from the primary list. The following example illustrates how to deploy this technique effectively to solve a common data auditing challenge.

Practical Application: Setting Up the Datasets

To demonstrate the practical application of this comparison method, consider a scenario where we have two separate lists of team names. Dataset 1 (in column A) represents a comprehensive list of all teams currently in our database, and Dataset 2 (in column C) represents a subset of teams that have recently completed a required compliance audit. Our primary goal is to quickly and accurately identify which teams in the comprehensive list (Dataset 1) are missing from the compliance list (Dataset 2), highlighting these discrepancies for follow-up action.

Suppose we have structured the following two datasets within our Excel worksheet, starting at row 2 for data entry:

As shown in the image, Dataset 1 occupies cells A2 through A10, while Dataset 2 is located in cells C2 through C9. Although the lists are relatively small in this demonstration, this method scales perfectly to lists containing thousands of entries. We must now proceed with the objective: identifying the teams listed in Dataset 1 that do not have a corresponding entry in Dataset 2. This process relies entirely on applying the formula to the primary list (Dataset 1) and referencing the secondary list (Dataset 2) as the lookup array.

Before proceeding to the formatting stage, ensure that your data is clean and consistent. VLOOKUP requires exact matches when the range lookup argument is set to False, meaning that minor differences in spelling, leading or trailing spaces, or capitalization (depending on your Excel settings) can prevent a match, leading to false positives (teams being highlighted even though they exist). Preparing the data correctly is the first crucial step toward accurate list comparison.

Implementing Conditional Formatting for Visualization

The power of this technique is unlocked when the comparison formula is integrated into Conditional Formatting. This tool allows the visual presentation of data to be dynamically altered based on logical rules derived from formulas. The first step involves selecting the range of cells you wish to evaluate and format—in this case, all the team names in Dataset 1. Highlight the entire range in column A, from A2 down to the last entry.

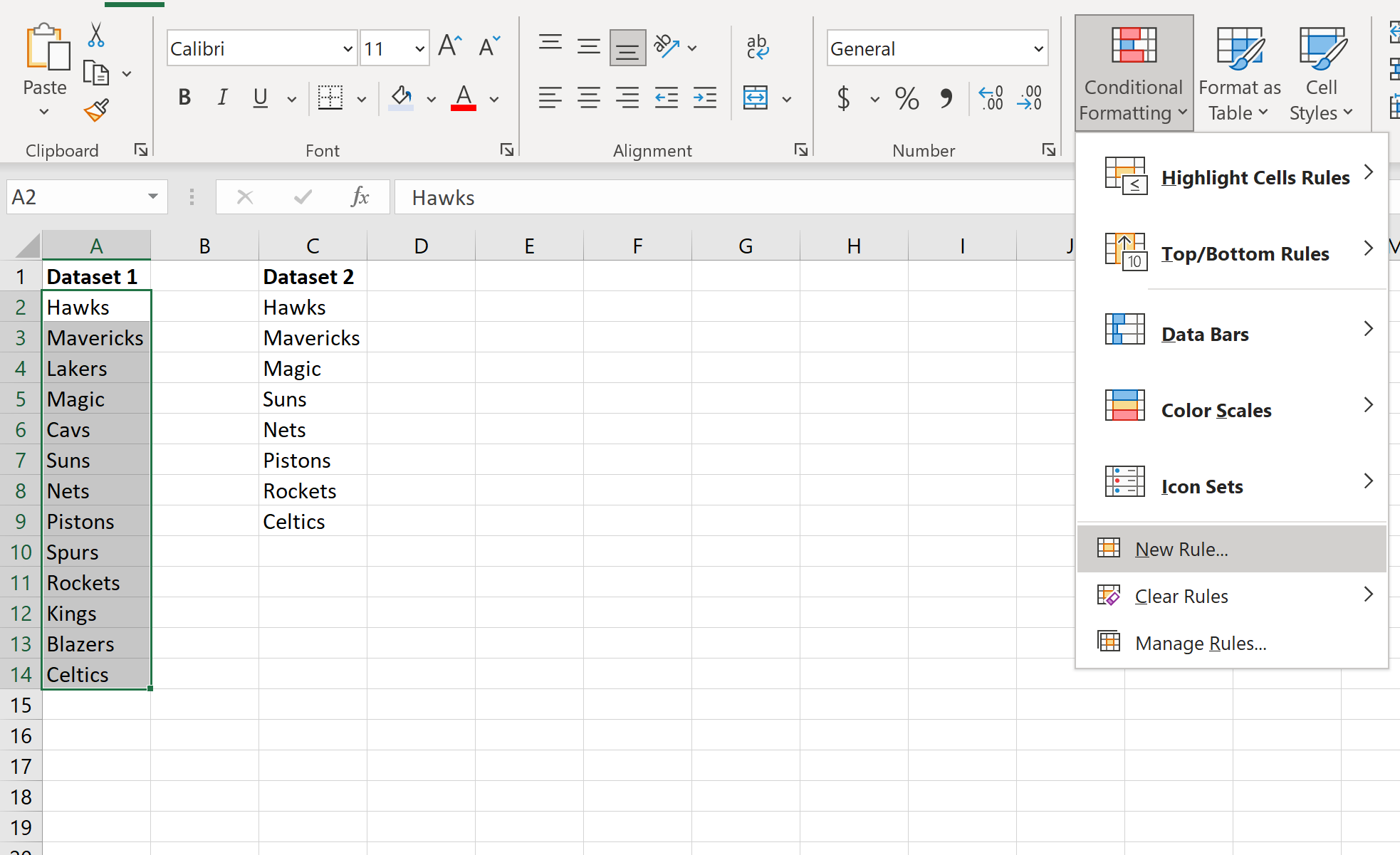

With the range selected, navigate to the Home tab located on the top ribbon of the Excel interface. Within the Styles group, locate and click the Conditional Formatting button. From the subsequent menu options, select New Rule… to initiate the creation of a custom formatting rule. This action will launch a dialog box prompting you to define the parameters of your new rule, which is essential for applying the comparison logic we developed earlier.

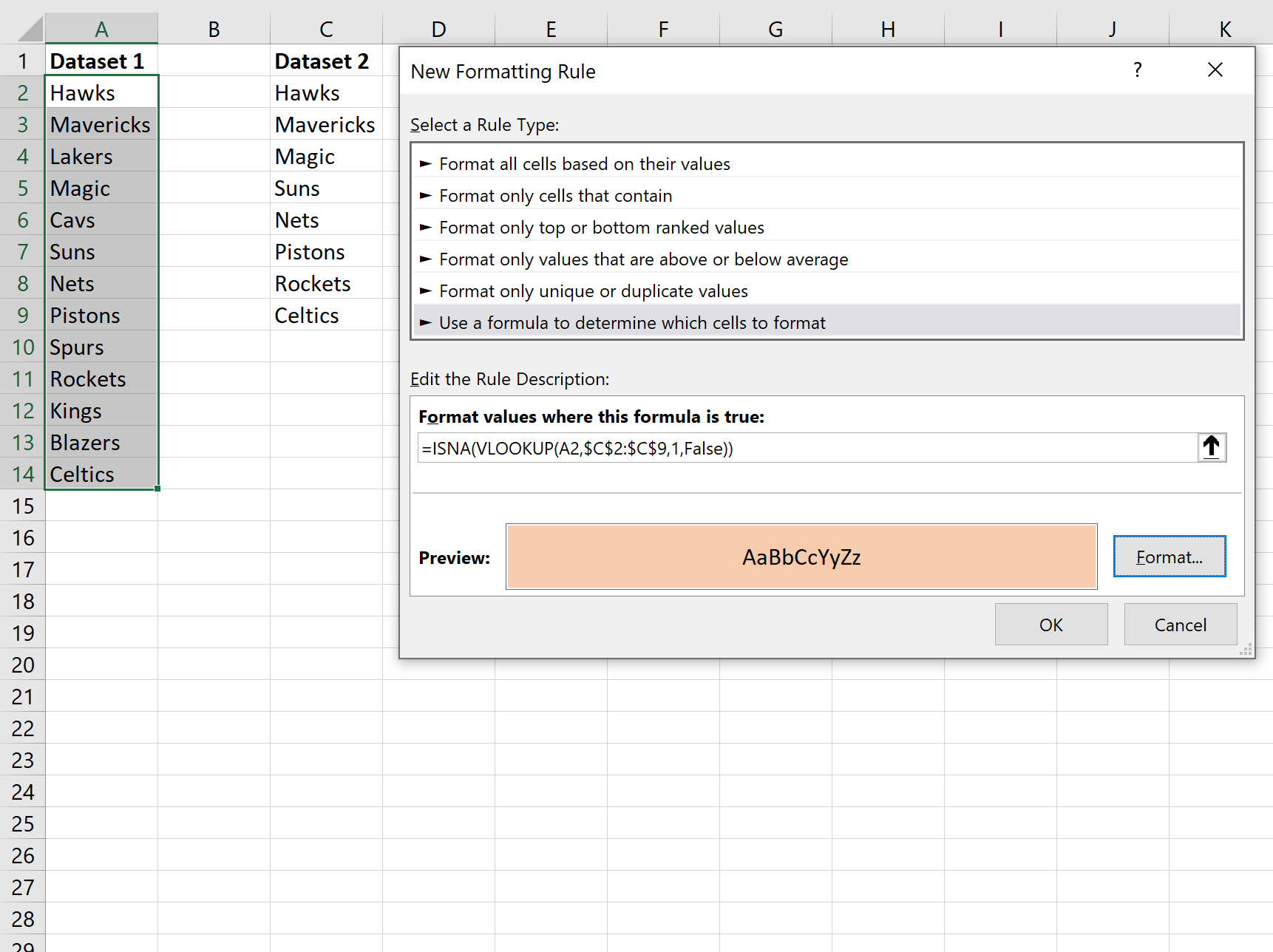

In the New Formatting Rule window that appears, you must specify that the rule will be determined by a custom formula. Select the option labeled Use a formula to determine which cells to format. This opens a dedicated field where the precise comparison logic must be entered. It is important to remember that when using a formula for Conditional Formatting, the formula must be written relative to the *first* cell in the selected range (which is A2 in this example), even though the formatting applies to the entire selection.

Type the exact comparison formula into the provided field. Note the use of absolute references (the dollar signs) for the lookup range ($C$2:$C$9), which locks the reference to Dataset 2 as the rule is evaluated for every cell in column A.

=ISNA(VLOOKUP(A2,$C$2:$C$9,1,False))

After entering the formula, click the Format button. This opens the Format Cells dialog box, allowing you to choose the desired visual styling for cells where the formula evaluates to TRUE (i.e., the unmatched values). Typically, a fill color is chosen for high visibility, but you can also adjust font style, borders, or number formats. Select a distinctive color—for instance, a bright red or yellow—to clearly indicate the missing items.

Analyzing the Results and Interpreting the Output

Once the formatting rule and the corresponding style have been defined, click OK to apply the rule to the selected range in column A. Excel immediately evaluates the formula for every cell in the selected range. Any cell for which the formula returns TRUE—meaning the team name was not found in the lookup range C2:C9—will instantly receive the defined formatting. The result is a visually filtered list, making the differences between the two datasets immediately obvious.

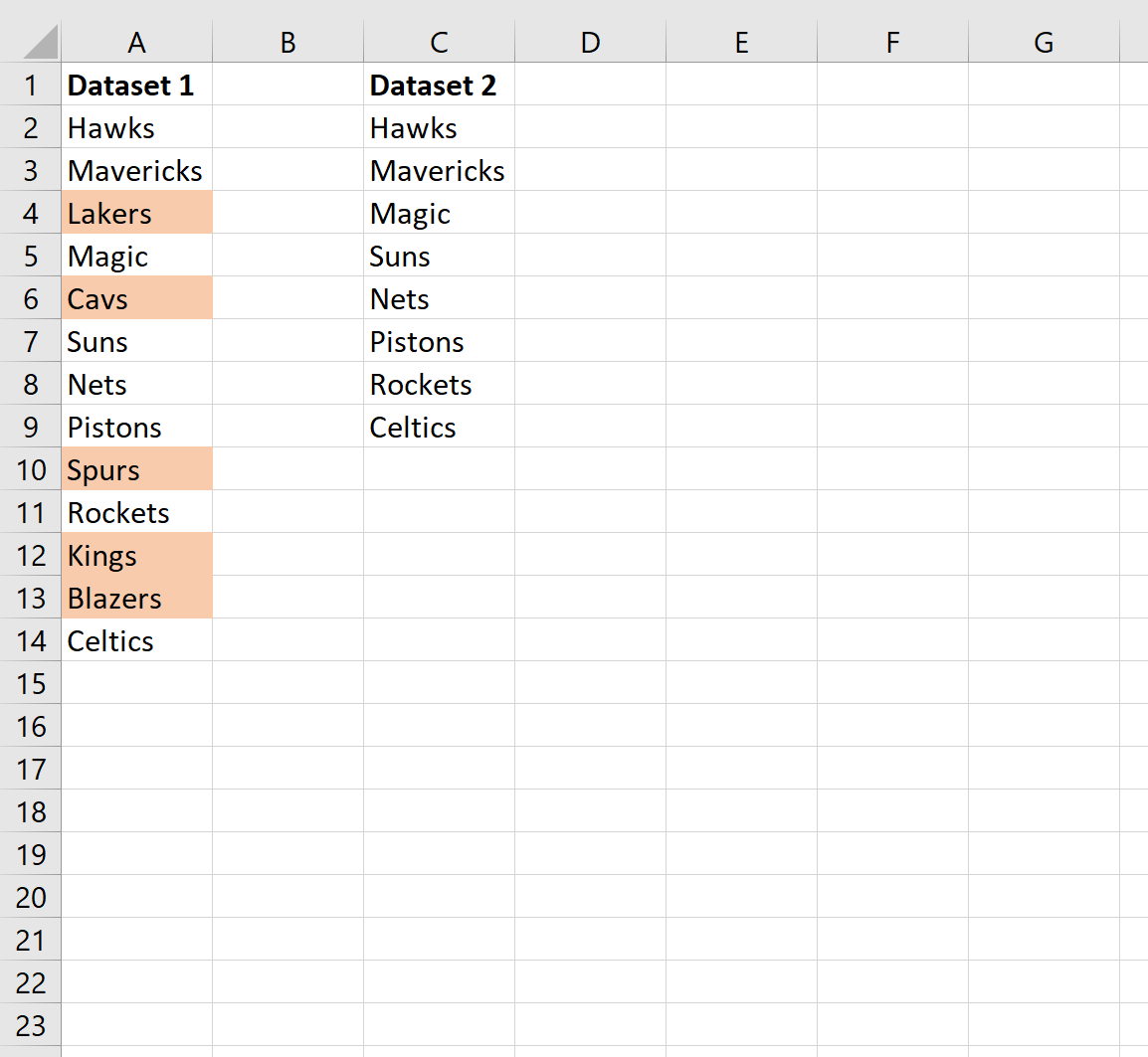

The image below illustrates the final outcome of applying the Conditional Formatting rule. Notice that only certain team names in column A are highlighted, signifying that they are unique to Dataset 1 and are not present in the compliance list of Dataset 2. This visual output confirms the efficacy of the combined VLOOKUP and ISNA formula as a powerful data validation tool.

We can meticulously review the results to confirm the logic:

• Hawks appear in both Dataset 1 (A2) and Dataset 2 (C2). When VLOOKUP runs, it finds “Hawks,” returns the value, and ISNA returns FALSE. Therefore, it is not highlighted.
• Mavericks appear in both Dataset 1 and Dataset 2. The formula returns FALSE, and the cell is not highlighted.
• Lakers appear in Dataset 1 but are conspicuously absent from Dataset 2. VLOOKUP returns #N/A, ISNA returns TRUE, and the cell is highlighted, successfully identifying the discrepancy.

This systematic process allows for the rapid identification of all items in the primary list that require attention due to their absence from the secondary, reference list.

Customizing Formatting and Alternative Approaches

While highlighting with a fill color is the most common method for drawing attention to unmatched data, Conditional Formatting offers vast flexibility in how discrepancies are presented. Users are not limited to simply applying a background color. You could choose to format the font itself, perhaps making the text bolded, increasing its size, changing its color, or applying a specific border around the cells that return a TRUE result from the formula. The choice of styling depends entirely on the context of the data and the desired level of visual urgency.

It is also important to note that the comparison logic can be easily reversed to identify values that *do* belong to both datasets, rather than those that are missing. To achieve this, one would simply modify the error trapping mechanism. Instead of using the ISNA function, you would use the ISNUMBER function, often combined with MATCH or the VLOOKUP. A successful VLOOKUP returns a value (which is a number or text, not an error); thus, wrapping the VLOOKUP result in a function like NOT(ISNA(…)) or ISNUMBER(MATCH(…)) would return TRUE for matches, highlighting the common elements.

Furthermore, while this tutorial focuses on comparing two lists side-by-side in the same worksheet, this technique is easily adapted for comparing data across different worksheets or even separate Excel workbooks. The key requirement remains consistent: maintaining the proper absolute referencing for the table array (Dataset 2) within the formula, ensuring the lookup range is locked regardless of where the formula is applied. Mastering the combination of error-trapping functions and Conditional Formatting is a cornerstone skill for advanced data management in spreadsheet software.

Additional Resources

For users looking to further explore advanced list comparison methods and data validation techniques in Excel, the following related topics may provide valuable insights and alternative solutions.

• Understanding the differences between VLOOKUP and newer lookup functions like XLOOKUP or INDEX/MATCH.
• Using the COUNTIF function as an alternative method for comparing list presence and frequency.
• Advanced use of absolute versus relative references in formulas for dynamic data manipulation.
