Calculating Confidence Intervals in Excel: A Step-by-Step Tutorial

The ultimate result of applying this formula is a range bounded by a lower limit and an upper limit. This range is statistically constructed to encompass the unknown true population parameter at the specified level of confidence. For practical application, we will focus on calculating four distinct types of confidence intervals directly within Microsoft Excel, leveraging specific functions for each scenario:

Confidence Interval = [lower bound, upper bound]

• Confidence Interval for a Single Mean (Z-Statistic or T-Statistic)
• Confidence Interval for a Difference in Means
• Confidence Interval for a Single Proportion
• Confidence Interval for a Difference in Proportions

Mastering these calculations in Excel will significantly enhance your ability to perform statistical estimation and reliably interpret sample data.

Example 1: Confidence Interval for a Single Mean (Z-Statistic Approach)

The confidence interval for a mean is used to estimate the true average value of an entire population based on a collected sample. This technique is crucial for making inferences about population averages in wide-ranging fields, including quality control, financial modeling, and scientific research. We employ the Z-statistic when one of two conditions is met: either the population standard deviation is known, or the sample size (N) is sufficiently large (conventionally N > 30), allowing the use of the normal distribution approximation.

The calculation utilizes the sample mean (x) as the anchor point estimate. The Z-score corresponding to the desired confidence level dictates the margin of error, which is then adjusted based on the population standard deviation and the sample size.

Confidence Interval = x +/- z*(s/√n)

The variables used in this calculation represent the following statistical components:

• x: The observed sample mean, serving as the central point estimate.
• z: The chosen Z-critical value associated with the confidence level (e.g., 1.96 for 95% confidence).
• s: The sample or population standard deviation, measuring the dispersion of the data points.
• n: The total size of the sample collected.

Practical Example: Imagine a study focusing on estimating the average weight of a specific species of turtle. A random sample is collected, and the following descriptive statistics are generated, assuming the sample size is large enough or the population standard deviation is known for Z-test application:

• Sample size (n) = 25
• Sample mean weight (x) = 300 grams
• Sample standard deviation (s) = 18.5 grams

To compute the 95% confidence interval in Excel, we leverage the built-in CONFIDENCE.NORM function (for Z-test, assuming the standard deviation reflects the population or N is large). This function requires the alpha level (0.05 for 95% CI), the standard deviation, and the sample size as inputs. The result of this function is the margin of error, which is then added to and subtracted from the sample mean.

The calculation yields a 95% confidence interval for the true population mean weight of turtles as [292.75, 307.25]. This result allows us to state with 95% confidence that the actual average weight of this species lies somewhere within this estimated range, highlighting the precision of our estimation.

Example 2: Confidence Interval for a Difference in Means

When conducting comparative research, the primary goal is often to quantify the distinction between the average outcomes of two independent groups or populations. Calculating a confidence interval for the difference in population means is critical for determining if any observed variability between two samples is statistically significant, suggesting a genuine difference between the two underlying populations. This method is extensively used in fields comparing experimental treatments, product performance, or demographic metrics.

For scenarios where we assume the variances of the two populations are approximately equal (a standard assumption for the pooled two-sample t-test), the calculation requires the t-distribution. This approach incorporates the concept of pooled variance (s_p²), which combines information from both samples to estimate the single common population variance more accurately.

Confidence interval = (x₁–x₂) +/- t*√((s_p²/n₁) + (s_p²/n₂))

The variables utilized in this two-sample comparison are detailed below:

• x₁, x₂: The sample means for Population 1 and Population 2, respectively.
• t: The t-critical value, derived from the confidence level and the calculated degrees of freedom (n₁+n₂-2).
• s_p²: The pooled variance, which weights the variances based on the size of the two samples.
• n₁, n₂: The respective sample sizes for the two groups under comparison.

Practical Example: We aim to estimate the difference in mean weight between two distinct species of turtles. We collect a random sample of 15 turtles from each population and summarize the data:

Summary Data for Sample 1:

• Sample mean (x₁) = 310 grams
• Sample standard deviation (s₁) = 18.5
• Sample size (n₁) = 15

Summary Data for Sample 2:

• Sample mean (x₂) = 300 grams
• Sample standard deviation (s₂) = 16.4
• Sample size (n₂) = 15

To determine the 95% confidence interval for the true difference in population means using Excel, the initial step involves calculating the pooled variance. Subsequently, the T.INV.2T function is used to find the t-critical value, based on 28 degrees of freedom (15+15-2). The following screenshot visually represents the necessary calculation steps and the final interval result.

The resulting 95% confidence interval for the true difference in population means is [-3.08, 23.08]. Crucially, because this interval spans across zero (from a negative lower bound to a positive upper bound), we cannot definitively conclude that there is a statistically significant difference between the true population means at the 95% confidence level.

Example 3: Confidence Interval for a Single Population Proportion

When dealing with categorical or binary data—such as polling results, disease prevalence, or success rates—the focus shifts from estimating a mean to estimating a proportion. The confidence interval for a proportion is a fundamental tool in social science and epidemiology, allowing researchers to generalize a sample percentage to the entire target population. This method relies on the normal approximation to the binomial distribution, provided that the sample size is adequately large (typically when both n*p and n*(1-p) are greater than 10).

The formula utilizes the sample proportion (p) as the central point estimate. The margin of error is then calculated using the Z-critical value and the standard error of the proportion, which inherently measures the variability of the success ratio.

Confidence Interval = p +/- z*√p(1-p) / n

The terms used in the calculation of the confidence interval for a single proportion are defined as follows:

• p: The calculated sample proportion (the ratio of the number of observed successes to the total sample size).
• z: The Z-critical value corresponding to the desired level of confidence (e.g., 1.96 for 95% CI).
• n: The total size of the sample.

Practical Example: A local county government wants to estimate the true proportion of its residents who support a proposed new law. A random sample of 100 residents is surveyed, yielding the following results:

• Sample size (n) = 100
• Proportion in favor of law (p) = 0.56

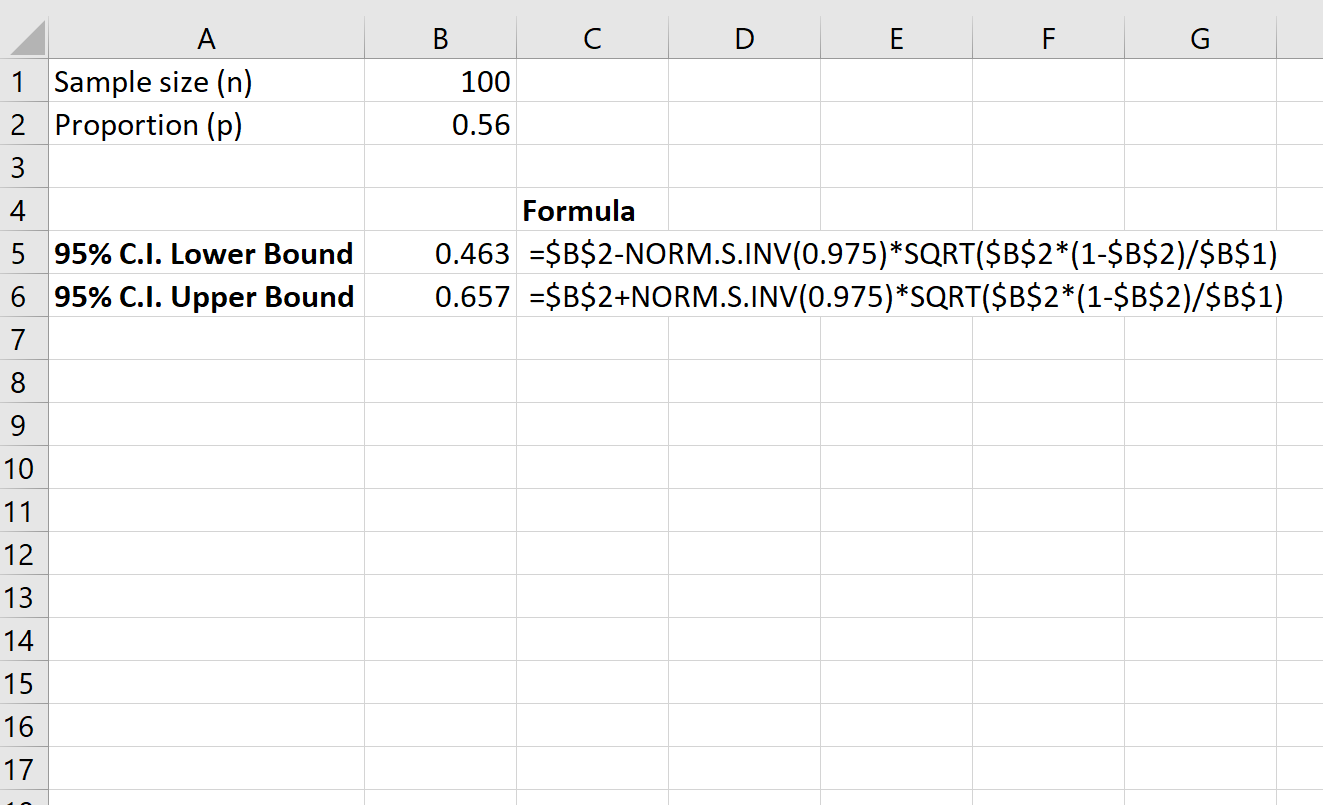

To calculate the 95% confidence interval in Excel, we first compute the standard error of the proportion (the square root term). This is then multiplied by the Z-score (1.96). The ensuing margin of error is used to define the boundaries around the sample proportion (0.56). The screenshot below illustrates the Excel setup for finding the estimated range for the true population support level:

The resulting 95% confidence interval for the true proportion of residents who support the law is calculated as [.463, .657]. Therefore, we are 95% confident that the true population support level falls between 46.3% and 65.7%.

Example 4: Confidence Interval for a Difference in Two Proportions

When the objective is to compare two independent populations based on a categorical attribute—such as assessing the effectiveness of two different educational methods or comparing voting intentions across two regions—we calculate the confidence interval for a difference in proportions. This interval provides an estimate of the range within which the true difference between the two population proportions is expected to lie. By evaluating this range, we can determine if the observed difference between the sample results is significant enough to suggest a real difference in the underlying populations.

The formula for this two-sample case centers on the difference between the two sample proportions (p₁–p₂). This difference is then adjusted by the margin of error, which is established using the appropriate Z-statistic and the combined standard error of the difference.

Confidence interval = (p₁–p₂) +/- z*√(p₁(1-p₁)/n₁ + p₂(1-p₂)/n₂)

The variables necessary for calculating the confidence interval for the difference between two proportions are:

• p₁, p₂: The sample proportions derived from Sample 1 and Sample 2.
• z: The Z-critical value corresponding to the desired confidence level.
• n₁, n₂: The respective sample sizes for the two comparison groups.

Practical Example: Let’s compare public support for the new law between two distinct geographical areas, County A and County B. We gather random samples of 100 residents from each county:

Summary Data for Sample 1 (County A):

• n₁ = 100
• p₁ = 0.62 (62% support)

Summary Data for Sample 2 (County B):

• n₂ = 100
• p₂ = 0.46 (46% support)

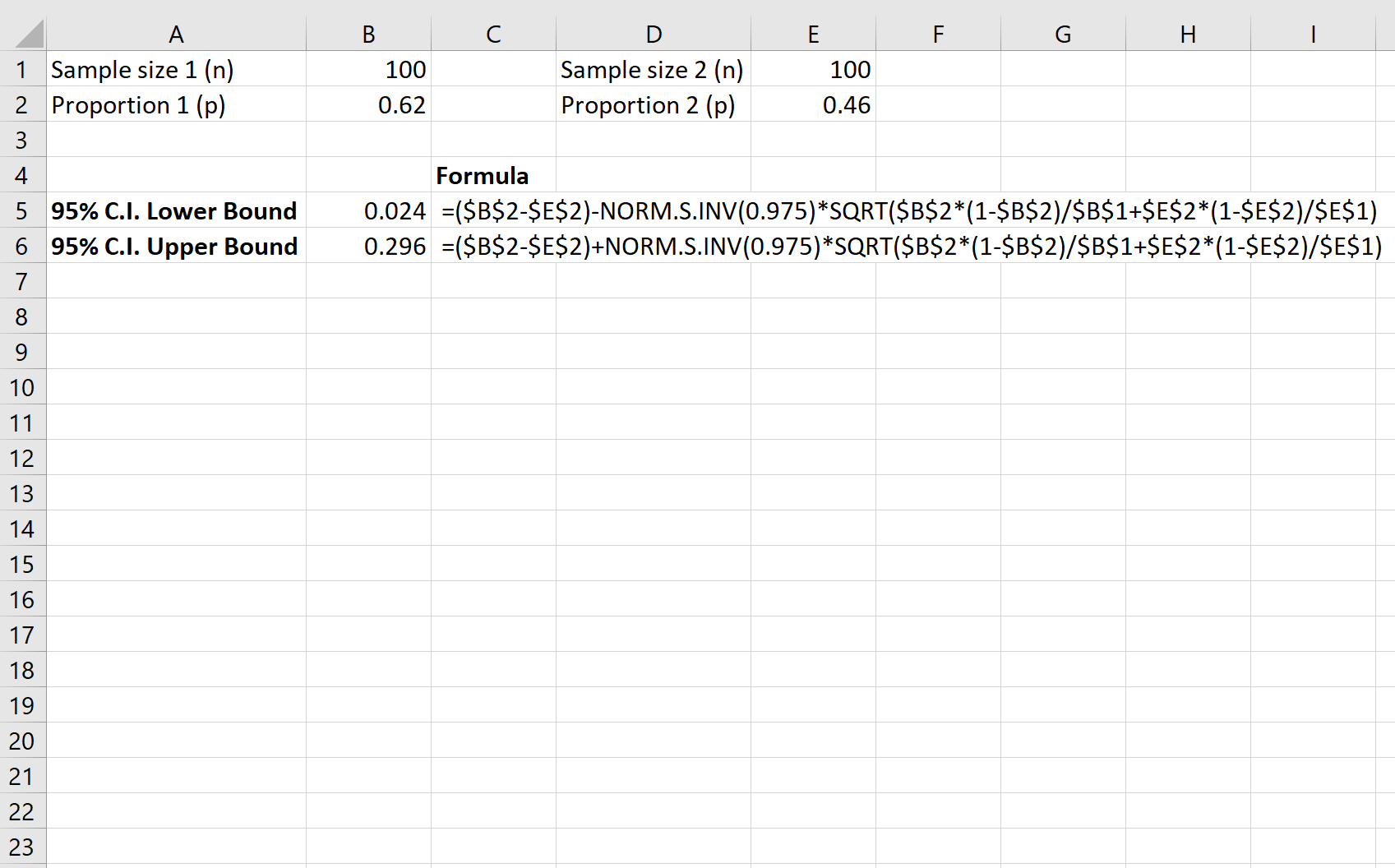

The observed difference in sample support is 0.16 (or 16 percentage points). The following screenshot demonstrates how to execute this calculation in Excel to arrive at a 95% confidence interval for the true difference in the proportion of residents supporting the law between the two counties:

The 95% confidence interval for the true difference in support proportion is [.024, .296]. Since both the lower bound (0.024) and the upper bound (0.296) are positive, zero is not contained within the interval. This positive range provides strong statistical evidence that the proportion of support in County A is genuinely and significantly higher than the support in County B.

For additional guidance on statistical modeling and other practical applications within spreadsheet software, you can find more advanced Excel tutorials here.
