Creating Contingency Tables in Excel: A Tutorial for Analyzing Categorical Data

A contingency table, often known interchangeably as a cross-tabulation or “crosstab,” stands as a cornerstone of descriptive statistics. This powerful analytical instrument is designed to succinctly summarize and scrutinize the relationship between two or more categorical variables. By displaying the joint frequency distribution of these variables, contingency tables transform complex, raw data sets into highly manageable and interpretable matrices, clearly illustrating how the occurrence of values in one variable is dependent, or contingent, upon the values observed in another.

For data professionals and analysts, generating these tables efficiently is paramount. Fortunately, Microsoft Excel provides an exceptionally robust and streamlined mechanism for this purpose: the integrated Pivot Table functionality. The Pivot Table dynamically structures raw input into the required matrix format, automatically performing the necessary counting and aggregation of occurrences to summarize relationships without demanding any manual calculation or complex formula setup. This comprehensive guide details the precise, step-by-step methodology required to construct, accurately configure, and interpret a statistical contingency table using a practical, real-world example within the Excel environment.

The successful application of the Pivot Table tool for cross-tabulation hinges entirely upon the initial structure of your raw data. Data preparation mandates an organized list format where every single row represents a unique observation—such as an individual transaction, a survey response, or a participant record. Correspondingly, each column must represent a distinct variable. Crucially, before initiating the Pivot Table process, you must confirm that the variables designated for cross-tabulation are genuinely categorical variables, meaning their potential values are confined to a finite set of distinct, non-overlapping groups or classifications.

Fundamentals of Cross-Tabulation and Data Requirements

A contingency table offers deep insight into the joint distribution of two nominal or ordinal variables. Consider an enterprise analyzing its customer feedback data: a crosstab might demonstrate how the type of product purchased (Variable 1) is distributed across different customer satisfaction levels (Variable 2). The essential power of the table lies in the intersection points—the individual cells—which quantify the frequency of observations sharing both characteristics simultaneously. These cell counts are known as joint frequencies, providing the foundational statistics for bivariate analysis.

The inherent strength of utilizing the Pivot Table utility in Excel stems from its superior dynamic capabilities. While basic Excel functions like COUNTIF or COUNTIFS can manually tally occurrences, the Pivot Table allows for instantaneous reorganization, sophisticated aggregation, and precise filtration of data fields. This makes it the undisputed optimal choice for rigorous statistical summarization. By harnessing this powerful tool, data analysts can rapidly convert datasets containing potentially thousands of transactional records into a concise, statistically meaningful summary matrix, which is the cornerstone for further statistical inference.

Furthermore, a clear conceptual understanding of the three primary components generated by the resulting table is non-negotiable for accurate interpretation. These components include the row totals (representing the marginal frequencies for the row variable), the column totals (representing the marginal frequencies for the column variable), and the central cell counts (representing the joint frequencies). This structured statistical output is not merely an end in itself; it serves as a critical prerequisite for advanced statistical procedures, such as calculating expected frequencies and executing the Chi-Square test of independence, which relies directly on the observed frequencies derived from the completed contingency table.

Preparing Your Data for Pivot Table Analysis

To demonstrate the practical procedure, we will adopt a scenario based on analyzing product sales performance across multiple international locations. The core objective is to determine if a statistically significant relationship exists between the geographical location of the purchase and the specific category of product ordered. Our hypothetical dataset includes details for 20 unique product orders, capturing the type of product sold (categorized as TV, Computer, or Radio) and the corresponding purchasing country (categorized as Country A, Country B, or Country C).

For the Pivot Table to function correctly, the raw data must incorporate three essential data columns: the field designated for the row variable (Country), the field designated for the column variable (Product), and a third unique identifier column (such as Order Number or Transaction ID). This third column will be utilized by Excel as the counting field to populate the cell frequencies. The chosen dataset is perfectly suited for cross-tabulation because both “Country” and “Product” fulfill the criteria of being discrete categorical variables, providing well-defined groups for comparison.

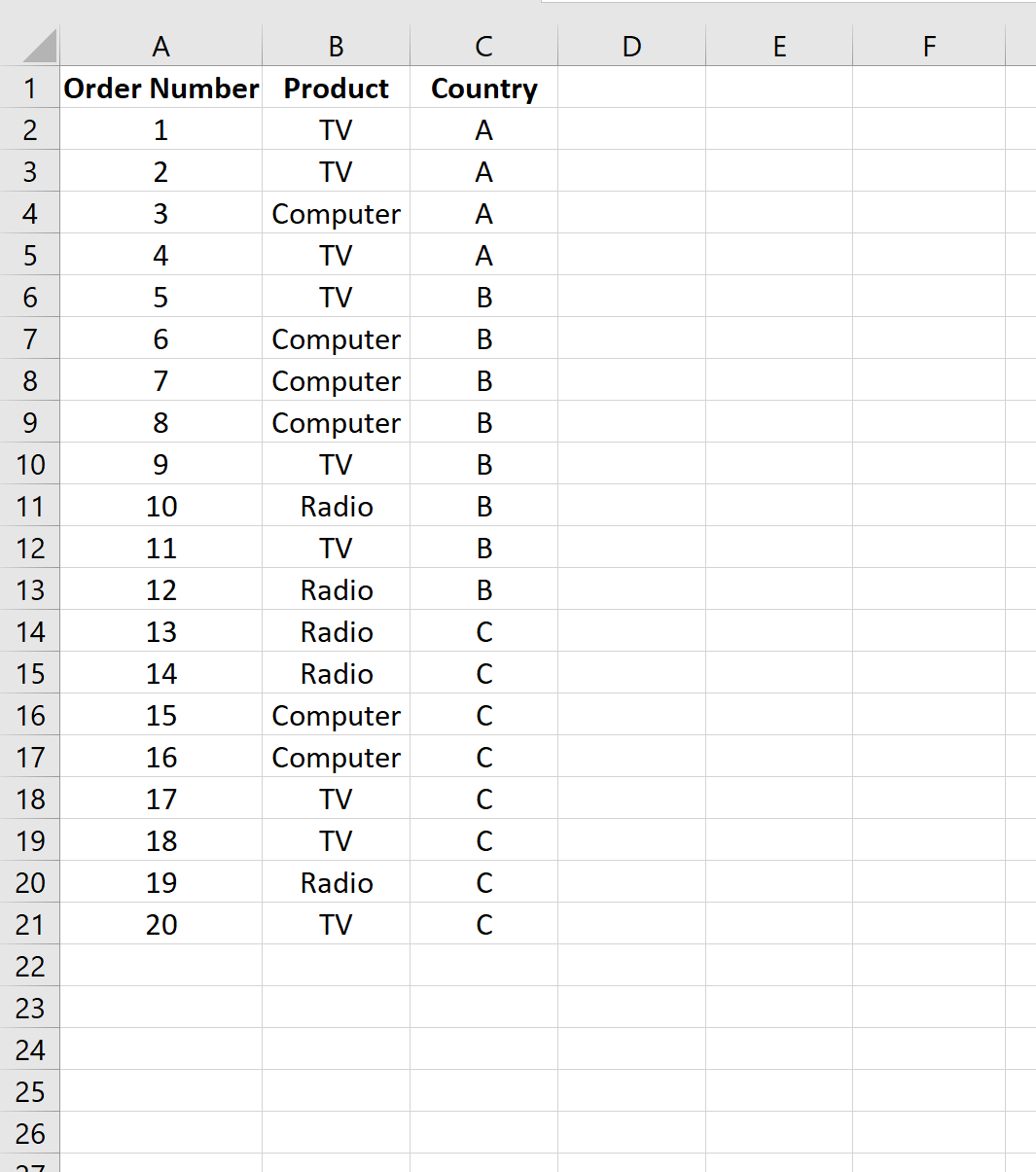

The illustration below depicts the essential structure of the initial dataset. Note the clean, columnar format required before any subsequent analytical steps can be executed. This organization ensures that the Pivot Table can correctly identify and categorize each observation:

Our analytical goal is to systematically transform this simple list of 20 discrete transactions into a concise matrix. This matrix must clearly summarize precisely how many units of each product were purchased within each specific country, thereby providing a clear, frequency-based distribution that relates the two chosen variables—Country and Product—to one another.

Step 1: Initiating the Pivot Table Function in Excel

The process of constructing the Pivot Table is initiated by accessing its dedicated toolset within the main Excel menu ribbon. The best practice is to begin by selecting any single cell located within the boundaries of your raw data range (A1 to C21 in our running example). This preparatory action efficiently enables Excel to automatically detect and select the entire contiguous dataset that will serve as the source data for the cross-tabulation.

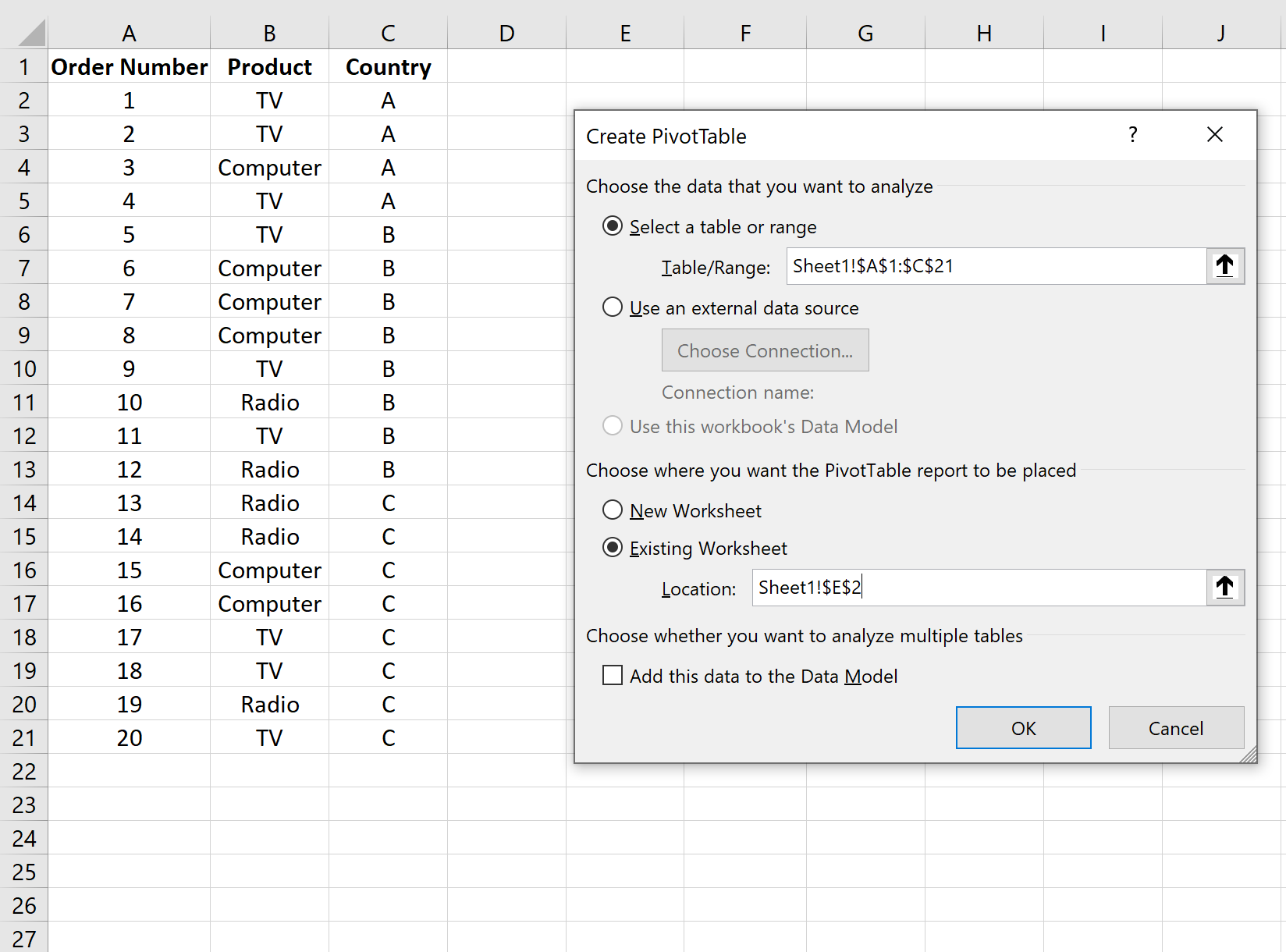

Next, navigate to the Insert tab positioned prominently at the top of the Excel application window. Within the designated leftmost group of options, locate and click the command labeled PivotTable. Executing this step prompts the appearance of the “Create PivotTable” dialog box. This critical prompt requires the user to confirm two essential parameters: the range of the source data being used (which Excel usually pre-selects correctly) and the intended location where the resulting contingency table should be generated.

Within the dialog box, meticulously verify that the correct data range is specified (in our case, A1:C21). Following this confirmation, you must select the destination for the resulting contingency table. While selecting “New Worksheet” is often the recommended approach for maintaining clarity and separation in large analytical projects, for this illustrative example, we will opt for “Existing Worksheet” and precisely specify cell E2 as the upper-left starting point for the new table. Finalize these selections by clicking OK to proceed.

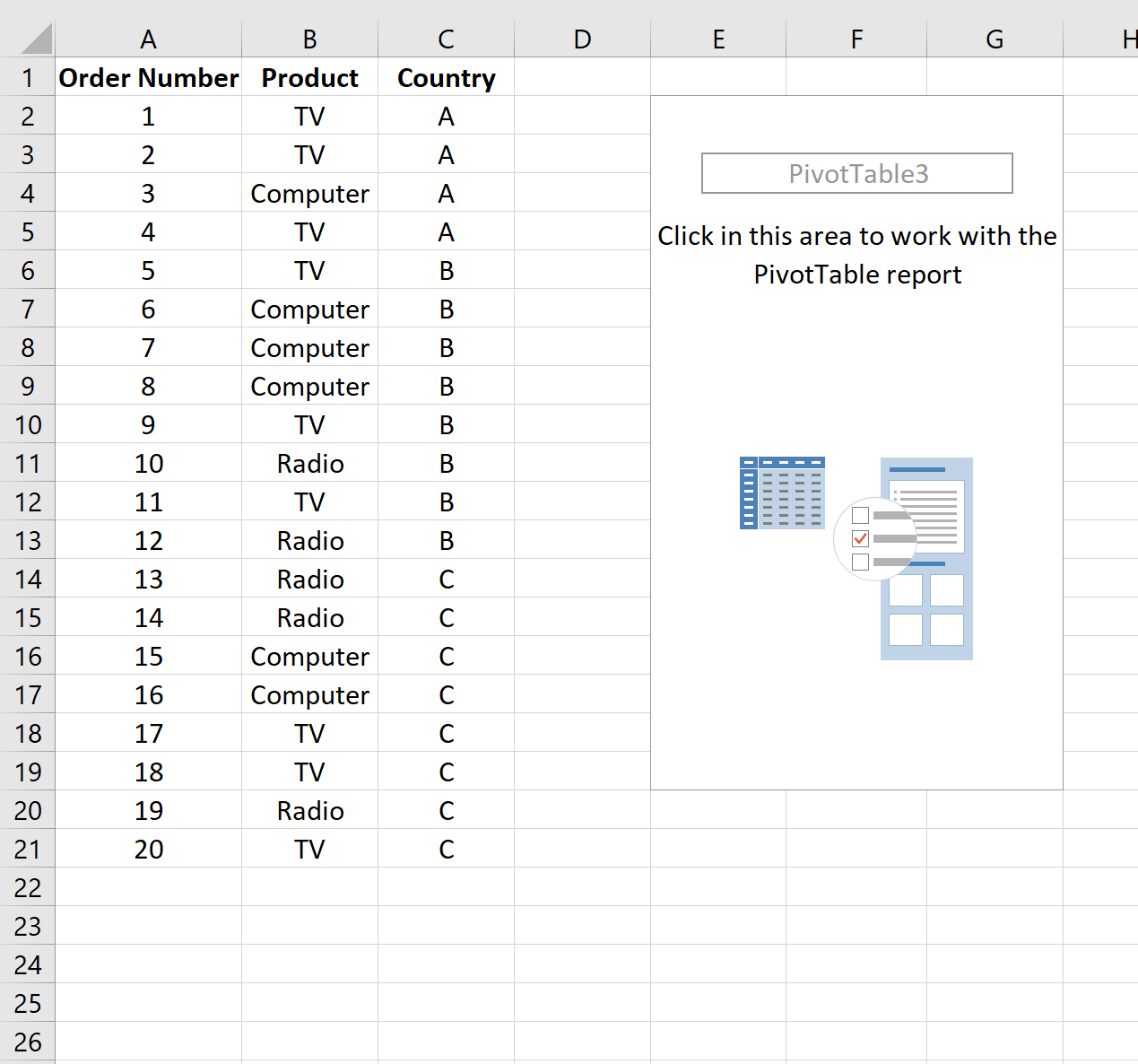

Upon confirming the settings, Excel instantly generates the rudimentary, empty structure of the Pivot Table starting at the defined location (E2). Simultaneously, the application activates and displays the critical Pivot Table Fields pane situated on the right side of the screen. This pane represents the central control panel where you will strategically drag and drop the variables from your raw data to meticulously define the rows, columns, and aggregating values that constitute your final contingency table.

Step 2: Defining Rows, Columns, and Values

The configuration phase is where the raw, record-level data undergoes its transformation into the desired contingency matrix format. Successful execution of this step relies entirely on correctly assigning the three necessary data fields—Country, Product, and Order Number—to the corresponding structural areas within the Pivot Table: Rows, Columns, and Values. (The Filters area is typically reserved for more complex, multi-variable analyses and is optional for basic cross-tabulation.)

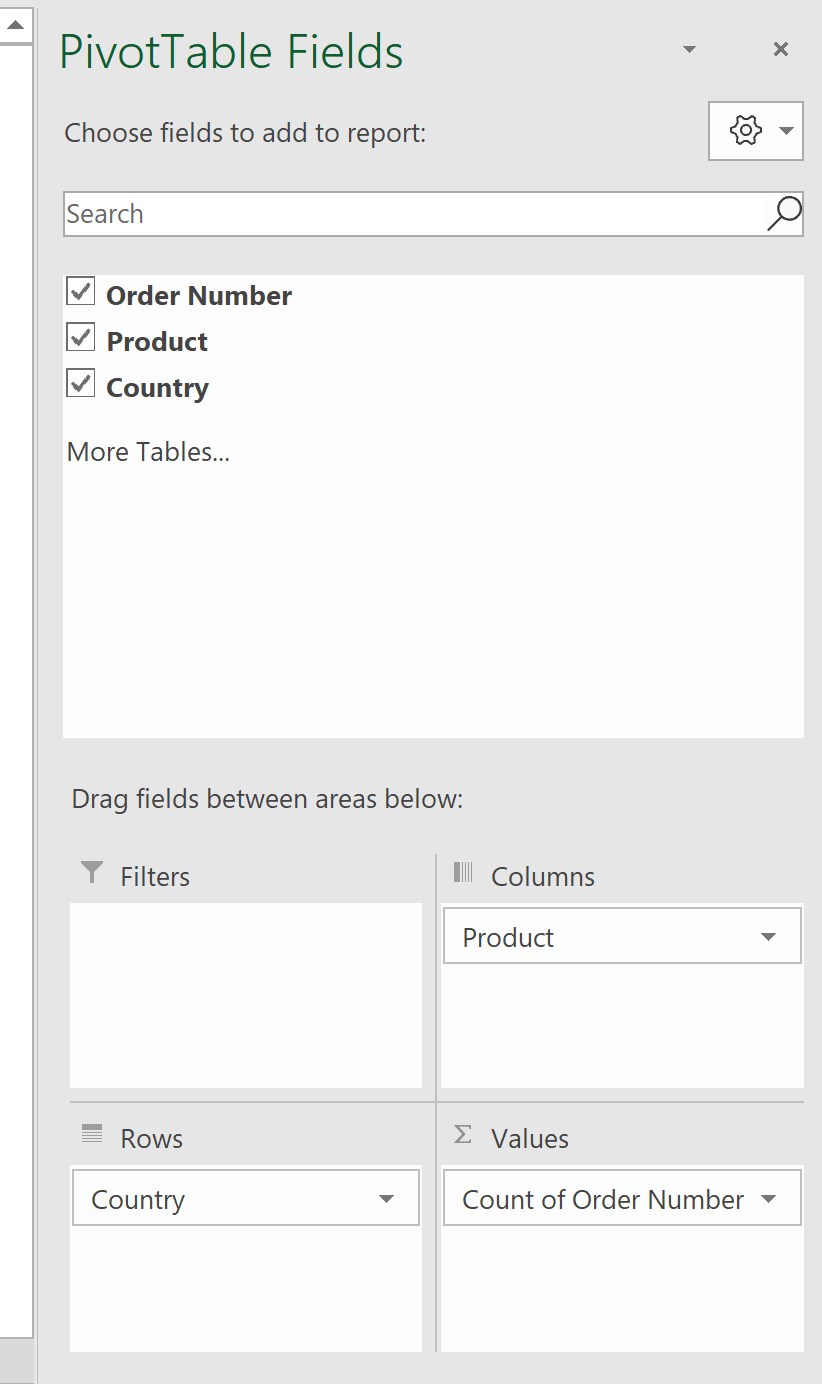

To establish the foundational structure: begin by dragging the Country field name into the Rows area. This action defines the horizontal breakdown of the table, resulting in each country (A, B, C) being listed sequentially down the left margin. Second, drag the Product field name into the Columns area. This step establishes the vertical categories across the top of the table (TV, Computer, Radio), setting up the crosstab intersections.

The final and most critical assignment involves dragging the Order Number field (or any other unique identifier available in your dataset) into the Values area. This field dictates the specific data that Excel will aggregate and display within the central matrix cells. Since the objective is the creation of a frequency-based contingency table, we require a count of the observations, not an arithmetic summation of the order numbers. However, because Order Number is a numerical identifier, Excel often defaults to summing the numerical data, which is statistically inappropriate for cross-tabulation.

If the Values field displays “Sum of Order Number,” immediate correction is necessary. Click the dropdown arrow adjacent to the field name within the Values box and select Value Field Settings. In the subsequent configuration window, change the summary function from the default “Sum” to Count, and confirm the change by clicking OK. This crucial adjustment guarantees that the numbers presented in the cells accurately reflect the observed frequency (the number of orders) rather than the meaningless arithmetic total of the identification numbers.

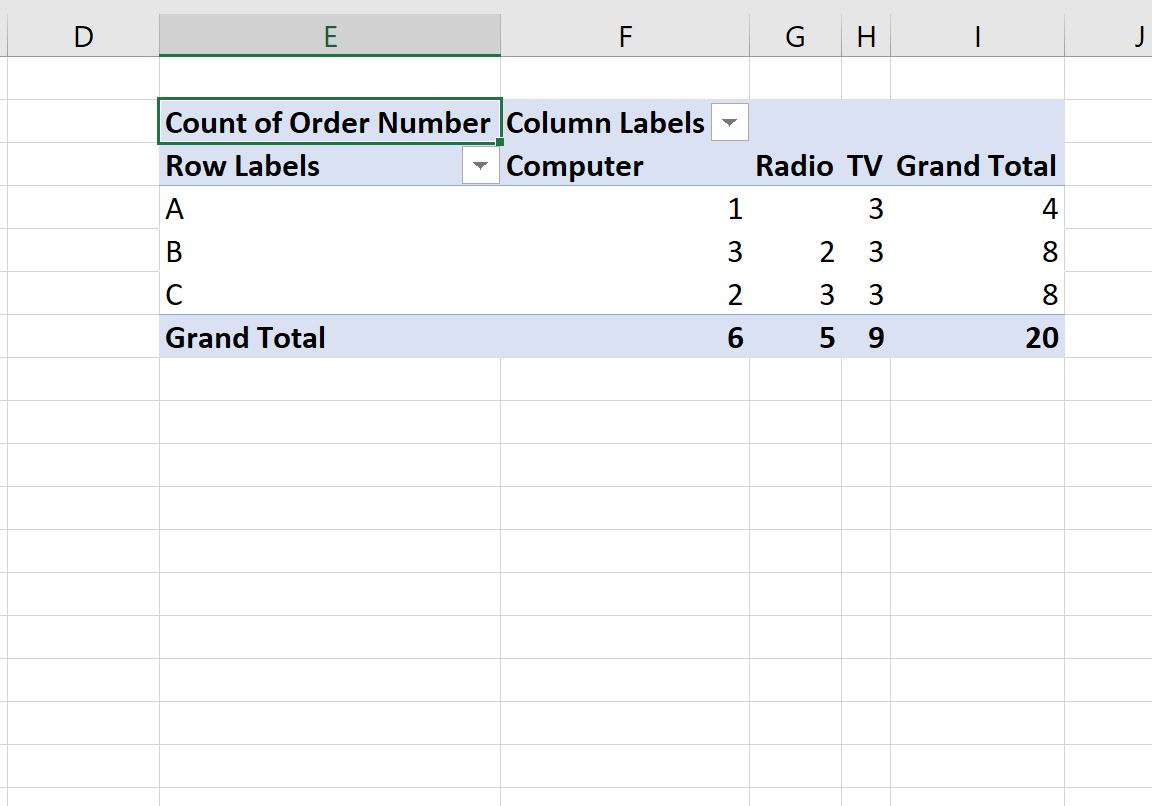

Once these three fields are correctly assigned and the summary function is set to Count, the resulting matrix instantly populates. This completed visualization immediately summarizes the joint frequency distribution of the 20 sales orders based on the intersection of Country and Product categories. This statistically accurate matrix represents the desired contingency table.

Step 3: Interpreting Frequencies in the Contingency Table

The final, and arguably most important, phase involves extracting meaningful insights and conclusions from the generated contingency table. The table provides three analytically distinct categories of frequencies: the Grand Total, the Marginal Frequencies (comprising the Row and Column Totals), and the Joint Frequencies (the individual cell counts). Accurate interpretation of these categories is vital for establishing a clear understanding of the relationship between the two categorical variables.

The comprehensive total, labeled the Grand Total, is always situated in the bottom-right corner of the table and represents the total size of the entire dataset used for the analysis (20 orders in this example). The marginal totals provide a holistic summary of each variable when viewed independently, serving as the necessary foundation for calculating marginal probabilities.

Row Totals (Marginal Frequencies for Country):

The row totals systematically summarize the total purchasing volume originating from each country, irrespective of the product type ordered. These essential frequencies are located within the “Grand Total” column positioned on the far right side of the matrix.

• A total of 4 orders were executed from Country A.
• A total of 8 orders were executed from Country B.
• A total of 8 orders were executed from Country C.

Column Totals (Marginal Frequencies for Product):

Conversely, the column totals summarize the total sales volume achieved for each specific product category, without consideration of the purchasing country. These frequencies are located in the “Grand Total” row displayed at the very bottom of the table.

• A total of 6 computers were purchased globally.
• A total of 5 radios were purchased globally.
• A total of 9 TV’s were purchased globally.

Individual Cells (Joint Frequencies):

The individual cell counts are statistically the most revealing data points, as they quantify the joint frequency—the exact number of orders that simultaneously satisfy both the row criterion (Country) and the column criterion (Product). Detailed analysis of these joint frequencies exposes specific patterns in purchasing behavior. For instance, an immediate observation reveals that Country A purchased three times more TVs than Computers (3 vs. 1), and zero Radios, suggesting a preference or market difference.

• A total of 1 computer was purchased from Country A.
• A total of 3 computers were purchased from Country B.
• A total of 2 computers were purchased from Country C.
• A total of 0 radios were purchased from Country A.
• A total of 2 radios were purchased from Country B.
• A total of 3 radios were purchased from Country C.
• A total of 3 TV’s were purchased from Country A.
• A total of 3 TV’s were purchased from Country B.
• A total of 3 TV’s were purchased from Country C.

Advanced Applications and Further Resources

While the basic Pivot Table initially generates raw count data, Excel offers immediate functionality to convert these counts into percentages—a capability absolutely essential for comparative analysis, particularly when comparing groups of vastly different sizes. This conversion is achieved by right-clicking any cell within the Pivot Table and navigating to the “Show Values As” submenu. From there, you can select options such as “% of Grand Total,” “% of Row Total,” or “% of Column Total.” These relative frequencies are often significantly more informative than simple raw counts, proving indispensable when analyzing proportions, market share distribution, or dependence patterns.

Mastering the efficient and accurate creation of a contingency table in Excel is recognized as a foundational competency for all levels of data analysis. The table itself is a prerequisite for subsequent advanced statistical testing, serving as the source for calculating expected frequencies necessary for rigorous tests. For instance, the calculation of the Chi-Square test of independence, which tests the null hypothesis that the two variables are statistically independent, relies directly on the data structure provided by the Pivot Table’s output. The Pivot Table thus remains the most efficient, accurate, and dynamic method for achieving this level of structured data summarization.

For users who wish to extend their statistical proficiency beyond mere descriptive analysis and delve into inferential statistics based on these cross-tabulations, it is highly recommended to explore additional resources related to probability theory, measures of association, and bivariate analysis techniques. These concepts build directly upon the frequency distributions established by the contingency table.

Additional Resources

Further exploration into the statistical implications of cross-tabulation and methods for calculating statistical significance (like the Chi-Square test of independence) will significantly enhance your analytical capabilities using Excel-generated data.
