Creating Frequency Distributions in Excel: A Step-by-Step Guide

Introduction to Frequency Distributions in Data Analysis

A frequency distribution is a cornerstone concept in statistical methodology, providing a systematic way to organize and summarize raw data. This fundamental tool meticulously describes how often specific values or predefined ranges of values manifest within a given dataset. By transforming chaotic raw observations into structured classes and tallying the occurrences (frequencies) within each, analysts immediately gain critical insight into the data’s overall shape, spread, and central tendency. This initial organizational step is indispensable for preliminary data analysis, enabling users to swiftly identify unusual data points (outliers), spot recurring trends, and determine if the data conforms to theoretical models, such as a normal distribution, before proceeding to more intricate statistical modeling. Understanding the underlying distribution is the crucial first step toward making evidence-based decisions rooted in the data’s inherent structure and variability.

The process of constructing a frequency distribution dramatically simplifies managing large volumes of information, translating complexity into clarity. Rather than manually reviewing hundreds or even thousands of individual data points, we consolidate them into a concise, easily digestible table. This table typically features two essential columns: the defined categories (often called bins or intervals) and the corresponding counts (frequencies). This structured presentation proves invaluable across a diverse range of professional fields, including financial forecasting, quality control management, and social science research, where determining the concentration and limits of results is paramount. For example, a quality control engineer might use this distribution to track how often manufacturing defects fall into specific severity tiers, thereby instantly highlighting areas where resources should be focused for process improvement.

Fortunately, modern spreadsheet applications, most notably Microsoft Excel, offer highly efficient and automated mechanisms for generating these distributions, eliminating the labor-intensive requirements of manual counting and sorting. Excel’s robust suite of built-in functions allows users to process vast arrays of data quickly and with high accuracy. The primary and most specialized tool for this operation is the `FREQUENCY` function. This function is specifically engineered to calculate the counts of values falling within user-defined intervals. Utilizing `FREQUENCY` is significantly faster and less susceptible to calculation errors than attempting to piece together the distribution using a combination of `COUNTIF` or similar functions, particularly when dealing with continuous numerical data that necessitates clear grouping into discrete intervals.

Mastering the Excel FREQUENCY Function

The `FREQUENCY` function in Excel serves as a powerful statistical utility specifically designed for the construction of frequency tables. Crucially, unlike most standard formulas that return a single result, `FREQUENCY` operates as an array formula. This means it requires a unique entry method to return a resultant array of values, with the output array containing exactly one more element than the number of bins defined. This extra element is reserved for data points that exceed the highest specified limit. Achieving accurate results necessitates mastering the correct syntax and the specific entry method required for executing this powerful analytical tool within the spreadsheet environment.

The function’s syntax is concise and requires precise definition of its two mandatory arguments:

=FREQUENCY(data_array, bins_array)



where:



• data_array: This argument specifies the contiguous range of cells containing the raw numerical data points intended for analysis. This is the source material—the complete collection of observations whose distribution is being mapped and calculated.
• bins_array: This critical argument dictates the range of cells containing the upper limits of the intervals, or bins, that you have predetermined. Excel utilizes these values as the demarcation points to count how many data points fall into each distinct category. Importantly, the function tallies frequencies for all values less than or equal to the limit provided in each cell of this array.

A clear understanding of how Excel handles the bin boundaries is essential for correct interpretation. If, for instance, the upper limit of a bin is defined as 10, the function counts every value that is less than or equal to 10. The resulting output array will consistently contain one more element than the `bins_array` you provided. This final, supplementary element is designed to capture all data values that are strictly greater than the single highest upper limit specified in the `bins_array`. This robust structural design guarantees that every single data point from the `data_array` is comprehensively accounted for in the resultant frequency table, yielding a complete and exhaustive distribution count. The subsequent practical example will fully illustrate how to structure both the input data and the bin limits for successful function execution.

Preparing the Data and Defining Class Intervals

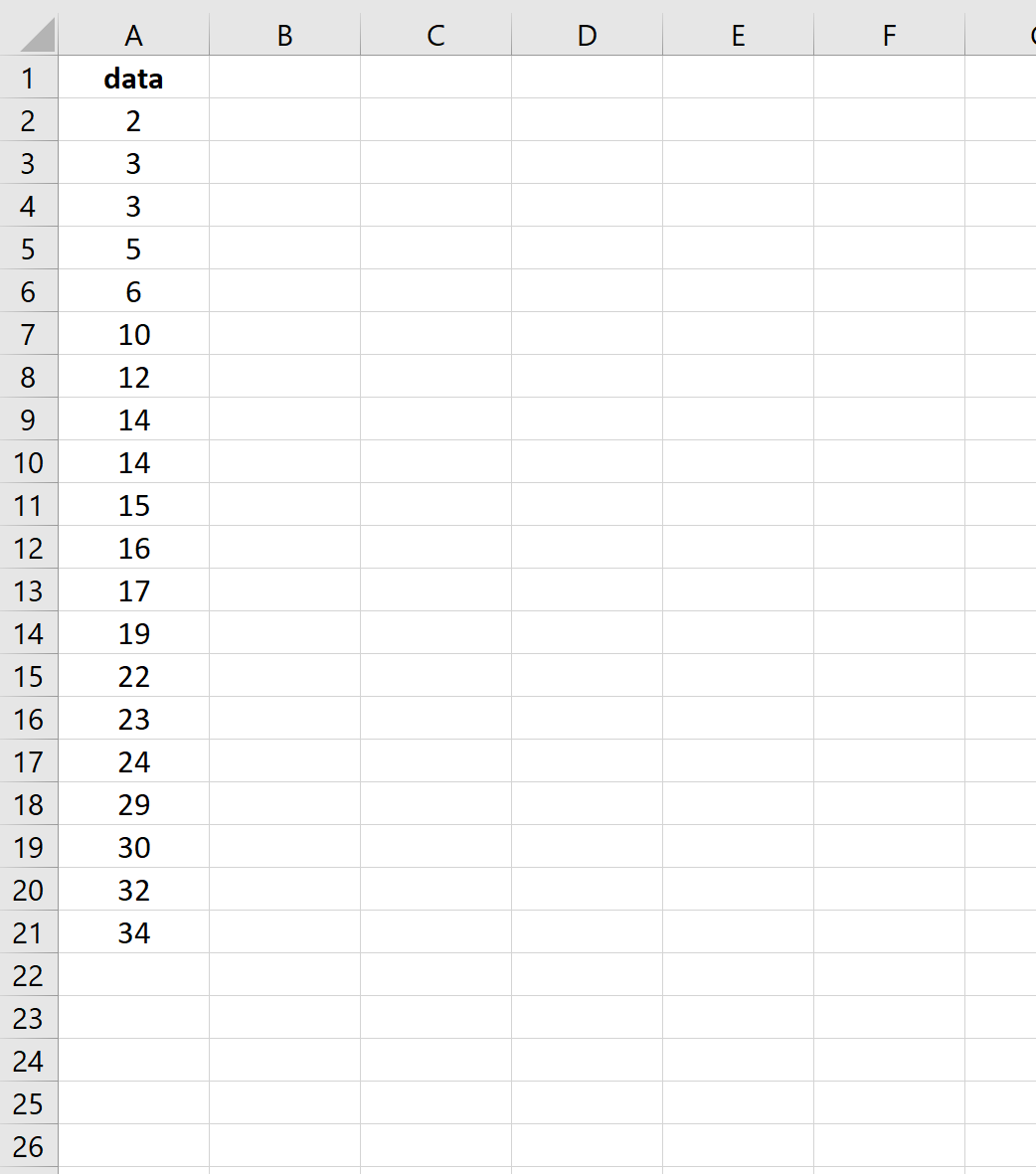

To provide a concrete demonstration of the `FREQUENCY` function in action, we will utilize a sample dataset consisting of 20 randomly generated numerical values. These values could represent scores on a recent standardized exam or perhaps daily recorded temperature highs. This raw data must be organized into a single column within the Excel spreadsheet, serving as the required `data_array`. For our specific illustration, we assume these 20 data points occupy the range A2 through A21, as depicted in the visual representation below. Prior to any calculation, it is absolutely critical that this raw data is clean, purely numeric, and correctly formatted to ensure the frequency calculation proceeds without error.

The next crucial step involves establishing the class intervals, or bins, which will systematically partition our data into manageable groups. Determining the optimal bin size often involves a blend of statistical guidelines and domain expertise; selecting too few bins risks obscuring the true shape of the distribution, while choosing too many can result in a fragmented and statistically meaningless output. For the purpose of this introductory example, we will select simple and illustrative upper limits: 10, 20, and 30. These values establish the precise boundaries for our frequency analysis, ensuring clear and non-overlapping categorization of the data points.

By defining 10, 20, and 30 as our upper limits, we automatically establish four distinct frequency categories, often referred to as classes or intervals, designed to encompass the entirety of the potential data range. The resulting categories are implicitly structured according to the `FREQUENCY` function’s interpretation of the `bins_array`:

• 0 to 10: Includes all values greater than the theoretical lower bound and less than or equal to 10.
• 11 to 20: Includes all values strictly greater than 10 and less than or equal to 20.
• 21 to 30: Includes all values strictly greater than 20 and less than or equal to 30.
• 30+ (Overflow): This final, implicit bin captures all values that are strictly greater than the highest defined upper limit, which is 30 in this specific scenario.

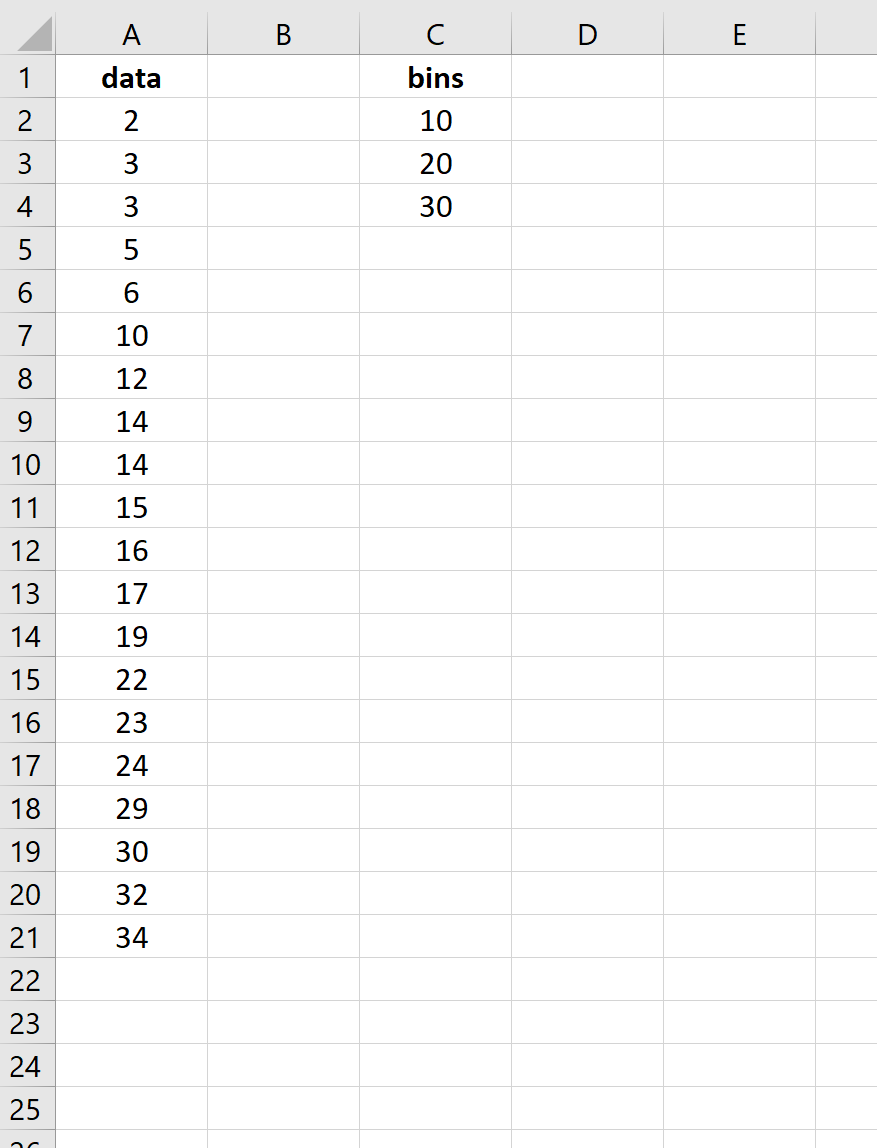

These selected upper limits must be input into a contiguous range of cells—this range constitutes the `bins_array`. In our setup, we designate cells C2, C3, and C4 to hold the limits 10, 20, and 30, respectively. It is vital to remember that the output range where the final frequencies will be displayed must be exactly one cell longer than the `bins_array` (meaning four cells in length, such as D2:D5) to properly accommodate the overflow category, “greater than 30.” The organized input, featuring the defined bins array, is shown below, ready for the application of the statistical function.

Executing the Array Formula for Frequency Calculation

With both the raw data and the class bins meticulously established, the subsequent step involves deploying the `FREQUENCY` function. As previously noted, this function is engineered to return multiple values simultaneously—a distinct count for every bin plus the mandatory overflow count. Therefore, it must be executed as an array formula. Incorrect entry will result in the display of only the frequency count for the first bin, leaving the remaining output cells either blank or populated with inaccurate data. This specific, multi-step entry procedure is indispensable for achieving accurate frequency distribution calculations in traditional versions of Excel (prior to the dynamic array capabilities introduced in Excel 365).

The procedure for correctly entering and confirming the array formula consists of three precise steps: First, you must explicitly select the entire intended output range where the frequencies will be displayed. Based on our defined bins (C2:C4), we require four output cells, so we select the range D2:D5. Second, while this entire range remains highlighted, you must type the formula exactly as follows into the formula bar, referencing the `data_array` (A2:A21) and the `bins_array` (C2:C4):

=FREQUENCY(A2:A21, C2:C4)

Third, and this is the most critical action for traditional Excel users, instead of pressing the standard Enter key, you must press the combination of Ctrl + Shift + Enter simultaneously. This specific key combination serves as the signal to Excel that the entered function is an array formula requiring multi-cell output. Upon successful execution, Excel will automatically enclose the formula in curly braces (e.g., `{=FREQUENCY(A2:A21, C2:C4)}`), which confirms its array status. If these braces are absent, the formula was not entered correctly. While modern Excel 365 now features dynamic array spilling, which simplifies this process, understanding the traditional methodology is essential for ensuring maximum compatibility and troubleshooting legacy files.

Interpreting the Results and Extracting Key Insights

Following the successful execution of the `FREQUENCY` array function, the computed results instantly populate the designated output range (D2:D5). This resulting table provides an immediate, quantitative summary of the data’s distribution characteristics. A necessary verification step is to confirm that the sum of these calculated frequencies precisely equals the total number of data points in the input array (which is 20 in our example). This check ensures that every observation was counted exactly once. By examining the distribution of these counts, we can instantly pinpoint the most common range of values and identify where the data exhibits its highest tendency to cluster.

A detailed analysis of the specific counts derived from our example reveals crucial information regarding the concentration of the raw dataset:

• 6 values were found to be within the initial range of 0-10 (inclusive). This indicates a moderate concentration of observations at the lower end of the measured scale.
• 7 values fall within the range of 11-20. This category represents the modal class, signifying the highest concentration of values within the entire distribution.
• 5 values were tallied in the range of 21-30. This frequency is slightly lower than the first two classes, suggesting that the occurrence of values begins to taper off in the mid-to-high range.
• 2 values were found to be strictly greater than 30. These represent the highest values, constituting a relatively small proportion of the total observations, which confirms that the distribution is not heavily skewed toward the upper tail.

The interpretation of these numerical results collectively suggests a distribution pattern centered slightly in the 11-20 interval, with a moderate and gradual decrease in frequency toward the higher values. If this data represented student exam scores, the conclusion would be that the majority of students achieved scores in the average band, with only a few individuals scoring significantly above 30. While this tabular summary provides the necessary detail for subsequent statistical calculations, such as determining the mean for grouped data or calculating skewness, visualizing this structure is often the most impactful way to convey the findings to a wider, non-technical audience.

Visualizing the Distribution with a Histogram

The process of transforming the numerical frequency distribution into a graphical representation, typically via a column chart designed to function as a histogram, is essential for improving comprehension. A visual chart instantly conveys the shape, symmetry, and modality of the data in a manner that raw figures cannot. Although Excel includes a dedicated Histogram chart option (using the Data Analysis ToolPak or the built-in chart types), basing the visualization on the calculated frequencies using a standard column chart offers superior control and flexibility, especially when customizing the bin labels and visual appearance.

Generating this visualization using our pre-calculated frequencies is a straightforward procedure that adheres to standard Excel charting methods. We must first select the frequency counts themselves, which are located in the output range D2:D5. This selection informs Excel exactly which numerical values will determine the height of the vertical bars. After selecting the data, we initiate the chart creation process through the main menu interface:

• Highlight the frequency counts in the range D2:D5.
• Click on the Insert tab, positioned on the main ribbon interface.
• In the Charts group, select the option designated 2-D Column.

Upon completion of these steps, Excel renders a preliminary column chart. Initially, the horizontal axis (the category axis) will likely display simple, generic labels (1, 2, 3, 4), which correspond sequentially to our defined bins. Crucially, the heights of the columns accurately reflect the frequencies we calculated: 6, 7, 5, and 2. This initial chart is a fundamentally correct representation of the distribution, clearly highlighting the peak frequency located in the second category (11-20).

Refining the Visualization for Professional Presentation

While the initial chart generated by Excel correctly displays the relative frequencies, it usually lacks the necessary clarity and polish expected for formal reports or professional presentations. Refining the visualization involves two primary tasks: modifying the axis labels to reflect the actual bin ranges and adjusting the visual characteristics, such as bar width, to adhere to standard histogram conventions. Specifically, for true histograms representing continuous data, the bars should be adjacent (touching) to symbolize the continuity between the classes.

The most important refinement step is customizing the horizontal axis. We must replace the generic numerical indices with descriptive labels that accurately represent our defined classes (0-10, 11-20, 21-30, and 30+). This customization is performed by right-clicking the horizontal axis, selecting ‘Select Data,’ and then editing the horizontal axis labels to reference a range of cells containing these descriptive bin titles. Furthermore, a key convention for histograms dictates that the gap width between bars should be eliminated to emphasize the transition between continuous classes. This is achieved by right-clicking the data series (the bars), selecting ‘Format Data Series,’ and setting the ‘Gap Width’ parameter to 0%. Additional aesthetic enhancements include assigning a clear and informative chart title (e.g., “Distribution of Raw Scores”), labeling both axes appropriately (“Frequency” and “Score Range”), and adjusting color schemes for optimal contrast and accessibility.

After applying these necessary modifications, the final chart transforms into a highly communicative and polished visual aid. It lucidly articulates the findings derived from the frequency distribution analysis, enabling any stakeholder to immediately grasp the central tendencies and spread of the underlying dataset. This comprehensive sequence—from raw data organization to calculation using the specialized `FREQUENCY` array formula, and culminating in a professional visualization—demonstrates the robust capability of Excel as a statistical analysis platform.
