Understanding and Calculating Cramer’s V in SPSS: A Step-by-Step Guide

Understanding Cramer’s V: A Measure of Association Strength

Cramer’s V is a critical statistical tool used when analyzing the relationship between two non-ordinal, categorical variables. While tests like the Chi-square statistic can confirm that an association exists, they do not quantify how strong that relationship is. Cramer’s V addresses this limitation by providing a standardized measure of effect size, which is essential for determining the practical significance of findings in fields like the social sciences, behavioral research, and market analysis. This measure is particularly robust and preferred over the Phi coefficient when working with contingency tables larger than 2×2, as it correctly normalizes the value based on the table’s dimensions.

The primary strength of Cramer’s V lies in its standardized nature. This crucial standardization ensures that the resulting value is always bounded, ranging strictly from 0 to 1, regardless of the sample size or the specific number of categories used in the analysis. This feature makes V an indispensable metric for researchers, allowing for direct comparison of relationship strengths across different studies and datasets, thereby enhancing the generalizability and interpretability of results.

Interpreting the calculated V value is straightforward due to its fixed scale, offering a clear continuum of dependence between the variables:

• 0: A value of zero signifies that there is absolutely no association between the two categorical variables; they are statistically independent.
• 1: A value of one indicates a perfect, strong association between the variables, meaning they are completely dependent on one another.

The Mathematical Foundation of Cramer’s V

Cramer’s V is fundamentally rooted in the Chi-square statistic (X²), which serves as the initial test for independence between two categorical variables. However, the raw Chi-square value is highly susceptible to variations in sample size and the number of rows and columns in the contingency table, rendering it unsuitable as a standalone measure of association strength. To overcome this limitation and provide a meaningful effect size, Cramer’s V applies a necessary normalization process. This process adjusts the raw Chi-square value against the total sample size and the minimum degrees of freedom associated with the table, yielding a stable and comparable metric.

The calculation for Cramer’s V is formalized by the following equation, which accounts for the standardization required to keep the result within the 0 to 1 range:

Cramer’s V = √(X²/n) / min(c-1, r-1)

A detailed understanding of each variable in this formula confirms the comprehensive nature of the standardization applied:

• X²: This represents the calculated Chi-square statistic derived from the observed and expected frequencies within the cross-tabulation.
• n: This denotes the Total sample size, which is used to divide the Chi-square value, thereby mitigating the direct influence of the sample size on the overall strength measure.
• r: This is the Number of rows in the contingency table, corresponding to the categories of the first variable.
• c: This is the Number of columns in the contingency table, corresponding to the categories of the second variable.
• min(c-1, r-1): This crucial term represents the minimum possible degrees of freedom (df) for the table. By normalizing the top portion of the equation against this minimum, the resulting V value is guaranteed to remain standardized between 0 and 1, regardless of how large or unbalanced the table dimensions are.

Setting Up the Analysis in IBM SPSS Statistics

For professionals utilizing SPSS (Statistical Package for the Social Sciences), the most efficient and standard procedure for calculating Cramer’s V is through the dedicated Analyze > Descriptive Statistics > Crosstabs function. This single procedure is powerful, as it allows the user to simultaneously generate the required contingency table, calculate the underlying Chi-square value, and output the associated measures of association, including both Cramer’s V and the Phi coefficient.

To illustrate this process, we will use a practical research scenario focused on educational outcomes. Our objective is to determine the strength of the relationship between the chosen exam preparation method (Method A or Method B) and the student’s ultimate success (Pass or Fail) on a standardized assessment. The goal is to move beyond simply identifying an existing relationship to quantifying its magnitude.

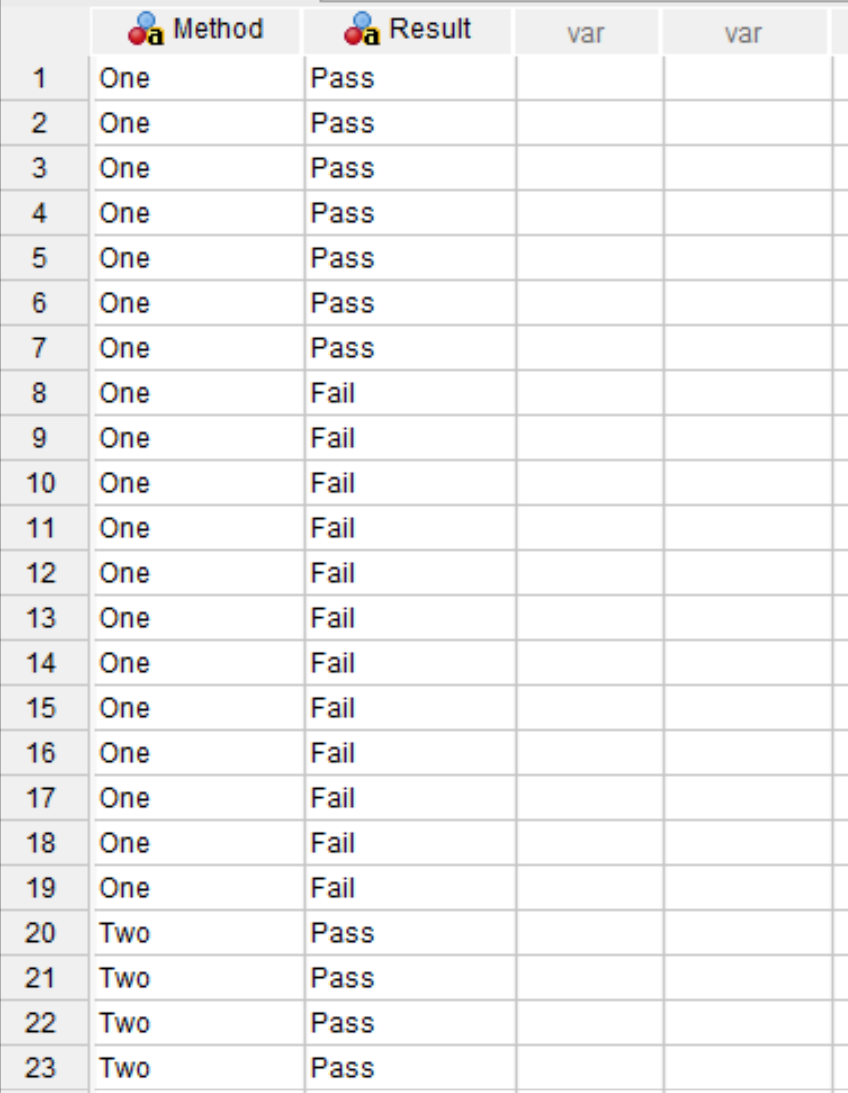

The sample data, which has already been prepared and imported into the SPSS environment, consists of two dichotomous categorical variables: “Exam Prep Method” and “Result.” This specific 2×2 structure is ideal for a basic demonstration of the Crosstabs procedure. The following image confirms the organization of the data structure within the software environment:

Note: The screenshot above displays only the first portion of the dataset. It is important to confirm that the full dataset contains 36 total observations. The analysis will utilize all 36 observations to ensure an accurate and reliable calculation of the association strength between the chosen preparation method and the test outcome.

Executing the Crosstabs Analysis in SPSS

The calculation of Cramer’s V requires careful configuration of the Crosstabs dialog box within SPSS. This involves correctly assigning the two categorical variables to the row and column fields and explicitly instructing the software to compute the desired measures of association.

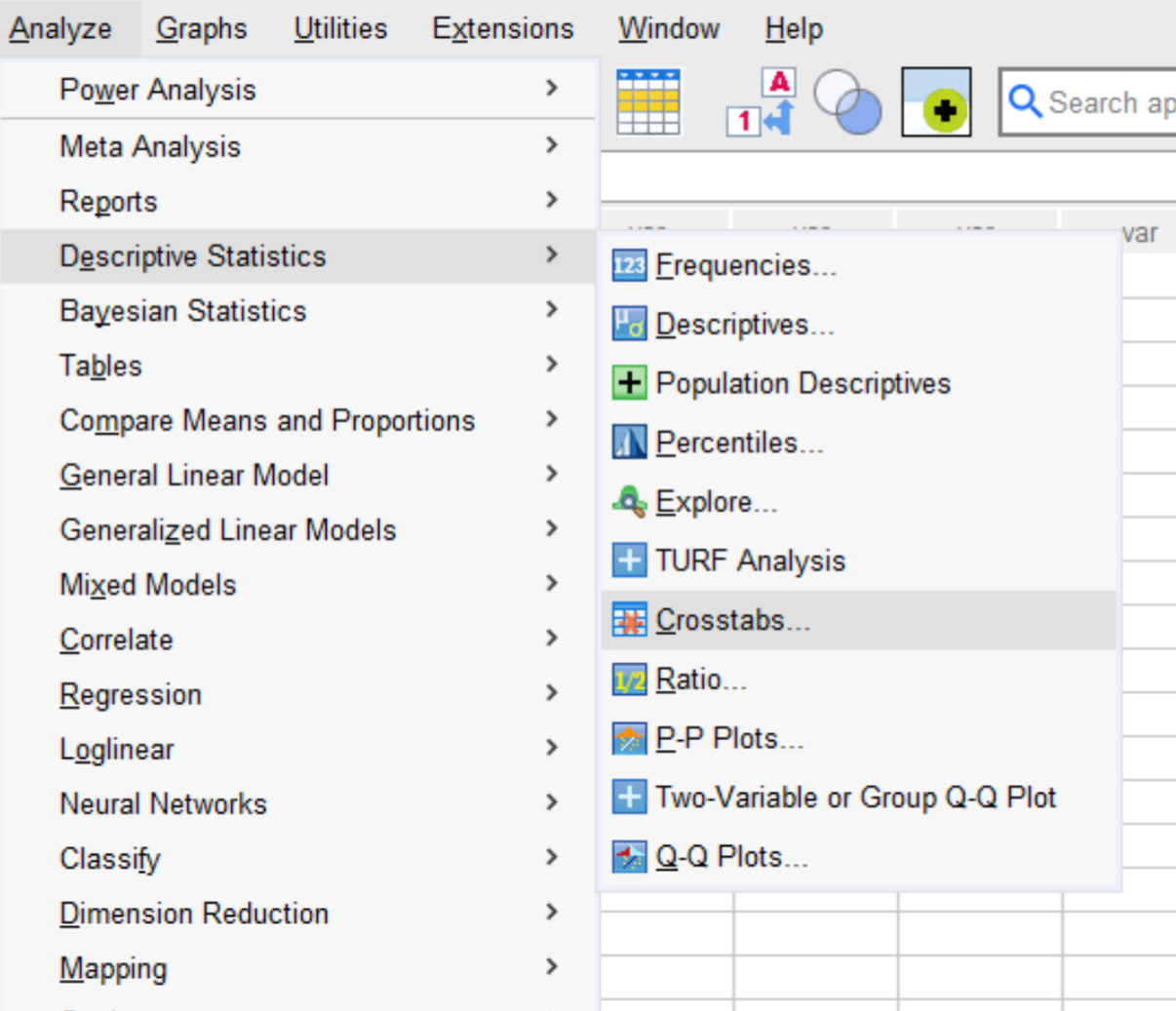

The procedure begins by navigating the main menu interface: select the Analyze tab, hover over Descriptive Statistics, and then click Crosstabs. This action launches the main dialog box where the variables must be defined.

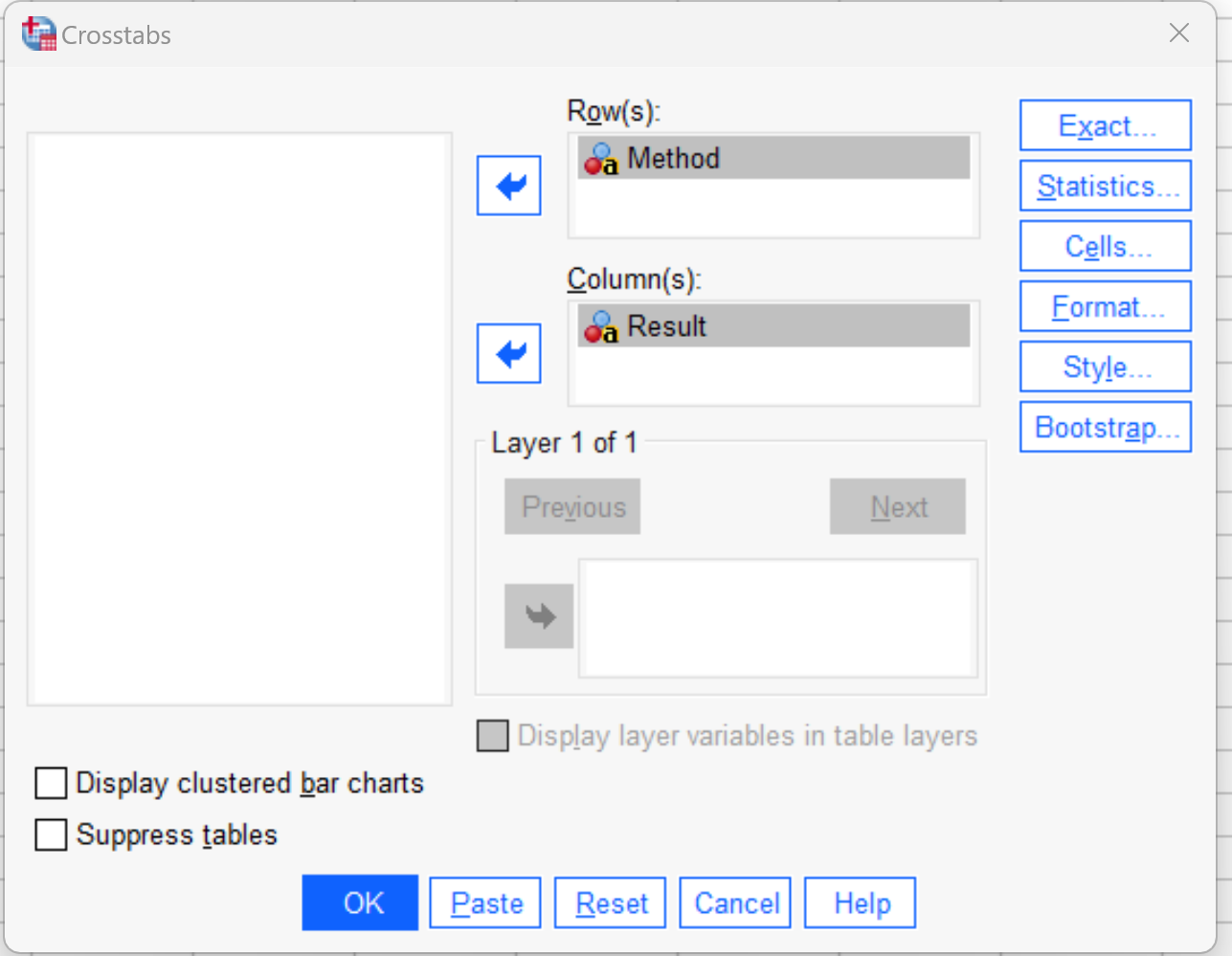

In the Crosstabs dialog box, we move “Exam Prep Method” into the Row(s) field and “Result” into the Column(s) field. While the placement of variables does not mathematically alter the resulting V value, this arrangement provides clarity in the resulting contingency table. Once the variables are correctly positioned, the next critical step is to request the specific association statistic we need.

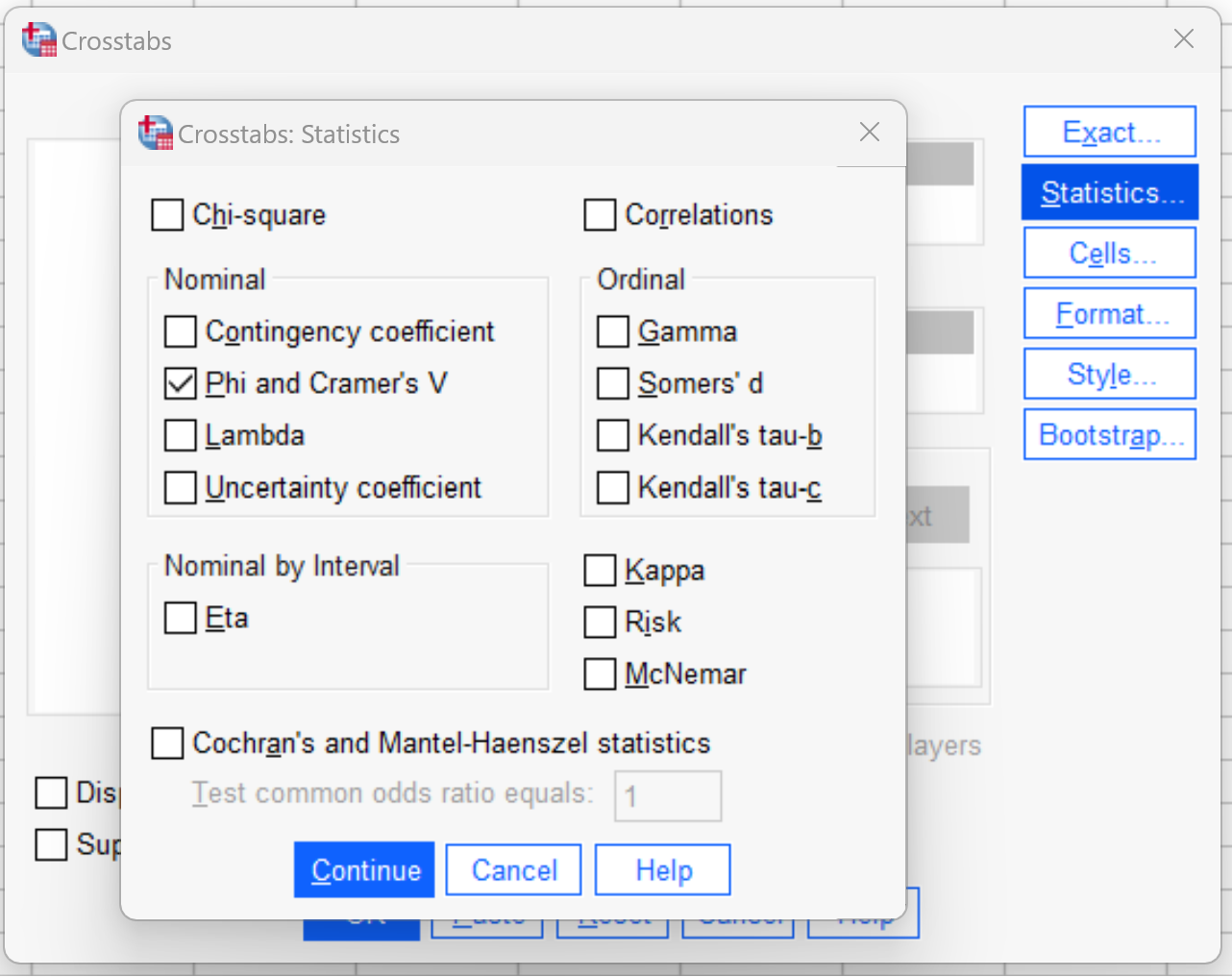

To achieve this, click the Statistics button within the Crosstabs dialog. A new window will appear, presenting various statistical output options. To ensure Cramer’s V is calculated, locate the section dedicated to association measures and mark the checkbox labeled Phi and Cramer’s V. Given that our current example involves a 2×2 table, SPSS will output both the Phi coefficient and Cramer’s V, which will possess identical values in this specific scenario.

After confirming the required statistics, click Continue to close the Statistics dialog, and then click OK in the main Crosstabs dialog to execute the command. The software will then process the data and generate a comprehensive output file, typically containing three crucial sections: the Case Processing Summary, the Crosstabulation table, and the Chi-Square and Symmetric Measures tables.

Interpreting the SPSS Output Tables

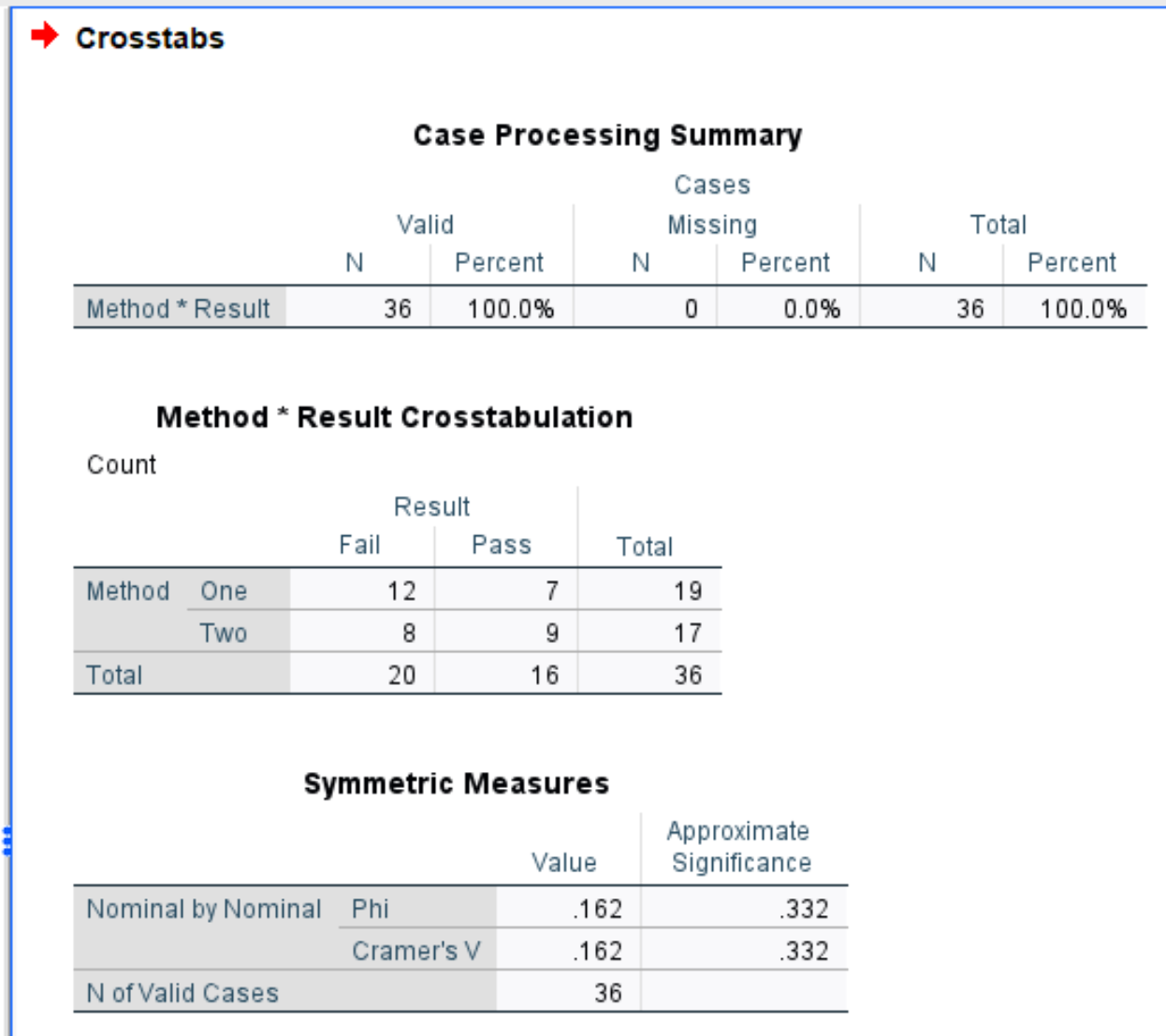

Once the analysis is complete, the SPSS Viewer window displays the results in a sequence of structured tables. Proficiency in interpreting these tables is vital for accurately extracting and reporting the findings regarding the strength of the relationship between the preparation method and the result.

The first table, the Case Processing Summary, is critical for data verification. It confirms that all intended observations were included in the analysis. For our example, this table clearly states that N = 36 total observations were processed, with zero missing cases, confirming the integrity of the sample size used.

The second output, the Crosstabulation table, provides the visual summary of the observed data frequencies. This table details the exact counts of students falling into each combination of categories (e.g., how many students used Method A and passed, and how many used Method B and failed). This raw frequency data is the foundation upon which the subsequent Chi-square statistic is calculated, providing essential context for the final strength measure.

The final and most relevant table for our purpose is the Symmetric Measures table, which reports Cramer’s V along with other related symmetrical measures. Researchers must focus on the row labeled “Cramer’s V” under the “Value” column. By inspecting this specific output, we determine that the calculated strength of association between the preparation method and the test result is 0.162.

Determining Effect Size and Drawing Conclusions

The numerical result of 0.162 must be contextualized to convey practical meaning. Interpreting the magnitude of effect size for Cramer’s V requires reference to established standards, which are dependent upon the degrees of freedom (df) of the contingency table. The degrees of freedom are calculated as min(r-1, c-1). Since our example uses a 2×2 table (r=2, c=2), the degrees of freedom are min(2-1, 2-1) = 1.

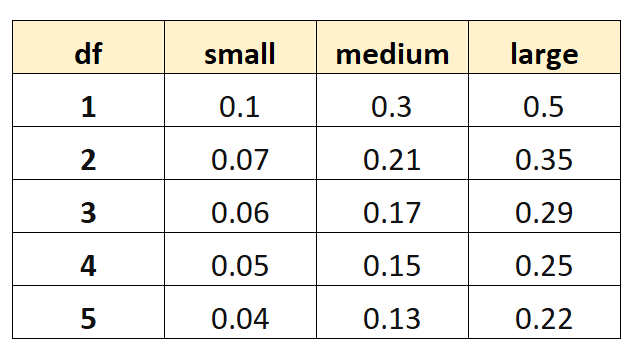

To classify the strength of the relationship, we utilize standard benchmarks, such as those popularized by Cohen (1988), specifically designed for assessing measures of association like Cramer’s V when the degrees of freedom equal 1. The following table outlines these standard thresholds:

Comparing our calculated Cramer’s V value of 0.162 against these established thresholds reveals its magnitude. Since 0.162 falls between the threshold for a small effect (0.10) and a medium effect (0.30), the relationship between the exam preparation method and the test result is categorized as a small effect size.

In summary, the statistical analysis confirms that while a technical relationship exists between the students’ choice of preparation method and their ultimate passing rate, the strength of this relationship is relatively modest. This finding suggests that the specific preparation method studied here has only a minor practical influence on student success. Researchers should therefore recognize that other variables, potentially not included in this analysis, likely exert a much stronger influence on the final outcome.
