Learning to Create Grouped Histograms in SPSS for Statistical Analysis

The Critical Role of Grouped Histograms in Data Exploration

In the sphere of quantitative research and statistical analysis, the initial step of visualizing raw data is often the most revealing. Researchers frequently work with datasets that involve comparing a continuous variable—such as test scores, response times, or financial metrics—across distinct, predefined categorical groups. Attempting to summarize this complex data by generating a single, aggregate distribution chart can inadvertently obscure vital differences and patterns existing between these subgroups. This challenge highlights the fundamental importance of plotting histograms by group directly within SPSS Statistics.

A histogram is the definitive graphical tool for representing the frequency distribution of numerical data. When these visualizations are grouped and displayed comparatively, they offer immediate visual insight into critical distributional characteristics across categories. This allows for a rapid comparison of metrics like the central tendency (average), variability (spread or consistency), and overall shape (skewness or modality). For example, if you are analyzing the impact of two different teaching techniques, generating grouped histograms enables you to instantly compare the distribution of final grades for students using “Technique A” versus those using “Technique B.”

Without this crucial grouping functionality, identifying comparative patterns would necessitate cumbersome manual data subsetting or exclusive reliance on numerical summary statistics. While numerical summaries are necessary, they frequently fail to convey the complete visual context of the underlying data structure, particularly concerning outliers or complex modalities. The ability to generate clear, paneled, or juxtaposed histograms directly in SPSS streamlines the exploratory data analysis process, providing immediate diagnostic insight into whether groups exhibit different scoring patterns or varying levels of performance consistency. Ultimately, the goal is to produce a clean, side-by-side visualization that clearly segregates the score distributions based on the specified grouping factor, similar to the powerful example provided below.

Leveraging the SPSS Chart Builder for Advanced Grouped Visualization

Although SPSS Statistics offers multiple routes for graphical output, the most versatile, powerful, and user-friendly mechanism for creating sophisticated visualizations, including paneled histograms, is the dedicated Chart Builder interface. The Chart Builder utilizes a highly intuitive drag-and-drop environment that vastly simplifies the process of defining variables, selecting the appropriate chart type, and, crucially, specifying the grouping factors. This intuitive design makes complex graphical setups accessible even to researchers who prefer to avoid relying on advanced syntax commands typically associated with older procedures.

The core functionality that enables the generation of side-by-side or paneled visualizations resides within a specific area of the Chart Builder: the Groups/Point ID tab. This essential feature permits the user to designate a categorical variable that will define the structural partitioning of the final output chart. Instead of forcing all data points into a single, combined visualization, the Groups/Point ID feature instructs SPSS to partition the chart based on the unique levels present in the chosen grouping variable.

For example, if the designated grouping variable contains three distinct levels (e.g., Freshman, Sophomore, Junior), the resulting visualization will automatically display three separate, adjacent charts, with each one representing the distribution corresponding only to that specific level. Understanding and correctly utilizing the Groups/Point ID feature is paramount for effective comparative data visualization in SPSS. It is this specific mechanism that facilitates the required comparative display, allowing researchers to quickly and accurately assess differences in score distribution. The subsequent steps will detail precisely how to leverage this feature, particularly focusing on the Columns panel variable option, to achieve the desired output of juxtaposed histograms.

Data Preparation: Ensuring Correct Variable Structure

Before initiating the Chart Builder process, it is mandatory to confirm that your data is correctly structured and defined within the SPSS Data View. To successfully create grouped histograms, your dataset must contain at least two variables of the correct measurement level: first, one continuous or scale variable (the data whose distribution you intend to plot, typically placed on the X-axis); and second, one categorical, nominal, or ordinal variable (this will serve as the grouping factor).

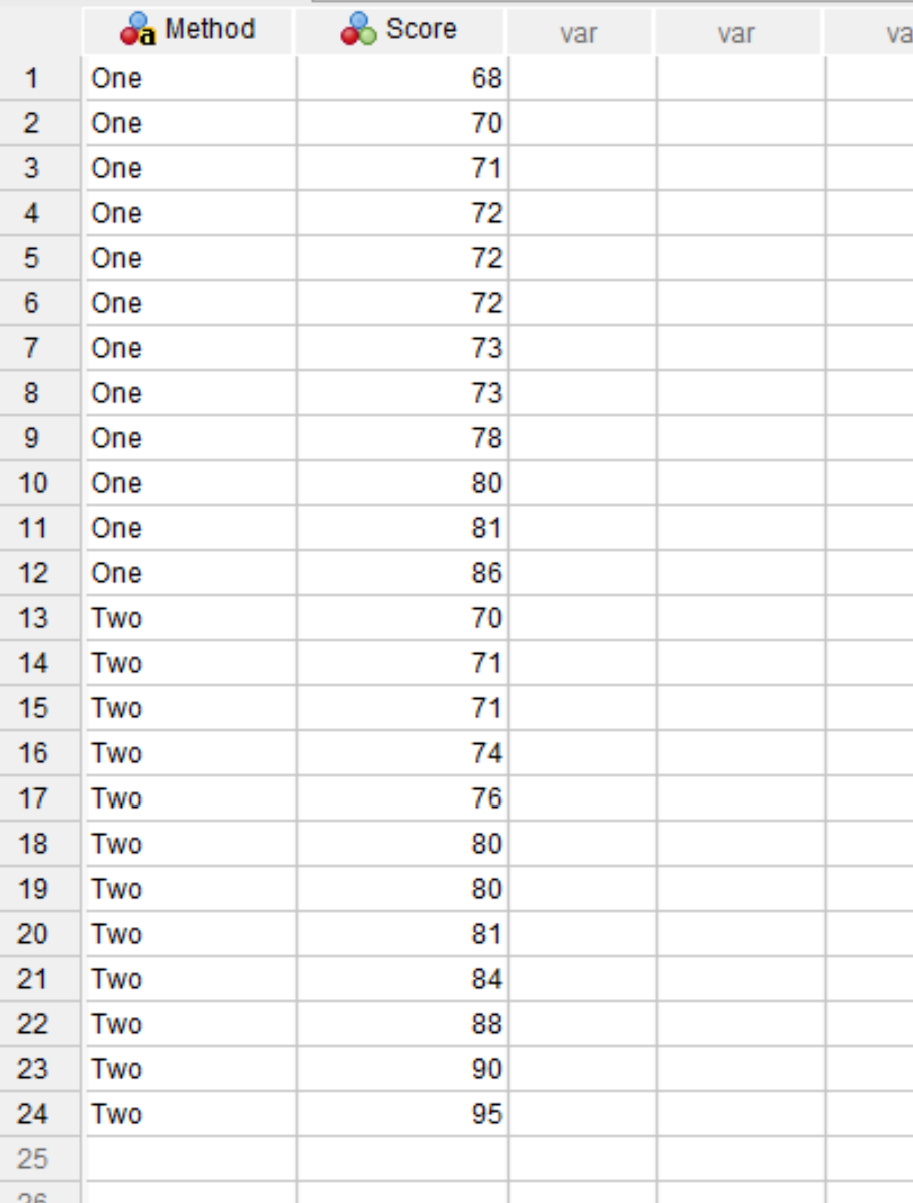

For the purpose of this practical demonstration, we will rely on a sample dataset designed to examine student performance in relation to the study preparation methods they utilized. Our dataset specifically includes two critical variables: Score, which is the continuous variable representing the final exam grade, and Method, which is the categorical variable indicating which of two preparation strategies was employed (designated as Method One or Method Two). The structure of this sample data is illustrated below, emphasizing the necessity of visualizing how the exam scores are distributed differently across these two distinct preparation methods.

Our primary research objective is to generate separate histograms for the Score variable—one showing the exclusive distribution for students who used Method One, and the other for those who used Method Two. This visualization strategy provides a powerful mechanism to quickly determine if one preparation method resulted in a consistently higher average or a more tightly clustered set of scores compared to the other. Once the data is properly loaded and the variables are correctly identified (Score as Scale; Method as Nominal), we are fully prepared to begin the charting process within the Chart Builder.

Step-by-Step Execution: Mastering the Columns Panel Variable

The process for generating paneled histograms starts by accessing the main graphing interface within SPSS Statistics. Navigate through the menu bar by selecting Graphs, followed by Chart Builder. This action opens the central dialog box where all visualization setup occurs. If a warning regarding measurement levels appears, confirm and proceed, ensuring that the Score variable is correctly designated as Scale (continuous) and the Method variable is set as Nominal or Ordinal (categorical).

1. Selecting the Chart Type: Locate the “Choose from:” list in the lower left corner of the Chart Builder dialog box. Select the Histogram category. Drag the simple histogram icon (typically the first option) into the large central area labeled “Chart preview area.” This action establishes the foundational structure for the visualization.

2. Defining the Axis Variable: Next, identify your continuous variable, Score, in the “Variables” list. Drag this variable and drop it onto the X-Axis drop zone within the Chart preview area. This crucial step informs SPSS which variable’s distribution must be plotted. At this point, the preview window will display a single, consolidated histogram representing all scores combined, regardless of the method used, as depicted below.

3. Activating Grouping Functionality: To successfully segment this single chart into multiple paneled charts based on our grouping variable, we must engage the Groups/Point ID feature. Click on the Groups/Point ID tab located on the right side of the Chart Builder window. Within this tab, locate and check the box labeled Columns panel variable. This specific selection is essential because it mandates that SPSS arrange the resulting comparative charts horizontally, which is the optimal layout for easy side-by-side comparison of distributions.

4. Applying the Grouping Variable: The final step involves assigning the grouping factor. Drag the categorical variable, Method, from the “Variables” list and drop it onto the newly available Panel label area that appears in the Chart preview area (typically positioned just above the X-axis). This action binds the visualization structure to the grouping factor. The Chart Builder preview will instantly update, showing the layout segmented by the Method variable, confirming that the comparative structure has been correctly applied and is ready for output.

Once the continuous variable is confirmed to be on the X-axis and the categorical variable is defined as the Columns panel variable, click OK. SPSS will then generate the final output in the Viewer window, presenting the required comparative distributions side-by-side, clearly distinguishing the score distributions for Method One and Method Two.

Interpreting the Output: Key Differences in Distributions

The resulting output window displays the final visualization, consisting of two distinct histograms arranged in columns, paneled precisely by the levels of the Method variable. This columnar arrangement is exceptionally effective for direct visual comparison in SPSS, as evidenced by the generated graph:

The histogram displayed on the left column corresponds to the score distribution for students who used Method One, while the histogram on the right column represents the scores for students who utilized Method Two. By visually inspecting these two distributions, researchers can immediately pinpoint key differences in performance outcomes. In this specific educational example, the distribution associated with Method Two is visibly shifted further to the right along the X-axis compared to the distribution for Method One. This horizontal shift clearly indicates a generally higher average score for students who were allocated to the Method Two group.

Furthermore, the visualization permits an assessment of other critical characteristics of the distribution, such as variability or spread. If one chart appears significantly wider or flatter than the other, it suggests a greater degree of score variability or inconsistency within that particular group. Conversely, a narrower, taller histogram often implies more tightly clustered and consistent performance. In the provided image, the Method Two distribution peaks at a higher score range, reinforcing the initial finding from our statistical analysis that Method Two preparation may be associated with improved exam outcomes. This visual evidence is a crucial, non-negotiable component of robust data reporting and interpretation.

Scalability and Practical Applications for Multiple Groups

A significant strength of this methodology is its inherent scalability. While our focused example involved comparing only two groups (Method One versus Method Two), the identical procedure utilizing the Chart Builder and the Groups/Point ID feature can be flawlessly applied when the grouping variable contains three, four, or even dozens of distinct categories. The only change observed in the output is the number of panels generated: SPSS automatically creates a corresponding column for every unique value present in your designated grouping variable.

This scalability transforms the grouped histogram into an indispensable and versatile tool across various disciplines requiring statistical analysis. For instance, a public health analyst might plot patient recovery times grouped by hospital facility or treatment protocol. Similarly, a market researcher can compare customer spending distributions grouped by geographical region (e.g., urban, suburban, rural). The visual comparison remains immediate and powerful, offering a rapid diagnostic tool for identifying subgroup differences that are significant enough to warrant further, more detailed inferential testing.

When datasets involve a very large number of groups, SPSS intelligently manages the visualization layout by potentially wrapping the panels onto multiple rows if they cannot comfortably fit horizontally on a single page, thereby ensuring chart readability. However, professional best practices suggest that visualizations containing too many panels (typically exceeding eight or ten) can become visually overwhelming and dilute the clarity of the comparison. In such instances, researchers might consider focusing on key comparisons or implementing hierarchical grouping. Irrespective of the total number of categories, the fundamental steps—using the Chart Builder, defining the X-axis variable, and assigning the grouping factor to the Columns panel variable—remain constant, ensuring a consistent and reliable approach to generating comparative distributions.

Further Resources for SPSS Visualization Mastery

Achieving mastery over the SPSS Chart Builder is essential for producing high-quality, publication-ready visualizations that effectively communicate complex data insights. To further enhance your proficiency in data presentation and statistical analysis using this software, it is highly recommended to explore tutorials covering related common tasks and advanced customization options. These resources often provide guidance on adjusting parameters such as bin sizes in histograms or incorporating descriptive statistics and distribution fitting (e.g., adding normal curves) to the charts.

The following tutorials explain how to perform other common visualization tasks within SPSS:

• How to create comparative Box Plots by Group.

• Generating Scatter Plots with Regression Lines.

• Customizing chart aesthetics (colors, titles, and labels) for professional reports.

• Understanding options for distribution fitting (e.g., normal curves) on histograms.

By seamlessly integrating grouped histograms into your initial exploratory data analysis process, you ensure that subtle yet significant differences between subgroups are immediately recognized and appropriately reported, thereby substantially enhancing both the depth and the overall validity of your research findings.
