Learning to Identify and Calculate Leverage and Outliers in R for Robust Regression Analysis

Statistical modeling, particularly regression analysis, relies on the fundamental assumption that no single data point exerts an undue influence on the overall model parameters. Understanding the unique contribution and potential impact of individual observations is not merely good practice—it is crucial for generating stable, reliable, and interpretable results. When fitting a model, we must systematically diagnose observations that disproportionately affect the estimated coefficients, as these influential points can lead to skewed interpretations and flawed predictive performance.

These problematic observations generally fall into two distinct but often related categories: outliers and high leverage points. An outlier is characterized by a residual value that is unusually large; that is, the observed value of the response variable (Y) deviates drastically from the value predicted by the model. This signals a poor fit for that specific observation relative to the established pattern of the data.

Conversely, leverage identifies observations that are unusual in the space defined by the predictor variables (X). An observation exhibits high leverage if its values for the independent variables are extreme or far removed from the center of the remaining data points. While an outlier impacts the vertical distance from the regression line (Y-space), high leverage concerns the position in the horizontal space (X-space). An observation with high leverage possesses the structural potential to significantly redirect the slope and intercept of the regression line, even if its residual is small. Therefore, calculating and evaluating the leverage statistic for every data point is an indispensable preliminary step in any robust data diagnostics workflow.

The Mathematical Foundation: Defining Leverage and the Hat Matrix

The concept of leverage is rooted in the geometrical structure of the predictor variables used in the model. It quantifies how far an observation’s predictor values are from the average of all predictor values. Formally, leverage is derived directly from the diagonal elements of a fundamental matrix in linear algebra known as the Hat Matrix (H). This matrix maps the observed response values ($Y$) onto the predicted response values ($hat{Y}$), hence its name, as it “puts the hat” on Y: $hat{Y} = H Y$.

The diagonal elements of the Hat Matrix, denoted as $h_{ii}$, are the specific leverage statistics we are interested in. These values precisely quantify the degree to which the $i$-th observation’s response variable value contributes to its own predicted value, $hat{y}_i$. These leverage values are bounded, ranging mathematically between $1/n$ and $1$, where $n$ is the total number of observations in the dataset. A value closer to 1 indicates maximal leverage, signifying that the observation is located at an extreme position in the predictor space.

It is crucial to differentiate between high leverage and actual influence. High leverage merely indicates that an observation has the potential to be influential, but it does not guarantee that it will actually pull the regression line. An observation only becomes truly influential if it combines high leverage with a large residual (i.e., it is an outlier in the Y-space while being extreme in the X-space). However, due to their structural positioning, points with high leverage must always be rigorously scrutinized.

To systematically flag observations for potential scrutiny, analysts rely on a heuristic threshold. While context may dictate adjustments, a widely utilized conservative guideline suggests that observations warrant close examination if their leverage value $h_{ii}$ exceeds $2(k+1)/n$. Here, $k$ represents the number of predictor variables included in the regression model, and $n$ is the sample size. This threshold establishes a baseline against which we can rigorously evaluate the numerical output provided by our statistical software.

Implementation in R: Preparing the Regression Model

To provide a concrete demonstration of calculating and interpreting leverage statistics, we will utilize the powerful statistical programming language R. We will employ the well-known, internal mtcars dataset, which offers a clean and accessible environment for illustrating diagnostic techniques. Our objective is to fit a standard multiple regression model that seeks to predict a vehicle’s fuel efficiency, measured in miles per gallon (mpg), using two key engineering specifications as predictors: engine displacement (disp) and gross horsepower (hp).

This initial setup is mandatory, as diagnostic statistics such as leverage cannot be computed without a successfully fitted model object. The model object contains all the necessary information, including the matrix of predictor values, required for calculating the Hat Matrix diagonals. By establishing this foundation, we ensure that all subsequent calculations are performed within the context of the specific model structure defined by our chosen variables.

The following R code snippet executes this preparatory step. It first loads the inherent mtcars data, then fits the linear model using the standard lm() function, and finally provides a summary of the resulting coefficients and overall model fit metrics, confirming the successful creation of the model object named model.

#load the dataset
data(mtcars)

#fit a regression model
model <- lm(mpg~disp+hp, data=mtcars)

#view model summary
summary(model)

Coefficients:
             Estimate Std. Error t value Pr(>|t|)
(Intercept) 30.735904   1.331566  23.083  < 2e-16 ***
disp        -0.030346   0.007405  -4.098 0.000306 ***
hp          -0.024840   0.013385  -1.856 0.073679 .
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 3.127 on 29 degrees of freedom
Multiple R-squared:  0.7482,	Adjusted R-squared:  0.7309
F-statistic: 43.09 on 2 and 29 DF,  p-value: 2.062e-09

Calculating Leverage Scores: The R hatvalues() Function

With the linear model successfully established, the next immediate step involves extracting the leverage statistic for every single observation within the dataset. R provides a highly convenient, dedicated function for this purpose: hatvalues(). This function is designed specifically to accept a fitted linear model object and efficiently return the diagonal elements of the Hat Matrix, which are the $h_{ii}$ scores.

For ease of inspection and subsequent analytical steps, we store the output generated by hatvalues(model) into a manageable data structure, in this case, a data frame named hats. The resulting output clearly lists the specific leverage value corresponding to each car model present in the mtcars sample. By calculating these raw leverage scores, we gain immediate insight into which observations possess the most unusual or extreme combinations of predictor variables (displacement and horsepower) relative to the collective structure of the sample data.

The output below illustrates the complete set of leverage statistics calculated for all 32 vehicles. Note that the vehicle names serve as identifiers for the respective $h_{ii}$ score, allowing us to pinpoint which data points require further investigation based on their position in the predictor space.

#calculate leverage for each observation in the model
hats <- as.data.frame(hatvalues(model))

#display leverage stats for each observation
hats

                    hatvalues(model)
Mazda RX4                 0.04235795
Mazda RX4 Wag             0.04235795
Datsun 710                0.06287776
Hornet 4 Drive            0.07614472
Hornet Sportabout         0.08097817
Valiant                   0.05945972
Duster 360                0.09828955
Merc 240D                 0.08816960
Merc 230                  0.05102253
Merc 280                  0.03990060
Merc 280C                 0.03990060
Merc 450SE                0.03890159
Merc 450SL                0.03890159
Merc 450SLC               0.03890159
Cadillac Fleetwood        0.19443875
Lincoln Continental       0.16042361
Chrysler Imperial         0.12447530
Fiat 128                  0.08346304
Honda Civic               0.09493784
Toyota Corolla            0.08732818
Toyota Corona             0.05697867
Dodge Challenger          0.06954069
AMC Javelin               0.05767659
Camaro Z28                0.10011654
Pontiac Firebird          0.12979822
Fiat X1-9                 0.08334018
Porsche 914-2             0.05785170
Lotus Europa              0.08193899
Ford Pantera L            0.13831817
Ferrari Dino              0.12608583
Maserati Bora             0.49663919
Volvo 142E                0.05848459

Systematic Interpretation: Identifying High-Leverage Observations

Raw numerical scores are only truly useful when compared against a defined standard. To systematically pinpoint observations that possess high leverage, we must calculate and apply the statistical threshold discussed earlier. This rigorous comparison allows us to move beyond mere observation toward evidence-based data diagnostics.

For our specific model, which predicts mpg using displacement and horsepower, we have the following parameters:

• $k$, the number of predictor variables: $k=2$ (disp and hp).
• $n$, the total sample size (number of cars): $n=32$.

Using the heuristic threshold formula, $2(k+1)/n$, we calculate the critical value:

$2(2+1) / 32 = 6 / 32 = 0.1875$.

This calculation yields a precise threshold of 0.1875. Any vehicle in the mtcars dataset with a leverage value greater than this figure is statistically flagged as a high-leverage point and demands immediate, careful scrutiny by the analyst.

To facilitate this comparison, we must organize the results in a manner that highlights the extremes. We use R’s powerful indexing and sorting capabilities, specifically the order() function, specifying a negative sign to arrange the data frame in descending order based on the leverage column. This sorting operation places the most extreme observations at the top of the list, making identification straightforward.

#sort observations by leverage, descending
hats[order(-hats['hatvalues(model)']), ]

 [1] 0.49663919 0.19443875 0.16042361 0.13831817 0.12979822 0.12608583
 [7] 0.12447530 0.10011654 0.09828955 0.09493784 0.08816960 0.08732818
[13] 0.08346304 0.08334018 0.08193899 0.08097817 0.07614472 0.06954069
[19] 0.06287776 0.05945972 0.05848459 0.05785170 0.05767659 0.05697867
[25] 0.05102253 0.04235795 0.04235795 0.03990060 0.03990060 0.03890159
[31] 0.03890159 0.03890159

Upon reviewing the sorted numerical results, two observations immediately stand out as exceeding the 0.1875 threshold. The Maserati Bora exhibits the highest leverage score by a significant margin (0.4966), followed by the Cadillac Fleetwood (0.1944). This concrete finding confirms that these two vehicles possess unique combinations of high engine displacement and horsepower relative to the rest of the sample, positioning them at the fringes of the predictor space. This makes them highly influential candidates that could potentially distort the core relationships estimated by the regression model.

Visual Confirmation: Diagnostic Plotting

While numerical tables provide precision, graphical diagnostics offer an essential, intuitive perspective on data structure. Visualizing the distribution of leverage across the dataset allows analysts to quickly identify anomalies and confirm numerical findings. This visual step is critical for gaining an immediate, holistic understanding of data influence.

We can use the base plotting functions available in R to create a simple, yet highly informative, plot that maps the leverage value ($h_{ii}$) against the observation index. This is achieved using the command plot(hatvalues(model), type = 'h'), where the ‘h’ type generates vertical histogram-like lines.

#plot leverage values for each observation
plot(hatvalues(model), type = 'h')

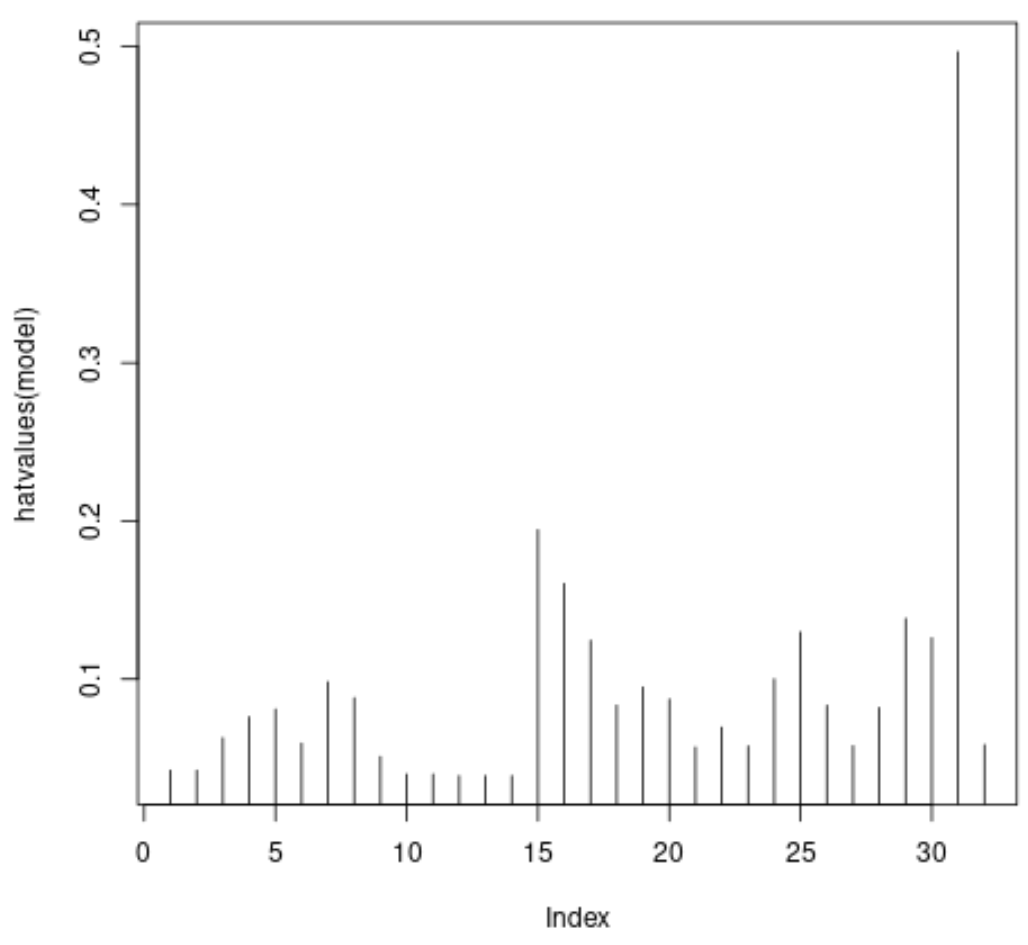

The resulting diagnostic plot clearly confirms the numerical analysis. The x-axis represents the sequential index of each observation (1 through 32), and the y-axis displays the corresponding leverage statistic. We observe a dramatic spike around index 31, which corresponds to the Maserati Bora, illustrating its extremely high leverage. A second, significant spike is visible around index 15, corresponding to the Cadillac Fleetwood. This visualization rapidly and unequivocally highlights the observations that deviate substantially from the mean leverage of the sample, providing powerful evidence that supports the need for further investigation into these specific data points.

Conclusion: Moving from Potential Leverage to Measured Influence

The systematic identification of observations with high leverage is an indispensable stage in rigorous statistical modeling. By combining the precise numerical output of the R hatvalues() function with the visual confirmation provided by diagnostic plots, we successfully pinpointed the Maserati Bora and the Cadillac Fleetwood as two observations that significantly exceed the standard statistical threshold for high leverage in our fuel efficiency regression model.

It is vital to reiterate that high leverage signals the potential for influence, but not influence itself. An observation only truly becomes an influential point when its extreme position in the predictor space (high leverage) combines with an unusual response value (making it an outlier). Such influential points can dramatically alter the magnitudes and even the signs of the model coefficients.

Therefore, the next logical steps in the diagnostic process involve quantifying the actual overall influence of these high-leverage points on the model estimates. Analysts typically turn to dedicated influence measures such as Cook’s Distance, which measures the change in all coefficients when an observation is removed, or DFFITS, which quantifies the change in the fitted value for each observation when it is omitted from the model. Understanding and addressing these influential observations—whether through data verification, applying robust regression techniques, or simply documenting their impact—ensures that the final statistical model provides a stable, reliable, and trustworthy representation of the complex underlying data relationships.
