Learning Z-Score Calculation with Power BI: A Step-by-Step Guide

In the realm of statistics and data analysis, the Z-score is a fundamental metric used to quantify the distance of a data point from the mean of a dataset. Specifically, a z-score tells us exactly how many standard deviations a particular value lies away from the population mean. This standardization process, often referred to as normalization, is incredibly useful for comparing scores from different distributions or for identifying outliers within a single dataset. Understanding and calculating the Z-score is a core skill for any data analyst utilizing tools like Power BI, as it transforms raw data into a universally interpretable scale.

Introduction to the Z-Score: A Statistical Overview

The primary purpose of calculating a Z-score is to understand the relative position of an observation within its data distribution. A positive Z-score indicates that the data point is above the mean, while a negative Z-score signifies that the data point is below the central tendency. The magnitude of the score represents the distance in units of standard deviations. For instance, a Z-score of 2.0 means the value is two standard deviations above the mean, suggesting it is relatively uncommon if the data follows a normal distribution.

This concept is vital when performing data quality checks, statistical inference, or when preparing data for machine learning models that are sensitive to scale. Calculating Z-scores directly within Power BI allows analysts to immediately visualize these normalized metrics alongside raw data, providing immediate context for performance, risk, or deviations across various data segments. This eliminates the need for complex external calculations and streamlines the reporting process significantly, allowing users to move swiftly from raw data acquisition to meaningful statistical insight.

Understanding the Z-Score Formula

The mathematical foundation for the Z-score is straightforward, requiring only three key components: the raw data point, the population mean, and the population standard deviation. We use the following universally accepted formula to calculate a z-score, which is essential for its accurate implementation using Data Analysis Expressions (DAX) in Power BI.

z = (x – μ) / σ

Understanding the variables in this equation is paramount for correct application in a data modeling environment:

• x is a single raw data value—the specific observation we are seeking to standardize.
• μ (mu) signifies the population mean, which is the average value of the entire dataset or population under consideration.
• σ (sigma) denotes the population standard deviation, measuring the spread or variability of the data points around the mean.

In essence, the numerator calculates the absolute deviation of the raw score from the central tendency, and the denominator scales this deviation by the inherent variability of the data. This standardized approach ensures that the resulting score is comparable even across datasets with wildly different scales or units of measurement, providing a unified view of data performance.

Implementing the Z-Score Calculation Using DAX in Power BI

To calculate z-scores efficiently within Power BI, we utilize DAX to create a calculated column. This method ensures that the Z-score is computed for every row, treating the entire column as the population for the calculation of the mean and standard deviation. Since the calculation requires referencing the entire column’s average and spread, using DAX variables (VAR) is the cleanest and most robust way to manage context transitions and improve readability and performance of the calculation.

The following syntax provides a complete and reusable formula in DAX for generating a Z Score column. Note the use of STDEV.P, which calculates the standard deviation for the entire population, aligning precisely with the statistical definition of the Z-score.

Z Score =
VAR Xi = 'my_data'[Points]
VAR MeanValue = AVERAGE('my_data'[Points])
VAR StDevValue = STDEV.P('my_data'[Points])
RETURN DIVIDE(Xi - MeanValue, StDevValue)

This powerful DAX structure defines the individual data point (Xi), calculates the central tendency (MeanValue), determines the spread (StDevValue), and finally returns the standardized score using the DIVIDE function for safe division. This calculation creates a new column named Z Score that contains the calculated Z-score for each corresponding value derived from the Points column within the table named my_data. This methodology ensures that the mean and standard deviation are calculated over the entire column context, independent of individual row context evaluation.

Practical Example: Calculating Z-Scores for Data

To demonstrate the practical application of this DAX approach, let us walk through a typical data analysis scenario. Suppose we are analyzing performance data for a basketball league. We have the following table, titled my_data, loaded into Power BI, which contains information about points scored by various players. Our objective is to calculate the Z-score for every player’s score to understand their performance relative to the league average, thereby identifying exceptional or struggling players.

The dataset includes a Points column, which serves as our raw data source (x), and we aim to standardize these values:

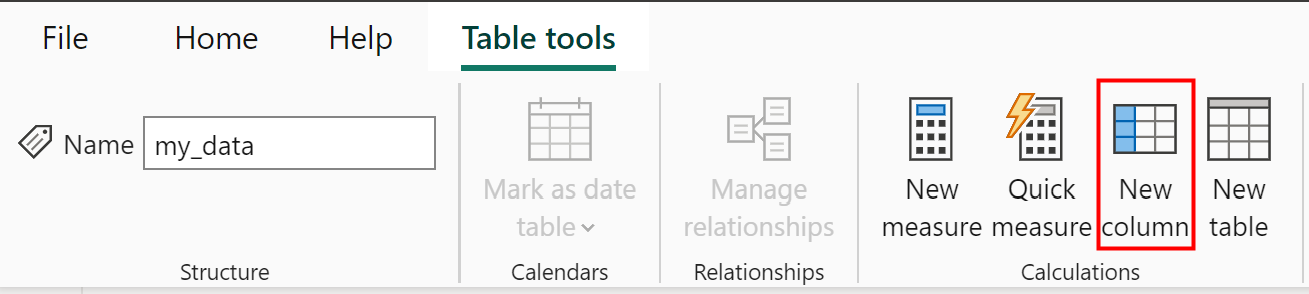

To calculate the Z-score for each value in the Points column, we must first create a new calculated column. To do so, click the Table tools tab in the Power BI interface and then select the New column icon. This action prepares the environment for inputting the DAX expression.

Next, input the previously defined DAX formula into the formula bar. This expression uses variables to ensure the correct context for the mean and standard deviation calculation across the entire column, while performing the subtraction and division operation row-by-row.

Z Score =
VAR Xi = 'my_data'[Points]
VAR MeanValue = AVERAGE('my_data'[Points])
VAR StDevValue = STDEV.P('my_data'[Points])
RETURN DIVIDE(Xi - MeanValue, StDevValue)

After execution, the resulting table displays the new Z Score column, which standardizes the raw data points:

Interpreting the Results of the Z-Score Column

The resulting Z Score column is where the real value of standardization is revealed. Each value represents a player’s performance expressed in units of standard deviations away from the average score of all players. A score close to zero suggests performance is near the average, while larger positive or negative magnitudes indicate performances significantly above or below the mean, respectively, allowing for quick outlier detection.

Here is a detailed interpretation of a few key values from the newly calculated Z Score column, which helps us understand the relative standing of each data point:

• The first points value of 22 has a Z Score of 0.1788. This means this player’s score is 0.1788 standard deviations below the mean points value, indicating a performance that is slightly below average relative to the entire population.
• The second points value of 14 has a Z Score of 1.2005. This score is significantly lower, positioned at 1.2005 standard deviations below the mean points value, clearly marking it as a lower-tier performance within this dataset.
• The third points value of 18 results in a Z Score of 0.6897. Similar to the first observation, this score is 0.6897 standard deviations below the mean points value, placing it closer to the average but still underperforming.
• The fourth points value of 39 is highly notable, generating a Z Score of 1.9924. This player is scoring nearly two standard deviations above the mean points value, strongly identifying this performance as an outlier or elite level relative to the rest of the league.

By calculating and interpreting these scores, analysts can quickly identify performance anomalies, set thresholds for intervention, or compare metrics that were previously incomparable due to differences in scale. This standardization is a powerful feature when building dynamic reports in Power BI.
