Learning to Use Conditional Formatting on Power BI Cards

Harnessing Conditional Formatting for Dynamic Power BI Cards

In the realm of data visualization, quick insight delivery is paramount. One of the most common requirements when designing interactive dashboards in Power BI is the ability to draw immediate attention to key performance indicators (KPIs) based on their underlying values. While many visuals, such as tables or matrices, offer robust formatting options, applying dynamic styling to a simple, yet critical, Card visual often requires specific configuration steps. The Conditional Formatting feature is essential for transforming static numbers into highly communicative data points, ensuring stakeholders can instantly grasp whether a metric is performing positively or negatively relative to predefined thresholds. This capability significantly enhances the decision-making process by reducing the cognitive load required to interpret the data, especially when dealing with high-volume, real-time metrics.

Integrating dynamic visual feedback into a Card visual is a key best practice for effective dashboard design. By changing the font color of the displayed value, we create an immediate, non-verbal indicator of status. For example, a card displaying sales figures might turn green when targets are exceeded or red when performance lags. This technique is invaluable for executive summaries and operational dashboards where monitoring performance against targets is continuous. Historically, implementing such formatting on single-value cards sometimes required complex DAX measures, but Power BI has streamlined this process significantly.

Fortunately, applying sophisticated conditional formatting to the font color of a Card visual is straightforward, leveraging built-in features within the visualization pane. This approach allows developers to dictate precisely how the displayed font color changes based on the numeric value currently being summarized or filtered by the dashboard context. Specifically, this functionality is managed through the Conditional Formatting interface, accessible via the Callout value settings within the visual’s formatting menu. Mastery of this technique is fundamental for any Power BI professional aiming to create dashboards that are not only aesthetically pleasing but also functionally robust and instantly informative. We will now walk through a practical, step-by-step example demonstrating exactly how to implement this powerful feature using a rules-based approach.

Scenario Setup: Applying Dynamic Rules to a KPI Card

To illustrate this process effectively, let us consider a common business scenario involving performance tracking. Suppose we are working with a sports analytics dashboard that monitors team performance metrics. Our Power BI dashboard currently includes a detailed Matrix visual that meticulously summarizes the total points accumulated by various basketball teams across several games or periods. Complementing this matrix is a primary Card visual, designed to highlight the overall sum of points scored across all teams displayed in the current filter context. This card serves as a crucial KPI, providing an immediate aggregate view of performance, which changes dynamically as filters are applied or as users interact with slicers or other visuals.

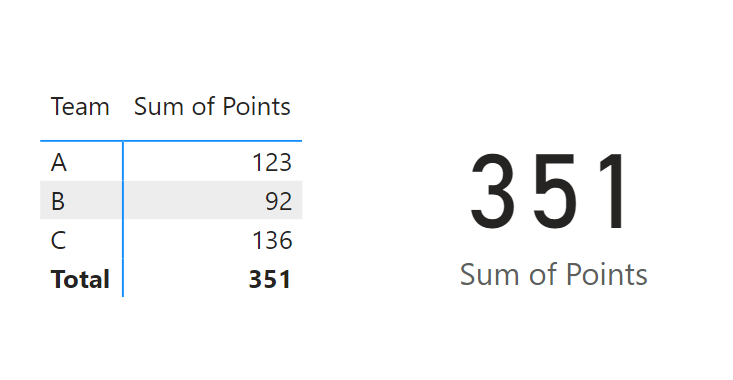

The current arrangement of the dashboard, before any formatting is applied, provides a foundational view of the data. Notice the relationship between the detailed team-by-team breakdown in the matrix and the aggregated total presented in the card. This synergy is common in professional dashboards where high-level summaries must correlate directly with granular data, allowing users to move seamlessly between the big picture and the underlying detail. The image below depicts this initial setup, showing the cumulative total points summarized in the card alongside the detailed breakdown in the matrix, prior to the implementation of any dynamic color rules.

Our objective is to implement a clear visual alert system tied to a performance benchmark. We define our critical threshold at 100 points. If the sum of points currently displayed in the Card visual is greater than or equal to 100, the font color should be displayed prominently in blue, signifying that the performance target has been met or exceeded. Conversely, if the sum of points is strictly less than 100, the font color must switch to red, acting as a warning sign that the performance is lagging below the target threshold. This binary color scheme provides immediate visual feedback, significantly improving the dashboard’s effectiveness in communicating status, making it instantly recognizable whether the current selection represents success or failure against the KPI.

Step-by-Step Implementation: Accessing Conditional Formatting Rules

The application of conditional formatting in Power BI follows a precise sequence of actions within the report development environment, typically accessed through the formatting pane. This process begins by isolating the visual element we intend to modify—in this case, the Card visual. It is imperative that the visual is selected first to ensure the formatting changes are applied exclusively to that component, preventing accidental modification of adjacent visuals. Once the card is active, the developer must navigate to the dedicated formatting pane, which controls all aesthetic and functional attributes of the selected visual.

The subsequent steps involve drilling down into the specific properties that govern the display of the numerical value itself, referred to within the Power BI interface as the Callout value. This value is the primary focus of the card and must be targeted for dynamic color assignment. Follow this ordered sequence precisely to access the rule definition interface:

1. Click directly on the Card visual within the report canvas to ensure it is the active element. A border will appear around the card, indicating selection.
2. Locate and click the Format your visual tab, typically represented by a paint roller icon, located under the Visualizations pane on the right side of the screen. This pane consolidates all controls for visual aesthetics.
3. Expand the section labeled Callout value. This section controls the font family, text size, transparency, and most importantly, the color of the primary metric displayed on the card.
4. Within the Callout value settings, look for the Color property. Instead of choosing a static color, click the dedicated Conditional formatting icon, which is universally represented by the function symbol (fx). This icon signals the ability to define rules or formulas based on data values rather than fixed inputs.

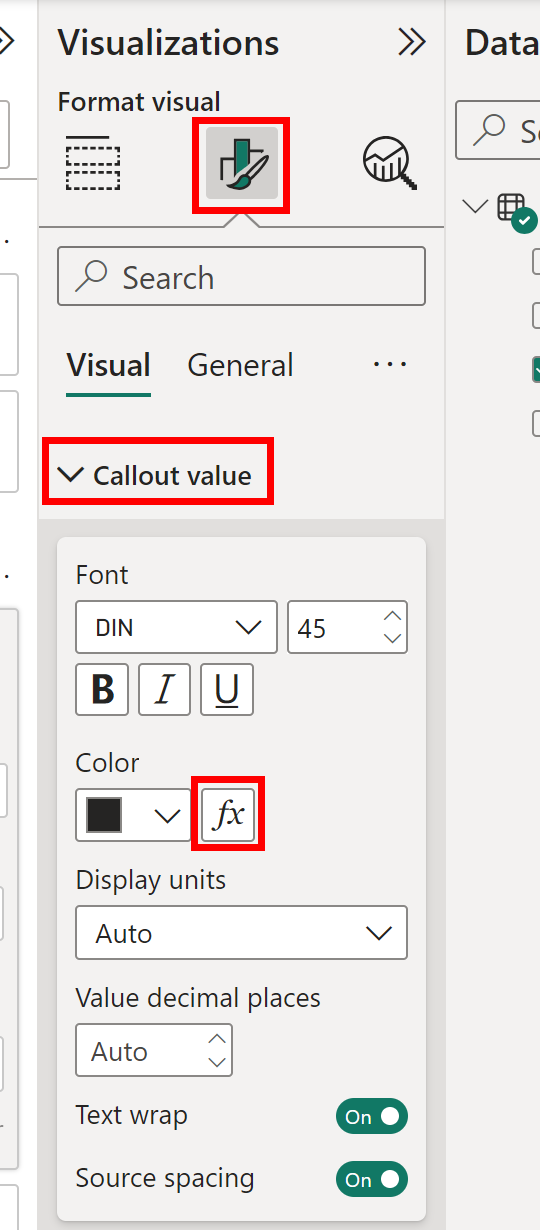

Executing these steps will launch the dedicated configuration window, titled ‘Conditional formatting – Callout value Color,’ where the logical rules governing the font color transition will be established. This interface is the central hub for defining all rules-based or measure-based styling. The image below provides a visual confirmation of the navigation path required to locate the crucial (fx) icon within the formatting options for the Card visual, ensuring you target the correct property (Color) within the Callout value section.

Defining and Configuring Conditional Rules (Rules-Based Formatting)

Once the ‘Conditional formatting’ configuration window is active, the critical task is to select the appropriate method for applying the styling changes. Power BI offers several formatting styles, including Color Scale (which creates a gradient across a range) and Rules (which applies discrete colors based on specific conditions). Since our objective involves binary color transitions based on a fixed, non-gradient threshold (100 points), the Rules option is the most suitable and precise choice, ensuring that the color output is strictly one of two options.

Within the configuration interface, verify that the Format style dropdown is set to Rules. It is also crucial to confirm that the Based on field setting correctly references the measure or column currently displayed by the card (in our example, the sum of points or similar aggregated score). Next, the developer must explicitly define the logical conditions that dictate the color output, a process that requires careful definition of comparison operators, data types, and numerical boundaries to avoid ambiguity.

We must establish two distinct, mutually exclusive rules to cover all possible scenarios regarding the 100-point threshold: the ‘Underperforming’ rule and the ‘Target Met’ rule. These rules must span the entire relevant numerical range to ensure no data point is left unformatted.

The rules must be constructed meticulously as follows:

1. Rule 1: Underperformance (Red): This rule applies when the points total is below the target. We set the condition: If value is greater than or equal to 0 (assuming points cannot be negative; always define a clear lower bound) and is less than 100. The output color for this condition is set explicitly to Red. This rule captures all values between 0 and 99.99… ensuring that anything strictly under 100 is flagged negatively.
2. Rule 2: Target Met (Blue): This rule handles successful performance. We define the condition: If value is greater than or equal to 100 and is less than or equal to Maximum. The output color for this condition is set to Blue. Using ‘Maximum’ ensures that all values equal to or above 100, regardless of how high they go, are correctly styled without requiring an arbitrary upper limit.

This precise configuration guarantees that the font color instantly communicates the status relative to the KPI target, forming the foundation of effective conditional formatting.

The visual representation below illustrates the correct setup of these rules within the Power BI dialog box. It confirms the selection of ‘Rules’ as the format style and shows the precise numerical boundaries (0 to 100, and 100 to Maximum) defined for the respective color outputs. After confirming that the field is correct and the rules are logically sound, clicking OK applies these dynamic rules to the Card visual, instantly transforming the visual’s behavior.

Validating the Dynamic Results of Conditional Formatting

Upon clicking OK, the defined Conditional Formatting takes immediate effect across the report. Initially, assuming the aggregated total points across all teams exceed 100 (as shown in the setup image), the font color of the Card visual will instantaneously change to blue. This initial result confirms that the ‘Target Met’ rule (Rule 2) is functioning correctly based on the current, unfiltered data context of the dashboard. This instantaneous feedback loop is crucial for validating the successful deployment of the rules and ensuring they interpret the data as intended.

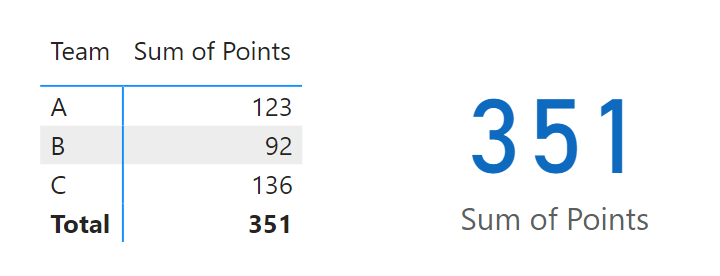

The image below displays the card after the rules have been successfully applied, clearly showing the aggregated score in the expected blue color, validating the initial condition where the overall score surpasses the 100-point threshold.

The true power of this implementation, however, is revealed through interaction. Since Power BI dashboards are inherently interactive, the Card visual dynamically responds to cross-filtering actions originating from other visuals, such as the Matrix visual. When a user selects a specific team within the matrix, the card automatically recalculates and displays only the points relevant to that selection, and the conditional format rules are re-evaluated instantly against this new, filtered value.

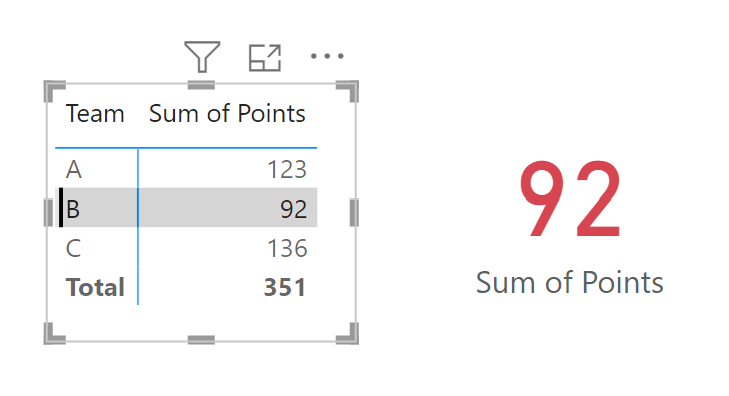

Consider the action of clicking on Team B in the matrix. If Team B has accumulated 92 points, which falls below the 100-point threshold, the card updates to show this new value. More importantly, the font color automatically transitions to red, confirming the activation of the ‘Underperformance’ rule (Rule 1). This immediate visual shift provides unmistakable communication that Team B’s performance metric is currently below the acceptable target, requiring closer scrutiny from the analyst.

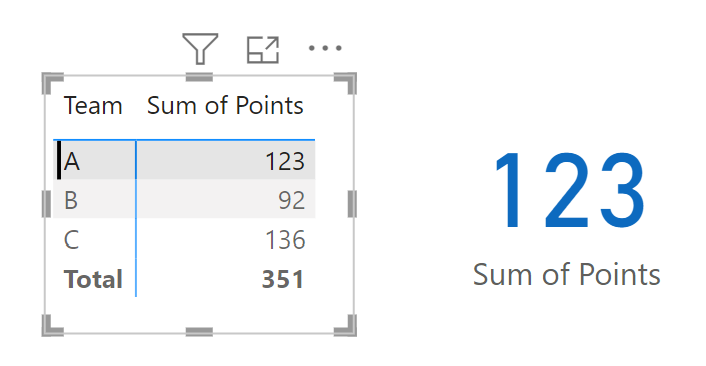

Conversely, selecting Team A, which has a higher performance score, for example, 123 points, triggers the opposing condition. Since 123 is greater than or equal to 100, the calculated value remains visible, but the font color reverts immediately back to blue, reinforcing the positive status relative to the KPI. This seamless and instantaneous color change provides an exceptional user experience, making the dashboard highly intuitive for monitoring performance and understanding the impact of specific filters.

Extending Conditional Formatting: Beyond Binary Colors

While the example above utilized a simple binary (red/blue) color scheme, the Conditional Formatting feature within Power BI is highly flexible and scalable. Developers are not limited to just two rules; indeed, you have the capability to create numerous rules to define complex, multi-tiered performance grading systems. For instance, a detailed grading system might involve green for excellent performance (>150), yellow for acceptable performance (100-150), and red for underperformance (<100). When defining multiple rules, it is vital to ensure that the ranges are continuous and non-overlapping to prevent ambiguous formatting outcomes.

Furthermore, the conditional formatting capabilities extend beyond mere font color adjustment. Although this guide focused on the Callout value color, similar formatting options are often available for other visual elements, depending on the visual type. For specialized data visualization, you can also apply conditional formatting to the background color of the Card visual, allowing the entire tile to change color, which provides an even stronger visual cue, especially effective in high-stakes operational dashboards. An important note for advanced users: utilizing measures to dynamically define the color codes or thresholds (known as Field Value formatting) offers even greater flexibility, especially in scenarios where targets change frequently based on external business parameters or user selection.

Mastering these advanced techniques is key to moving from basic report creation to sophisticated dashboard design. By strategically applying dynamic colors to critical KPIs, report creators ensure that the most important information is always front and center, regardless of the complexity of the underlying data model or the interactive filters applied by the end-user. This optimization drives faster analysis and more informed business decisions, transforming raw data into actionable intelligence.
