Learning to Customize Axis Intervals in R Plots

Mastering Custom Axis Intervals in R Plots

When generating data visualizations in R, achieving precise control over every graphical element is essential for effective data communication. One of the most frequently customized features is the placement and spacing of axis intervals, or tick marks. While default settings in the Base R plotting system often suffice, they rarely provide the optimal visual context needed to highlight specific data ranges, maintain aesthetic balance, or adhere to publication standards. Customizing these ticks allows the analyst to dictate exactly where labels and markers appear, thereby improving clarity and focus.

The standard plotting functions in R, such as the fundamental plot() command, automatically scale and position the axis ticks based on the minimum and maximum values in the dataset. This automatic scaling, while convenient for quick exploratory analysis, often results in tick intervals that are either too dense or too sparse for a final presentation. To supersede this default behavior and implement a bespoke scale, we must employ a powerful, two-step process built around manually defining the tick locations using specialized functions.

The foundational technique for implementing a custom scale requires instructing the primary plotting function to suppress the automatic drawing of the axes entirely. Once the default axes are removed, the analyst gains full control to employ the dedicated axis() function. This dedicated function is responsible for drawing new, custom tick marks precisely where the data narrative requires them, providing a vital pathway toward producing highly tailored and professional-grade visualizations in Base R.

The Essential Two-Step Process for Axis Manipulation

The initial and most critical step in customizing axis intervals is the suppression of the built-in, automatic axes. This is accomplished by passing specific graphical parameters directly to the plot() function. Specifically, the arguments xaxt='n' and yaxt='n' are used to suppress the drawing of the X-axis (bottom) and Y-axis (left), respectively. The value ‘n’ is a mnemonic for ‘none,’ effectively preventing the plot from displaying any tick marks or axis lines on the specified side.

Following the suppression of the default axes, the plotting environment is ready for the custom definition. The axis() function is then called independently for each axis requiring customization. This function is robust, but it requires two mandatory arguments to execute successfully: side, which dictates the position of the axis (coded numerically as 1=bottom, 2=left, 3=top, 4=right), and at, which must be supplied as a numeric vector defining the exact coordinates where the tick marks and their associated labels should be placed.

To summarize the process, the following basic syntax structure demonstrates how to implement custom axis intervals on a plot using Base R commands:

#create plot with no axis intervals
plot(x, y, xaxt='n', yaxt='n')

#specifty x-axis interval using a vector of specific values
axis(side=1, at=c(1, 5, 10, 15))

#specify y-axis interval using a sequence function
axis(side=2, at=seq(1, 100, by=10))

The forthcoming examples will practically illustrate how to generate the necessary numeric vector for the crucial at argument, utilizing the three primary vector creation methods available in R: individual specification, sequence generation, and range operators.

Example 1: Granular Control Using Explicit Vector Values (c())

The most straightforward approach to setting custom tick locations involves supplying an explicit vector of values using the concatenate function, c(). This method provides the maximum level of granular control, making it ideal when the required tick marks are intentionally non-uniform or highly specific to the context of the data. For instance, an analyst may need to place ticks precisely at statistical benchmarks, regulatory thresholds, or median values that do not align with simple, even spacing.

This technique is invaluable when the focus must be drawn to irregular or critical points on the scale. By manually listing each desired coordinate within the c() function, the user ensures that the visualization accurately emphasizes the most relevant data coordinates, regardless of whether they follow a typical numerical pattern. This contrasts sharply with automated scaling, which often interpolates between data extremes without regard for data significance.

The following code block demonstrates how to apply the c() function to define exact, potentially non-uniformly spaced locations for the tick marks on both the X and Y axes in a Base R plot. Notice in the Y-axis definition that the chosen ticks (1, 12.5, 25) are deliberately not evenly distributed, illustrating the power of granular control.

#define data
x <- c(1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15)
y <- c(1, 3, 3, 4, 6, 7, 8, 14, 17, 15, 14, 13, 19, 22, 25)

#create scatterplot, suppressing default axes
plot(x, y, col='steelblue', pch=19, xaxt='n', yaxt='n')

#modify x-axis and y-axis intervals using c()
axis(side=1, at=c(1, 5, 10, 15))
axis(side=2, at=c(1, 12.5, 25))

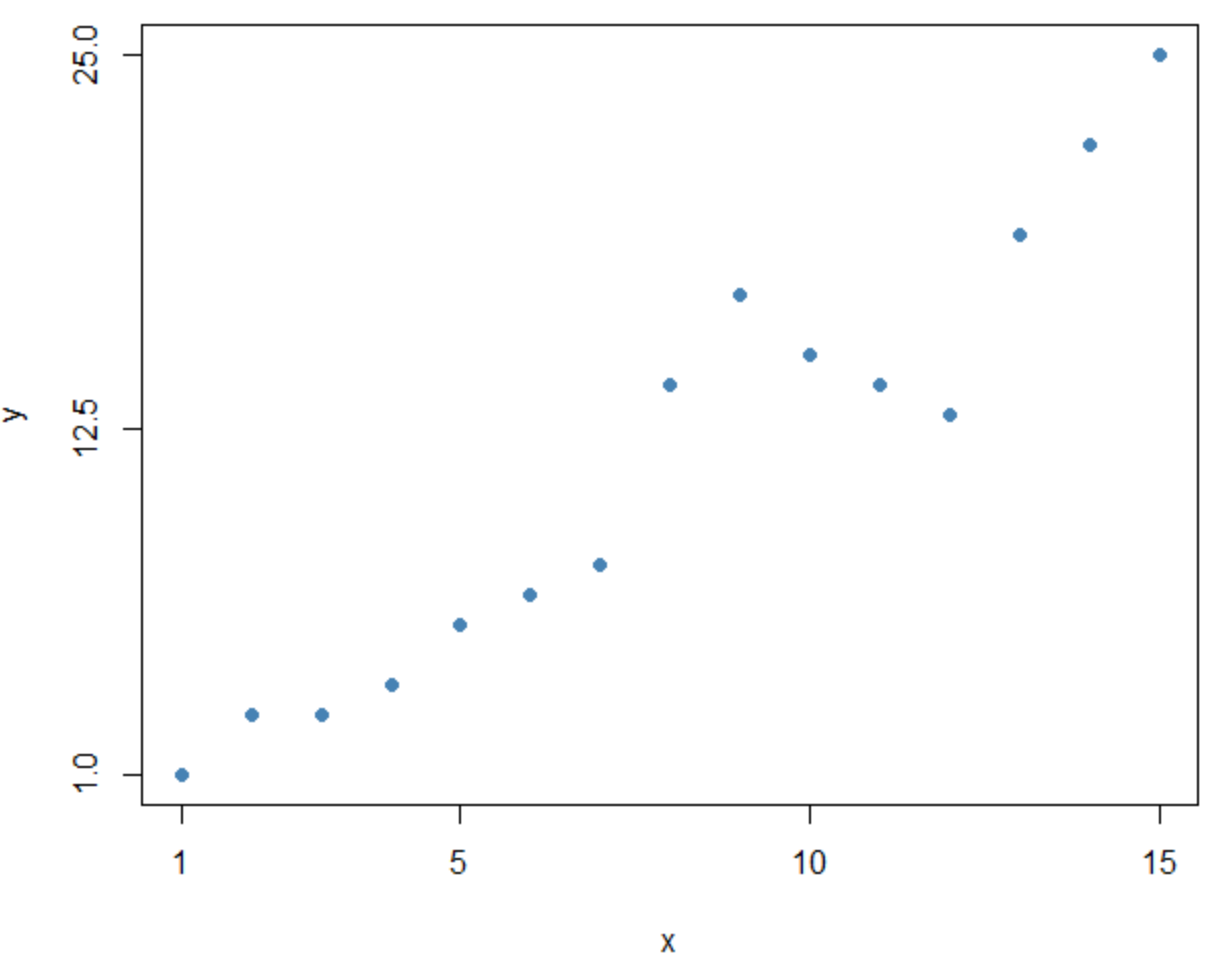

As demonstrated by the resulting scatterplot, the visual output strictly adheres to the definitions provided in the c() vectors. Only the specific values (1, 5, 10, 15 on the X-axis; 1, 12.5, 25 on the Y-axis) are displayed, confirming that the custom axis generation successfully overrides the automatic scaling mechanism inherent in the initial plot() call.

Advanced Customization: Essential Parameters of the axis() Function

Beyond the mandatory side and at parameters, the axis() function in R is equipped with numerous optional arguments that facilitate extensive aesthetic and positional customization. Understanding these parameters is crucial for transitioning from functional plotting to generating publication-quality graphics that seamlessly integrate into reports and academic papers.

For instance, analysts can manipulate the appearance of the tick mark labels, their orientation, and the physical length of the tick marks themselves. A particularly useful option is the labels argument. If the numeric locations specified in at correspond to non-numeric categories (such as month names, experimental groups, or categorical rankings), the labels argument accepts a character vector of the same length to display these custom names instead of the numerical coordinates.

Key optional parameters for achieving detailed control and refining the visual polish of the axis include:

• labels: A character vector used to define custom text labels that replace the default numerical axis labels. This vector must match the length and order of the at vector (e.g., labels=c("Q1", "Q2", "Q3", "Q4")).
• las: Controls the orientation of the axis labels. Common values include 0 (parallel to the axis, default), 1 (always horizontal), and 2 (perpendicular to the axis).
• tck: A numeric value defining the length of the tick marks relative to the plot height or width. A negative value draws ticks outside the plot region, while a positive value draws them inside. Setting tck=0 suppresses the tick lines entirely while preserving the labels.
• lwd: Controls the line width of the axis line itself.
• col.axis: Sets the specific color used for rendering the axis labels and the associated tick marks.

By skillfully combining these options, data analysts can style their axes to perfectly complement the overall design of the plot, ensuring that the visualization is not only statistically accurate but also highly legible and aesthetically refined for maximum impact.

Example 2: Efficient Uniform Spacing Using the seq() Function

In scenarios where the axis requires uniformly spaced tick marks—a very common requirement for standard quantitative data—the dedicated sequence function, seq(), offers a highly efficient and programmatically clean solution. Instead of the cumbersome task of listing every tick location individually, seq() generates the required numeric vector based on a defined starting point, an ending point, and a consistent step size.

The standard syntax for seq() is typically structured as seq(from = start_value, to = end_value, by = step_size). This method is strongly preferred when dealing with large data ranges or when maintaining consistent, predictable spacing is a priority over emphasizing irregular points. It dramatically reduces the potential for manual data entry errors compared to using the c() function for long, equally spaced sequences.

The following code block demonstrates how to leverage the seq() function to dynamically generate the at vector for both the X and Y axes in a Base R plot. This results in predictable and evenly distributed tick marks that span the full defined range with a regular rhythm.

#define data
x <- c(1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15)
y <- c(1, 3, 3, 4, 6, 7, 8, 14, 17, 15, 14, 13, 19, 22, 25)

#create scatterplot, suppressing default axes
plot(x, y, col='steelblue', pch=19, xaxt='n', yaxt='n')

#modify x-axis and y-axis intervals using seq()
axis(side=1, at=seq(5, 15, by=5))
axis(side=2, at=seq(0, 25, by=5))

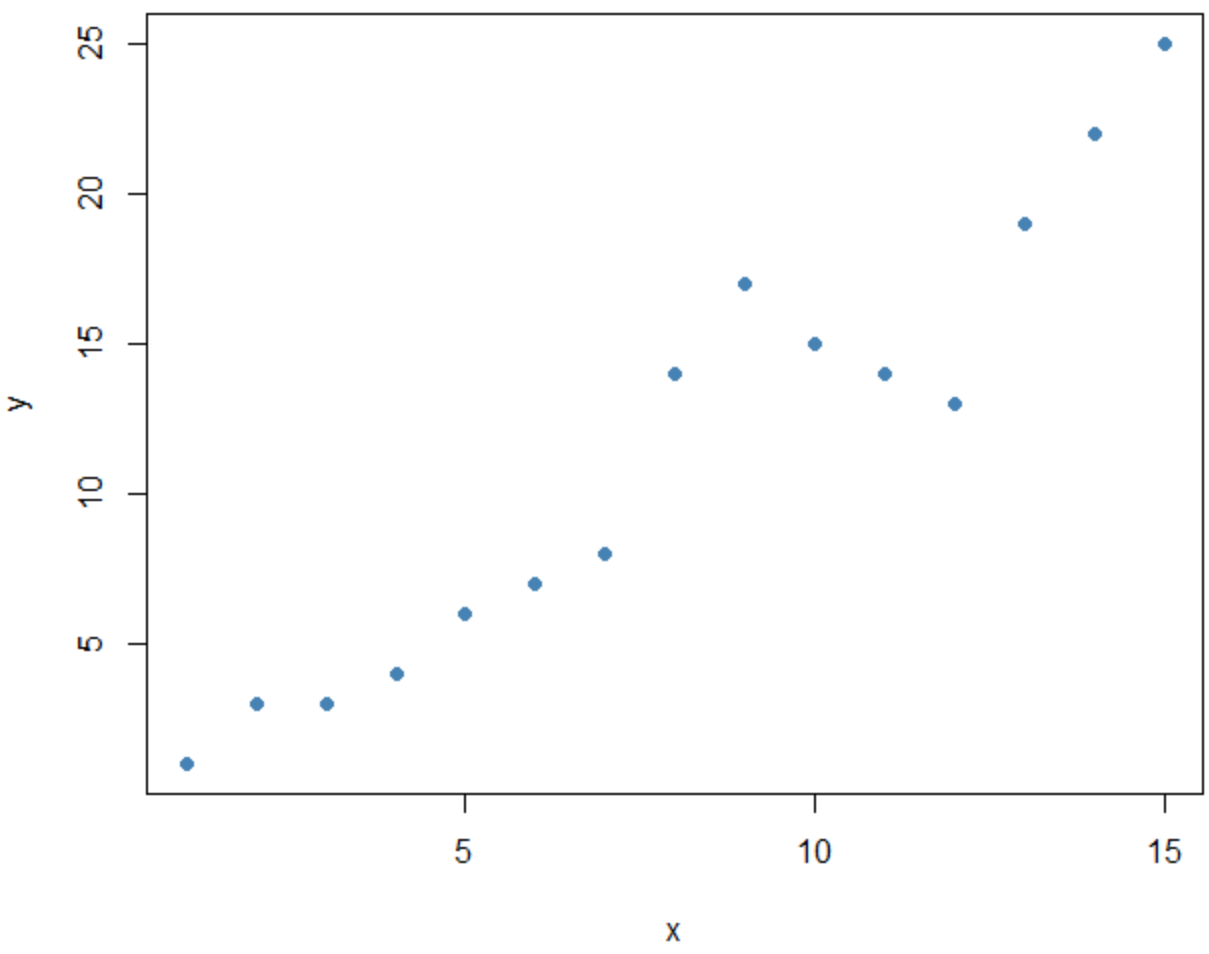

The resulting plot clearly shows the effect of the sequential definition. The X-axis uses seq(5, 15, by=5) to place ticks at 5, 10, and 15, while the Y-axis uses seq(0, 25, by=5), generating ticks at 0, 5, 10, 15, 20, and 25. This method guarantees that the visual rhythm of the tick marks is consistently and predictably maintained across the entire visualization area.

Example 3: Concise Integer Intervals Using the Range Operator (:)

When the specific requirement is to plot sequential integer values where the step size is exactly one, R offers the most concise option: the range operator (:). This operator simplifies the creation of a vector of consecutive integers significantly. For example, the expression 1:15 instantly generates the vector (1, 2, 3, …, 15), making the code cleaner and more efficient than explicitly calling seq() with the argument by=1.

The range operator is an excellent utility for datasets involving discrete integer units, such as counting variables or indices, and is frequently used in time series plots where every incremental unit must be labeled. However, analysts must exercise careful judgment when applying this method to plots with high data density or large ranges, as labeling every single integer point can quickly lead to visual clutter or overlapping text, compromising the readability of the graph.

The following example demonstrates how to use the : operator to define the x-axis interval, ensuring a tick mark and corresponding label are placed at every integer value from the minimum to the maximum of the specified range (1 through 15). Note that in this specific code block, we only suppress and customize the X-axis, allowing the Y-axis to revert to its default automatic scaling, thus showcasing partial axis customization.

#define data
x <- c(1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15)
y <- c(1, 3, 3, 4, 6, 7, 8, 14, 17, 15, 14, 13, 19, 22, 25)

#create scatterplot, suppressing only the x-axis
plot(x, y, col='steelblue', pch=19, xaxt='n')

#modify x-axis interval using the range operator
axis(side=1, at=1:15)

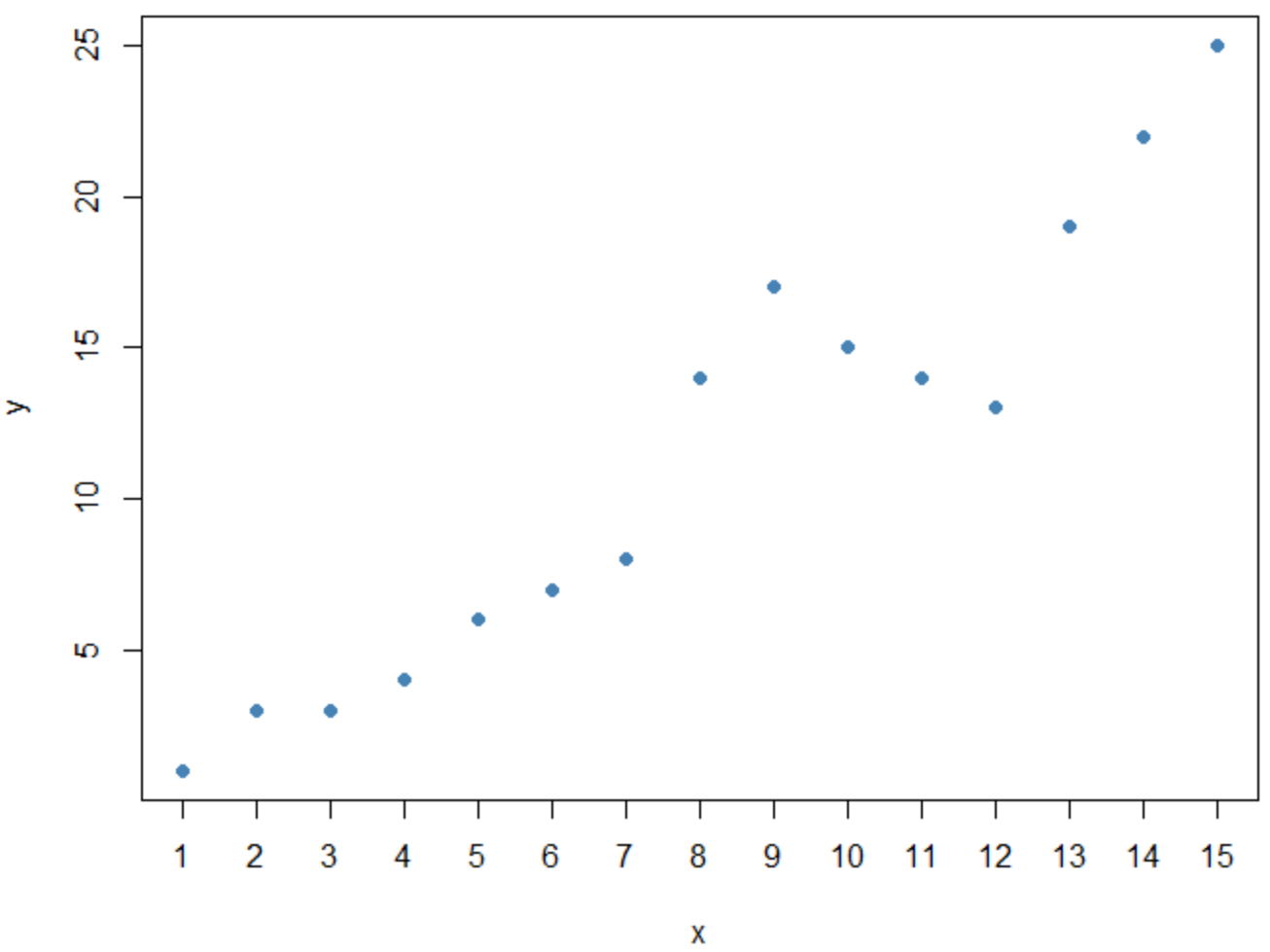

The resulting visualization provides the maximum possible detail for the X-variable, with every integer unit clearly labeled along the bottom axis. This powerful but simple method is highly effective for emphasizing discrete units of measure without requiring the viewer to rely on visual interpolation between widely spaced major tick marks.

Summary of Axis Customization Techniques

Customizing axis intervals in R is a fundamental skill for producing insightful and visually compelling data presentations. The successful execution hinges on the two-stage process: first, using the xaxt='n' or yaxt='n' arguments to suppress the default axis drawing during the initial plot creation, and second, applying the powerful axis() function to define new, precise tick locations.

The selection among the three primary vector creation methods—c(), seq(), or the : operator—should be dictated by the required tick spacing. Use c() for irregular or highly specific benchmarks; utilize seq() for uniformly spaced intervals; and employ the range operator for simple, consecutive integer labeling. This strategic choice ensures efficiency and accuracy in the final output.

While the techniques detailed here are rooted in the Base R plotting environment, the underlying principle of manually defining tick locations remains critical across the entire ecosystem, including popular alternatives like the ggplot2 package, even though the specific functions and syntax required for implementation differ significantly. Mastering the advanced options within axis() (such as labels, col.axis, and tck) is the next step for any analyst seeking to elevate their visualization aesthetic.
