Learning ggplot2: A Guide to Adjusting Plot Margins with Examples

The Critical Role of Plot Margins in Data Visualization

Creating truly effective data visualizations extends far beyond simply mapping data points to graphical elements; it demands meticulous control over every aesthetic aspect, especially the negative space surrounding the core graphic. In the influential world of data analysis using the R programming language, the highly regarded ggplot2 package offers robust and sophisticated mechanisms for achieving this level of control. Specifically, understanding and manipulating plot margins is crucial for optimizing the presentation and readability of statistical graphics. Plot margins essentially define the buffer zone—the precise distance between the outermost edge of the overall graphic container and the central plot panel where the data is displayed. This seemingly minor detail is, in fact, fundamental to professional data presentation, as inadequate margins can lead to visual clutter, truncation of critical elements like axis labels, or overlap between titles, subtitles, and the visualization itself. By managing this surrounding white space effectively, analysts ensure that their output maintains clarity, enhances professional appearance, and fits seamlessly into any publication or report layout.

The structure of a ggplot2 graphic is hierarchical. The plot margin, controlled globally, impacts the entire canvas, including the title, subtitle, caption, and legend areas. Without sufficient margin space, external annotations or lengthy titles might be squashed against the edge of the output file, diminishing the overall aesthetic quality and potentially confusing the audience. Proper margin management allows the visual designer to carve out necessary breathing room, ensuring every element is clearly separated and positioned intentionally. This attention to detail reflects a commitment to high-quality data communication. To manipulate these critical spatial elements, ggplot2 relies heavily on the versatile theme() argument. This function serves as the central hub for customizing non-data components of the plot, encompassing everything from font families and colors to line styles and, most importantly for this discussion, the precise spatial dimensions surrounding the entire visual structure.

The Technical Toolkit: Mastering theme() and the unit() Function

The mechanism for defining plot margins within ggplot2 is specifically implemented through the plot.margin element, which is nested within the comprehensive theme() function. Unlike many other aesthetic adjustments that might accept simple numeric vectors, plot.margin requires the dimensions to be specified using the specialized unit() function. This requirement stems from the need for absolute, quantifiable spatial measures (like centimeters or inches) rather than relative measurements tied to the data scales. The unit() function originates from R’s powerful grid package, which underlies much of ggplot2’s graphical rendering engine, making it indispensable for precise layout control and ensuring that spatial definitions are independent of the plotting hardware or software environment.

The syntax for applying custom margins is precise and follows a standard convention derived from graphical design principles. When using the theme() argument to set plot.margin, you must provide a vector of four numerical values to the unit() function, corresponding sequentially to the four sides of the plot container. It is absolutely vital to remember the exact order of these parameters, as defined by the standard clockwise convention starting from the top. Deviating from this sequence will result in misallocated spacing, potentially leading to confusing or incorrect visual layouts. The structured approach ensures consistency and reproducibility across different plots and environments, which is a hallmark of good data science practice.

• unit(c(top, right, bottom, left), units)

This sequence—Top, Right, Bottom, Left (often abbreviated as TRBL)—is the universal standard for defining margin vectors in R’s graphical environment. Alongside the four numerical values, the user must specify the unit of measurement. Common choices include “cm” (centimeters), “in” (inches), or “mm” (millimeters). The flexibility of choosing dimensional units allows for high-precision layout design, enabling users to match the plot dimensions precisely to the requirements of various output mediums, whether they are high-resolution print documents or standard web displays. For example, to apply a 5 cm margin to the top and 1 cm margins to the other three sides, the code structure would look like the following snippet integrated into the plot construction:

ggplot(df, aes(x=x)) +
  geom_histogram() +
  theme(plot.margin=unit(c(5,1,1,1), 'cm'))

Case Study 1: Visualizing Default Margins (Baseline Setup)

Before one can effectively customize margins, it is essential to establish a visual baseline using default settings. This crucial preliminary step allows us to observe the minimum margin space automatically allocated by ggplot2 and provides a clear point of comparison for subsequent customizations. Our initial example will involve generating a simple histogram using a dataset of randomly generated normal distribution values. By observing the default appearance, we can appreciate the subtle, built-in padding that the package applies to ensure basic readability without any explicit user intervention, preventing immediate overlap between the plot elements and the figure boundaries.

The R script provided below establishes the necessary data frame, utilizing the set.seed(0) function to ensure that the random data generation is reproducible for anyone running the code. We then generate the visualization using standard ggplot2 syntax, specifically leveraging geom_histogram(). To make the boundaries of the chart canvas immediately obvious, even when default margins are minimal, we apply a distinct light background color (‘#e3fbff’) to the overall plot area using the plot.background element within the theme() function. This visual cue helps delineate where the plot container ends and where the surrounding document space might begin. Pay close attention to the small amount of white space currently separating the plot title and the axis labels from the edges of the light blue background; this represents the default margin setting.

library(ggplot2)

#make this example reproducible
set.seed(0)

#create data
df <- data.frame(x=rnorm(n=5000))

#create histogram using ggplot2
ggplot(df, aes(x=x)) +
  geom_histogram() +
  ggtitle('Title of Histogram') +
  theme(plot.background=element_rect(fill='#e3fbff'))

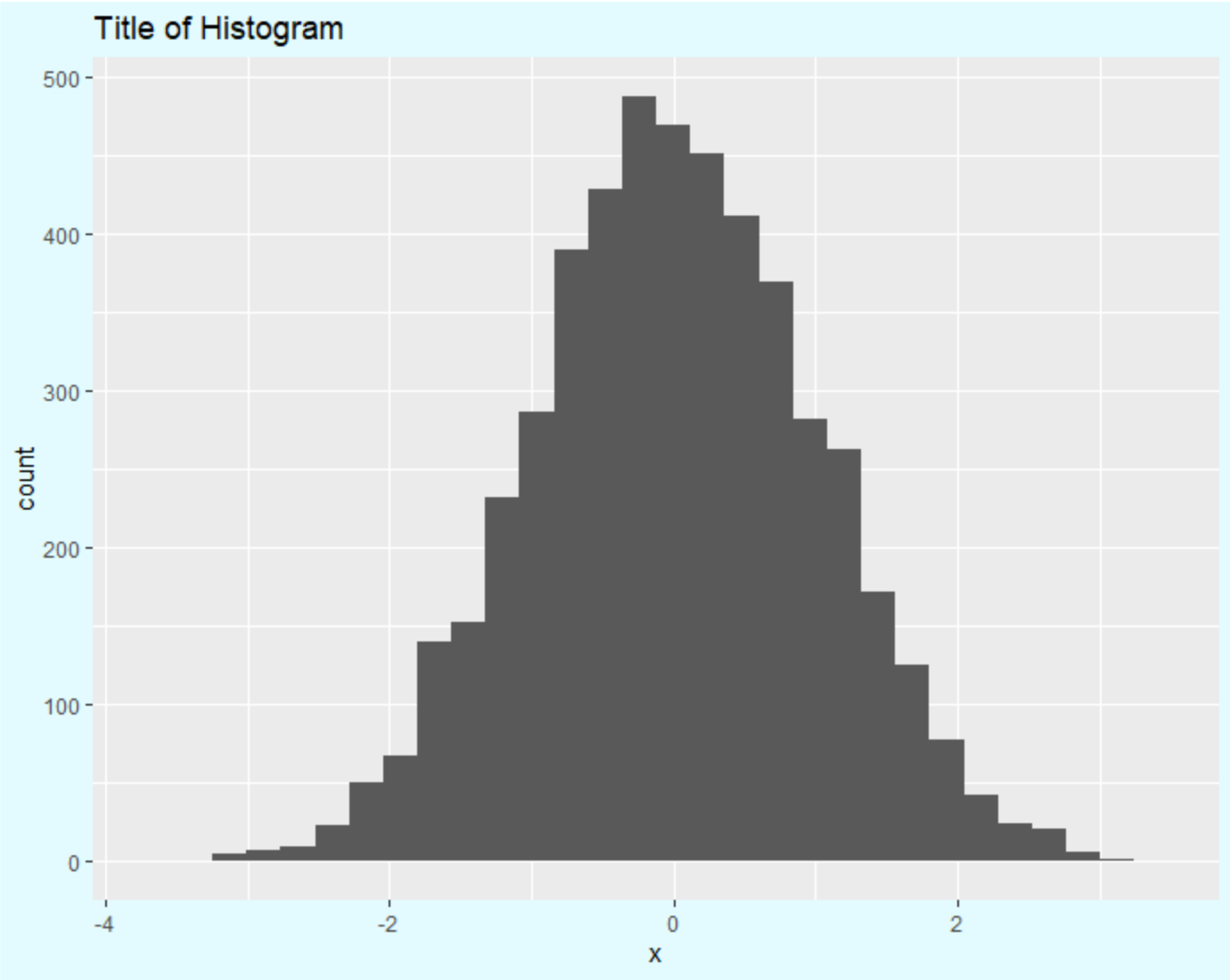

Upon reviewing the resulting image displayed below, the minimal nature of the default margins becomes apparent. This baseline visualization serves as the foundation upon which all subsequent margin customizations will be built. It clearly illustrates the standard spatial allocation before we introduce explicit padding, highlighting the need for manual adjustment when integrating the graphic into complex layouts where more separation is necessary for aesthetic or functional reasons. Understanding this starting point is key to predicting how changes to the plot.margin parameter will affect the final output dimensions and overall figure layout.

Case Study 2: Precision Control Over Vertical and Horizontal Spacing

Often, data visualization requires tailored spatial adjustments to accommodate specific design constraints, such as ensuring lengthy annotations or complex multi-line titles fit comfortably. Such scenarios necessitate targeted expansion of either the vertical or horizontal margins. To demonstrate the power of precise control, we will first focus on expanding the vertical margins—the top and bottom boundaries—and then pivot to isolate and maximize the horizontal margins—the left and right sides. This dual approach vividly illustrates how the TRBL convention within the unit() function dictates the plot’s ultimate composition and is essential for achieving balanced figure composition.

To achieve significant vertical expansion, we will assign a generously large margin value (5 cm) to both the top (the first parameter) and the bottom (the third parameter) positions in the plot.margin vector, while deliberately keeping the left and right margins minimal (1 cm). This configuration, represented as unit(c(5, 1, 5, 1), ‘cm’), ensures that the resulting image exhibits dramatic vertical padding, which is particularly useful when integrating the graphic into a document that requires substantial narrative text or source citations immediately above or below the chart area, but still within the overall figure container. The following code implements this change, clearly showcasing the effect of manipulating the odd-numbered parameters in the margin sequence, thereby generating a histogram framed by considerable vertical empty space. This level of control is necessary for maintaining visual hierarchy in publication-ready graphics.

library(ggplot2)

#make this example reproducible
set.seed(0)

#create data
df <- data.frame(x=rnorm(n=5000))

#create histogram with significant margins on top and bottom
ggplot(df, aes(x=x)) +
  geom_histogram() +
  ggtitle('Title of Histogram') +
  theme(plot.margin=unit(c(5,1,5,1), 'cm'),
        plot.background=element_rect(fill='#e3fbff'))

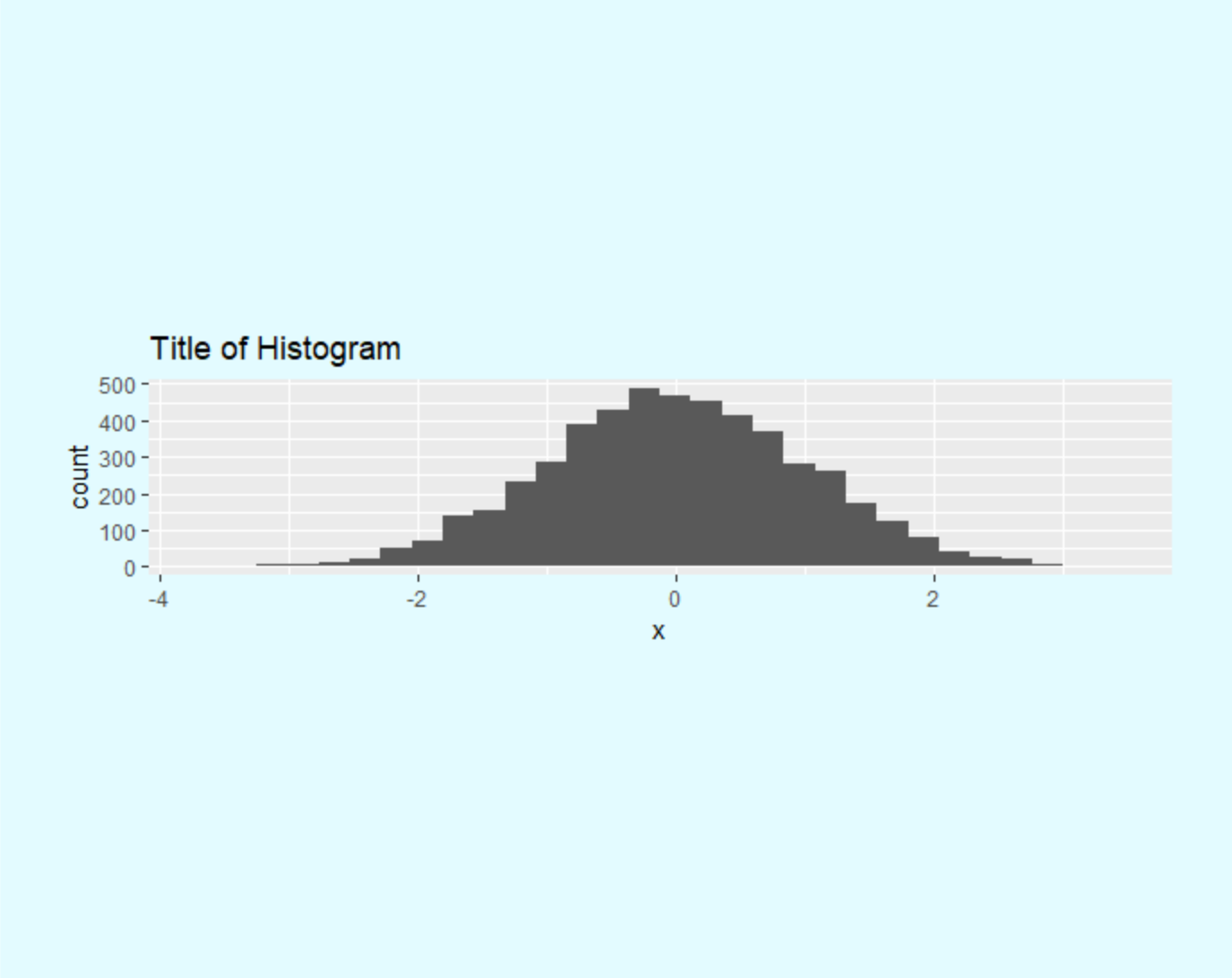

The resulting output visually confirms the vast amount of blank space generated vertically, both above and below the main plotting area, as shown in the image below. Conversely, horizontal adjustments are vital for managing scenarios involving complex, rotated axis labels or for achieving precise alignment in multi-panel figures. To isolate and maximize the horizontal margins, we reverse the numerical assignments: setting the second (right) and fourth (left) parameters of the unit() vector to a high value (5 cm), and reverting the vertical margins (top and bottom) to a minimal 1 cm. This configuration, defined as unit(c(1, 5, 1, 5), ‘cm’), shifts the focus outward horizontally, pushing the plot boundaries substantially to the sides.

library(ggplot2)

#make this example reproducible
set.seed(0)

#create data
df <- data.frame(x=rnorm(n=5000))

#create histogram with significant margins on left and right
ggplot(df, aes(x=x)) +
  geom_histogram() +
  ggtitle('Title of Histogram') +
  theme(plot.margin=unit(c(1,5,1,5), 'cm'),
        plot.background=element_rect(fill='#e3fbff'))

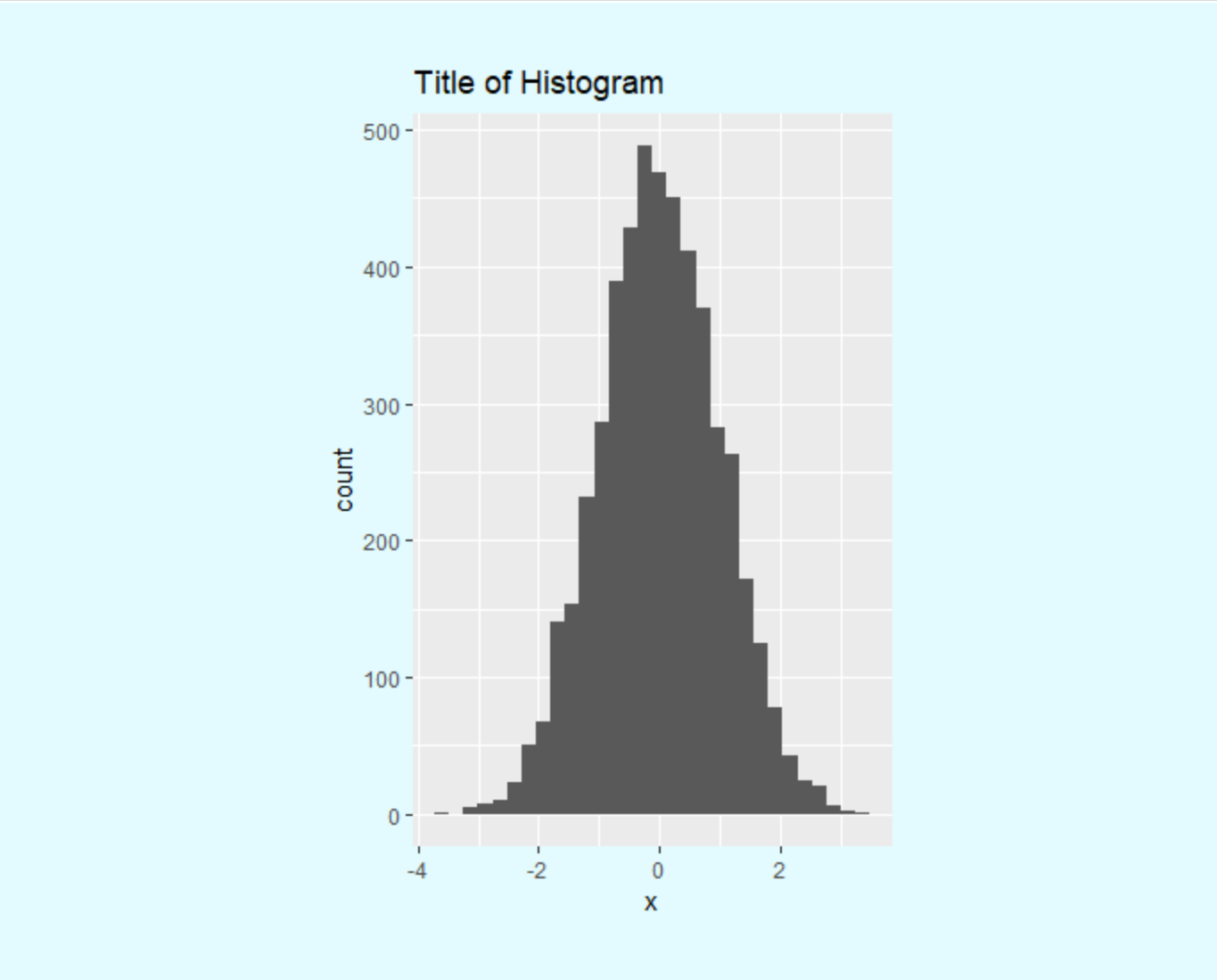

Examining the two demonstration images below highlights the versatility of the plot.margin element. The first image displays the vertical expansion, while the second image, generated by the code above, clearly illustrates the substantial blank space added to the left and right edges. This fine-grained control is indispensable for professional data communicators who must integrate their visualizations into documents with predefined column widths or specific aesthetic requirements, ensuring that the graphic is not only informative but also perfectly aligned and balanced within its surrounding context.

Advanced Considerations and Best Practices for Professional Layouts

While the capability to define extensive margins using the theme() function is a powerful feature, adherence to best practices dictates using the smallest necessary margin size required to achieve visual separation and clarity. Overly generous white space, though sometimes artistically desired, can often be counterproductive in data presentation, potentially distracting the viewer from the core data visualization and unnecessarily reducing the available area for the graphical representation itself. Margins should serve the primary functional purpose of separating the plot elements—titles, legends, and axes—from surrounding document content or other graphical components, not merely existing as filler space. Therefore, margin selection should always be deliberate and driven by the final output medium and context, reflecting thoughtful design choices rather than arbitrary padding.

When choosing the unit of measurement for the unit() function, consistency across a project is paramount. For academic publishing or high-resolution print documents where physical dimensions are fixed and precise, units such as inches (“in”) or millimeters (“mm”) are often the preferred choice, offering granular control over the plot’s physical size on paper. Conversely, while centimeters (“cm”) are commonly used defaults in R, especially for digital output, developers should maintain an awareness of how these absolute units translate to various screen dimensions or responsive design constraints, although the latter is less critical when the primary output is a static image file. Regardless of the unit chosen, documentation within the script is essential to ensure future maintainability and understanding of the layout choices.

A critical distinction must be drawn between the plot.margin and other margin-like settings available within the theme() system. As demonstrated, plot.margin controls the space around the entirety of the figure, encompassing the title, subtitle, legends, and the central data panel. However, if the goal is to adjust the padding specifically around the data panel itself—the inner box containing only the axes and geometric objects (geoms)—the user must target different elements. Examples include manipulating panel.border, axis.title.y.margin, or axis.text.x.margin. Understanding this distinction prevents users from applying excessive plot margins when only minor adjustments within the central visualization area are needed. Proper utilization of these granular controls leads to a cleaner separation of concerns between the figure’s metadata and the core data display.

Summary and Future Steps

Mastering the definition and application of plot margins in ggplot2 is an indispensable skill for any analyst aiming to produce professional-grade, well-formatted data graphics. Through the strategic use of the theme(plot.margin = unit(c(T, R, B, L), ‘units’)) syntax, users gain precise, explicit control over the essential white space surrounding their visualizations. This control ensures optimal presentation, regardless of the complexity of the data or the specific requirements of the intended output medium, whether print or digital.

The combined flexibility offered by the unit() function, which anchors spatial measurements to absolute physical dimensions, and the comprehensive customization capabilities of the theme() system, firmly establishes ggplot2 as the preeminent tool for high-quality statistical visualization within the R environment. Analysts are encouraged to experiment with different margin sizes and units to develop an intuitive understanding of how these parameters interact with plot titles, legends, and overall figure dimensions, thereby enhancing their capacity for sophisticated visual communication.
