Change Axis Labels of Boxplot in R (With Examples)

When producing statistical reports or engaging in effective data visualization, the clarity and interpretability of your graphics are absolutely paramount. Boxplots are exceptionally powerful tools for quickly summarizing the distribution of numerical data across distinct categories or groups. However, the true value of a boxplot is often compromised if the axis labels—especially those on the x-axis—are unclear or derived from cryptic, technical column names. Default labels, while functional for the programmer, frequently fail to convey meaningful context to a broader audience. This comprehensive guide details the essential methods for customizing x-axis labels for boxplots within the R environment, covering both the foundational Base R graphics system and the sophisticated capabilities of the popular ggplot2 package. By mastering these techniques, you can drastically improve the readability and professional appeal of your statistical output.

The Necessity of Custom Axis Labels in R

A boxplot, sometimes referred to as a box-and-whisker plot, efficiently summarizes a dataset using five key statistics: the minimum, the first quartile (Q1), the median, the third quartile (Q3), and the maximum. It is an indispensable tool for identifying central tendency, spread, and potential outliers within data groups. While creating a boxplot in R is simple, the step that transforms a functional plot into an informative visual is ensuring its labels are descriptive and meaningful. This attention to detail is critical for effective data visualization.

The standard behavior when generating a boxplot in R is to automatically assign x-axis labels based directly on the variable names or column headers used in the plotting function. This reliance on raw input names often results in labels that are technical, abbreviated (e.g., “V1”, “Exp_Grp_A”), or otherwise unsuited for formal presentations or publications. An audience unfamiliar with the underlying data structure may struggle to interpret what “Col_A” truly represents in the context of the analysis. Customizing these labels provides necessary context, bridging the gap between raw data nomenclature and clear, audience-centric communication, ultimately leading to more accessible and professional graphics.

To address this, we will explore two distinct, yet equally powerful, approaches to label modification. The first relies on the built-in plotting capabilities of Base R, offering a fast and direct solution. The second method utilizes the ggplot2 package, which, while requiring slight data reshaping, provides unmatched flexibility and aesthetic control, integrating flawlessly with modern tidy data workflows in the R ecosystem.

Setting Up the Practical Data Example for R

To effectively illustrate both Base R and ggplot2 customization methods, we must first establish a reproducible sample data frame. This dataset will simulate measurements from three distinct groups, allowing us to demonstrate how custom labels can be assigned to each group’s boxplot. The use of the set.seed() function is vital here, as it guarantees that the random number sequence generated will be identical every time the script is run, ensuring absolute reproducibility of our examples.

We will construct a data frame containing three columns, labeled A, B, and C. Each column will consist of 1000 random numerical observations drawn from a normal distribution, but centered around different means (5, 10, and 15, respectively). These variations simulate distinct populations or experimental conditions that require clear, non-technical labels for meaningful interpretation.

The following code snippet creates the example data frame, followed by a preview using the head() function to verify the structure and content:

#make this example reproducible
set.seed(0)

#create data frame
df <- data.frame(A=rnorm(1000, mean=5),
                 B=rnorm(1000, mean=10),
                 C=rnorm(1000, mean=15))

#view head of data frame
head(df)

         A         B        C
1 6.262954  9.713148 15.44435
2 4.673767 11.841107 15.01193
3 6.329799  9.843236 14.99072
4 6.272429  8.610197 14.69762
5 5.414641  8.526896 15.49236
6 3.460050  9.930481 14.39728

This resulting data frame, df, is now ready for plotting, allowing us to proceed directly to the customization steps using both Base R and ggplot2.

Method 1: Customizing Boxplot Axis Labels in Base R

The Base R plotting system provides the most straightforward path for creating visualizations without relying on external libraries. The core function for generating boxplots is boxplot(). When this function is supplied with a data frame or a list of numerical vectors, Base R automatically uses the underlying variable names as the labels for the x-axis.

To replace these default labels with custom, user-defined strings, the boxplot() function incorporates a powerful argument: names. This argument expects a character vector of the same length as the number of boxplots being generated. Each string in this vector corresponds sequentially to the desired label for each boxplot. The crucial point here is the order: the first element of the names vector will label the first boxplot, the second element the second boxplot, and so forth. This method is exceptionally efficient for rapid visualizations and when data is already structured in a wide format, minimizing the need for complex data reshaping.

Conceptually, using the names argument overrides the internal naming mechanism of the plotting function. If we wanted to label our three groups “Experimental Condition 1,” “Condition 2,” and “Control,” the structure would follow this simple pattern:

boxplot(df, names=c('Label 1', 'Label 2', 'Label 3'))

This immediate assignment of custom labels ensures that the plot’s visual elements instantly communicate the intended context to the viewer.

Step-by-Step Guide: Base R Implementation and Results

Using our prepared df data, let us first observe the default labeling behavior of the Base R system. When we run boxplot(df) without any additional arguments, the column names A, B, and C are used as the x-axis labels:

#create boxplots
boxplot(df)

As illustrated in the plot above, the default labels “A”, “B”, and “C” are technically correct but lack descriptive power. To enhance the clarity, we will now implement the names argument to replace these technical names with more audience-friendly terms, specifically “Team A”, “Team B”, and “Team C”. We supply these new descriptions as a character vector to the function, mapping the custom names directly onto the respective boxplots.

#create boxplots with specific x-axis names
boxplot(df, names=c('Team A', 'Team B', 'Team C'))

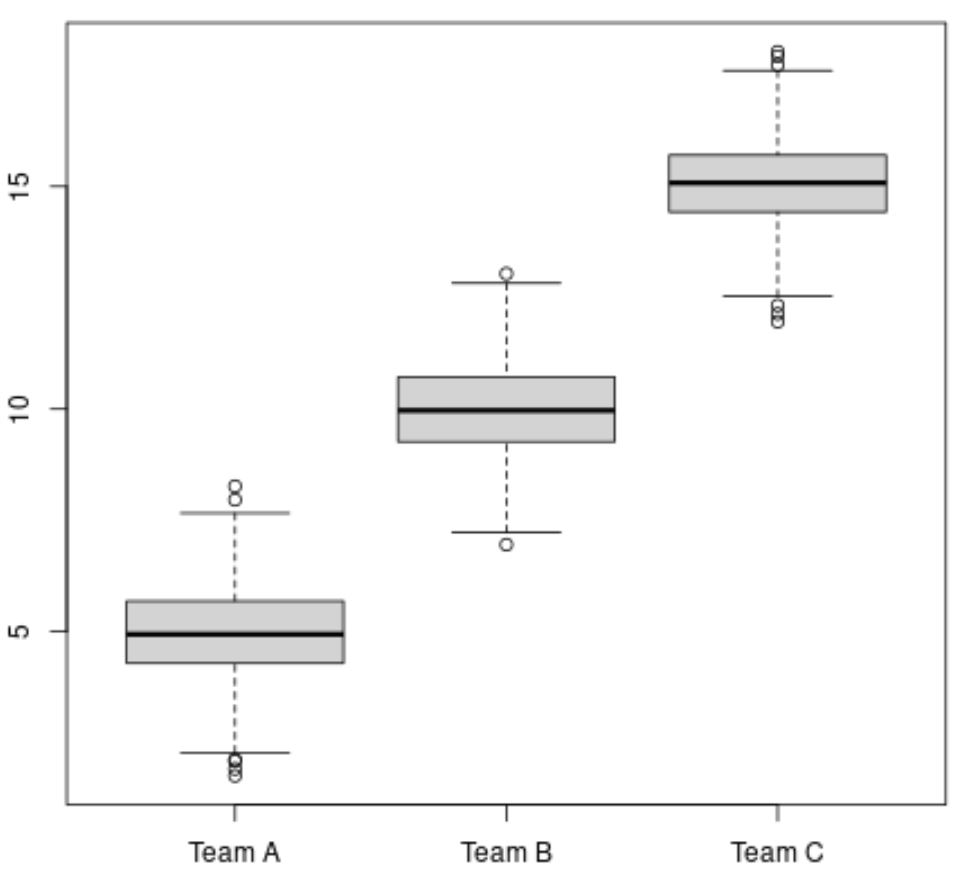

The modified plot now distinctly features “Team A”, “Team B”, and “Team C” on the x-axis. This simple, one-line adjustment using the names argument significantly improves the context and interpretability of the boxplot, making it instantly more suitable for professional data presentation.

Method 2: Customizing Boxplot Axis Labels with ggplot2 (The Tidy Approach)

For researchers and analysts seeking sophisticated control over plot aesthetics and structure, the ggplot2 package, founded on the principles of the Grammar of Graphics, is the preferred tool. Unlike Base R, ggplot2 typically requires data to be in a “long format” (or “tidy format”) when plotting a numerical variable against a categorical variable. Since our initial df is in a “wide format” (groups A, B, C are separate columns), the first essential step is transformation.

We use the melt() function from the reshape2 package (or pivot_longer() from the tidyr package) to reshape the data. This process stacks the three columns into two: a variable column (holding A, B, C as factors) and a value column (holding the corresponding numerical observations). This restructured data frame, df_long, is now compatible with the layer-based architecture of ggplot2, as demonstrated by the preview below:

library(reshape2)

#reshape data frame to long format
df_long <- melt(df)

#view head of long data frame
head(df_long)

  variable    value
1        A 6.262954
2        A 4.673767
3        A 6.329799
4        A 6.272429
5        A 5.414641
6        A 3.460050

Once the data is tidy, the key to customizing the x-axis labels lies in manipulating the levels of the variable column. In R, categorical data are often stored as factors, and the visible labels in a ggplot2 plot correspond directly to these factor levels. We utilize the levels() function to assign our desired descriptive names (“Team A”, “Team B”, “Team C”) to the existing factor levels (A, B, C). This ensures the underlying data structure remains intact while providing the necessary visual transformation. The final step is constructing the plot using ggplot(), mapping the new factor levels to the x-axis.

library(ggplot2)

#specify x-axis names to use
levels(df_long$variable) <- c('Team A', 'Team B', 'Team C')

#create box plot with specific x-axis labels
ggplot(df_long, aes(variable, value)) +
  geom_boxplot()

The final ggplot2 visualization successfully displays the custom labels. This approach, while involving a preliminary data transformation step, grants granular control over categorical variable visualization and opens the door to extensive further customization inherent to the ggplot2 framework.

Conclusion

Effective data visualization hinges on clarity, and descriptive axis labels are arguably the most fundamental component of a clear statistical graphic. This guide has provided two robust, tested methods for replacing technical default labels with meaningful, audience-centric descriptions for boxplots in R.

For simple, quick analyses, the names argument within Base R‘s boxplot() function offers an immediate and efficient solution, requiring only a simple character vector. Conversely, when the goal is to produce highly polished graphics or integrate with complex analytical pipelines, the ggplot2 approach—involving data reshaping and explicit manipulation of factor levels—provides superior flexibility and aesthetic possibilities.

Mastering these techniques ensures that your boxplots not only correctly summarize the distribution of your data but also communicate that information effectively and professionally to any viewer, regardless of their familiarity with the underlying data structure.
