Understanding the `stat_bin()` Warning in R

As an experienced user of the R programming language, particularly when performing exploratory data visualization, you have likely encountered a specific notification when generating distribution plots. This warning frequently appears in the console when using the powerful ggplot2 package to create a histogram. The message, which is often mistakenly viewed as an error, is:

`stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

This output is not a critical error that halts execution; instead, it is a crucial alert from ggplot2 informing the user that the plotting function has made an assumption. When you call the geom_histogram() function without explicitly specifying the number of intervals, or bins, or the precise width of those intervals, ggplot2 defaults to using 30 bins to represent the distribution of the underlying data. While this default provides a functional plot, the warning encourages best practices by urging the analyst to make a deliberate choice.

For data scientists and statisticians, this warning serves as a significant reminder: the selection of bin size or count fundamentally alters the visual narrative of the data’s distribution. Using an insufficient number of bins can result in an overgeneralized histogram that masks important features such as multimodality or subtle skewness. Conversely, employing an excessive number of bins can introduce visual noise, making the underlying pattern difficult to interpret and potentially leading to misinformed conclusions. Therefore, addressing and resolving the `stat_bin()` notification is an essential step toward producing statistically sound and truly insightful visualizations in R.

The Importance of Bin Selection in Histograms

A histogram is the cornerstone of quantitative data visualization, specifically designed to illustrate the probability distribution of a continuous numerical variable. This is achieved by segmenting the entire range of values into contiguous, non-overlapping intervals, which we refer to as bins. The height of each bar in the resulting plot directly corresponds to the frequency or count of data points that fall within that specific interval. Consequently, the way these bins are defined is paramount to accurately conveying the data’s characteristics.

The choice regarding the number of bins, or the determination of the bin width, is arguably the most critical decision when constructing a histogram. If too few bins are utilized, the resulting plot may appear overly smooth, concealing localized peaks, valleys, or potential outliers, thereby oversimplifying complex distributions. For example, a distribution that is naturally bimodal could be incorrectly visualized as unimodal if the bins are too wide. Conversely, if an overly large number of bins is selected, the histogram becomes highly erratic and “noisy,” featuring numerous bars with low or zero counts. This visual fragmentation makes it exceedingly difficult to discern the overall shape or underlying distributional patterns.

While ggplot2 provides a convenient default of bins = 30, this value is a generic compromise intended only as a starting point, and it is rarely optimal for every unique dataset. The `stat_bin()` warning compels the user to move past this default and critically evaluate whether 30 intervals effectively showcase the dataset’s unique features. A conscientious choice of the bins or binwidth parameter demonstrates analytical rigor and ensures that the final visualization is an accurate, informative representation of the underlying data, rather than merely a plot generated by arbitrary defaults.

Controlling Granularity: Specifying Bins or Binwidth

To both silence the recurrent `stat_bin()` warning and exert precise control over the visual appearance of your histogram, the geom_histogram() function offers two primary, mutually exclusive arguments: bins and binwidth. Utilizing either of these parameters allows you to explicitly define the aggregation strategy for your data.

The bins argument requires you to specify the total number of intervals you wish your histogram to contain. When a specific integer value is supplied for bins, ggplot2 automatically computes the required binwidth necessary to ensure that the specified number of bins spans the entire range of your data. This approach is often the simplest and most intuitive method for addressing the warning, particularly when you have a heuristic understanding of how many intervals are needed to reveal the distribution’s shape.

In contrast, the binwidth argument provides control by defining the exact width of each interval in the units of the variable being plotted. When you specify a fixed binwidth, ggplot2 then calculates the required number of bins to cover the full data range. Choosing binwidth is highly advantageous when the underlying data has a meaningful unit of measurement, such as time (e.g., “5 minutes”) or currency (e.g., “$100”), and you want each interval to represent that precise, quantifiable unit. Both bins and binwidth achieve the goal of controlling the visualization’s granularity, moving from the arbitrary default to an intentional, informed design choice.

Here is an illustration of how to use the bins argument to set the number of intervals to 10, thus overriding the default and eliminating the warning:

ggplot(df, aes(x=my_variable)) +
  geom_histogram(bins=10)

Practical Demonstration: Resolving the `stat_bin()` Alert

To solidify the understanding of the `stat_bin()` warning and demonstrate its practical resolution, we will execute a concise example in R. This demonstration involves setting up a reproducible environment, creating a sample dataset, and then generating two histograms: one relying on the default settings and one where the bin count is explicitly defined.

Initially, we load the required ggplot2 library. To ensure the results are consistent across different executions, we use set.seed() before generating random data. We then construct a simple data frame, df, containing 1000 observations generated from a standard normal distribution using the rnorm() function. This setup provides a clean, textbook-normal distribution for visualization purposes.

library(ggplot2)

#make this example reproducible
set.seed(0)

#create data frame
df <- data.frame(my_values = rnorm(1000))

#view head of data frame
head(df)

   my_values
1  1.2629543
2 -0.3262334
3  1.3297993
4  1.2724293
5  0.4146414
6 -1.5399500

#create histogram without specifying bins
ggplot(df, aes(x=my_values)) +
  geom_histogram(col='black', fill='steelblue')

`stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

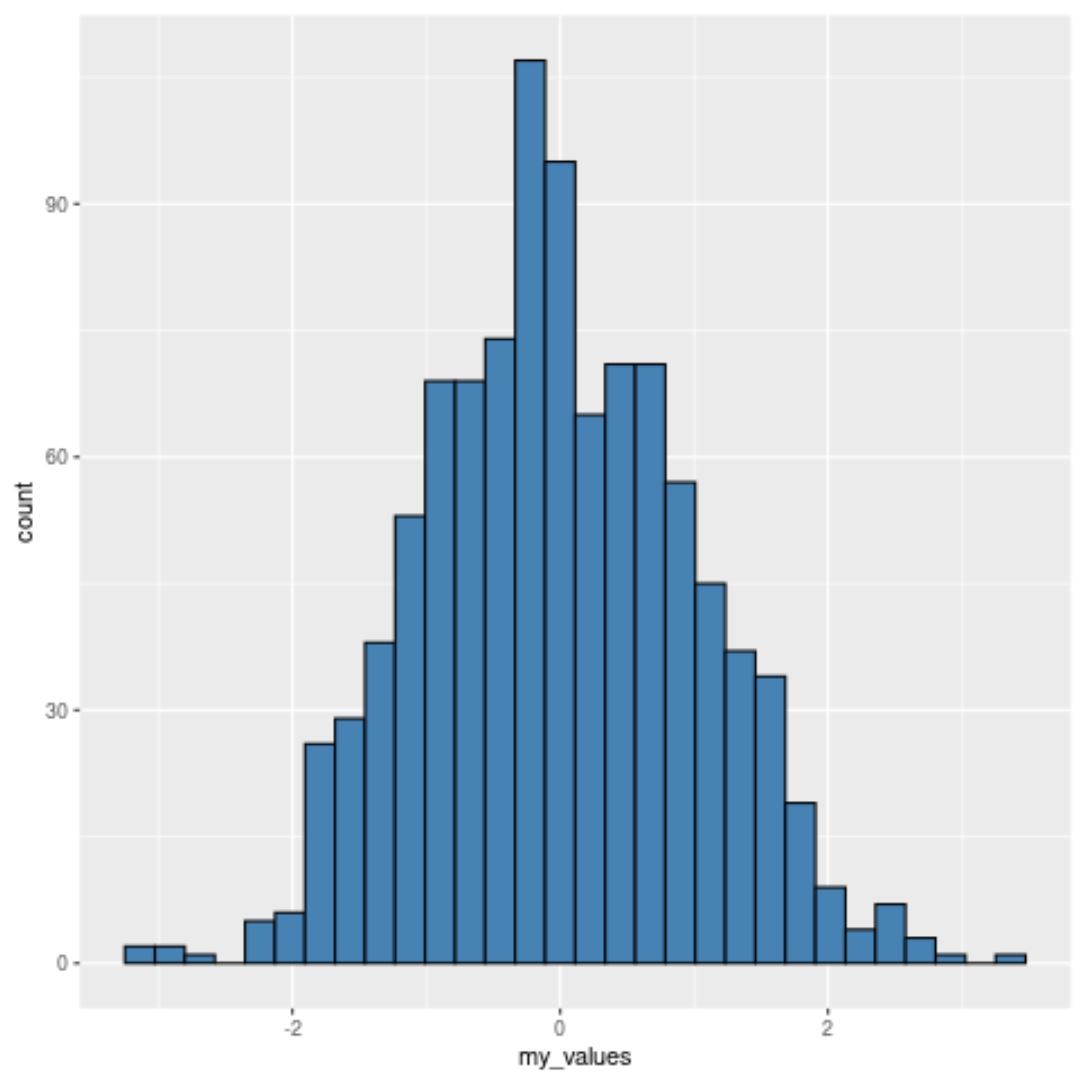

Executing the code above, which omits the bins or binwidth argument in geom_histogram(), forces ggplot2 to choose the default of 30 bins. This immediate action triggers the targeted warning message. Despite the warning, the resulting histogram is rendered:

As clearly demonstrated by the console output and the resulting visualization, the default setting leads to a relatively granular plot and, crucially, generates the alert: `stat_bin()` using `bins = 30`. Pick better value with `binwidth`. This emphasizes the importance of making an explicit choice. To eliminate this notification and control the visualization structure, we must now modify the function call.

To resolve the warning directly and gain control over the histogram‘s appearance, we introduce the bins argument within the geom_histogram() function. By setting bins = 10, for instance, we explicitly instruct ggplot2 to divide the entire data range into exactly 10 intervals. This conscious decision not only silences the warning but also provides a less granular, potentially clearer, view of the data’s overall distribution, which is often preferable for standard normal distributions.

#create histogram with 10 bins
ggplot(df, aes(x=my_values)) +
  geom_histogram(col='black', fill='steelblue', bins=10)

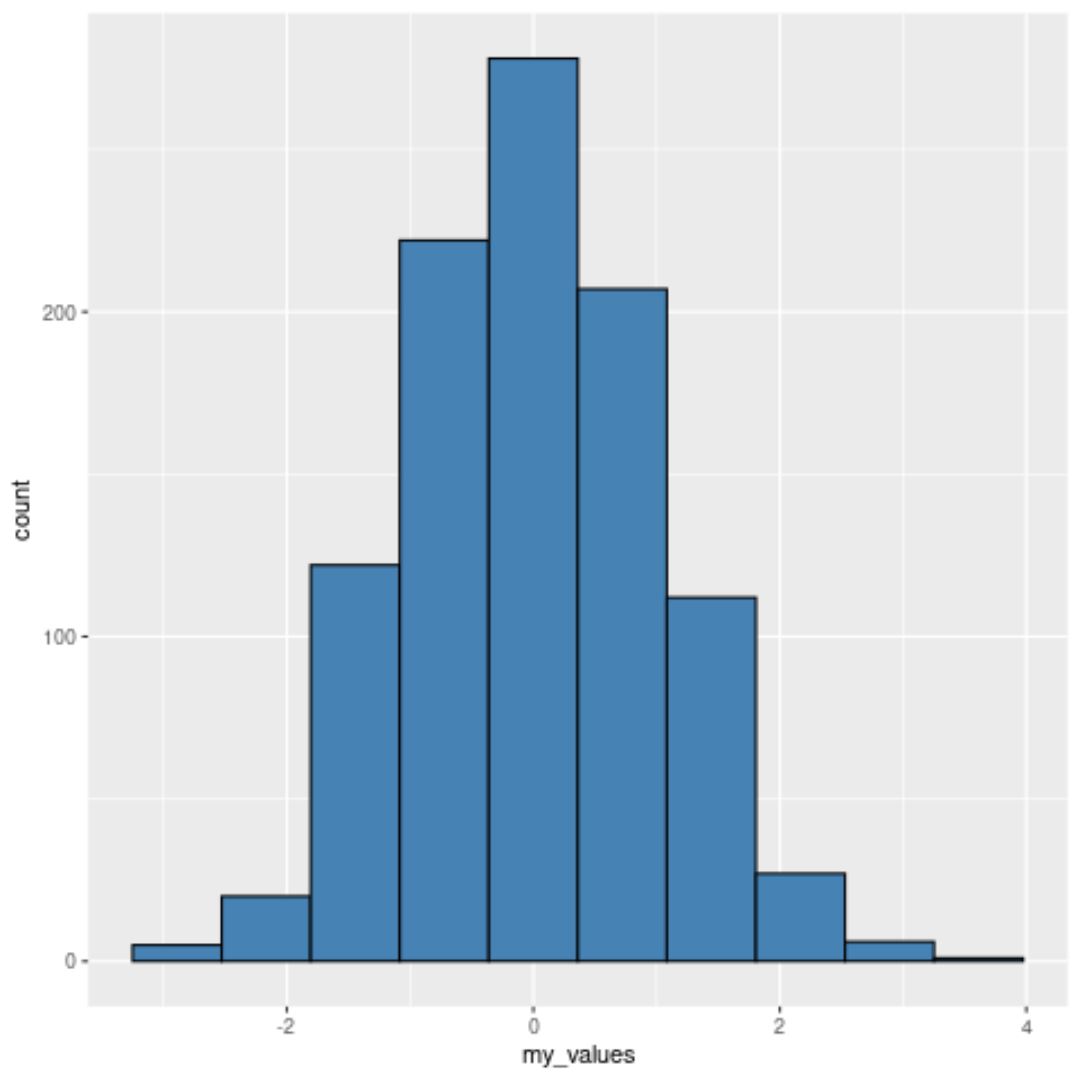

Following the execution of the modified code, the `stat_bin()` warning is completely absent from the console output. The resulting histogram now features exactly 10 distinct bars, confirming that we have taken deliberate control over the visualization parameters. We can further explore the impact of bin selection by reducing the number of bins to 5. This adjustment will result in fewer, wider bars, offering an even more generalized overview of the distribution, which is useful for exploring the robustness of the data’s central tendency.

#create histogram with 5 bins
ggplot(df, aes(x=my_values)) +
  geom_histogram(col='black', fill='steelblue', bins=5)

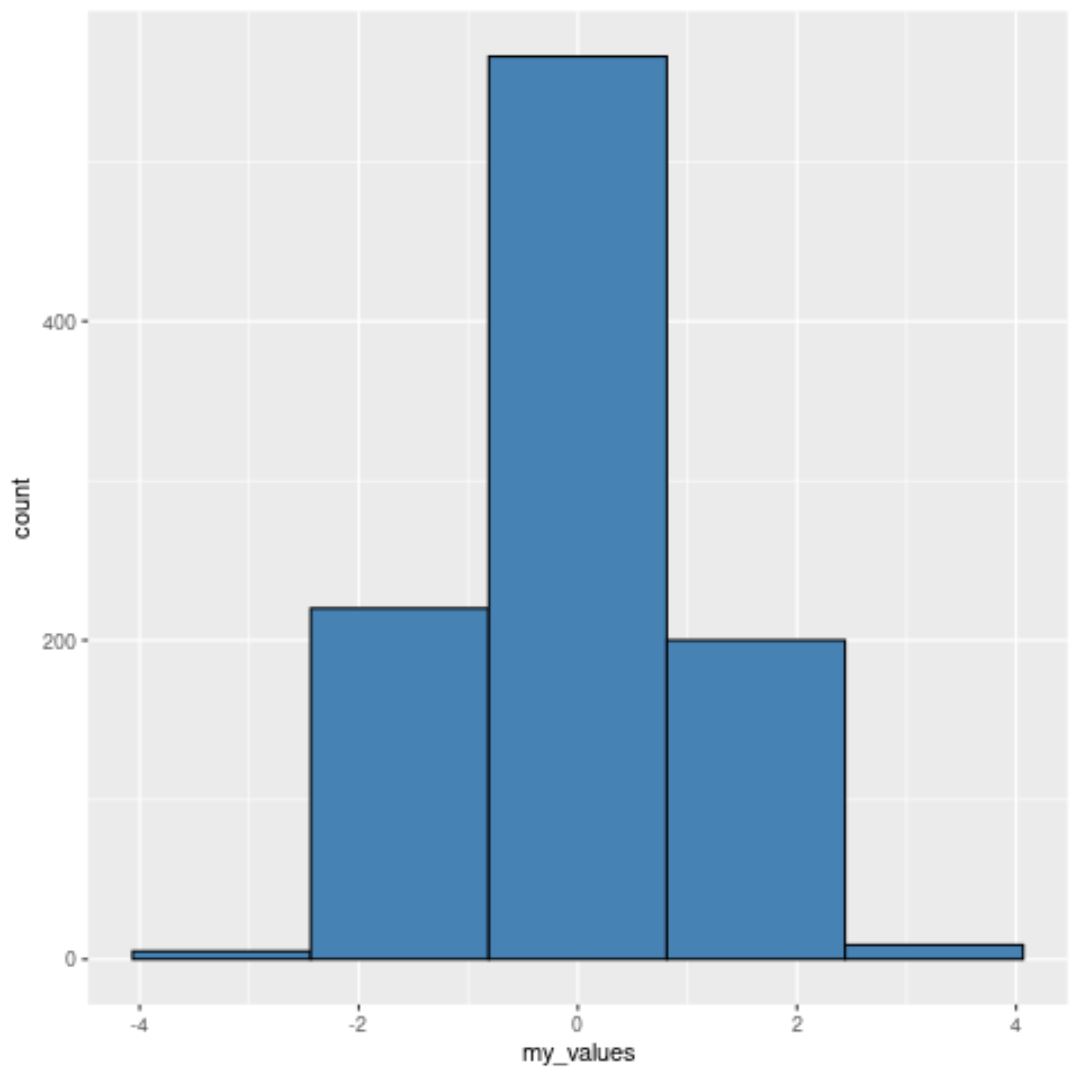

The histogram generated with 5 bins clearly illustrates how wider intervals aggregate more data points, resulting in a smoother, more generalized representation of the data. This highlights a fundamental principle of data visualization: the choice of bin count directly dictates the visual granularity and the perceived shape of the distribution. Experimentation with different bin counts is a vital component of effective exploratory data analysis.

Guidelines for Choosing the Optimal Number of Bins

Determining the “optimal” number of bins for a histogram is less about finding a single correct answer and more about making an informed decision based on the data’s properties and the specific insights you intend to communicate. The goal is always to move beyond the arbitrary default of 30 bins recommended by ggplot2 and select a value that provides the clearest representation of the underlying reality.

A pragmatic approach involves iterating through a range of bin counts or binwidth values, visually inspecting each resulting plot. The best visualization will effectively highlight important structural characteristics—such as modality, clear skewness, or the presence of outliers—without introducing visual noise or oversimplifying the data to the point of distortion. For instance, datasets that exhibit strong skewness may require a different binning approach than those that follow a Gaussian distribution.

In addition to visual judgment, various statistical rules of thumb exist to provide mathematically grounded starting points for bin selection. One of the oldest and most conservative approaches is Sturges’ formula (k = 1 + log2(n), where n is the sample size), which tends to suggest a relatively low number of bins. For larger datasets, more sophisticated methods are generally preferred, such as the Freedman-Diaconis rule or Scott’s rule. These rules often calculate an optimal binwidth first, which then dictates the final bin count. Ultimately, the most insightful histogram is the one that successfully balances clarity and detail to communicate the data’s true story to its intended audience.

Conclusion and Best Practices

The `stat_bin()` warning within the ggplot2 package is a signal of quality assurance in R programming. Far from being a nuisance, it serves as a critical prompt for the data analyst, emphasizing that relying on convenience defaults may compromise the accuracy of data visualization. By proactively specifying the number of bins using the bins argument or defining the interval size with the binwidth argument, analysts assert deliberate control over the visual representation of their data’s distribution.

This practice transcends simply silencing a console message; it is integral to enhancing the statistical integrity and visual clarity of a histogram. A carefully constructed histogram provides immediate, powerful insights into key distributional properties—including skewness, kurtosis, modality, and the presence of outliers. Therefore, before finalizing any visualization, it is essential to consider the characteristics of the specific dataset and the analytical objective to determine the most appropriate binning strategy.

Embrace the experimental flexibility offered by ggplot2 to test various bin counts. This iterative process of adjustment, evaluation, and refinement is fundamental to effective exploratory data analysis. A conscious, informed choice of bins ensures that your data presentations are professional, fully interpretable, and maximize their impact on the audience.
