Learning to Customize Axis Ticks in ggplot2: A Tutorial with Examples

Introduction to Customizing Axis Ticks in ggplot2

When generating professional data visualization within the R environment, the highly versatile ggplot2 package is an indispensable tool. Ensuring your visual output is clear and accurately reflects the underlying data is crucial for effective communication. A common requirement for refining plots involves precisely controlling the density and placement of axis ticks. Although ggplot2 excels at automatically determining aesthetically pleasing and readable tick marks, there are frequent analytical scenarios where this default behavior must be overridden.

Manual adjustment of tick marks becomes necessary when you need to align the visualization with specific reporting standards, highlight critical data thresholds, or simplify the appearance for a non-technical audience. Relying solely on automated scaling can sometimes result in too many or too few marks, potentially obscuring the narrative you intend to convey.

This comprehensive guide is designed to demonstrate how to gain granular control over the number of axis ticks on your ggplot2 plots. We will start by exploring the foundational scale functions, then delve into practical examples that illustrate how to customize tick counts independently for both the x-axis and the y-axis, ultimately optimizing your visualizations for maximum clarity and impact.

The Mechanism: Understanding ggplot2 Axis Scales and Breaks

Within the ggplot2 framework, the appearance and behavior of axes are governed by a suite of dedicated scale functions. For visualizing continuous numerical data—the most common scenario for tick customization—we primarily utilize scale_x_continuous() for managing the horizontal axis and scale_y_continuous() for the vertical axis. These powerful functions provide an interface for controlling every aspect of the axis, including data limits, coordinate transformations, label formatting, and, most importantly for this discussion, the precise positioning of tick marks.

The default behavior of ggplot2 is to employ the highly effective ‘nice numbers’ algorithm. This algorithm ensures that the automatically generated set of axis ticks are evenly spaced and typically fall on whole numbers or simple, easy-to-read fractions. This automation ensures visual consistency and high readability without requiring manual input in most cases.

However, when specialized control is needed—perhaps to match a specific interval spacing or to deliberately increase the plot’s resolution—we turn to the crucial argument: n.breaks. This argument, nested within the continuous scale functions (like scale_x_continuous() and scale_y_continuous()), allows the user to suggest a desired approximate number of break points (ticks). It is essential to note that n.breaks provides a suggestion, not a rigid constraint; ggplot2 will adjust slightly to maintain numerically sensible intervals.

Implementing Custom Tick Counts: The Basic Syntax

To effectively modify the quantity of axis ticks in your ggplot2 visualization, you must integrate the continuous scale functions along with the n.breaks argument into your existing plot code. This process is additive, meaning you layer these customization functions onto your base plot object.

The fundamental structure for adjusting the number of ticks simultaneously on both the x-axis and the y-axis is straightforward. Assuming your base plot is stored in an object named p, the syntax is as follows:

p +
  scale_x_continuous(n.breaks=10) +
  scale_y_continuous(n.breaks=10)

In this example, scale_x_continuous() and scale_y_continuous() are used to apply the change. Setting the n.breaks argument to 10 requests the underlying algorithm to generate approximately ten evenly distributed tick marks across the range of each respective axis. As noted previously, the final number may be slightly adjusted by ggplot2 to preserve numerical elegance and maximize visual appeal.

Step-by-Step Tutorial: Modifying Axis Ticks in Practice

We will now walk through a practical demonstration using a small dataset. This example will clearly illustrate how the n.breaks argument influences the final visualization, moving beyond the theoretical syntax to a real-world application of ggplot2 customization.

Setting Up the Sample Data Frame

To begin, we must establish a simple data frame in R. We will name this object df, and it will contain numerical data suitable for a continuous scatter plot. The two columns, x and y, will define the coordinates for our visualization.

# Create the sample data frame
df <- data.frame(x=c(1, 2, 4, 5, 6, 8, 12, 14, 19),
                 y=c(2, 5, 7, 8, 14, 19, 22, 28, 36))

# Display the data frame contents
df

   x  y
1  1  2
2  2  5
3  4  7
4  5  8
5  6 14
6  8 19
7 12 22
8 14 28
9 19 36

This small, well-defined dataset, which spans ranges from 1 to 19 on the x-axis and 2 to 36 on the y-axis, is ideal for observing the differences between default and customized axis scaling without unnecessary complexity.

Observing Default ggplot2 Scaling

Before implementing any custom changes, it is beneficial to visualize the data using the standard settings. This step establishes a baseline, allowing us to accurately measure the visual impact of our forthcoming customization. ggplot2 will automatically select what it determines to be the optimal number and placement of axis ticks based on the data range.

library(ggplot2)

# Create the base scatter plot without explicit scale customization
ggplot(df, aes(x=x, y=y)) +
  geom_point(size=2)

The code above loads the necessary library and generates a scatter plot. The aes() function handles the mapping of our data columns to the visual aesthetics, and geom_point() renders the data points.

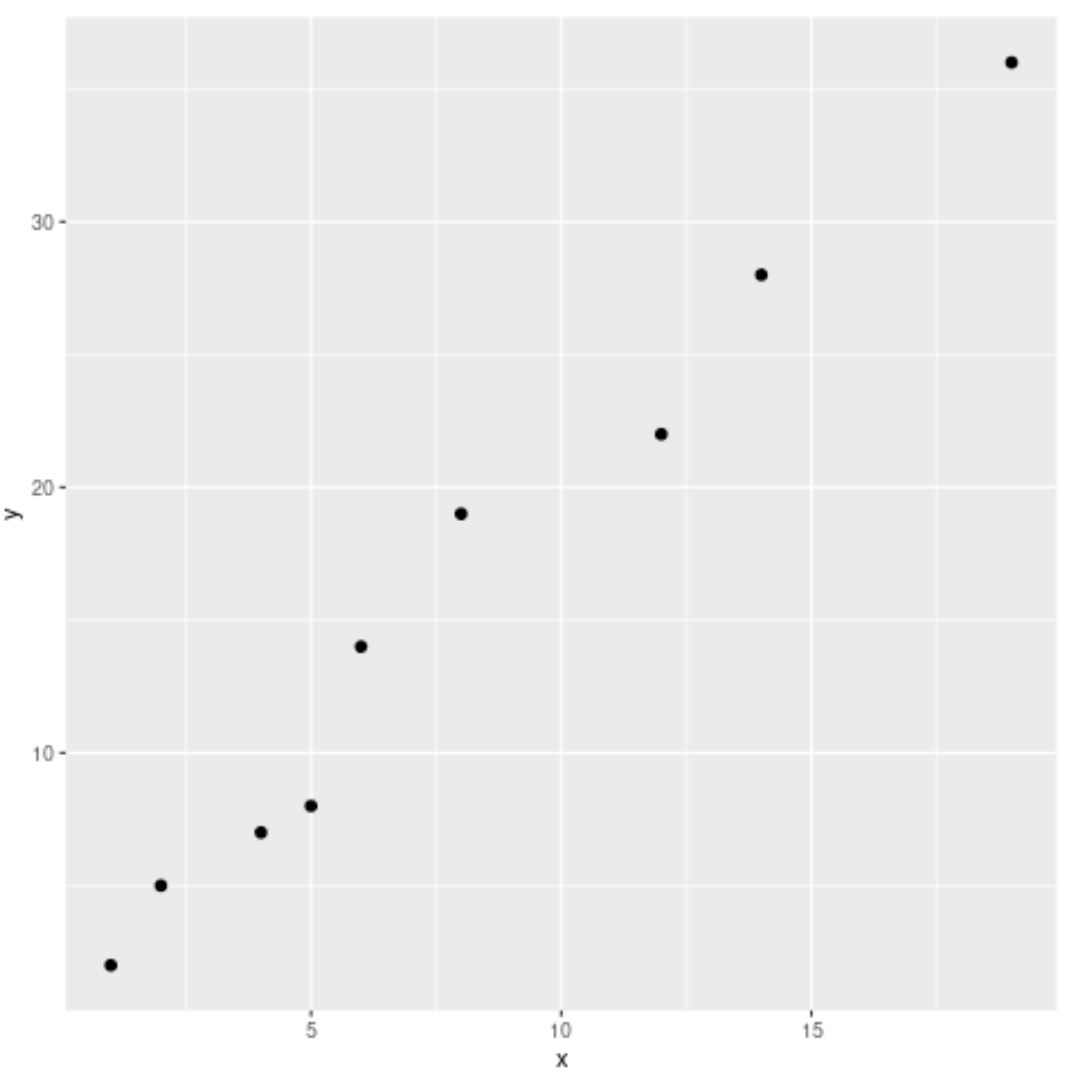

Take a moment to examine the default number of axis ticks automatically generated. While these defaults are generally acceptable, we will now proceed to demonstrate how to increase this density for a more detailed numerical view of the plot.

Applying n.breaks to Both Axes Simultaneously

The next logical step is to instruct ggplot2 to use a higher, specific number of ticks for both the x and y axes. We achieve this by adding both continuous scale functions and setting the n.breaks argument to 10 for each, aiming for a more granular display of the data distribution.

library(ggplot2)

# Create scatter plot requesting approximately 10 ticks on both axes
ggplot(df, aes(x=x, y=y)) +
  geom_point(size=2) +
  scale_x_continuous(n.breaks=10) +
  scale_y_continuous(n.breaks=10)

By including scale_x_continuous(n.breaks=10) and scale_y_continuous(n.breaks=10), we successfully override the default scaling mechanism.

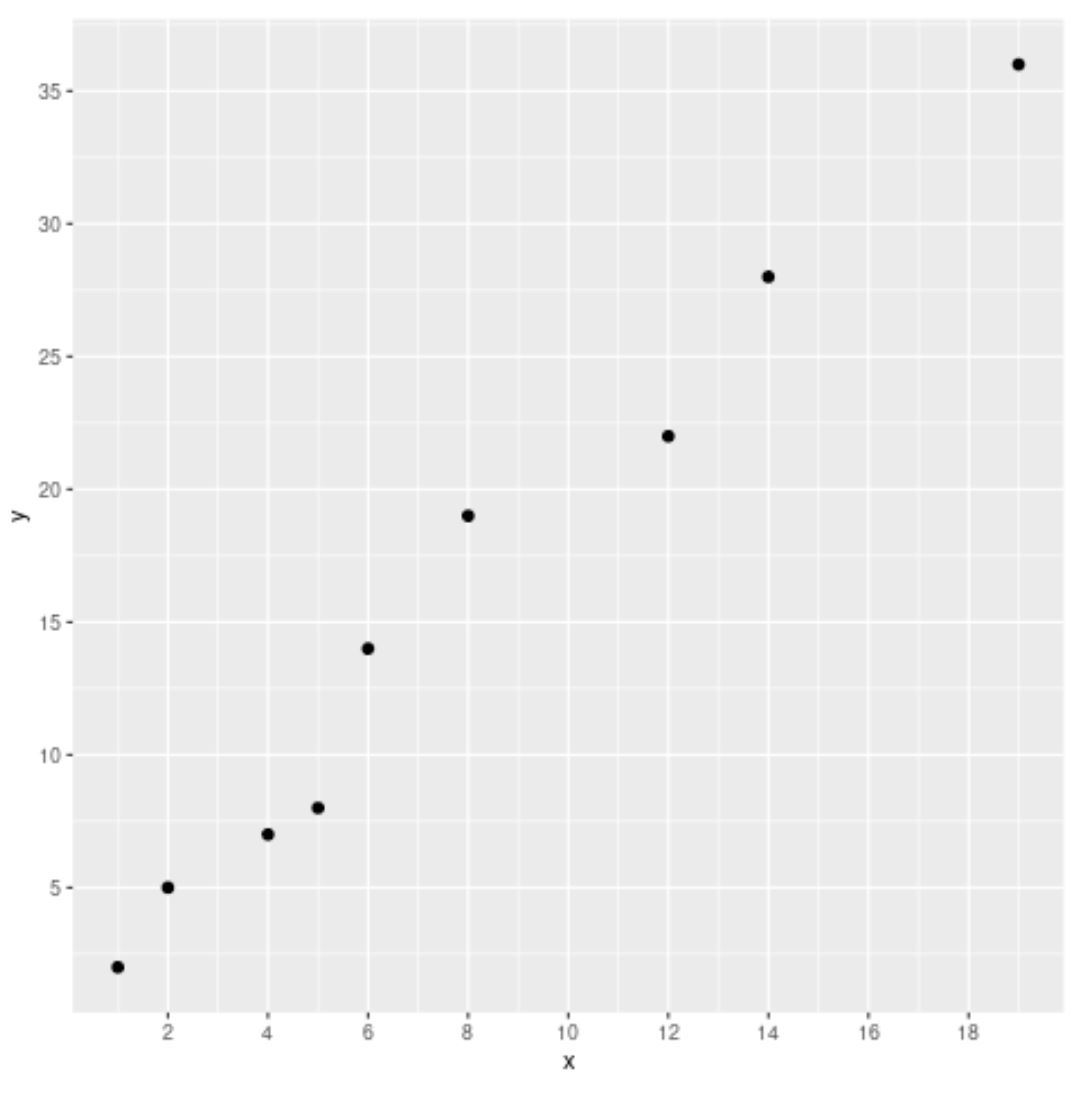

A visual comparison with the first plot confirms that the number of tick marks on both the horizontal and vertical axes has substantially increased. This level of detail is beneficial when precise numeric interpolation between data points is required by the viewer.

Customizing a Single Axis Independently

In many sophisticated visualizations, only one dimension might require tailored scaling. ggplot2 handles this scenario gracefully, allowing you to apply the n.breaks argument to just the necessary scale function, leaving the other axis to retain its default, optimized settings. Let’s modify only the x-axis to be extremely dense (requesting 20 breaks), while the y-axis remains untouched.

library(ggplot2)

# Create scatter plot requesting approximately 20 ticks on the x-axis only
ggplot(df, aes(x=x, y=y)) +
  geom_point(size=2) +
  scale_x_continuous(n.breaks=20)

By including only scale_x_continuous(n.breaks=20), we isolate the customization to the x-axis. The y-axis automatically reverts to the default scaling behavior determined by the underlying algorithm.

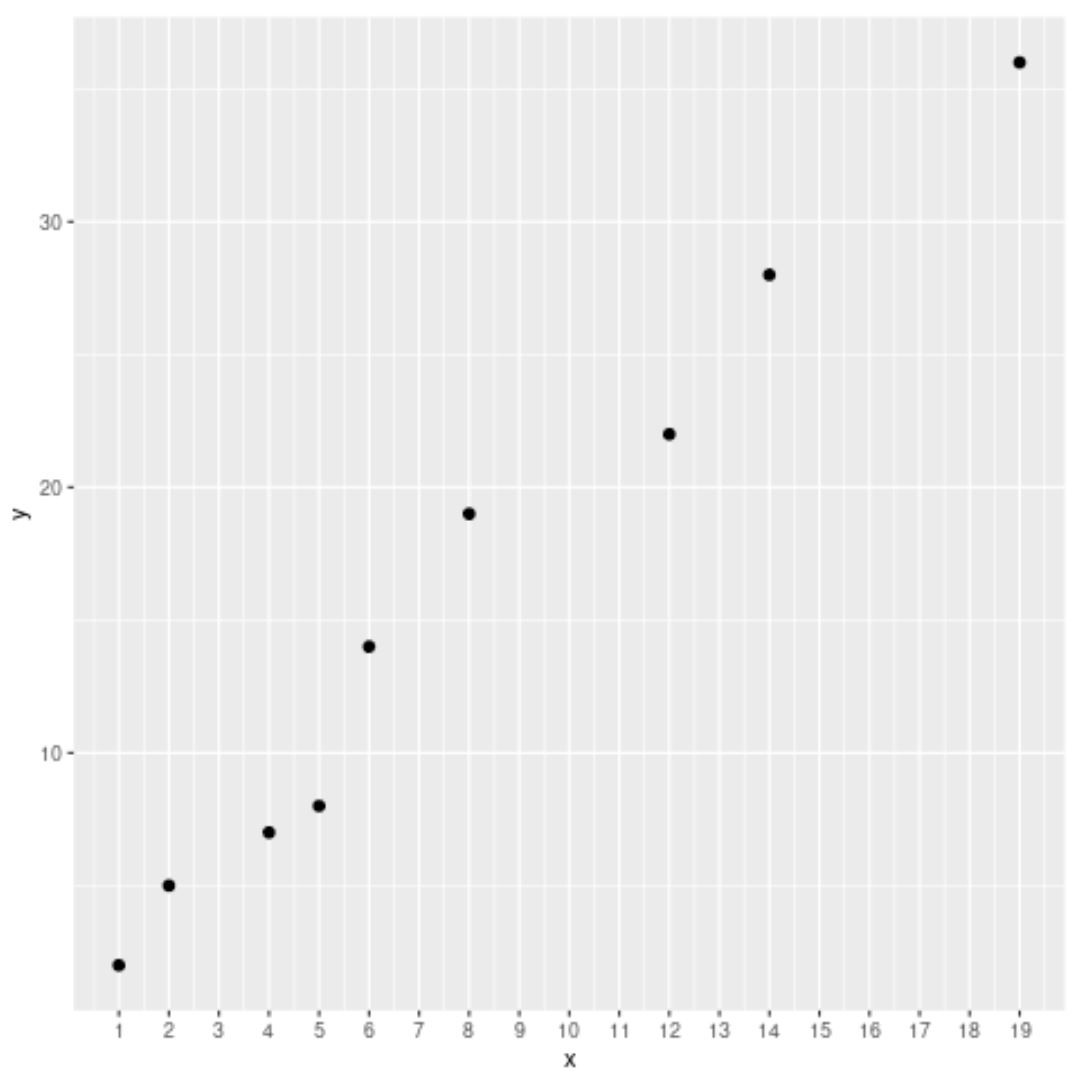

The resulting image clearly demonstrates this independent control: the x-axis now exhibits a significantly more dense set of axis ticks, providing fine-grained measurement along the horizontal dimension, while the y-axis maintains the cleaner, default count.

Best Practices and Important Considerations for N.Breaks

While the n.breaks argument is highly effective for guiding the generation of continuous breaks, it must be applied thoughtfully. Over-saturating an axis with ticks can quickly lead to a cluttered, inaccessible plot where labels overlap and visual noise outweighs clarity. Conversely, setting n.breaks too low might result in a loss of necessary detail, especially when dealing with plots that require high precision.

To ensure your customizations enhance, rather than detract from, the data narrative, adhere to these fundamental best practices when adjusting your axis ticks:

• Maintain Readability: The primary objective of any visualization is clarity. Always review the final plot to ensure that tick labels are legible and that the density does not compromise the viewer’s ability to interpret the data quickly.

• Assess Data Characteristics: For datasets spanning large numerical ranges or exhibiting high density, a greater number of ticks may be justifiable. Sparse or highly concentrated data may benefit from fewer ticks to avoid visual distraction.

• Know Your Audience: Tailor the tick density to your audience. A technical audience might appreciate more detail, while a general audience might prefer a cleaner look.

• Explore Advanced Alternatives: For situations requiring absolute precision (e.g., placing ticks at non-uniform or specific data points), the n.breaks argument is insufficient. Instead, use the breaks argument within scale_x_continuous() or scale_y_continuous(), which accepts a vector of desired numerical break points, or the labels argument for custom textual definitions.

Remember that n.breaks serves as a suggestion that respects the ‘nice numbers’ principle, ensuring the resulting intervals are always numerically intuitive, even if the final tick count deviates slightly from the requested number.

Conclusion: Mastering Axis Control in ggplot2

The ability to finely customize axis ticks represents a critical skill in advanced ggplot2 usage. By effectively utilizing the n.breaks argument within the continuous scale functions, specifically scale_x_continuous() and scale_y_continuous(), practitioners gain exceptional control over the numerical presentation and aesthetic appeal of their plots.

Successful visualization hinges upon balancing the need for sufficient detail with the paramount necessity of visual clarity. Thoughtful experimentation with various values for n.breaks will enable you to discover the optimal presentation style for your specific analytical objectives and dataset structure, significantly enhancing the interpretability and overall impact of your data visualization projects.

Further Learning and Resources

To continue developing your expertise in advanced graphical customization using ggplot2, we recommend exploring the following authoritative resources:

• Official ggplot2 Documentation: Access the comprehensive reference materials that provide in-depth details on every function, layer, and aesthetic mapping available within the package.

• The “R for Data Science” Book (Hadley Wickham & Garrett Grolemund): An essential text for mastering R programming, focusing heavily on ggplot2 and the associated tidyverse packages.

• Tutorials on Axis Manipulation: Seek out specific guides covering advanced axis features, such as setting manual limits, incorporating logarithmic transformations, or using customized axis labels for categorical data.
