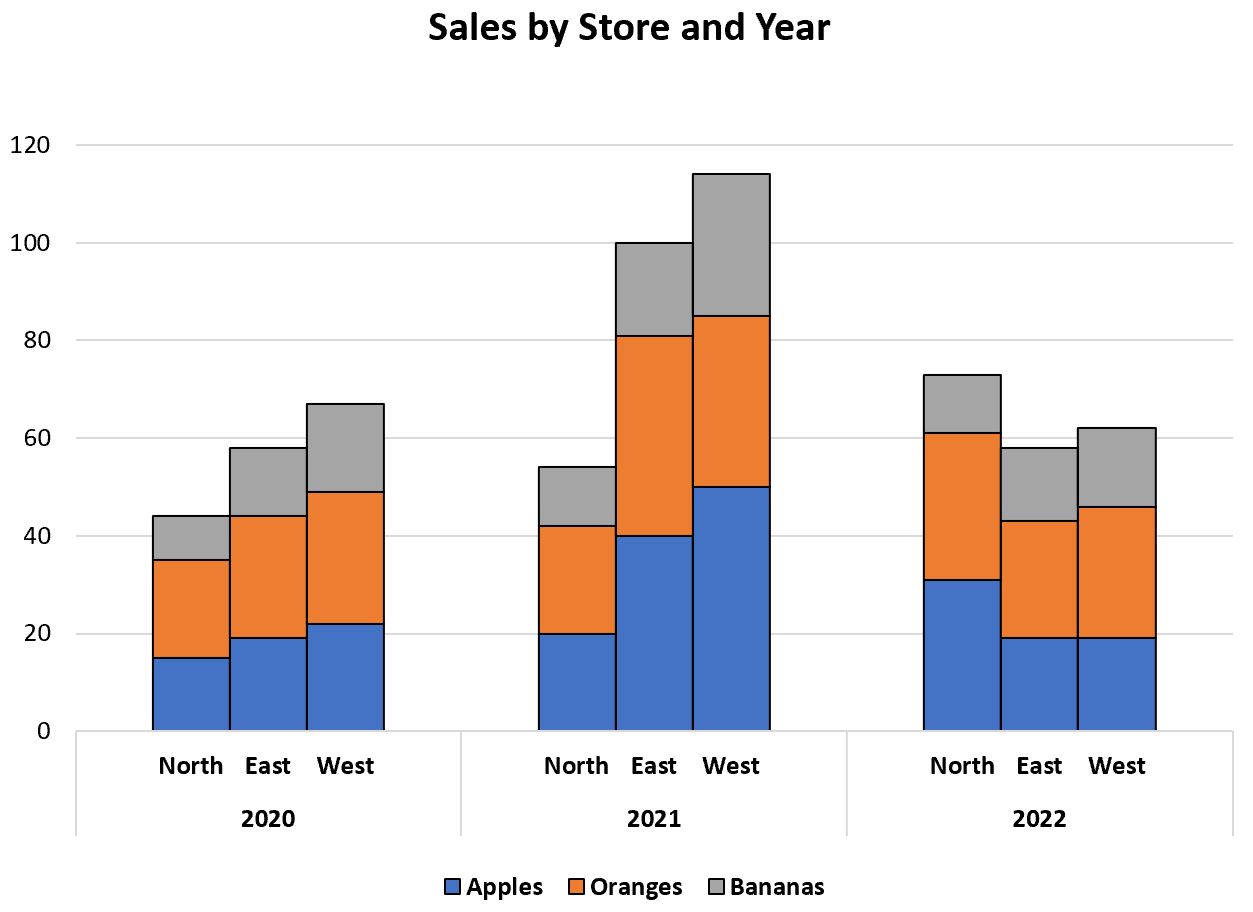

Learning to Visualize Data: Creating Clustered Stacked Bar Charts in Excel

In the modern context of data visualization, the effective communication of complex, multi-layered information is essential for informed decision-making. Among the most powerful and insightful chart types available for this purpose is the clustered stacked bar chart. This sophisticated graphical representation masterfully integrates the capabilities of both clustered and stacked bar formats, allowing analysts to perform simultaneous comparisons of multiple segmented categories across distinct groups or time periods. It is particularly invaluable when illustrating data where overall values are broken down into constituent components within major categories, and those major categories themselves require side-by-side comparison for trend analysis.

Traditional stacked bar charts are excellent for depicting compositional analysis, where the total height of a bar signifies an aggregate value, and the colored segments within represent the relative parts contributing to that total. Conversely, a standard clustered bar chart is typically utilized for comparing discrete, independent categories across various groups. The unique power of the clustered stacked bar chart lies in its ability to seamlessly merge these two functions. By grouping sets of stacked bars together, it facilitates a deeper level of analysis, enabling viewers to immediately grasp how the internal composition of values shifts between different clusters, while simultaneously comparing the total values of those clusters.

Despite its analytical utility, constructing such a nuanced chart within Excel often presents a challenge due to the specific requirements for data arrangement and subsequent customization. This comprehensive tutorial is designed to demystify the creation process, providing step-by-step guidance on how to build a precise and highly informative clustered stacked bar chart. By following these detailed instructions, you will learn how to transform raw, multi-dimensional data—such as sales performance across regions, product lines, and years—into a compelling visual narrative. Our objective is to equip you with the advanced skills necessary to replicate the chart example shown below, significantly enhancing your capacity for professional data presentation.

Step 1: Structuring and Preparing the Source Data in Excel

The successful creation of any insightful chart hinges entirely on the proper preparation and structure of the underlying data. For a clustered stacked bar chart, it is absolutely vital that your data is organized in a meticulous tabular format that allows Excel to correctly delineate the primary categories (the clusters), the secondary subcategories (the stack segments), and their corresponding quantitative values. This structure often requires the categorical variables to be listed in adjacent columns, forming the foundation of the clustering mechanism, while the numerical values occupy separate columns that will define the stacked components.

To illustrate this powerful visualization technique, we will utilize a sample dataset focusing on the sales figures of three different product categories across various retail stores over multiple years. This specific dataset is perfectly suited because it contains the multiple dimensions required: the product types (which will be segmented within the stack), the retail stores (which will define the clusters), and the years (which further differentiates the data points within the clusters). Before proceeding, ensure that every column in your table has clear, descriptive headers, as these labels will be automatically pulled by Excel for use in the chart legend and series titles.

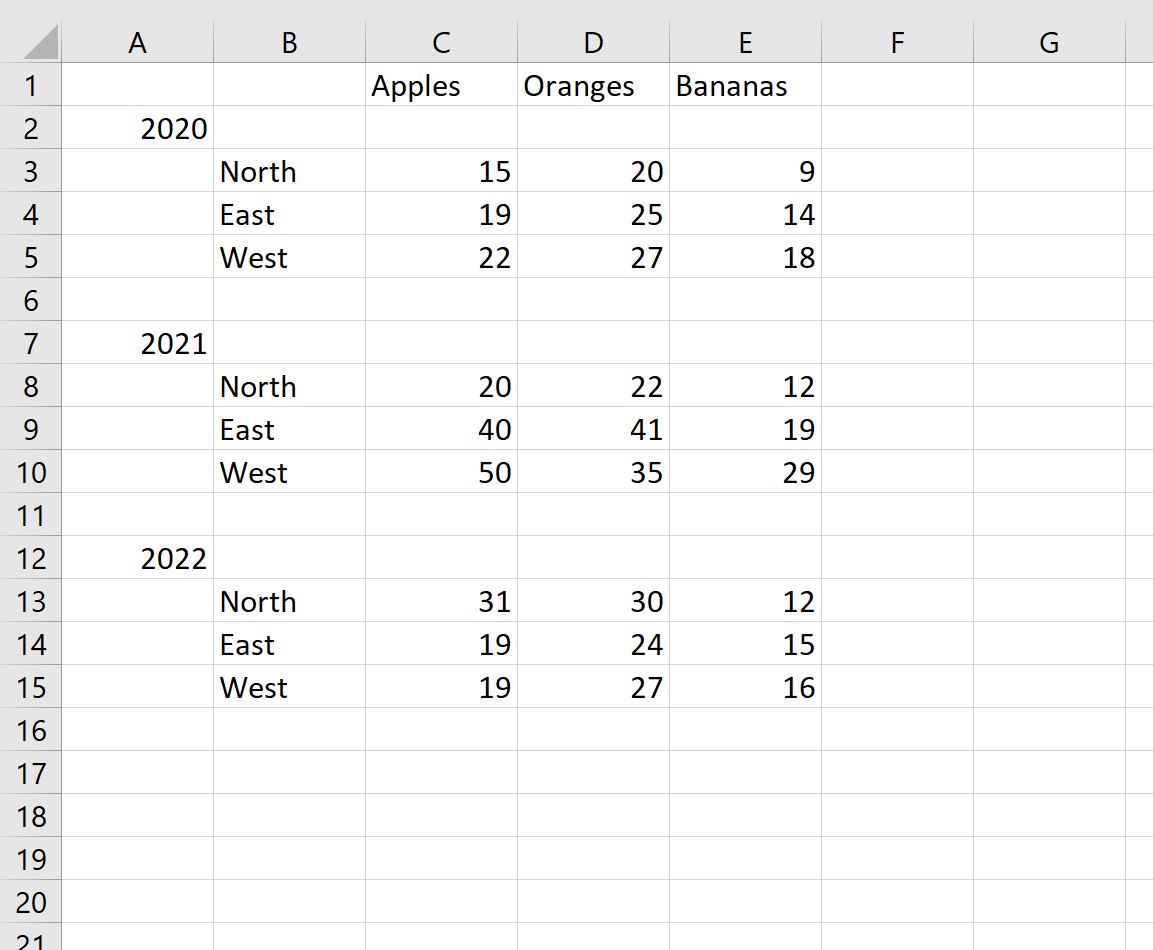

It is mandatory to enter the following data precisely into your Excel spreadsheet, starting in cell A1. Precision in data entry is non-negotiable, as even minor discrepancies can lead to charting errors or misinterpretations in the final visualization. Pay particular attention to the arrangement of the “Year” and “Store” columns (A and B), as their placement next to each other determines the way Excel initially attempts to group and stack your data. This sequential layout is the trick that enables the clustered effect later on.

Step 2: Generating the Initial Stacked Column Chart

Once your source data is meticulously organized, the next phase involves instructing Excel to generate the foundational chart structure. It is important to note that Excel does not feature a dedicated “clustered stacked bar chart” option; instead, we must initiate a standard “Stacked Column” chart and subsequently apply specialized customizations to achieve the clustered effect. This crucial process begins with the careful selection of the numerical data range that represents the values you intend to visualize.

To execute this, begin by highlighting the core data range: cells C1 through E16 in your spreadsheet. This specific selection encompasses all the sales figures for the three product types across the various store-year combinations. After confirming the selection of this critical range, navigate your cursor to the Insert tab, which is prominently located along the top Excel ribbon. The Insert tab serves as the primary location for incorporating visual and structural elements, including charts, tables, and images.

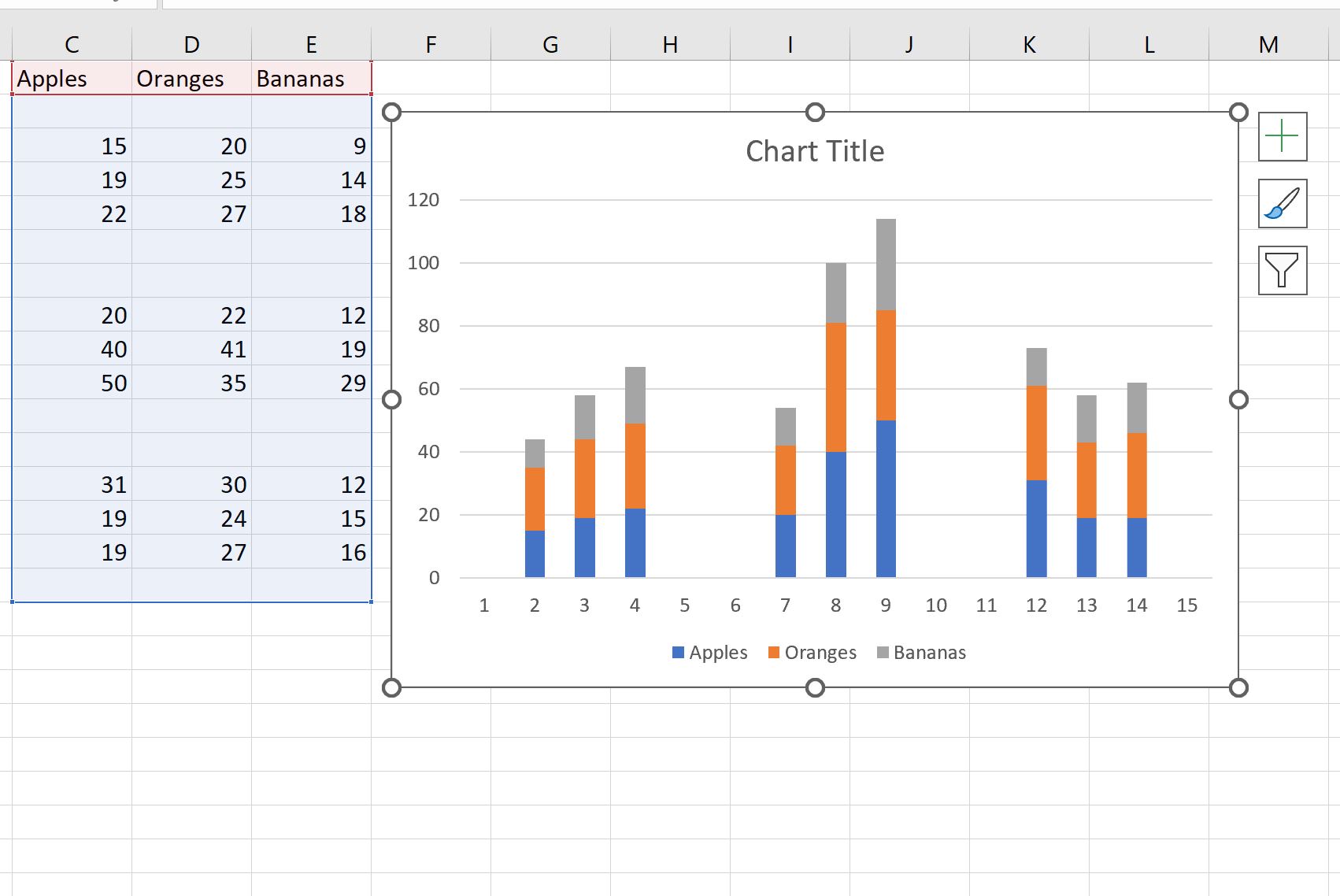

Within the Charts group of the Insert tab, locate the icon representing the Stacked Column chart type and click on it. Upon execution, Excel will automatically generate an initial chart based on the selected numerical data. At this preliminary stage, the chart will display bars that are stacked but not yet clustered in the desired manner. This output is intentionally generated to serve as the necessary structural foundation upon which we will implement the subsequent modifications to achieve the final, fully customized clustered stacked bar chart visualization.

Step 3: Defining Custom Horizontal Axis Labels for Clustering

The chart generated in the previous step requires significant refinement, particularly concerning the horizontal axis, to accurately reflect the multi-dimensional nature of the data. For our clustered stacked bar chart, the x-axis must clearly display both the “Store” and “Year” categories simultaneously, ensuring a granular and contextual view of the data points. This critical step employs a clever technique to bypass Excel‘s default grouping behavior, forcing it to treat the combined categorical data as distinct labels.

Before diving into the axis customization menu, a crucial preparatory step must be executed in your spreadsheet. Click on cell A17—the cell immediately below the last entry in the “Year” column—and input a few empty spaces (e.g., press the spacebar two or three times). This seemingly insignificant addition is paramount for the correct subsequent grouping of our data series on the x-axis when Excel processes the custom label range. It acts as a blank separator, ensuring that the last data point is correctly isolated, thereby facilitating the visual separation required for clustering.

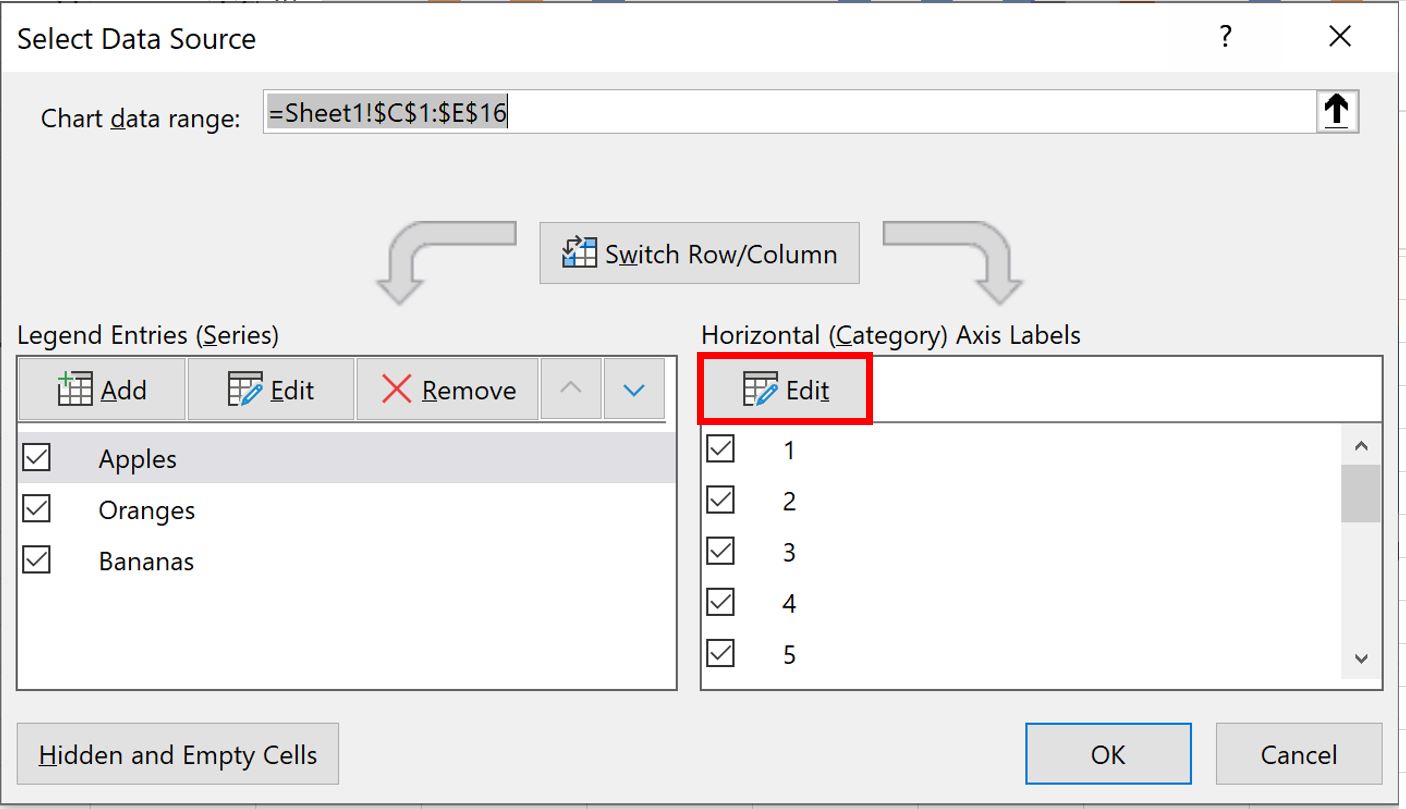

To access the customization settings, right-click anywhere within the chart area to open the contextual menu, and then select the Select Data option. This action will launch the comprehensive “Select Data Source” dialog box, which governs the mapping between your spreadsheet ranges and the chart elements. Within this dialog, locate the section labeled Horizontal (Category) Axis Labels and click the Edit button. A smaller “Axis Labels” dialog box will appear, prompting you to specify the range for your custom labels.

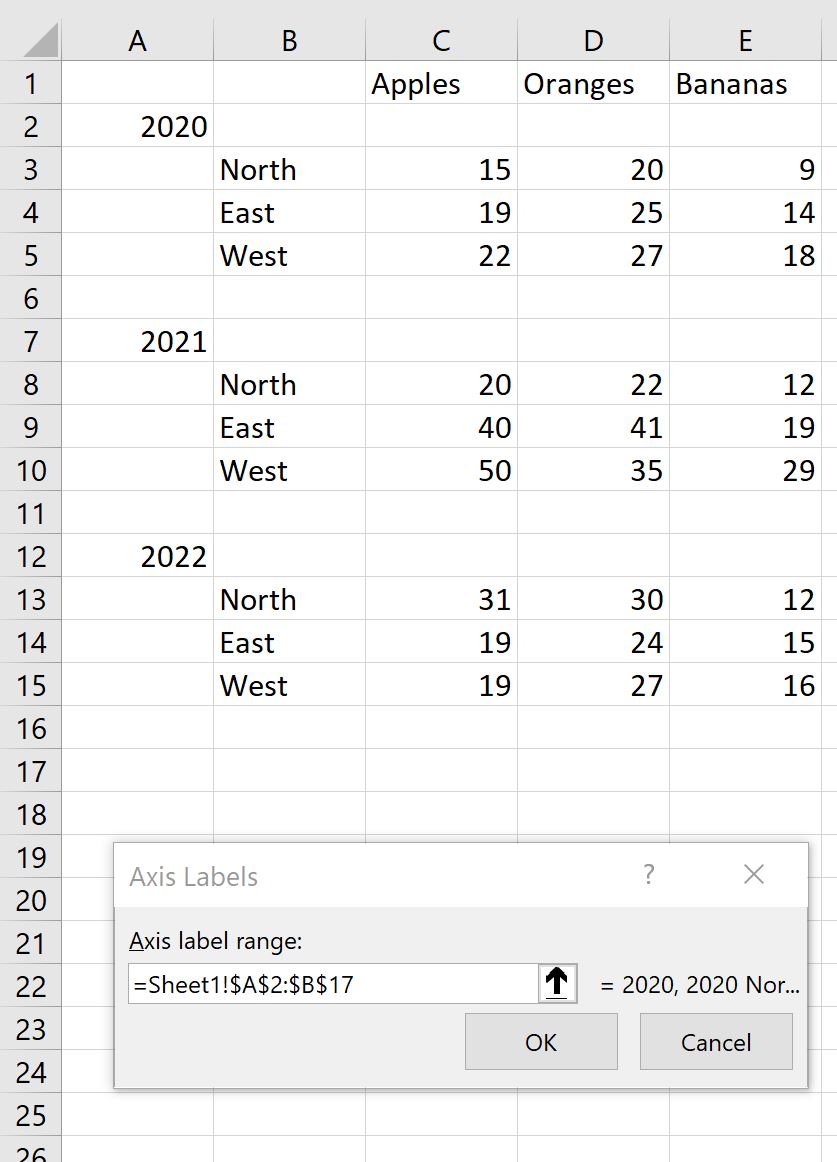

For the Axis label range, meticulously highlight the cell range A2:B17 in your spreadsheet. This range includes both the “Year” and “Store” information, crucial for defining the clusters, alongside the strategically placed empty cell in A17. By confirming this combined range, you are compelling Excel to use these specific, paired entries as the primary axis labels. After clicking OK in both the “Axis Labels” and “Select Data Source” dialog boxes, you will observe the chart update immediately: the x-axis now displays the desired combined labels, providing a much clearer contextual definition for each data point and significantly enhancing the chart’s overall readability.

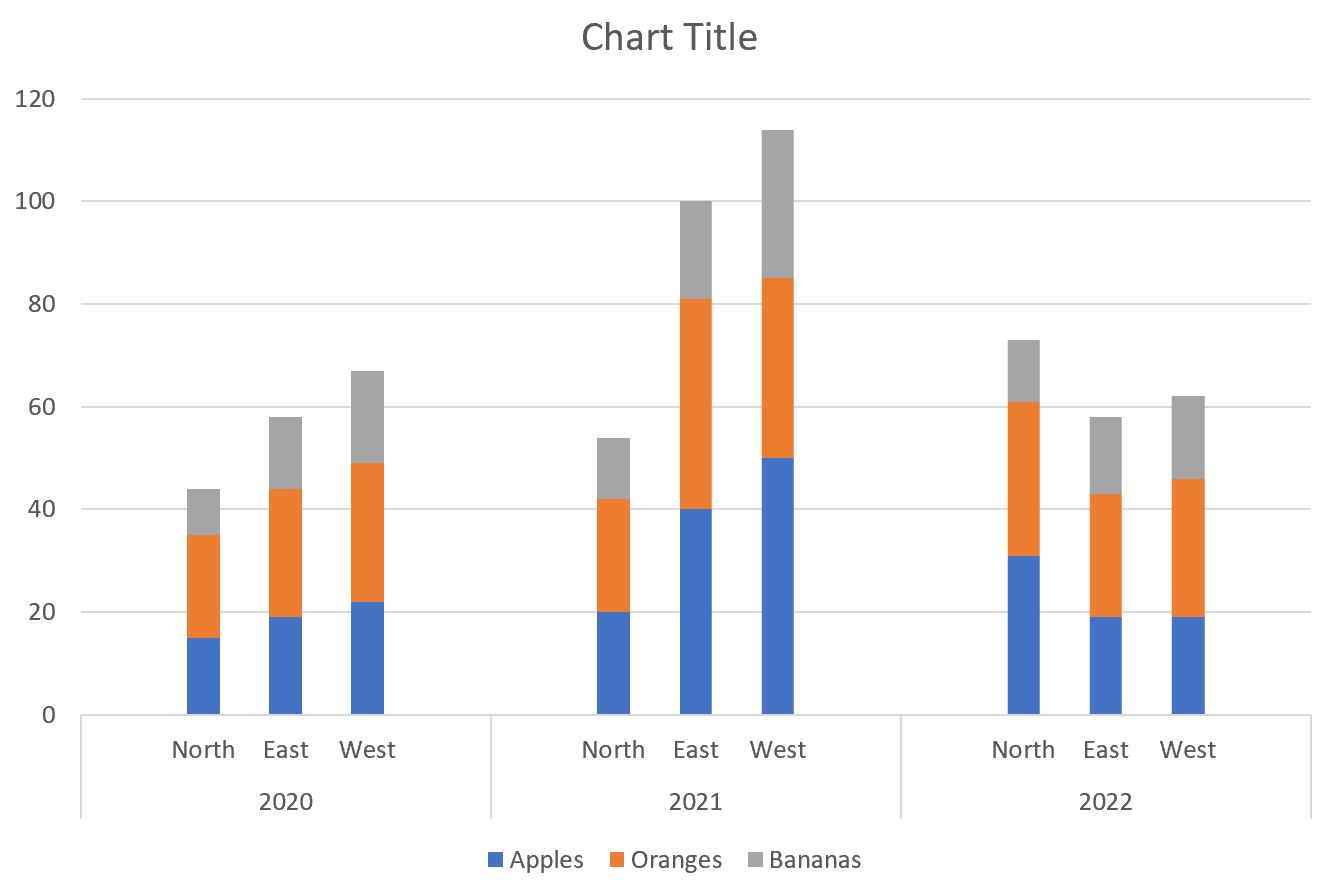

The result of this customization is transformative. The x-axis is no longer a generic index but a meaningful descriptor that clearly combines the year and store information. This successful manipulation of the axis labels is the fundamental step in transforming a standard stacked chart into a structured, clustered visualization, making the comparison between distinct store-year combinations intuitive and highly effective for data visualization.

Step 4: Implementing the Cluster Effect via Gap Width Adjustment

With the horizontal axis correctly configured to define the clusters, the next critical technical phase involves adjusting the visual separation between the bars to finalize the “clustered” appearance. The default spacing parameters in Excel‘s stacked column charts typically introduce unnecessary gaps between the bars that belong to the same cluster, which can obscure the intended grouping effect. By precisely modifying the Gap Width setting, we can visually consolidate the stacked bars that share the same cluster definition, thus significantly enhancing the visual distinction between the various clusters.

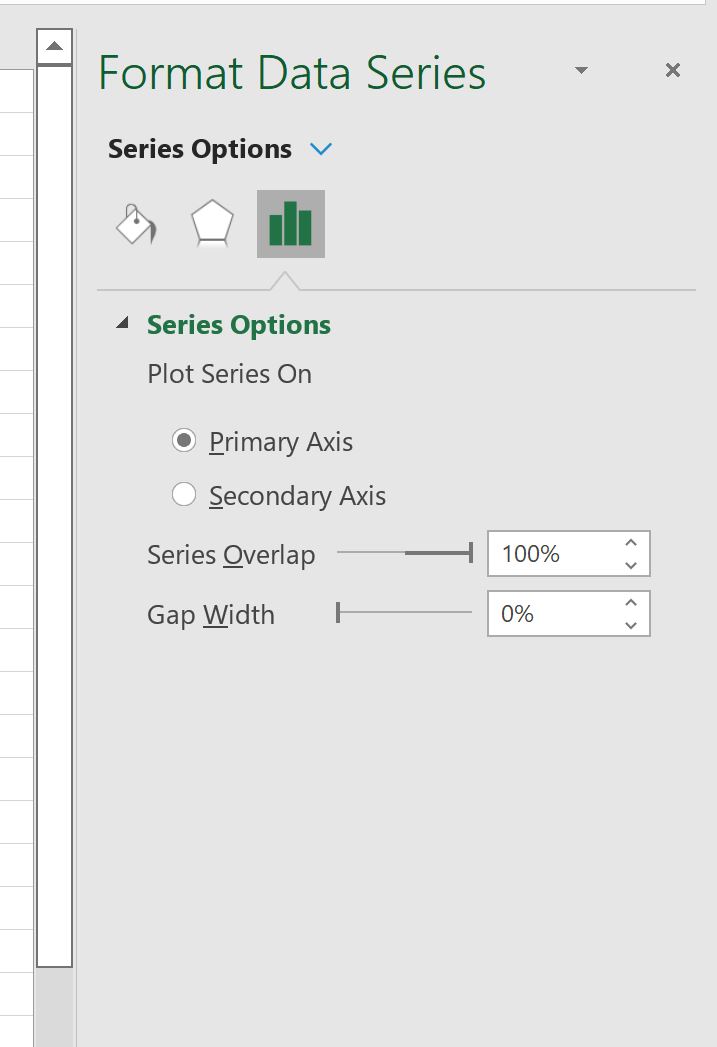

To initiate this adjustment, click on any single bar within the chart area. This action is designed to select the entire data series and automatically open the “Format Data Series” task pane on the right side of your Excel window. Within this pane, navigate to the “Series Options” category. The crucial setting here is the Gap Width control, which regulates the space between adjacent bars. Set this value to 0% (zero percent). Reducing the Gap Width to zero effectively eliminates the spacing between bars belonging to the same cluster (e.g., the sales figures for Store A in 2021), forcing them to appear as a single, unified block and creating clear visual separation from the next cluster.

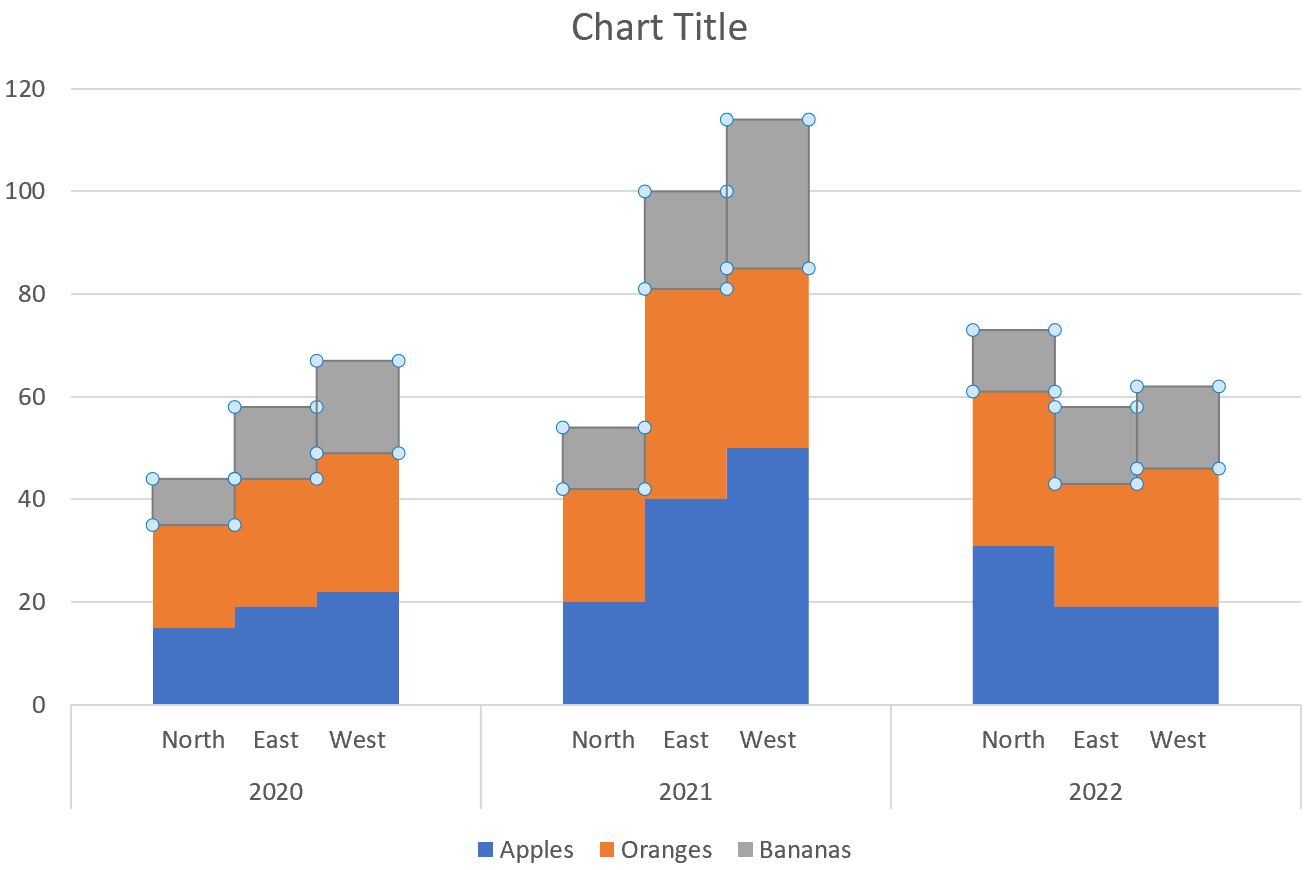

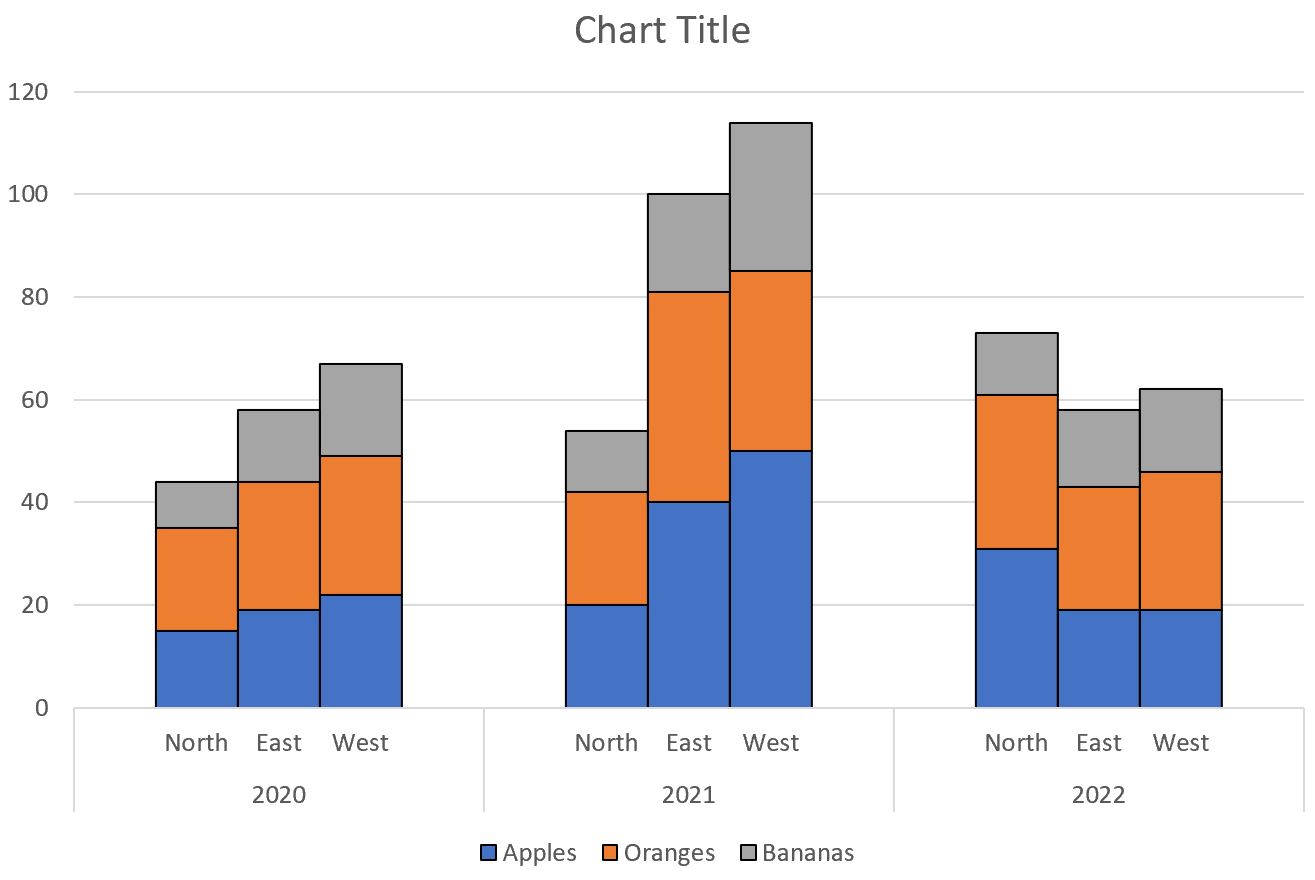

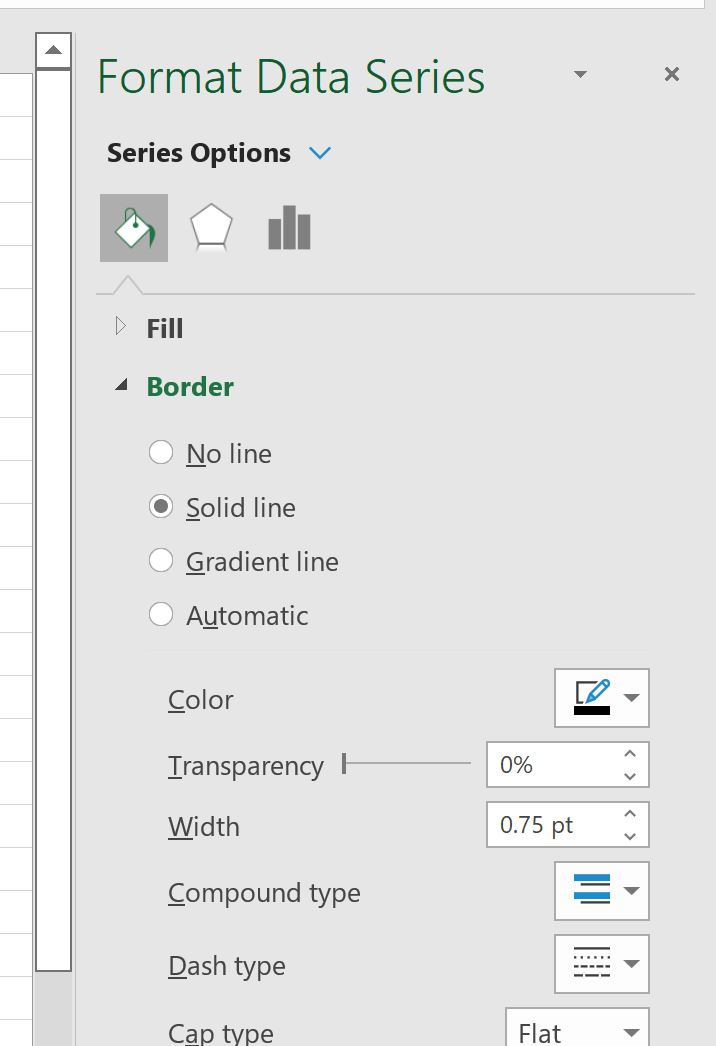

The visual transformation is immediate and dramatic: the data points now form distinct, easily comparable clusters, significantly boosting the analytical power and readability of your visualization. Furthermore, to clearly delineate the individual product segments within each stacked bar, it is highly recommended to add a border. With the “Format Data Series” panel still active, click on the paint bucket icon (Fill & Line). Locate the Border section and select the Solid line option. While here, you may customize the color and thickness, a thin, contrasting color border (such as black or white) is generally best for maximum clarity against the filled bar colors.

It is critically important to remember that this border application must be repeated individually for every single data series represented in your chart (e.g., Product 1, Product 2, Product 3). Ensuring every segment has a clear outline makes it effortless for the audience to differentiate between the compositional parts within each store-year cluster. The consistent application of these formatting rules significantly contributes to the overall aesthetics and interpretability of your final chart formatting, transforming it into a high-quality professional graphic.

Step 5: Enhancing Professionalism through Titles and Formatting

The final stage in producing a professional clustered stacked bar chart involves refining the readability and aesthetic appeal through thoughtful titling and strategic text formatting. A carefully chosen and descriptive chart title is the first element that conveys the visualization’s purpose and content to the audience, while targeted bolding can effectively direct the viewer’s attention to the most crucial data components or labels. These aesthetic decisions are not merely decorative; they are fundamental to effective data presentation.

Start by clicking on the default placeholder chart title located above the graph. Replace the generic text with a highly descriptive and informative title, such as “Sales Performance by Store and Product Mix (2021-2022).” A title of this caliber instantly communicates the variables being analyzed, the context of the comparison (sales performance), and the scope of the dataset. Always ensure your title is both concise enough to be easily digestible and comprehensive enough to stand alone.

Furthermore, to strategically emphasize key numerical labels, the primary axis labels, or crucial legend entries, you should selectively apply bold formatting. Select the specific text element within the chart that you wish to highlight—be it the axis labels, the legend key, or the main chart title itself. Then, use Excel‘s standard formatting tools (typically found in the “Home” tab) to render the text bold. This minor, yet powerful, visual enhancement significantly improves the overall readability and confers a polished, professional aesthetics to your visualization, ensuring that the most important information is immediately noticed by the viewer.

Conclusion: Leveraging Advanced Data Insights

You have successfully executed the sophisticated steps required to construct a high-quality clustered stacked bar chart using Excel. Every stage, from the meticulous preparation of the source data and the clever manipulation of axis labels to the precise customization of bar spacing and borders, has been essential in transforming raw numbers into an informative and powerful visual representation. This visualization technique transcends simple aesthetics; it functions as a strategic tool for advanced data analysis, enabling analysts to derive deeper insights from complex multi-dimensional data sets.

The unique capability of the clustered stacked bar chart to simultaneously illustrate the compositional breakdown within specific categories while facilitating direct comparisons across different groups makes it exceptionally versatile and valuable across numerous fields. Whether your focus is on dissecting market share shifts, analyzing detailed demographic distributions, monitoring project resource allocation, or forecasting sales performance over time, this method provides a clear, comprehensive overview. It is instrumental in identifying subtle patterns, highlighting performance anomalies, and supporting robust, data-driven decision-making processes by presenting complexity in an easily digestible graphical format.

We strongly encourage you to apply these newly acquired techniques to your own professional or academic datasets. Continuous experimentation with different data configurations and customization options will lead to a true mastery of advanced data presentation within Excel. The specialized skills you have gained here are highly transferable and will significantly boost your capacity to communicate compelling and evidence-based data narratives in virtually any setting. Continue to explore Excel‘s extensive charting capabilities to unlock even more innovative and powerful visualizations.
