Learning to Adjust Bar Width in Seaborn Bar Plots: A Comprehensive Guide

Introduction: Achieving Visual Clarity in Seaborn Bar Plots

When constructing compelling data visualization, the impact and interpretability of your plots are paramount. Bar plots are an indispensable tool for comparing categorical data, yet their effectiveness relies heavily on subtle design choices. Among these choices, the width of the bars plays a critical role, influencing both readability and overall aesthetic appeal. This comprehensive guide details how to gain precise control over bar width within Seaborn, the powerful Python library designed for high-level statistical plotting, which is built upon Matplotlib.

Seaborn inherently simplifies the generation of complex statistical graphics, allowing practitioners to focus on extracting data insights rather than wrestling with low-level plotting syntax. While its default settings are often highly effective, granular customization—such as adjusting bar width—is essential for specialized visualizations. This tutorial focuses specifically on the practical implementation of the width parameter found within the barplot() function.

Mastering the width argument is fundamental for anyone seeking to enhance their Seaborn bar plots. Whether your goal is to create tightly packed bars to suggest continuity or thin, separated bars to emphasize discrete categories, this parameter provides the necessary flexibility. We will systematically examine various settings for width and observe their direct visual consequences, ensuring a thorough understanding of this crucial design customization option.

The Mechanics of the width Parameter in sns.barplot()

The primary mechanism for manipulating bar thickness in a Seaborn bar plot is by utilizing the width argument directly within the sns.barplot() function call. This argument accepts a numerical value that determines the proportion of the available horizontal space that each individual bar will occupy relative to the total category space allotted on the axis.

sns.barplot(x='xvar', y='yvar', data=df, width=0.8)

By default, when a bar plot is generated using Seaborn without explicit specification, the width argument is automatically assigned a value of 0.8. This default setting is intentionally chosen to introduce a small, crucial gap between adjacent bars, which is vital for providing visual separation and preventing categories from merging, especially when dealing with plots containing numerous items.

The value assigned to width is typically a floating-point number between 0 and 1. A smaller value, such as 0.4, results in thinner bars and consequently increases the white space between them. Conversely, setting a larger value, closer to 1.0, produces wider bars and minimizes or eliminates the inter-bar gaps. Grasping this inverse relationship—where bar width and inter-bar spacing are inversely proportional—is key for effective data visualization design. The subsequent sections will provide practical, side-by-side examples illustrating how varying width values dramatically alter the visualization’s appearance.

Establishing the Data Foundation: A Sales Performance Scenario

To tangibly illustrate the influence of the width argument, we must first establish a representative dataset. We will construct a sample Pandas DataFrame designed to simulate real-world sales performance data, tracking the total sales figures achieved by several employees. This structure is perfectly suited for a bar plot, facilitating a clear comparison of a quantitative metric (sales) across distinct categorical entities (employees).

Our preparatory steps involve importing the indispensable Pandas library, the cornerstone of data manipulation within the Python ecosystem. Following the import, we define a DataFrame consisting of two columns: 'employee', containing the names of the sales staff, and 'sales', recording their corresponding performance metrics. This straightforward data model establishes the necessary context for our visual experiments.

import pandas as pd

#create DataFrame
df = pd.DataFrame({'employee': ['Andy', 'Bert', 'Chad', 'Doug', 'Eric', 'Frank'],
                   'sales': [22, 14, 9, 7, 29, 20]})

#view DataFrame
print(df)

  employee  sales
0     Andy     22
1     Bert     14
2     Chad      9
3     Doug      7
4     Eric     29
5    Frank     20

The resulting output confirms that our Pandas DataFrame is correctly structured and populated with the employee sales data. This validated, structured data is now ready for processing by Seaborn. We can now proceed to observe precisely how modifications to the width parameter impact the visual comparison of these sales figures across our employee categories.

Establishing the Benchmark: The Default Bar Width

Before proceeding with custom alterations, it is essential to establish a visual benchmark using Seaborn’s standard configuration. This default plot will serve as a definitive point of reference against which all subsequent modifications to the width argument can be accurately compared. The default width of 0.8 is chosen by the library developers to optimally balance bar prominence and necessary visual separation for most common data visualization tasks.

To generate this initial plot, we simply call the sns.barplot() function, mapping the 'employee' column to the x-axis, the 'sales' column to the y-axis, and passing our df Pandas DataFrame. Crucially, we omit the explicit width argument here, allowing it to automatically default to 0.8. We also apply a descriptive title for immediate clarity.

import seaborn as sns

#create bar plot with default width
sns.barplot(x='employee', y='sales', data=df).set(title='Default Width')

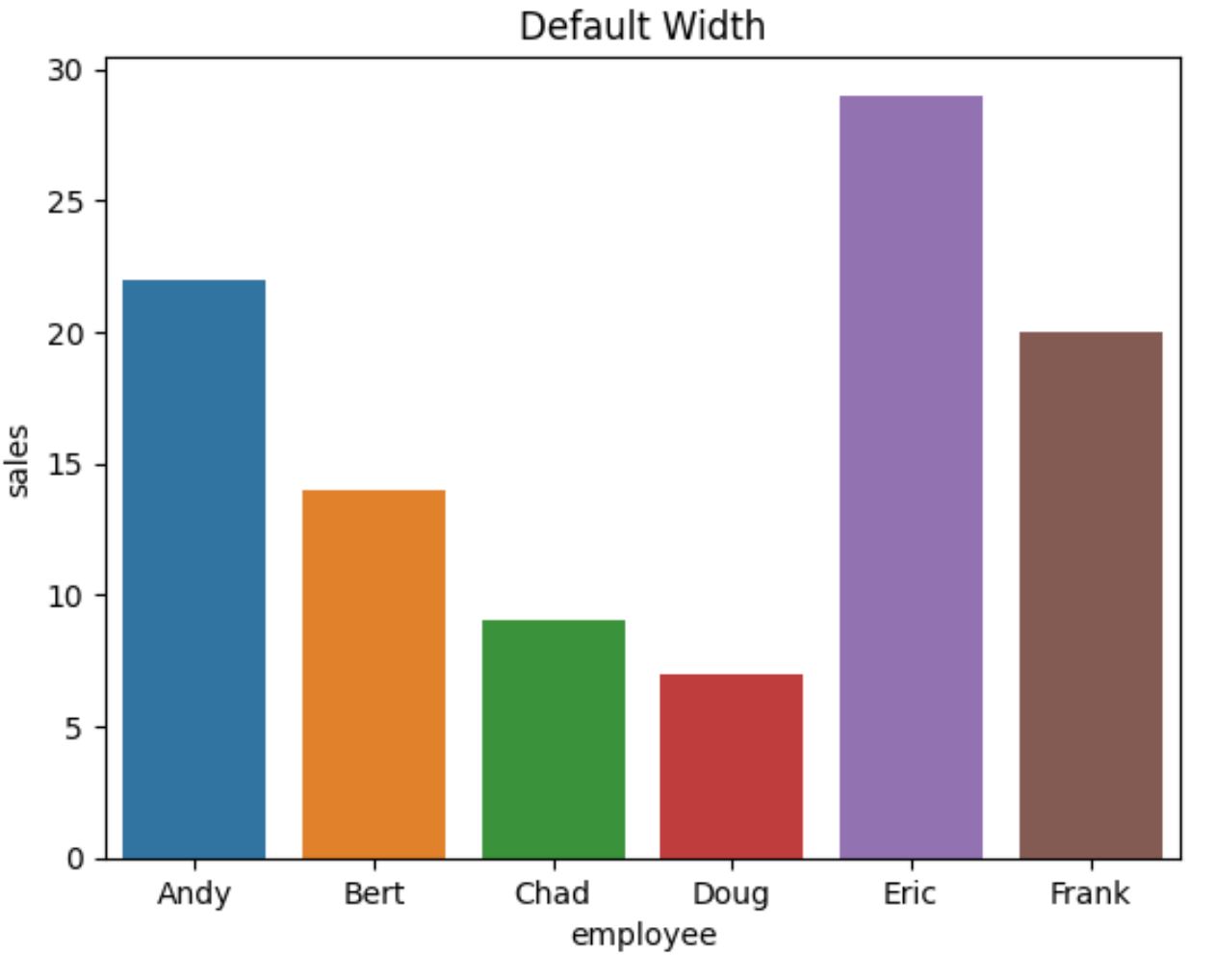

The resulting plot clearly shows that each bar, representing an employee’s sales, possesses a defined width and is separated from its neighbors by distinct gaps. This visual partitioning is intended to assist viewers in individually distinguishing and comparing each employee’s performance metric. This default configuration now serves as our benchmark for assessing the impact of customized bar width settings.

Enhancing Separation: Implementing a Reduced Bar Width (0.4)

There are analytical situations where the default bar width may be suboptimal for presentation. For instance, if the dataset includes a high number of categories, or if the objective is to strongly highlight the discrete nature of each data point, decreasing the bar width can significantly enhance the plot’s clarity. A thinner bar effectively emphasizes the whitespace between categories, causing each column to stand out more sharply against the background.

To demonstrate this effect, we now construct a new bar plot, explicitly reducing the width parameter to a smaller value: 0.4. This value is exactly half of the standard default (0.8), and as anticipated, it produces markedly thinner bars and larger inter-bar gaps. This adjustment is highly effective when the analyst aims to draw the viewer’s attention to individual category comparisons rather than continuous flow.

import seaborn as sns

#create bar plot with width = 0.4
sns.barplot(x='employee', y='sales', data=df, width=0.4).set(title='Width = 0.4')

Upon reviewing this modified visualization, the bars are noticeably leaner compared to the benchmark plot. The expanded visual separation between the columns establishes a different visual rhythm, which can be advantageous depending on the specific analysis being presented. This clearly illustrates the precise control the width argument grants over the visual separation and perceived prominence of categories in a bar chart.

Creating Continuity: Eliminating Gaps by Setting width to 1

In contrast to emphasizing discrete points, certain analytical objectives require the bars in a plot to be adjacent, creating an unbroken, continuous visual profile. This style is often preferred when categories represent a sequence, or when the goal is to minimize visual noise from gaps, focusing instead on the overall distribution shape. In Seaborn, this contiguous effect is achieved by setting the width argument to 1.

When width is set precisely to 1, every bar expands to occupy the entire allocated space along the categorical axis, effectively removing the gaps between adjacent columns. This results in a visually seamless series of bars, ideal for visualizing continuous data distributions or sequences where the transition between categories holds significance.

import seaborn as sns

#create bar plot with width = 1
sns.barplot(x='employee', y='sales', data=df, width=1).set(title='Width = 1')

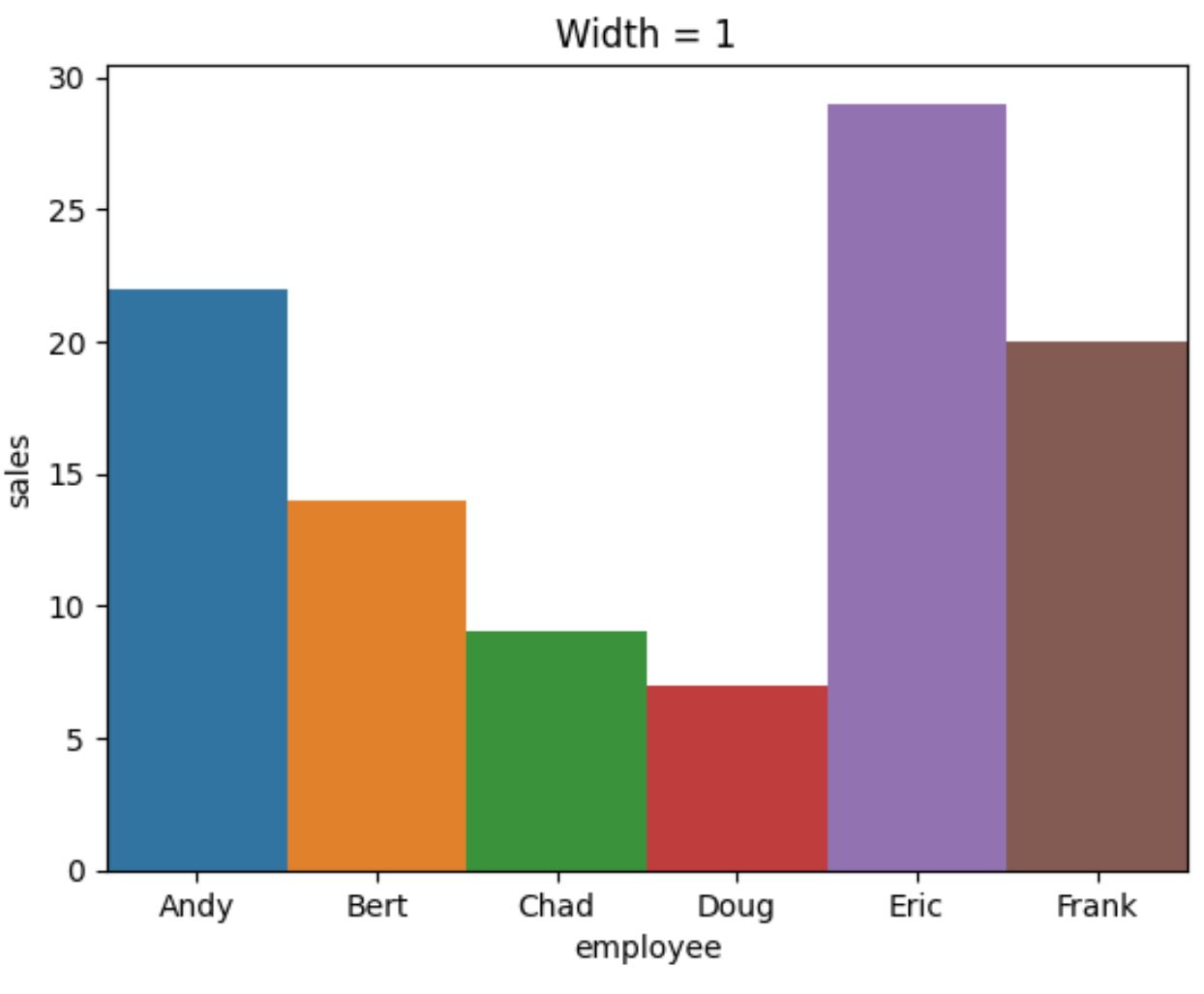

As confirmed by the plot above, setting width to 1 results in bars that are directly touching. This contiguous arrangement significantly alters the perception of the data, tending to emphasize the overall performance trend rather than the contributions of individual employees. This technique is a powerful tool for manipulating the visual narrative of your bar charts to align with your specific statistical objectives.

Advanced Considerations and Best Practices for Bar Width

While setting the width argument to 1 achieves adjacency, it is important to understand the consequences of using values greater than 1. Specifying a width value exceeding 1.0 will cause the bars to visually overlap. This overlap typically results in visual clutter and significantly impedes plot interpretation, as the defined boundaries between categories become confusing. Generally, overlapping bars are strongly discouraged unless required for a specific advanced visualization technique (like transparency-based comparison).

Selecting the optimal bar width requires a careful trade-off between maximizing visual separation and efficiently utilizing the available plotting space. A professional best practice involves iterative testing with various width values to determine the setting that most clearly and accurately communicates the underlying data structure to the audience. Analysts should consider factors such as the total number of categories, the complexity of category labels, and the overall density of the chart. For sparse data, slightly thinner bars might be appropriate, whereas for dense categorical data, a default or slightly wider bar might be better to maximize the bar area.

For the most comprehensive details and exploration of advanced customization options for the barplot() function and other elements of statistical plotting, always refer to the official Seaborn documentation. This resource provides detailed explanations, practical examples, and discussions on various use cases, ensuring you can fully leverage the library’s capabilities.

Further Exploration and Resources for Data Visualization

Successfully mastering data visualization using the Seaborn library involves a deep understanding of its diverse functions and corresponding customization parameters. The capability to precisely adjust bar width, as demonstrated throughout this guide, represents just one vital element in the creation of highly effective and informative statistical plots.

To further refine your plotting expertise and explore other common Seaborn functionalities, we recommend reviewing the following related tutorials and documentation. These resources offer practical, actionable guidance on executing other essential data visualization tasks:

• How to Create a Grouped Barplot in Seaborn
• Seaborn Barplot Official Documentation
• Seaborn Categorical Plots Tutorial

By continually learning and rigorously experimenting with the extensive capabilities offered by the Seaborn library, you will be equipped to consistently produce compelling and insightful visualizations tailored to any complex dataset.
