Learn How to Rotate X-Axis Labels for Enhanced Readability in Seaborn Plots

In the essential field of data visualization, the primary goals are clarity and immediate readability. When constructing analytical plots, particularly those that map extensive categorical data, a frequently encountered technical hurdle is the phenomenon of overlapping x-axis labels. This visual clutter can effectively obscure critical information, severely hindering the viewer’s ability to accurately interpret the generated chart. Fortunately, powerful Python libraries, most notably Seaborn, which operates as a high-level interface built upon Matplotlib, offer robust and straightforward mechanisms to completely resolve this common issue.

The technique of rotating axis labels is an exceptionally effective method used by data scientists to prevent label collision and significantly elevate the overall aesthetic and professional appeal of their visualizations. This approach becomes indispensable when dealing with a large number of categories or when category names themselves are notably lengthy, demanding more horizontal space than the plot allows. By carefully adjusting the angular orientation of these labels, developers can guarantee that every category is distinctly visible and clearly associated with its corresponding data point, eliminating visual ambiguity.

The fundamental process for rotating axis labels within any Seaborn plot relies on manipulating the underlying Matplotlib Axes object that Seaborn functions return. Specifically, this task requires the utilization of the set_xticklabels() function. This function provides precise control over the properties of the x-axis labels, allowing for the crucial modification of their rotation angle, which is defined in degrees.

The standard, powerful syntax employed to achieve label rotation in a standard Matplotlib or Seaborn environment is concise yet highly functional:

my_plot.set_xticklabels(my_plot.get_xticklabels(), rotation=45)

This single line of Python code executes a two-step process: first, it intelligently retrieves all current x-axis label objects using the get_xticklabels() method; subsequently, it reapplies these exact label objects using set_xticklabels(), incorporating the specified rotation argument, which is here set to a 45-degree angle. The following detailed sections will provide a complete, practical walkthrough, illustrating how to seamlessly integrate this syntax to significantly improve the usability and aesthetic quality of your data visualization projects.

Setting Up Your Data: A Practical Example

Before any visualization technique can be applied, we must first establish a suitable dataset that is structured to highlight the problem of label overlap. In the Python data science ecosystem, the pandas DataFrame serves as the foundational cornerstone for efficient storage, manipulation, and analysis of tabular data. Its flexible structure makes it the ideal container for preparing data before feeding it into visualization libraries like Seaborn.

For the purposes of this demonstration, we will construct a bespoke pandas DataFrame. This DataFrame will hold hypothetical statistical information, specifically points scored by various basketball players, grouped by their respective teams. The design is intentionally crafted to include at least one category with an exceptionally long name. This extended category name is crucial because it reliably ensures the problem of overlapping labels will manifest when plotted on the horizontal axis, thereby perfectly illustrating the necessity of our rotation solution.

Consider the following Python script, which generates and displays our sample DataFrame, named df:

import pandas as pd

#create DataFrame
df = pd.DataFrame({'team': ['Mavericks', 'Mavericks', 'Mavericks',
                            'Mavericks', 'Warriors', 'Warriors',
                            'Blazers', 'Blazers', 'Kings',
                            'some_really_really_long_name'],
                   'points': [22, 14, 9, 7, 29, 20, 30, 34, 19, 12]})

#view DataFrame
print(df)

                           team  points
0                     Mavericks      22
1                     Mavericks      14
2                     Mavericks       9
3                     Mavericks       7
4                      Warriors      29
5                      Warriors      20
6                       Blazers      30
7                       Blazers      34
8                         Kings      19
9  some_really_really_long_name      12

As clearly demonstrated by the output, our DataFrame is composed of the ‘team’ column, which holds categorical string values, and the ‘points’ column, which contains numerical data. The inclusion of the deliberately verbose team name, ‘some_really_really_long_name’, is the key element here. This extended string will inevitably cause significant visual overlap with its neighboring labels when the data is plotted, precisely illustrating the critical need for implementing x-axis label rotation to maintain graphical integrity.

Visualizing Data Without Rotation: Identifying the Problem

With the preparation of our pandas DataFrame complete, the next logical step is to utilize the Seaborn library to visualize the distribution of team occurrences. The countplot() function is an outstanding choice for this task, as its primary purpose is to display the count of observations within each categorical bin using easily digestible bar charts. This function is perfectly suited for visualizing the frequency distribution of the categorical ‘team’ values in our sample data.

We will proceed by using countplot() to generate an initial plot that illustrates how often each team appears in the DataFrame. This initial visualization will serve a crucial diagnostic purpose, allowing us to clearly and unequivocally identify the visual impediment caused by overlapping labels before we introduce any corrective measures, such as rotation.

The following concise code snippet is used to generate this baseline countplot():

import seaborn as sns

#create seaborn countplot
my_plot = sns.countplot(data=df, x='team')

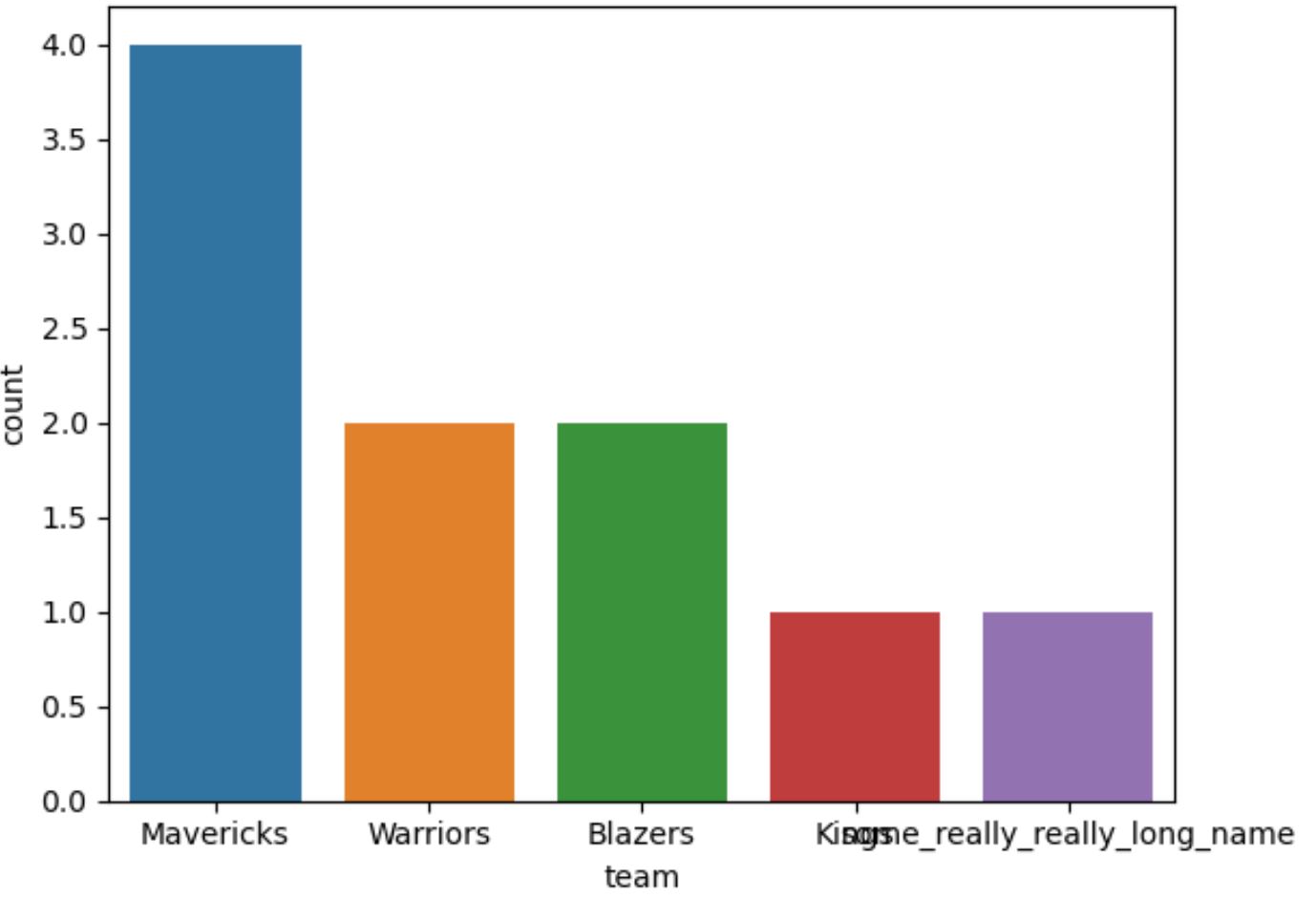

Upon executing this script, the resulting visual output is displayed below. It immediately becomes apparent that certain team names on the x-axis are colliding, specifically the exceptionally long category name. This severe overlap makes it impossible for the viewer to distinguish the individual labels accurately, thereby diminishing the plot’s overall readability and fundamentally impairing effective data interpretation.

As confirmed by the visualization, the label designated “some_really_really_long_name” extends significantly beyond its allocated space, resulting in a merger with the text of adjacent team names. This pervasive visual clutter is a persistent and common challenge in data visualization when the categories being plotted exhibit highly variable or excessive textual lengths. Resolving this detrimental overlap is absolutely essential for creating professional and easily understood plots suitable for presentation or publication.

Implementing Axis Label Rotation for Clarity

To effectively and permanently resolve the visual disruption caused by overlapping x-axis labels, we must now apply the label rotation technique. As previously introduced, our primary tools are the Matplotlib methods get_xticklabels() and set_xticklabels(), both callable from the Matplotlib Axes object returned by our Seaborn function.

The get_xticklabels() method performs the vital task of retrieving the current collection of label objects present on the x-axis. Obtaining these existing label objects first is critical because the corresponding set_xticklabels() function requires a list of these objects to successfully modify their properties. By feeding the output of get_xticklabels() back into set_xticklabels(), we ensure that we are manipulating the existing labels accurately, maintaining their correct alignment with the plot’s tick marks.

The rotation parameter, integrated within the set_xticklabels() function, is the key mechanism for achieving our solution. This parameter accepts a numerical value (integer or float) representing the desired angle in degrees for the label rotation. While values like 90 degrees provide maximum horizontal space, a 45-degree angle is frequently chosen as it offers an optimal balance between maximizing readability and ensuring efficient utilization of the plot area below the graph.

To apply this fix, we simply append the rotation instruction directly after the creation of our countplot(). The code below demonstrates the integration of the rotation command, setting the x-axis labels to a 45-degree angle, which provides sufficient clearance even for the longest team names in our dataset:

import seaborn as sns

#create seaborn countplot
my_plot = sns.countplot(data=df, x='team')

#rotate x-axis labels
my_plot.set_xticklabels(my_plot.get_xticklabels(), rotation=45)

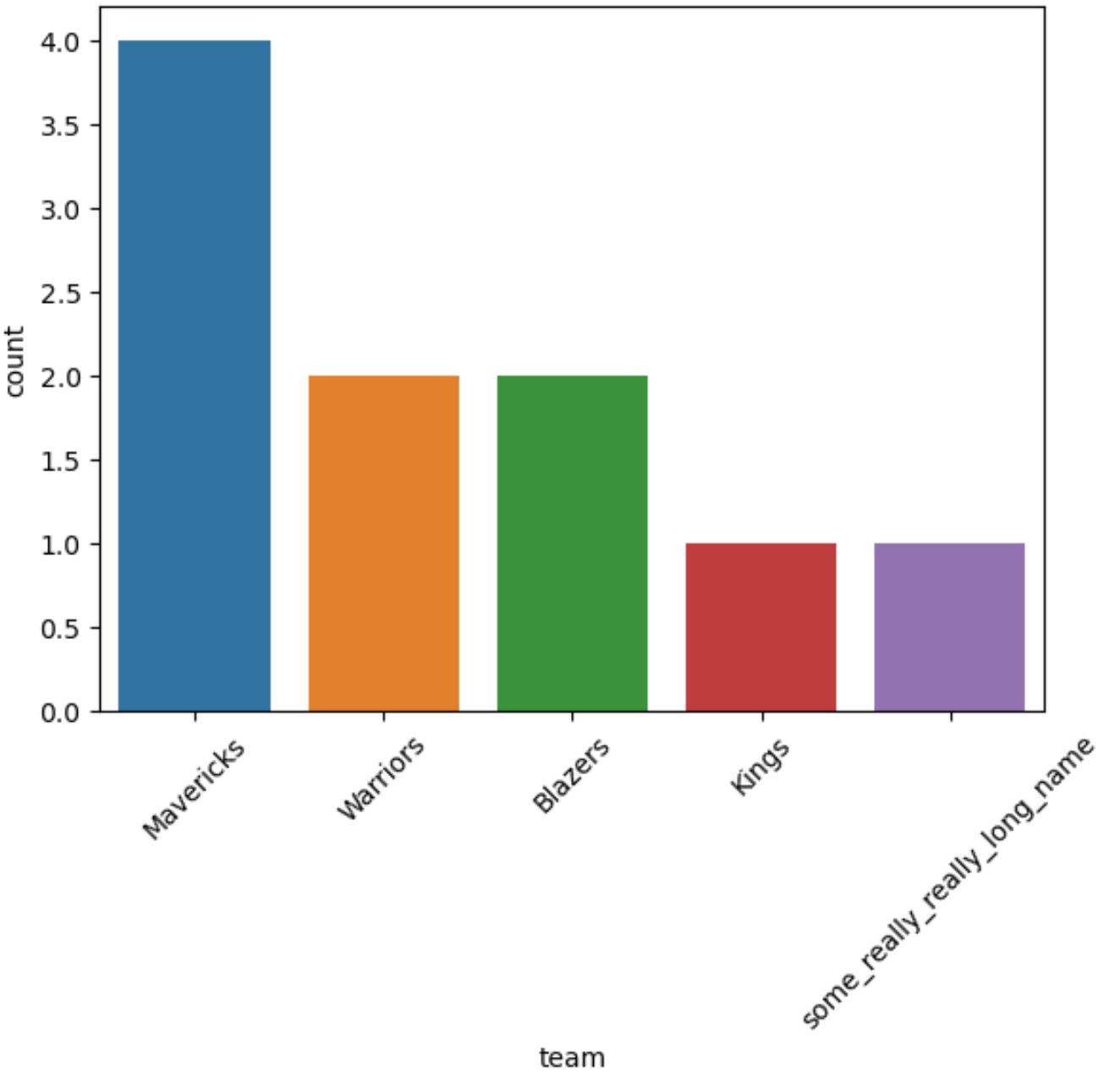

Examine the remarkable transformation in the plot displayed below. Every single x-axis label has been successfully rotated by 45 degrees, which completely eliminates the previously problematic overlap. This modest but essential adjustment drastically improves the chart’s readability, enabling viewers to effortlessly identify each team name without any visual impedance or confusion.

The implementation of rotation not only addresses the immediate issue of label collision but also often contributes positively to the overall aesthetic coherence of the plot, particularly when managing numerous categorical labels. It stands as a fundamental and highly valuable technique in data visualization aimed at preserving clarity within complex datasets.

Refining Label Placement with Horizontal Alignment

While the rotation of x-axis labels is undoubtedly effective in preventing overlap, users may occasionally notice that the default alignment of the rotated text is not visually optimal. Depending on the chosen rotation angle, the labels might appear slightly disconnected from their corresponding tick marks or seem to “float” above the baseline. To achieve a highly polished and precise visual appearance, we can utilize the specialized horizontalalignment argument available within the powerful set_xticklabels() function.

The horizontalalignment parameter dictates precisely how the text of each label is positioned relative to its associated tick mark. It accepts standard string values such as 'left', 'center', and 'right'. When labels are rotated, adjusting this parameter is crucial for achieving fine-tuned visual placement. For our common 45-degree rotation, setting horizontalalignment to 'right' is typically the preferred choice. This configuration aligns the rightmost edge of the label text perfectly with its tick mark, creating a clean, consistent visual flow that clearly points directly to the data column it represents.

Let us now update our previous working code to incorporate the horizontalalignment argument, thereby shifting the rotated x-axis labels to the right for superior visual integration and neatness:

import seaborn as sns

#create seaborn countplot
my_plot = sns.countplot(data=df, x='team')

#rotate x-axis labels
my_plot.set_xticklabels(my_plot.get_xticklabels(), rotation=45,
                        horizontalalignment='right')

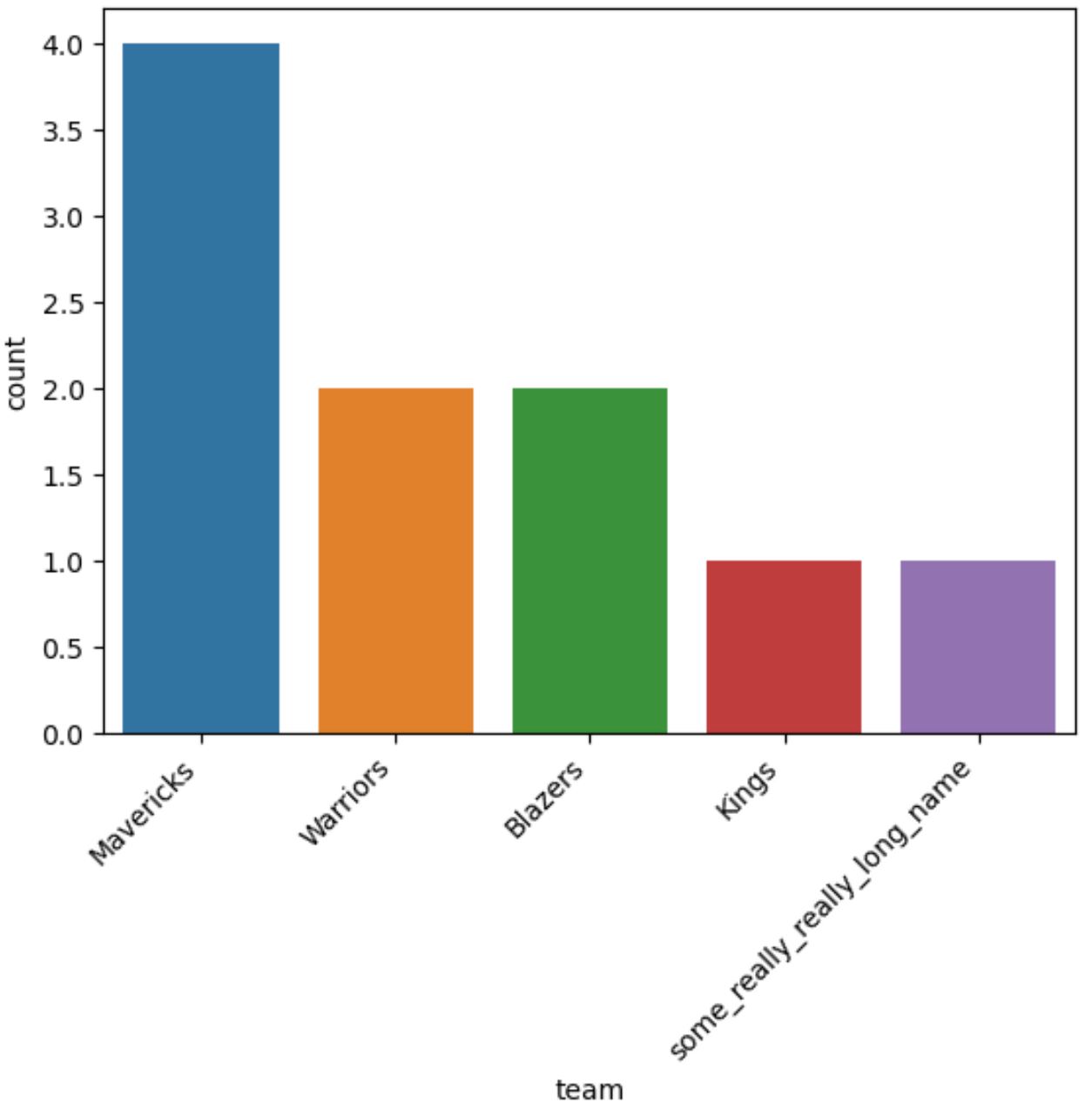

Carefully examine the resulting plot presented below. While the labels maintain their 45-degree rotation, their underlying positioning has been subtly yet significantly enhanced. By setting the horizontalalignment='right', the terminal end of each label now aligns precisely with its corresponding tick mark. This meticulous alignment creates a cleaner, more professional, and visually anchored presentation. This small but impactful adjustment undeniably improves both the readability and the overall aesthetic quality of the Seaborn visualization.

We highly encourage experimenting with various rotation angles and different horizontalalignment options. This level of customization is key to finding the absolute best visual fit for your specific dataset and the desired visual narrative. Ultimately, this precision ensures that your data visualization is not only highly informative but also aesthetically refined and instantly digestible by any audience.

Important Considerations and Troubleshooting

The methods detailed above provide an exceptionally effective and scalable solution for rotating axis labels in Seaborn plots. However, to ensure a fluid workflow and produce truly optimal results, there are several supplementary technical points and best practices that data practitioners should consider. These include addressing common installation obstacles, understanding alternative visualization approaches, and recognizing the synergistic relationship between Seaborn and Matplotlib.

Should you encounter difficulties importing the Seaborn library, particularly when working within integrated development environments such as a Jupyter Notebook, the issue is almost always rooted in the package not being installed or not being accessible within the current active Python environment. The standard tool for managing and installing packages is the Python Package Installer, pip. To reliably install Seaborn, you should execute the command: %pip install seaborn directly in a Jupyter Notebook cell, or pip install seaborn in your terminal command line. This crucial step guarantees that all necessary dependencies are resolved and the library is fully prepared for use.

The selection of the optimal rotation angle is not arbitrary; it must be carefully chosen based on two factors: the typical length of your labels and the sheer number of categories being displayed. While 45 degrees is an excellent default starting point, specific datasets may be better served by angles such as 30, 60, or even a vertical 90 degrees. For instances involving extremely long labels, where even 90-degree rotation proves insufficient, alternative strategies must be employed. These alternatives include aggressively shortening the labels, reducing the font size, or fundamentally changing the plot orientation by exploring alternative plot types, such as horizontal bar charts (e.g., using countplot() and specifying y='team' instead of x='team').

It is also essential to maintain a clear understanding that Seaborn is intentionally designed to work in seamless conjunction with Matplotlib. The object returned by virtually all Seaborn plotting functions (such as countplot()) is consistently a Matplotlib Axes object. This critical architectural decision means that users can harness the entirety of Matplotlib’s extensive customization capabilities. Functions like plt.xticks() can be leveraged for further fine-tuning of the plot’s appearance, offering control over attributes like font sizes, color palettes, and other crucial text properties beyond just rotation.

Further Learning and Resources

Achieving mastery in Seaborn necessitates a thorough understanding of its diverse range of plotting functions and the deep customization options available through its Matplotlib integration. The ability to efficiently and accurately manipulate axis labels, as demonstrated here, represents just one fundamental skill required for the creation of professional-grade data visualization assets.

To significantly deepen your existing knowledge and confidently explore more advanced visualization techniques, we strongly recommend consulting the official documentation and engaging with specialized tutorials. These trusted resources will equip you to tackle complex visualization challenges effectively and unlock the full, robust potential of both the Seaborn and Matplotlib libraries.

The following official resources provide further guidance on performing other common and advanced tasks within the Seaborn ecosystem:
