Learning to Compare Data Tables in Excel: A Step-by-Step Guide

The Critical Need for Accurate Data Comparison in Excel

In contemporary data management and analytical roles, the requirement to efficiently compare two aligned tables within Microsoft Excel to pinpoint discrepancies is a frequent and crucial necessity. This fundamental task is essential for ensuring robust data integrity, reconciling complex financial records, tracking incremental changes in large datasets over time, and rigorously verifying information accuracy against multiple sources. Attempting to manually scrutinize vast tables cell by cell for subtle differences is not merely time-consuming; it is a process inherently prone to significant human error, thereby highlighting the absolute need for automated, precise, and efficient solutions for all data professionals seeking reliability.

Fortunately, Excel is equipped with a powerful and intuitive feature designed specifically to streamline this complex comparison workflow: Conditional Formatting. This versatile tool enables users to apply dynamic formatting, such as distinct colors or icons, to cells that satisfy user-defined criteria. When utilized correctly, Conditional Formatting can instantly highlight differences between corresponding cells in two separate, structured tables, instantly transforming a tedious manual audit into a swift, reliable, and highly visual inspection process.

This comprehensive guide provides an expert walkthrough of the exact procedures required to compare two identically structured and aligned tables in Excel. We will leverage the “New Rule” feature within Conditional Formatting, specifically using a custom relative formula, demonstrated through a practical, step-by-step example to ensure maximum clarity and ease of implementation. By the conclusion of this tutorial, you will possess the advanced technical knowledge required to efficiently detect and visualize discrepancies in your own datasets, significantly elevating your overall data analysis and management capabilities and ensuring the integrity of your information.

Leveraging Conditional Formatting for Automated Visual Data Audits

Before diving into the practical setup, it is vital to gain a solid conceptual understanding of Conditional Formatting (CF) in the context of sophisticated data analysis. CF is fundamentally designed to add a layer of visual intelligence to raw numerical or textual data, making underlying patterns, key trends, and, most importantly for our current purpose, anomalies, immediately evident to the human eye. Instead of simply displaying static figures, CF allows data points to communicate their status based on logical rules you define, facilitating quicker insights and more informed operational decisions based on real-time visual feedback. Its applications are broad, ranging from identifying top quarterly sales figures to flagging every single data point that deviates critically from a predefined baseline or, in our case, another source table.

The true power of Conditional Formatting lies not in its standard presets but in its flexibility to handle custom, complex rules. While many users rely on simple, predefined options (like highlighting “Duplicate Values” or cells “Greater Than” a specific value), advanced comparison tasks necessitate the use of highly customized rules. For comparing two non-contiguous, side-by-side tables, the critical methodology involves selecting the “New Rule” option and specifically opting to “Use a formula to determine which cells to format.” This bespoke approach grants the necessary flexibility to construct a precise logical condition that compares the values held in distinct, separate ranges.

Mastering this specific application of CF provides data professionals with a significant competitive advantage. It moves the user beyond basic data manipulation and enables sophisticated, automated visual audits that can be executed repeatedly with minimal effort. The technique we are about to explore serves as a prime example of how a well-constructed Conditional Formatting rule, utilizing relative cell references, can completely automate an otherwise complex and labor-intensive comparison task, saving invaluable time and drastically mitigating the risk of overlooking critical data discrepancies buried within vast spreadsheets.

Setting the Stage: Preparing Data for Side-by-Side Comparison

To effectively demonstrate the mechanics of comparing two tables, we must establish a standard scenario involving two distinct datasets that share an identical structure. Consider a common business situation where you are managing statistics, perhaps for an athletic league or a financial ledger. You possess an initial table containing key data points (e.g., player names, team assignments, and performance points) and a second table that represents a later update, a proposed revision, or aggregated data imported from an alternative source. Our clear objective is to rapidly pinpoint any differences in the recorded statistics or identifying information between these two versions.

For this illustrative example, our two tables are meticulously organized within the Excel worksheet. The first table occupies columns A through C, detailing Player, Team, and Points. The second table, maintaining the exact structural mirroring of the first, is positioned in columns F through H. A fundamental and non-negotiable requirement for this specific comparison technique is that the tables must be structured identically, with corresponding data points aligned horizontally. This crucial alignment allows for a direct, cell-by-cell comparative analysis using the principle of relative referencing.

The visual representation below illustrates our initial data setup. Observe that the tables are placed side-by-side, sharing the same column headers (“Player,” “Team,” and “Points”). This clarity and spatial arrangement are foundational to successfully applying our comparison method, as they ensure the custom formula accurately references the correct corresponding cells. Our ultimate goal is to highlight any cell in the second table (F-H) whose value deviates in any way from the value in the exact same position within the first table (A-C), thus creating an immediate visual audit flag.

Step 1: Defining the Target Range for Conditional Formatting

The critical first action in applying Conditional Formatting for this specific auditing purpose is the accurate selection of the cell range where the visual highlighting will be physically applied. Since we are auditing the second table against the first (treating the first as the source of truth), we must select the entire data payload of the second table. This selection determines the precise area Excel will actively monitor and where the colored format will appear if a discrepancy is detected.

Specifically, for our illustrative basketball player data, you must precisely highlight the range starting from cell F2 and extending down to H11. This selection meticulously encapsulates all the relevant data points—player names, teams, and points—within the second table. It is absolutely essential to strictly select only the data cells and consciously exclude the header row (F1:H1). Including headers would result in an incorrect comparison, as the formula would attempt to compare text headers against numerical data or non-matching text in the source table, resulting in unintended or misleading formatting that pollutes the audit results.

By accurately selecting this target range, you are instructing Excel precisely where to conduct the evaluation and where to apply the visual format once the comparison rule is established. Imprecision at this initial stage could result in misapplied formatting or, worse, a failure to capture all relevant discrepancies, underscoring the necessity for meticulous attention to detail and boundary definition before proceeding to the rule construction phase.

Step 2: Accessing the Custom Rule Creation Interface

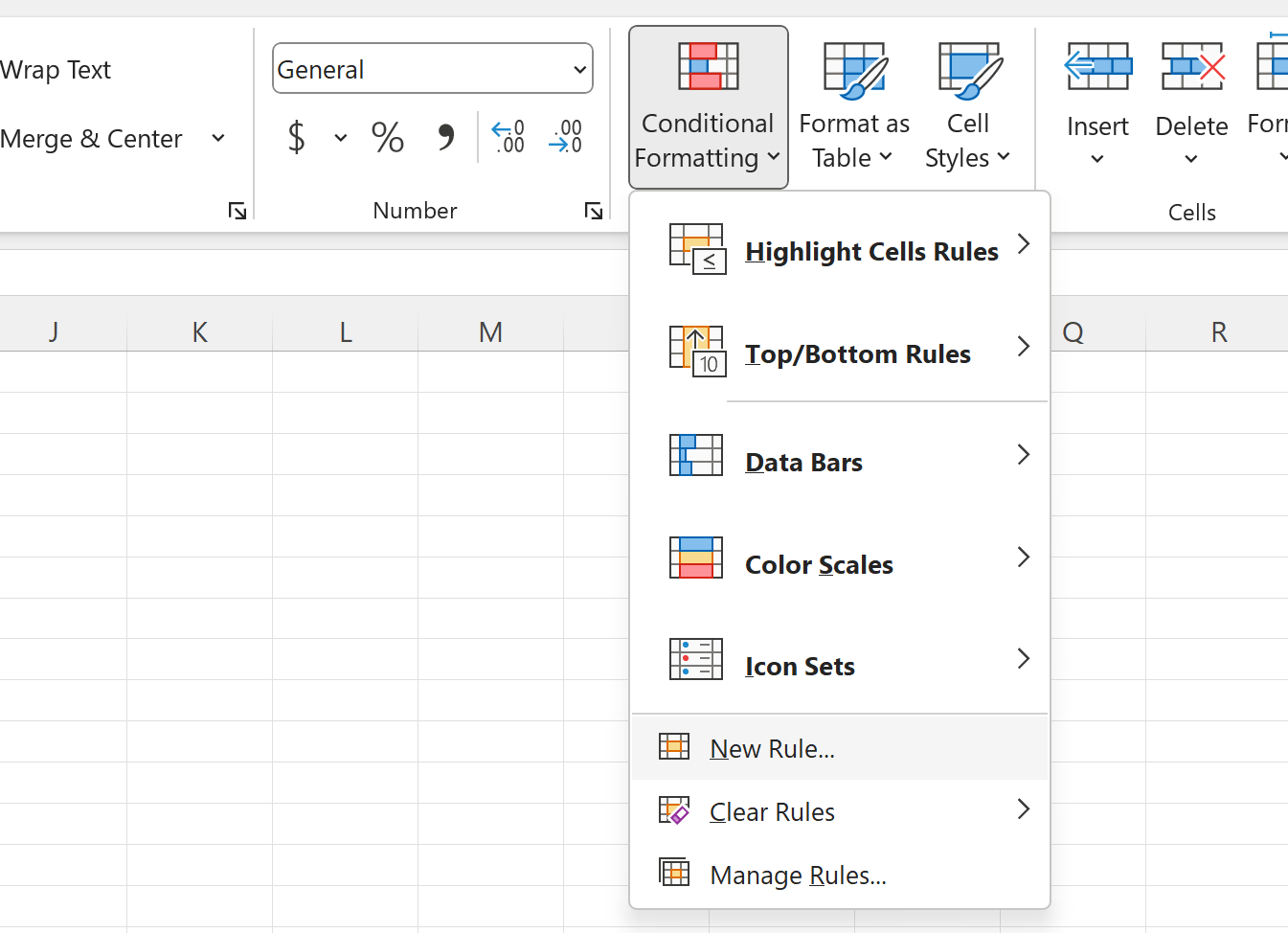

With the target cell range (F2:H11) secured and active, the subsequent step involves navigating the Excel interface to access the custom rule creation utility designed for Conditional Formatting. This essential feature is conveniently located within Excel’s main ribbon structure, making it accessible across all modern versions of the software.

To begin, verify that the active tab is the Home tab, which is typically the default view when starting a session. Within the “Styles” grouping on the Home tab (usually found toward the middle of the ribbon), click the “Conditional Formatting” icon. This critical action will produce a robust dropdown menu offering various built-in presets and advanced management options. From this menu, you must select the option specifically labeled New Rule…. This selection is pivotal, as it launches the dedicated dialog box necessary for constructing advanced, user-defined conditional formatting rules that rely on complex logical expressions rather than simple value checks.

Choosing “New Rule” allows us to bypass the generic, predefined options and define a condition specifically tailored for our structured table comparison. This step formalizes the process of instructing Excel on the exact logical criteria it must use to identify and visually flag the data disparities we seek. The accompanying image visually charts the precise path to access the “New Rule” option, guiding you reliably to the essential interface for rule configuration.

Step 3: Constructing the Relative Comparison Formula

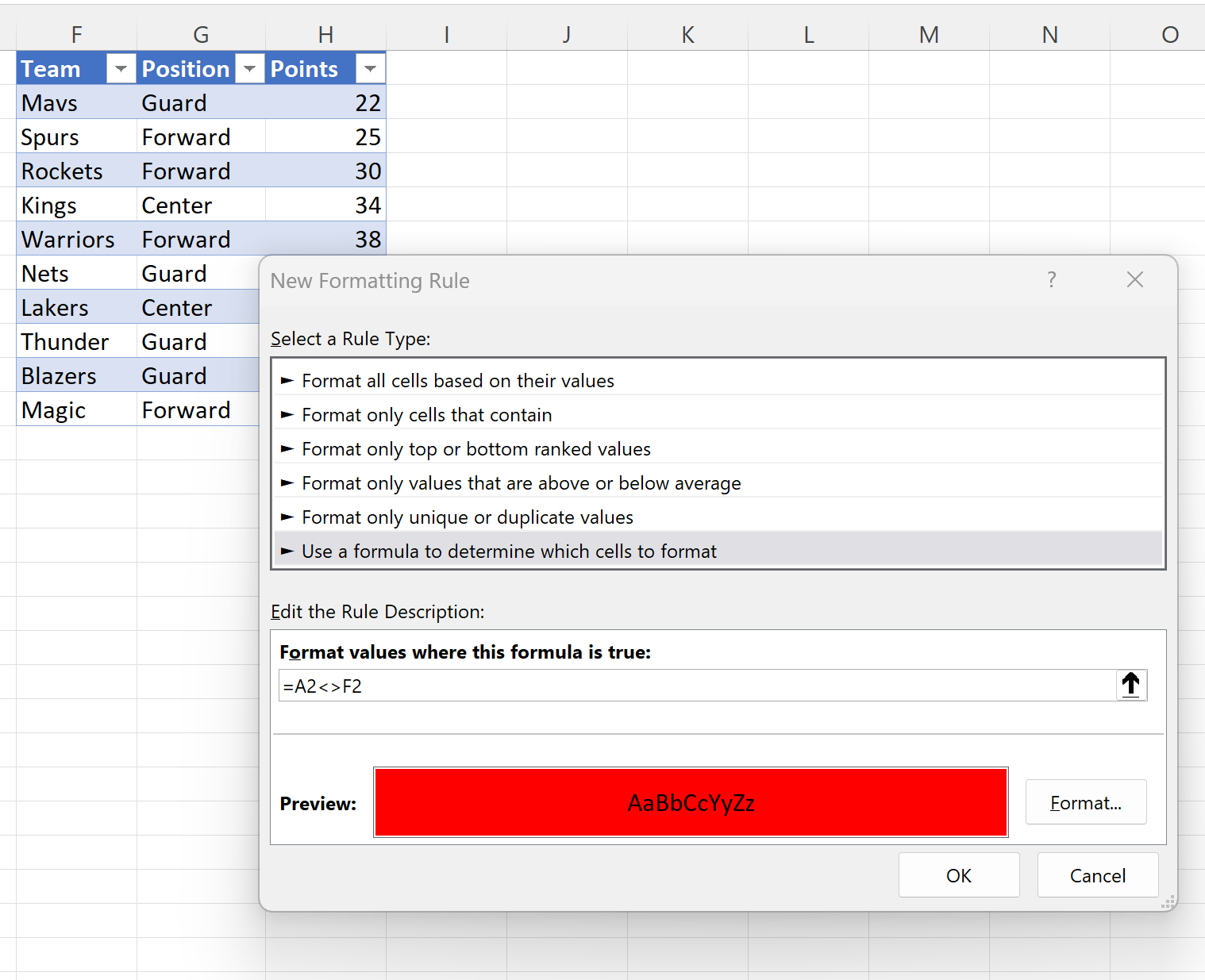

Once the “New Rule” dialog box appears, you must direct Excel to utilize a logical formula for evaluation rather than a standard rule type. Select the rule type: Use a formula to determine which cells to format. This selection activates the input field necessary to enter the custom expression that Excel will test against every individual cell within your previously selected range (F2:H11).

In the provided formula box, input the following concise expression:

=A2<>F2

. Understanding the mechanics of this formula is absolutely key to mastering the technique. `A2` refers to the top-left data cell of your first table (the source), and `F2` is the corresponding top-left data cell of your second table (the selected range). The `<>` symbol is the fundamental “not equal to” logical operator in Excel. Therefore, the formula `=A2<>F2` instructs Excel to check: “Is the value in this cell (relative to F2) different from the value in the corresponding cell (relative to A2)?”

Crucially, because we did not use absolute references (which would be denoted by dollar signs, like `$A$2`), Excel applies this formula using the principle of **relative referencing** across your entire selected range (F2:H11). When Excel evaluates cell G5, it automatically compares it against B5 (three columns to the left); similarly, when it evaluates H10, it compares it against C10. This inherent relative power allows a single, simple rule to govern the comparison of hundreds or thousands of pairs of cells, ensuring that only those cells in the target table that fail to match their counterparts trigger the conditional formatting.

=A2<>F2

Step 4: Customizing the Highlight and Applying the Rule

After correctly inputting the comparative formula, the subsequent mandatory step is to define the visual style for the cells that satisfy the “not equal to” condition. This formatting is the critical visual cue that makes subtle discrepancies stand out instantly from the rest of the data. Within the “New Formatting Rule” dialog box, click the Format… button to open the comprehensive “Format Cells” dialog window, which manages font, border, and fill styles.

To achieve clear, robust, and unmistakable identification of differences, selecting a strong, contrasting fill color is the universally recommended practice. Navigate to the “Fill” tab within the “Format Cells” dialog. Here, you have the full palette available to select a custom color. For clarity and immediate visual impact in our tutorial, we strongly recommend choosing red, as it offers maximum visual impact and is internationally associated with errors, changes, or required attention. However, you can select any color that aligns effectively with your specific reporting needs or organizational standards.

Once you have selected your desired formatting—such as the striking red cell fill—click OK in the “Format Cells” dialog to lock in the visual style. Finally, click OK again in the main “New Formatting Rule” dialog box to finalize and apply the rule immediately. The image below visually confirms the process of selecting a striking red fill color for the differentiating cells, demonstrating how to link the logical comparison to the visual output.

Step 5: Visualizing Results and Interpreting Discrepancies

Upon clicking OK to confirm the rule, Excel instantaneously processes the data and applies the Conditional Formatting to the selected cell range (F2:H11). The result is immediate visual confirmation of all data inconsistencies. Every cell in the second table that does not precisely match its counterpart in the first table will now be prominently filled with the chosen color, instantly drawing the user’s attention.

This transformation offers a highly efficient and self-documenting method for auditing large data volumes. You can instantly scan the highlighted areas to determine exactly which values have been modified—whether it’s a change in a player’s name due to a spelling error, a new team assignment, or an updated point total in a financial sheet. Each red-filled cell serves as a direct indicator of a deviation, providing an invaluable, built-in audit trail for changes or errors that would otherwise be invisible in a static spreadsheet.

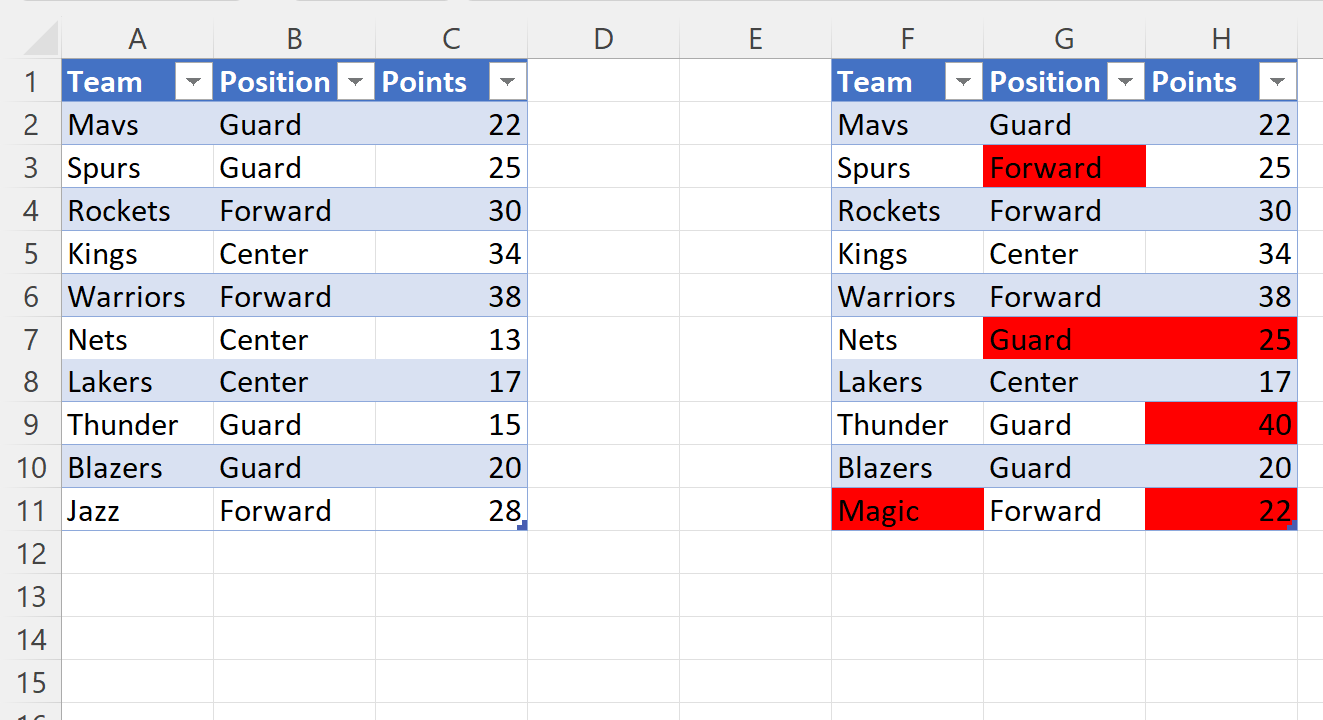

The final visual result, depicted below, showcases the effectiveness and clarity of this methodology. Note how specific cells are distinctly marked, directing your focus immediately to the sources of discrepancy without requiring a manual line-by-line check. This powerful technique not only drastically reduces the time required for comprehensive data verification but also significantly elevates the accuracy of your data management processes, proving indispensable for anyone routinely involved in data reconciliation or auditing within Excel.

Practical Applications and Methodological Considerations

The highlighted cells derived from the Conditional Formatting provide a clear, actionable list of every data point that differs between your two tables. Interpreting these results is straightforward: a highlighted cell means the data point in the second table is not identical to the corresponding cell in the first table and therefore requires immediate investigation or confirmation against the source. This provides not only a reliable detection mechanism but also a rapid starting point for corrective action and error resolution.

The utility of this table comparison technique spans numerous critical professional domains. In the realm of finance, analysts use it constantly to compare updated trial balances against general ledgers, quickly flagging missing or altered transactions that could signal errors or fraud. Inventory managers rely on it to cross-reference physical counts with system records, identifying stock discrepancies that need immediate attention. Human resources departments utilize it for tracking changes in employee records across different system migrations or payroll periods, ensuring data consistency across platforms. Wherever data must be cross-referenced for accuracy or validated against a master source, this method offers a robust and scalable solution.

It is essential to acknowledge that this specific technique thrives on structural consistency. It requires the two tables to be strictly aligned, meaning the data points being compared must occupy the same relative position in their respective tables (e.g., Row 5 of Table A must correspond logically to Row 5 of Table B). For more complex auditing scenarios—such as comparing tables where the rows are sorted differently, or where the column orders are not identical—more advanced lookup formulas (like VLOOKUP, INDEX/MATCH, or XLOOKUP) coupled with Conditional Formatting may be required. However, for structured, aligned data comparison, the simple relative formula remains the most efficient, transparent, and powerful method available in Excel.

Conclusion: Mastering Efficient Data Verification

The capacity to accurately and swiftly compare two structured tables in Excel is a core competency for any individual engaged in serious data analysis or auditing. As demonstrated through our detailed guide, utilizing the “New Rule” feature in Conditional Formatting provides a powerful, yet exceptionally straightforward, mechanism to achieve this goal. By constructing and applying a single, simple comparison formula using relative referencing, you can immediately visualize data discrepancies, transforming a complex audit that once took hours into an efficient and highly reliable automated process completed in seconds.

This sophisticated technique not only yields tremendous time savings for data reconciliation but also dramatically increases the confidence and accuracy of your data verification efforts. It empowers data users to instantly isolate specific inconsistencies, enabling rapid corrective action and ensuring the overall integrity of their information across all reporting layers. Whether you are managing complex financial records, large inventory manifests, or crucial project statuses, mastering this specific Conditional Formatting application is an invaluable enhancement to your advanced Excel skillset and a mark of true proficiency.

We strongly encourage readers to integrate this method into their regular data management routine. By experimenting with various datasets and chosen formatting styles, you will quickly observe how this potent tool can substantially optimize your workflow and the precision of your analyses. Embrace the efficiency offered by Excel‘s advanced features, making complex data comparison a seamless, automated, and visually intuitive component of your daily operations.

Additional Resources for Advanced Excel Proficiency

To further solidify your expertise and explore the full spectrum of functionalities within Excel, we recommend engaging with supplementary resources and tutorials. Expanding your knowledge base beyond basic features will unlock even more sophisticated ways to manage, interpret, and visualize data, leading to enhanced productivity and streamlined task completion in all your professional endeavors.

The following list highlights other essential topics for continuing your journey toward advanced data management and auditing:

• How to use VLOOKUP for non-aligned table comparisons.

• Techniques for data validation and advanced error handling.

• Mastering Pivot Tables for complex data summarization and reporting.

• Advanced uses of array formulas in sophisticated data analysis.
