Learn to Combine HLOOKUP and VLOOKUP for Advanced Excel Data Retrieval

In the dynamic world of Microsoft Excel, the ability to efficiently retrieve specific data from substantial datasets is paramount for effective analysis. While VLOOKUP (Vertical Lookup) and HLOOKUP (Horizontal Lookup) are individually powerful tools for one-dimensional searches, their true, unmatched potential is unlocked when they are strategically combined. This advanced methodology enables users to execute highly flexible, two-dimensional data searches, allowing for the precise location of a value where both row and column criteria are satisfied simultaneously. This comprehensive guide is designed to expertly dissect the process of nesting these two essential Excel formulas, providing a detailed, step-by-step understanding of their combined application for robust, adaptable, and efficient data retrieval across complex organizational tables.

Understanding VLOOKUP and HLOOKUP Individually

Before attempting to merge these functions, it is critical to establish a clear foundational understanding of the individual roles and operational mechanics of VLOOKUP and HLOOKUP. The VLOOKUP function is engineered to search for a specified value within the leftmost column of a defined table range. Once the value is located, the function traverses horizontally across the same row to return the corresponding data point from a user-specified column index number. This function is typically applied when your primary lookup criteria (such as product identifiers or employee names) are structured vertically.

The essential arguments required by VLOOKUP include the lookup value, the table array (where the search occurs), the column index number (the position of the result column), and the range lookup (specifying an exact or approximate match). However, the primary limitation of VLOOKUP when used alone is its rigidity; the column index number must be a fixed, hardcoded integer. This makes the formula brittle and highly susceptible to errors if the structure of the source data table is ever modified by adding or removing columns.

Conversely, the HLOOKUP function performs an analogous search operation but is executed horizontally. It seeks the lookup value within the first row of the specified table range. Once the match is found, it moves vertically down the same column to retrieve a value from a fixed row index number. This function is optimally used when criteria, such as time periods or fiscal categories, are structured across the top of the data table. Like its vertical counterpart, HLOOKUP is limited by its requirement for a fixed row index, thereby restricting its adaptability in dynamic spreadsheet environments.

The Power of Nested Lookups for Two-Dimensional Data Retrieval

The true ingenuity required for handling complex datasets emerges when we utilize nested functions. Combining VLOOKUP and HLOOKUP creates a powerful, integrated mechanism for a precise two-dimensional search, allowing the user to locate a value that resides at the exact intersection of one specific vertical criterion and one specific horizontal criterion. This capability is essential in real-world business intelligence, such as finding the inventory level for a specific product line in a particular month, where the data point is defined by two intersecting variables.

The key weakness of standard lookup functions—the necessity of hardcoding the column or row index number—is completely eliminated through the nesting technique. Hardcoding indices makes formulas fragile and prone to failure if the underlying data structure changes. By nesting, one lookup function dynamically calculates and determines the necessary index for the other, ensuring maximum resilience and adaptability.

In the most common and effective configuration, the inner HLOOKUP function is tasked with pinpointing the correct column index number based on the horizontal lookup criterion (e.g., the name of a fiscal quarter). This resultant numerical index is then seamlessly supplied as the `col_index_num` argument to the outer VLOOKUP function. This creates a powerful, self-adjusting formula that automatically adapts to shifts in both vertical and horizontal criteria, drastically enhancing the reliability and efficiency of your spreadsheet modeling.

Deconstructing the Combined VLOOKUP and HLOOKUP Syntax

The standard methodology for executing a robust two-way lookup involves securely nesting the HLOOKUP function within the `col_index_num` parameter of the VLOOKUP function. In this symbiotic structure, the inner horizontal lookup is solely responsible for dynamically determining the necessary column index number. This means that instead of manually entering a fixed column number (like 3 or 4), the HLOOKUP searches for the column header text and returns the corresponding numerical index based on a horizontal match within a specified range.

The following syntax represents the elegant and powerful structure required to merge these two Excel functions for efficient two-way data retrieval, utilizing dynamic references for both vertical (row) and horizontal (column) criteria:

=VLOOKUP(B11,A3:E8,HLOOKUP(B12,B1:E2,2,FALSE),FALSE)

To fully grasp the mechanism of this sophisticated formula, we must meticulously break down the responsibility of each component:

• The outer VLOOKUP function (`=VLOOKUP(B11,A3:E8, …, FALSE)`) initiates the vertical row search. It locates the value contained in cell B11 (the vertical criterion, e.g., a “Region” name) within the first column of the main data range A3:E8. The final `FALSE` argument ensures an exact match for precise row identification.
• The nested HLOOKUP function (`HLOOKUP(B12,B1:E2,2,FALSE)`) executes first and is dedicated to generating the column index number. It searches for the value in cell B12 (the horizontal criterion, e.g., “Quarter 2”) within the first row of the smaller horizontal range B1:E2. The index number `2` dictates that once a match is found in row 1, the function returns the corresponding numerical value from the second row of the B1:E2 range (which must contain the numerical column index).
• The critical interaction occurs when the numerical output of the HLOOKUP (the dynamically calculated column number) is seamlessly injected into the `col_index_num` position of the primary VLOOKUP function. This dynamic linking allows Excel to pinpoint the exact data value residing at the intersection defined by both vertical and horizontal criteria.

Preparing Your Data for a Combined Lookup

For this nested lookup formula to execute flawlessly, a specific and crucial preparatory adjustment must be made to the structure of your source data table. This involves the mandatory addition of an auxiliary row that explicitly lists the sequential column numbers relevant to the VLOOKUP’s table range. This structural requirement is non-negotiable for the successful operation of the nested lookup mechanism.

The purpose of this auxiliary index row is to provide the HLOOKUP function with the necessary numerical output. When the HLOOKUP searches for the horizontal criterion (e.g., “Quarter 2”), it needs to return a number (e.g., 3) that tells the VLOOKUP function which column of the main table array contains the final desired result. Without this dedicated numerical row, the horizontal search would simply return the text-based column header itself, which the VLOOKUP cannot interpret as a valid column index number.

To illustrate, if your main table array starts in Column A (index 1), and your data columns begin in Column B (index 2), you must create an index row (such as Row 2 in our example) containing the sequence of numbers 1, 2, 3, 4, 5… corresponding to the absolute column indices of the primary table. This careful and often overlooked preparatory step ensures that the horizontal lookup component can accurately map a text value (e.g., “Quarter 2”) to the correct numerical index (e.g., 3), thereby facilitating the dynamic data retrieval required by the entire nested formula.

Practical Application: Combining HLOOKUP and VLOOKUP

To demonstrate the superior utility of this combined approach, let us examine a typical enterprise scenario involving sales performance. Imagine an Excel worksheet containing a financial dataset detailing sales figures for various retail regions tracked across several fiscal quarters. The business objective is to rapidly and accurately retrieve the specific sales value corresponding to any given region during any selected quarter. This task, which requires simultaneous matching on two criteria (vertical region and horizontal quarter), is perfectly solved by implementing a nested lookup.

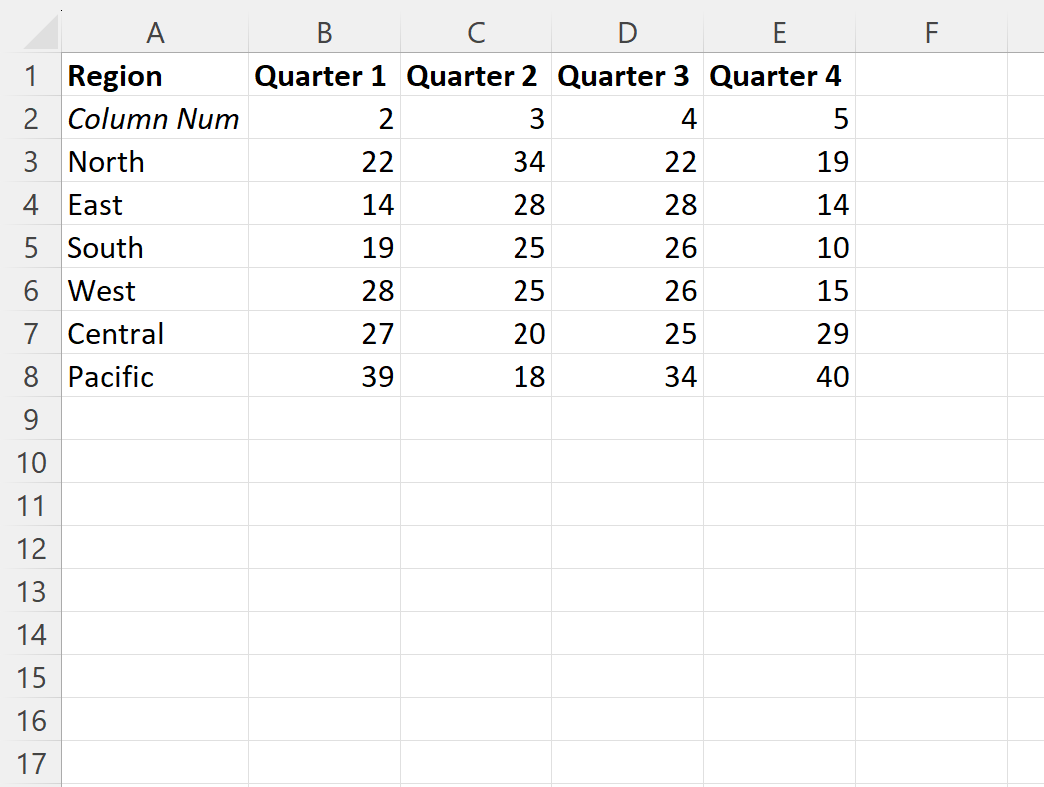

Our sample sales dataset is structured as follows, illustrating the performance metrics segmented by region and quarter:

It is vital to observe the inclusion of the “Column Num” row (specifically Row 2) positioned immediately above the quarter headings. This critical preparatory row furnishes the numerical indices (e.g., 2 for Quarter 1, 3 for Quarter 2, and so forth) that the HLOOKUP function requires to successfully determine the correct column number. This numerical result is then passed to the outer VLOOKUP. This explicit mapping, translating the text-based quarter names into numerical column indices, is the foundational element that permits the formula’s dynamic and accurate operation.

Implementing the Formula for Specific Data Retrieval

Let us proceed with a specific goal: retrieving the sales value for the West region during Quarter 2. To enable dynamic searching, we input our two lookup criteria into designated input cells. The region “West” is placed in cell B11, and the quarter “Quarter 2” is placed in cell B12. These two cells function as the user-defined parameters that control our powerful nested lookup.

The combined VLOOKUP and HLOOKUP formula, as analyzed previously, is then inserted into a designated output cell, such as B13, which will display the final sales figure:

=VLOOKUP(B11,A3:E8,HLOOKUP(B12,B1:E2,2,FALSE),FALSE)

Upon execution, Excel prioritizes the inner HLOOKUP calculation. This preliminary step searches for “Quarter 2” within the horizontal range B1:E2. Since “Quarter 2” is found in the first row of this range, the function returns the corresponding numerical value from the second row of that range, which is `3`. This index number `3` is then used by the outer VLOOKUP. The VLOOKUP then searches for “West” in the first column of the main data array A3:E8 and retrieves the value from the dynamically determined third column, which contains Quarter 2’s data.

Interpreting the Results and Dynamic Updates

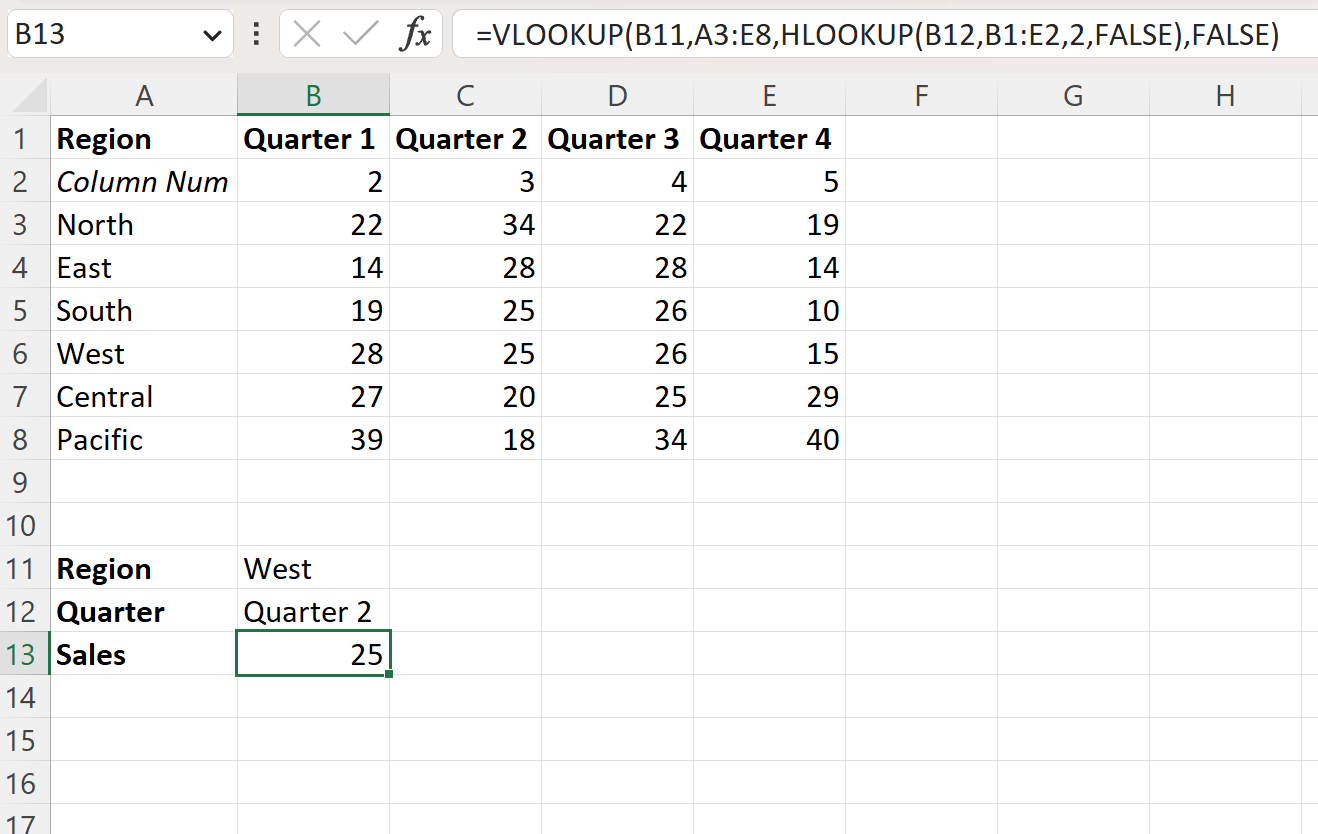

Upon successful implementation of the nested formula, the calculated result is instantly displayed in the target output cell, providing the precise data value that resides at the intersection of your two specified criteria. The following visual confirmation clearly illustrates the outcome of our initial search for the West region and Quarter 2 performance:

As clearly demonstrated in the graphic, the formula accurately returns the value of 25. This figure is the correct sales record corresponding to the West region during Quarter 2 within the source dataset, confirming the precision and superior efficiency of the nested lookup technique. This instant validation confirms that the combined functions are executing their complex two-way search as intended, providing reliable and intersection-specific data points.

One of the most valuable aspects of deploying a combined VLOOKUP and HLOOKUP formula is its inherent dynamism and self-adjusting capability. Once the initial setup is complete, the formula automatically updates the returned sales value whenever the user modifies the input criteria (the region in B11 or the quarter in B12). This dynamic feature eliminates the time-consuming and error-prone necessity of manually editing or rewriting the formula for every new search query, positioning it as an exceptionally efficient instrument for iterative data analysis and advanced scenario modeling.

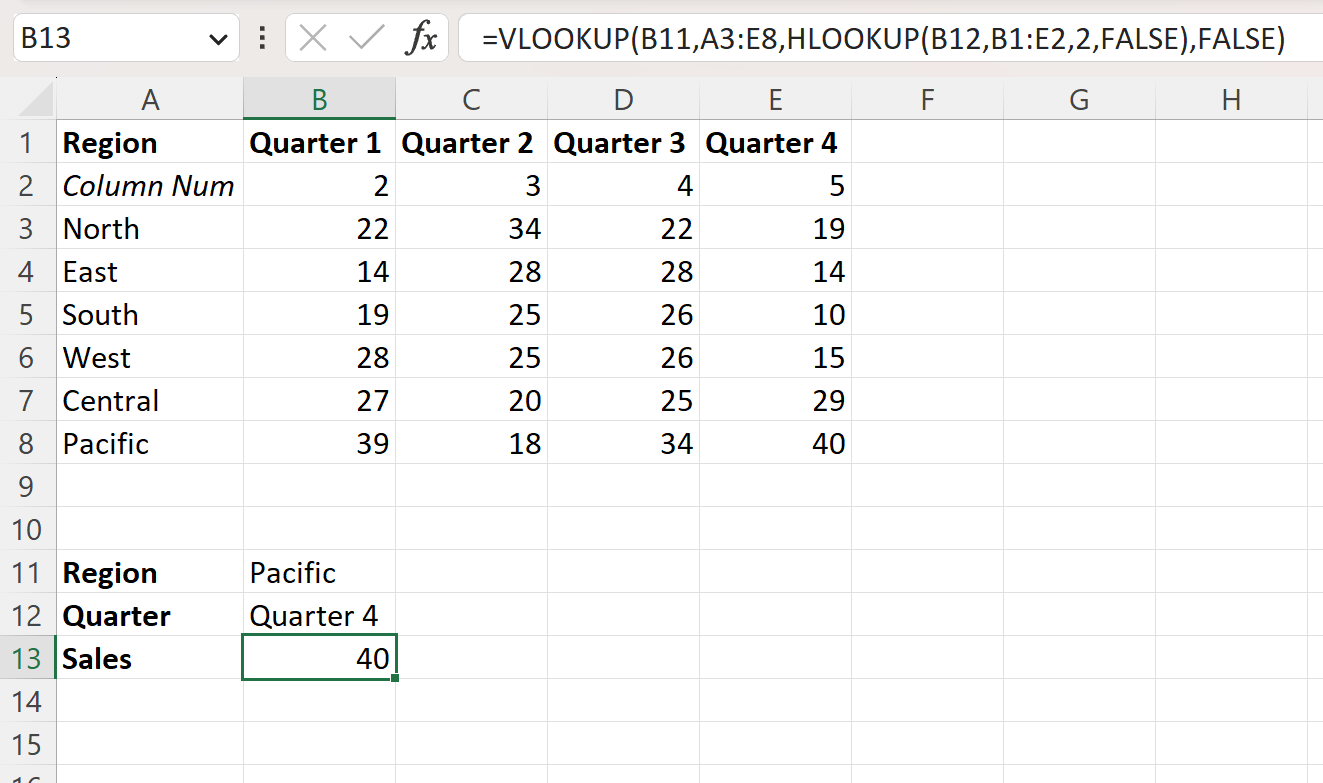

For instance, if we instantly change our lookup parameters to retrieve the sales data for the Pacific region during Quarter 4, we only need to update the values in the parameter cells B11 and B12. The underlying formula instantly recalculates and displays the new result without any further manual intervention required from the user:

In this updated scenario, the nested formula delivers a precise value of 40, which perfectly corresponds to the sales recorded for the Pacific region in Quarter 4. This powerful dynamic capability underscores why mastering nested lookups is an invaluable skill for professionals managing complex, multi-criteria tabular data in Excel, offering both impeccable accuracy and superior adaptability in data management workflows.
