Learning to Split Addresses in Excel Using the TEXTSPLIT Function

The Challenge of Unstructured Data and Address Parsing

In the realm of modern Microsoft Excel usage and comprehensive data analysis, professionals routinely encounter the significant hurdle of dealing with unstructured or semi-structured datasets, particularly when managing extensive lists of addresses. When crucial geographical components—such as the street number, city name, state abbreviation, and postal code—are consolidated into a single cell, the resultant data is functionally inert. Attempts at fundamental tasks like sophisticated filtering, precise sorting, or detailed geographical analysis become exceedingly time-consuming and prone to errors. Effective data parsing is therefore not merely helpful, but absolutely essential for transforming raw, aggregated input into atomic, usable components suitable for database integration and reporting.

For decades, the standard procedure for splitting text strings based on a specific character, such as a comma or a space, involved constructing complex and laborious combinations of legacy text functions. Analysts were required to master the intricate interplay of functions like LEFT, RIGHT, MID, and FIND to locate and extract substrings sequentially. This methodology was inherently flawed; it was difficult to audit, extremely brittle when applied to large datasets with variable string lengths, and highly susceptible to calculation errors. Scaling this traditional approach across thousands of records represented a major drain on efficiency for data management teams.

The necessity for clean, separated address components is driven by stringent requirements for robust database integration, effective Customer Relationship Management (CRM) synchronization, and accurate mailing list management. An address aggregated into a single cell, often mimicking a rudimentary CSV format structure, must be meticulously disassembled to allow subsequent automated processes—such as bulk mail merging or geographical verification—to execute flawlessly. The core difficulty in text splitting lies in consistently identifying the reliable point of separation, known universally as the delimiter. In the context of standard US and international address formats, the comma (“,”) serves as the most frequent and dependable delimiter, and recognizing how to leverage this character is the foundation of modern text manipulation strategy in spreadsheets.

Fortunately, recent significant updates to Excel have introduced powerful dynamic array functions that dramatically simplify this entire process. These modern functions eliminate the necessity for complicated nested formulas and replace manual data manipulation with an automated, single-cell solution. This tutorial focuses on utilizing the optimal dynamic array function available today, providing a singular, elegant method that automatically spills the segmented results across adjacent cells, thereby drastically accelerating workflow efficiency for analysts and data professionals alike.

Introducing the Powerful TEXTSPLIT Function

To efficiently transform a concatenated address string into its individual, structured components, we utilize the revolutionary TEXTSPLIT function. This function is a cornerstone of Excel’s dynamic array capabilities, specifically engineered to divide a text string based on one or more specified delimiters. Crucially, the function yields results that “spill” automatically into adjacent columns and rows, eliminating the need for the user to copy or drag the formula across the worksheet. This capability represents a monumental leap forward in Excel’s text handling prowess, particularly for operations that involve segmenting large, homogeneous blocks of text data quickly and accurately.

The fundamental syntax for the TEXTSPLIT function is designed for clarity and conciseness, requiring only two primary arguments to achieve highly complex text extraction. These arguments are the original text string to be analyzed and the column delimiter that specifies where the string should be broken. For the purpose of separating standard address components, where items are clearly demarcated by commas, the formula is remarkably efficient and straightforward to implement. When applied, the function systematically identifies every instance of the specified delimiter, treats it as a breakpoint, and places the resulting substrings into new, distinct cells, thereby eliminating the tedious manual effort associated with previous methods.

The power of the TEXTSPLIT function is best demonstrated through its direct application. Assuming the address string you intend to parse resides in cell A2 of your worksheet, the formula required to execute the split operation is strikingly simple. This concise command leverages the dynamic array engine to handle all the internal string calculations automatically, requiring minimal input from the user while delivering maximum structural output.

You can use the following formula in Excel to split an address based on a comma delimiter, assuming the source data resides in cell A2:

=TEXTSPLIT(A2, ",")

This specific formula instructs Excel to analyze the complete contents of cell A2 and divide the entire string into separate components whenever it encounters a comma (“,”). The resulting output is not a single value, but an array of data, where each element corresponds precisely to an individual component of the address string—street address, city, state, and zip code. This powerful functionality ensures that complex, multi-part data can be instantly transformed into a clean, structured format ready for immediate analytical processing or high-level reporting.

Practical Implementation: Step-by-Step Address Splitting

To fully grasp the profound utility of the TEXTSPLIT function, let us consider a common real-world scenario involving a list of customer addresses. Imagine this list is stored vertically in Column A of an Excel worksheet. Each entry is consistently formatted, containing the street address, followed by the city, state, and zip code, all reliably separated by commas. Our immediate objective is to parse this list rapidly so that every address element is segregated into its own dedicated column, thereby producing a clean, normalized, and highly usable dataset.

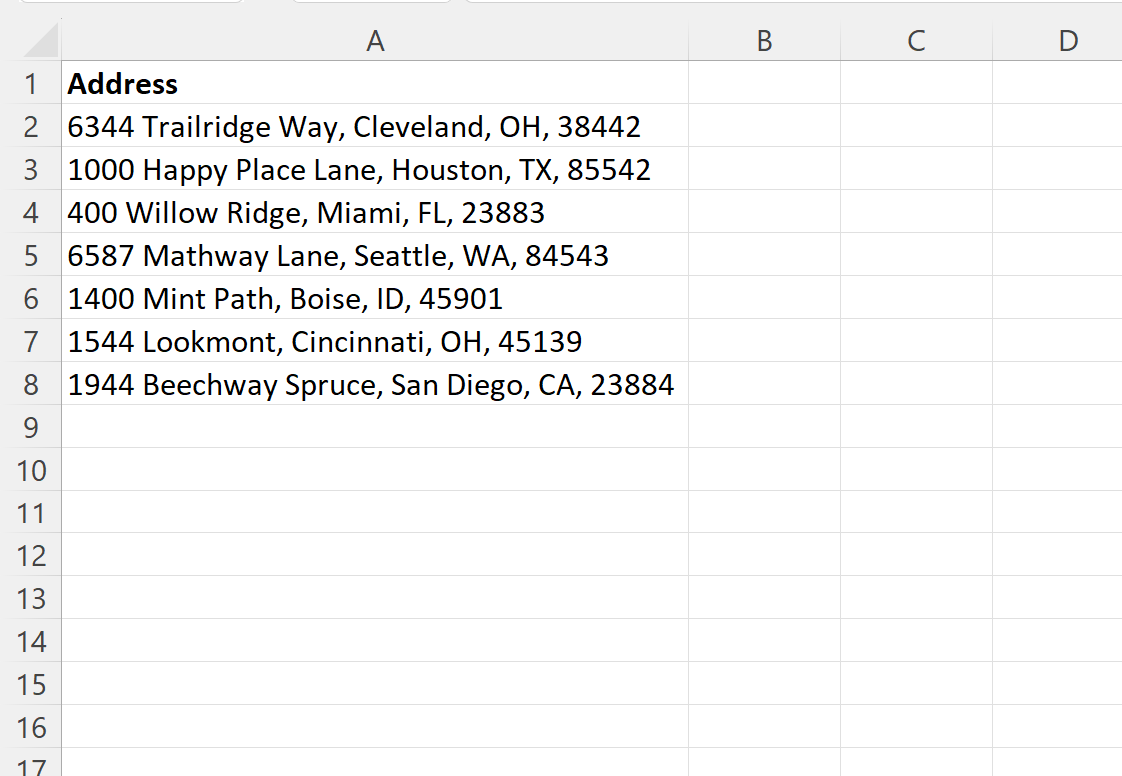

Suppose we have the following list of raw addresses in Excel, beginning in cell A2. This image illustrates the typical unstructured format that challenges data integrity and analysis:

We require these addresses to be split into separate cells that cleanly contain the street address, followed by the city, state, and zip code. This segmentation is absolutely critical for maintaining data integrity and enabling specific, targeted analysis on geographical fields. By selecting the cell immediately adjacent to the first address string—in this example, cell B2—we establish the starting point for the dynamic array calculation and initiate the splitting process with a single formula entry.

We type the following formula into cell B2 to split the first address into its multiple constituent parts:

=TEXTSPLIT(A2, ",")

Because TEXTSPLIT is classified as a dynamic array function, applying it to cell B2 instantly populates cells C2, D2, and E2 with the corresponding parts of the address string derived from A2. The formula creates a seamless spill range, meaning the results are managed and handled dynamically by the Excel calculation engine, completely eliminating the need for manual setup or formula adaptation for subsequent columns. Once this single formula is established, we can then apply this efficient calculation to the entire vertical dataset below.

To process the remaining addresses, we simply click on cell B2 and drag the fill handle (the small square located at the bottom right corner of the cell) down Column B. This action instantaneously applies the dynamic array calculation to the entire address range in Column A, resulting in a fully parsed and structured dataset spanning multiple columns:

Upon reviewing the output, it is evident that the TEXTSPLIT function has successfully segmented each address based on the occurrence of commas in the original string. However, a critical observation must be made regarding data hygiene: notice the persistent presence of leading spaces in the output cells, particularly before the city names and state abbreviations. This occurs because the original address string typically includes a space immediately following the comma (e.g., “123 Main St, City”). Since the specified delimiter was only the comma (“,”), the leading space is preserved as a legitimate character and carried over into the resulting substring. Addressing this common formatting irregularity requires a minor but essential refinement to our formula, which we will detail in the next section.

Refining Output: Handling Delimiters and Formatting Considerations

While the initial, basic application of the TEXTSPLIT function successfully achieves the primary goal of text segmentation, the resulting output frequently demands post-processing to ensure optimal data cleanliness and validity. As previously highlighted, if the original source data includes whitespace characters immediately following the comma delimiters, these extraneous spaces will be unfortunately carried over and embedded within the resulting cells. For the purposes of clean data management, preventing look-up errors, and ensuring reliable data comparison across systems, these unnecessary leading spaces must be systematically removed.

The most robust and highly recommended method for resolving this pervasive formatting issue involves nesting the TEXTSPLIT function within the TRIM function. The TRIM function is specifically designed to normalize text strings by removing all leading, trailing, and excessive internal spaces, leaving only single spaces between words. By applying TRIM to the cell containing the original address string (A2), we guarantee that the source data passed to TEXTSPLIT is pre-cleaned of all unnecessary whitespace. This guarantees perfectly formatted output within the spill range, eliminating the need for subsequent clean-up steps. The refined, robust formula would thus look like =TEXTSPLIT(TRIM(A2), “,”). Alternatively, advanced users should note that TEXTSPLIT supports an optional `ignore_empty` argument, which proves invaluable when dealing with data that has inconsistent spacing or missing fields, further enhancing its versatility in complex data parsing tasks.

Once the data has been successfully split into its atomic components and cleaned using the appropriate combination of functions (like TEXTSPLIT and TRIM), the final step involves adding essential context. Although the data is now structurally sound, it lacks descriptive labels within the spreadsheet environment. Adding clear column headers is crucial, as it transforms the raw numerical and textual output into a truly readable and professional dataset. These headers clearly define what specific information is contained in each new column—e.g., “Street Address,” “City,” “State,” and “Zip Code”—making the worksheet intuitive for any future user or analyst interacting with the structured data.

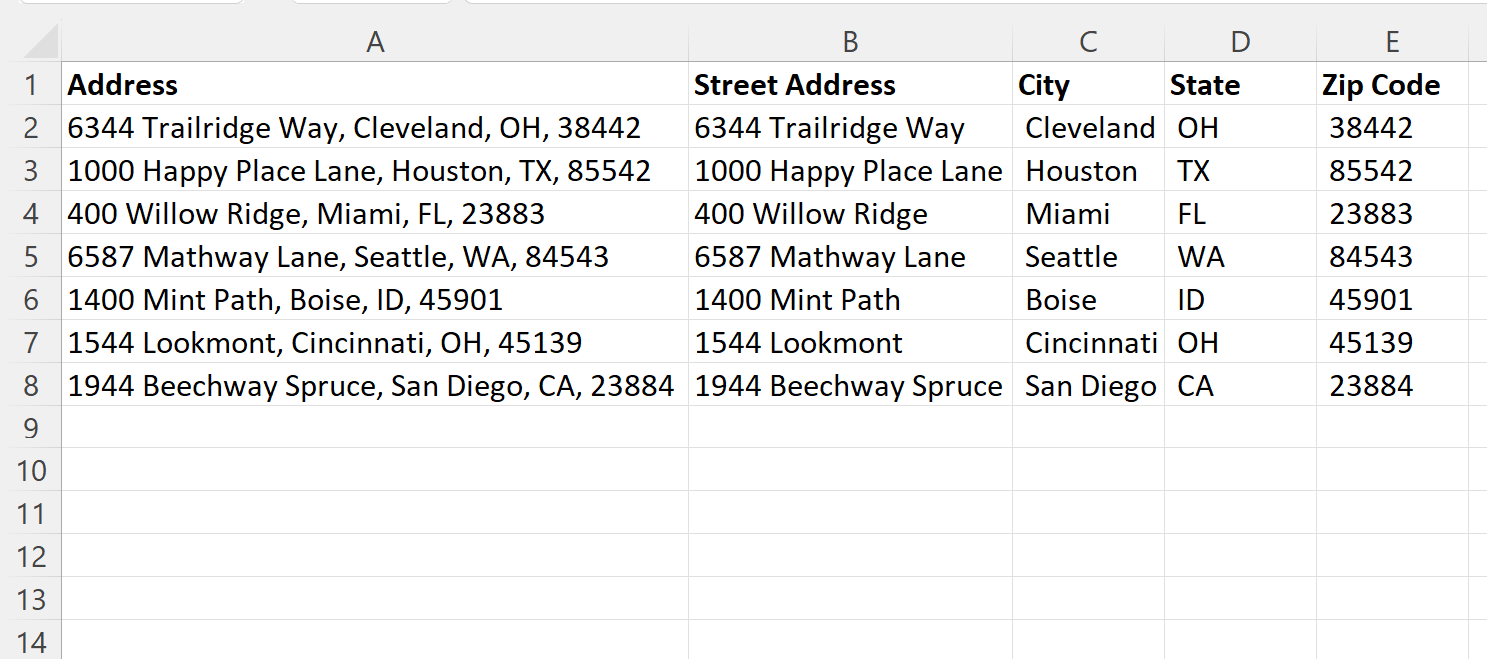

After adding column headers to specify which columns represent the different parts of the address, the final, polished result is highly professional and immediately actionable:

We can now easily identify which columns represent the street address, city, state, and zip code, resulting in a structured dataset that is clean, organized, compliant with database standards, and perfectly ready for advanced operations such as integration with Customer Relationship Management (CRM) systems or detailed spatial analysis.

Why TEXTSPLIT Replaces Older Methods

Before the advent and widespread adoption of modern TEXTSPLIT function and other dynamic array capabilities, Excel users primarily relied on two distinct, yet often cumbersome, methods for text splitting. The first, and simplest for non-technical users, involved using the traditional “Text to Columns” wizard. While this tool is effective for simple, one-time transformations, it operates strictly as a static command. This means that if the source data in Column A changes, the wizard must be manually re-run, making it unsuitable for interactive spreadsheet models. Furthermore, the wizard requires the user to carefully specify an output range, often resulting in accidental overwriting of existing data, and fundamentally lacks the real-time, dynamic nature required for robust data modeling.

The second, historically more challenging approach involved constructing complex, non-spilling formulas using combinations of legacy functions. This methodology required calculating the precise positional index of each delimiter within the string using the FIND function, and then extracting the specific substring between those calculated positions using the MID function. For a standard address split into four components (street, city, state, zip), this necessitated at least three distinct levels of nested FIND and MID operations per output column. The end result was formulas that were excessively long, notoriously difficult to debug or modify, and virtually incomprehensible to anyone who was not the original creator, severely limiting collaboration and maintenance.

The introduction of the TEXTSPLIT function completely bypasses these legacy difficulties. It offers a single, concise formula that processes the entirety of the text string and delivers the structured results instantly within a spill range. This innovation not only drastically simplifies the formula writing process but also ensures that the output remains “live” and updates immediately whenever the original source data in Column A is modified. This dynamic, real-time recalculation capability is indispensable for maintaining data integrity in frequently updated workbooks. Moreover, TEXTSPLIT offers advanced support for multi-character delimiters and row delimiters, functionalities that were practically impossible to achieve with the legacy MID/FIND approach or the restrictive Text to Columns wizard.

Summary and Further Resources

The ability to quickly and accurately segment complex data strings is recognized as a fundamental and high-value skill in advanced Excel utilization. By adopting the TEXTSPLIT function, analysts can effortlessly transform raw, highly concatenated address data into highly structured, actionable components with minimal effort and maximum reliability. The function’s dynamic array capability ensures that data transformation is never a static, one-time operation, but rather a live, persistent calculation that seamlessly adapts to any underlying data changes. Mastering this function is therefore key to significantly improving efficiency, data hygiene, and overall productivity across numerous spreadsheet applications and analytical workflows.

Note: You can find the complete and authoritative documentation for the TEXTSPLIT function in Excel on the official Microsoft Support website. Understanding the optional arguments—such as specifying row delimiters or utilizing the `ignore_empty` parameter for handling inconsistent data—will allow you to unlock the full potential of this versatile tool for truly advanced text manipulation tasks.
