Learning to Graph Binomial Distributions in Excel: A Step-by-Step Guide

Understanding the Binomial Distribution

The Binomial Distribution stands as a cornerstone concept within the fields of probability and statistics. It is specifically designed to model and predict outcomes in scenarios where we are tracking the number of times a certain event—conventionally labeled a “success”—occurs over a predetermined, fixed sequence of independent trials. This distribution provides a powerful mathematical framework for analyzing repeatable processes.

In technical terms, the distribution quantifies the likelihood of observing exactly k successes across n identical, repeated trials. Its applications are vast, spanning across quality assurance—such as determining the probability of finding a specific number of defective products in a batch—to fundamental research involving the outcomes of simple chance events like flipping a coin or analyzing survey responses. Understanding how to visualize this distribution is key to interpreting the underlying statistical reality.

Creating a graphical representation of the Binomial Distribution offers immediate, intuitive insight into the range and likelihood of various possible outcomes. Fortunately, tools like Microsoft Excel feature sophisticated, built-in functions that streamline the calculation of these complex probabilities and facilitate the immediate charting of the results, transforming abstract formulas into tangible visual data.

Defining the Parameters of a Binomial Experiment

Before applying the Binomial Distribution model to any real-world situation, it is paramount to confirm that the process adheres to a strict set of four criteria. When these conditions are fully satisfied, the underlying process is correctly termed a binomial experiment. Verifying these properties is essential to ensure the validity and reliability of the subsequent statistical analysis and interpretation.

A statistical process must rigorously meet the following four constraints to qualify as a binomial experiment:

• Fixed Number of Trials (n): The experiment must consist of a definite, predetermined number of trials, denoted by n.
• Two Possible Outcomes: Each individual trial must result in exactly one of two possible outcomes, typically classified as success or failure.
• Constant Probability of Success (p): The probability of success, symbolized by p, must remain exactly the same for every single trial conducted throughout the experiment.
• Independence: Every trial must be statistically independent. The result of one trial cannot, under any circumstances, influence or affect the outcome of any subsequent trial.

Once these criteria are met, the random variable X, which represents the count of successes observed across all n trials, is said to follow a Binomial Distribution. The distribution’s characteristics—its shape, central tendency, and spread—are entirely defined by the two core parameters: n (the number of trials) and p (the success probability). Altering either of these parameters fundamentally changes the resulting distribution curve.

The Binomial Probability Mass Function

To mathematically determine the likelihood that the random variable X will yield precisely k successes, we employ the formal Binomial Probability Mass Function (PMF). While Excel efficiently calculates this result automatically, grasping the components of the formula is vital for accurate interpretation of the numerical output:

P(X=k) = _nC_k * p^k * (1-p)^n-k

This powerful formula systematically calculates the overall probability by breaking down the calculation into three distinct, multiplicative factors: the number of ways the specific outcome can occur, the probability of achieving exactly k successes, and the probability of incurring exactly n-k failures. Understanding the role of each variable illuminates the complexity captured by the distribution:

• n: Represents the total, fixed number of trials executed in the experiment.
• k: Denotes the exact number of successes for which we are calculating the probability.
• p: The predetermined probability of success occurring on any single trial.
• (1-p): Also frequently symbolized as q, this term represents the complementary probability of failure on any single trial.
• _nC_k: Known as the binomial coefficient, this value calculates the number of unique combinations (or the count of different ways) one can achieve exactly k successes within n total trials.

Attempting to apply this formula manually, especially when dealing with a large number of trials (large n), quickly becomes computationally intensive and prone to error. This inherent difficulty demonstrates why computational software, particularly Excel, is considered an indispensable tool for practical statistical analysis and visualization.

Preparing Your Data Framework in Excel

The initial step toward generating a precise graphical visualization of the Binomial Distribution requires meticulous data setup within Excel. We must first clearly define the parameters n and p, and then construct a two-column table listing every possible outcome alongside its calculated probability. This systematic preparation is foundational for ensuring accuracy and flexibility in the model.

For demonstration purposes, let us establish a concrete scenario: we are conducting 8 trials (n=8), and the inherent probability of success in any individual trial is set at 0.25 (p=0.25). These critical parameter values should be input into dedicated cells, allowing us to reference them dynamically in subsequent probability calculations.

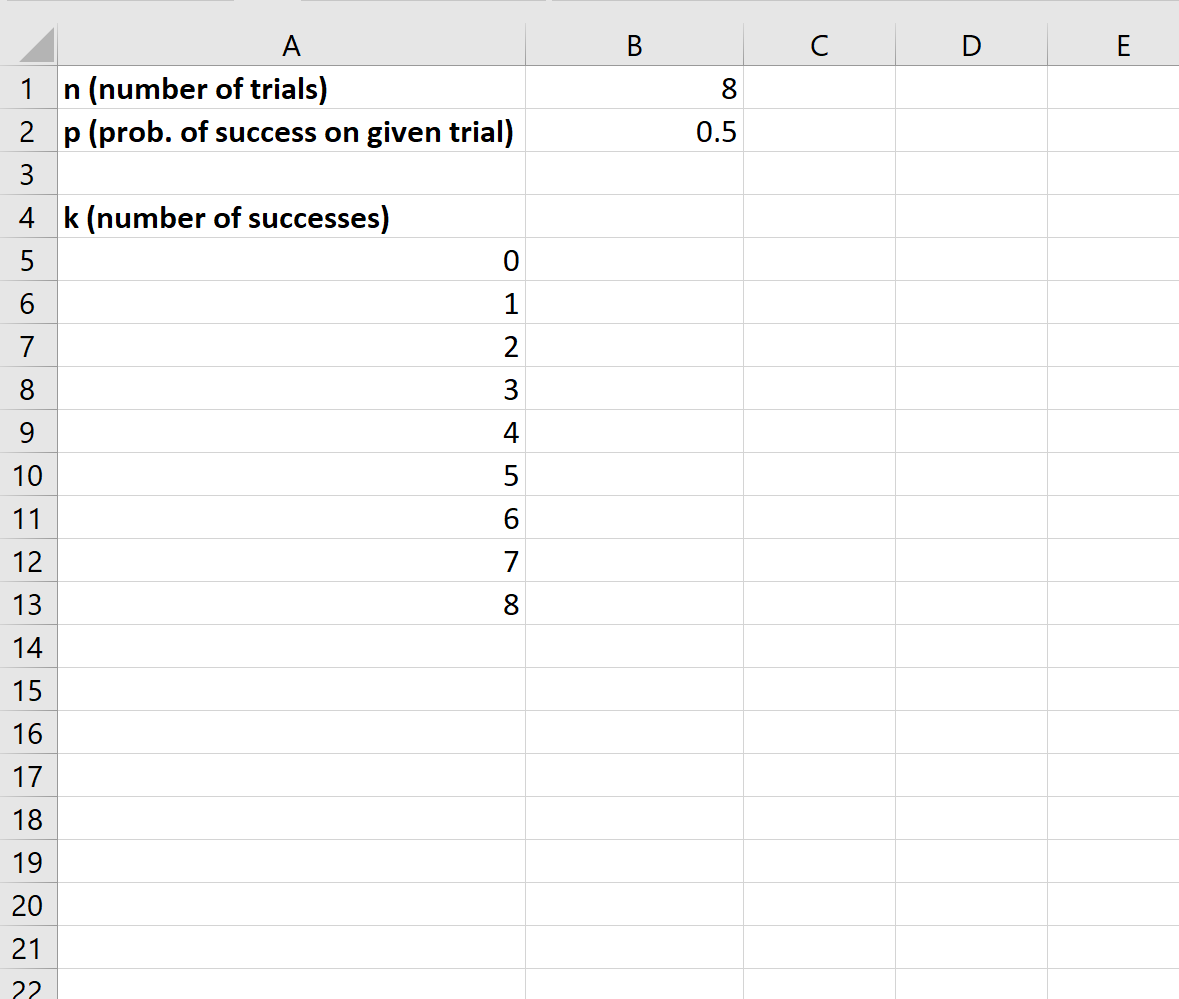

Following parameter definition, the next crucial step is to create the first column of our data table, which lists all possible values for the number of successes, k. Since our total number of trials n is 8, the variable k can naturally range from 0 (meaning zero successes occurred) up to 8 (meaning every trial resulted in success). This column will ultimately serve as the categorical x-axis for our final distribution graph.

This structured table setup is essential because the Binomial Distribution is inherently a discrete random variable distribution. This means probabilities are only calculated for specific, whole-integer counts of successes, requiring a clear mapping of these discrete values.

Calculating Probabilities with the BINOM.DIST Function

With the foundational data structure prepared, we now leverage Excel’s powerful, specialized statistical tool: the BINOM.DIST() function. This function efficiently executes the complex combination and exponentiation required by the formal PMF, saving significant manual calculation time and effort.

The precise syntax required for the BINOM.DIST function is: BINOM.DIST(number_s, trials, probability_s, cumulative). A critical detail when calculating the probability mass function (P(X=k)) is ensuring that the final argument, cumulative, is explicitly set to FALSE (or 0). Using FALSE instructs the function to return the exact probability for that specific count of successes, rather than the cumulative probability (P(X<=k)).

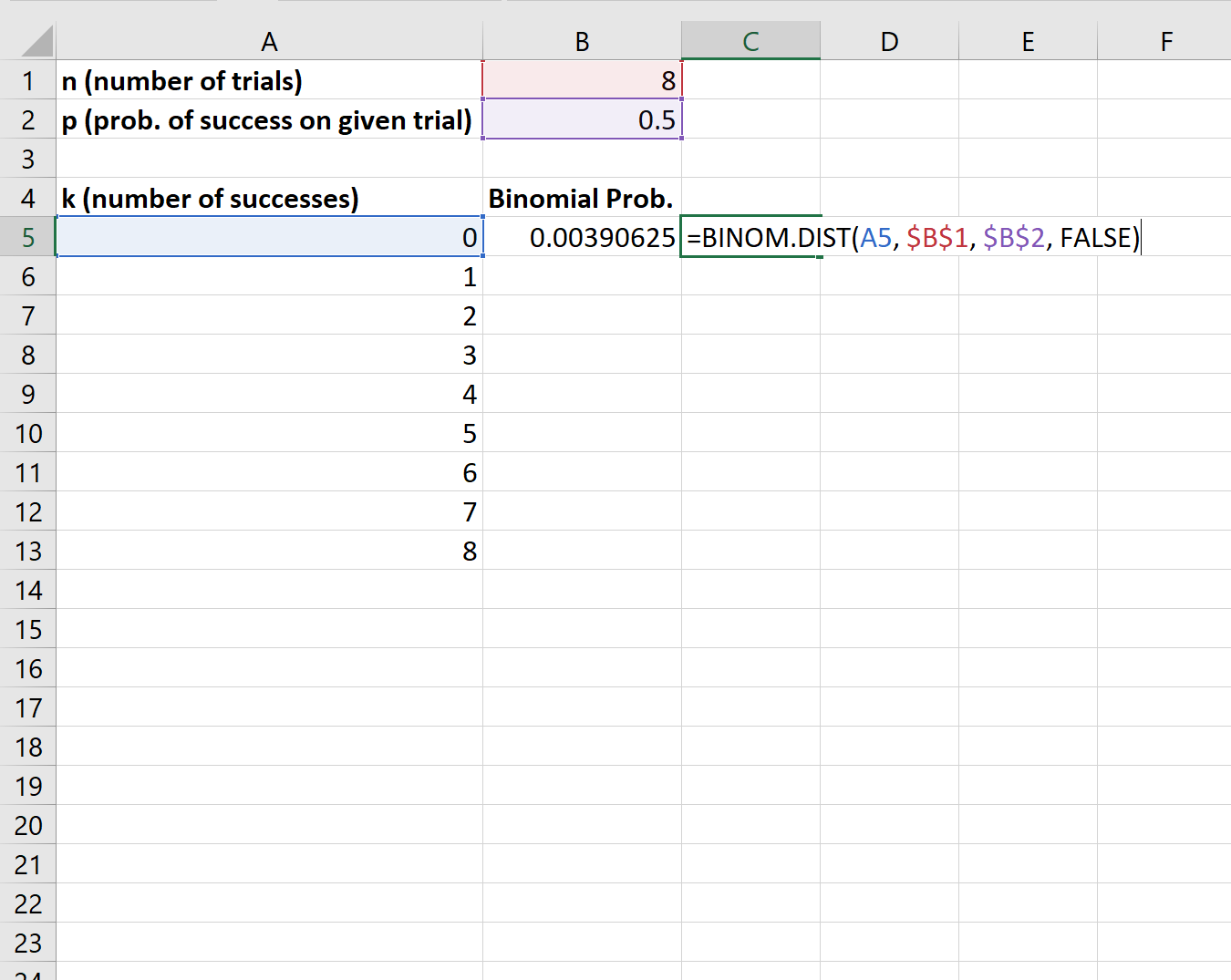

We initiate the process by entering the formula into the cell corresponding to the first possible outcome (k=0). It is vital to use absolute cell references (e.g., $B$1 and $B$2) for the parameters n (trials) and p (probability of success). This guarantees that when the formula is copied down the column, these critical parameter references remain locked, preventing calculation errors.

Once the calculation for the initial cell is confirmed, the formula can be efficiently copied and pasted across the remaining cells in the probability column (Column B). Due to the strategic use of absolute references for the defining parameters (n and p), only the reference to k (Column A) will automatically update, ensuring the correct probability is calculated for every possible number of successes from 0 to 8.

The resulting completed table now provides a comprehensive, statistically sound profile of the specific Binomial Distribution defined by our chosen parameters, n=8 and p=0.25.

Visualizing the Results: Creating the Column Chart

The final, highly impactful step involves translating the calculated numerical probabilities into an accessible visual format. Given that the Binomial Distribution deals with discrete random variable data (countable, whole numbers of successes), the most appropriate and conventional visualization method is the Column Chart (often referred to as a Bar Chart). This type of chart visually reinforces that probabilities exist only at the integer values and not continuously between them.

To efficiently generate the graph in Excel, follow these steps:

1. Carefully select the entire data range encompassing both the number of successes (Column A) and their corresponding calculated probabilities (Column B).
2. Navigate to the “Insert” tab located on the Excel ribbon interface.
3. From the chart options, select the “Column” or “Bar” chart type.

Upon selection, Excel will instantly render the distribution, showcasing precisely how the probability mass is distributed across the spectrum of possible outcomes.

This powerful visual evidence immediately confirms that, with a success probability of p=0.25, obtaining 2 or fewer successes is highly likely, whereas outcomes involving 6, 7, or 8 successes are statistically remote and highly improbable.

Interpreting and Customizing the Distribution Graph

The generated column chart provides a clear and interpretable snapshot of the Binomial Distribution’s characteristics:

• The x-axis represents the specific outcome, showing the discrete number of successes (k) achieved across the 8 trials.
• The y-axis displays the probability mass, indicating the exact likelihood (P(X=k)) that that specific number of successes will occur.

In our example (p=0.25), the distribution exhibits a pronounced positive skew (skewed to the right). This skewness signifies that the majority of the probability mass is heavily concentrated towards the lower end of the possible success counts. For comparison, if the probability of success p were exactly 0.5, the distribution would achieve perfect symmetry, resembling a normal curve. Conversely, if p approached 1.0, the distribution would become negatively skewed, with most mass concentrated at high success counts.

One of the greatest advantages of establishing the data using dynamic cell references in Excel is the model’s responsiveness. Should you decide to modify the input values for either n (the number of trials) or p (the probability of success) in the initial cells (B1 and B2), the probability formulas in Column B will automatically recalculate instantly. Subsequently, the graph will update itself in real-time to precisely reflect the new shape and location of the distribution. This dynamic capability makes Excel an exceptional environment for exploratory data analysis, allowing users to rapidly investigate how parameter shifts influence the characteristics of the Binomial Distribution.

Further Resources and Next Steps

Mastering the visualization of the Binomial Distribution in Excel provides a strong foundation for handling more complex statistical modeling. For those interested in deepening their knowledge of statistical graphing, advanced probability distributions, and the comprehensive capabilities of Excel as a data analysis tool, it is highly recommended to consult official Microsoft documentation, specialized statistical textbooks, and high-quality academic resources.
