Learn to Visualize Poisson Distribution: A Step-by-Step Guide Using Excel

The Foundation: Introduction to the Poisson Distribution

The Poisson distribution stands as a cornerstone in modern probability theory and applied statistics. Its primary function is to serve as a discrete probability distribution designed explicitly to model the count of events occurring within a fixed, predefined interval of time or space. This interval could represent anything from a single minute of observation to an entire year, or a specific physical area, provided the events are independent and the average rate remains constant.

As a robust statistical model, the Poisson framework allows analysts to accurately predict the likelihood of observing exactly k successes—or occurrences—during the specified period. Crucially, the model operates under the stringent assumptions that the events happen independently of one another and that the rate at which they occur, known as the mean rate, is stable. This makes it invaluable for predicting phenomena such as the number of accidental equipment failures per month, the frequency of website hits in a given hour, or the volume of biological mutations in a defined cell culture.

For data scientists and business analysts, merely calculating probabilities is often insufficient; visual representation is key to communicating complex statistical outcomes. Generating a precise, dynamically updating Poisson distribution graph using Microsoft Excel is therefore an essential skill. This detailed guide will walk through the meticulous process of setting up the data, leveraging Excel’s powerful functions, and producing an interpretable visual model of event frequency.

Deconstructing the Poisson Probability Formula and Parameters

Before implementing the calculation in software, it is vital to understand the underlying mathematical framework. When a random variable X conforms to a Poisson distribution, the probability of observing exactly k events is defined by a specific, elegant mathematical expression:

P(X=k) = λ^k * e^{– λ} / k!

Accurate statistical modeling, regardless of whether calculations are performed manually or via sophisticated computational tools, hinges on a deep understanding of the three core components that define this formula:

• λ (Lambda): This is the most critical parameter, representing the mean number of successes. Often referred to as the expected average rate, Lambda fundamentally dictates the central tendency and the characteristic shape, including the peak and skew, of the resulting distribution curve.
• k: This variable denotes the actual number of successes for which the analyst is calculating the corresponding probability. It must always be a non-negative integer, beginning at 0 (representing zero occurrences) and moving upward (0, 1, 2, 3, …).
• e: This symbol represents Euler’s constant. It is an irrational number fundamental to natural logarithms and growth processes, approximately valued at 2.71828.

While the formula involves exponents, factorials, and an irrational constant, computational environments like Excel are specifically designed to abstract this mathematical complexity. This allows statisticians and analysts to bypass tedious manual computation, calculate probabilities instantly, and dedicate their focus entirely to the interpretation and application of the statistical outcomes.

Step 1: Structuring the Worksheet and Establishing Lambda (λ)

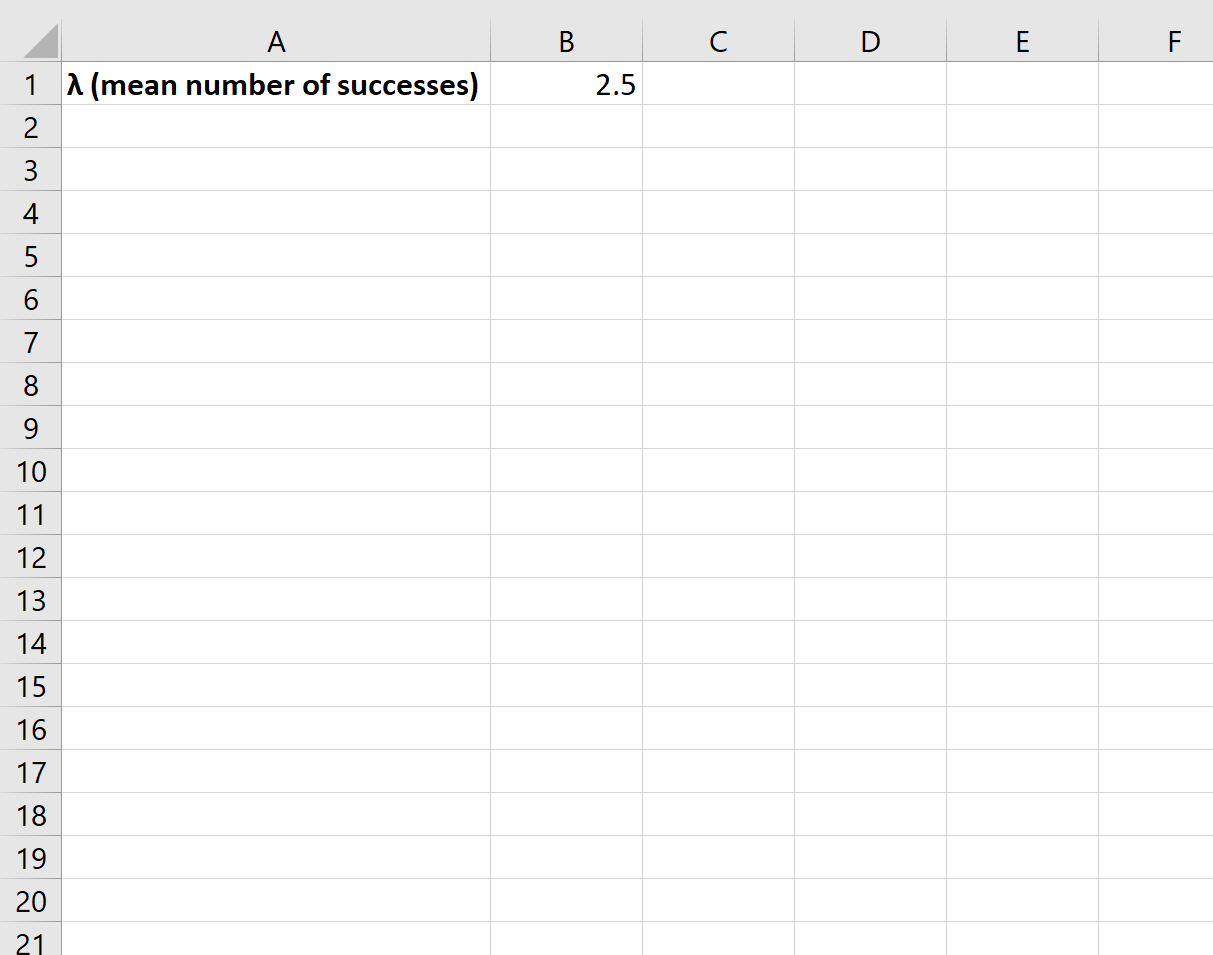

The initial phase of constructing the Poisson distribution graph requires careful preparation of the Excel worksheet layout. The first and most crucial step is to define the central parameter, λ (lambda), which establishes the expected average rate of events for the scenario under analysis. For our instructional exercise, we will select an initial, representative value for λ to create a baseline scenario for visualization.

Adhering to standard best practices in spreadsheet modeling, it is essential to dedicate a distinct, easily identifiable cell—for instance, cell A1—to house the value of λ. This organizational decision is not merely cosmetic; it is instrumental in ensuring the resulting graph is fully dynamic. By isolating the parameter, any subsequent changes made to the average rate (λ) will trigger an automatic, immediate update across all dependent calculations and, consequently, the visual chart.

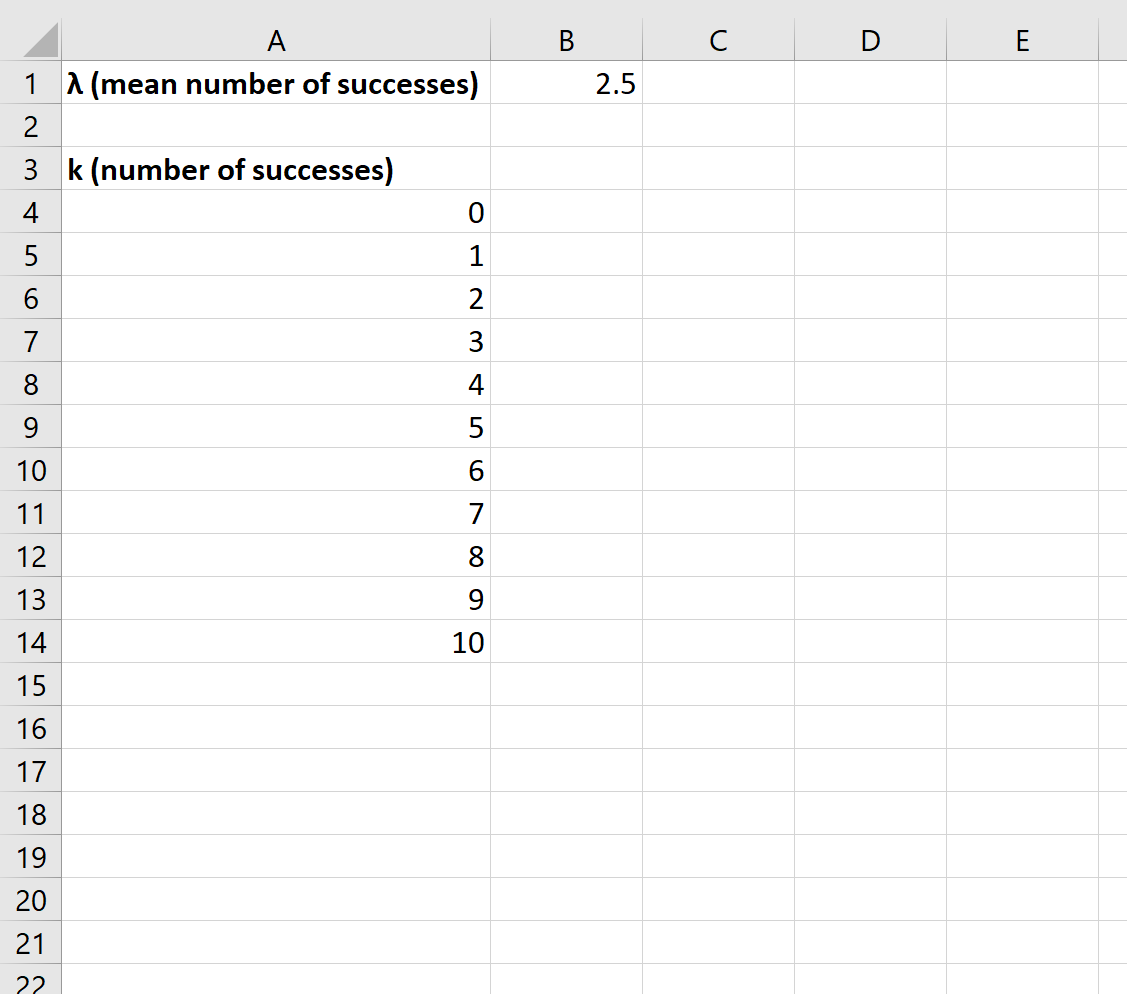

Following the definition of lambda, the next structural requirement is to create a second column that meticulously lists all possible outcomes, or the k values, representing the number of successes. Since the Poisson distribution is inherently discrete, these values must be sequential, non-negative integers that commence at zero. This column serves as the independent variable for our probability mass function (PMF).

Although the theoretical range for k extends infinitely, practical modeling requires listing values only until the calculated probability becomes statistically negligible, effectively rounding to zero. In this specific illustrative example, listing up to k = 10 possible successes is generally sufficient. For a typical range of λ values, probabilities diminish so rapidly that extending the list further adds computational load without providing meaningful statistical insight.

Step 2: Leveraging POISSON.DIST() for Probability Calculation

The necessity of performing complex manual calculations based on the Poisson formula is entirely eliminated by utilizing Excel’s specialized function, POISSON.DIST(). This function efficiently and accurately calculates the probability mass function (PMF) for discrete outcomes across the entire range of defined k values.

Understanding the structure and required inputs for this powerful statistical function is essential for correct implementation. The general syntax requires three distinct arguments:

POISSON.DIST(x, mean, cumulative)

1. x: This corresponds directly to k, the specific number of events whose probability is being analyzed. In our spreadsheet, this will be a relative reference to the cell containing the current k value.
2. mean: This corresponds to λ, the expected average number of events. Critically, this must be an absolute reference to the dedicated cell (A1) containing the lambda value to maintain model dynamism.
3. cumulative: This is a logical value (TRUE or FALSE). To accurately plot the individual probability for observing exactly k successes (which defines the height of the column in the graph), this argument must be explicitly set to FALSE. Setting it to TRUE would calculate the cumulative distribution function (CDF), which sums up probabilities up to k.

The next step involves populating a new column (e.g., Column B) with these derived probabilities. When writing the formula for the first cell (calculating P(X=0)), the reference to the lambda cell (A1) must utilize an absolute reference ($A$1) to prevent the reference from shifting when copied. Conversely, the reference to the k value (A2) must remain relative:

The precise formula to be entered is:

=POISSON.DIST(A2, $A$1, FALSE)

After successfully entering the formula into the initial probability cell, the process is streamlined by utilizing Excel’s drag-and-fill capability. Copying or dragging this formula down the column instantly generates the Poisson probability corresponding to every defined k value, thus completing the necessary data tabulation for visualization.

Step 3: Visualizing the Probability Mass Function with a Column Chart

With the numerical data accurately calculated, the final and most impactful step is transforming this data into an intuitive visual representation—the column chart. This chart effectively presents the probability mass function (PMF), illustrating the likelihood distribution across all possible outcomes.

To initiate the visualization process, begin by highlighting the column in the spreadsheet that contains the newly calculated Poisson probabilities (Column B). Next, direct your attention to the main application ribbon and navigate to the Insert tab in Excel.

Within the designated Charts group, select the option labeled Insert Column or Bar Chart. The 2-D Clustered Column chart is the statistically correct and most appropriate choice for this data set. Because the Poisson distribution deals with discrete, countable outcomes, the column chart format provides a clear, distinct representation of the probability associated with each individual integer value of k.

The resulting graph offers an immediate, clear visual depiction of the distribution. The horizontal axis (x-axis) effectively represents the number of successes (k), while the vertical axis (y-axis) quantifies the corresponding probability of that exact number of successes occurring. This visualization is immediately useful, clearly revealing the distribution’s inherent skew and locating its peak probability relative to the calculated mean λ.

Interpreting Distribution Shape and Dynamic Sensitivity Analysis

One of the primary advantages of utilizing a spreadsheet environment like Excel for statistical modeling is its inherent capability for rapid sensitivity analysis. Because the structure of the model demanded the use of an absolute reference for the defining parameter λ (in cell $A$1), the entire calculation and visualization framework is fully dynamic and responsive to change.

The entire morphology of the Poisson distribution is fundamentally defined by the magnitude of the λ value. When the mean rate λ is relatively small (e.g., values of 1 or 2), the distribution exhibits a characteristically heavy right-skew, indicating that zero occurrences or very low counts are the most probable outcomes. As the value of λ progressively increases, particularly approaching values of 10 or greater, the distribution gradually transforms, becoming increasingly symmetrical and beginning to closely approximate the characteristics of a normal distribution.

This dynamic linkage allows for powerful exploration. By simply altering the λ value in the designated input cell (A1), all intermediate calculated probabilities update instantaneously. This, in turn, causes the graph to shift its peak and change its shape, visually reflecting the new distribution immediately. For instance, modifying the expected mean rate from the initial setting of λ=2 to a higher rate of λ=4 instantly recalculates the distribution:

This dynamic adjustment capability is an invaluable asset for analysts. It enables them to explore hypothetical scenarios and instantly visualize how fluctuations in the expected rate of occurrence impact the likelihood of various operational or biological outcomes, facilitating robust risk assessment and predictive modeling.

Conclusion: Summary and Broad Professional Applications

The process of creating a Poisson distribution graph in Excel is a streamlined, technical procedure that successfully translates abstract statistical theory into concrete, highly interpretable visual models. The methodology relies on three critical steps: accurately establishing the mean rate (λ) with absolute referencing, calculating the discrete probabilities using the dedicated POISSON.DIST() function with the cumulative argument set to FALSE, and finally, inserting an appropriate column chart for visualization.

This technique is not confined to academic exercises; it is essential across a vast spectrum of professional disciplines. Key areas of application include industrial quality control (modeling defects per unit area), telecommunications (predicting network overload based on call frequency), financial risk management (modeling rare catastrophic events), and epidemiological studies (analyzing disease occurrences). The ability to model rare event frequency accurately is a powerful differentiator for data-driven organizations.

Ultimately, the efficiency, accessibility, and dynamic updating capabilities offered by the Excel platform establish it as an ideal environment for both foundational statistical education and advanced professional data analysis, ensuring that complex probabilistic concepts are made accessible and actionable for a wide audience.
