Create a Correlation Graph in Excel (With Example)

In the expansive and critical field of data analysis, deriving meaning from raw numbers hinges on understanding the relationships that exist between different factors. Analysts frequently require a robust visual tool to illustrate how two distinct sets of data, or variables, interact. This fundamental relationship is known as correlation, and its visualization is achieved most effectively through a correlation graph.

Microsoft Excel remains the industry standard for rapid data preparation and visualization, making it an ideal platform for constructing these insightful graphs. A well-crafted correlation graph provides immediate, intuitive insight into whether one variable tends to increase or decrease in tandem with another, serving as a critical first step in any statistical investigation. This tutorial is designed to provide a comprehensive, practical walkthrough, demonstrating precisely how to structure your data, construct the visual representation, and, crucially, quantify the relationship using Excel’s powerful built-in statistical functions.

By following this guide, you will gain a complete methodological understanding, moving beyond simple visualization to truly grasp the strength and direction of the bivariate relationship present in your data.

The Purpose and Power of Correlation Graphs

Before launching into the technical steps of chart creation, it is essential to establish a clear conceptual understanding of what a correlation graph—typically rendered as a scatterplot—is designed to convey. Fundamentally, a scatterplot is the most powerful graphical representation for assessing the relationship between two quantitative variables. Each marker plotted on the graph represents a single paired observation, where the x-axis value corresponds to the first variable and the y-axis value corresponds to the second.

The core utility of this visualization lies in its ability to immediately reveal the pattern of association. Analysts look for specific characteristics in the cluster of points: the form (is the relationship linear or curved?), the direction (is it positive or negative?), and the strength (how tightly clustered are the points around a potential line?). A positive association means the data points slope upward to the right, indicating that as the independent variable increases, the dependent variable tends to increase as well. Conversely, a negative association shows a downward slope, where an increase in one variable corresponds to a decrease in the other. If the points appear randomly scattered with no discernible pattern, it suggests a lack of linear correlation.

While the visual inspection offered by the scatterplot is invaluable for identifying outliers and understanding the general trend, it is inherently subjective. To provide an objective measure of the relationship, the graph must be complemented by a quantitative metric: the correlation coefficient. This numerical value standardizes the interpretation, offering a precise measure of the strength of the linear association, which we will calculate in later steps.

Step 1: Structuring and Preparing Data in Excel

The integrity of any statistical analysis, particularly visualization, relies entirely on the quality and structure of the input data. To successfully generate a correlation graph in Excel, your data must be arranged meticulously. You require a dataset containing at least two quantitative variables, ensuring that every observation has a corresponding value for both variables to maintain the integrity of the paired data points.

For optimal clarity and ease of analysis, the best practice is to organize your data into adjacent columns. Designate the variable you wish to plot on the X-axis (the independent variable) to the left, and the variable for the Y-axis (the dependent variable) immediately to its right. This setup streamlines the process of selecting the data range for chart creation. It is crucial to confirm that your data is clean, meaning there are no text entries within the numerical fields and no empty cells within the chosen range, as these elements can disrupt Excel’s charting capabilities.

To follow along with this tutorial, we will use a sample scenario examining the relationship between two hypothetical metrics, ‘Variable X’ and ‘Variable Y’. Please enter the following data into your Excel worksheet, ensuring the data begins in cell A1 with the column headers. This structured preparation is the critical foundation that ensures seamless chart generation and accurate statistical calculation.

Once your data resembles the structure shown above, with paired observations running down the rows, you are ready to proceed to the visualization phase. A clean, column-based arrangement minimizes the potential for errors during the selection and plotting process.

Step 2: Creating the Scatterplot Visualization

With the data organized correctly, the subsequent step is to leverage Excel’s charting tools to produce the scatterplot. This visualization is the definitive method for displaying the bivariate relationship required for a correlation analysis. It provides immediate feedback on the data distribution, helping to confirm initial hypotheses about the relationship’s nature.

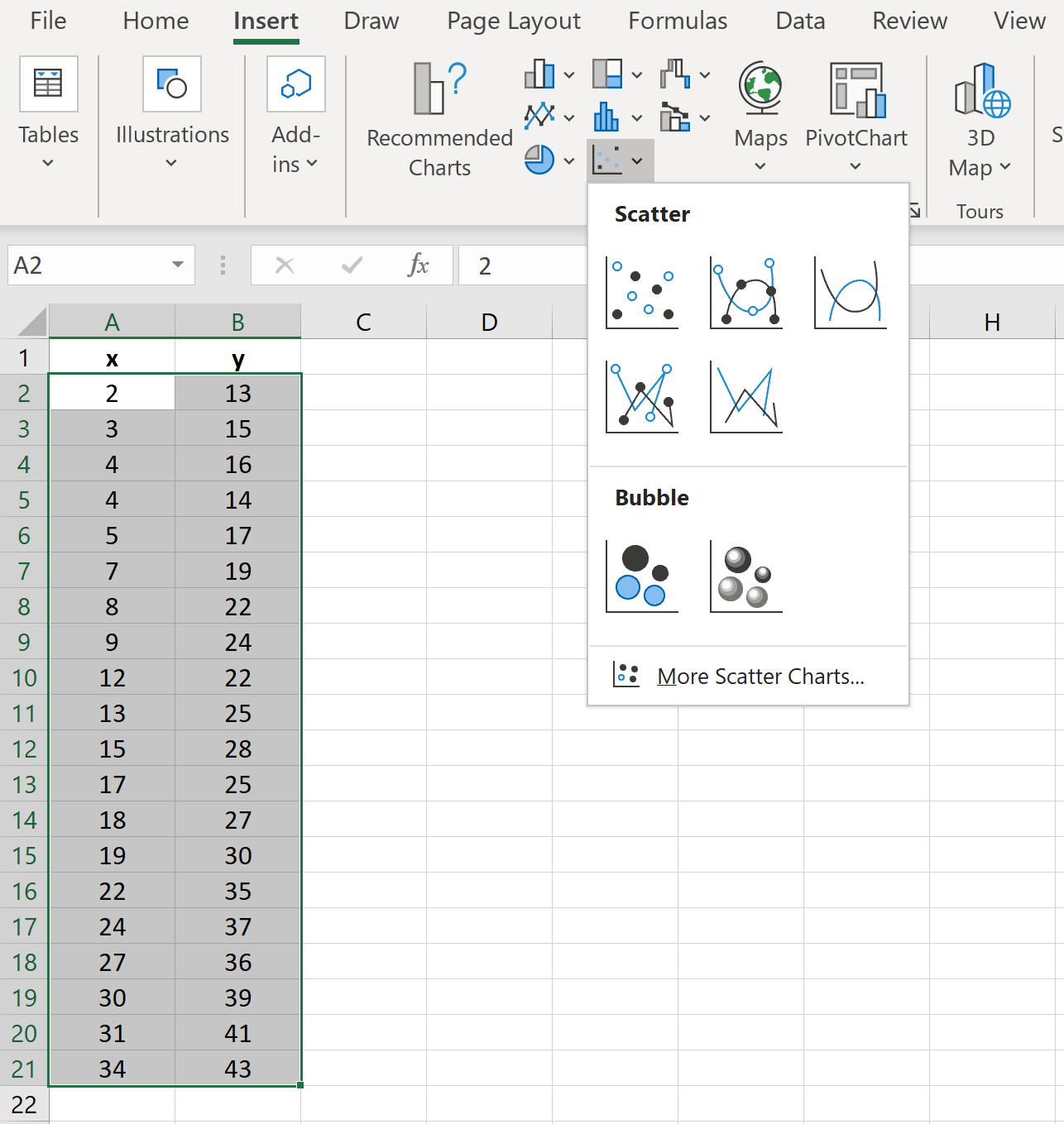

To generate the chart, you must first precisely define the data range. Using our example, highlight the entire numerical data range, specifically cells A2 through B21. Note that we exclude the header row (A1 and B1) unless you instruct Excel to use them as series names, although it is often cleaner to select only the raw data points initially. After selecting the required range, navigate to the main ribbon interface.

Click on the Insert tab located at the top of the Excel window. Within the Charts group—a collection of icons dedicated to various chart types—locate and click on the Insert Scatter (X, Y) or Bubble Chart icon. From the resulting dropdown menu, select the first option, which displays “Scatter with only Markers.” This action prompts Excel to instantly generate the chart and embed it within your worksheet. This immediate visual output allows for the first critical assessment of the data relationship.

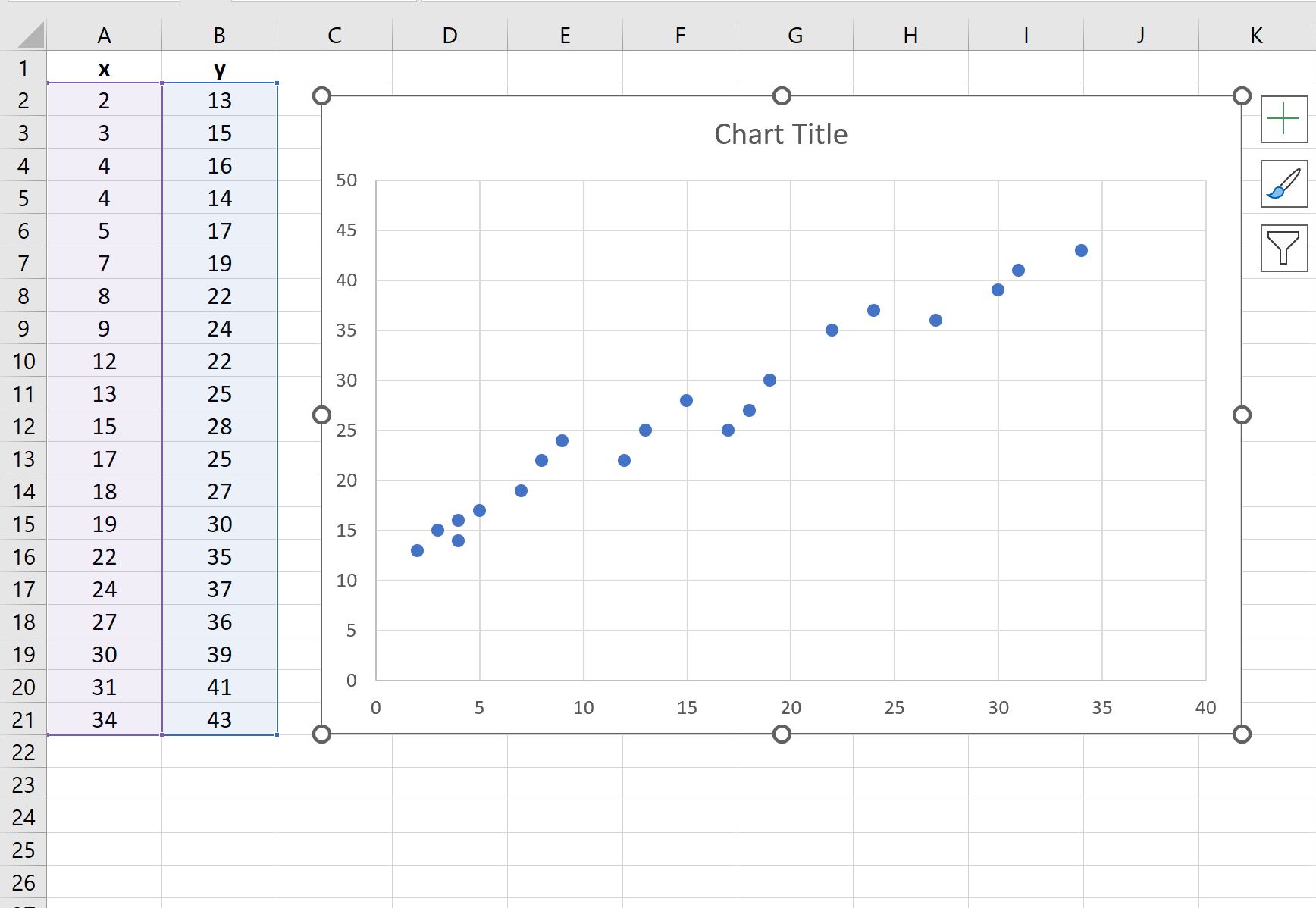

Upon its creation, the resultant scatterplot will graphically represent the 20 paired observations. By visually inspecting the resulting pattern, you can gain an initial, intuitive understanding of the relationship. In this specific case, observe how the points tend to follow a tight, linear, upward trajectory, suggesting a strong positive association between Variable X and Variable Y.

Step 3: Quantifying the Relationship with the Correlation Coefficient

While the visual evidence provided by the scatterplot strongly suggests a relationship, statistical rigor demands a precise, numerical measure of the strength and direction of the linear association. This measure is the Pearson correlation coefficient (r). Fortunately, Excel simplifies this calculation significantly through the use of the CORREL function.

To calculate the correlation coefficient, locate an empty cell in your worksheet—for instance, cell A23—where you want the calculated value to be displayed. Then, input the following formula into the formula bar. The CORREL function requires two primary arguments: array1, which is the range for the first variable (X), and array2, which is the range for the second variable (Y).

=CORREL(A2:A21, B2:B21)

Once the formula is correctly entered, pressing the Enter key will execute the calculation, yielding the precise coefficient value. This numerical result provides the objective quantification necessary to complement the visual interpretation derived from the scatterplot.

For the sample dataset utilized in this example, the resulting correlation coefficient is approximately 0.9835. This high positive value is not merely a number; it is a critical summary statistic that confirms the initial visual assessment of the data, indicating a nearly perfect positive linear association between the two variables.

Interpreting the Correlation Coefficient (r)

The correlation coefficient, symbolized by ‘r’, is a standardized metric designed to assess the strength and direction of a linear relationship. Its value is always confined within a strict range, extending from -1.0 to +1.0. Understanding the meaning of values across this spectrum is paramount for accurate data interpretation.

The boundary values represent the strongest possible linear relationships:

• A coefficient of r = -1.0 signifies a perfect negative linear correlation. In this scenario, every increase in one variable corresponds to a perfectly predictable and constant decrease in the other. Graphically, the data points form a perfectly straight line sloping downward.
• A coefficient of r = 0 indicates no linear correlation. This means that there is no consistent linear trend connecting the two variables. Changes in one variable do not linearly predict changes in the other, resulting in a scatterplot where the points are dispersed randomly.
• A coefficient of r = 1.0 signifies a perfect positive linear correlation. Here, every increase in one variable is matched by a perfectly predictable and constant increase in the other. Visually, the data points align perfectly along a straight line sloping upward.

For values falling between these extremes, the closer the absolute value of ‘r’ is to 1, the stronger the linear relationship. Conversely, the closer ‘r’ is to 0, the weaker the linear relationship. Our calculated coefficient of 0.9835 is exceptionally close to 1, confirming a very strong positive linear correlation. This result means that as the values of Variable X rise, the values of Variable Y increase almost perfectly predictably, which is strongly supported by the tight clustering of points observed in the scatterplot.

A critical statistical caveat must always accompany the discussion of correlation: correlation does not imply causation. While our analysis confirms that the two variables move together in a highly consistent manner, this numerical association alone cannot prove that Variable X causes the changes in Variable Y. The relationship could be driven by a third, unobserved confounding variable, or it might simply be a spurious coincidence. The correlation coefficient quantifies association only, leaving the determination of causality to more rigorous experimental design and statistical models.

Conclusion and Next Steps in Data Analysis

Through this detailed, step-by-step process, you have mastered the essential skills of creating a correlation graph in Excel and calculating the quantitative measure of the relationship using the CORREL function. This combination of powerful visual data exploration and objective quantitative statistical analysis forms the cornerstone of effective bivariate analysis.

The ability to accurately visualize and quantify correlation is indispensable across diverse analytical domains, from finance and market research to scientific inquiry and social data analysis. By always considering both the visual trend presented in your scatterplot and the precise value of the correlation coefficient, you ensure a comprehensive and defensible interpretation of how factors interact within your dataset. Remember that while Excel is user-friendly, the conceptual rigor of interpreting the coefficient and avoiding the assumption of causation is what truly defines expert data analysis.

For those seeking to advance their data modeling capabilities, the natural progression from correlation analysis is to explore predictive modeling. Techniques such as regression analysis build directly upon the foundation established here, allowing you to not only measure association but also to create equations that predict the value of one variable based on the value of another.
